N6C-SX-200802.11 Wireless Device Server

User’s Guide Document #40181-420 Rev. A 1 SX-200 User’s Manual User’s Guide Document #40181-420 Rev. A 2 Section 1 – Product Overview .......................................................................................................................................7 Introduction ...............................................................................................................................................................7 Package Contents.......................................................................................................................................................7 About This User’s Guide ...........................................................................................................................................8 Windows ™ System Requirements ..............................................................................................................................8 Other Operating System Requirements .....................................................................................................................8 Wireless Print Server Requirements ..........................................................................................................................9 Print Server Components .........................................................................................................................................10 LED Indicators ....................................................................................................................................................11 Pushbutton Functions...........................................................................................................................................12 Factory Default Settings ..........................................................................................................................................12 Default Settings (wired and wireless print servers) .............................................................................................12 Wireless Default Settings (wireless print servers only) .......................................................................................12 Section 2 – Hardware Installation................................................................................................................................13 Before You Begin ....................................................................................................................................................13 Hardware Installation (wired and wireless versions) ...............................................................................................13 Verifying the Connection to the Printer...................................................................................................................15 Section 3 – Configuration and Management ...............................................................................................................16 Configuration Options .............................................................................................................................................16 ExtendView Utility ..............................................................................................................................................16 Web Browser Interface ........................................................................................................................................16 HP Web JetAdmin Utility....................................................................................................................................17 Configuration Console.........................................................................................................................................17 Configuring the Print Server via an Ethernet Connection .......................................................................................18 First-Time Configuration of the Wireless Print Server Using 802.11b or 802.11g (wireless print servers only)....20 Windows Print Queue Configuration ......................................................................................................................21 Macintosh Print Queue Configuration .....................................................................................................................22 Configuring to Print Using TCP/IP (OS 10.x).....................................................................................................23 Section 4 – Troubleshooting ........................................................................................................................................24 Introduction .............................................................................................................................................................24 Printing Problems ....................................................................................................................................................24 Checking the Interface between the Print Server and the Printer: .......................................................................24 Checking the Network Connection and Cabling: ................................................................................................25 Troubleshooting Windows Problems.......................................................................................................................25 Troubleshooting Network Configuration Problems.................................................................................................26 Troubleshooting Wireless Configuration Problems.................................................................................................27 Section 5 – Where to Get Help ....................................................................................................................................28 Returning Products ...................................................…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM Operating Frequency in USA: 2412-2462 MHz, 5150-5350 MHz, 5725-5850 MHz Operating Frequency in Europe: 2412-2472 MHz, 5150-5350 MHz, 5470-5725 MHz System BUS CPU CAVIUM CN201-A Flash RAM 2M Bytes SDRAM 4M Bytes PHY controller RTL8201CP-25MHz USB controller UPD720101F1 Parallel Port AT7601F LEDs LAN port RJ45 STP USB Connecter Print Port DB25 STP Mini PCI module Debug Consol

SX-200 Print Server Rated + 12VDC 800mA Model: SX-200 FCC ID: N6C-SX-200 IC: 4908A-SX-200 0560 47181-470 Rev A Artwork part number 47181-470 Rev A Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Location:

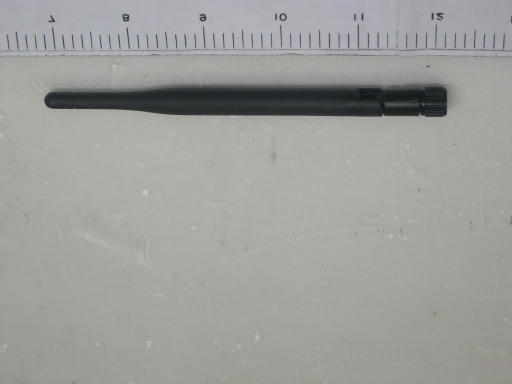

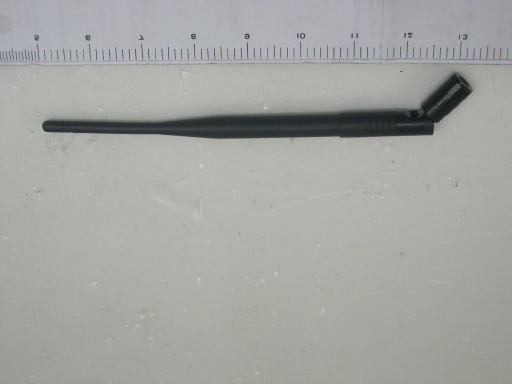

Antenna 1 Antenna 2 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 2 of 8 FCC Test Report: FI06030902-A 06030902-A 06030902-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 3 of 8 FCC Test Report: FI06030902-A 06030902-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 4 of 8 FCC Test Report: FI06030902-A 06030902-A 06030902-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 5 of 8 FCC Test Report: FI06030902-A 06030902-A 06030902-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 6 of 8 FCC Test Report: FI06030902-A 06030902-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 7 of 8 FCC Test Report: FI06030902-A 06030902-A 06030902-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 8 of 8 FCC Test Report: FI06030902-A 06030902-A 06030902-A

1.1. Test Result of RF Exposure Evaluation . Product: 802.11 Wireless Device Sever . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Transmit / Receive 1.1.1. Antenna Gain Antenna Gain is 3 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Frequency Range: 5.15 – 5.35 GHz Test Rate: 802.11a (54 Mbps) Test Date: Apr. 29, 2006 Temperature: 25 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 5180 15.88 0.0150 04 5240 15.97 0.0160 05 5260 15.97 0.0160 08 5320 15.99 0.0160 Frequency Range: 5.725 – 5.850 GHz Test Rate: 802.11a (54 Mbps) Test Date: Apr. 29, 2006 Temperature: 25 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 09 5745 15.90 0.0150 11 5785 15.23 0.0130 13 5825 14.59 0.0110 The MPE is calculated as 0.0160 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 1 of 45 FCC Test Report: FE06030902-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart E Laboratory accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Silex Technology Inc. Address 15-15 Takaida, Higashiosaka-shi, Osaka 577-0053 Japan Equipment 802.11 Wireless Device Server Model No. SX-200 Series No. SX-600, XRX-600 FCC ID N6C-SX-200 Trade Name Silex Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 2 of 45 FCC Test Report: FE06030902-A CONTENTS CERTIFICATE OF COMPLIANCE................................................................................................................. 4 1. Report of Measurements and Examinations.........................................................................................5 1.1. List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ......................................................................................... 6 2.1. Feature of Equipment under Test............................................................................................... 6 2.2. RF Specifications ....................................................................................................................... 6 2.3. Test Mode and Test Software.....................................................................................................7 2.4. Description of Test System......................................................................................................... 7 2.5. Connection Diagram of Test System.......................................................................................... 8 3. General Information of Test................................................................................................................... 9 3.1. Description of series model........................................................................................................ 9 3.2. History of this test report ............................................................................................................ 9 4. Antenna Requirements ....................................................................................................................... 10 4.1. Standard Applicable .................................................................................................................10 4.2. Antenna Construction and Directional Gain............................................................................. 10 5. Test of Conducted Emission ...............................................................................................................10 5.1. Test Limit .................................................................................................................................. 11 5.2. Test Procedures ....................................................................................................................... 11 5.3. Typical Test Setup ....................................................................................................................12 5.4. Measurement equipment ......................................................................................................... 12 5.5. Test Result and Data................................................................................................................13 5.6. Test Photographs .....................................................................................................................17 6. Test of Radiated Emission .................................................................................................................. 18 6.1. Test Limit .................................................................................................................................. 18 6.2. Test Procedures .......................................................................................................................18 6.3. Typical Test Setup ....................................................................................................................19 6.4. Measurement equipment ......................................................................................................... 19 6.5. Test Result of Radiated Emission ............................................................................................ 20 6.6. Test Photographs .....................................................................................................................28 7. Peak Transmit Power.......................................................................................................................... 29 7.1. Test Procedure .........................................................................................................................29 7.2. Test Setup Layout ....................................................................................................................29 7.3. Measurement equipment ......................................................................................................... 29 7.4. Test Result and Data................................................................................................................29 8. Peak Power Excursion........................................................................................................................ 34 8.1. Test Procedure…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 21 of 79 FCC Test Report: FI06030902-A 4.7 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 08, 2006 48 of 79 FCC Test Report: FI06030902-A 5.7 Test Photographs Front View Rear View
