N6C-SXNEWAHEmbedded Wireless Module

User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). FCC Notice This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. List of applicable FCC rules This device complies with below part 15 of the FCC Rules. Part 15 Subpart C Additional testing, Part 15 Subpart B disclaimer The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. Summarize the specific operational use conditions This module designed for mounting inside of the end product by end product manufacturer professionally. Therefore, it complies with the antenna and transmission system requirements of §15.203. RF exposure considerations This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Co-Location Rule This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Label and compliance information Following information must be indicated on the host device of this module. Contains Transmitter Module FCC ID：N6C-SXNEWAH Or Contains FCC ID：N6C-SXNEWAH FCC CAUTION The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the userbs authority to operate the equipment. Antenna List Vender Model No. Antenna Type Antenna Gain [dBi] STAF T16-062-1022 PCB 3.0 ethertronics 9000984-XLPDNB ROD 3.4 PSA (Walsin) RFDPA131000SMRB801 ROD 3.01 Invax AN0915-13D01BSM ROD 2.00 SaemON Technology SME–G0900DEN ROD 1.26 Limited module procedures This module needs to supply a regulated voltage to VDDFEM from host device. ISED Notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Label and compliance information The following information must be indicated on the host device of this module. Contains Transmitter Module IC: 4908A-SXNEWAH Or Contains IC: 4908A-SXNEWAH RF exposure considerations This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’ISDE. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain. Antenna Type This radio transmitter (4908A-SXNEWAH) has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Antenna Type Gain Impedance Rod Antenna 3.4dBi 50ohms PCB Antenna 3.0dBi 50ohms Le présent émetteur radio (4908A-SXNEWAH) a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur. Type d'antenne Gain Impedance Antenne à tige 3.4dBi 50ohms Antenne PCB 3.0dBi 50ohms Limited module procedures This module needs to supply a regulated voltage to VDDFEM from host device. Ce module doit fournir une tension régulée à VDDFEM à partir du périphérique hôte.

External Photo silex technology, Inc. Model: SX-NEWAH External Photo silex technology, Inc. Model: SX-NEWAH Antenna: T16 -062-1022 External Photo silex technology, Inc. Model: SX-NEWAH Antenna: 9000984-XLPDNB External Photo silex technology, Inc. Model: SX-NEWAH Antenna: RFDPA131000SMRB801 External Photo silex technology, Inc. Model: SX-NEWAH Antenna: AN0915-13D01BSM External Photo silex technology, Inc. Model: SX-NEWAH Antenna: SME–G0900DEN

1 F E D 23 C B A 1 234 CHANGE OF CONTENTSREVIS FIRST EDITION DATEDESIGN × × × × × SHEET MATERIAL APPROVEDCHECKED DWG No. TITLE FINISH SCALE F E D C B A A4 SIZE Confidential © silex technology, Inc. 1/12 : 1 2019.12.25T.KimotoT.MinobeK.Okazaki Label Position Drawing KP100420XX 27 20.5 3.1 silex technology,Inc. XXXXXX XXXXXX Model:SX-NEWAH FCC ID:N6C-SXNEWAH IC:4908A-SXNEWAH R-NZ Fabriqué au Japon Made in Japan Note ・ EMIラベルは、 シールド板よりはみ出ない事。 (The EMI label must be attached within the shield plate.)

Internal Photo silex technology, Inc. Model: SX-NEWAH

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 RF Exposure / MPE Calculation No. : 13128136H-A Applicant : silex technology, Inc. T ype of Equipment : Embedded Wireless Module Model No. : SX-NEWAH FCC ID : N6C-SXNEWAH silex technology, Inc. declares that Model: SX-NEWAH complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SX-NEWAH“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P = 240.44 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-averaging Burst power average was used for the above value in consideration of worst condition. G = 2.188 Numerical Antenna gain; equal to 3.4dBi r = 20 cm (Separation distance) 0.10465 mW/cm 2 Power Density Result S = 2 4r GP S     Even taking into account the tolerance, this device can be satisfied with the limits.

Test report No. : 13128136H-A-R4 Page : 1 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 16.0 RADIO TEST REPORT Test Report No. : 13128136H-A-R4 Applicant : silex technology, Inc. T ype of EUT : Embedded Wireless Module Model Number of EUT : SX-NEWAH FCC ID : N6C-SXNEWAH Test re gulation : FCC Part 15 Subpart C: 2019 Test Result : Com plied (Refer to SECTION 3.2) Da te of test: March 13 to 23, 2020 Representative test engineer: Takafumi Noguchi Engineer Consumer Technology Division A pproved by: Satofumi Matsuyama Engineer Consumer Technology Division This report contains data that are not covered by the NVLAP accreditation. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2 . The results in this report apply only to the sample tested . 3. Thi s sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standard s. 5. Thi s test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 6. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab . 7. Thi s test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or an y agency of the U.S. Government. 8. The information provided from the customer for this report is identified in SECTION 1. 9. This report is a revised version of 13128136H-A-R3. 13128136H-A-R3 is replaced with this report . This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredite d/ Test report No. : 13128136H-A-R4 Page : 2 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 1MHz 903.5MHz 915.5MHz 926.5MHz 0.1.2.3.4.5.10 26 26 25 6 22 22 22 7 19 19 19 2MHz 905.0MHz 917.0MHz 925.0MHz 0.1.2.3.4. 26 26 25 5 25 25 25 6 20 20 20 7 19 19 19 4MHz 910.0MHz 918.0MHz 922.0MHz 0.1.2.3.4.5 25 25 25 6 20 20 20 7 19 19 19 REVISION HISTORY Original Test Report No.: 13128136H-A Revision Test report No. Date Page revised Contents - (Original) 13128136H-A April 6, 2020 - - 1 13128136H-A-R1 April 23, 2020 P 9 ・Correction of Power settings in SECTION 4.1 → ・Correction of Remarks of IEEE 802.11ah (2 MHz) in SECTION 4.1 MCS 7→MCS 0 1 13128136H-A-R1 April 23, 2020 P 15 ・Correction of Span, Detector and Trace for Peak Power Density in Test Procedure of SECTION 7 Span:1.5 times the 6dB Bandwidth→1.5 times the OBW Detector: Peak→Average Trace: Max Hold→100 traces ・Correction of explanatory note *2) in Test Procedure of SECTION 7 ‘Section 11.10.2 Method PKPSD (peak PSD) of "ANSI C63.10-2013".’ → ‘Section 11.10.3 Method AVGPSD-1 of "ANSI C63.10-2013".’ 1 13128136H-A-R1 April 23, 2020 P 33, 34, 35 ・Addition of below explanatory note *1. of Maximum Average Output Power in APPENDIX 1: Test data *1.Duty factor is 98% or more, so Duty factor is not added. ・Correction of rate of Maximum Average Output Power in APPENDIX 1: Test data 1 MHz: → 2 MHz: → 4 MHz: → 2 13128136H-A-R2 April 24, 2020 P 15 Addition of Span for 6dB Bandwidth in Test Procedure of SECTION 7 3 MHz (for 1MHz) /5 MHz (for 2MHz) /7 MHz (for 4MHz) 3 13128136H-A-R3 May 14, 2020 P 6 Correction of Sentences of FCC Part 15.31 (e) in SECTION 3.2 The RF Module has its own regulator. The RF Module is constantly provided voltage through the regulator regardless of input voltage. →The EUT has the power supply regulator. However one of the input voltages to RF part doesn’t go through the regulator. The stable voltage will be supplied by the end product, which will be required to have a power supply regulator. 4 13128136H-A-R4 May 21, 2020 P 6 Correction of Sentences of FCC Part 15.31 (e) in SECTION 3.2 The stable voltage will be supplied by the end product, which will be required to have a power supply regulator.→ The stable volta ge was supplied to the EUT from the host jig during the tests. 915.5MHz Rate Reading Reading Remark MCSLGISGI [dBm] [dBm] 107.817.74 *LGI 07.69- 17.71- 27.67- 37.69- 47.73- 57.75- 67.76- 77.77- *: Worst Rate 915.5MHz Rate Reading Reading Remark MCSLGISGI [dBm] [dBm] 106.776.73 *LGI 06.51- 16.35- 26.72- 36.67- 46.58- 56.53- 60.79- 7-0.99- *: Worst Rate 917.0MHz Rate Reading Reading Remark MCSLGISGI [dBm] [dBm] 07.76- 17.56- 27.73- 37.75- 47.84- 57.85- 67.87- 77.977.82 *LGI *: Worst Rate 917.0MHz Rate Reading Reading Remark MCS LGISGI [dBm] [dBm] 06.506.48 *LGI 16.44- 26.41- 36.46- 46.44- 55.16- 6-2.01- 7-3.03- *: Worst Rate 918MHz Rate Reading Reading Remark MCS LGISGI [Mbps] [dBm] [dBm] 07.477.41 *LGI 17.34- 27.35- 37.30- 47.33- 57.30- 67.33- 77.37- *: Worst Rate 918MHz Rate Reading Reading Remark MCS LGISGI [Mbps] [dBm] [dBm] 04.604.57 *LGI 14.50- 24.56- 34.49- 44.51- 54.55- 6-1.79- 7-2.46- *: Worst Rate 1MHz 903.5MHz 915.5MHz 926.5MHz 26 26 25 2MHz 905.0MHz 917.0MHz 925.0MHz 26 26 25 4MHz 910.0MHz 918.0MHz 922.0MHz 25 25 25 Te st report No. : 13128136H-A-R4 Page : 3 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hoppin…

Text truncated - open the document above for the full version.

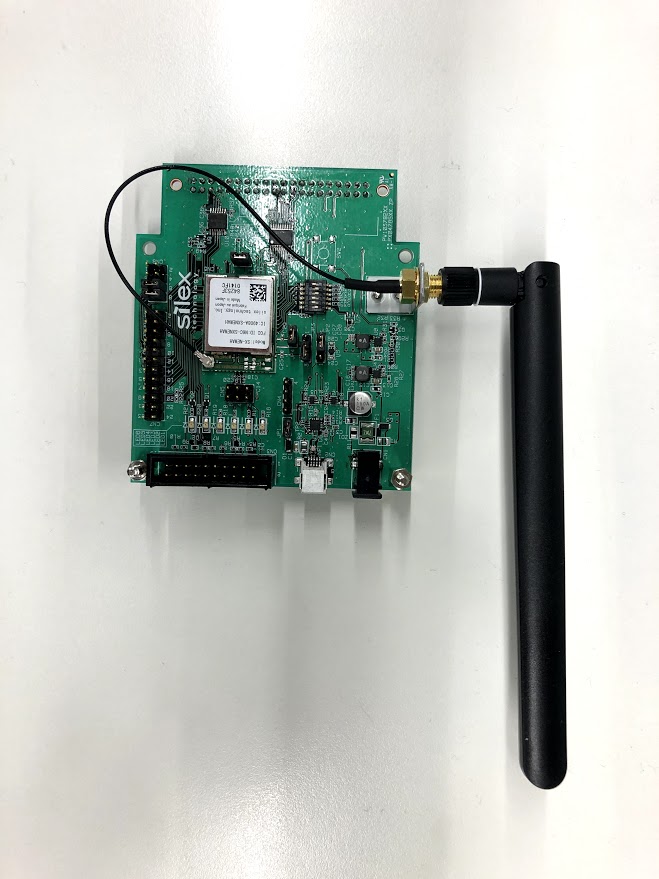

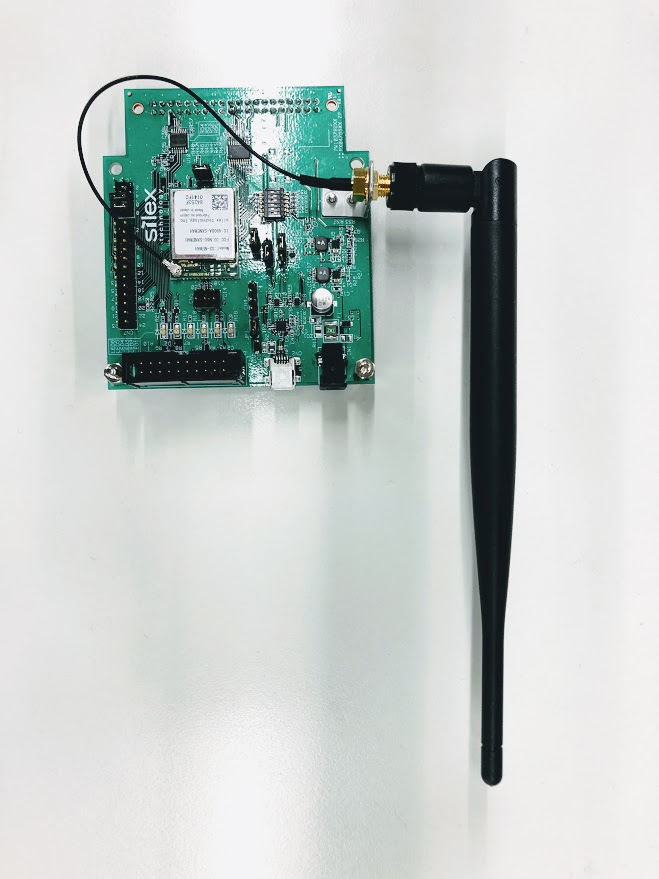

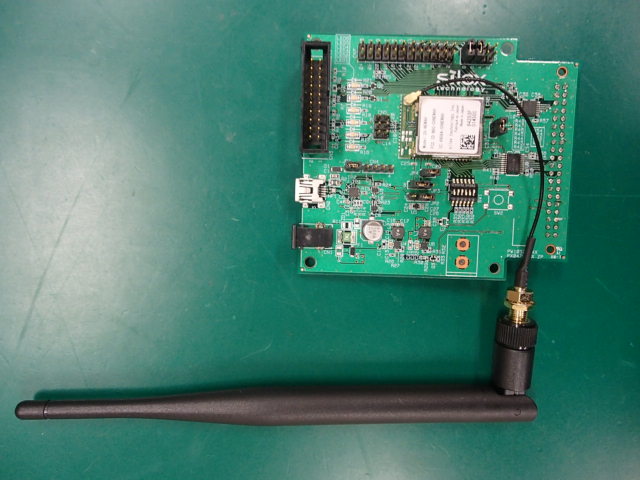

Test report No. : 13128136H-A-R4 Page : 102 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission (PCB Antenna) Photo 1 Photo 2 Test report No. : 13128136H-A-R4 Page : 103 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Conducted Emission (ROD Antenna) Photo 1 Photo 2 Test report No. : 13128136H-A-R4 Page : 104 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission (Below 1 GHz) PCB Antenna Photo 1 Photo 2 Test report No. : 13128136H-A-R4 Page : 105 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission (Above 1 GHz) PCB Antenna Photo 1 Photo 2 Test report No. : 13128136H-A-R4 Page : 106 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission (Below 1 GHz) ROD Antenna Photo 1 Photo 2 Test report No. : 13128136H-A-R4 Page : 107 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission (Above 1 GHz) ROD Antenna Photo 1 Photo 2 Test report No. : 13128136H-A-R4 Page : 108 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (PCB Antenna and Module) Below 1 GHz (Module Horizontal: Z-axis/ Vertical:Y-axis) (PCB Antenna: Horizontal: X-axis/ Vertical:Z-axis) Above 1 GHz (Module : Horizontal: Z-axis/ Vertical:Y-axis) (PCB Antenna: Horizontal: Y-axis/ Vertical:Z-axis) Module PCB Antenna X-axis X-axis Y-axis Y-axis Z-axis Z-axis Test report No. : 13128136H-A-R4 Page : 109 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position(ROD Antenna and Module) (Below 1 GHz) (Module Horizontal: Z-axis/ Vertical:Z-axis) (ROD Anttenna: Horizontal: X-axis/ Vertical:Y-axis) Above 1 GHz (Module: Horizontal: Z-axis/ Vertical:Y-axis) (ROD Antenna: Horizontal: Z90-axis/ Vertical:X90-axis) Module X-axis Y-axis Z-axis Test report No. : 13128136H-A-R4 Page : 110 of 110 Issued date : May 21, 2020 FCC ID : N6C-SXNEWAH UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 ROD Antenna X0-axis X45-Axis X90-Axis Y0-axis Y45-Axis Y90-Axis Z0-axis Z45-Axis Z90-Axis End of Report
