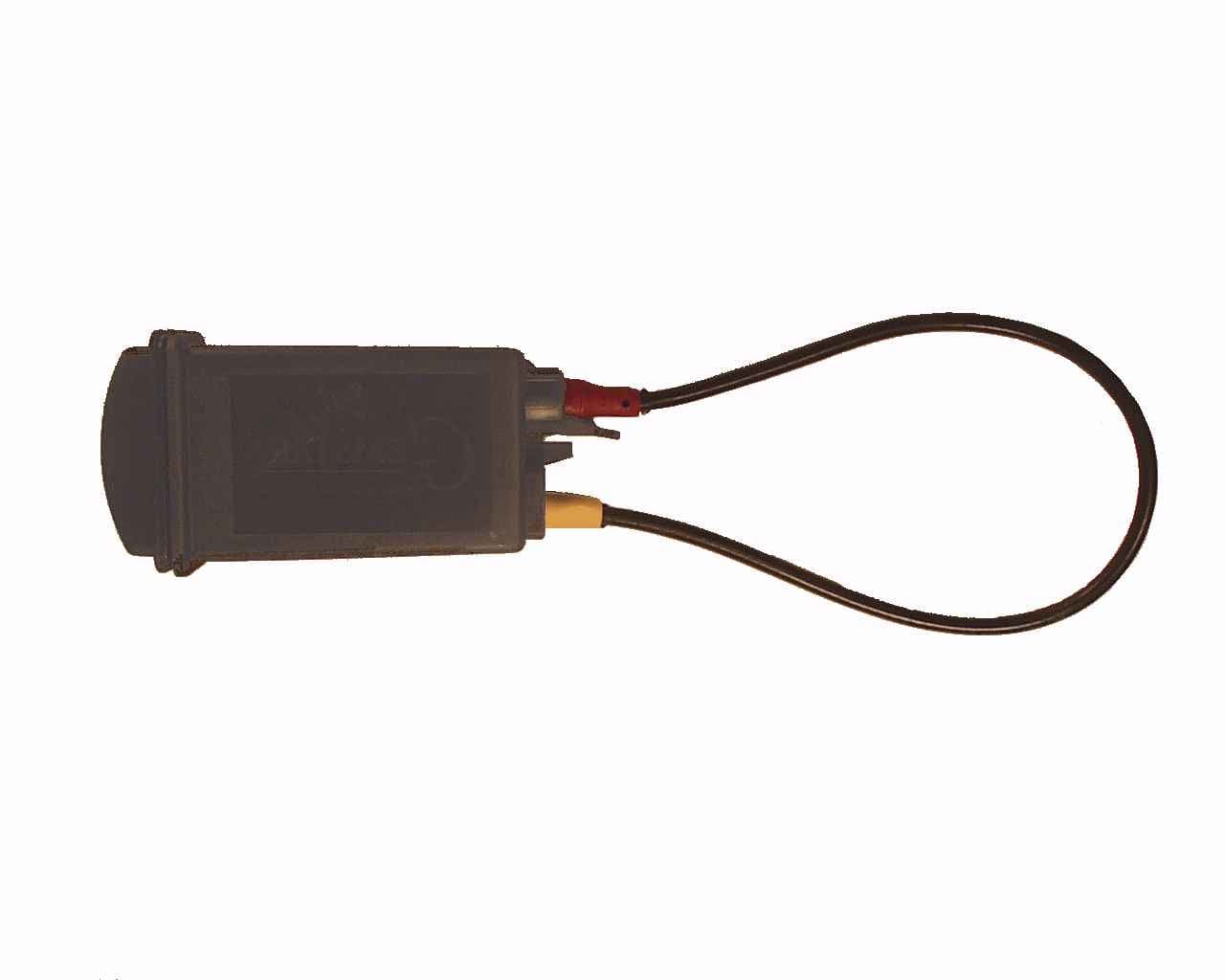

N6OGSAMATB01Automated Inventory Control System (AICS) Asset Ta

Technical Manual Automated Inventory Control System Gemstar Communications Inc. 760 Pacific Road, Unit 7, Oakville, Ontario L6L 6M5 Section i - NoticeGemstar Communications Inc. Revision 0 11-Sep-98Page i Notice Copyright © 1998 Gemstar Communications Inc. ("Gemstar"). The information herein is provided without liability to any user. While every effort has been made to verify the accuracy and completeness of this information, Gemstar makes no guarantee as to its accuracy or applicability for any particular use. In every instance, it is the user's responsibility to determine the suitability of this product for their application. Gemstar reserves the right to revise product hardware, software, or documentation without obligation to notify any person or organization. Nothing contained herein shall be construed as a recommendation to use any product in violation of patents or other rights of third parties. The sale of any Gemstar product is subject to all Gemstar Terms and Conditions of Sale and Sale Policies, copies of which can be provided upon request. This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this document may be copied or reproduced in any form without the express written permission of Gemstar. Trademarks Product names mentioned in this manual may be trademarks, and they are used for identification only. User Comments In order for us to maintain the quality of our publications, we invite our customers to forward comments or suggestions to help us improve the effectiveness of this manual. Part Number 1020010, Revision 0 First Printing: August, 1998 Printed in Canada Section ii - Table of ContentsGemstar Communications Inc. Revision 0 11-Sep-98Page ii Table of Contents Notice.....................................................................................................................i Table of Contents..................................................................................................ii System Overview.................................................................................................1 System Description...........................................................................................1 Technical Summary..........................................................................................2 Use and Purpose..........................................................................................2 Radio Frequencies........................................................................................2 RF Power Output and Field Strength............................................................2 Time Lines/Duty Cycle..................................................................................2 System Block Diagram.....................................................................................4 Regulatory Approval Label Diagram.................................................................5 Component Description........................................................................................7 Asset Management Tag....................................................................................7 Tag Function.................................................................................................7 Tag Model Numbers......................................................................................8 Tag Diagnostic Lights....................................................................................8 Tag Attachment and Test Procedure............................................................8 Tag Schematic Diagram & Parts List............................................................9 MicroCell.........................................................................................................10 MicroCell Function......................................................................................10 MicroCell Model Numbers...........................................................................10 MicroCell Diagnostic Lights.........................................................................11 MicroCell Schematic Diagram & Parts List..................................................11 On-Site Controller...........................................................................................12 On-Site Controller Function.........................................................................12 OSC Model Numbers..................................................................................12 OSC Diagnostic Lights................................................................................13 Maintenance Procedures...................................................................................14 Principles of Operation...................................................................................14 Installation Guide............................................................................................14 Installation Checklist...................................................................................14 Installation Procedures................................................................................16 Block Diagram of Tag RF and Modulating Circuitry........................................18 Block Diagram of MicroCell RF and Modulating Circuitry...............................18 Block Diagram of On-Site Controller RF and Modulating Circuitry.................18 Performance Specifications............................................................................19 Tag..............................................................................................................19 MicroCell.....................................................................................................19 On-Site Controller.......................................................................................19 Host Computer Requirements.....................................................................20 Section ii …

Text truncated - open the document above for the full version.

FCC DECLARATION OF CONFORMITY (DoC) Applicant’s Name & Address:GEMSTAR COMMUNICATION INC. 760 Pacific Road, Unit 7 Oakville, Ontario Canada L6L 6M5 Contact Person: Richard E. Bonham Telephone No: (905) 847-3832 Fax No.: (905) 847-3016 Email Address: [email protected] U.S. Representative’s Name & Address:Contact Person:Martin Cole 2025 Rogers St. Clearwater Florida 337-57 Telephone No:813 443 4236 Fax No.:813 443 5313 Email Address:[email protected] FCC DoC Accredited Test Lab.:UltraTech Engineering Labs Inc. 4181 Sladeview Crescent, Unit 33 Mississauga, Ontario Canada L5L 5E1 Equipment Type/Environment:Radio Receivers operating in the frequency band from 902-928 MHz Trade Name / Model No.:Automated Inventory Control System (MicroCell), Model GSAM-CEL-01 Year of Manufacture:1998 Standard(s) to which Conformity is Declared: The Automated Inventory Control System (MicroCell), Model GSAM-CEL-01, supplied by GEMSTAR COMMUNICATIONS INC., has been tested and found to comply with FCC PART15, SUBPART B - RADIO RECEIVERS AND CLASS B UNINTENTIOANAL RADIATORS. For detailed information please refer to the engineering test report, UltraTech File No.: GCI1-FTX, dated August 25, 1998. I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

UltraTech Group of Labs 2 33-4181 Sladeview Crescent, Mississauga, Ontario, Canada L5L 5R2 Telephone (905) 569-2550 Facsimile (905) 569-2480 Web Site: www.ultratech-labs.com Email: [email protected] August 25, 1998 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Certification Application under FCC Part 15, Subpart C, Para. 15.249, Low Power Transmitters Operating at 904.512 MHz. Applicant:GEMSTAR COMMUNICATIONS INC. Product:Automated Inventory Control System (AICS) Asset Tag Model:GSAM-ATB-01 FCC ID:N6OGSAMATB01 Dear Sir/Madam, As appointed agent for GEMSTAR COMMUNICATIONS INC., we would like to make an application for certification to FCC. Attached in the FCC OET filing system you will find all exhibits as FCC requirements for certification application. Attached please also find the “Declaration of Conformity” (Doc.PDF file) that the associated radio receiver, Gemstar AICS MicroCell Model GSAM-CEL-01, has been tested and found to comply with FCC Part 15, Subpart B – All other receivers. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.:1-800-263-7670 E-MAIL ADDRESS:[email protected] Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/AK Encl. FEDERAL COMMUNICATIONS COMMISION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject:AUTHORITY TO ACT AS AN AGENT TO FEDERAL COMMUNICATIONS COMMISSION. Applicant: Gemstar Communications Inc. Product:AICS Tag Model:GSAM-ATB-01 FCC ID:N6OGSAMATB01 Dear Sir/Madam, We, Gemstar Communications Inc., hereby appoint Ultratech Engineering Labs Inc. (Ultratech) to act as court agent in the preparation of this application to FCC for authorization of equipment under FCC rules. We also certify that the provided information is properly described the device or system for which authorization is required. If you have any queries, please do not hesitate to contact us. Yours truly, Richard E. Bonham Director of Operations September 1 st , 1998 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: Gemstar Communication Inc. Product: AICS Tag Model:GSAM-ATB-01 FCC ID:N6OGSAMATB01 Dear Sir/Madam, We, Gemstar Communications Inc., would like to request that the schematic diagrams and system block diagrams, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Title Drawing No. Sheet No. 1Gemstar Inventory TagRF Section 2Gemstar Inventory TagBlock Diagram 3 4 5 If you have any queries, please do not hesitate to contact us by at 905 847 3832. Yours truly, Richard E. Bonham Director of Operations

Regulatory Approval Label Diagram The following notice label is typical of the type that must be attached to each component of the AICS: AICS Tag Model No. GSAM-ATB-01 FCCID: N6OGSAMATB01 IC Certification No. ?????? Serial No.2200000001 Bar Code This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Canada 1½” (38mm) 2½” (64mm)

ENGINEERING TEST REPORT Automated Inventory Control System (AICS) Asset Tag Model No: GSAM-ATB-01 FCC ID: N6OGSAMATB01 FCC PART 15, SUBPART C, PARA. 15.249 LOW POWER TRANSMITTERS Operating at 904.512 MHz UltraTech's FILE NO.: GCI1-FTX TESTED FOR: GEMSTAR COMMUNICATIONS INC. 760 Pacific Road, Unit 7 Oakville, Ontario Canada, L6L 6M5 TESTED BY: UltraTech Engineering Labs Inc. 4181 Sladeview Crescent, Unit 33 Mississauga, Ontario Canada L5L 5R2 PREPARED BY: Dan Huynh DATE: August 25, 1998 FCC PART 15, SUBPART C - LOW POWER TRANSMITTERS Page 2 Automated Inventory Control System (AICS) Asset Tag, Model GSAM-ATB-01FCC ID: N6OGSAMATB01 UltraTech Engineering Labs Inc.UltraTech’s File #: GCI1-FTX 4181 Sladeview Cres., Unit 33, Mississauga, Ontario, Canada L5L 5R2Tel. #: 905-569-2550Fax. #: 905-569-2480 • Accredited by ITI (UK) Competent Body & NVLAP (USA) Accreditation Body • Recognized/Listed by FCC (USA), Industry Canada (Canada), Austel (Australia) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS 1.EXHIBIT 1 - SUMMARY OF TEST RESULTS & GENERAL STATEMENT OF CERTIFICATION........3 2.EXHIBIT 2 - GENERAL INFORMATION.......................................................................................................4 2.1.APPLICANT.....................................................................................................................................................4 2.2.MANUFACTURER............................................................................................................................................4 2.3.DESCRIPTION OF EQUIPMENT UNDER TEST.......................................................................................................4 2.4.RELATED SUBMITTAL(S)/GRANT.....................................................................................................................5 2.5.TEST METHODOLOGY.....................................................................................................................................5 2.6.TEST FACILITY...............................................................................................................................................5 2.7.UNITS OF MEASUREMENTS..............................................................................................................................5 3.EXHIBIT 3 - SYSTEM TEST CONFIGURATION..........................................................................................6 BLOCK DIAGRAMS FOR CONDUCTED & RADIATED EMISSION MEASUREMENTS..............................................................6 3.2.PHOTOGRAPH FOR RF EMISSION MEASUREMENTS............................................................................................7 3.3.JUSTIFICATION...............................................................................................................................................10 3.4.EUT OPERATING CONDITION.........................................................................................................................10 3.5.SPECIAL ACCESSORIES...................................................................................................................................10 3.6.EQUIPMENT MODIFICATIONS..........................................................................................................................10 4.EXHIBIT 4 - TEST DATA................................................................................................................................11 4.1.TRANSMITTER FUNDAMENTAL & HARMONIC RADIATED EMISSIONS @ FCC CFR 47, PARA 15.249(A).............11 4.2.RF EXPOSURE LIMIT FCC 1.1310..................................................................................................................18 5.EXHIBIT 5 - GENERAL TEST PROCEDURES.............................................................................................20 5.1.ELECTRICAL FIELD RADIATED EMISSIONS MEASUREMENTS - GENERAL TEST METHOD.....................................20 6.EXHIBIT 6 - INFORMATION RELATED TO EQUIPMENT UNDER TESTS............................................23 6.1.FCC ID LABELING AND SKETCH OF FCC LABEL LOCATION............................................................................23 6.2.PHOTOGRAPHS OF EQUIPMENT UNDER TEST....................................................................................................23 6.3.SYSTEM BLOCK DIAGRAM(S)..........................................................................................................................23 6.4.SCHEMATIC DIAGRAMS..................................................................................................................................23 6.5.USER’S MANUAL WITH “FCC INFORMATION TO USER STATEMENTS”...............................................................23 FCC PART 15, SUBPART C - LOW POWER TRANSMITTERS Page 3 Automated Inventory Control System (AICS) Asset Tag, Model GSAM-ATB-01FCC ID: N6OGSAMATB01 UltraTech Engineering Labs Inc.UltraTech’s File #: GCI1-FTX 4181 Sladeview Cres., Unit 33, Mississauga, Ontario, Canada L5L 5R2Tel. #: 905-569-2550Fax. #: 905-569-2480 • Accredited by ITI (UK) Competent Body & NVLAP (USA) Accreditation Body • Recognized/Listed by FCC (USA), Industry Canada (Canada), Austel (Australia) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 1. EXHIBIT 1 - SUMMARY OF TEST RESULTS & GENERAL STATEMENT OF CERTIFICATION FCC PARAGRAPH. TEST REQUIREMENTSCOMPLIANCE (YES/NO) 15.249(a), 15.209, 15.205 & 1.1310 Transmitter Radiated Emissions, Harmonic Emissions and RF Exposure Limit Yes 15.107(a)AC Power Conducted EmissionsNot applicable for battery operated device. TESTIMONIAL AND STATEMENT OF CERTIFICATION THIS IS TO CERTIFY: 1) THAT the application was prepared either by, or under the direct supervision of the undersigned. 2) THAT the measurement da…

Text truncated - open the document above for the full version.
