N6RUHFHH-01HANDHELD FM TWO WAY LAND MOBILE RADIO

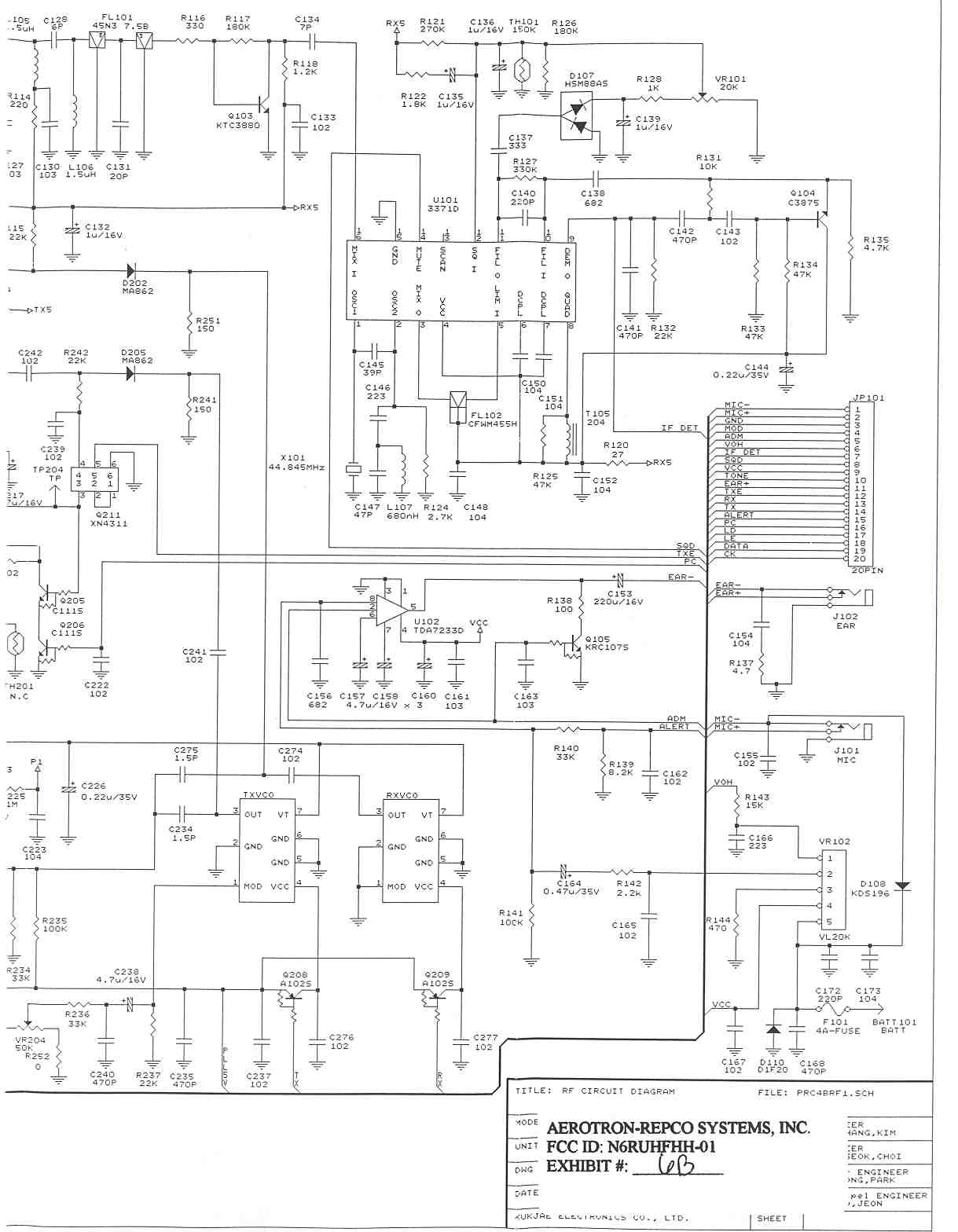

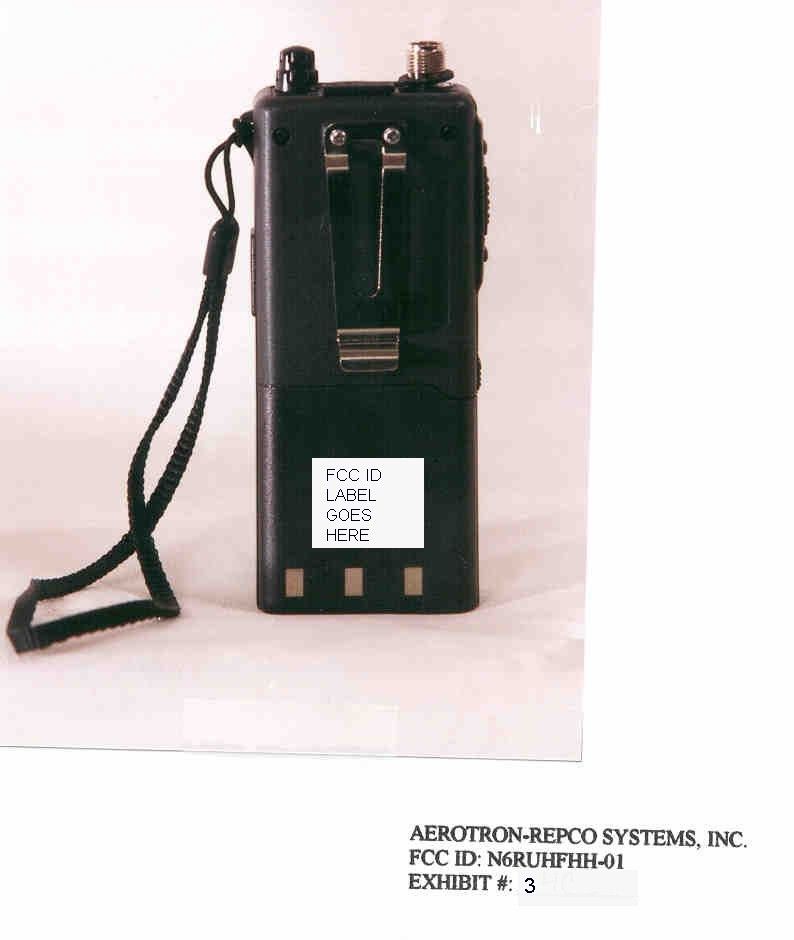

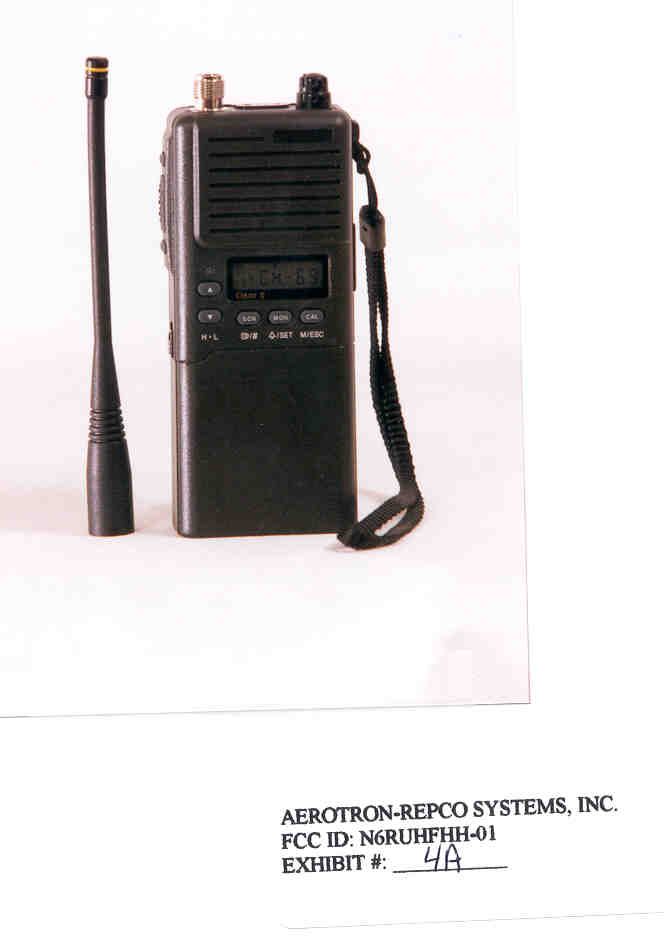

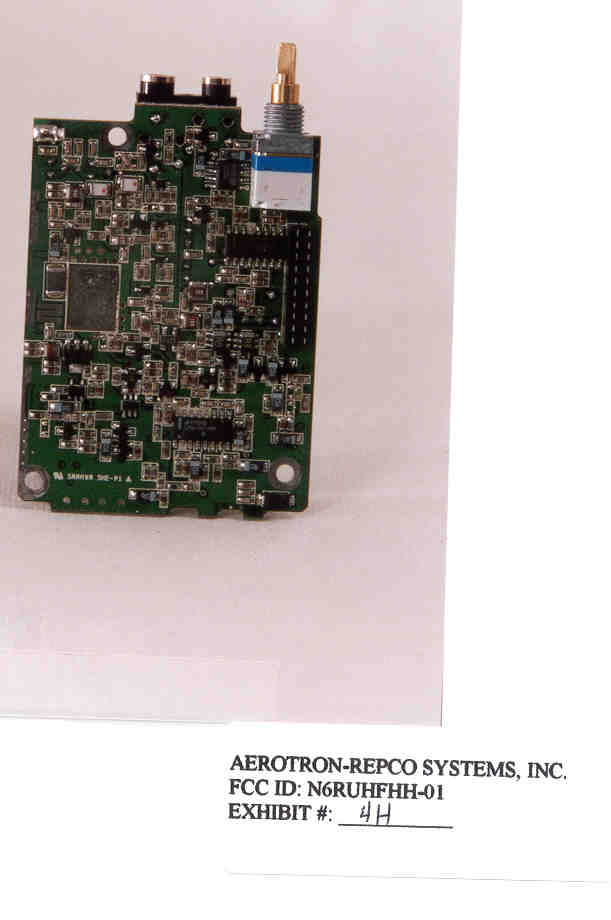

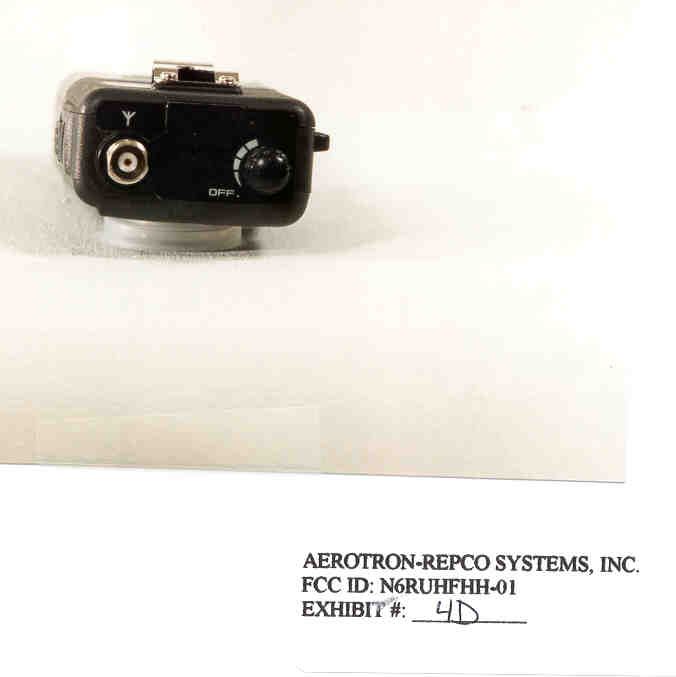

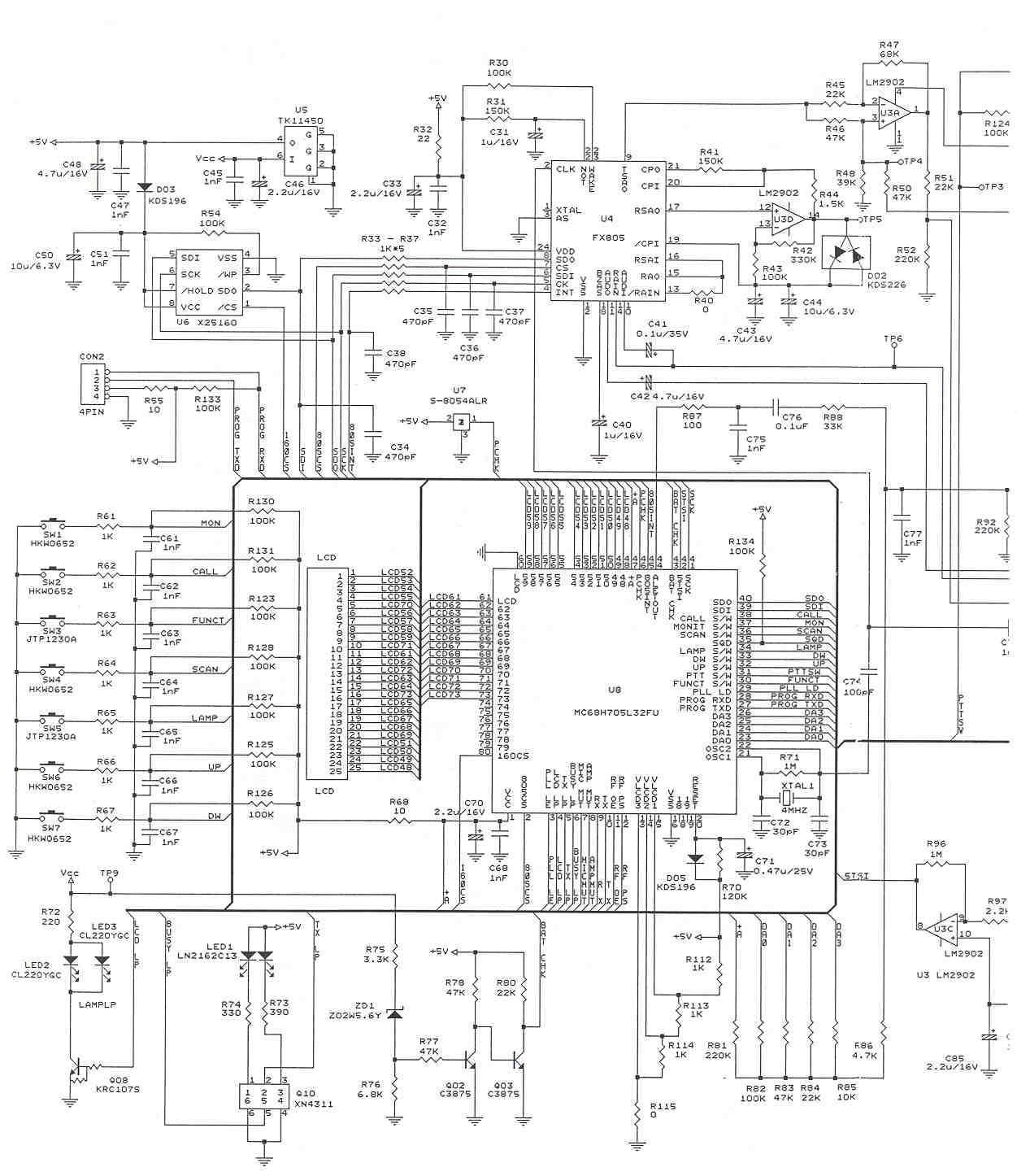

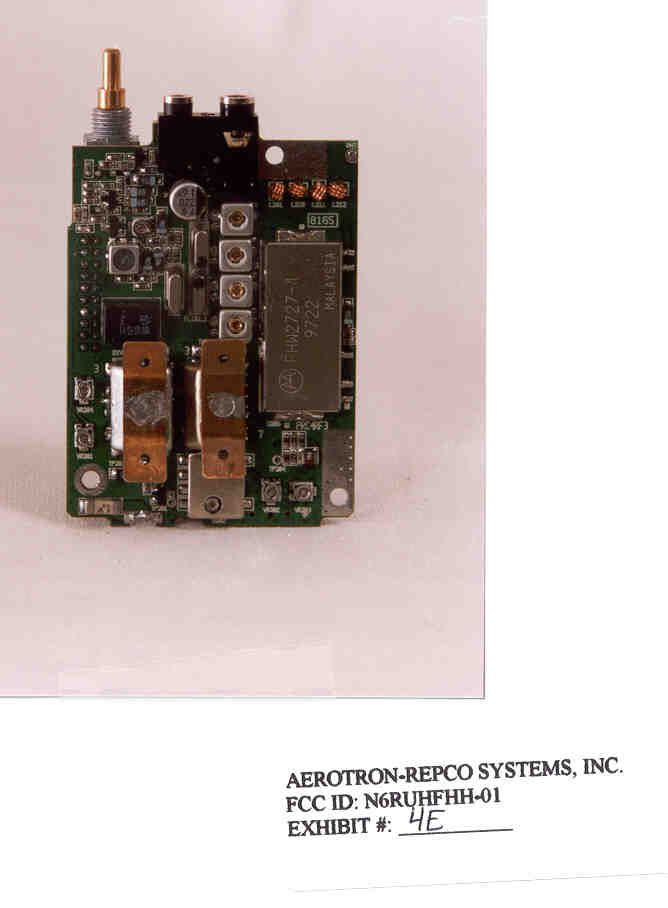

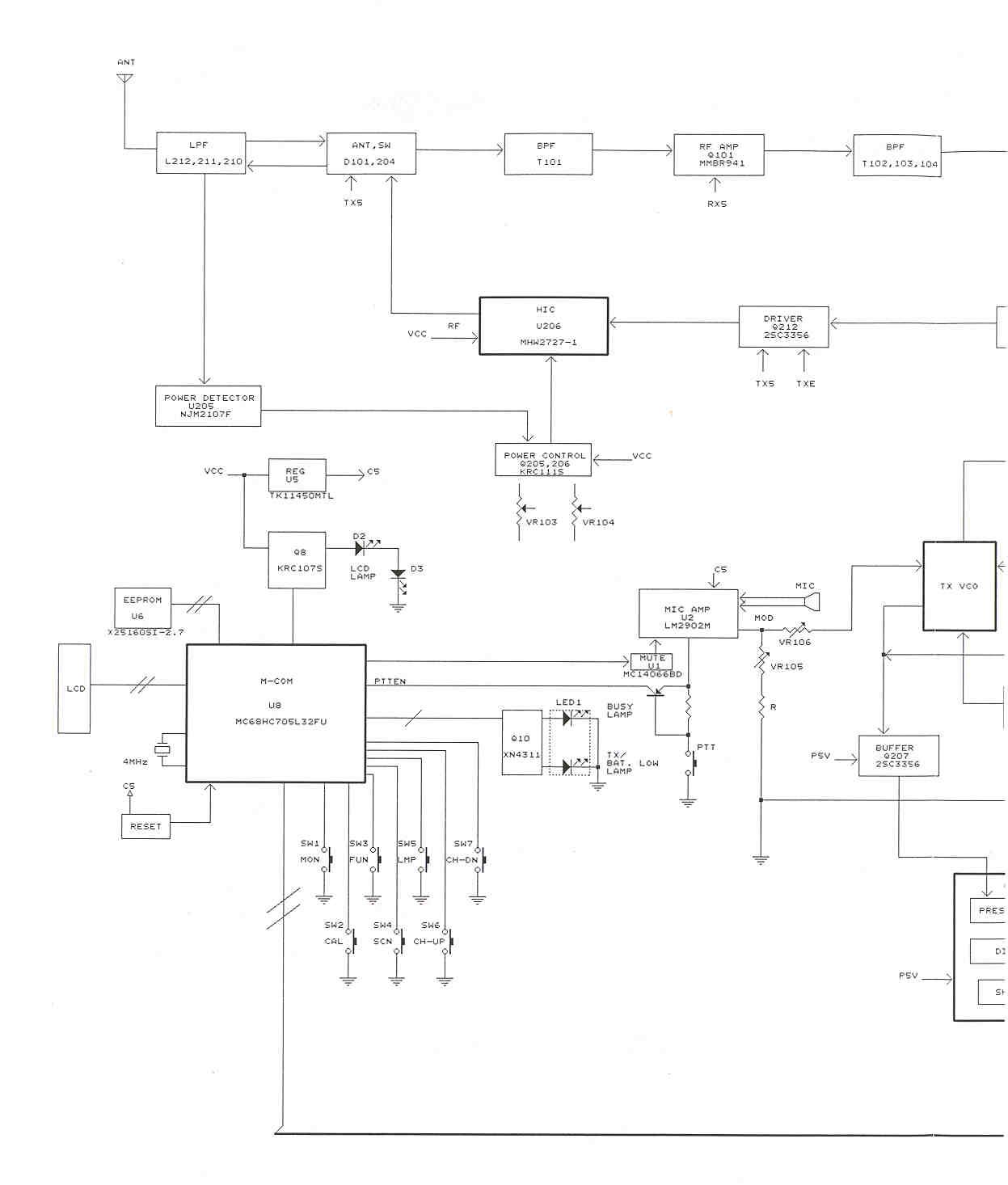

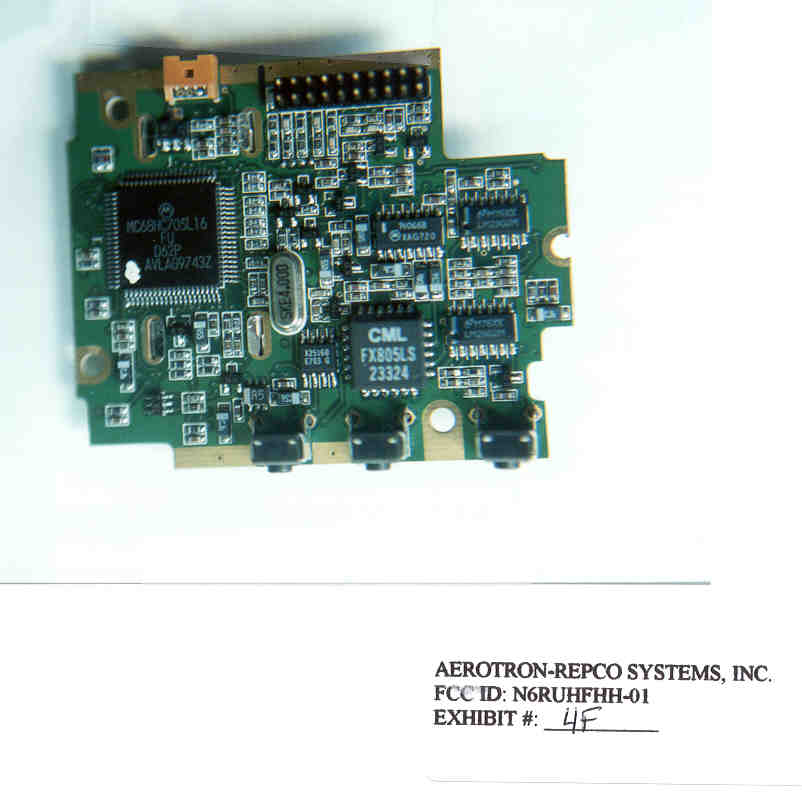

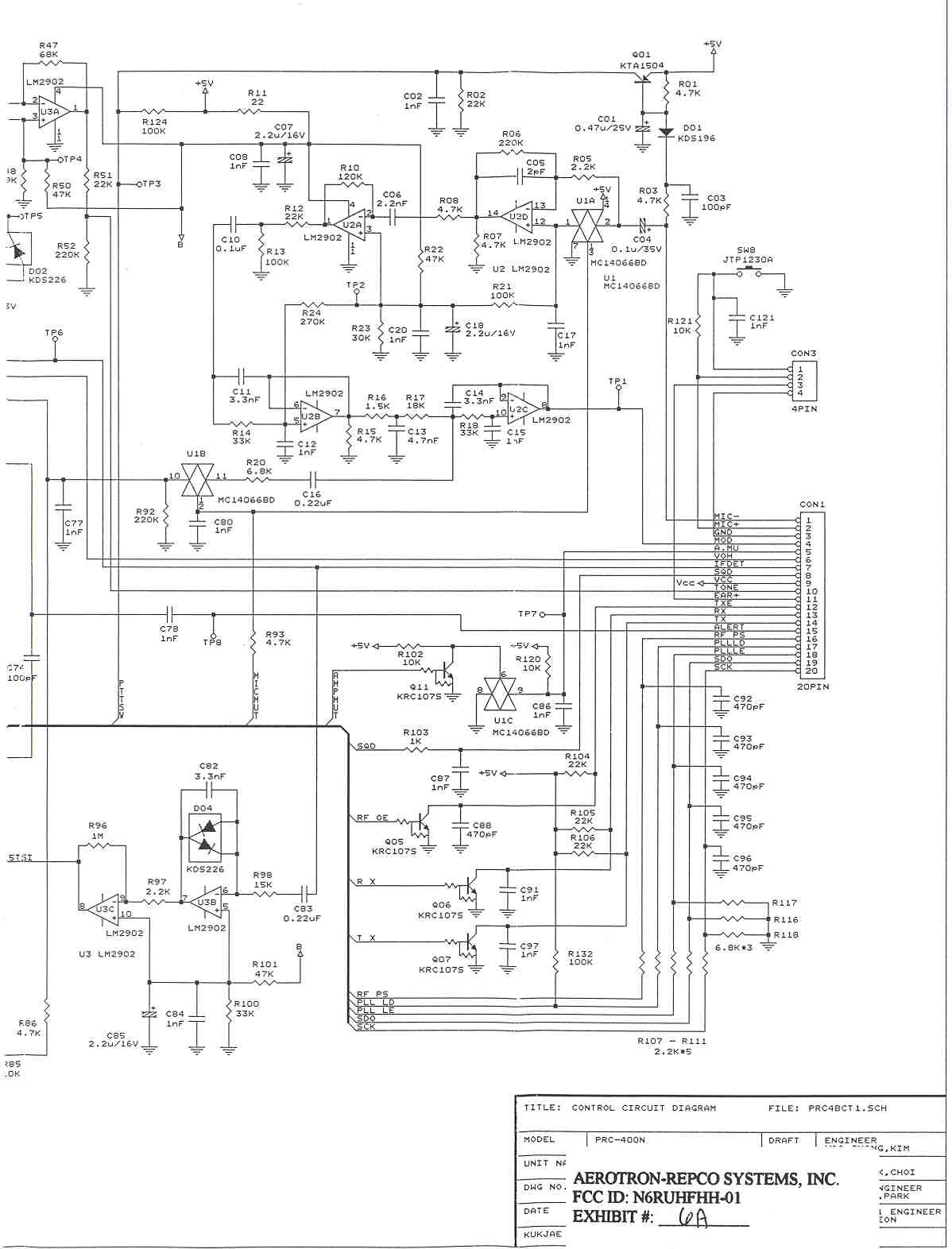

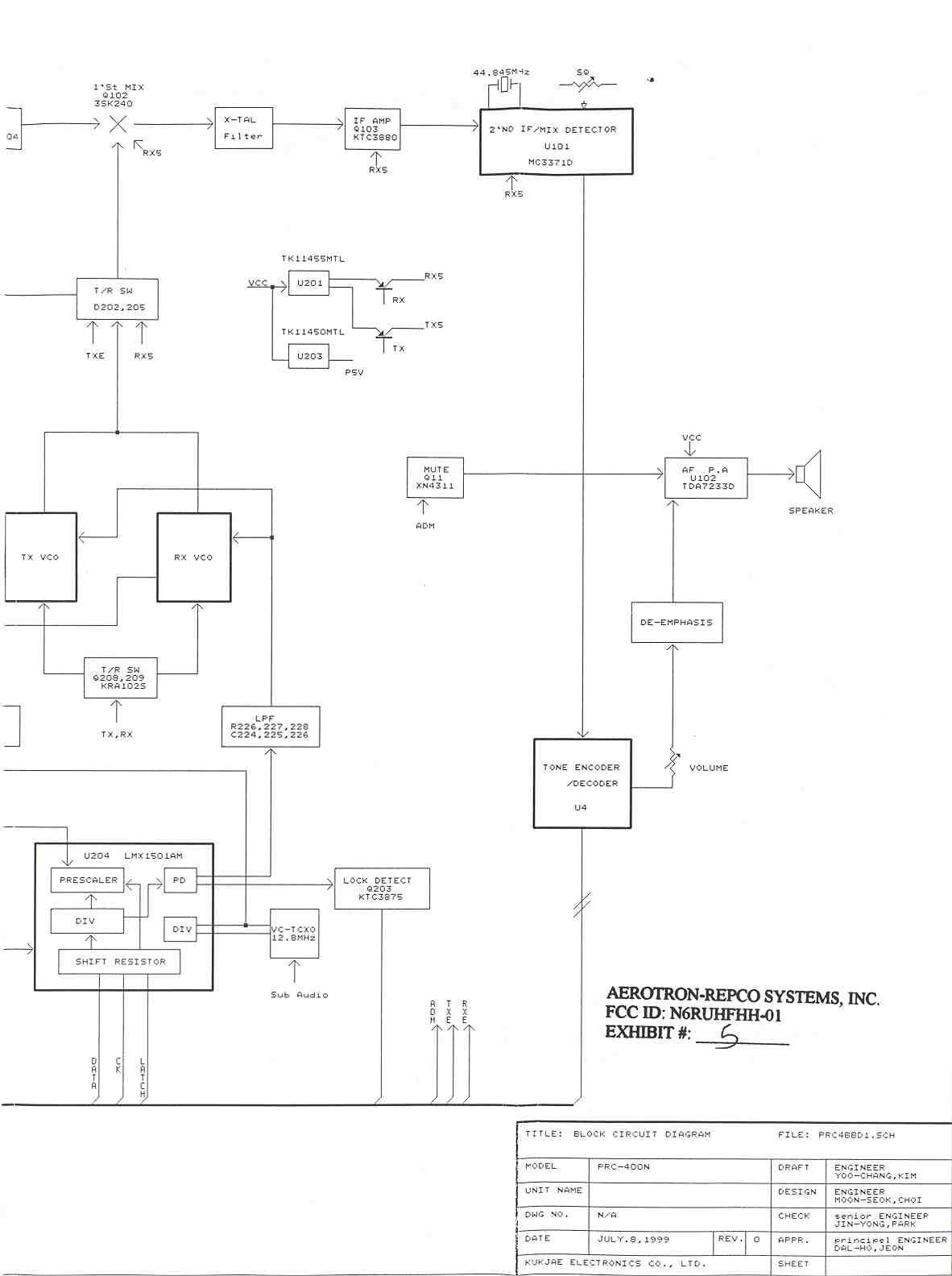

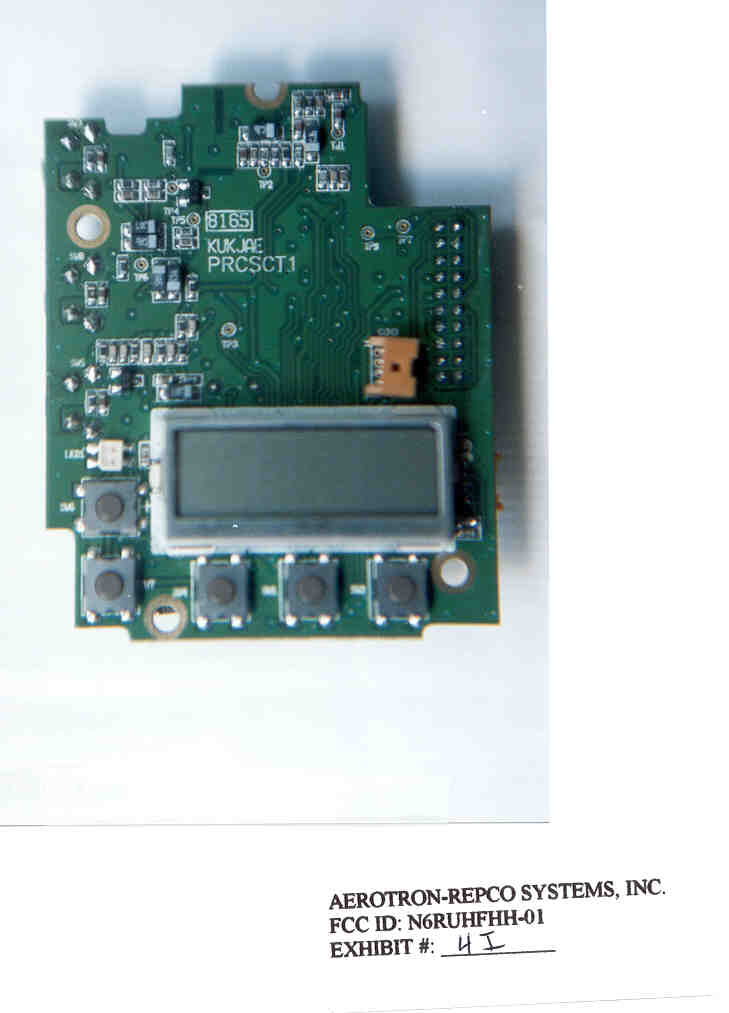

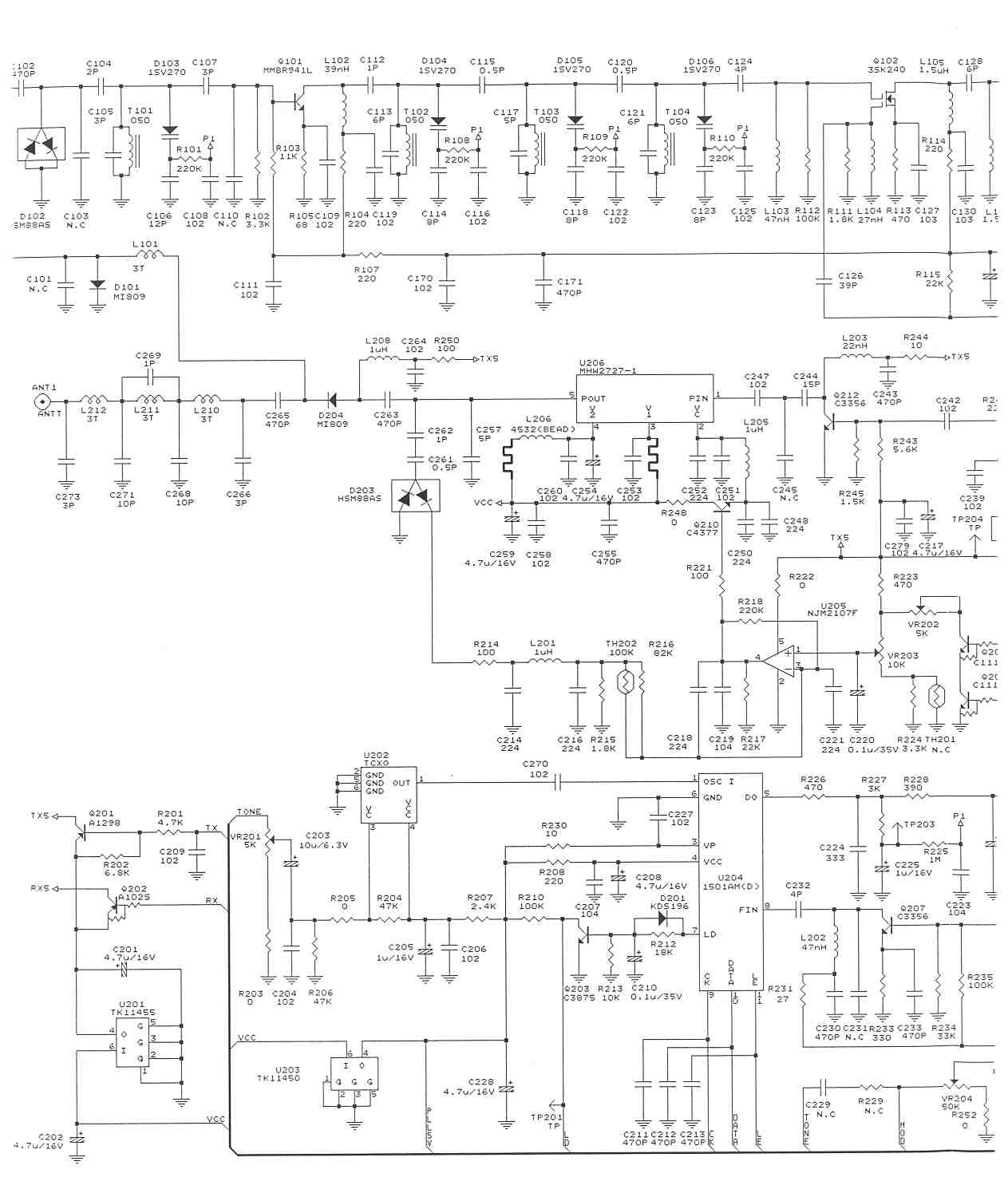

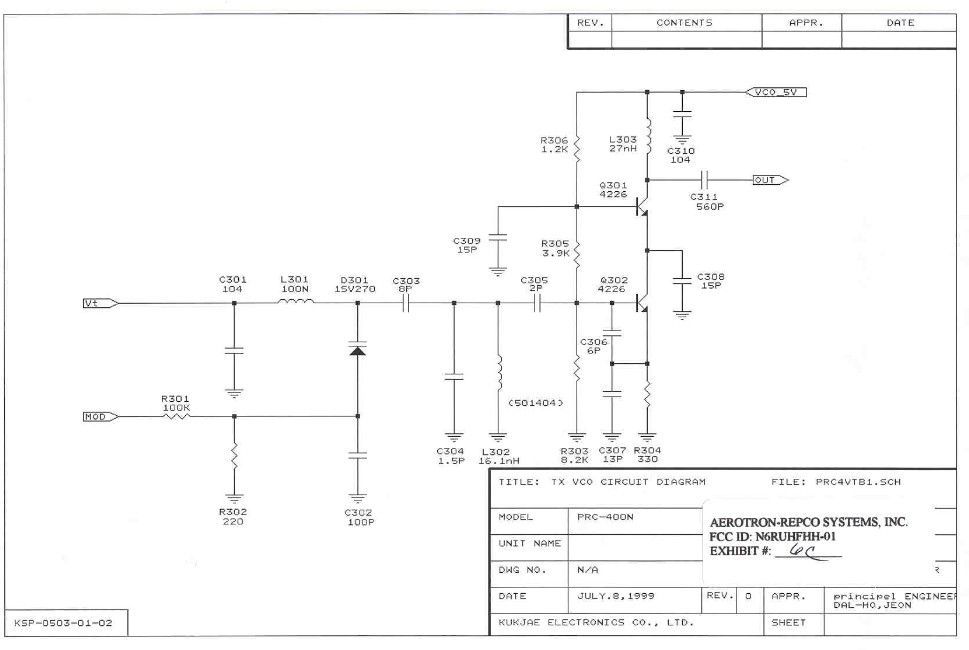

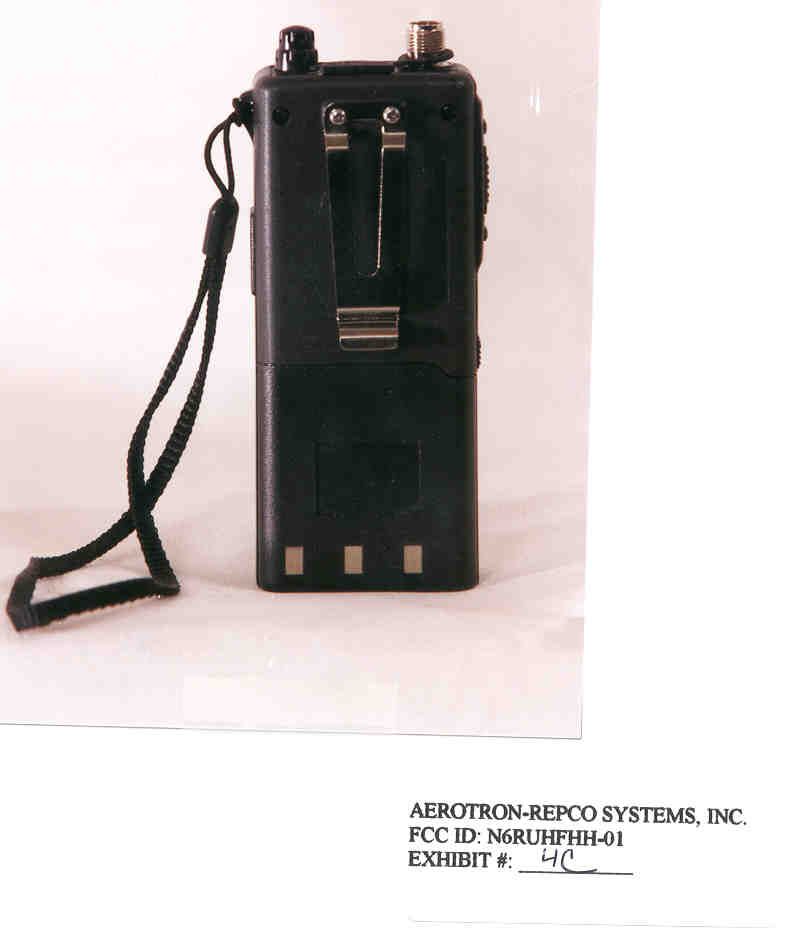

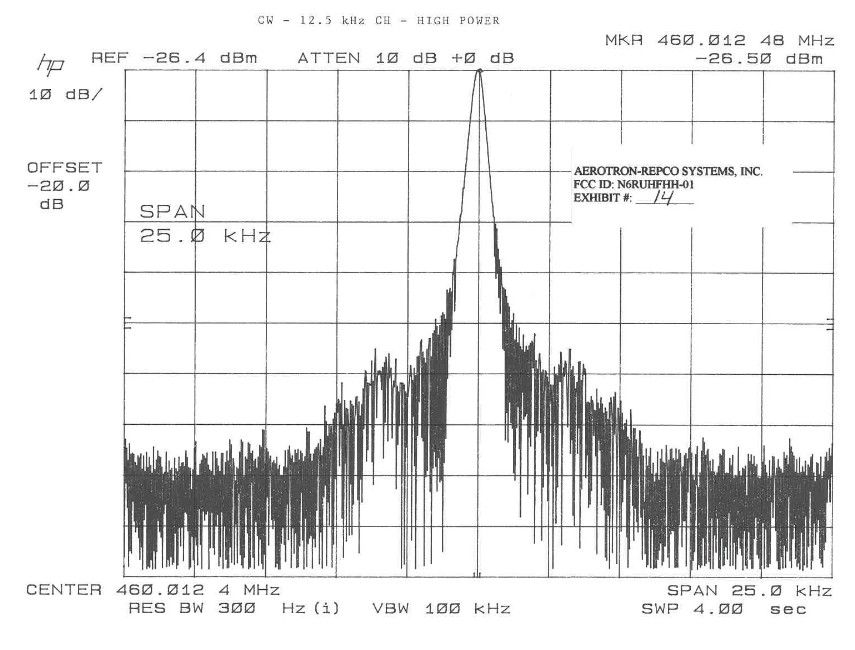

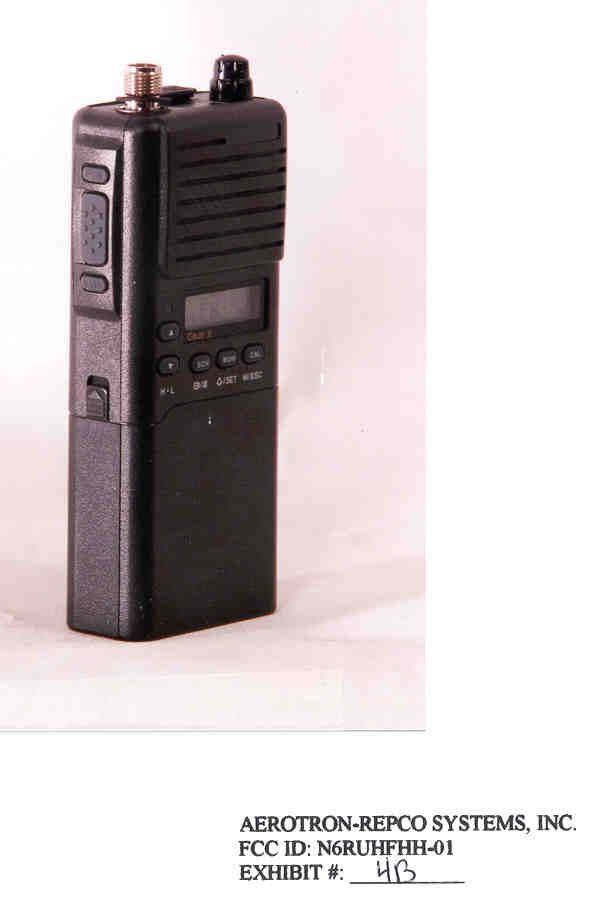

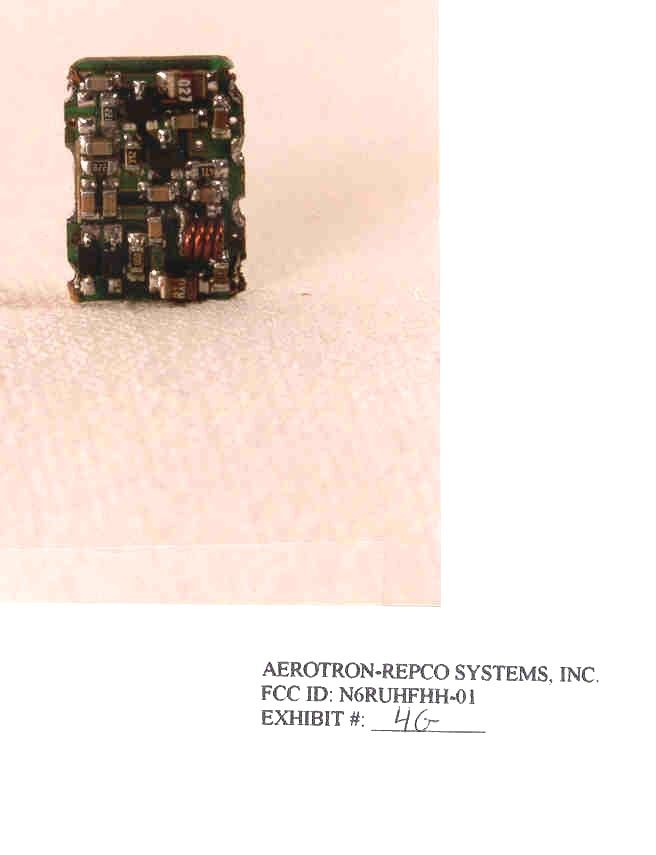

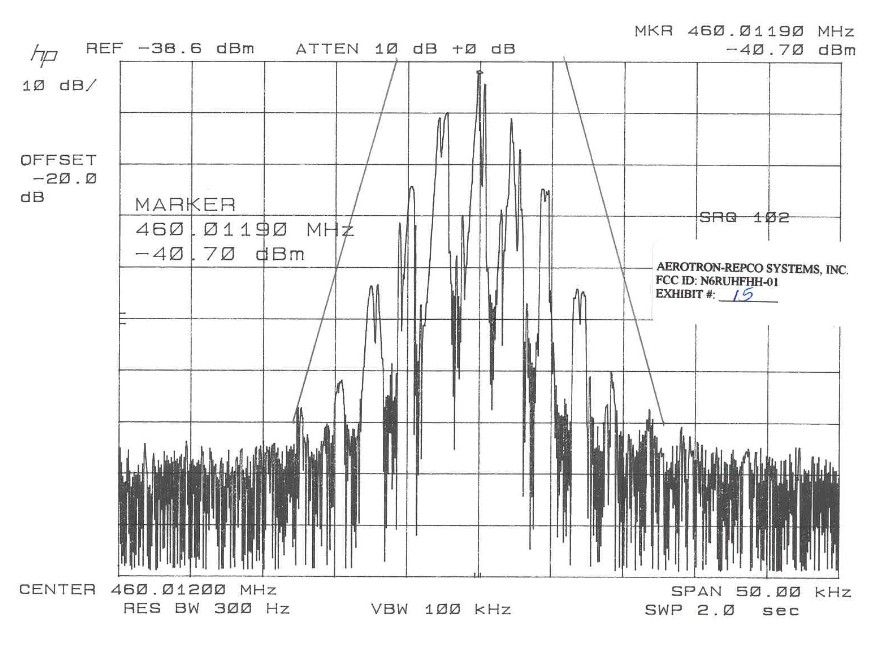

TABLE OF CONTENTS LIST APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT AND MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 6......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8......FREQUENCY STABILITY PAGE 9-10...TRANSIENT FREQUENCY STABILITY PAGE 11......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBIT CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 1A........90.203(c) STATEMENT ABOUT CHANNEL PROGRAMMING EXHIBIT 2.........FCC ID LABEL SAMPLE EXHIBIT 3.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 4B........EXTERNAL SIDE VIEW PHOTOGRAPH EXHIBIT 4C........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 4D........EXTERNAL TOP VIEW PHOTOGRAPH EXHIBIT 4E-4G.....INTERNAL COMPONENT SIDE PHOTOGRAPHS EXHIBIT 4H-4I.....INTERNAL SOLDER SIDE PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6A........CONTROL CIRCUIT SCHEMATIC EXHIBIT 6B........RF CIRCUIT SCHEMATIC EXHIBIT 6C........TX VCO SCHEMATIC EXHIBIT 7A-7N.....PARTS LIST EXHIBIT 8A-8D.....CRYSTAL SPECIFICATION EXHIBIT 9A-9L.....USER'S MANUAL EXHIBIT 10A-10E...CIRCUIT DESCRIPTION & TUNING PROCEDURE EXHIBIT 11........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 12A.......MODULATION LIMITING GRAPH - 300 Hz EXHIBIT 12B.......MODULATION LIMITING GRAPH -1000 Hz EXHIBIT 12C.......MODULATION LIMITING GRAPH -3000 Hz EXHIBIT 13........AUDIO LOW PASS FILTER GRAPH EXHIBIT 14........OCCUPIED BANDWIDTH CW PLOT - 12.5 KHz CH EXHIBIT 15........OCCUPIED BANDWIDTH PLOT - 12.5 KHz CH EXHIBIT 16A-16D...TRANSIENT FREQUENCY RESPONSE PLOTS APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\368A9\AER368A9.RPT PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.983 (a,b,c) AEROTRON-REPCO SYSTEMS, INC. will sell the FCC ID: N6RUHFHH-01 UHF transmitter in quantity, for use under FCC RULES PART 22 & 90. 2.983 (d) TECHNICAL DESCRIPTION (1) Type of Emission: 16K0F3E For 25KHz 10K4F3E For 12.5KHz For 25KHz Bn=2M+2DK M = 3000 D = 2.2KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(2.2K)(1) = 6.0K + 4.4K = 10.4K ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. For 12.5KHz Bn=2M+2DK M = 3000 D = 2.2KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(2.2K)(1) = 6.0K + 3.2K = 10.4K ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) (2) Frequency Range: 450-470 MHz (3) Power Range and Controls:There are NO user Power controls. (4) Maximum Output Power Rating: 4.0 Watts & 2.0 Watt into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT High FINAL AMPLIFIER ONLY Vce = 7.20 Volts Ice = 1.80 A. Pin = 12.96 Watts Low FINAL AMPLIFIER ONLY Vce = 7.20 Volts Ice = 1.25 A. Pin = 8.64 Watts FCC ID: N6RUHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\368A9\AER368A9.RPT PAGE #: 1 (6) Function of each electron tube or semiconductor device or other active circuit device: SEE EXHIBIT 7. 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6A-6C. The block diagram is included as EXHIBIT 5. (8) Instruction book. The instruction manual is included as EXHIBIT #9. (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #10. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter made up of L12, L11, C40, C47, C95, C46, C94, C45, & C26. Limiting Modulaton: The transmitter audio limiting circuitry is contained in the loop filter IC01. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\368A9\AER368A9.RPT PAGE #: 2 2.985(a) RF power output. RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage of 7.2V, and the transmitter properly adjusted the RF output measures: POWER HIGH INPUT POWER: (7.2V)(1.80A) = 12.98 Watts OUTPUT POWER: 4.2 Watts Efficiency: 32% LOW POWER INPUT POWER: (7.2V)(1.20A) = 8.64 Watts OUTPUT POWER: 2.1Watts Efficiency: 24% METHOD OF MEASURING RF POWER OUTPUT /-----------\ /---------\ |Transmitter|---------------------|50 ohm | |under test | |Resistive| \-----------/ |Wattmeter| | \---------/ /-----------\ |Power | |Supply | \-----------/ 2.987(a)Voice Modulation characteristics: (a) AUDIO FREQUENCY RESPONSE See the EXHIBIT #9. 2.987(a) AUDIO LOW PASS FILTER The audio low pass filter is included and the plot is shown as EXHIBIT #13. Rules 90.210(b,d, & e) for mobile stations with a low pass filter. 2.987(b) Audio input versus modulation A plot of the audio input versus deviation is shown in in EXHIBIT #12A-12C. APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\368A9\AER368A9.RPT PAGE #: 3 2.989(c) Occupied bandwidth: 90.210(b,) Data in the plots shows that on any frequency removed from the assigned frequency by more than 50%, but not more than 100%: At least 25dB. On any frequency removed from the as- signed frequency by more than 100%, but not more than 250%: At least 35dB. On any frequency removed from the assigned frequency by more than 250%, of the authorized bandwidth: At least 43+log(P)dB. 90.210( d) 12.5KHz channel bandwidth equipment. For transmit- ters designed to operate with a 12.5KHz chan…

Text truncated - open the document above for the full version.

Aerotron-Repco Systems Inc. N6RUHFHH-01 0 1 2 3 4 5 6 7 8 9 10 01000200030004000 Frequency rms mVolts audio response AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 EXHIBIT # 11

Modulation Limiting Aerotron-Repco Systems, Inc. N6RUHFHH-01 0 500 1000 1500 2000 2500 00.020.040.060.08 rms Volts Deviation 300 Hz AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 EXHIBIT # 12A

Modulation Limiting Aerotron-Repco Systems, Inc. N6RUHFHH-01 0 500 1000 1500 2000 2500 00.0050.010.0150.02 rms Volts Deviation 1000 Hz AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 EXHIBIT # 12B

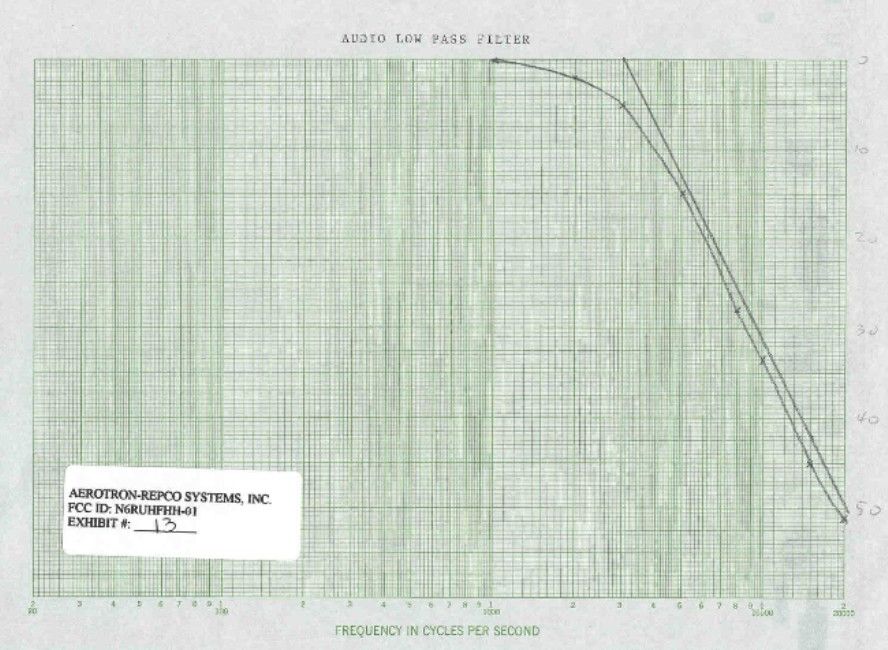

Modulation Limiting Aerotron-Repco Systems Inc. N6RUHFHH-01 0 500 1000 1500 2000 2500 00.0020.0040.0060.008 rms Volts Deviation 3000 Hz AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RUHFHH-01 EXHIBIT # 12C
