N6RVHFHH-01HANDHELD FM TWO WAY LAND MOBILE RADIO

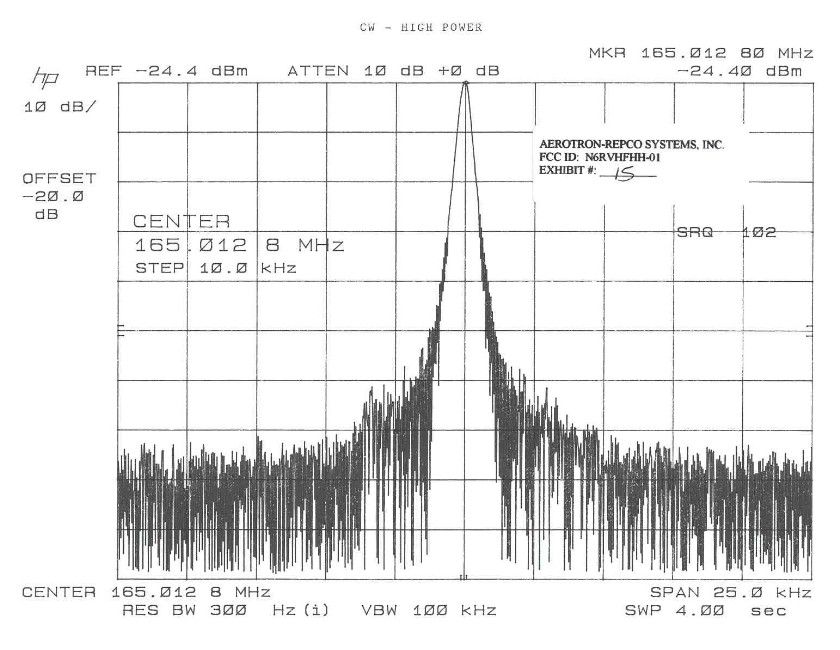

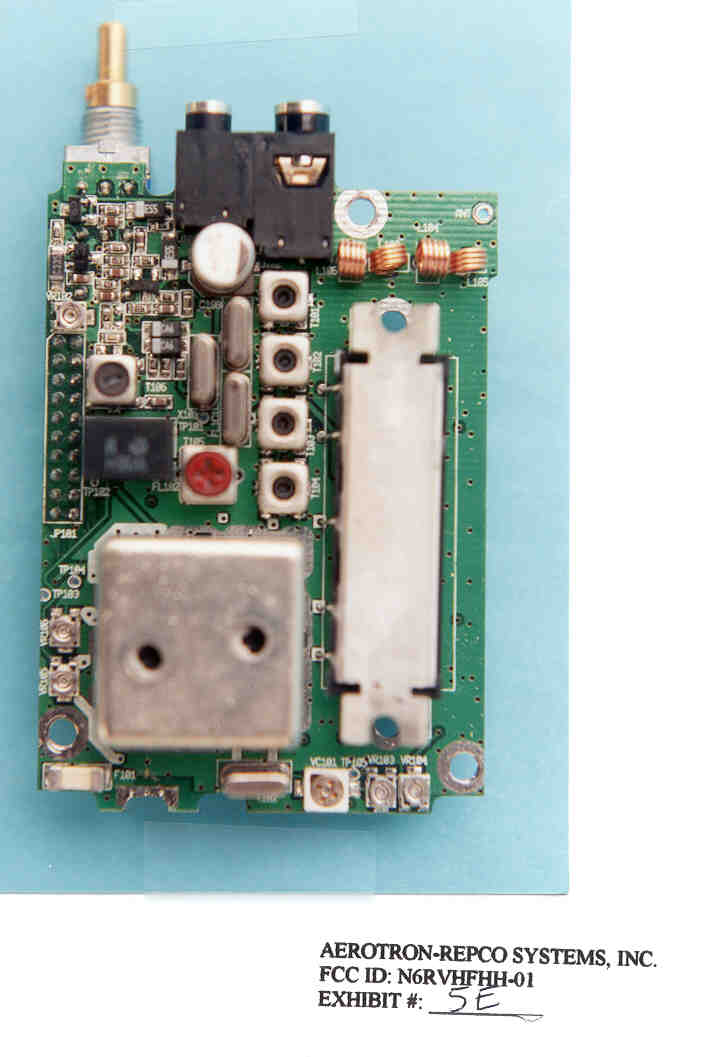

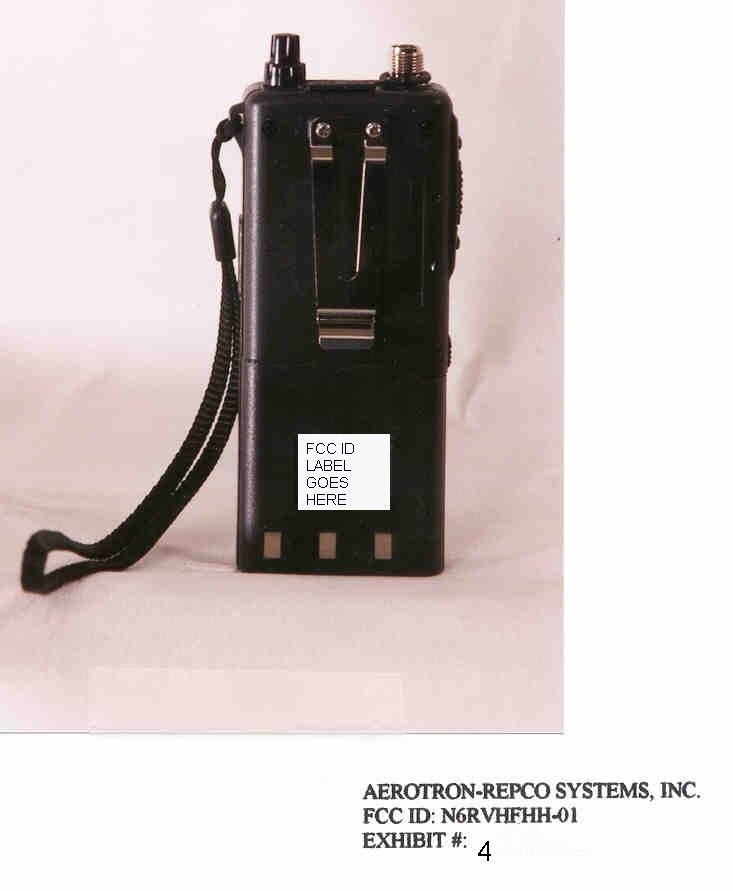

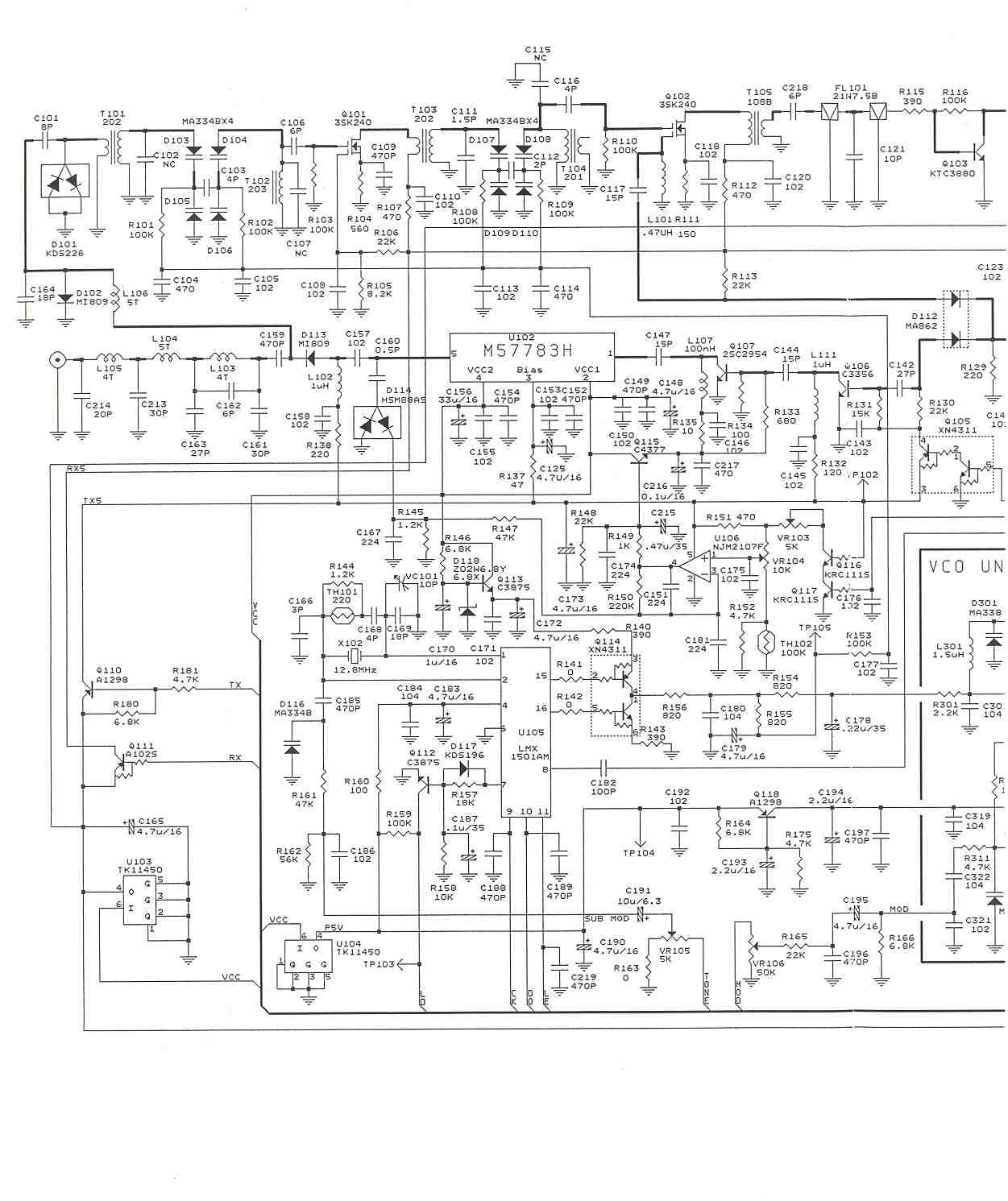

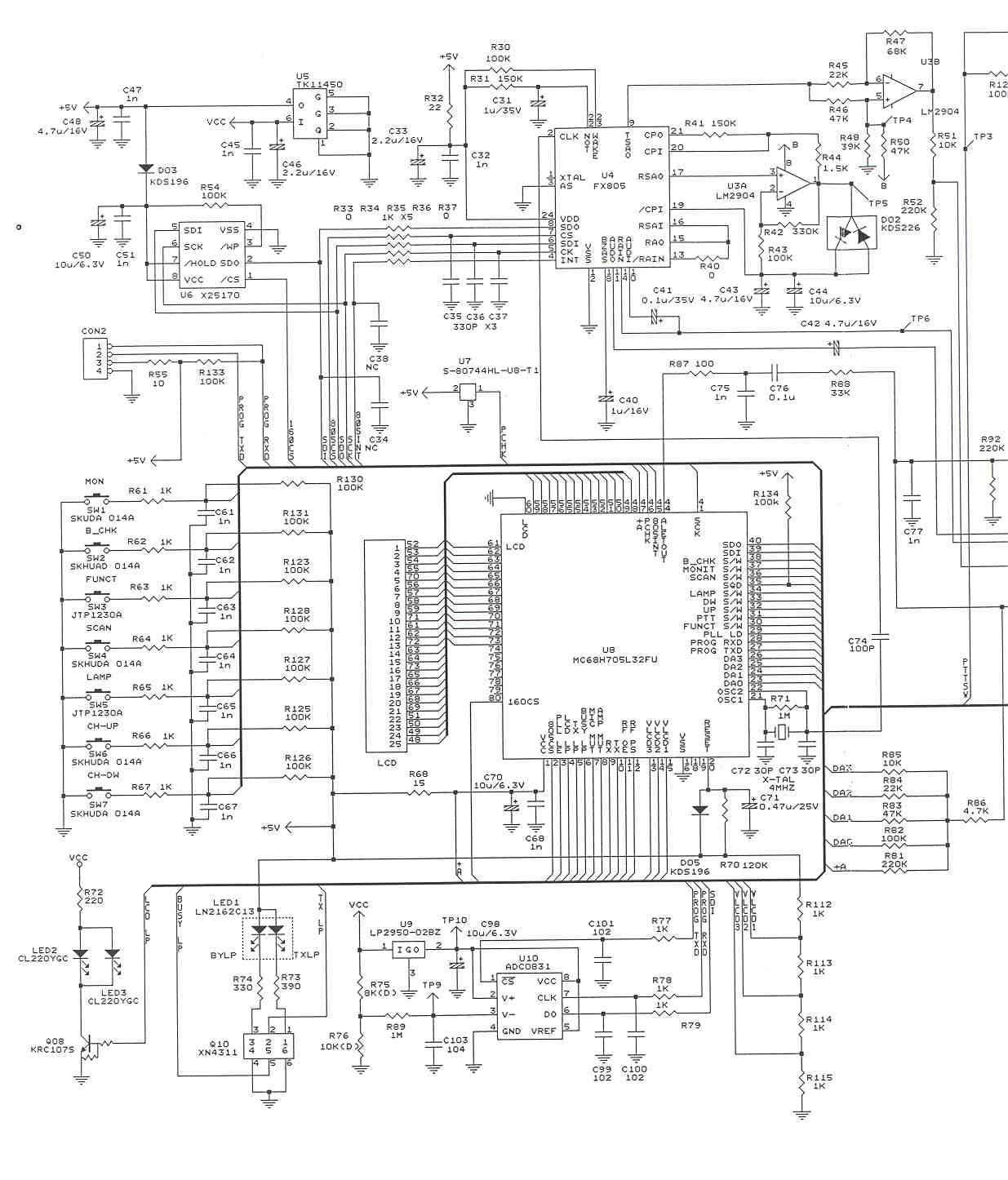

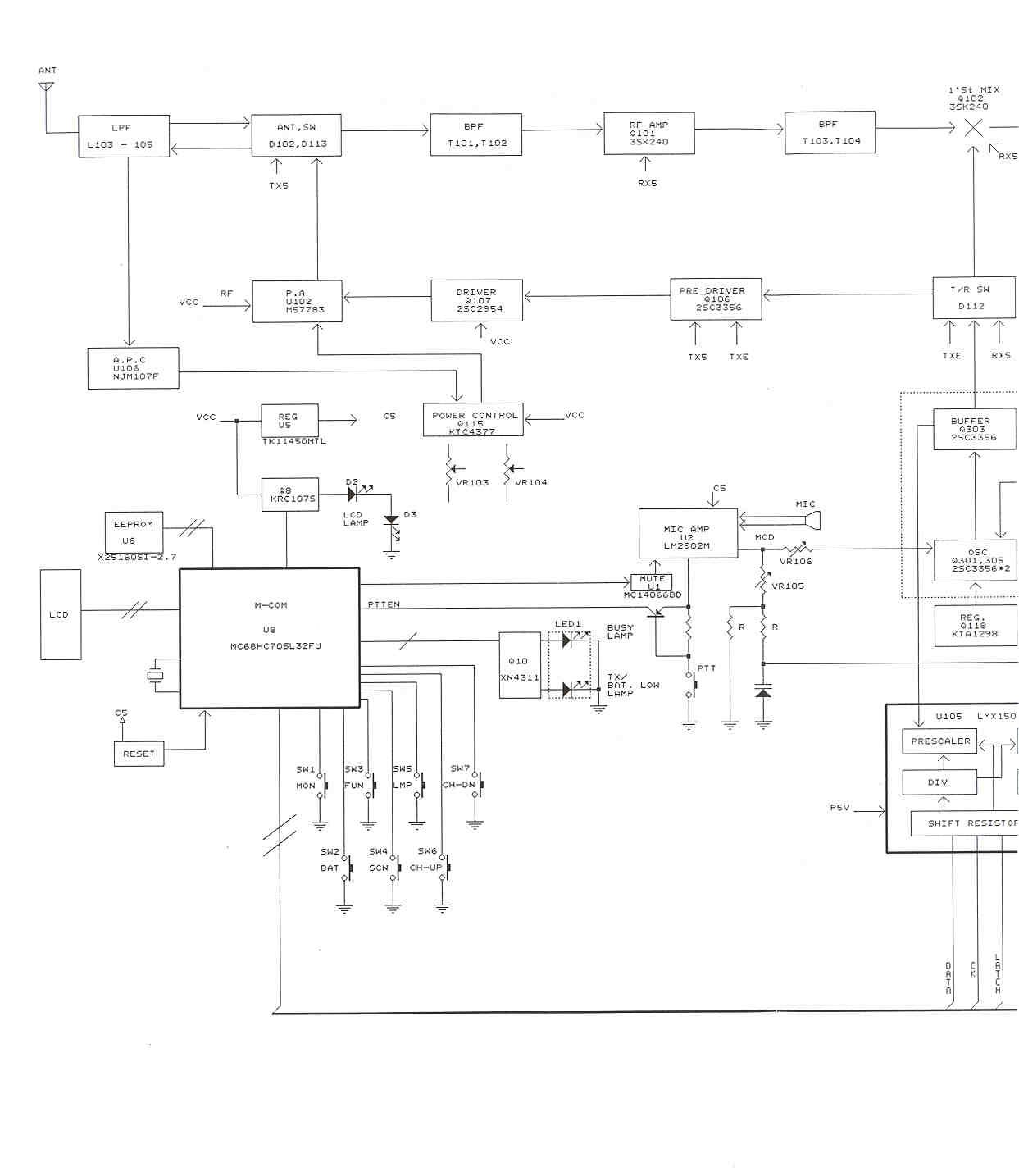

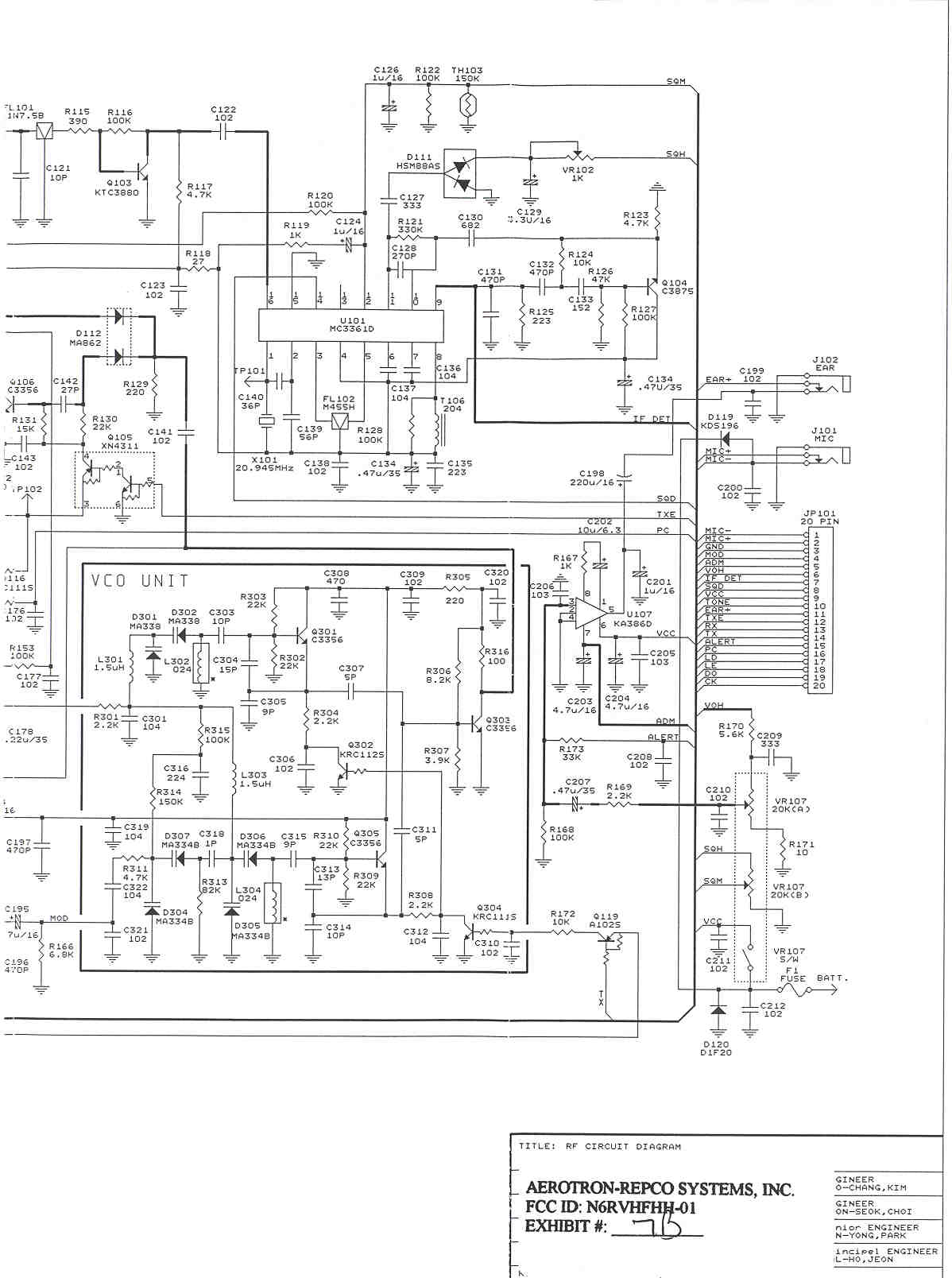

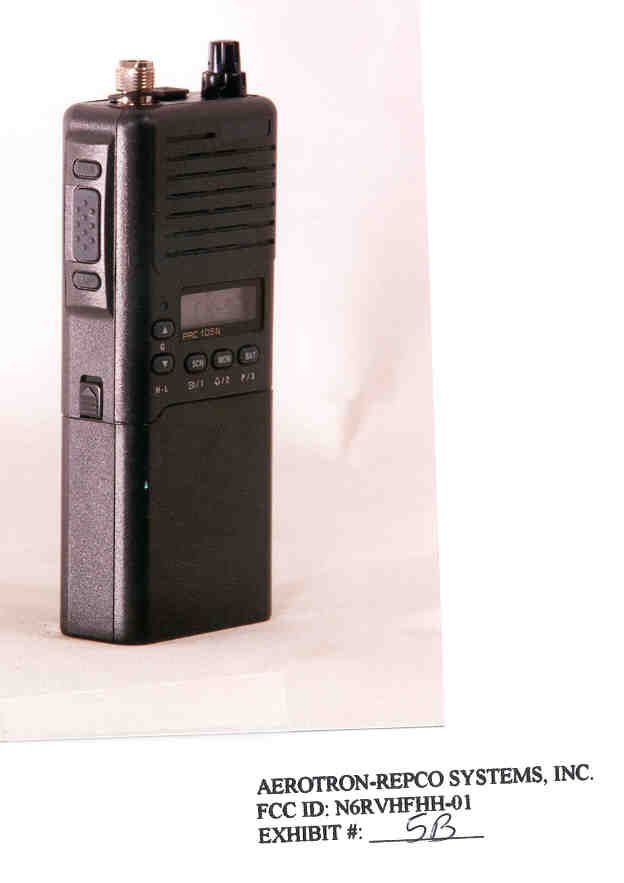

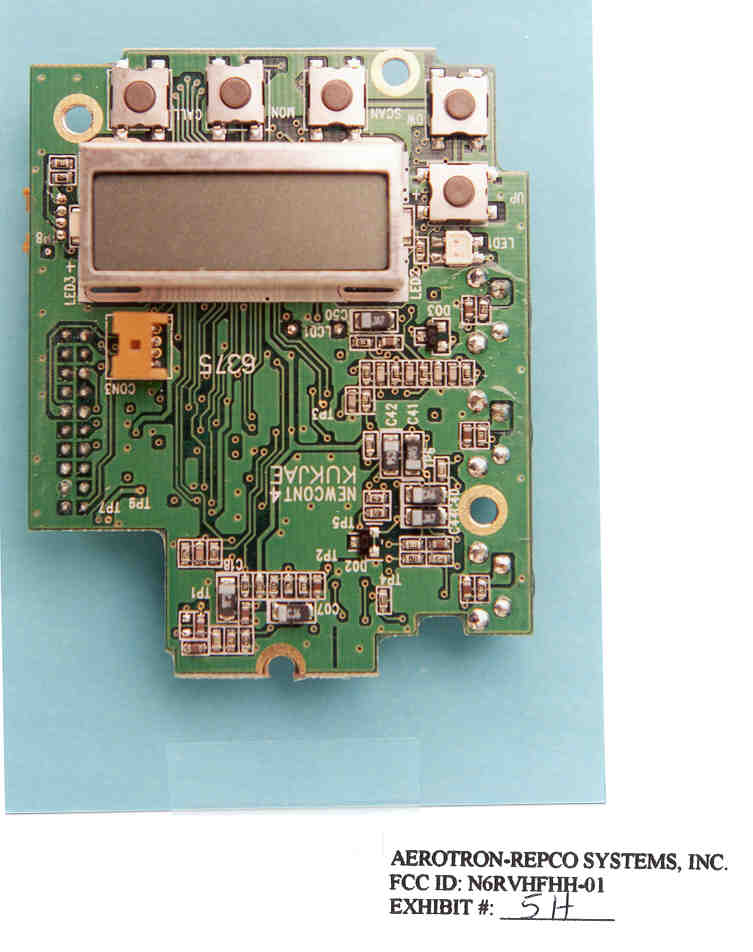

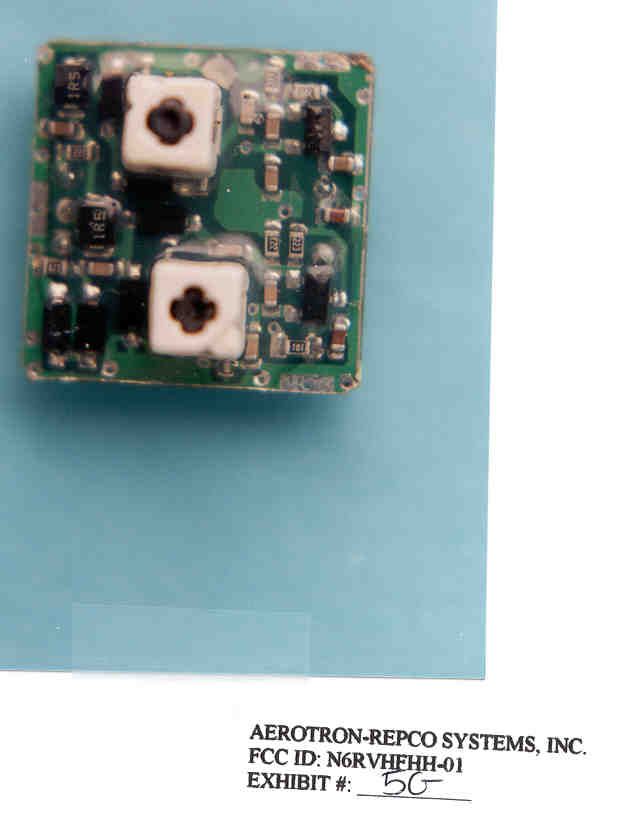

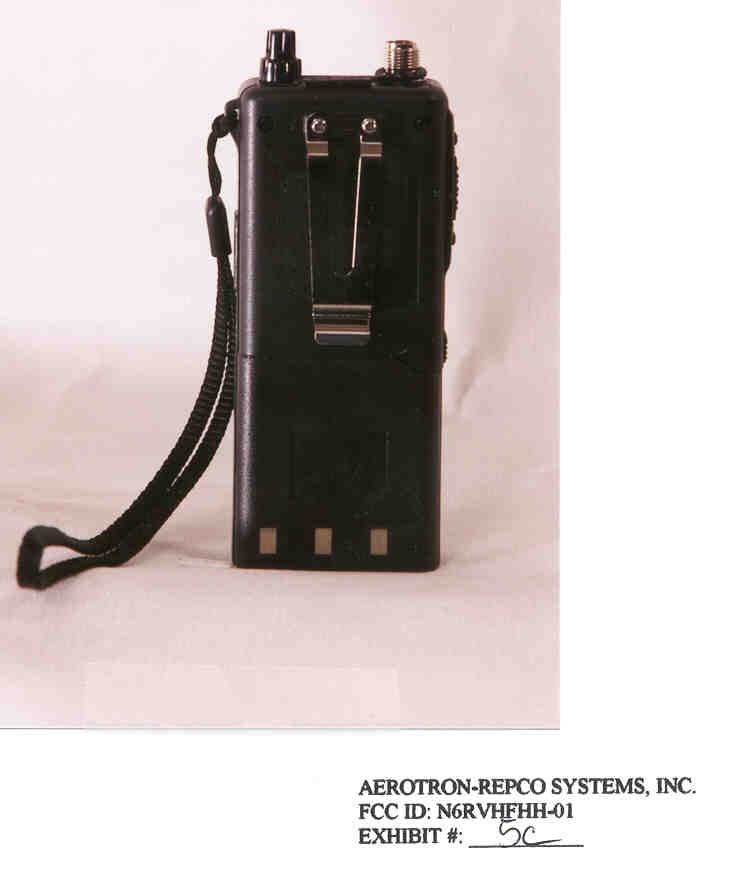

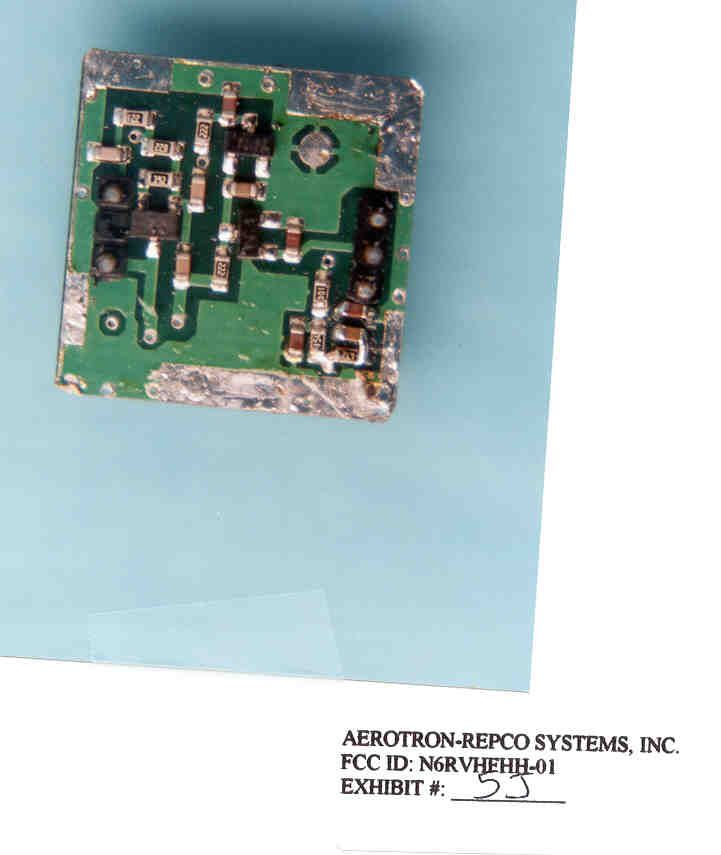

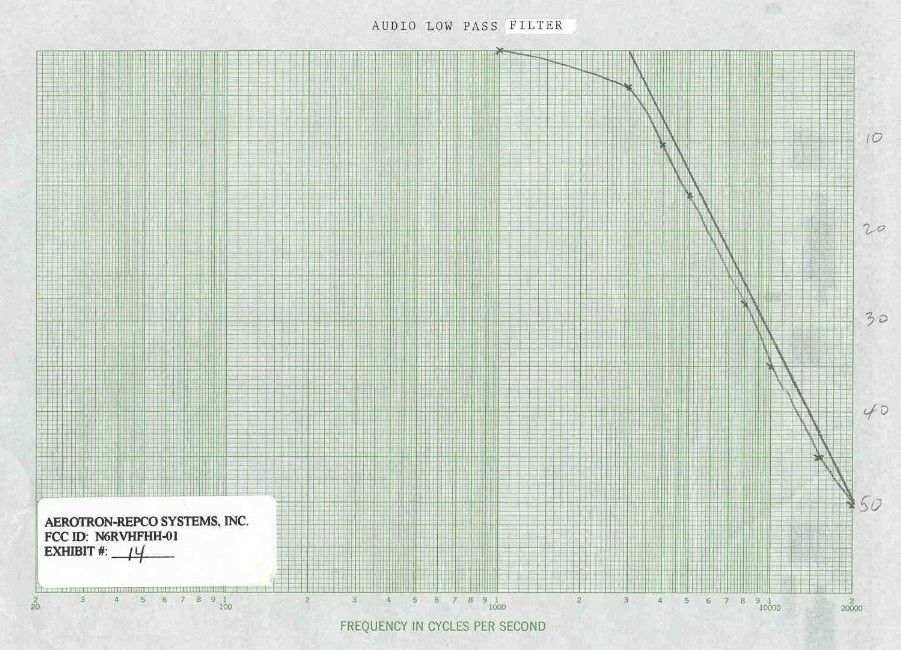

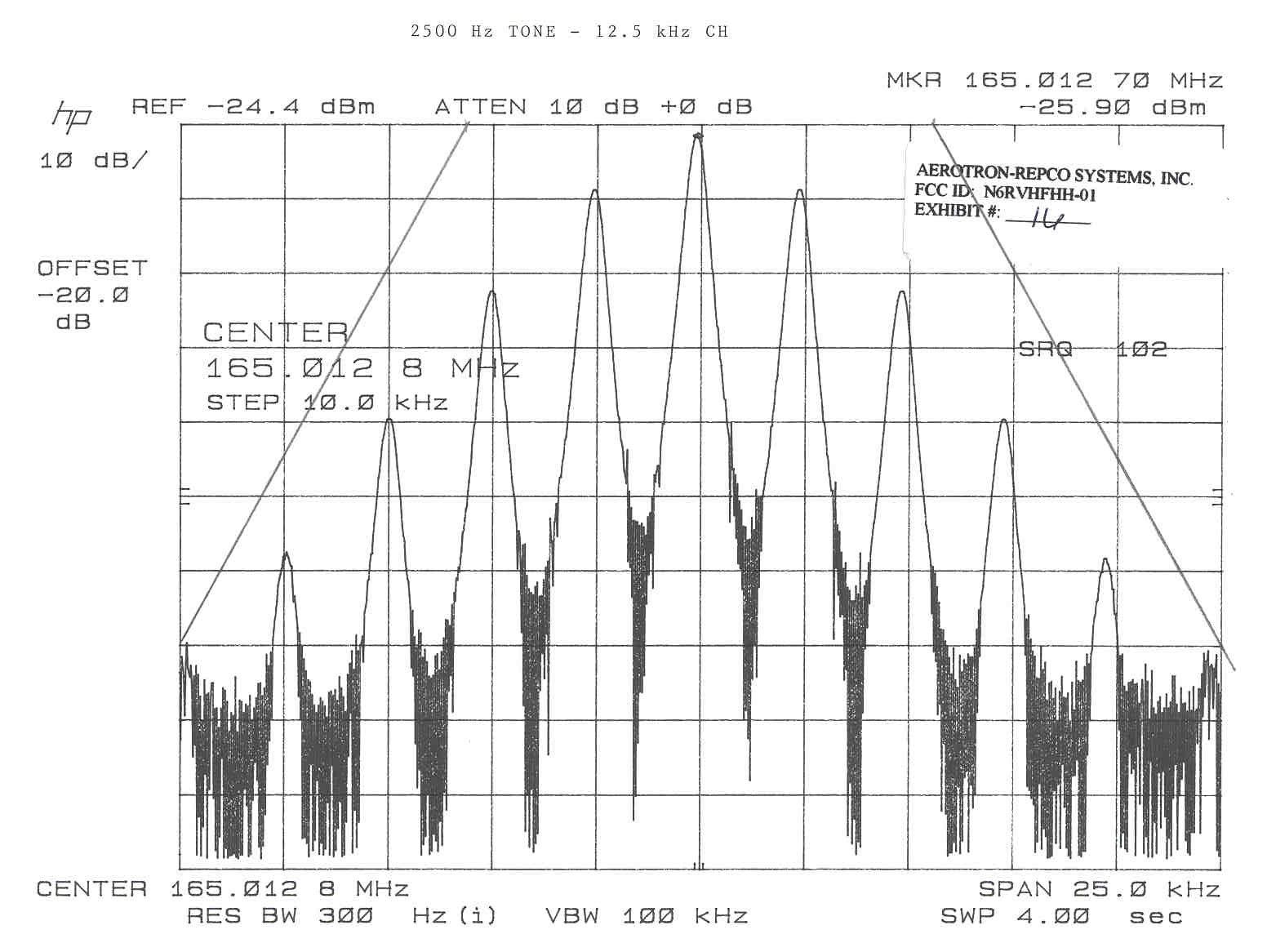

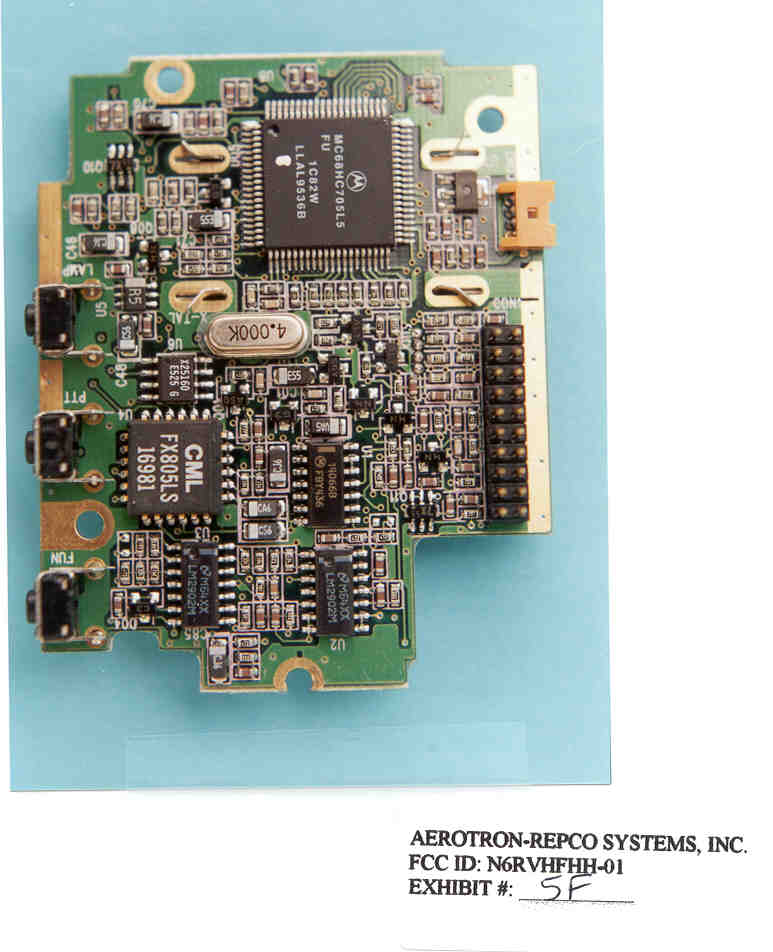

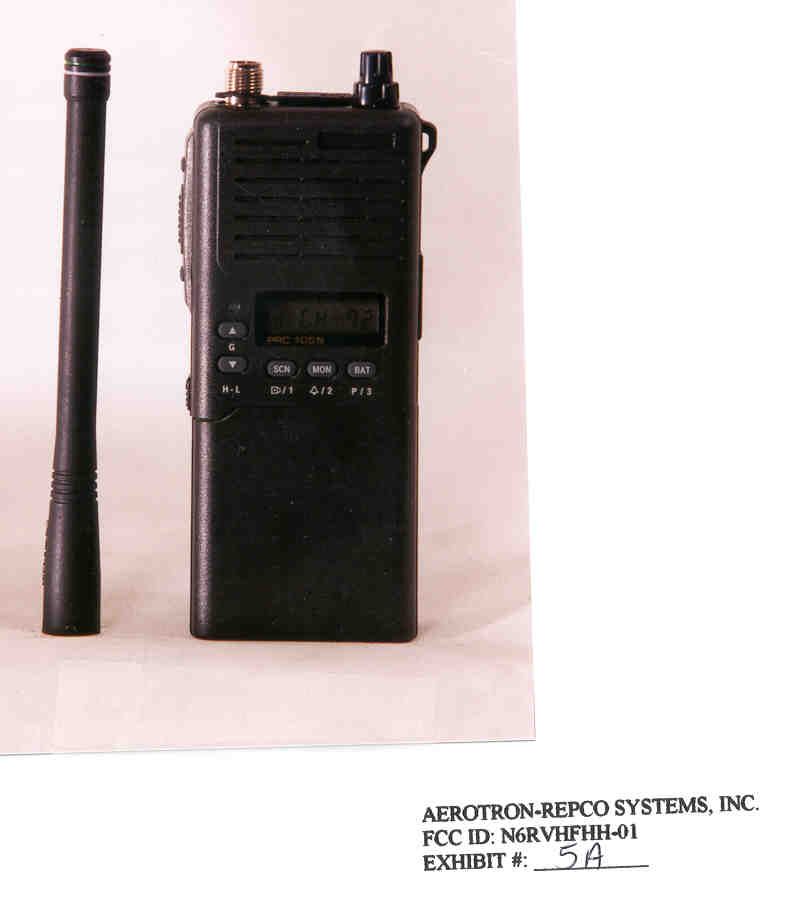

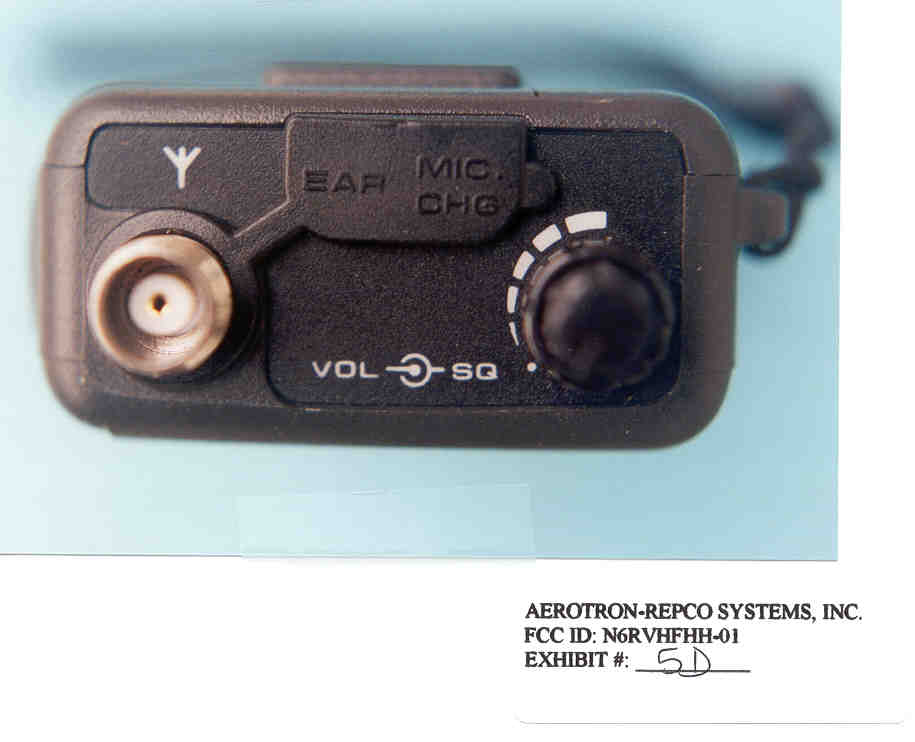

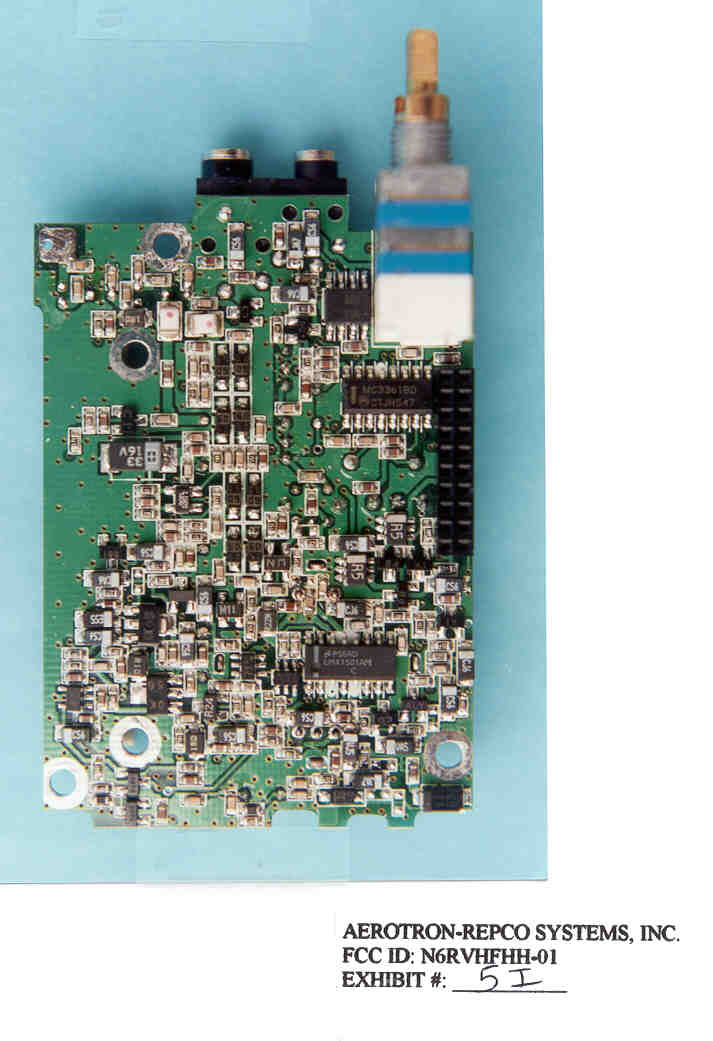

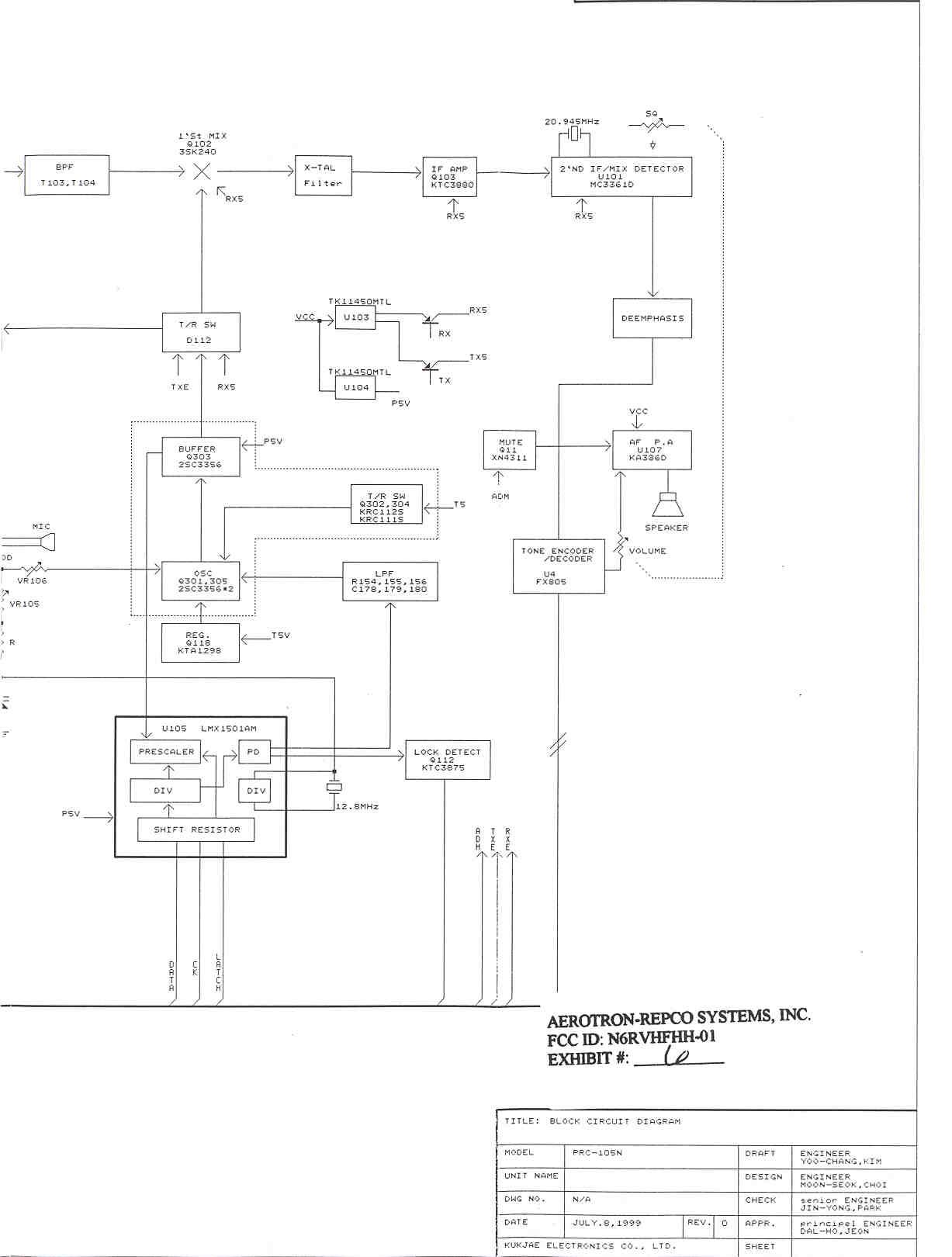

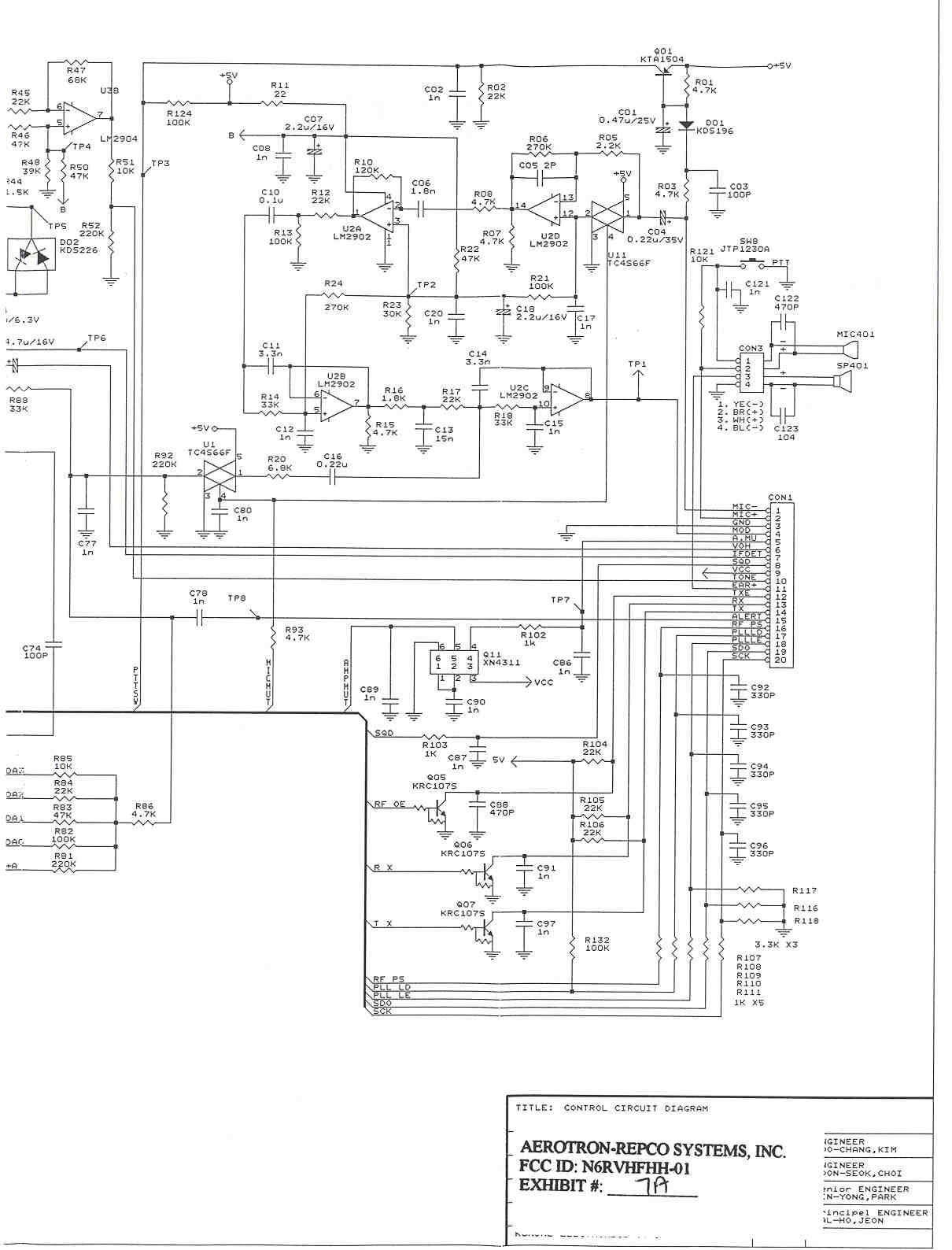

TABLE OF CONTENTS LIST APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT AND MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 6......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8......FREQUENCY STABILITY PAGE 9-10...TRANSIENT FREQUENCY STABILITY PAGE 11..... CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBIT CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........STATEMENT REGARDING CHANNEL PROGRAMMING EXHIBIT 3.........FCC ID LABEL SAMPLE EXHIBIT 4.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 5A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 5B........EXTERNAL SIDE VIEW PHOTOGRAPH EXHIBIT 5C........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 5D........EXTERNAL TOP VIEW PHOTOGRAPH EXHIBIT 5E-5G.....INTERNAL COMPONENT SIDE PHOTOGRAPHS EXHIBIT 5H-5J.....INTERNAL SOLDER SIDE PHOTOGRAPHS EXHIBIT 6.........BLOCK DIAGRAM EXHIBIT 7A........CONTROL CIRCUIT SCHEMATIC EXHIBIT 7B........RF CIRCUIT SCHEMATIC EXHIBIT 8A-8K.....PARTS LIST EXHIBIT 9A-9B.....CRYSTAL SPECIFICATION EXHIBIT 10A-10O...USER'S MANUAL EXHIBIT 11A-11C...CIRCUIT DESCRIPTION INCLUDING TUNING PROCEDURE EXHIBIT 12........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 13A.......MODULATION LIMITING - 300 Hz EXHIBIT 13B.......MODULATION LIMITING - 1000 Hz EXHIBIT 13C.......MODULATION LIMITING - 3000 Hz EXHIBIT 14........AUDIO LOW PASS FILTER GRAPH EXHIBIT 15........OCCUPIED BANDWIDTH CW PLOT - HIGH POWER EXHIBIT 16........OCCUPIED BANDWIDTH PLOT - 2500 Hz TONE 12.5 KHZ EXHIBIT 17A-17D...TRANSIENT FREQUENCY RESPONSE PLOTS APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\369A9\AER369A9.RPT PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.983 (a,b,c) AEROTRON-REPCO SYSTEMS, INC. will sell the MODEL NO. N6RVHFHH-01 VHF transmitter in quantity, for use under FCC RULES PART 22 & 90. 2.983 (d) TECHNICAL DESCRIPTION (1) Type of Emission: 10K0F3E For 25KHz 10K0F3E For 12.5KHz For 25KHz Bn=2M+2DK M = 3000 D = 1.8KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(1.8K)(1) = 6.0K + 3.6K = 9.6K ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. For 12.5KHz Bn=2M+2DK M = 3000 D = 1.8KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(1.8K)(1) = 6.0K + 3.6K = 9.6K ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) (2) Frequency Range: 148-174 MHz (3) Power Range and Controls:There are NO user Power controls. (4) Maximum Output Power Rating: 5.0 & 2.0 Watts , into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY Vce = 7.5 Volts Ice = 2.00A. Pin = 15.0 Watts APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\369A9\AER369A9.RPT PAGE #: 1 (6) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT 8 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 7A-7B. The block diagram is included as EXHIBIT 6. (8) Instruction book. The instruction manual is included as EXHIBIT #10A-10O. (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #11A-11C. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter made up of C1004,L1001, C1005, L1002, C1010, C1014 & C1015. Limiting Modulaton: The transmitter audio limiting circuitry is contained in the loop filter IC01. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\369A9\AER369A9.RPT PAGE #: 2 2.985(a) RF power output. RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage of 7.5 VDC, and the transmitter properly adjusted the RF output measures: POWER HIGH INPUT POWER: (7.5V)(1.8A) = 13.5 Watts OUTPUT POWER: 4.8 Watts Efficiency: 35% POWER LOW INPUT POWER: (7.5V)(0.9A) = 6.75 Watts OUTPUT POWER: 2.0 Watts Efficiency: 29.6% METHOD OF MEASURING RF POWER OUTPUT /-----------\ /---------\ |Transmitter|---------------------|50 ohm | |under test | |Resistive| \-----------/ |Wattmeter| | \---------/ /-----------\ |Power | |Supply | \-----------/ 2.987(a) VOICE MODULATION CHARACTERISTICS: (a) AUDIO FREQUENCY RESPONSE See the EXHIBIT #12. 2.987(a) AUDIO LOW PASS FILTER The audio low pass filter is included and the plot is shown as EXHIBIT #14. Rules 90.210(b,d, & e) for mobile stations with a low pass filter. 2.987(b) AUDIO INPUT VERSUS MODULATION A plot of the audio input versus deviation is shown in in EXHIBIT #13A-13C. APPLICANT: AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 DATE: SEPTEMBER 17, 1999 REPORT #: T:\CUS\A\AER\369A9\AER369A9.RPT PAGE #: 3 2.989(c) OCCUPIED BANDWIDTH: 90.210(b,) Data in the plots shows that on any frequency removed from the assigned frequency by more than 50%, but not more than 100%: At least 25dB. On any frequency removed from the assigned frequency by more than 100%, but not more than 250%: At least 35dB. On any frequency removed from the assigned frequency by more than 250%, of the authorized bandwidth: At least 43+log(P)dB. 90.210( d) 12.5KHz channel bandwidth equipment. For transmit- ters de signed to operate with a 12.5KHz channel bandwidth, any emission must be attenuated below the power (P)…

Text truncated - open the document above for the full version.

Aerotron-Repco Systems Inc. N6RVHFHH-01 0 2 4 6 8 10 12 01000200030004000 Frequency rms mVolts audio response AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 EXHIBIT # 12

Modulation Limiting Aerotron-Repco Systems, Inc. N6RVHFHH-01 0 500 1000 1500 2000 2500 00.020.040.060.080.10.120.14 rms Volts Deviation 300 Hz AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 EXHIBIT # 13A

Modulation Limiting Aerotron-Repco Systems, Inc. N6RVHFHH-01 0 500 1000 1500 2000 2500 00.010.020.030.04 rms Volts Deviation 1000 Hz AEROTRON-REPCO SYSTEMS, INC. FCC ID: N6RVHFHH-01 EXHIBIT # 13B
