N79CNI-803DRadio Packet Modem

1 User Guide to User Guide toUser Guide to User Guide to CNI-803D (Radio Packet Modem) (Radio Packet Modem)(Radio Packet Modem) (Radio Packet Modem) CNI Inc. CNI Inc.CNI Inc. CNI Inc. 2 1. Overview _____________________________________________________ 3 2. Specification and features________________________________________ 3 A.Environment ________________________________________________ 3 B.General RF specifications _____________________________________ 3 C.Radio interface ______________________________________________ 3 D.Transmitter_________________________________________________ 4 E.Receiver____________________________________________________ 4 3. Circuit guide____________________________________________________ 5 A. RF circuit _________________________________________________ 5 B. LOGIC Circuit_________________________ ________________ ____7 4. Installation Guide___________________________________________ 9 1. Overview CNI-803D, RPM(Radio Packet Modem), is a digital data communication equipment in accordance with RD-LAP19.2 and MDC4800 specification. CNI-803D uses the frequency ranges from 806MHz to 821Mhz for transmission, and from 851MHz to 866MHz for reception. This modem enables you to make data communication in two-way, and it also helps you to enjoy various types of data services with full mobility due to support for roaming. With ‘Interface Connector’ you can apply this modem to many kinds of machines to use ‘RD-LAP and MDC Asynchronous Serial Communication (NCL)’ protocol for communication, and NCL commands enable you to monitor the operation during communication. 3 ! Basic specification - Dime nsio n : 70 × 47 × 9mm - Weight : 37 g - Supply voltage: 5V - RF protocol : RD_LAP19.2 on Data TAC4000 & 5000 Μ∆Χ4800 ον ∆ατα ΤΑΧ4000 - Host protocol : NCL1.2 2. Specification and features A. Environment - Operation temperature : -30 ~ +60 - Storage temperature : -35 ~ +80 - Humidity : normal operation after 8 hours storage in 95% non- condensed B. General RF specifications - Modulation : 4FSK for RD-LAP 2ΦΣΚ φορ Μ∆Χ - Mode : half-duplex - Bit rate : 19200bps for RD_LAP, 4800bps for MDC C. Radio interface - Channel spacing : 25KHz - Band wid t h : 20KHz D. Transmitter Frequency: 806 ~ 821 MHz Transmit power: 2Watt Frequency stability: 2.5ppm Modulation stability: ± 10% FM deviation : 5.6KHz for RD_LAP (Logic +3+3-3-3) 2.5KHz for MDC (Logic +1-1) Harmonic and Spurious Emission : -60dBc RX to TX Transition Time :  8ms E. Receiver Frequency: 851 ~ 866MHz Sensitivity Static: -114dBm for the MDC : -94dBm for the RD_LAP Adjacent and Alternate Channel Selectivity : 40dB/45dB for the Data 55dB/60dB for the Tone CO-Channel Decode Ratio: 8dB for the MDC : 16dB for the RD_LAP Spurious Response Attenuation : 60dBc Image Frequency rejection : 50dBc 4 3. Circuit guide A. RF circuit CNI-803D circuit is composed of five parts such as power supply, antenna, synthesis/modulation of frequency, transmission and reception. 1 power supply Power supply is composed of voltage regulator and switching part. Voltage regulator generates 3V of power supplied from VBB when the control of RF_EN switch is turned on. When RF_EN is high, RF_VCC is regulated with 3V, and RF_VCC is supplied to PLL IC, VCTCXO, OP-Amp(IC102), VCO, and Drive Amp(Q104). When RX_EN is low, RX_VCC is turned on by Q202, and RX_VCC (3V) is supplied to LNA , M IXE R , IF AMP and IF IC . When TX_EN is low, TX_VCC is turned on by Q201, and TX_VCC (3V) is supplied to Buffer Amp(Q105) and OP-Amp(IC104). The switch between TX mode and RX mode can be achieved by control of RX_EN(Q202) and TX_EN(Q201). 2 Antenna Antenna part is composed of antenna matching circuit, BPF, and Rx/Tx signal isolation circuit. CNI-803D adapts  /4 WHIP antenna to match to mid range frequency of communication. TX/RX signal isolation circuit isolates signals of communication and is composed of switching diode and inductor. The signals received from antenna meet the send/receive path and then D1 is turned on and the signals proceed only to receiving path. In receiving mode, signals from TX Power Amp can not go through RX path because D101 is off. (refer to RF circuit diagram) 3 Frequency synthesizer and modulator Frequency synthesizer consists of PLL part, VCO module and pre-modulation filter. The PLL part is composed of phase detector, loop filter, and 12.6Mhz VCTCXO VCO module generates 806~821Mhz frequencies in accordance with the voltage which is from charge pump of PLL to loop filter. Programmable Divider in PLL makes the VCO output frequency to any channel value according to the frequency data from Logic CPU. Phase detector gets low and high frequencies from comparison of phase. Loop filter filters the frequencies to get a value of voltage. The voltage is input to VCO to achieve phase lock process. Modulation is completed when modem IC signal of Logic part is input to VCO and authorized. 4 Receiver 5 Receiver filters and amplifies RF signal through SAW filter and LNA RX part is double super heterodyne type, and consists of LNA, LPF, Mixer, SAW filter and IF IC part. There happens RX signal from antenna and the signal is low-noise- amplification (LNA) through SAW filter and LNA, and it comes to 2nd IF 455KHz via 2nd X-TAL44.545MHz. SAW filter rejects Image frequency(RX ± 2*IF) generated from 1’st Mixer while receiving. For example, if the input channel is 858Mhz, the output frequency would be 45Mhz from mixer while local frequency is 813Mhz. However, if SAW filter will not filter the image frequency of 858 ± 2*IF, S/N would be worse with 45Mhz(813-768=45) of noise. And SAW filter should filter to prevent local frequency becoming spurious through LNA and reverse path. LNA amplifies and sends the faint signal from antenna to mixer, and mixer TR mixes and generates 1st IF with frequency from antenna. IF comes from mixer. And IF contains inter-modulation product component. MCF removes that product component. So clean IF(45MHz) can be inserted to IF IC. 2nd local frequency ent…

Text truncated - open the document above for the full version.

Communication Network Interface 13F Dae-A Bidg. 165-5, DongGyo-Dong, Mapo-Ku, Seoul 121-200, Korea Tel : +82-2-330-5623 Fax: +82-2-330-5733 Mr. Roland Gubisch 70 Codman Hill Road, Boxborough, MA 01719 Date : Dec. 19, 2000 Subject : Commitment to ITS for FCC type approval of USA Dear Sir/Madam : We, the undersigned, hereby authorize Intertek Testing Services to act on our behalf in all matters relating to applications for equipment authorization of FCC type approval in USA, including the signing of all documents relating to these matters. Any and all acts carried out by Intertek Testing Services on our behalf shall have the same effect as acts of our own. This agreement expires one year from the current date.

851-870MHZ 806 - 825MHZ LC SAW SAW U2781B-FS TX MOD PA TX EN RX EN 45MHz MCF 44.545MHz Discriminator IF IC 4-LEVEL FSK MODEM TX MOD RX AUDIO RF B'D BLOCK DIAGRAM. VCO AMP TA31136FN 806 - 825MHz

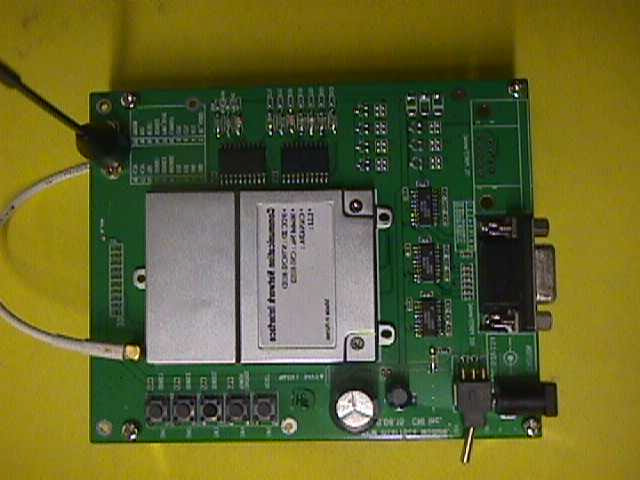

A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D External Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D External Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D External Photographs Job # J20033456 Report # 200334561.doc

A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Internal Photographs Job # J20033456 Report # 200334561.doc

CNI-803D1.0 RPM3 VERSION Custom 11Thursday, November 23, 2000 Title SizeDocument NumberRev Date:Sheetof RTCVDD VCC RTCVDD VCC VCC VCCVCC VBBVCC AVDDVCC VDD VBB VCC VBB VBB PLLVDDVCC VCC VCC VCC VCC VCC VCC VCC RF_VCC A9 nGCS0 TX_EN A16 A3 D5 D7 EXTAL1 A15 RTS D4 nOE GND DCD A12 A15 A11 AIN2 AD_VBB GND OM2 A16 OM3 VCC D2 A0 D1 nGCS1 CTS OM3 D5 PWRON PLL_CLK A2 XTAL1AVSS SENSE1 GNDA0 A9 GNDD6 D0 nRESET D0 GND A3 PLL_STB D5 A1 nWE nOE PLLCAP TX_PWM nOE A5 A7 GND A1 A14 A4 A10 XTAL1 A10 A11 GND PLL_DAT VCC nGCS2 A5 A17 A14 D3 OM1AVDD D4 D6 D0 A8 D0 D3 AD_VBB nGCS2 A12 D3 A17A4 D2 VCCA16 nGCS0 SENSE2 D2 VCC VCC A6 A2 nMSGWAIT EXTAL1 RF_EN A6 nWE D2 D1 A3 RTCVDD A4 ENDIANRXD D7 VCC D4 GND A8 A0 nLOWBATT D7 A14 AIN3 RSSI TXCON OM0 A2 VCC nWE nINRANGE VCC A7 RX_EN A13 A12 GND nGCS1 TXD nWE PLLVSS A6 nOE VCC A11 A5 D6 A8 nMIRQ AVREF A1 A1 D6 A0 GND DSR A9 RX AUDIO OM2 D1 D1 nMIRQ GND D3 D5 A13 DTR VCC OM1 A15 SENSE3 OM0 A13 D7A7 A10 D4 VCC GND TX_PWM nRESET INC U/D DSR TXD SENSE1 RX_AUDIO CTS nLOWBATT nMSGWAIT PWRON nRESET SENSE2 DCD SENSE3 nINRANGE RTS DTR RXD PLLCAP PLLVDD MCLK MCLK AVREF ENDIAN AVSSPLLVSS CS3 TX_DATA CS1/M CS2/F R1 ? + - IC8 XXX1 3 4 5 2 R3622 C31 104 C14 680P C46 104 J2 CLT-110 1 3 5 7 9 11 13 15 17 19 2 4 6 8 10 12 14 16 18 20 R3822 C22 104 C40 104 R8 4.7K + C61 xxx C34 100P C25 104 IC1 SST39VF020-90-4C-WH/TSOP 25 23 22 2120 19 18 7 6 26 27 28 29 30 31 32 12 17 16 15 14 13 3 2 1 4 5 11 10 D3 D2 D1 D0A0 A1 A2 WE A17 D4 D5 D6 D7 CE A10 OE A12 A3 A4 A5 A6 A7 A8 A9 A11 A13 A14 A15 A16 C12 22P C13 680P C15 104 R2122 R3922 IC6 HC1G14 1 2 34 5 NC IN GOUT V KS32C41000 IC2 123456789101112131415161718192021222324252627282930313233343536 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 108107106105104103102101100999897969594939291908988878685848382818079787776757473 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 DATA9DATA8DATA7DATA6DATA5DATA4DATA3DATA2VSSO0VDDO0DATA1DATA0ADDR0/PB8ADDR1ADDR2ADDT3ADDR4VSS0VDD0ADDR5ADDR6ADDR7ADDR8ADDR9ADDR10ADDR11VSS1VDD1ADDR12ADDR13ADDR14ADDR15ADDR16ADDR17/PB0ADDR18/PB1ADDR19PB2 EXTCLK PLLVDD PLLCAP XTAL0 EXTAL0 PLLVSS OM3/nXBACK/PF2 nXBREQ/PF1 VDD3 VSS3 nWAIT/PF0 SCLK SCKE/PE5 nGCS0 nGCS1 nGCS2/PE0 nGCS3/PE1 VDD2 VSS2 nGCS4/PE2 nGCS5/PE3 nWE nOE nRAS0:nSCS0/nGCS6 nRAS1:nSCS1/nGCS7/PE4 DQM0:nWBE0 VDDO1 VSSO1 DQM1:nWBE1 DQM2:nWBE2/PE6 DQM3:nWBE3/PE7 ADDR24:nCAS0:nSCAS/PB7 ADDR23:nCAS1:nSRAS/PB6 ADDR22:nCAS2/PB5 ADDR21:nCAS3/PB4 ADDR20/PB3 RXD1/SIORXD/VD6/PA6 OM2/TXD1/VD5/PA5 SIOTXD/VD4/PA4 TCLK/VLINE/PA3 TOUT2/VCLK/PA2 TOUT1/PA1TOUT0/PA0 VDD4 VSS5 OM1/VM/PF6 OM0/VFRAME/PF5 EINT7/VD3/PG7EINT6/VD2/PG6EINT5/VD1/PG5EINT4/VD0/PG4 VSS4 EINT3/nXDACK1/PG3 EINT2/nXDREQ1/PG2 EINT1/PG1EINT0/PG0 nXDACK0/PF4nXDREQ0/PF3 IICSCL/PD7 VDDO2 VSSO2 IICSDA/PD6 RTCVDD XTAL1 EXTAL1 AVDD AVREF AIN0AIN1AIN2AIN3 AVSS SIOCK/VD7/PA7 ENDIAN/TXD0/PA8 RXD0/PA9 nRESET nTRST TDI TMS TCK TDO VSSO3 VDDO3 DATA31/VLINE/PC9 DATA30/VCLK/PC8 DATA29/VD7/PC7 DATA28/VD6/PC6 DATA27/VD5/PC5 DATA26/VD4/PC4 DATA25/VD3/PC3 VSS6 DATA24/VD2/PC2 DATA23/VD1/PC1 DATA22/VD0/PC0 DATA21/PD5 DATA20/PD4 DATA19/PD3 DATA18/PD2 DATA17/PD1 VSS7 VDD5 DATA16/PD0 DATA15 DATA14 DATA13 DATA12 DATA11 DATA10 C47 104 R16 XXX R13 200K C39 104 R2022 R34 1M C44 XXX C49 104 C48 104 C7 105 C4 104 C52 104 R2322 R18 10K C16 104 R5 4.7K C24 105 C38 XXX C45 104 C5 105 R2822 IC7 CMX969 9 8 7 6 5 4 3 2 14 15 10 11 1 13 17 16 24 12 20 23 22 21 19 18 D0 D1 D2 D3 D4 D5 D6 D7 A0 A1 RD WR IRQ CS XIN XOUT VDD VSS TXO RXFB RXI VBIAS DOC1 DOC2 + C55 xxx R17 100K R14 43K C41 104 R2522 C35 270P R15 0 C62 105 C36 270P R12 XXX R3022 C43 104 R4 10K C42 104 + C56 xxx C3 105 R3222 C58 270P R7 4.7K R27 XXX C50 XXX C8 104 R3522 R9 4.7K R2422 R3 ? C11 22P C33 105 C51 XXX C2 104 R6 4.7K R2622 C32 104 IC3 BS62LV1024STI-70 30 5 32 21 22 23 25 26 27 28 29 20 19 18 17 16 15 14 13 3 2 31 1 12 4 11 10 7 6 CS1 WE OE I/O1 I/O2 I/O3 I/O4 I/O5 I/O6 I/O7 I/O8 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A16 A15 CS2 C53 22P IC5 TK11230AMTL 123 456 CTLGNDBYP OUT GND IN R2922 X2 32.768KHz X3 4.9152MHz IC4 RN5VL27A 1 2 34 5 O I GNC NC R11100K C1 104 R3122 C54 22P C23 104 R42 560K R22 XXX R43 XXX 1 3 2 R19 XXX C6 104 C73 104 C71 104 C72 104 + C17 10U/6.3V L1 180NH R51 100K R52 100K R10 0 TX_AUDIO U/D CS1/M CS2/F INC CS3 VBB RF_EN RX_EN TX_EN TX_PWM PLL_STB PLL_DATA PLL_CLK RX_AUDIO RSSI FLASH 2M(8Bit) (Ext. Clock, PLL on) 32Bit RISC MPU ARM710TDMI Core LCD Controler SROM,DRAM,SDRAM Dual Clock(32K,4MI-66MO) RESET Boot ROM Bus Size (Byte) RTC CLOCK LOGIC POWER (3.2V) Clock Mode Select SRAM 1M (8Bit) DATA PUMP ENDIAN Select (Big) RF INTERFACE LOGIC PART RF PART 2000. 09. 07

A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.014 of 37 6.0 Out of Band Emissions at Antenna Terminals FCC §2.1051 The power of emissions must be attenuated below the power of the unmodulated carrier (P) on any frequency removed from the assigned frequency by more than 250 percent of the authorized bandwidth - at least 43 + 10 log P dB. 6.1Test Procedure The RF output of the transceiver was connected to a spectrum analyzer through appropriate attenuation. The resolution bandwidth of the spectrum analyzer was set at 100 kHz. Sufficient scans were taken to show the out- of- band emissions if any up to 10th harmonic. 6.2Test Equipment HP 8566B Spectrum Analyzer, 100 Hz - 22 GHz HP 7470A Plotter 6.3Test Results Refer to the attached plots. Plot NumberDescription 6.1.1Low Channel , 1 MHz –1 GHz 6.1.2Low Channel, 1 GHz – 2.5 GHz 6.1.3Low Channel, 2.5 GHz – 10 GHz 6.2.1Middle Channel, 1 MHz –1 GHz 6.2.2Middle Channel, 1 GHz – 2.5 GHz 6.2.3Middle Channel, 2.5 GHz – 10 GHz 6.3.1High Channel, 1 MHz –1 GHz 6.3.2High Channel, 1 GHz – 2.5 GHz 6.3.3High Channel, 2.5 GHz – 10 GHz ResultsPassed A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.015 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.016 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.017 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.018 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.019 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.020 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.021 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.022 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.023 of 37

A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.024 of 37 6.0 Out of Band Emissions at Antenna Terminals FCC §2.1051 The power of emissions must be attenuated below the power of the unmodulated carrier (P) on any frequency removed from the assigned frequency by more than 250 percent of the authorized bandwidth - at least 43 + 10 log P dB. 6.1Test Procedure The RF output of the transceiver was connected to a spectrum analyzer through appropriate attenuation. The resolution bandwidth of the spectrum analyzer was set at 100 kHz. Sufficient scans were taken to show the out- of- band emissions if any up to 10th harmonic. 6.2Test Equipment HP 8566B Spectrum Analyzer, 100 Hz - 22 GHz HP 7470A Plotter 6.3Test Results Refer to the attached plots. Plot NumberDescription 6.1.1Low Channel , 1 MHz –1 GHz 6.1.2Low Channel, 1 GHz – 2.5 GHz 6.1.3Low Channel, 2.5 GHz – 10 GHz 6.2.1Middle Channel, 1 MHz –1 GHz 6.2.2Middle Channel, 1 GHz – 2.5 GHz 6.2.3Middle Channel, 2.5 GHz – 10 GHz 6.3.1High Channel, 1 MHz –1 GHz 6.3.2High Channel, 1 GHz – 2.5 GHz 6.3.3High Channel, 2.5 GHz – 10 GHz ResultsPassed A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.025 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.026 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.027 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.028 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.029 of 37 8.0Line Conducted Emissions, FCC § 15.107 8.1Test Procedure 8.2Test Results See attached test data. ResultsPassed A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.030 of 37 A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.031 of 37 9.0Frequency Stability vs Temperature, FCC § 2.995(a) 9.1Test Procedure The equipment under test was connected to an external DC power supply and the RF output was connected to a frequency counter via feedthrough attenuators. The EUT was placed inside the temperature chamber. The DC leads, RF output cable, exited the chamber through an opening After the temperature stabilized for approximately 20 minutes, the frequency of the output signal was recorded from the counter. 9.2Test Equipment Temperature Chamber, -50C to +100C Hewlett Packard 5383A Frequency Counter Tektronix 2784 Spectrum Analyzer Goldstar DC Power Supply, GR303 9.3Test Results Refer to the test data below. Frequency 813.00 MHz Temperature, CDifference (Hz) +60895 +50325 +40-265 +30-120 +20-175 +10290 0450 -10520 -20530 -30560 ResultsPassed A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.032 of 37 10.0Frequency Stability vs Voltage, FCC §2.995(d)(2) 10.1Test Procedure An external variable DC power supply was connected to the EUT. The frequency of the transmitter was measured for 115% of the DC nominal value and for 85% of the nominal value. 10.2Test Equipment Hewlett Packard 5383A Frequency Counter Tektronix 2784 Spectrum Analyzer Goldstar DC Power Supply, GR303 10.3Test Results Voltage, VDCDifference (Hz) 85%4.25-175 100%53.0-177 115%5.75-179 ResultsPassed A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.033 of 37 11.0Transient Frequency Behavior, FCC §90.214 11.1Test Procedure Test was performed according the TIA/EIA/IS-102.CAAA, Section 2.2.18. The transmitter was continuously transmitting a modulated signal (FSK, 2400 bits/sec.). The generator was generating FM signal (1 kHz tone, 12.5 kHz deviation). Several plots were made on the FM demodulator output with the EUT turned ON and OFF. 11.2Test Results ResultsNot Applicable A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DDate of Test: December 2-3, 2000 FCC ID: N79CNI-803D File: 200334561.docVersion 1.034 of 37 12.0RF Exposure 12.1Maximum Permissible Exposure Limits, FCC 1.1310 The following exposure limits apply to equipment use in Uncontrolled Environments: Maximum Permissible Exposure for Uncontrolled Environments Frequency Range (MHZ) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) E-field, H-field (mW/cm 2 ) Averaging Time (Minutes) 0.3 - 1.346141.63*10030 1.34 - 30824/f2.19/f*180/f 2 30 30 - 30027.50.0730.230 300 - 1500--f/150030 1500 - 100,000--1.030 * = Plane-wave equivalent power density. Dashes “-” are used to indicate that there is no limit under the guideline. 12.2Test Procedure The test was performed at 815 MHz. The antenna was placed on a 0.8m wooden table on open site. The antenna was connected to the EUT. EUT output power was measured at RF output connector. EUT has 0.47W ERP power output. The sensor of the field strength meter was moved around the antenna to obtain the maximum reading of the field strength meter. The measurements were performed at the distance 0.1m to 1m from the antenna. 12.3 Field Strength Calculations The field s…

Text truncated - open the document above for the full version.

A 1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803D FCC ID: N79CNI-803D File: 200334561.docVersion 1.01 of 37 Job No:J20033456 Company:CNI Model:CNI-803D Engineer: Xi-Ming Yang Radiated Power (Measured by Substitution Method) Frequency MHz Antenna Polarization H/V Spec.Anlzr Reading (EUT) dB(uV) Spec. Anlzr Reading (Signal Gen & Tuned Dipole) dB(uV) Signal Generator Output Power dBm Effective Radiated Power (EUT) dBm 806V105.183.08.830.9 813V105.083.38.830.5 821V105.283.48.830.6 Test was performed at 3m distance CDI Robert’s Antenna was used A 1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803D FCC ID: N79CNI-803D File: 200334561.docVersion 1.02 of 37 Spurious Emission Attenuation (Measured by Substitution Method) Frequency MHz Field Strength measured from EUT dB(uV/m) Signal Generator Level required to generate same field as EUT; dBm ERP dBm Attenuation dB Limit dB Margin dB 806.0128.9-30.9--- 1612.077.7-31.6-26.757.646.0-11.6 2418.063.8-43.7-38.269.146.0-23.1 3224.056.6-48.1-42.173.046.0-27.0 4030.063.7-40.1-34.165.046.0-19.0 4836.050.0-55.3-48.779.646.0-33.6 5642.042.5-63.0-56.487.346.0-41.3 6448.049.4-56.4-48.579.446.0-33.4 7254.050.3-54.9-47.178.046.0-32.0 8060.049.5-57.3-48.479.346.0-33.3 Test was performed at 3m distance A 1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803D FCC ID: N79CNI-803D File: 200334561.docVersion 1.03 of 37 Spurious Emission Attenuation (Measured by Substitution Method) Frequency MHz Field Strength measured from EUT dB(uV/m) Signal Generator Level required to generate same field as EUT; dBm ERP dBm Attenuation dB Limit dB Margin dB 813.0128.8-30.5--- 1626.077.4-31.9-27.057.546.0-11.5 2439.064.9-42.6-37.167.646.0-21.6 3252.052.9-51.8-45.876.346.0-30.3 4065.062.5-41.3-35.365.846.0-19.8 4878.047.5-57.8-51.281.746.0-35.7 5691.042.5-63.0-56.486.946.0-40.9 6504.047.6-58.2-50.380.846.0-34.8 7317.050.3-54.9-47.177.646.0-31.6 8130.049.5-57.3-48.478.946.0-32.9 Test was performed at 3m distance A 1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803D FCC ID: N79CNI-803D File: 200334561.docVersion 1.04 of 37 Spurious Emission Attenuation (Measured by Substitution Method) Frequency MHz Field Strength measured from EUT dB(uV/m) Signal Generator Level required to generate same field as EUT; dBm ERP dBm Attenuation dB Limit dB Margin dB 821.0129.1-30.6--- 1642.076.5-32.8-27.958.546.0-12.5 2463.063.9-43.6-38.168.746.0-22.7 3284.046.9-57.8-51.882.446.0-36.4 4105.054.5-49.3-43.373.946.0-27.9 4926.042.5-62.8-56.286.846.0-40.8 5747.044.5-61.0-54.485.046.0-39.0 6568.047.1-58.7-50.881.446.0-35.4 7389.049.3-55.9-48.178.746.0-32.7 8210.049.5-57.3-48.479.046.0-33.0 Test was performed at 3m distance

A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Job # J20033456 Report # 200334561.doc Test Configuration Setup (Radiated) A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Job # J20033456 Report # 200334561.doc Test Configuration Setup (Radiated) A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Job # J20033456 Report # 200334561.doc Test Configuration Setup (Radiated) A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Job # J20033456 Report # 200334561.doc Test Configuration Setup (Line Conducted) A1365 Adams Ct. Menlo Park, CA 94025 Communication Network Interface, Inc., Model No. CNI-803DFCC ID: N79CNI-803D Job # J20033456 Report # 200334561.doc Test Configuration Setup (Line Conducted)
