N7KA5PA5P Portable Bluetooth Speaker

Quick Start Guide Aiwa Exos-3 User Manual [email protected] (888) 982-8561 Aiwa Corporation Exos-3 Features • IP67 Waterproof • Stereo pairing of two speakers • Onboard DSP • Two subwoofer radiators • USB power bank • Speaker • USB-C Charging Cable-50CM / 3.5 mm AUX-IN Cable 50CM • Strap • USB Power adapter • User Manual Package Contents 23451 Model No: AIWA Exos-3 Input : DC 5V / 2A Battery:Li-ion 7.2V/5000mAh AVRCP V1.6, A2DP V1.3, HFP V1.7, HSP V1.2 33 feet (10m) 285*124*124 mm Li-Ion 7.2V/5000mAh DC 5V 2A DC 5V 1A 50HZ-20KHZ 80 db Controls, Connectors and Lights 1 4. Bluetooth 5. Power Button 9. Bluetooth Indicator11. Aux Indicator 10. Charge Indicator 8. AUX -In 7. USB-C Port 6. USB-A Port 3. Stereo Pair button 2. - Button Button Functions 3. Stereo Pair Button Pairs two Exos-3 speakers for stereo sound 1. Button: Short press to increase volume (or press and hold to advance to the next track) 2. Button: Short press to lower the volume (or press and hold to return to the start of the current track) 4. Bluetooth Button: Press and hold to pair with a new device 5. Power Button: play/pause) 6. USB-A Port: Charges device using a USB-A charger 7. USB-C Port: Charges Exos-3 via using a USB-C charger 8. Aux-In: Connect to the speaker via 3.5mm aux-in cable 9. Bluetooth Indicator: Shows Bluetooth connection status 10. Charge Indicator: Shows remaining battery power 11. Aux Indicator: Illuminates when Aux input is connected Operation Powering ON/OFF Pairing The unit will automatically go into “Pairing Mode” when it is powered on, the blue LED light will blink to indicate you have entered pairing status. In your device’s Bluetooth settings, select “Aiwa Exos-3.” Once paired, an audible prompt will indicate the successful pairing and the blue LED light will illuminate solidly once paired. Press and hold the Bluetooth button for 3 seconds to disconnect the current device and pair to a new one. Begin Streaming Music Press Power Button to start playing music, Power Button press again to pause music. Press and Hold Button 2 seconds to play the next track. Press and Hold Button 2 seconds to restart the current track. Press either Button or Button for volume control. Making and Receiving Phone Calls Use the built-in microphone to make and receive calls, using the device as a speakerphone. Short press Bluetooth to accept and end a call. To reject a call, press and hold Bluetooth Aux Mode Plug in the supplied 3.5 mm cable into the unit, connect the other to your device. The light green LED will light to indicate “Aux” mode. In Aux Mode, Press Button to increase the volume Press Button to lower the volume Press Button to mute the speaker Skip, back and play/pause are controlled on your phone only while in Aux Mode Pairing two speakers 1. Make sure the speakers do not have an active Bluetooth connection (disconnect by pressing the Bluetooth button if needed.) 2. Power on both speakers, press the Stereo Pair Button on the one you wish to be the primary speaker. The secondary speaker will automatically connect and you’ll hear an audible prompt when pairing is successfully completed. 3. The primary speaker’s blue LED will blink (this speaker will play the left channel audio) and the secondary speaker’s blue LED will illuminate continuously (this speaker will play the right channel audio.) 4. Connect your phone or tablet to the primary speaker via Bluetooth or Aux input to the primary speaker. Notes: • The two speakers will remain paired even when phones are disconnected, to disconnect the secondary speaker, simply press the button on the primary speaker. • While two speakers are paired, some controls will only be operational on the primary speaker. Power bank function device is fully an audible indicator will be heard, and charging will cease. Charging 2. Charging additional devices from the USB port will reduce battery life accordingly. 3. The power indicator will blink while charging. The 4 red LEDs indicate current battery level. When all 4 are fully illuminated, the device is completely charged. 4. Charge time: Approximately 4 hours from fully depleted to fully charged. Notes The device should be fully charged before long-term storage and recharged every 3 months to ensure the battery operates at full capacity. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. compliancecould void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. To m uipment should be installed and operated with minimum distance between 20cm the r b CE Statement This device was tested for typical body-worn operations. To comply with RF between the user’s body and the device, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may…

Text truncated - open the document above for the full version.

Product Name:A5P Portable Bluetooth Speaker Model No.:A5P, 3001-US-B, 3001-US-R FCC ID:N7KA5P All models are electrically identical, only model no is different. <Signature> Name Vick chen Title Manager Company KINGTA TECHNOLOGY CO., LIMITED

DATE 2020-11-4 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: N7KA5P Product Name: A5P Portable Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name Vick chen Title Manager Company KINGTA TECHNOLOGY CO., LIMITED

Model NO.: A5P

RF Exposure evaluation Accord ing to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 M Hz 4dBm（ 2.5 mW）output power] ( 2.5 mW /5mm) ·[√2.402(GHz)]= 0.78 <3.0 for 1-g SAR Then SAR evaluation is not required

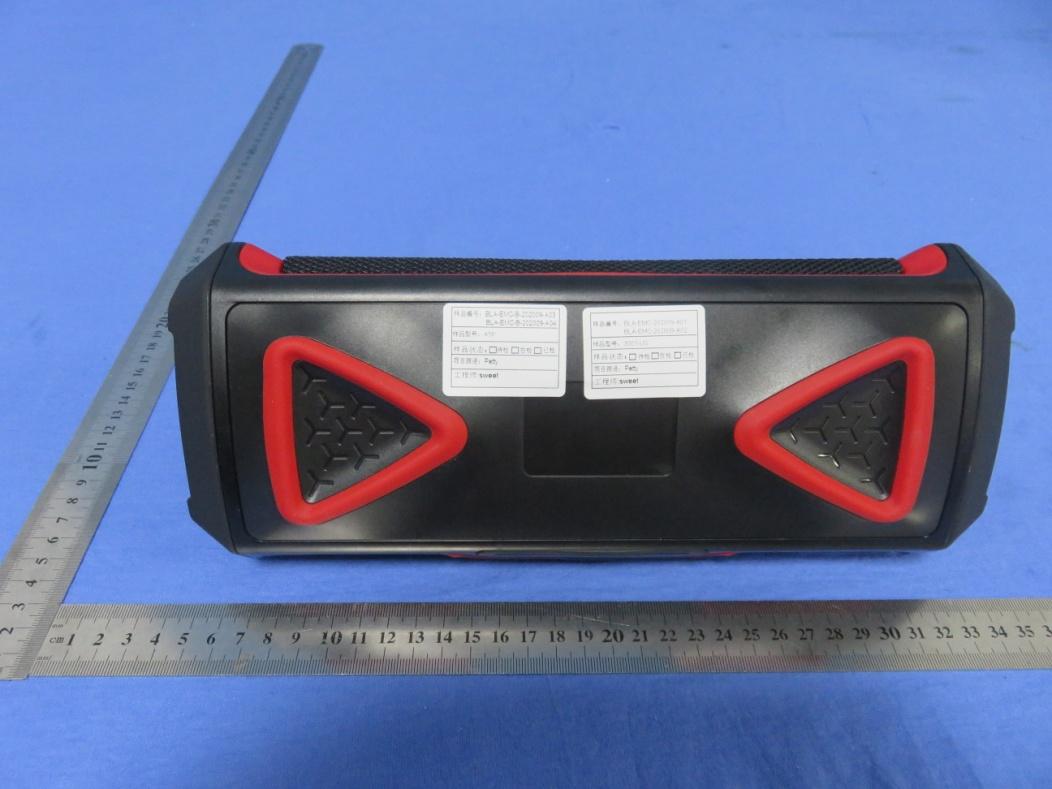

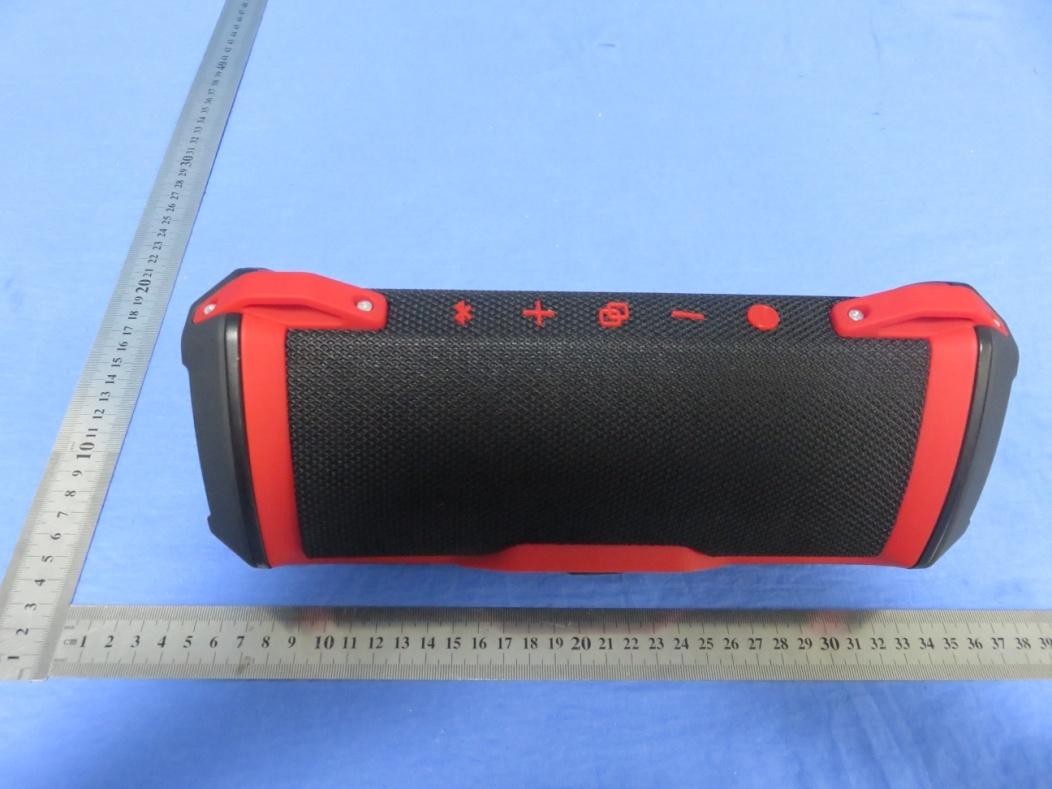

Report No.: BLA-EMC-202009-A0201 Page 79 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX A: PHOTOGRAPHS OF TEST SETUP Radiated Spurious Emissions Report No.: BLA-EMC-202009-A0201 Page 80 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Conducted Emissions at AC Power Line (150kHz-30MHz) Report No.: BLA-EMC-202009-A0201 Page 81 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202009-A0201 Page 82 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 83 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 84 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 85 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 86 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 87 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 88 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Report No.: BLA-EMC-202009-A0201 Page 48 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10 APPENDIX Appendix1 10.1 APPENDIX: 20DBEMISSION BANDWIDTH Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.125 2401.397 2402.522 --- PASS 2441 1.116 2440.397 2441.513 --- PASS 2480 1.113 2479.397 2480.510 --- PASS 2DH1 Ant1 2402 1.335 2401.277 2402.612 --- PASS 2441 1.329 2440.283 2441.612 --- PASS 2480 1.335 2479.280 2480.615 --- PASS 3DH1 Ant1 2402 1.326 2401.298 2402.624 --- PASS 2441 1.323 2440.298 2441.621 --- PASS 2480 1.326 2479.298 2480.624 --- PASS Report No.: BLA-EMC-202009-A0201 Page 49 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 Report No.: BLA-EMC-202009-A0201 Page 50 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 Report No.: BLA-EMC-202009-A0201 Page 51 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202009-A0201 Page 52 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.2 APPENDIX: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 3.41 <=20.97 PASS 2441 3.28 <=20.97 PASS 2480 2.76 <=20.97 PASS 2DH1 Ant1 2402 3.39 <=20.97 PASS 2441 3.25 <=20.97 PASS 2480 2.74 <=20.97 PASS 3DH1 Ant1 2402 3.56 <=20.97 PASS 2441 3.45 <=20.97 PASS 2480 2.92 <=20.97 PASS Report No.: BLA-EMC-202009-A0201 Page 53 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Report No.: BLA-EMC-202009-A0201 Page 54 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202009-A0201 Page 55 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202009-A0201 Page 56 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 57 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.3 APPENDIX: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1.008 >=0.750 PASS 2DH1 Ant1 Hop 1.002 >=0.890 PASS 3DH1 Ant1 Hop 1.004 >=0.884 PASS Report No.: BLA-EMC-202009-A0201 Page 58 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202009-A0201 Page 59 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.4 APPENDIX: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.37 320 0.118 <=0.4 PASS DH3 Ant1 Hop 1.62 160 0.259 <=0.4 PASS DH5 Ant1 Hop 2.87 107 0.306 <=0.4 PASS The test period: T= 0.4 Second/Channel x 79 Channel = 31.6 s Test channel: 2441MHz as blow DH1/2-DH1/3-DH1 time slot=0.37(ms)*(1600/ (2*79))*31.6=118.40ms DH3/2-DH3/3-DH3 time slot=1.62(ms)*(1600/ (4*79))*31.6=259.20ms DH5/2-DH5/3-DH5 time slot=2.87(ms)*(1600/ (6*79))*31.6=306.13ms Report No.: BLA-EMC-202009-A0201 Page 60 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop Report No.: BLA-EMC-202009-A0201 Page 61 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202009-A0201 Page 62 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.5 APPENDIXF: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202009-A0201 Page 63 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202009-A0201 Page 64 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.6 APPENDIX:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 3.19 -47.83 <=-16.81 PASS High 2480 2.55 -55.02 <=-17.45 PASS Low Hop_2402 2.92 -48.11 -17.08 PASS High Hop_2480 2.56 -54.62 -17.44 PASS 2DH1 Ant1 Low 2402 3.17 -48.95 <=-16.83 PASS High 2480 2.53 -55.31 <=-17.47 PASS Low Hop_2402 2.93 -48.45 -17.07 PASS High Hop_2480 2.55 -55.13 -17.45 PASS 3DH1 Ant1 Low 2402 3.17 -47.73 <=-16.83 PASS High 2480 2.54 -54.7 <=-17.46 PASS Low Hop_2402 3.09 -48.25 -16.92 PASS High Hop_2480 2.58 -54.05 -17.42 PASS Report No.: BLA-EMC-202009-A0201 Page 65 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202009-A0201 Page 66 of88…

Text truncated - open the document above for the full version.

Page 1 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : A5P Portable Bluetooth Speaker Brand Mark : N/A Model No. : A5P, 3001-US-B, 3001-US-R FCC ID : N7KA5P Report Number : BLA-EMC-202009-A0201 Date of Sample Receipt : 2020/9/1 Date of Test : 2020/9/1 to 2020/9/18 Date of Issue : 2020/9/28 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: KINGTA TECHNOLOGY CO., LIMITED 6F NO.2 BUILDING FUTING INDUSTRIAL ZONE ZHUCUN GUANLAN LONGHUA SHENZHEN Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2020/9/28 Report No.: BLA-EMC-202009-A0201 Page 2 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2020/9/18 Original 01 2020/9/28 Replace the applicant, product name and model Report No.: BLA-EMC-202009-A0201 Page 3 of88 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 16 PROCEDURE ................................................................................................................................................................... 16 TEST DATA ........................................................................................................................................................................ 18 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 26 LIMITS ............................................................................................................................................................................. 26 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 27 PROCEDURE ................................................................................................................................................................... 27 TEST DATA ........................................................................................................................................................................ 29 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 33 LIMITS ............................................................................................................................................................................. 33 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 33 TEST DATA ........................................................................................................................................................................ 34 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 35 LIMITS ............................................................................................................................................................................. 35 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 35 TEST DATA ......................................................................................................................................................…

Text truncated - open the document above for the full version.

Model NO.: A5P
