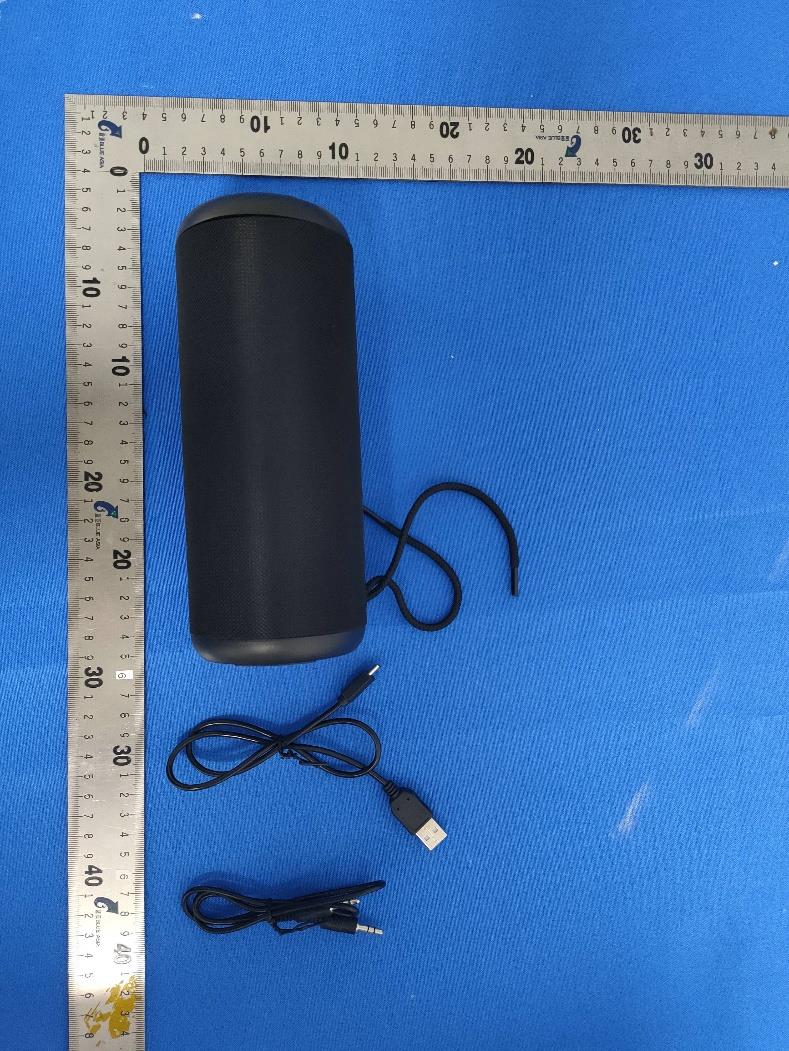

Waterproof Wireless Speaker User Manual Q29 Introduc�on Thank you for purchasing this product. You can use this item with Pads , Phones, Pods and many types of Smart phone to stream music, and enjoy hands-free calling. In order to get the best results when using the device, please read this manual first before using. Features IPX6 Water resistant Bluetooth Speaker Perfect fabric speaker with rubber control panel Rich and powerful sound output ( 10W*2=20W output ) Unique and patent design Support TWS func�on Type-C port With adjustable LED light modes Removable lanyard Support AUX in func�on Support TF card Support USB func�on Specifica�ons Bluetooth version: 5.0 Loudspeaker: φ52mm 4Ω 10W *2 Built-in ba�ery: Li-ion 7.4V/2000mAh Size: φ83.0mm*H205.0mm SNR: >80dB Bluetooth Frequency: 2.402-2.480 GHz Wireless Transmission Distance: up to 10m Charging �me : Approx. 3 hours Weight: 0.72kg Sensi�vity : - 90dBm Input: DC5V, 1A Profile: A2DP/AVRCP/HFP/HSP/OPP/HID/SPP/PBAP/GATT/SM Audio Decoding: MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV(IMA - ADPCM & PCM), AIF, AIFC Package contents 1* Water resistant IPX6 speaker 1* USB to Type-C charging cable - 50cm 1* 3.5mm to 3.5mm AUX cable - 50cm 1* User manual Important Safety Precau�ons When using your Bluetooth Mobile Speaker, basic safety precau�ons should always be followed, including the following: • Keep this product and its accessories away from excessive heat. • Do not operate this device with a damaged cable or a�er it has malfunc�oned or has been damaged in any manner. • No sharp object should be subjected to the speaker/speaker-drivers as it may damage the speakers. • Only use a so� cloth, no harsh abrasives or chemicals to clean, as it may damage the surface finishing. • Ensure the speaker is waterproof by removing all the connected cables and the cap is �ghtly closed before exposing the speaker to liquid. • Do not expose the speaker to water while charging, as doing so may result in damage to the speaker or the power source. Charging your Speaker 1. Connect one end of the included USB Charging Cable to the Charging Port on your speaker. Then plug the other end of the USB Charging Cable into a suitable USB port on your computer, notebook or power bank to recharge your speaker's internal rechargeable ba�ery. 2. When charging, a red LED light will illuminate to indicate that the unit is charging. The red light will turn off when your unit is fully charged(under both turn-on/off speaker status) A Quick Look At Your Speaker 1.Power on/off Bu�on: To power on your speaker, press and hold the Bu�on. To power off your speaker, Press and hold the Bu�on. Press the Bu�on when music is playing to pause the music. Press the Bu�on when music is paused to begin playing again. 2.Next song / Vol + Bu�on: To skip to the next track, press the Bu�on. To raise the volume, press and hold the Bu�on. 123 4567 89 3.TWS Bu�on: 1)TWS mode: If you have two Q29, you can use them both in sync to listen in True Wireless Stereo (One speaker will play only the le� channel, the other will play only the right channel). A)Make sure both Q29 are without any Bluetooth connec�on. B)Power on both units and press bu�on on one of speaker. The two speakers will connect automa�cally and you should hear the indica�ng tone. When the blue LED blinks quickly on one unit and blinks slowlyon the other, the TWS has connected successfully. 2)Hands free func�on: A)Accep�ng or ending a call (during music playback included): Upon hearing the incoming call tone, press the Bu�on once to answer the call. This will also pause your music. Press the Bu�on again to end the call. Music will resume. B)Rejec�ng a call (during music playback included): Upon hearing the incoming call tone, press and hold the Bu�on to reject the call. 4.Previous song / Vol - Bu�on: To go back the previous track, press the Bu�on for 1 second. To lower the volume, press and hold the Bu�on for more than 1 second. 5.Light Bu�on: Press the Bu�on to se�ng the ligh�ng mode: A)Light with music(under music mode) B)Single color switch: Red/Purple/Blue/Sky blue/Green/Aqua C)Breathing light color switch D)Light off 6.AUX in port : Use the a�ached 3.5mm to 3.5mm audio cable to connect the speaker and an analog audio source. 7.Type-C charging port: Use the a�ached Type-C to USB charging cable to charging your speaker. 8.TF card port: Use TF card to enjoy the music, insert the TF card and speaker will turn on TF card mode automa�cally. When U disk plug out , the speaker will turn to Bluetooth mode. 9.USB port: Use U disk to enjoy the music, insert the TF card and speaker will turn on USB mode automa�cally. When U disk plug out , the speaker will turn to Bluetooth mode. Bluetooth Pairing Procedure 1.Turn on you mobile device and go to the Bluetooth menu. 2.Make sure the speaker is within three meters from the mobile device. 3.Press and hold the Bu�on on your speaker to power on. The LED light will blink blue to indicate that you have entered paring mode. 4.Select 'Q29' on the Bluetooth device menu. Ensure that the device shows 'Connected' in the status display. (If a PIN is required, enter 0000.) 5.Press the bu�on twice to disconnect the Bluetooth mode. True Wireless Stereo (TWS) Func�on If you have two Q29, you can use them both in sync to listen in True Wireless Stereo (One speaker will play only the le� channel, the other will play only the right channel). A.Make sure both Q29 are without any Bluetooth connec�on. B.Power on both units and press bu�on on one of speaker. The two speakers will connect automa�cally and you should hear the indica�ng tone. When the blue LED blinks quickly on one unit and blinks slowly on the other, the TWS has connected successfully. The le� channel is master speaker and the right channel is slave speaker. C.Under connec�on, search Bluetooth device and select 'Q29'. D.Hands-free func�on is only available on the master speaker. E.Under TWS status, if the slave speaker is turned off, the master speaker will con…

Text truncated - open the document above for the full version.

DATE: 2021/7/19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint BlueAsia of Technical Services(Shenzhen) Co.,Ltd.IOT Test Centre of BlueAsia,Building C, No.107, Shihuan Road, Shiyan Sub-District, Baoan District,Shenzhen, Guangdong Province, China(Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Floor 2,Building 10/ Floor 4, Building 9, Futing industrial zone, Zhucun, Guanlan, Longhua,Shenzhen (Applicant Name and address) <Signature> Name Marco Pan Title Sales assistant Applicant Company ：KINGTA TECHNOLOGY CO., LTD

DATE 2021/7/19 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:N7KQ29 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name Marco Pan Title Sales assistant Company KINGTA TECHNOLOGY CO., LTD

Product Name: BLUETOOTH SPEAKER Model No. ： Q29, AJ-ABT-29, AWKF4 FCC ID ： N7KQ29 All models are electrically identical ， Only model no is different 。 <Signature> Name: Marco Pan Title Sales assistant Company KINGTA TECHNOLOGY CO., LTD

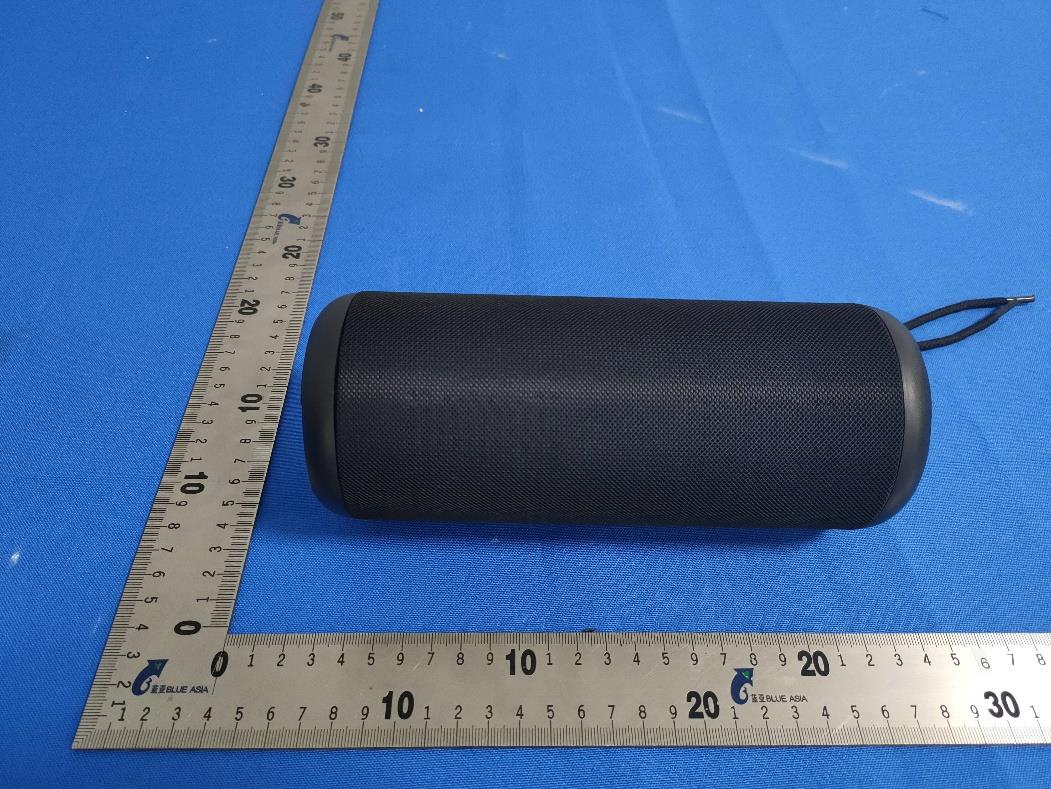

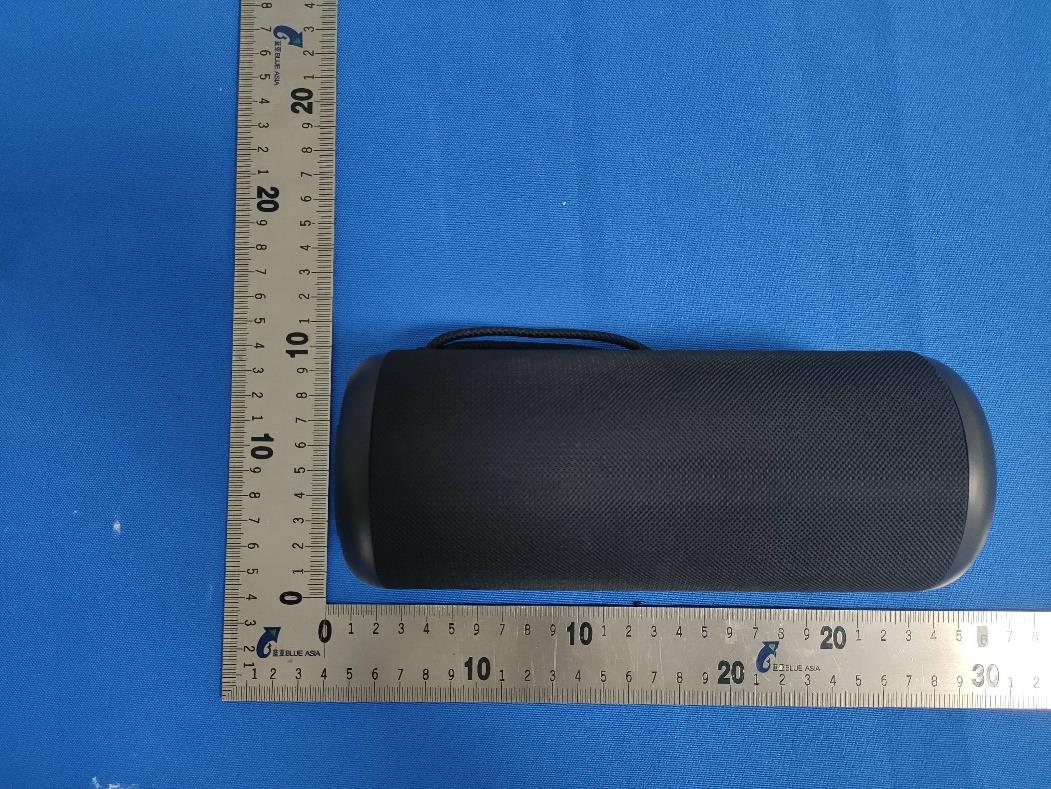

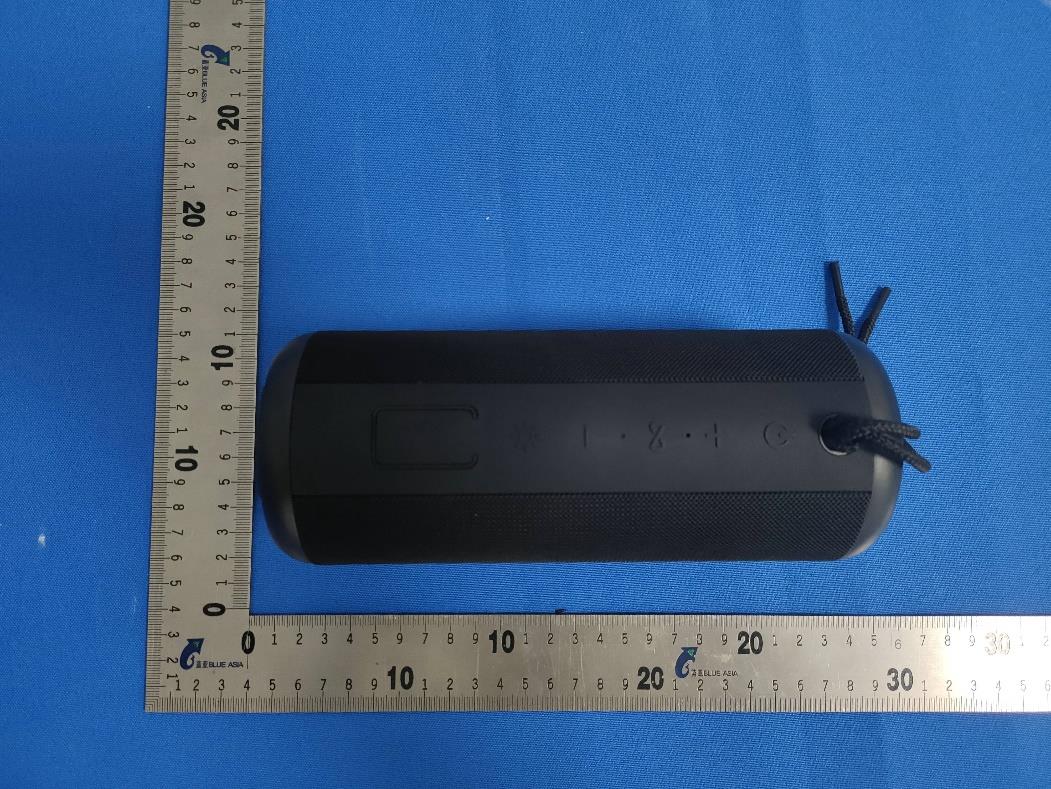

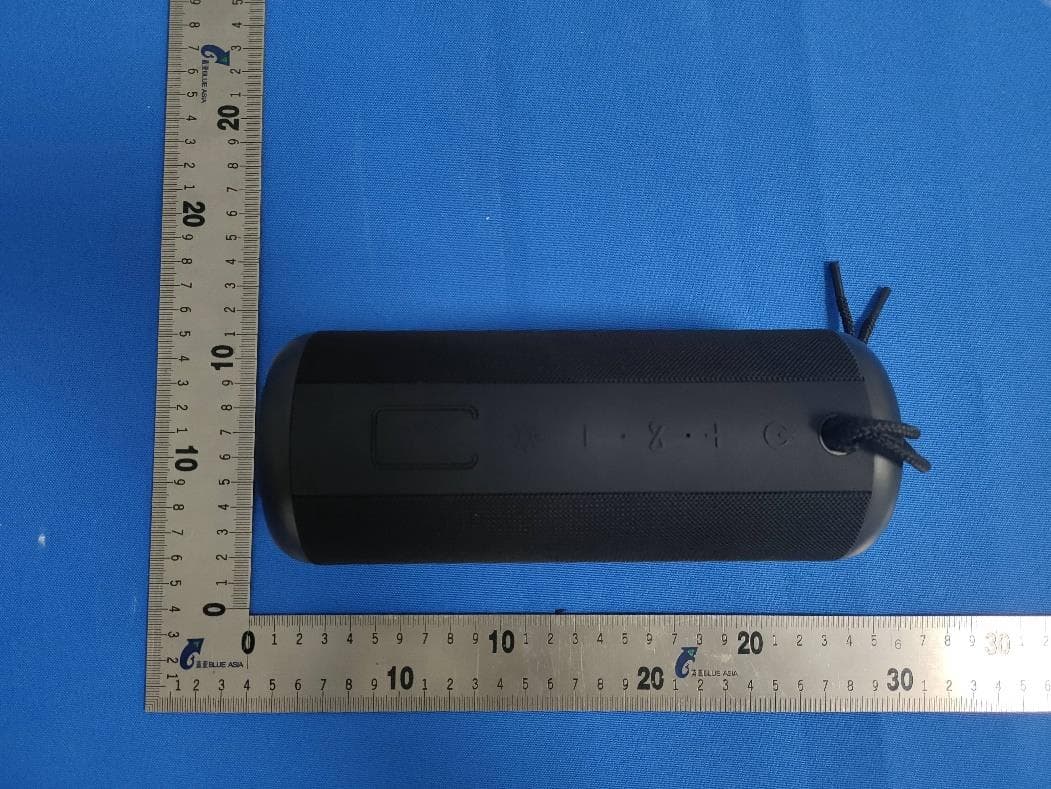

Model No.: Q29

BLUETOOTH SPEAKER Model：Q29 FCC ID：N7KQ29

Model No.: Q29

RF Exposure Evaluation Statement Product Name: BLUETOOTH SPEAKER Model No.：Q29, AJ-ABT-29, AWKF4 FCC ID：N7KQ29 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: GFSK is worst case Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHz 0.446 ±1 1.446 1.40 0.43 3.0 2441MHz -2.304 ±1 -1.3040.74 0.23 2480MHz -3.373 ±1 -2.3730.58 0.18 Conclusion: the calculated value ≤3.0, SAR is exempted.

Report No.: BLA-EMC-202106-A7502 Page 48 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 12 APPENDIX 12.1 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Total Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 Ant1 0.446 21 Pass NVNT 1-DH1 2441 Ant1 -2.304 21 Pass NVNT 1-DH1 2480 Ant1 -3.373 21 Pass NVNT 2-DH1 2402 Ant1 0.191 21 Pass NVNT 2-DH1 2441 Ant1 -2.437 21 Pass NVNT 2-DH1 2480 Ant1 -3.443 21 Pass NVNT 3-DH1 2402 Ant1 0.138 21 Pass NVNT 3-DH1 2441 Ant1 -2.409 21 Pass NVNT 3-DH1 2480 Ant1 -3.422 21 Pass Power NVNT 1-DH1 2402MHz Ant1 Power NVNT 1-DH1 2441MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 49 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT 1-DH1 2480MHz Ant1 Power NVNT 2-DH1 2402MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 50 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT 2-DH1 2441MHz Ant1 Power NVNT 2-DH1 2480MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 51 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT 3-DH1 2402MHz Ant1 Power NVNT 3-DH1 2441MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 52 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT 3-DH1 2480MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 53 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 12.2 -20DB BANDWIDTH Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 Ant1 0.964 0 Pass NVNT 1-DH1 2441 Ant1 1.04 0 Pass NVNT 1-DH1 2480 Ant1 1.014 0 Pass NVNT 2-DH1 2402 Ant1 1.266 0 Pass NVNT 2-DH1 2441 Ant1 1.293 0 Pass NVNT 2-DH1 2480 Ant1 1.275 0 Pass NVNT 3-DH1 2402 Ant1 1.27 0 Pass NVNT 3-DH1 2441 Ant1 1.276 0 Pass NVNT 3-DH1 2480 Ant1 1.272 0 Pass -20dB Bandwidth NVNT 1-DH1 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH1 2441MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 54 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -20dB Bandwidth NVNT 1-DH1 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH1 2402MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 55 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -20dB Bandwidth NVNT 2-DH1 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH1 2480MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 56 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -20dB Bandwidth NVNT 3-DH1 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH1 2441MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 57 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -20dB Bandwidth NVNT 3-DH1 2480MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 58 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 12.3 OCCUPIED CHANNEL BANDWIDTH Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 1-DH1 2402 Ant1 0.9224934896 NVNT 1-DH1 2441 Ant1 0.9033364884 NVNT 1-DH1 2480 Ant1 0.9085655412 NVNT 2-DH1 2402 Ant1 1.183055834 NVNT 2-DH1 2441 Ant1 1.174305592 NVNT 2-DH1 2480 Ant1 1.195843996 NVNT 3-DH1 2402 Ant1 1.187033361 NVNT 3-DH1 2441 Ant1 1.161884887 NVNT 3-DH1 2480 Ant1 1.177436986 OBW NVNT 1-DH1 2402MHz Ant1 OBW NVNT 1-DH1 2441MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 59 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT 1-DH1 2480MHz Ant1 OBW NVNT 2-DH1 2402MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 60 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT 2-DH1 2441MHz Ant1 OBW NVNT 2-DH1 2480MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 61 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT 3-DH1 2402MHz Ant1 OBW NVNT 3-DH1 2441MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 62 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT 3-DH1 2480MHz Ant1 Report No.: BLA-EMC-202106-A7502 Page 63 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 12.4 BAND EDGE Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH1 2402 Ant1 No-Hopping -52.42 -20 Pass NVNT 1-DH1 2480 Ant1 No-Hopping -51.61 -20 Pass NVNT 2-DH1 2402 Ant1 No-Hopping -53.04 -20 Pass NVNT 2-DH1 2480 Ant1 No-Hopping -51.09 -20 Pass NVNT 3-DH1 2402 Ant1 No-Hopping -49.72 -20 Pass NVNT 3-DH1 2480 Ant1 No-Hopping -52.18 -20 Pass Band Edge NVNT 1-DH1 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH1 2402MHz Ant1 No-Hopping Emission Report No.: BLA-EMC-202106-A7502 Page 64 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT 1-DH1 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH1 2480MHz Ant1 No-Hopping Emission Report No.: BLA-EMC-202106-A7502 Page 65 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT 2-DH1 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH1 2402MHz Ant1 No-Hopping Emission Report No.: BLA-EMC-202106-A7502 Page 66 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: marketing@cbl…

Text truncated - open the document above for the full version.

Page 1 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : BLUETOOTH SPEAKER Brand Mark : N/A Model No. : Q29, AJ-ABT-29, AWKF4 Report Number : BLA-EMC-202106-A7502 FCC ID : N7KQ29 Date of Sample Receipt : 2021/6/25 Date of Test : 2021/6/25 to 2021/7/15 Date of Issue : 2021/7/15 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: KINGTA TECHNOLOGY CO., LTD 6 / F, Building C, Futing Industrial Zone, Guanlan Bamboo Village, Longhua District, Shenzhen Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/7/15 Report No.: BLA-EMC-202106-A7502 Page 2 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/7/15 Original Report No.: BLA-EMC-202106-A7502 Page 3 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 ANTENNA REQUIREMENT ..................................................................................................................... 14 1.1 CONCLUSION ............................................................................................................................................................ 14 2 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 15 2.1 LIMITS ................................................................................................................................................................... 15 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 2.3 TEST DATA .............................................................................................................................................................. 16 3 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 17 3.1 LIMITS ................................................................................................................................................................... 17 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 18 3.3 PROCEDURE .......................................................................................................................................................... 18 3.4 TEST DATA .............................................................................................................................................................. 20 4 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 24 4.1 LIMITS ................................................................................................................................................................... 24 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 24 4.3 TEST DATA .............................................................................................................................................................. 25 5 DWELL TIME ............................................................................................................................................ 26 5.1 LIMITS ................................................................................................................................................................... 26 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 26 5.3 TEST DATA .............................................................................................................................................................. 27 6 HOPPING CHANNEL NUMBER .............................................................................................................. 28 Report No.: BLA-EMC-202106-A7502 Page 4 of97 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email…
