N8TSOV333BATS3-A/B Transmitter

Sovereign Tracking Systems L.L.C. 1108 Industrial Pkwy, Brick New Jersey 08724 (732) 836-3400 FAX (732) 836-9899 URL http://www.sovtechcorp.com ® Tracking Systems L.L.C. Federal Communications Commission We, the undersigned hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to act on our behalf all matters relating to the application for “ATS3-A/B transmitter” ( Model : ATS3-A/B, FCC ID No : N8TSOV333B ) authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g., corporation), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes see 47 C.F.R. 1.2002(b). By : By : William A. Robinson (Signature) (Print) Title : President and Chief Executive Officer Applicant : Sovereign Tracking Systems L.L.C. Address : 1108 Industrial Parkway, Brick New Jersey 08724 U.S.A. Tel : (732) 836-3400 Fax : (732)836-9899 Date : June 10, 2004 Sovereign Tracking Systems L.L.C. 1108 Industrial Pkwy, Brick New Jersey 08724 (732) 836-3400 FAX (732) 836-9899 URL http://www.sovtechcorp.com ® Tracking Systems L.L.C. Federal Communications Commission FCC ID:N8TSOV333B Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By : By : William A. Robinson (Signature) (Print) Title : President and Chief Executive Officer Applicant : Sovereign Tracking Systems L.L.C. Address : 1108 Industrial Parkway, Brick New Jersey 08724 U.S.A. Tel : (732) 836-3400 Fax : (732)836-9899 Date : June 10, 2004

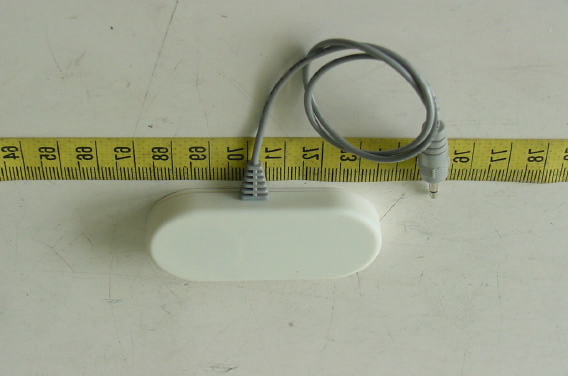

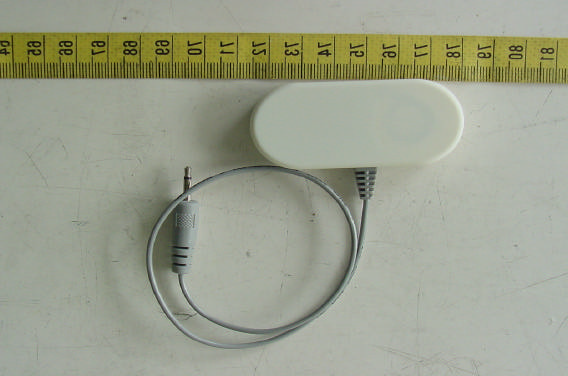

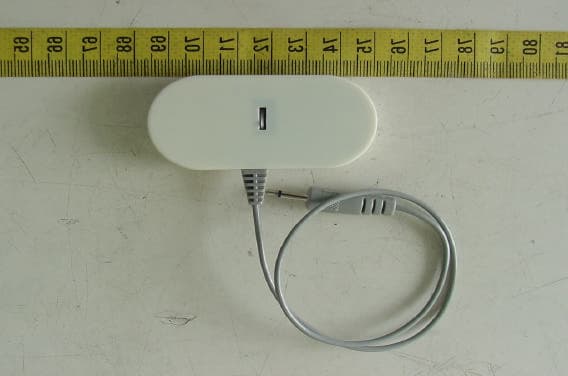

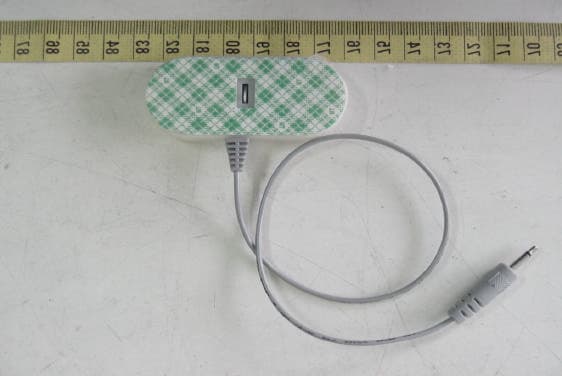

FCC ID.: N8TSOV333B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT FCC ID.: N8TSOV333B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT

Model No: 11203-0201 ATS3-A ® Tracking Systems L.L.C. 4 3 3 , 9 2 M H z F C C I D : N 8 T S O V 3 3 3 B Material: 1. Clear Polyester 3-mil thick Stock Film 2. Permanente Acrylic Adhesive 1-mil thick, single side coated Model No: 11203-0201 ATS3-A ® Tracking Systems L.L.C. 4 3 3 , 9 2 M H z Arial 30PT Arial 6PT Arial 8PT See Sheet 5 for label drawing F C C I D : N 8 T S O V 3 3 3 B 25.00 59.00 Model No: 11205-0201 ATS3-B ® Tracking Systems L.L.C. 4 3 3 . 9 2 M H z F C C I D : N 8 T S O V 3 3 3 B Material: 1. Clear Polyester 3-mil thick Stock Film 2. Permanente Acrylic Adhesive 1-mil thick, single side coated Model No: 11205-0201 ATS3-B ® Tracking Systems L.L.C. 4 3 3 . 9 2 M H z Arial 30PT Arial 6PT Arial 8PT See Sheet 5 for label drawing F C C I D : N 8 T S O V 3 3 3 B 25.00

Operational Description This device is the transmitter portion of the tracking system which is designed for security / remote monitoring of asset and product. By receiving the signal from the transmitter, this system can monitor the tracking object. The condition that will activate this transmitter is described as following: 1. Power on. When the battery is put on this transmitter, an one second no modulation signal and then a 6 codes (70ms * 6 = 420 ms) signal will be transmitted once for checking the system. 2. Start up. When the switch on the back (adhesive side) of the transmitter is pressed more than 5 seconds, a 6 codes (70ms * 6 = 420 ms) signal will be transmitted once. 3. Vibrated or moved. When the tracking object is moved, the transmitter attached to the object is also moved. This action will activate the transmitter. A 3 codes (70ms * 3 = 210 ms) signal will be transmitted. If the motion continues, the transmitter will continue to send the 3 codes signal with a time interval of 10 seconds. In this condition the transmitting time is 210 ms and the silent period is 10 seconds which is longer than 210 ms * 30 = 6.3 s. So it complies with the requirement of section 15.231(e) of FCC rules. 4. Standby mode. After the transmitter is started up, it is in standby mode. In standby mode the 3 codes (70ms * 3 = 210 ms) signal will be transmitted in every 15 minutes. This also complies with the requirement of section 15.231(e) of FCC rules. 5. Emergency mode. When the switch is off (usually when the transmitter is separated from the attached object) the 3 codes (70ms * 3 = 210 ms) signal with a time interval of 10 seconds will be transmitted 5 times. Then this transmitter will not transmit until been started up again. Following the calculation above, this also complies with the requirement of section 15.231(e) of FCC rules. 6. External activation. When the voltage change (5.5 Vdc to 0 Vdc) is detected from the “mini-phone” plug, a 3 codes signal is transmitted. Frame 1 : 70mSFrame 2 : 70mS PilotAddressData 70 x 3 = 210mS 210mS10 Sec Frame 3 : 70mS IMTS/ATS Normal Transmission Code Format

Rev. No 1.0 FCC PART 15 EMI TEST REPORT of E.U.T. : ATS3-A/B transmitter FCC ID : N8TSOV333B MODEL : ATS3-A/B Working Frequency : 433.92MHz for APPLICANT : Sovereign Tracking Systems L.L.C. ADDRESS : 1108 Industrial Parkway, Brick New Jersey 08724 U.S.A. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET93R-06-038 ETC Report No.:ET93R-06-038 FCC ID.: N8TSOV333B Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Sovereign Tracking Systems L.L.C. 1108 Industrial Parkway, Brick New Jersey 08724 U.S.A. Manufacturer : Mingtek Electronics Inc. 8F-5, No.81, Hsin Tai Wu Rd, Sec 1, His-Chih City, Taipei 221, Taiwan, R.O.C. Description of EUT : a) Type of EUT : ATS3-A/B transmitter b) Trade Name : Sovereign c) Model No. : ATS3-A/B d) FCC ID : N8TSOV333B e) Power Supply : DC 3V Battery f) Frequency Range : 433.92MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2003) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Jun. 23, 2004 Test Engineer : ( Tien Lu Liao ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET93R-06-038 FCC ID.: N8TSOV333B Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................2 2. DEFINITION AND LIMITS.......................................................................................................................................................3 2.1 DEFINITION................................................................................................................................................................................3 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................3 2.3 LIMITATION...............................................................................................................................................................................4 2.4 LABELING REQUIREMENT.......................................................................................................................................................5 2.5 USER INFORMATION.................................................................................................................................................................5 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................6 3.1 JUSTIFICATION..........................................................................................................................................................................6 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................6 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................7 4.1 APPLICABLE STANDARD.........................................................................................................................................................7 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................7 4.3 TEST DATA.................................................................................................................................................................................9 4.3.1 TX Portion.........................................................................................................................................................................9 4.3.2 Other Emissions..............................................................................................................................................................10 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................10 4.5 ACTIVATE TIME......................................................................................................................................................................11 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................................11 4.7 RADIATED TEST EQUIPMENT...........................................................................................…

Text truncated - open the document above for the full version.

FCC ID.: N8TSOV333B Rev. No 1.0 Radiated Measurement Photos
