N9B2035UMI2006Banana Boa RC Snake

N9B2035UMI2006

27MHz FCC ID Label 28.5mm 1.4mm

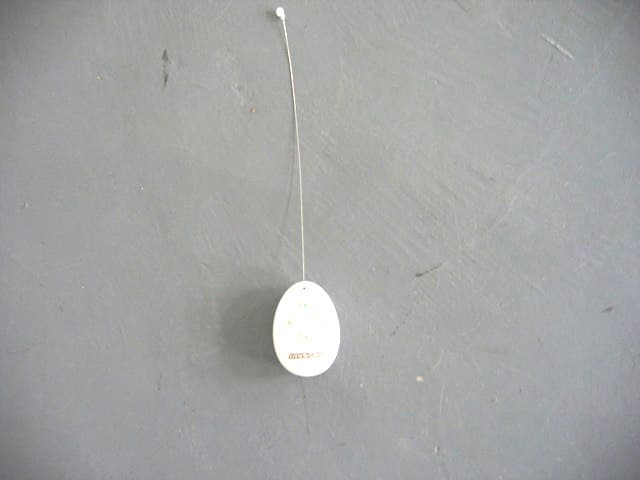

Trinsmit Mode: When TX. Unit switch “ON”, Press one of the key “F” “B” ”F-L” “F-R”, The Q1 and crystal produce a transmit frequence, The TX IC give the encode signal out and modulation To Q2, After amplifier the signal, Then it transmit out from antenna. Receiver Mode: The received signal from receiver attenna would be sent to super-re-generation circuit that consist of Q1,T1,L1 etc, After decode by the supper-re-generation circuit, The decoded signal pass to RX-IC,Then RX-IC’s output signal control the receiver “forward” , “backward”, “forward&right-turn”, “backward&left-turn”by motor control circuit & turn control circuit, The Q2/Q3/Q6 for “forward” , Q4/Q5/Q7 for “backward”, Q8 for turn left, Q9 for turn right.

TX27.sch-1 - Wed May 17 17:32:09 2006

Report No.: SZEMO060501066RFF Page: 1 of 9 FCC ID: N9B2035UMI2006 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 556682 TEST REPORT Application No. : SZEMO060501066RF(SGS SZ NO.: SZTYR060501305/EL) Applicant: Buyer: Silver Manufactory Holdings Company Limited Uncle Milton Industries FCC ID: N9B2035UMI2006 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: BANANA BOA RC SNAKE Model No.: Labelled Age Grading: Country of Origin: Country of Destination: 2035#, 7097# AGES 6 AND UP China America Standards: FCC PART 15, SUBPART C : 2006 Section 15.227 Date of Receipt: 23 May 2006 Date of Test: 24 to 30 May 2006 Date of Issue: 31 May 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: N9B2035UMI2006 Report No.: SZEMO060501066RFF Page: 2 of 9 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006 Section 15.227 and PASS Occupied Bandwidth FCC PART 15 :2006 Section 15.215 and PASS Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. FCC ID: N9B2035UMI2006 Report No.: SZEMO060501066RFF Page: 3 of 9 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 CLIENT INFORMATION......................................................................................................................................................4 DETAILS OF E.U.T............................................................................................................................................................4 DESCRIPTION OF SUPPORT UNITS.....................................................................................................................................4 TEST LOCATION...............................................................................................................................................................4 OTHER INFORMATION REQUESTED BY THE CUSTOMER....................................................................................................4 TEST FACILITY.................................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 TEST INSTRUMENTS..........................................................................................................................................................6 E.U.T. OPERATION...........................................................................................................................................................6 TEST PROCEDURE & MEASUREMENT DATA.....................................................................................................................6 5.1.1 Radiated Emissions...................................................................................................................................6 5.1.2 Occupied Bandwidth.................................................................................................................................9 FCC ID: N9B2035UMI2006 Report No.: SZEMO060501066RFF Page: 4 of 9 SGS-CSTC Standards Technical Services Ltd. 4 General Information Client Information Applicant Name: Silver Manufactory Holdings Company Limited Applicant Address: 7/F., Reliance Mfy . Bldg., 24 Wong Chuk Hang Rd., Aberdeen, N/A Hong Kong Details of E.U.T. EUT Name: BANANA BOA RC SNAKE Item No.: 2035#, 7097# Power Supply: 3.0V DC (2*1.5V ‘AA’ Size Batteries) for Tx. Power Cord: N/A- Description of Support Units The EUT was tested as an independent unit: 27MHz radio tr…
