N9KGTOF3100GTO ACCESS WIRELESS ESTATE INTERCOM

rev - 12/01/10 Moving Gate Area Driveway 10' 10' 10' 10' NEVER INSTALL any control device within gray area NEVER install the keypad portion of this system where a person can reach through the gate to activate it, or where a person can touch the gate while activating the keypad. The recommended minimum distance between the gate and keypad is 10 ft. ©2010 Gates That Open, LLC Printed in China for GTO Wireless Estate Intercom Installation Manual Kit Includes: A. Keypad B. Keypad Cover C. Jumper (required for hard-wired installation) D. Keypad Battery Cover E. Base Unit F. Base Unit Rechargeable Battery G. Transformer H. Screws for mounting Keypad Cover How it Works: A visitor without an entry code presses the CALL button on the keypad. The base (indoor) unit and the keypad will ring. A user at the base (indoor) unit answers the call by pressing the PUSH TO ANSWER/TALK button. The user at the base unit then presses the GRANT PERMISSION button to allow the visitor to operate the gate. The keypad’s GRANTED light comes on, indicating that the visitor can now push any number key on the keypad to open the gate. Visitors with access codes simply use their code to operate the gate. Temporary codes can be programmed to expire within a set number of days. WIRELESS A C E F G H D B PROFESSIONAL RESIDENTIAL ACCESS SYSTEMS WARNING GTO–Gates That Open, LLC • 3121 Hartsfield Road • Tallahassee, Florida 32303 Telephone (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com • www.gtoaccess.com F3100MBC rev - 12/01/10 FCC WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or replace the receiver antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Estate Intercom/Keypad Features Keypad • The keypad illuminates and beeps at the press of any key. At night, the keypad will illuminate when the proximity sensors detect motion near the keypad face. • When a valid code is entered, the STATUS light will blink rapidly, the keypad will beep three times, and the GRANTED light turns green. • The keypad remains active for 40 seconds after entering a valid code: pressing any key on the keypad while the gate is in motion will stop the gate; pressing any key while the gate is stopped will cause the gate to reverse direction. After 40 seconds, the keypad will beep 3 three times and go into “idle” mode, and the GRANTED light will turn off. • If more than 20 key presses are entered without matching an Entry Code, the STATUS light will flash rapidly, an error tone will sound for 1 second, and the keypad will go into “lock-down” mode for 40 seconds. • If more than 10 seconds elapse between key presses, the keypad will beep 3 three times and go into “idle” mode. Master and Entry Codes • Up to 100 Entry Codes may be programmed into the keypad. • Temporary Entry Codes can be programmed to expire within one to seven (1–7) days. • Entry Codes remain stored in memory even when the keypad batteries go dead. • All Entry Codes are deleted by pressing the RESET button on the keypad; Master Code defaults to “1234.” Base Unit • The base unit is powered by a rechargeable battery (included); the charge is maintained by the transformer. • The base unit can be disconnected from the transformer allowing it to be moved anywhere within range. • Up to three additional base units can be added to the system. NOTE: The keypad, not the base station, initiates the call and operates the gate. The base station is for answering calls and granting “permission” for the gate to be opened. INTERCOM/KEYPAD SPECIFICATIONS Frequency318 MHz from keypad to gate opener 900 MHz from keypad to base station Memory – KeypadStores up to 100 four-digit entry codes Power Consumption – Keypad60 mA when relay is closed Power Supply – KeypadFour C batteries (plus 8-24 Vdc for hard-wired installations) Power Supply – Base Unit9 Vdc 300 mA transformer; 3.6V Ni-MH 800 mA rechargeable battery pack Range from Keypad to Base Unit500’ wireless Range from Reypad to Gate Opener50’ wireless 100’ wired using 16 AWG wire Relay Output – KeypadMomentary, normally open dry contact closes for 2 seconds upon activation Relay Output Rating – Keypad12 or 24 Vdc 100 mA Wiring – Keypad Power & Relay Output16 AWG stranded low voltage direct burial wire 1 rev - 12/01/10 Keypad and Base Unit Overview Front Interior Calling Light: Turns RED when calling; turns GREEN when call is answered. Granted Light: Turns GREEN when access permission is granted. Program Button: Used to program Entry Codes. Status Light: Blinks once when any key is pressed; provides visual feedback when programming keypad. 3 DEF 9 WXY 6 MNO 2 0 CALL 4 GHI 7 PRS 1 ABC 8 TUV 5 JKL Presence Sensors 123456789 ETD + 0 - ID SET RESET REQUIRES 4 “C” SIZE BATTERIES 123456789 ETD + 0 - ID SET RESET REQUIRES 4 “C” SIZE BATTERIES Relay Output: Used to connect the keypad to gate opener control board (hard-wired installations). Power Input: To conne…

Text truncated - open the document above for the full version.

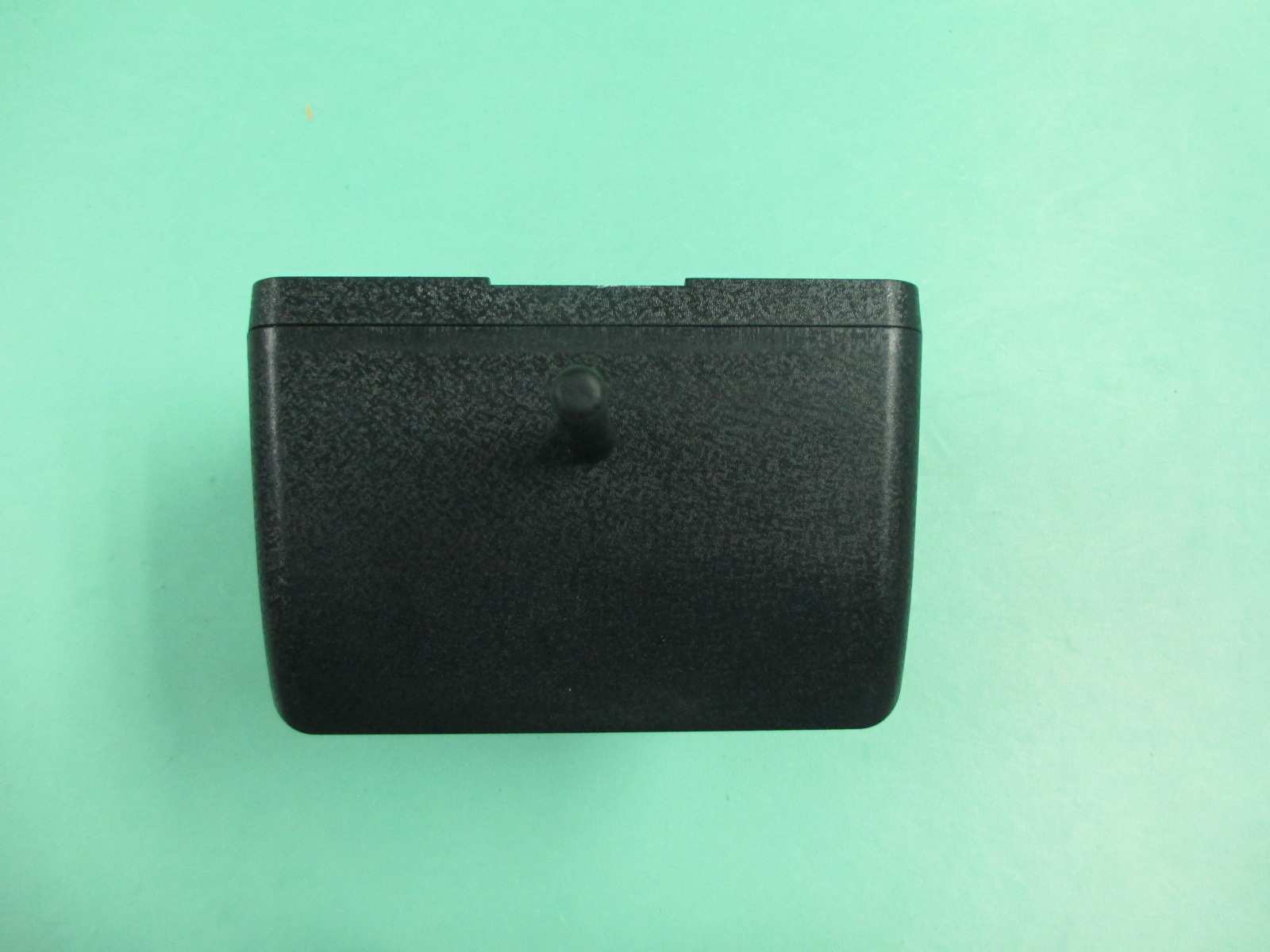

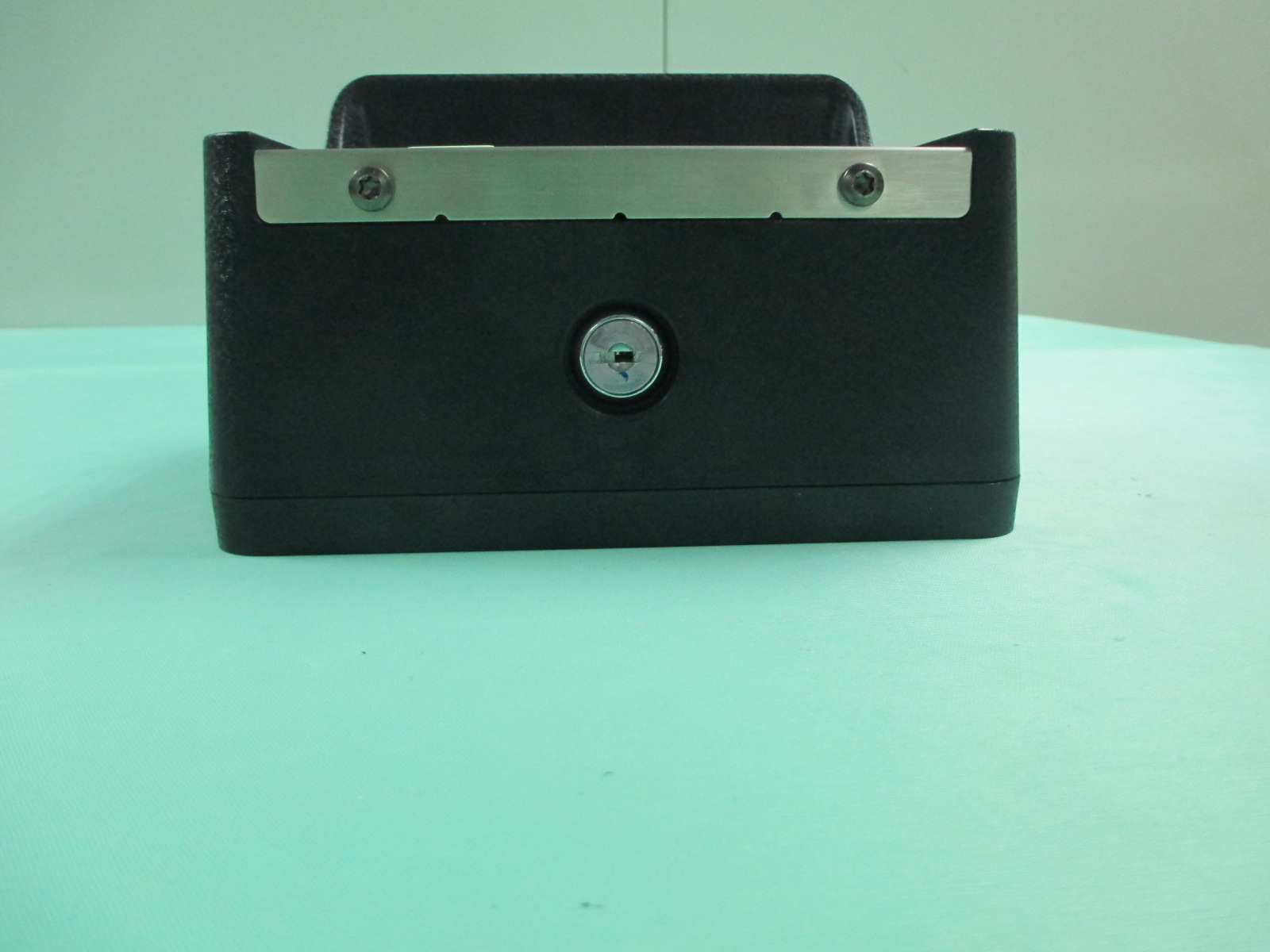

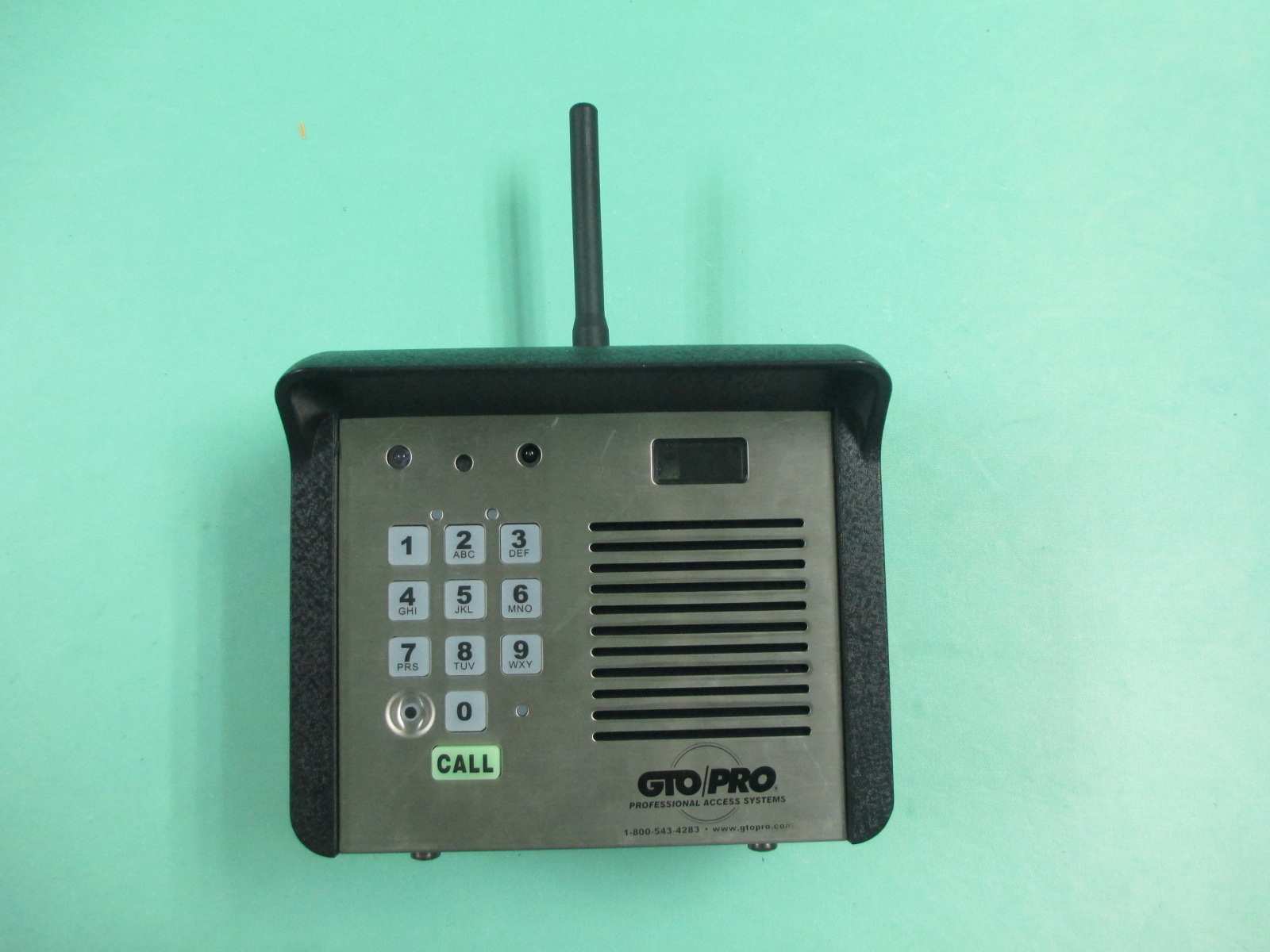

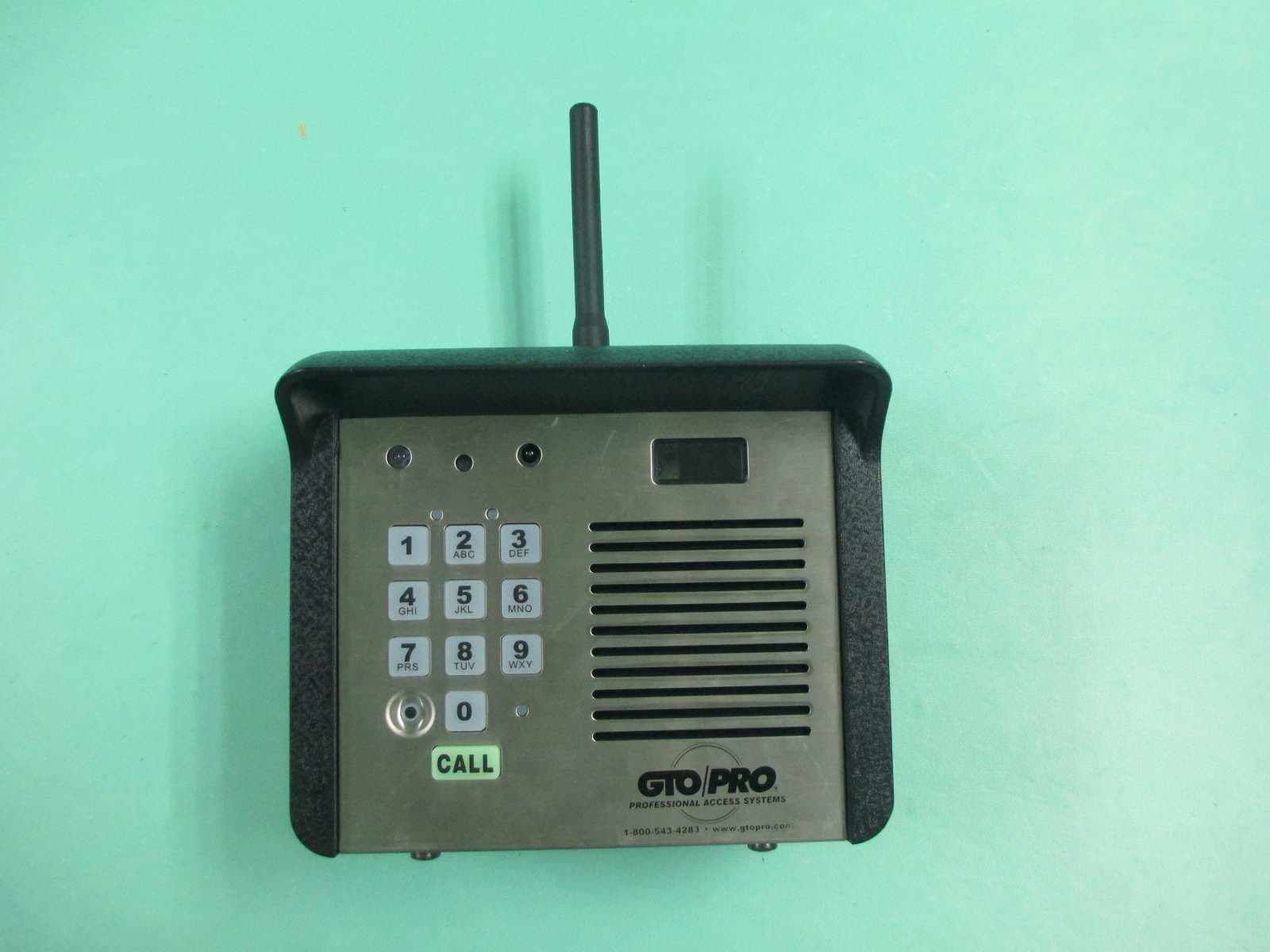

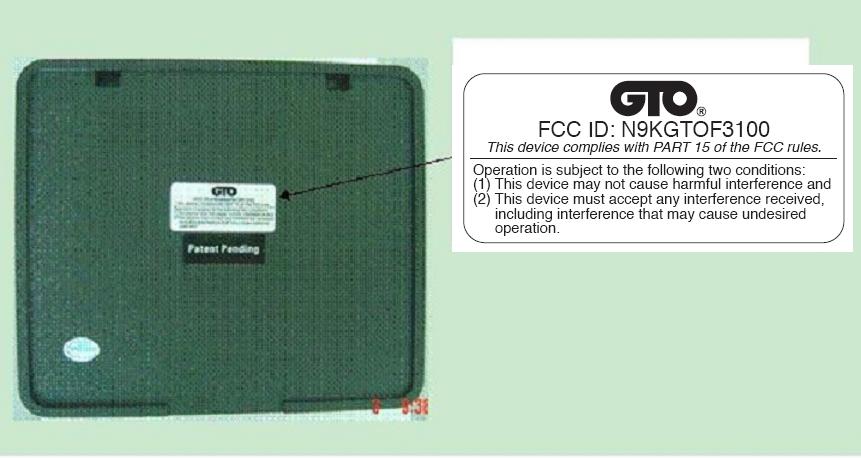

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2013-05-31 Page 1 of 25 No. : DM111222 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (DGS517): Smart Technologies & Investment Ltd. Units C&D, 18/F Spectrum Tower, No. 53 Hung To Road, Kwun Tong, Kowloon, Hong Kong Manufacturer: Smart Electronic Industrial (Dong Guan) Co., Ltd. Qing Long Road, Long Jian Tian-Cun, Huang Jiang-Zhen, Dong Guan, Guang Dong, China Description of Sample(s): Submitted sample(s) said to be Product: GTO ACCESS WIRELESS ESTATE INTERCOM Brand Name: GTO / ACCESS SYSTEMS and GTO / PRO Model Number: F3100MBC FCC ID: N9KGTOF3100 Date Sample(s) Received: 2013-05-15 Date Tested: 2013-05-21 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3 LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date : 2013-05-31 Page 2 of 25 No. : DM111222 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 25 Content Page 2 of 25 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 25 1.2 Description of EUT Operation Page 3 of 25 1.3 Date of Order Page 3 of 25 1.4 Submitted Sample Page 3 of 25 1.5 Test Duration Page 3 of 25 1.6 Country of Origin Page 3 of 25 2.0 Technical Details 2.1 Investigations Requested Page 4 of 25 2.2 Test Standards and Results Summary Page 4 of 25 3.0 Test Results 3.1 Emission Page 5-13 of 25 3.2 Bandwidth Measurement Page 13-19 of 25 Appendix A List of Measurement Equipment Page 20 of 25 Appendix B Photographs Page 21-25 of 25 STC Test Report Date : 2013-05-31 Page 3 of 25 No. : DM111222 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: GTO ACCESS WIRELESS ESTATE INTERCOM Manufacturer: Smart Electronic Industrial (Dong Guan) Co., Ltd. Qing Long Road, Long Jian Tian-Cun, Huang Jiang-Zhen, Dong Guan, Guang Dong, China Brand Name: GTO / ACCESS SYSTEMS and GTO / PRO Model Number: F3100MBC Additional Model Number(s): RF1257SMA Rating: 12-24Vd.c. with Jack / 6Vd.c. (“AAA” size battery x 4) The AC/DC adaptor was provided by the test lab with following details: Brand name: N/A; Model no.: S-1200F; Input: 100-240Va.c. 50/60Hz 28.8W; Output: 3-15Vd.c. 1200mA. 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a Smart Electronic Industrial (Dong Guan) Co., Ltd. GTO ACCESS WIRELESS ESTATE INTERCOM. Entry code presses the CALL button on the keypad. The base (indoor) unit and the keypad will ring. A user at the base (indoor) unit answers the call by pressing the PUSH TO ANSWER/TALK button. 1.3 Date of Order 2013-05-15 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2013-05-21 1.6 Country of Origin China STC Test Report Date : 2013-05-31 Page 4 of 25 No. : DM111222 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date : 2013-05-31 Page 5 of 25 No. : DM111222 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.249 & FCC 47CFR 15.209 Test Method: ANSI C6…
