NBG009066TTransmitter 5FA 009 066-30

Annex No.5 Technical Description Users Manual Key: 5FA 009 066-30 Hella KGaA Hueck & Co 59552 Lippstadt Date: 2004-11-02 Processed: K. Bödeker EE-324 Checked: Function Description 5FA009066- 30_Eng_041102.doc Replacement for version dated : Page 1 of 3 Function description PLL radio remote control transmitter 5FA 009 066 – 30 2004-11-02 All New document EE-324 Bödeker Amend. date Amend. No. Page Amendment Gr./Name/Chkd. Hella KGaA Hueck & Co 59552 Lippstadt Date: 2004-11-02 Processed: K. Bödeker EE-324 Checked: Replacement for version dated: Page 2 of 3 1 Circuit Description Atmel ́s integrated circuit ATAR862 is the central construction element of the radio remote control transmitter. This IC is a single-package fully integrated 4-bit mask-ROM microcontroller with PLL-RF-transmitter. As an alternative the pin- and function- compatible IC T48C862 may be used which contains a Flash-ROM programmable microcontroller. ATAR862 ́s integrated microcontroller is the same as the stand-alone device ATAR892, and the integrated PLL-transmitter is similar to the stand-alone-device T5753. PLL-Transmitter and microcontroller are placed into a single IC-package as separate dies without any internal electrical connection. The following figure 1 shows a block diagram of the radio transmitter ́s electronic circuit. Figure 1: Block diagram of the transmitter ́s electronic circuit Four push-buttons S1 to S4 and LED D1 act as interface to the user. The microcontroller is responsible for monitoring the button signals, monitoring the power supply, encryption and encoding of the transmit data and control of RF-telegram transmission. An integrated EEPROM serves as a storage device for transmitter-specific data. The transmitter ́s power supply comes from a lithium coin-cell battery CR2032. The nominal value of the supply voltage is 3 volts. Capacitor C2 blocks the supply voltage for the microcontroller part of IC1. By pressing buttons S1 to S4 logic-high level is applied to the microcontroller ́s inputs BP50, BP52, BP53 or BP63. Pulldown resistors R1 to R4 are actually not mounted because all button inputs of IC1 have internal pulldown elements for termination to logic-low level. Resistors R7 and R8 are used for decoupling of the connection between the push buttons S1 and S2 from the board antenna structure. The microcontroller ́s output port BP20 drives the LED D1 via Resistor R5. Switcing on and off the PLL circuit of IC1 is done by means of output port BP23, whereas the modulation signal is supplied to the PLL-transmitter via output port BP42. Capacitors C1, C4 and C11 are used for decoupling of the transmitter ́s supply voltage. The PLL-part of IC1 contains a crystal oscillator circuit with Q1 and C3 as frequency determining elements. The oscillator ́s output signal is used as a reference for the transmitter ́s PLL-circuit and for clocking the microcontroller via an integrated 4:1-frequency-divider. The PLL loop-filter is fully integrated into IC1. The transmitter ́s output stage is switched on and off via input PA_ENABLE. Thus the transmitted signal is OOK-modulated with the data supplied by the microcontroller via output port BP42. An on-board resonant loop antenna is used to radiate the output signal of the transmitter circuit. Capacitors C5 and C6 determine the resonance frequency of the antenna, whereas C7, L2 and C10 are used for lowpass-filtering of the transmitters ́s output signal. L1 serves as a DC-path to the transmitter ́s output stage. uC RF- transmitter Data On / off Clock ATAR862 Crystal 9,84375 MHz LED Voltage supply 3V S2: lock button S1: unlock button S3: tailgate release but. S4: panic alarm button Hella KGaA Hueck & Co 59552 Lippstadt Date: 2004-11-02 Processed: K. Bödeker EE-324 Checked: Replacement for version dated: Page 3 of 3 2 General Function While none of the buttons is pressed, the microcontroller is in sleep mode and the transmitter ́s RF stage is disabled. Pressing any of the buttons S1 to S4 wakes up the microcontroller. At this time an integrated RC-oscillator is used as the microcontroller ́s clock source. The crystal oscillator and the PLL circuit will now be switched on via BP23. At the end of a short stabilisation phase the clock source for the microcontroller is switched from the RC-oscillator to the output of the integrated 4:1 frequency-divider. Message Data is fed from the microcontroller to the power amplifier via output port BP42 thus modulating the RF-carrier in OOK-Mode. After all buttons have been released, transmission will stop and the PLL- circuit is disabled by switching off output port BP23. The microcontroller returns to the sleep-mode again. 3 Technical data Model designation Buttons Function 5FA 009 066–30 S1 S2 S3 S4 Unlock Lock Tailgate remote release Panic alarm Supply Voltage 3V nominal (1 Lithium coin cell) Current consumption approx. 8 mA Operating frequency 315,0 MHz ± 100 ppm Frequency synthesis Quartz crystal stabilized PLL PLL reference frequency 9.84375 MHz Modulation scheme Pulse Modulation (OOK) Type of transmission (ITU Designation) A1D / simplex Moduation data rate approx. 1,7 Kbit / s Signal strength max. 6mV/m @ 3m Operating temperature range -20°C ... +60°C Antenna integrated PCB loop antenna

Annex No.7 Page 1 of 1 Block Diagram : Key: 5FA 009 066-30 Oscillator frequencies generated or used in the device: : 9.84375MHz / 315 MHz

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Hella KGaA Hueck & Co., Rixbecker Strasse 75, D-59552 Lippstadt / Germany would like the following documents regarding this submission for FCC ID: NBG 009066T to be kept confidential. Transmitter, 5FA 009 066-30 1. Page 2 to 9 Annex no. 8 document “Schematics” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Ralf Trepper

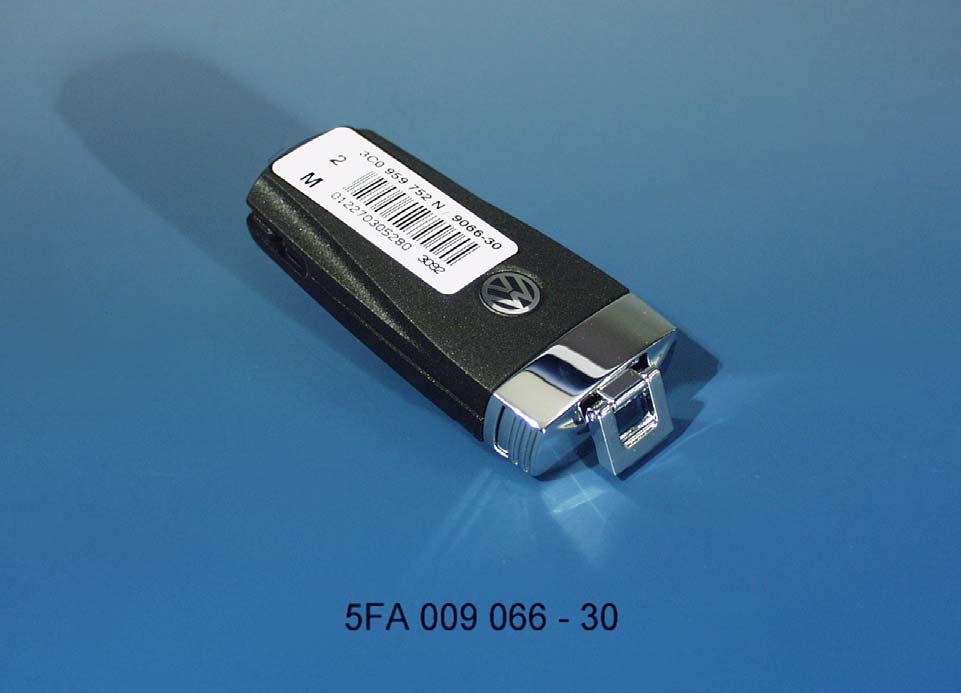

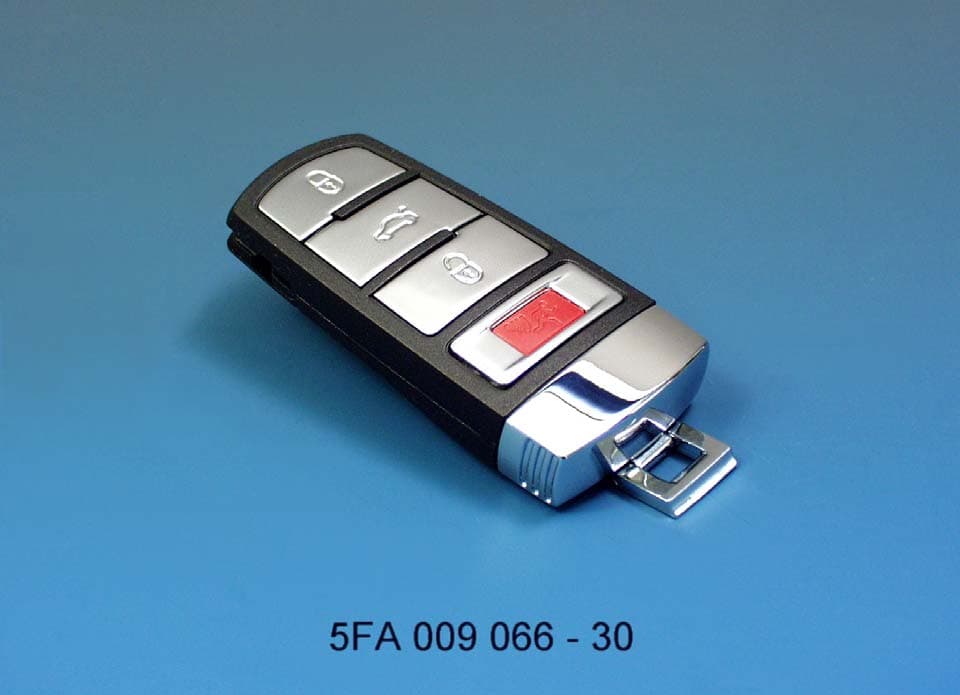

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Key: 5FA 009 066-30 Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO Key: 5FA 009 263-31

Annex No.4 Page 1 of 3 LABEL SAMPLE SKETCH OF LABLE LOCATION Key: 5FA 009 066-30 Annex No.4 Page 3 of 3

Annex No.2 Page 1 of 3 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO Key: 5FA 009 066-30 Annex No.2 Page 2 of 3 INTERNAL LOWER SIDE PHOTO Annex No.2 Page 3 of 3 SINGLE PARTS

Annex No.5 Technical Description Users Manual Key: 5FA 009 066-30 Hella KGaA Hueck & Co 59552 Lippstadt Date: 2004-11-02 Processed: K. Bödeker EE-324 Checked: Function Description 5FA009066- 30_Eng_041102.doc Replacement for version dated : Page 1 of 3 Function description PLL radio remote control transmitter 5FA 009 066 – 30 2004-11-02 All New document EE-324 Bödeker Amend. date Amend. No. Page Amendment Gr./Name/Chkd. Hella KGaA Hueck & Co 59552 Lippstadt Date: 2004-11-02 Processed: K. Bödeker EE-324 Checked: Replacement for version dated: Page 2 of 3 1 Circuit Description Atmel ́s integrated circuit ATAR862 is the central construction element of the radio remote control transmitter. This IC is a single-package fully integrated 4-bit mask-ROM microcontroller with PLL-RF-transmitter. As an alternative the pin- and function- compatible IC T48C862 may be used which contains a Flash-ROM programmable microcontroller. ATAR862 ́s integrated microcontroller is the same as the stand-alone device ATAR892, and the integrated PLL-transmitter is similar to the stand-alone-device T5753. PLL-Transmitter and microcontroller are placed into a single IC-package as separate dies without any internal electrical connection. The following figure 1 shows a block diagram of the radio transmitter ́s electronic circuit. Figure 1: Block diagram of the transmitter ́s electronic circuit Four push-buttons S1 to S4 and LED D1 act as interface to the user. The microcontroller is responsible for monitoring the button signals, monitoring the power supply, encryption and encoding of the transmit data and control of RF-telegram transmission. An integrated EEPROM serves as a storage device for transmitter-specific data. The transmitter ́s power supply comes from a lithium coin-cell battery CR2032. The nominal value of the supply voltage is 3 volts. Capacitor C2 blocks the supply voltage for the microcontroller part of IC1. By pressing buttons S1 to S4 logic-high level is applied to the microcontroller ́s inputs BP50, BP52, BP53 or BP63. Pulldown resistors R1 to R4 are actually not mounted because all button inputs of IC1 have internal pulldown elements for termination to logic-low level. Resistors R7 and R8 are used for decoupling of the connection between the push buttons S1 and S2 from the board antenna structure. The microcontroller ́s output port BP20 drives the LED D1 via Resistor R5. Switcing on and off the PLL circuit of IC1 is done by means of output port BP23, whereas the modulation signal is supplied to the PLL-transmitter via output port BP42. Capacitors C1, C4 and C11 are used for decoupling of the transmitter ́s supply voltage. The PLL-part of IC1 contains a crystal oscillator circuit with Q1 and C3 as frequency determining elements. The oscillator ́s output signal is used as a reference for the transmitter ́s PLL-circuit and for clocking the microcontroller via an integrated 4:1-frequency-divider. The PLL loop-filter is fully integrated into IC1. The transmitter ́s output stage is switched on and off via input PA_ENABLE. Thus the transmitted signal is OOK-modulated with the data supplied by the microcontroller via output port BP42. An on-board resonant loop antenna is used to radiate the output signal of the transmitter circuit. Capacitors C5 and C6 determine the resonance frequency of the antenna, whereas C7, L2 and C10 are used for lowpass-filtering of the transmitters ́s output signal. L1 serves as a DC-path to the transmitter ́s output stage. uC RF- transmitter Data On / off Clock ATAR862 Crystal 9,84375 MHz LED Voltage supply 3V S2: lock button S1: unlock button S3: tailgate release but. S4: panic alarm button Hella KGaA Hueck & Co 59552 Lippstadt Date: 2004-11-02 Processed: K. Bödeker EE-324 Checked: Replacement for version dated: Page 3 of 3 2 General Function While none of the buttons is pressed, the microcontroller is in sleep mode and the transmitter ́s RF stage is disabled. Pressing any of the buttons S1 to S4 wakes up the microcontroller. At this time an integrated RC-oscillator is used as the microcontroller ́s clock source. The crystal oscillator and the PLL circuit will now be switched on via BP23. At the end of a short stabilisation phase the clock source for the microcontroller is switched from the RC-oscillator to the output of the integrated 4:1 frequency-divider. Message Data is fed from the microcontroller to the power amplifier via output port BP42 thus modulating the RF-carrier in OOK-Mode. After all buttons have been released, transmission will stop and the PLL- circuit is disabled by switching off output port BP23. The microcontroller returns to the sleep-mode again. 3 Technical data Model designation Buttons Function 5FA 009 066–30 S1 S2 S3 S4 Unlock Lock Tailgate remote release Panic alarm Supply Voltage 3V nominal (1 Lithium coin cell) Current consumption approx. 8 mA Operating frequency 315,0 MHz ± 100 ppm Frequency synthesis Quartz crystal stabilized PLL PLL reference frequency 9.84375 MHz Modulation scheme Pulse Modulation (OOK) Type of transmission (ITU Designation) A1D / simplex Moduation data rate approx. 1,7 Kbit / s Signal strength max. 6mV/m @ 3m Operating temperature range -20°C ... +60°C Antenna integrated PCB loop antenna

Test Report No.: 04002316 Page 1 of 22 EUT : Key 5FA 009 066-30 FCC ID: NBG 009066T Date of issue: 2005-01-12 m. dudde hochfrequenz-technik Rottland 5a Vers. date: 2004-08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TTI-P-G-128/96 Test Report acc. to the relevant standard: 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Hella KGaA Hueck & Co. 5FA 009 066-30 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test Report No.: 04002316 Page 2 of 22 EUT : Key 5FA 009 066-30 FCC ID: NBG 009066T Date of issue: 2005-01-12 m. dudde hochfrequenz-technik Rottland 5a Vers. date: 2004-08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Hella KGaA Hueck & Co. Manufacturer’s grantee code NBG Rixbecker Strasse 75 D-59552 Lippstadt Germany Phone: +49(0)2941 38-8392 Fax: +49(0)2941 38-47-9392 Manufacturer’s address e-mail: [email protected] 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-1992 Test report prepared by Ralf Trepper m.dudde hochfrequenz-technik (Labor) Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Hella Type designation Key 5FA 009 066-30 Serial no. --- Variants Test Report No.: 04002316 Page 3 of 22 EUT : Key 5FA 009 066-30 FCC ID: NBG 009066T Date of issue: 2005-01-12 m. dudde hochfrequenz-technik Rottland 5a Vers. date: 2004-08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.231 (b) 10.2 Field strength limits (fundamental) pass fail n.a. 15.205(b) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.231 (a) 10.3 Periodic operation characteristics pass fail n.a. 15.231 (c) 10.4 20 dB bandwidth pass fail n.a. Test requirements kept yes no . Signature Technician ........................................ Ralf Trepper . Signature Manager ......................................... Manfried Dudde Test Report No.: 04002316 Page 4 of 22 EUT : Key 5FA 009 066-30 FCC ID: NBG 009066T Date of issue: 2005-01-12 m. dudde hochfrequenz-technik Rottland 5a Vers. date: 2004-08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result .............................................................................................................................................. 3 1 Testing laboratory .................................................................................................................................. 5 2 Introduction........................................................................................................................................... 5 3 Product.................................................................................................................................................. 6 4 Test schedule ......................................................................................................................................... 6 5 Product and measurement documentation............................................................................................... 7 6 Observations and comments................................................................................................................... 7 7 Summary ............................................................................................................................................... 7 8 Conclusions .......................................................................................................................................... 8 9 Operation description............................................................................................................................. 9 10.1 Antenna requirement ......................................................................................................................... 11 10.1.1 Regulation ...................................................................................................................................... 11 10.1.2 Result ............................................................................................................................................. 11 10.2 Radiated emissions ........................................................................................................................... 12 10.2.1 Regulation ...................................................................................................................................... 12 10.2.2 Test equipment ............................................................................................................................... 13 10.2.2.1 Test procedures............................................................................................................................ 13 10.2.3 Calculation of field strength limits .................................................................................................. 14 10.2.4 Calculation of average correction factor.......................................................................................... 14 10.2.5 Calculation of the field strengths .................................................................................................... 14 10.2.6 Result ............................................................................................................................…
