NBG012692AField Disturbance Sensor

Date: 2014-03-07 Page 1 of 1 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 5 Functional Description / User Manual Hella KGaA Hueck & Co. 59552 Lippstadt Technical Bulletin Date: 2014-11-11 No.: Page 1 Subject: LCA 3.5 – Lane Change Assistant Author: Wixforth Org: E-ED-DAS-DR Ref.: Enclosures: signed by: checked by: This document is confidential. Its contents are not to be exploited, passed on or disclosed to third p arties without our express permission. All rights a re reserved. Hella 3399EN (2000-05) LCA 3.5 – Lane Change Assistant Mazda: LCA 3.5 SG1 - M LCA 3.5 SG2 – M GM: LCA 3.5 SG1 - GM LCA 3.5 SG2 - GM System Function and Purpose The LCA is an advanced driver assistant system, to warn the driver of the subject vehicle against potential collisions with vehicles to the side and/or to the rear of the subject vehicle, and moving in the same direction as the subject vehicle during lane change manoeuvres. The system therefore detects vehicles to the rear and sides of the subject vehicle. When the subject vehicle driver indicates the desire to make a lane change, the system will evaluate the situation and warn the driver if a lane change is not recommended. LCA is not meant to encourage aggressive driving. The absence of a warning will not guarantee that the driver can safely make a lane change manoeuvre. The system will not take any automatic action to prevent possible collisions. Responsibility for the safe operation of the vehicle remains with the driver. LCA System Architecture The LCA consists of two radar sensor units which are mounted behind the rear bumper in the left and right rear corners of a car so that the rear and the sides of the car can be observed. One of the units is the main control unit "master" and the other is the "slave". The two units interchange data between each other via the sensor CAN-bus. The master interchanges data with other electronic control units of the vehicle via the vehicle CAN-bus. Both units incorporate an RF part and a DSP to perfom the radar signal processing. Only the master incorporates a microprocessor which handles the communication to the vehicle CAN- bus. The warning lamps for the left and the right side are connected to the slave. Hella KGaA Hueck & Co. 59552 Lippstadt Subject: LCA 3.5 – Lane Change Assistant Date: 2014-11-11 No.: Page 2 of 4 Signed by: Checked by: Hella 3399DE (2000-05) Vertraulich. Weitergabe sowie Verwertung und Mittei lung des Inhalts ist nur mit unserer ausdrücklichen Genehmigung gestattet. Alle Rechte vorbehalten. block diagram of LCA system architecture block diagram shows RF part and DSP part for master and slave Hella KGaA Hueck & Co. 59552 Lippstadt Subject: LCA 3.5 – Lane Change Assistant Date: 2014-11-11 No.: Page 3 of 4 Signed by: Checked by: Hella 3399DE (2000-05) Vertraulich. Weitergabe sowie Verwertung und Mittei lung des Inhalts ist nur mit unserer ausdrücklichen Genehmigung gestattet. Alle Rechte vorbehalten. The RF parts each consist of • one 24-GHz-VCO, • one transmit antenna and • three receivers (each consisting of antenna, LNA, mixer, BPF and base-band amplifier). The transmit signal is generated by the 24-GHz-VCO. The 24-GHz-VCO is frequency modulated by a modulation control circuit and the DSP. A frequency divider is used to align the modulation of the 24-GHz-VCO and to keep it within the frequency band limits. The transmit antenna is a microstrip patch antenna array with 1x8 elements. It is designed to illuminate the rear and the side of the vehicle and is thus a medium gain antenna. The receivers down-convert the receive signals directly to zero-IF by using the 24-GHz-VCO signal. The base-band receive signals are digitized by ADCs in the DSP. The receive antennas are microstrip patch antennas which also have a medium gain (1x8 elements). Technical Data Hella part number of master 6PZ 011.719-00 (Mazda ...) Hella part number of slave 6PZ 011.719-20 (Mazda ...) Supply Voltage +9 V ... +15 V Supply Current 0,36 A Frequency Band 1 24075 MHz ... 24175 MHz Modulation Bandwidth < 100 MHz Frequency Band 2 24150 MHz ... 24250 MHz Modulation Bandwidth < 100 MHz Frequency Band 3 24050 MHz ... 24250 MHz Modulation Bandwidth < 200 MHz Modulation FMCW EIRP average < +12,7 dBmW EIRP peak < +20 dBmW Antenna Type microstrip patch array Transmit Antenna Gain 10 dBi Operating Temperature Range -40...85°C Storage Temperature Range Hella KGaA Hueck & Co. 59552 Lippstadt Subject: LCA 3.5 – Lane Change Assistant Date: 2014-11-11 No.: Page 4 of 4 Signed by: Checked by: Hella 3399DE (2000-05) Vertraulich. Weitergabe sowie Verwertung und Mittei lung des Inhalts ist nur mit unserer ausdrücklichen Genehmigung gestattet. Alle Rechte vorbehalten. Abbreviations ADC analog-to-digital converter BPF band pass filter CAN controller area network CP communication processor DSP digital signal processor EIRP equivalent isotropically radiated power FMCW frequency modulated continuous wave IF intermediate frequency LNA low noise amplifier RF radio frequency Rx Receive Tx Transmit VCO voltage controlled oscillator XTAL crystal oscillator

Date: 2014-03-07 Page 1 of 2 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 5 User Manual Statements m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 certified DAkkS accreditation number: D-PL-12053-01 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Date: 2014-03-07 Page 2 of 2 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-02-06 Brand/Trade name: Hella Model name: LCA 3.5 SG1-M, LCA 3.5 SG2-M FCC Certification Number: NBG012682A Subject: Compliance Statements in the User’s Manual Dear Sirs, On behalf of our customer Hella KGaA Hueck & Co. we declare that they ensure that the following will be included in a prominent location of the owner’s manual of the car: The title “CAUTION TO USERS” or “FCC/IC WARNING NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Yours sincerely, m. dudde hochfrequenz-technik Anja Hittig-Rademacher Homologation Manager

Date: 2014-03-07 Page 1 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 11 Antenna Characteristics Date: 2014-03-07 Page 2 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna size 1 cm per Division LCA 3.5 SG1 - M LCA 3.5 SG2 - M Date: 2014-03-07 Page 3 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Hella Radar LCA 3.5 A short antenna description The radar sensor LCA 3.5 of Hella KGaA Hueck & Co. includes a transmitting antenna (Tx) and three receive antennas (Rx1, Rx2, Rx3) in the same housing: Each of the antennas is realized from an array of individual planar patches. The polarization of each antenna is vertical. The transmitting antenna has a relative wide characteristic in azimuth direction and a focused characteristic in the elevation direction. (see diagram below). The maximum gain of the transmitting antenna is about 10dBi. Date: 2014-03-07 Page 4 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity: horizontally, EUT: on edge 24.0578 GHz 24.1840 GHz 24.2414 GHz Date: 2014-03-07 Page 5 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity, test setup: horizontally, EUT: on edge Date: 2014-03-07 Page 6 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity: horizontally, EUT: lying 24.0578 GHz 24.1840 GHz 24.2414 GHz Date: 2014-03-07 Page 7 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity, test setup: horizontally, EUT: lying Date: 2014-03-07 Page 8 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity: horizontally, EUT: upright 24.0578 GHz 24.1840 GHz 24.2414 GHz Date: 2014-03-07 Page 9 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity, test setup: horizontally, EUT: upright Date: 2014-03-07 Page 10 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity: vertically, EUT: on edge 24.0578 GHz 24.1840 GHz 24.2414 GHz Date: 2014-03-07 Page 11 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity, test setup: vertically, EUT: on edge Date: 2014-03-07 Page 12 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity: vertically, EUT: lying 24.0578 GHz 24.1840 GHz 24.2414 GHz Date: 2014-03-07 Page 13 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity, test setup: vertically, EUT: lying Date: 2014-03-07 Page 14 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity: vertically, EUT: upright 24.0578 GHz 24.1840 GHz 24.2414 GHz Date: 2014-03-07 Page 15 of 15 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Antenna directivity, test setup: vertically, EUT: upright

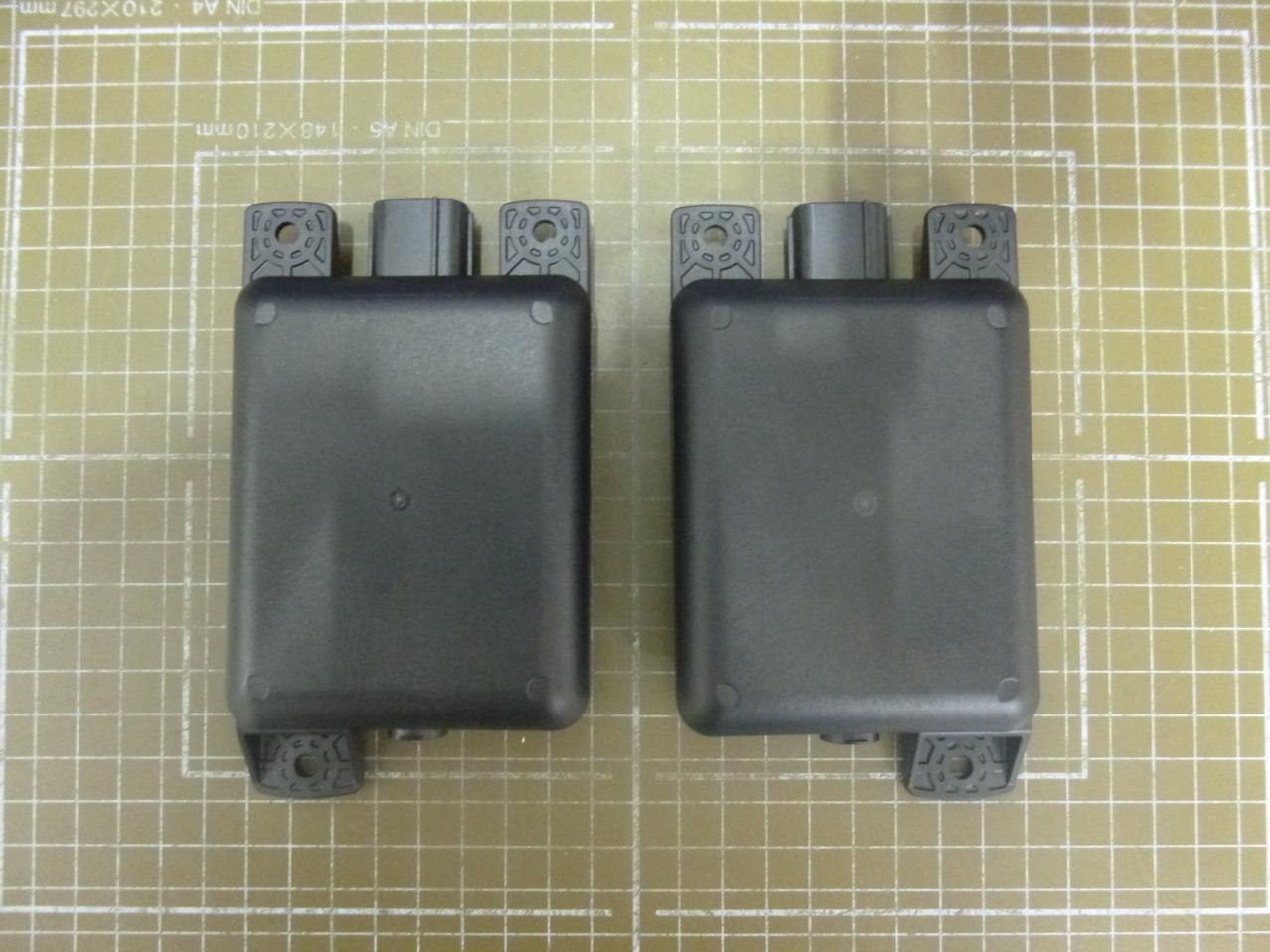

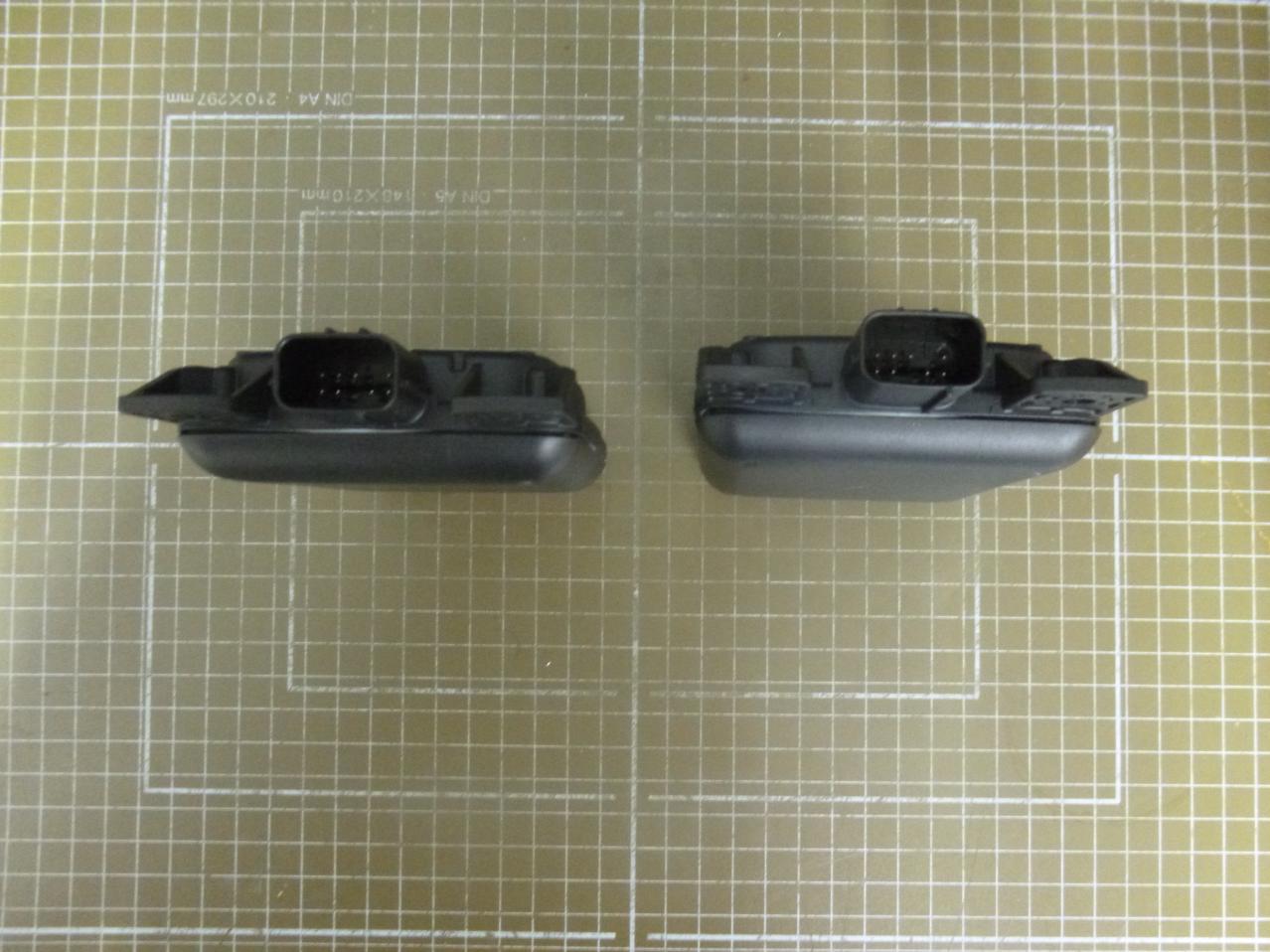

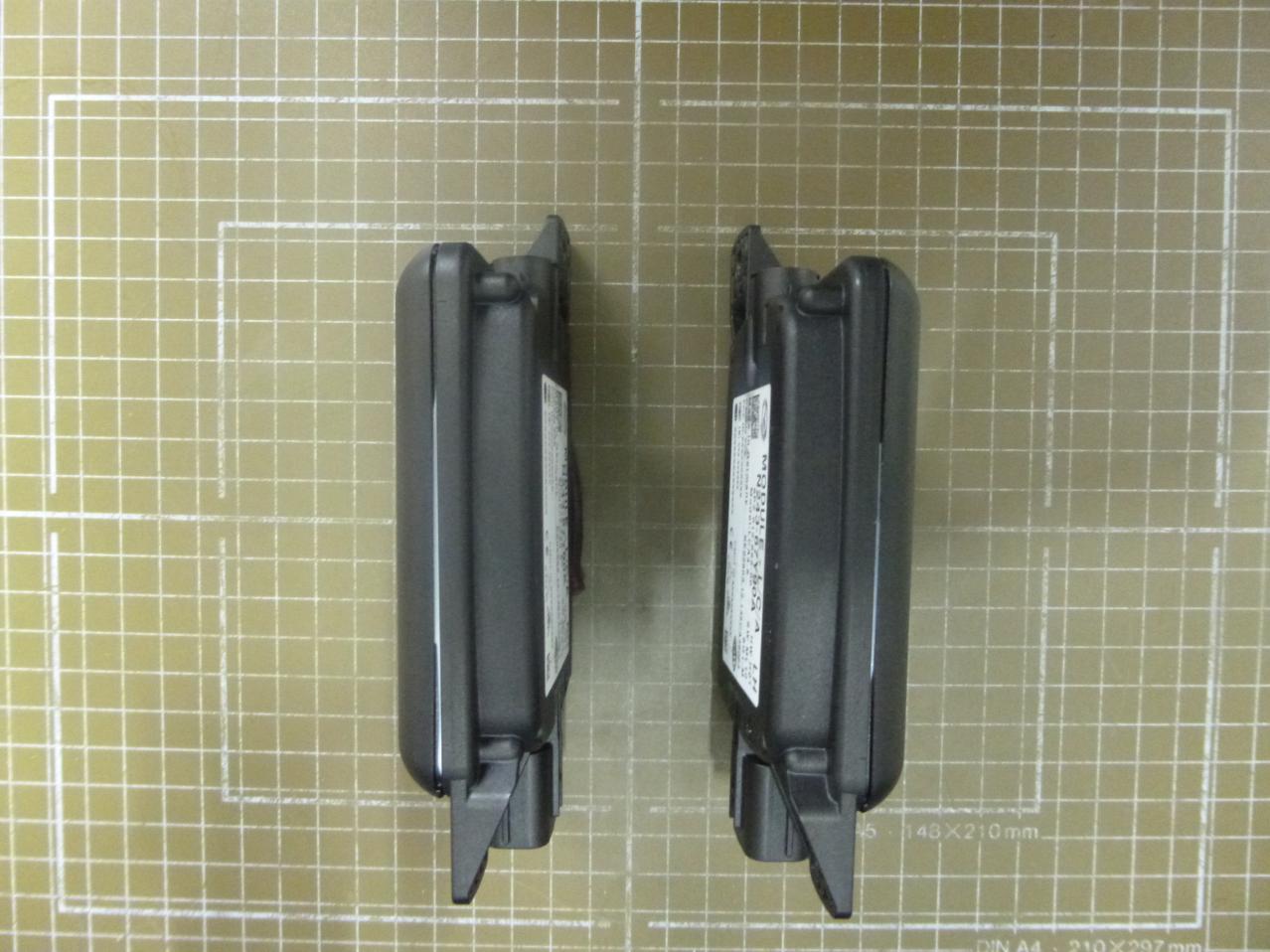

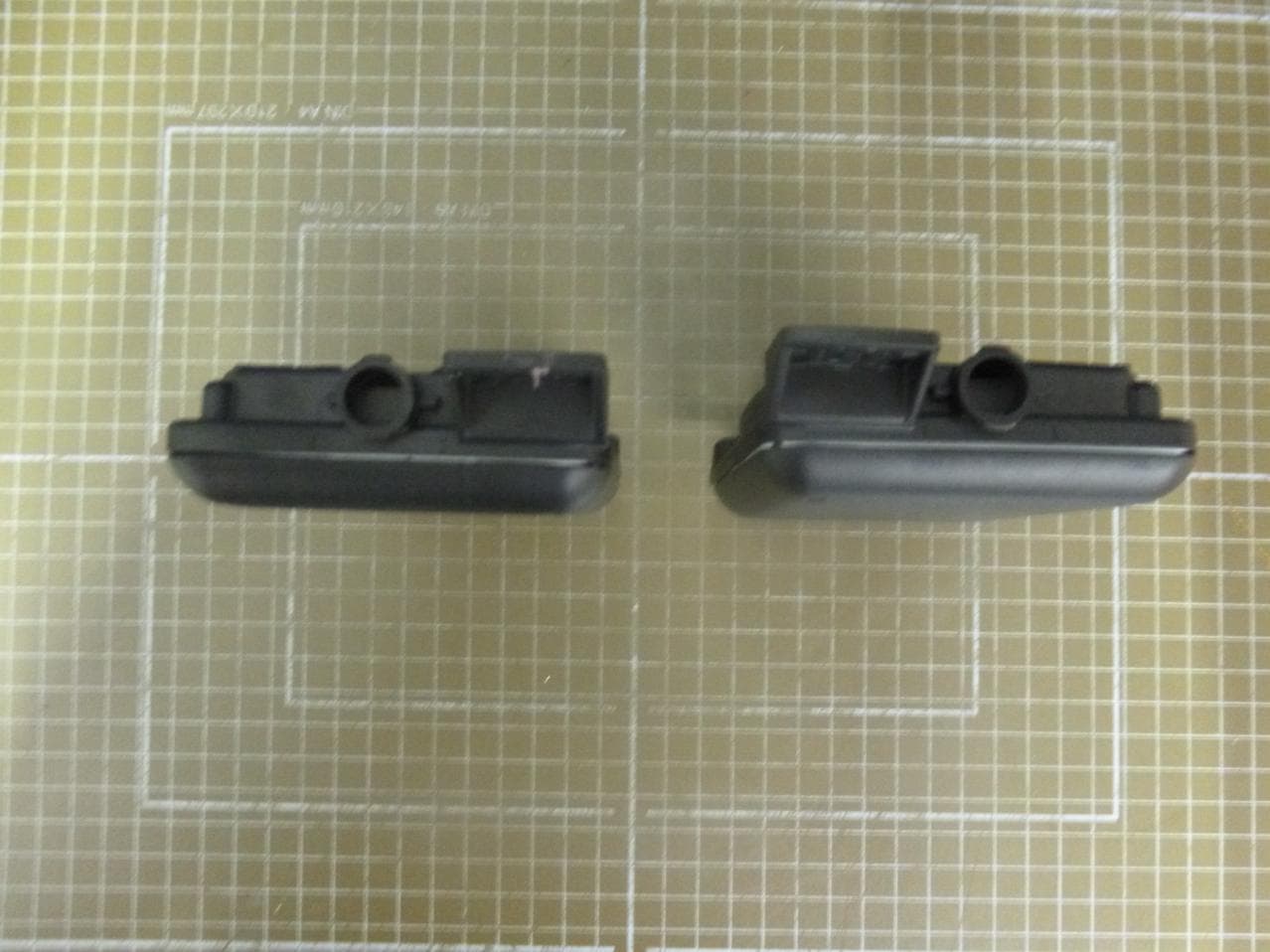

Date: 2014-03-07 Page 1 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 1 External Photographs Date: 2014-03-07 Page 2 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 lower side LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 3 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 upper side LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 4 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 bottom view LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 5 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 side view LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 6 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 side view LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 7 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 top view LCA 3.5 SG1-M LCA 3.5 SG2-M

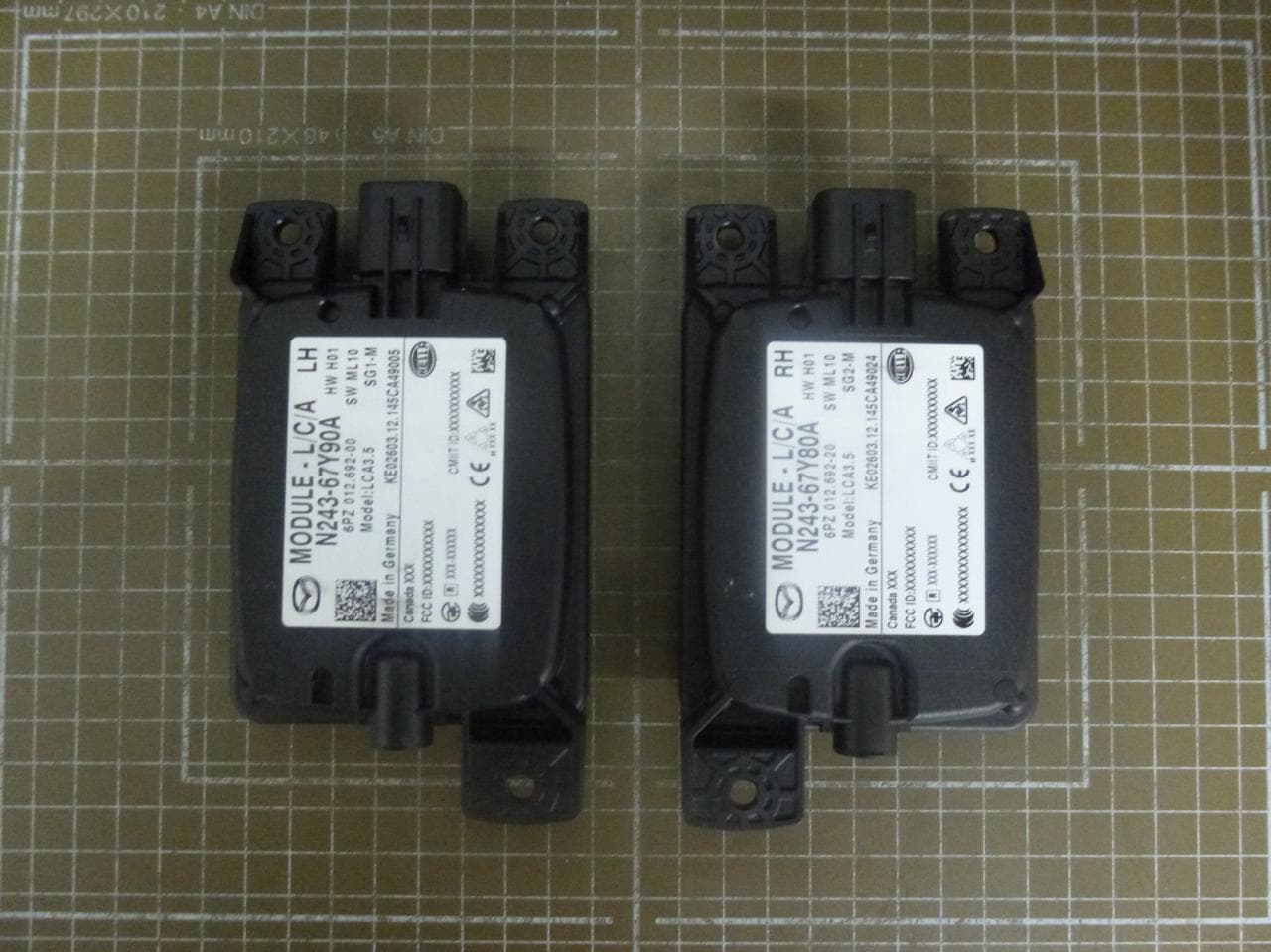

Date: 2014-03-07 Page 1 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 4 Label Sample Date: 2014-03-07 Page 2 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Label sample Date: 2014-03-07 Page 3 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Label location

Date: 2014-03-07 Page 1 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 2 Internal Photographs Date: 2014-03-07 Page 2 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 DSP lower side LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 3 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 housing lower side LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 4 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 housing lower side LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 5 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 DSP upper side with housing LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 6 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 DSP upper side with housing LCA 3.5 SG1-M LCA 3.5 SG2-M Date: 2014-03-07 Page 7 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 DSP upper side LCA 3.5 SG1-M LCA 3.5 SG2-M

Test report no. 15009745 Page 1 of 33 EUT: LCA 3.5 SG1 - M / LCA 3.5 SG2 - M FCC ID: NBG012692A Date of issue: 2015-02-03 Date: 2014-09-29 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to Hella KGaA Hueck & Co. LCA 3.5 SG1 - M LCA 3.5 SG2 - M Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 15009745 Page 2 of 33 EUT: LCA 3.5 SG1 - M / LCA 3.5 SG2 - M FCC ID: NBG012692A Date of issue: 2015-02-03 Date: 2014-09-29 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Manufacturer’s details Manufacturer Hella KGaA Hueck & Co. Manufacturer’s grantee code NBG Manufacturer’s address Hella KGaA Hueck & Co. Beckumer Str. 130 59552 Lippstadt Germany Phone: +49 (0) 2941 38 2009 Fax: +49 (0) 2941 38 472009 Email: [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category Short Range Radar Equipment Trade name Hella Type designation LCA 3.5 SG1 - M LCA 3.5 SG2 - M Serial no. --- Variants --- Test report no. 15009745 Page 3 of 33 EUT: LCA 3.5 SG1 - M / LCA 3.5 SG2 - M FCC ID: NBG012692A Date of issue: 2015-02-03 Date: 2014-09-29 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1. Test results Clause Requirements headline Test result Report page number 8.1 Antenna requirement Pass Fail N.t.* 9 8.2 Conducted limits Pass Fail N.t.* 10 to 12 8.3 Restricted bands of operation Pass Fail N.t.* 13 to 15 8.4 Radiated emission limits, general requirements Pass Fail N.t.* 16 to 21 8.5 Fundamental frequencies / Field strength limits Pass Fail N.t.* 22 to 26 8.6 Bandwidth Pass Fail N.t.* 27 * Not tested The equipment passed e conducted tests Yes No Signature: ............................. Signature: ...................................... (Technician) (Laboratory-Manager) Test report no. 15009745 Page 4 of 33 EUT: LCA 3.5 SG1 - M / LCA 3.5 SG2 - M FCC ID: NBG012692A Date of issue: 2015-02-03 Date: 2014-09-29 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Table of contents 1. Test results ........................................................................................................................................................ 3 2. Introduction ...................................................................................................................................................... 5 3. Testing laboratory ............................................................................................................................................ 5 4. Applicant .......................................................................................................................................................... 6 5. Product and product documentation ................................................................................................................ 6 6. Conclusions, observations and comments ....................................................................................................... 7 7. Operational description ..................................................................................................................................... 8 8. Compliance assessment .................................................................................................................................... 9 8.1 Antenna requirement ...................................................................................................................................... 9 8.1.2 Result .................................................................................................................................................... 9 8.2 Conducted limits ............................................................................................................................................ 10 8.2.1 Regulation ............................................................................................................................................. 10 8.2.2 Test procedures ..................................................................................................................................... 11 8.2.3 Result .................................................................................................................................................... 11 8.3 Restricted bands of operation .......................................................................................................................... 13 8.3.1 Regulation ............................................................................................................................................. 13 8.3.2 Result .................................................................................................................................................... 15 8.4 Radiated emission limits, general requirements ............................................................................................ 16 8.4.1 Regulation ............................................................................................................................................. 16 8.4.2 Test procedure ...................................................................................................................................... 17 8.4.3 Calculation of the field strength ............................................................…

Text truncated - open the document above for the full version.

Date: 2014-03-07 Page 1 of 4 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 3 Occupied Bandwidth Plot Date: 2014-03-07 Page 2 of 4 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 10 dB bandwidth +20°C 13.2V DC Master Slave Date: 2014-03-07 Page 3 of 4 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB bandwidth +20°C 13.2V DC Master Slave Date: 2014-03-07 Page 4 of 4 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % bandwidth +20°C 13.2V DC Master Slave

Date: 2014-03-07 Page 1 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 12 Measurement Plots Date: 2014-03-07 Page 2 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 40 GHz – 60 GHz, horizontally (LCA 3.5 SG1 – M) Master Date: 2014-03-07 Page 3 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 40 GHz – 60 GHz, vertically (LCA 3.5 SG1 – M) Master Date: 2014-03-07 Page 4 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 40 GHz – 60 GHz, horizontally (LCA 3.5 SG2 – M) Slave Date: 2014-03-07 Page 5 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 40 GHz – 60 GHz, vertically (LCA 3.5 SG2 – M) Slave Date: 2014-03-07 Page 6 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 60 GHz – 90 GHz, horizontally (LCA 3.5 SG1 – M) Master Date: 2014-03-07 Page 7 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 60 GHz – 90 GHz, vertically (LCA 3.5 SG1 – M) Master Date: 2014-03-07 Page 8 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 60 GHz – 90 GHz, horizontally (LCA 3.5 SG2 – M) Slave Date: 2014-03-07 Page 9 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 60 GHz – 90 GHz, vertically (LCA 3.5 SG2 – M) Slave Date: 2014-03-07 Page 10 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 90 GHz – 110 GHz, horizontally (LCA 3.5 SG1 – M) Master Date: 2014-03-07 Page 11 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 90 GHz – 110 GHz, vertically (LCA 3.5 SG1 – M) Master Date: 2014-03-07 Page 12 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 90 GHz – 110 GHz, horizontally (LCA 3.5 SG2 – M) Slave Date: 2014-03-07 Page 13 of 13 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Plots to the radiated emission test: 90 GHz – 110 GHz, vertically (LCA 3.5 SG2 – M) Slave

Date: 2014-03-07 Page 1 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 6 Test Setup Photographs Date: 2014-03-07 Page 2 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 30-1000MHz Date: 2014-03-07 Page 3 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1-15GHz Date: 2014-03-07 Page 4 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 15-40GHz Date: 2014-03-07 Page 5 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 40-60GHz Date: 2014-03-07 Page 6 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 60-90GHz Date: 2014-03-07 Page 7 of 7 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 90-140GHz
