NBG92596263PLL Fold-Away RF-Transmitter

Annex No.5 Users Manual Key: 5FA 009 263-30 and Variants Booklet 3.1 Controls and Equipment Opening and closing 39 3 Keys Key Set Your vehicle's key set contains: two folding master keys with remote control and a panic button one emergency key one key tag with the key number . two keys for the roof rack (when factory in- stalled) ⇒page 89. Emergency key The emergency key fits all the locks in the ve- hicle. We recommend you keep the emergency key separate from the vehicle documents. The emer- gency key should only be used temporarily in the case you have misplaced your genuine key or lost it. To prevent accidents, injuries or possible theft of your vehicle always observe the WARNINGS ⇒ Key tag If you need a replacement key, take your key tag an authorized Volkswagen dealer. The key number is needed to obtain another key, therefore: Always keep the key tag in a safe place. Never leave it in the vehicle. If you sell the vehicle, be sure to give the key tag to the new owner. WARNING Improper use of vehicle keys can result in se- rious personal injury. Always take the key with you when you leave the vehicle. The engine can be started and vehicle systems such as the power win- dows can be operated leading to serious per- sonal injury. Never leave children, disabled persons or anyone who cannot help themselves in the ve- hicle. The doors can be locked using the re- mote control key. This could result in people being trapped in the vehicle in an emergency. For example, depending on the time of year, people trapped in the vehicle can be exposed to very high or low temperatures. Never remove the key from steering lock while the vehicle is moving or while it is rolling to a stop. The steering wheel column will lock up and you will not be able to steer or control the vehicle. Note The keys with the remote control contain electronic components. Protect these keys from moisture and rough handling. Never leave any vehicle keys inside the ve- hicle. Entry by unauthorized persons could harm th e vehicle or your vehicle could be stolen. Always take the keys with you whenever you leave your vehicle. Tips A replacement key can only be made with the key number. The key number identifies the way the key has to be cut and allows the microchip in the key to be programmed to work with the coded elec- tronic immobilizer in your vehicle. A key without the special microchip or with a chip that has not been coded properly will not work with your vehicle, even if it has been cut correctly. Additional remote control keys are available from authorized Volkswagen dealers. Each key must be programmed to work with your vehicle ⇒page 41. You can use up to eight remote control keys with your vehicle. WARNING (continued) document_0900398f80c7989a.book Seite 39 Mittwoch, 26. Mai 2004 3:00 15 Booklet 3.1 Controls and Equipment Opening and closing40 3 Remote control key Locking and unlocking the vehicle The remote control key can be used to lock and unlock the vehicle from a distance. Fig. 24 Assignment of buttons on the remote con- trol key Fig. 25 Range of remote control Controls on the remote control key – Unlocking the vehicle ⇒fig .24 – Unlocking the rear lid – Locking the vehicle The red button activates the “panic function”. Press the release button to fold out the key bit ⇒page 43. The remote control transmitter and the batteries are inside the key fob. The receiver is inside the vehicle. The maximum range of the remote con- trol depends on various conditions. The range is shorter when the batteries are weak ⇒fig .25. The indicator light in the key fob lights up when- ever buttons , or is pushed and when the battery is getting weak. Locking and unlocking Using “set-up” in the instrument cluster you can select which door or doors unlock when you use the remote control. Choose the settings you want in the CONVENIENCE menu under DOOR OPENING ⇒page 14. Panic button When you press the panic button, the horn sounds and the turn signals flash for about 30 seconds. Pressing the panic button again turns them off. Use the panic button only in an emer- gency. Replacing the battery The display in the instrument cluster will let you know when your battery in the remote control is getting weak. The battery indicator light in the remote control key flashes green one time when the battery is weak. Your authorized Volkswagen dealer can change the batteries for you. WARNING Improper use of vehicle keys can result in se- rious personal injury. Always take the key with you when you leave the vehicle. The engine can be started and vehicle systems such as the power win- dows can be operated leading to serious per- sonal injury. 0 A A ˜ A B 1 A C PANIC A D A E A A A B A C document_0900398f80c7989a.book Seite 40 Mittwoch, 26. Mai 2004 3:00 15 Booklet 3.1 Controls and Equipment Opening and closing 41 3 Never leave children, disabled persons or anyone who cannot help themselves in the ve- hicle. The doors can be locked using the re- mote control key. This could result in people being trapped in the vehicle in an emergency. For example, depending on the time of year, people trapped in the vehicle can be exposed to very high or low temperatures. Heat build-up in the passenger compart- ment and luggage compartment of a parked vehicle can result in temperatures in the ve- hicle that are much higher than the outside temperatures, particularly in summer. Tem- peratures can quickly reach levels that can cause unconsciousness and death, particu- larly to small children. Never remove the key from steering lock while the vehicle is moving or while it is rolling to a stop. The steering wheel column will lock up and you will not be able to steer or control the vehicle. Note Never leave any vehicle keys inside the ve- hicle. Entry by unauthorized persons could harm the vehicle or your vehicle could be stolen. Always take the keys with you whenever you leave your vehicle. Unsuitable batteries can damage the remote control key. Replace u…

Text truncated - open the document above for the full version.

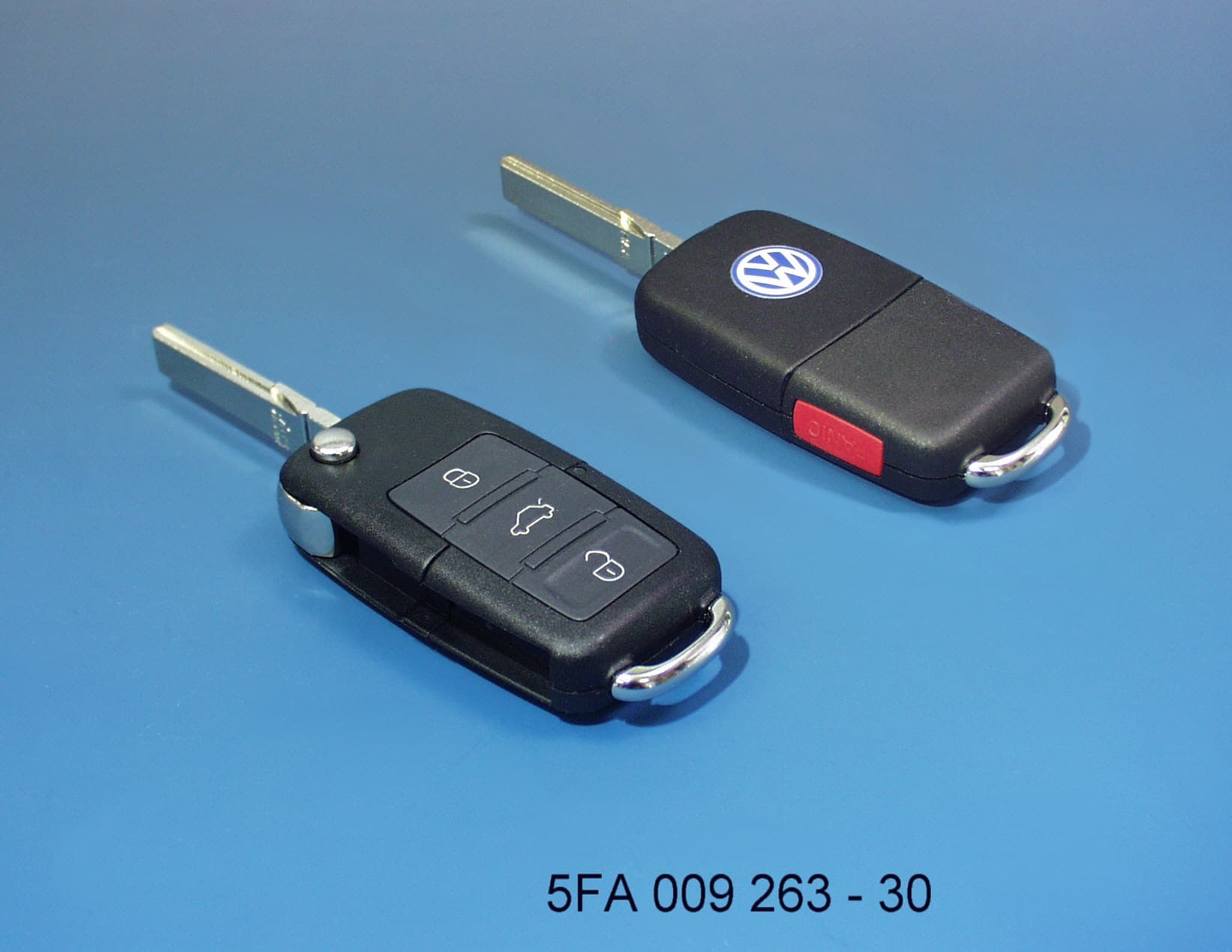

Annex No.1 Page 1 of 1 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Key: 5FA 009 263-30

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE SKETCH OF FCC ID LABLE LOCATION Key: 5FA 009 263-30 Annex No.4 Page 2 of 2

Annex No.2 Page 1 of 3 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO Key: 5FA 009 263-30 Annex No.2 Page 2 of 3 INTERNAL LOWER SIDE PHOTO Annex No.2 Page 3 of 3

Key 5FA 009 263-30 15.231 (a) (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. Lock Button Tailgate Button Unlock Button TX ON duration after pressing a key and keeping this key pressed! Panic Button TX ON duration after pressing a key and keeping this key pressed!

Annex No.6 Page 1 of 1 Test Setup Photos : Key: 5FA 009 263-30
