NBGFS12P01Keyless Car Entry

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 5 User Manual Statements m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 certified DAkkS accreditation number: D-PL-12053-01 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-09-12 Brand/Trade name: Hella Model name: FS12P01 FCC Certification Number: NGBFS12P01 IC Certification Number: 2694A- FS12P01 Subject: Compliance Statements in the User’s Manual Dear Sirs, On behalf of our customer Hella KGaA Hueck & Co. we declare that they ensure that the following will be included in a prominent location of the owner’s manual of the car: The title “CAUTION TO USERS” or “FCC/IC WARNING NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Yours sincerely, m. dudde hochfrequenz-technik Andreas Morsbach Assistant Manager

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 certified DAkkS accreditation number: D-PL-12053-01 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Request for Confidentiality PHOENIX TESTLAB GmbH Date: 2012-09-12 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: NBGFS12P01 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, our customer Hella KGaA Hueck & Co. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Operational Description In addition they hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. m. dudde hochfrequenz-technik Andreas Morsbach Management Assistant

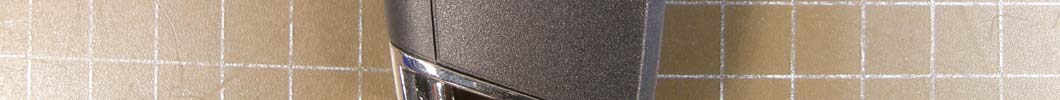

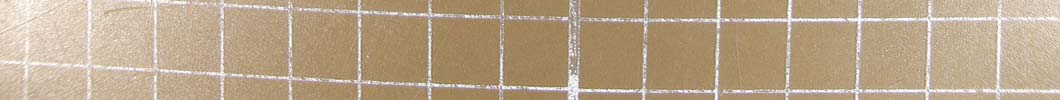

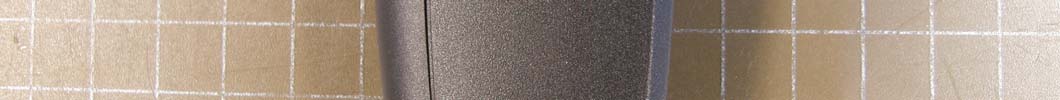

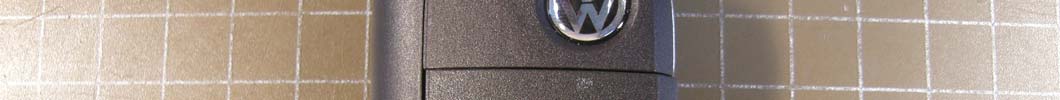

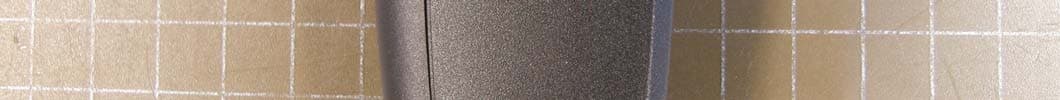

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 1 External Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 4 Label Sample

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 2 Internal Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 3 Occupied Bandwidth Plot Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB Bandwidth Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % Bandwidth

Annex no. 11 Periodic Operation Characteristics RSS-210 Section A1.1.1 (1) / FCC Section 15.231 (a)(1): A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. Transmission time Open button release point Transmission time Close button release point Transmission time Trunk button release point Transmission time Panik button release point Transmission times (Active entry mode) Long message = 183.3 ms Long message = 183.3 ms Single pulse = 293.33μs Ø 170 pulses a’293.33μs = 49.9 ms Averaging correction factor: 20log (TXon/100ms) = 20log (49.9ms/100ms) = -6.0 dB Short message Short message = 33.0 ms One short message with 24 type 1 pulses and 4 type 2 pulses Type 1 pulse = 290 μs Type 2 pulse = 580 μs Worst case transmission time in a 100 ms periode: Short message block 1 = 24 * Type 1 pulse + 4 * Type 2 pulse = 24 * 290 μs + 4 * 580μs = 9.28 ms Short message block 2 = 24 * Type 1 pulse + 4 * Type 2 pulse = 24 * 290 μs + 4 * 580μs = 9.28 ms Short message block 3 = 24 * Type 1 pulse + 4 * Type 2 pulse = 24 * 290 μs + 4 * 580μs = 9.28 ms Short message block 4 = 21 * Type 1 pulse + 3 * Type 2 pulse = 21 * 290 μs + 3 * 580μs = 7.83 ms Total transmission time = 35.67 ms Averaging correction factor: 20log (TXon/100ms) = 20log (35.67ms/100ms) = -8.95 dB Transmission times (Passive entry / Passive start mode) Passive mode type I sequence Transmission times (Passive entry / Passive start mode) Passive mode type I sequence Worst case transmission time in a 100 ms periode: Pulse train Data2 = 4.159 ms Pulse train CW1 = 4.167 ms Pulse train CW2 = 4.150 ms Pulse train CW3 = 4.167 ms Pulse train CW4 = 4.167 ms Pulse train Data3 = 8.350 ms Pulse train Data4 = 8.334 ms Total transmission time = 37.494 ms Averaging correction factor: 20log (TXon/100ms) = 20log (37.494ms/100ms) = -8.52 dB Passive mode type II sequence Worst case transmission time in a 100 ms periode: Pulse train Data B = 5.850 ms Pulse train CW A = 4.167 ms Pulse train CW B = 4.167 ms Pulse train CW C = 4.100 ms Pulse train CW D = 4.167 ms Total transmission time = 22.451 ms Averaging correction factor: 20log (TXon/100ms) = 20log (22.451ms/100ms) = -12.98 dB All buttons send the same output power and use the same message format. The only difference is the sequence of individual pulses. Worst case, Averaging correction factor: 20log (TXon/100ms) = 20log (49.9ms/100ms) = -6.0 dB

Test report no. 12008048 Page 1 of 33 EUT: FS12P01 FCC ID: NBGFS12P01 Date of issue: 2012-09-13 Date: 2012-08-21 Vers. no. 2.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to Hella KGaA Hueck & Co. FS12P01 Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 12008048 Page 2 of 33 EUT: FS12P01 FCC ID: NBGFS12P01 Date of issue: 2012-09-13 Date: 2012-08-21 Vers. no. 2.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Manufacturer’s details Manufacturer Hella KGaA Hueck & Co. Manufacturer’s grantee code NGB Manufacturer’s address Hella KGaA Hueck & Co. Rixbecker Str. 75 59552 Lippstadt Germany Phone: +49 (0) 2941 38 32626 Fax: +49 (0) 2941 38 47 32626 Email: [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Hella Type designation FS12P01 Serial no. --- Variants --- Test report no. 12008048 Page 3 of 33 EUT: FS12P01 FCC ID: NBGFS12P01 Date of issue: 2012-09-13 Date: 2012-08-21 Vers. no. 2.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1. Test result summary Clause Requirements headline Test result Report page number 8.1 Antenna requirement Pass Fail N.t.* 9 8.2 Conducted limits Pass Fail N.t.* 10 to 12 8.3 Restricted bands of operation Pass Fail N.t.* 13 to 15 8.4 Radiated emission limits, general requirements Pass Fail N.t.* 16 to 21 8.5 Periodic operation characteristics Pass Fail N.t.* 22 to 23 8.6 Fundamental frequencies / Field strength limits Pass Fail N.t.* 24 to 29 8.7 Bandwidth (20 dB) Pass Fail N.t.* 30 to 31 * Not tested The equipment meets the requirements Yes No Signature: ............................. Signature: ............................. (Technician) (Manager) Test report no. 12008048 Page 4 of 33 EUT: FS12P01 FCC ID: NBGFS12P01 Date of issue: 2012-09-13 Date: 2012-08-21 Vers. no. 2.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Introduction ...................................................................................................................................................... 5 3. Testing laboratory ............................................................................................................................................ 5 4. Applicant .......................................................................................................................................................... 6 5. Product and product documentation ................................................................................................................ 6 6. Conclusions, observations and comments ....................................................................................................... 7 7. Operational description ..................................................................................................................................... 8 8.1 Antenna requirement ....................................................................................................................................... 9 8.1.1 Regulation ............................................................................................................................................. 9 8.1.2 Result .................................................................................................................................................... 9 8.2 Conducted limits ............................................................................................................................................ 10 8.2.1 Regulation ............................................................................................................................................. 10 8.1.2 Test equipment ..................................................................................................................................... 11 8.2.3 Test procedures ..................................................................................................................................... 11 8.2.4 Result .................................................................................................................................................... 12 8.3 Restricted bands of operation .......................................................................................................................... 13 8.3.1 Regulation ............................................................................................................................................. 13 8.3.2 Result .................................................................................................................................................... 15 8.4 Radiated emission limits, general requirements .............................................................................................. 16 8.4.1 Regulation ............................................................................................................................................. 16 8.4.2 Test equipment ..................................................................................................................................... 17 8.4.3 Test procedure ..........................…

Text truncated - open the document above for the full version.

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 6 Test Setup Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
