NBZNRM-CC208Cellular/ PCS CDMA and WiMAX PC Card/ Express Card Transceiver

©2010 Novatel Wireless, Inc. All rights reserved. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless, Inc. Patents and Licenses Visit www.novatelwireless.com/patents for a complete list of all Novatel Wireless patents. Software License Proprietary Rights Provisions: The software drivers provided with this product are copyrighted by Novatel Wireless and/or Novatel Wireless’ suppliers. Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Novatel Wireless and/or Novatel Wireless’ suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access to the software drivers to any person for any purpose other than processing the internal data for the intended use of the software drivers. U.S. Government Restricted Rights Clause: The software drivers are classified as “Commercial Computing device Software” and the U.S. Government is acquiring only “Restricted Rights” in the software drivers and their Documentation. U.S. Government Export Administration Act Compliance Clause: It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the laws of any other country. Trademarks and Service Marks Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service marks (collectively the “Trademarks”) used in this user manual are the property of Novatel Wireless or their respective owners. Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its respective owners. • Merlin, the Merlin logo, MobiLink, Novatel Wireless, and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc. • Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Apple®, Mac®, and Mac OS® are trademarks of Apple, Inc., registered in the U.S. and other countries. • Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries. • ExpressCard is a registered trademark and PC Card is a trademark of PCMCIA. The names of actual companies and products mentioned in this user manual may be the trademarks of their respective owners. FCC ID: NBZNRM-CC208 PN: 90026287_R1_DraftD_06Dec2010 Please visit www.novatelwireless.com for the latest information about your device. Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Product Overview ...........................................................................4 Features .................................................................................4 Package Contents .......................................................................5 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Identifying Hardware Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 LED States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Caring for the CC208 Combo Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Using Your CC208 Card ..................................................9 Using the CC208 Card for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Inserting the CC208 Card ...............................................................10 Inserting the CC208 Card in a PC Card Slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Inserting the CC208 Card in an ExpressCard Slot .....................................11 Removing the CC208 Card ..............................................................14 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Troubleshooting ............................................................................16 Product Specifications and Regulatory Information ......................17 Product Specifications ......................................................................18 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Wireless Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Safety Hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Warranty ..............................................................23 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 1 Getting Started Welcome …

Text truncated - open the document above for the full version.

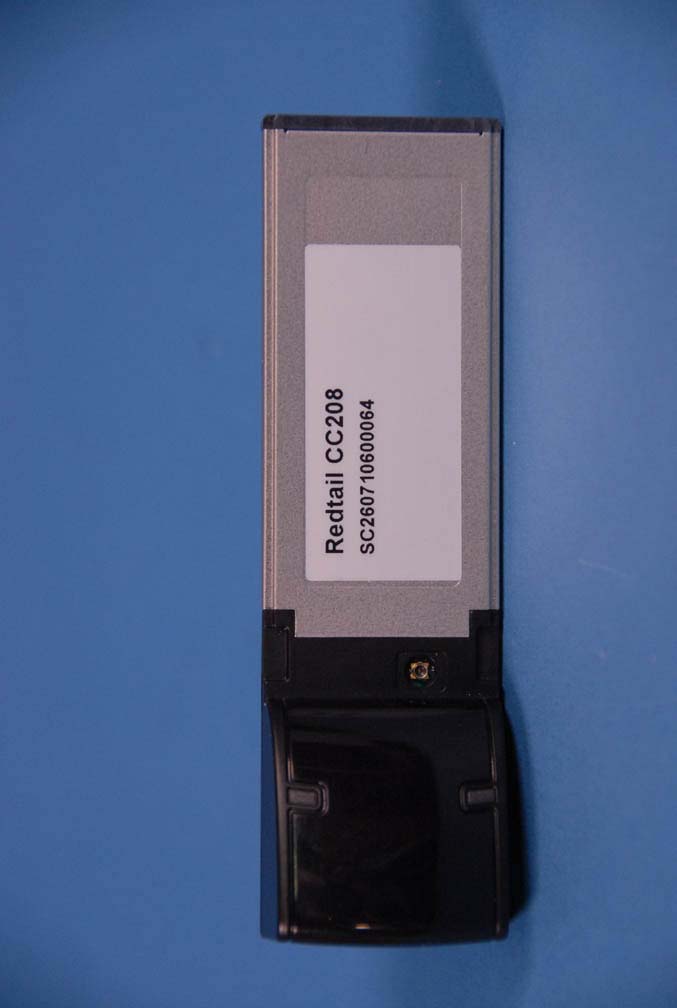

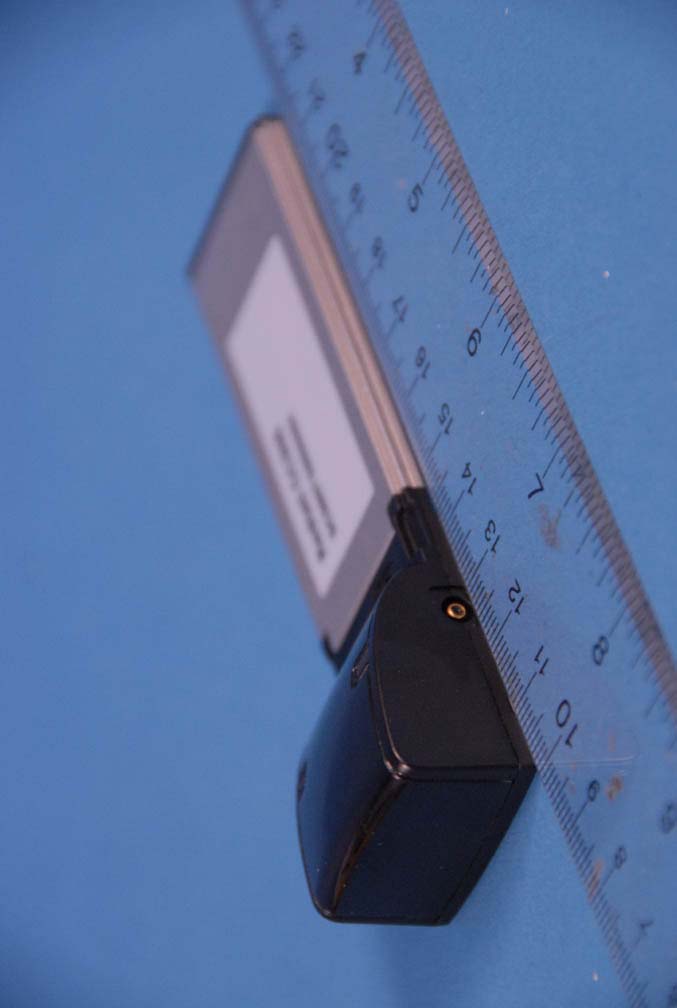

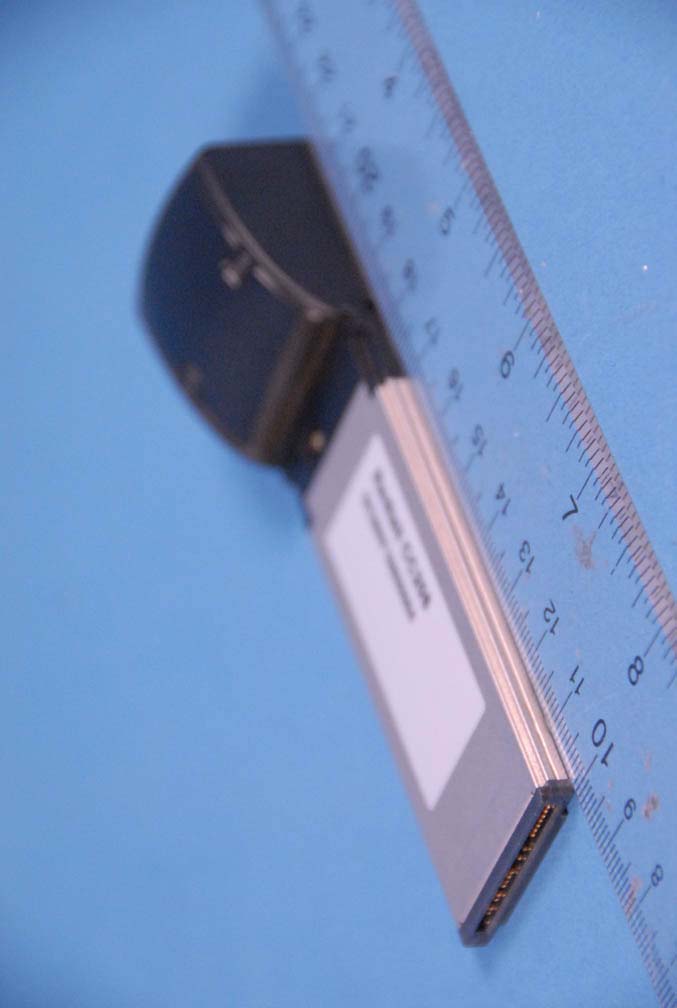

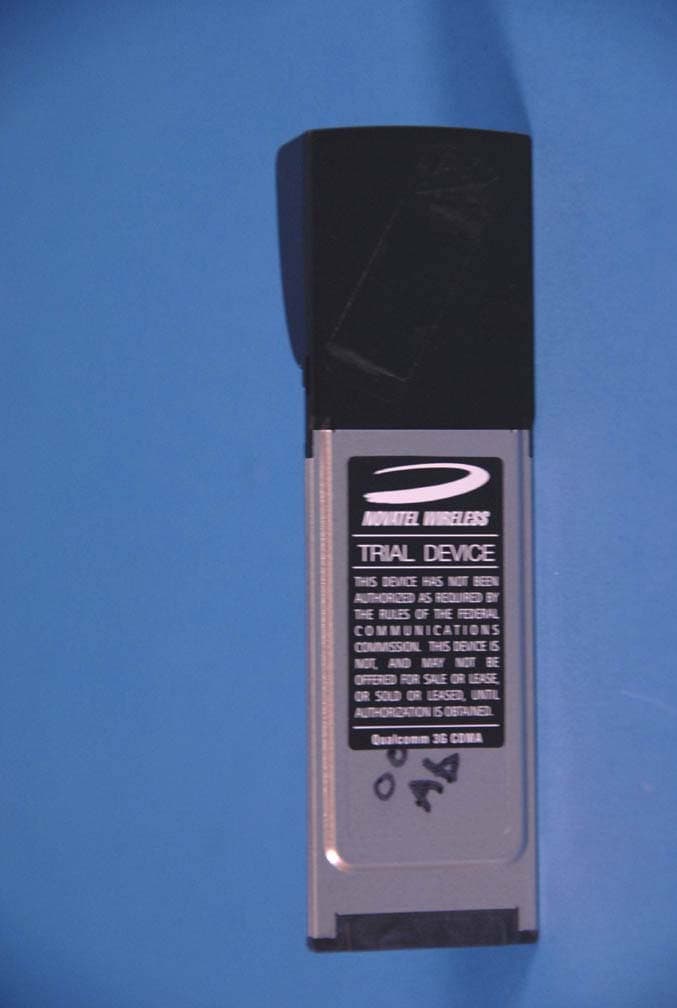

NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 External Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 1 of 5 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 External Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 2 of 5 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 External Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 3 of 5 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 External Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 4 of 5 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 External Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 5 of 5 © 2010 PCTEST Engineering Laboratory Inc. . NBZNRM-CC208 – Label Location The label is located here.

NBZNRM-CC208 - Label

NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 1 of 8 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 2 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 3 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 4 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 5 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 6 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 7 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 8 of 8 © 2010 PCTEST Engineering Laboratory Inc.

© 2010 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Novatel Wireless Dates of Test: August 9-10, 2010 9645 Scranton Road, Suite 205 Test Report Number: SAR.20100803 San Diego, CA 92121 Revision P This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application are subject to denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 863(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: NBZNRM-CC208 IC Certificate: 3229A-CC208 Model(s): CC208 Test Sample: Engineering Unit Same as Production Serial No.: 5D Equipment Type: Wireless Modem Classification: PCS Licensed Transmitter (PCB) TX Frequency Range: 824.7 – 848.31 MHz, 1851.25 – 1908.75 MHz, 2496 – 2690 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 835 MHz – 24.55 dBm, 1900 MHz – 24.06 dBm , 2600 MHz – 23.31 dBm Conducted Signal Modulation: CDMA, QPSK, 16QAM Antenna Type (Length): Internal Application Type: Certification FCC Rule Parts: Part 22, 24, 27 KDB Issued for Test: KDB 597947 Industry Canada: RSS-102 FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 2 of 227 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................... 3 SAR Definition [5] ...................................................................................................................... 3 2. SAR Measurement Setup ..................................................................................................... 4 Robotic System ......................................................................................................................... 4 System Hardware ..................................................................................................................... 4 System Description ................................................................................................................... 4 E-Field Probe ............................................................................................................................ 5 3. Robot Specifications ............................................................................................................. 7 4. Probe and Dipole Calibration ................................................................................................ 8 5. Phantom & Simulating Tissue Specifications ........................................................................ 9 SAM Phantom ........................................................................................................................... 9 Head & Body Simulating Mixture Characterization ................................................................... 9 Device Holder ........................................................................................................................... 9 6. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ............................................................... 10 Uncontrolled Environment ....................................................................................................... 10 Controlled Environment .......................................................................................................... 10 7. Measurement Uncertainty ................................................................................................... 11 8. System Validation ............................................................................................................... 12 Tissue Verification ................................................................................................................... 12 Test System Verification ......................................................................................................... 12 9. SAR Test Data Summary .................................................................................................... 14 Procedures Used To Establish Test Signal ............................................................................. 14 Device Test Condition ............................................................................................................. 14 10. FCC 3G Measurement Procedures ................................................................................. 15 10.1 Procedures Used to Establish RF Signal for SAR ....................................................... 15 10.2 SAR Measurement Conditions for CDMA2000, 1xEV-DO .......................................... 15 SAR Data Summary – 835 MHz Body .................................................................................... 31 SAR Data Summary – 1900 MHz Body .................................................................................. 32 SAR Data Summary – 2600 MHz Body – WiMax 5 MHz PUSC ............................................. 33 SAR Data Summary – 2600 MHz Body – WiMax 10 MHz PUSC ................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: NBZNRM-CC208 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008161368.NBZ August 18 - 26, 2010 Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 1 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2CFI 04/19/2010 Applicant Name: Date of Testing: Novatel Wireless Inc. August 18 - 26, 2010 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1008161368.NBZ FCC ID: NBZNRM-CC208 IC CERTIFICATION NO.: 3229A-CC208 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot FCC / IC Model(s): CC208 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.201 W ERP Cell. CDMA (23.04 dBm), 0.845 W EIRP PCS CDMA (29.27 dBm) Emission Designator(s): 1M28F9W (CDMA) / 1M28F9W (PCS) Test Device Serial No.: identical prototype [S/N: SC260710600064] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: NBZNRM-CC208 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008161368.NBZ August 18 - 26, 2010 Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 2 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2CFI 04/19/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR CDMA RADIATED MEASUREMENTS........................................................................... 14 6.5 PCS CDMA RADIATED MEASUREMENTS..........…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: NBZNRM-CC208 FCC Pt. 27 WiMAX MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008161369.PKR August 18 - 26, 2010, June 2011 Cellular/PCS CDMA/EvDO and WiMAX PC Card/Express Card Transceiver Page 1 of 58 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Applicant Name: Date of Testing: Novatel Wireless Inc. August 18 - 26, 2010, June 2011 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1008161369.PKR FCC ID: NBZNRM-CC208 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §27 Subpart M IC Specification(s): RSS-199 Issue 1 EUT Type: Cellular/PCS CDMA/EvDO and WiMAX PC Card/Express Card Transceiver Model(s): CC208 Tx Frequency Range: 2498.5 - 2687.5MHz (5MHz BW - WiMAX), 2501 - 2685MHz (10MHz BW - WiMAX) Max. RF Output Power: 0.385 W EIRP (5MHz BW WiMAX, QPSK) (25.85 dBm) 0.384 W EIRP (5MHz BW WiMAX, 16-QAM) (25.84 dBm) 0.465 W EIRP (10MHz BW WiMAX, QPSK) (26.67 dBm) 0.457 W EIRP (10MHz BW WiMAX, 16-QAM) (26.6 dBm) Emission Designator(s): 4M58G7D (5MHz BW, QPSK), 4M58W7D (5MHz BW, 16-QAM) 9M16G7D (10MHz BW, QPSK), 9M14W7D (10MHz BW, 16-QAM) Test Device Serial No.: identical prototype [S/N: SC260710600064, SC260710600086] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 27. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 / IC RSS-199 Reviewed by: FCC ID: NBZNRM-CC208 FCC Pt. 27 WiMAX MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008161369.PKR August 18 - 26, 2010, June 2011 Cellular/PCS CDMA/EvDO and WiMAX PC Card/Express Card Transceiver Page 2 of 58 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 SUPPORT EQUIPMENT ..................................................................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 EBS/BRS - FREQUENCY BLOCKS .................................................................................................... 6 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.5 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 TRANSMITTER CONDUCTED OUTPUT POWER ........................................................................... 11 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 12 6.4 WIMAX RADIATED MEASUREMENTS............................................................................................. 13 6.5 5MHZ BW WIMAX FREQUENCY STABILITY MEASUREMENTS.................................................... 16 6.6 10MHZ BW WIMAX FREQUENCY STABILITY MEASUREMENTS .................................................. 17 7.0 PLOT(S) OF EMISSIONS – 5MHZ BANDWIDTH..............................................…

Text truncated - open the document above for the full version.

NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 1 of 2 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: NBZNRM-CC208 Model: CC208 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO and WiMAX Mobile Hotspot Page 2 of 2 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 142 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Appendix C – SAR Test Setup Photos System Body Configuration Body Tissue Depth FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 143 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Express Card Installed in Dell 10 mm Gap PC Card Installed in Toshiba 10 mm Gap FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 144 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Front of Express Card Back of Express Card FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 145 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Front of PC Card Adapter Back of PC Card Adapter FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 146 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Front of Express Card Installed in PC Card Adapter Back of Express Card Installed in PC Card Adapter FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 147 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Front Cover Antenna Installed In Cover CDMA (850/1900MHz) WiMAX (2496MHz - 2690MHz) GPS CC208 Antenna TX RX TX RX RX Main Antenna Yes Yes Yes Yes Yes Diversity Antenna No Yes Yes Yes No Top of PCB With Kapton Tape Installed FCC ID: NBZNRM-CC208 © 2010 RF Exposure Lab, LLC Page 148 of 225 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Bottom Cover with Absorber Bottom of PCB with Kapton Tape Installed
