NBZNRM-MIFI2372RGSM/WCDMA USB WWAN Modem w/WLAN

quick start guide www.novatelwireless.com PN XXXXXXX_RA2 2352 / 2372 DRAFT ONLY 126.6126.6 133.3 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: QSG MC990D NVTL P/N: 90025258 NOTES: 1. MAGENTA OUTLINE DOES NOT PRINT. FOR DIE CUT REFERENCE ONLY. 2. MATERIAL: COVERS: 80# COVER MATTE PAGES: 70# TEXT MATTE COLOURS: CMYK Black: Process Rich Black (60/40/40/100) Pantone 376C Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages ECO: 08293 ©2008. Novatel Wireless, Inc. All rights reserved. MiFi, the MiFi Logo, Novatel Wireless and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc. All other trademarks are the property of their respective owners. 126.6126.6 133.3 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: QSG MC990D NVTL P/N: 90025258 NOTES: 1. MAGENTA OUTLINE DOES NOT PRINT. FOR DIE CUT REFERENCE ONLY. 2. MATERIAL: COVERS: 80# COVER MATTE PAGES: 70# TEXT MATTE COLOURS: CMYK Black: Process Rich Black (60/40/40/100) Pantone 376C Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages ECO: 08293 MiFi™ 2352/2372 with microSD™ is an intelligent mobile hotspot. Surf the web, download files and music, share photos, manage email and more at speeds of up to 7.2 Mbps download and 5.76 Mbps † upload. This 2-in-1 device with microSD provides freedom to do what you want, when you want, how you want. Transfer files between computers on the fly with microSD, share a connection with up to five WiFi enabled devices and access mobile broadband networks HSPA, UMTS, EDGE, and GPRS in Europe, North America, and Asia-Pacific*. With Zero-CD technology, installation couldn’t be simpler. Review the next three sections and you’ll be well on your way to experiencing the freedom total mobile internet. † Category 6, 5.76 Mbps firmware upgrade available in Q3, 2008 * Subject to operator roaming agreements Inside Front Cover NOTE: This is a Quick Start Guide. For complete details and information regarding the use of your device, accessories, and safety and regulatory information, please consult the User Guide on the device or visit www.nvtl.com/support. DO NOT INSERT THE DEVICE INTO YOUR COMPUTER UNTIL YOU HAVE REVIEWED THE STEPS OUTLINED IN THIS QUICK START GUIDE. 126.6126.6 133.3 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: QSG MC990D NVTL P/N: 90025258 NOTES: 1. MAGENTA OUTLINE DOES NOT PRINT. FOR DIE CUT REFERENCE ONLY. 2. MATERIAL: COVERS: 80# COVER MATTE PAGES: 70# TEXT MATTE COLOURS: CMYK Black: Process Rich Black (60/40/40/100) Pantone 376C Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages ECO: 08293 System Requirements Windows® 2000, XP, Vista; Mac® OS X (10.4.7+); Linux® (2.4, 2.6) 100 MB Hard Drive Space 128 MB of RAM *Visit www.nvtl.com/support for configuration details • MiFi 2352/2372 A 2-in-1 Intelligent Mobile Hotspot with removable memory. • USB cable • Rechargeable lithium ion battery • Wall charger with international adapters • Car charger • Carry pouch • LED Power Button Powers on and o the device. The LED provides connections status. See page 8 for a detailed list of the colours and their dened states . • SIM Card Slot The SIM card is inserted here. • microSD Slot Removable memory storage slot (microSD card not included). • microUSB port The USB cable, Wall Charger, and Car Charger connect here. • Battery and SIM Door The battery and SIM card are stored here. Contents MiFi 2352/2372 NOTE: For more information on the details of your device and accessories, consult the User Guide at www.novatelwireless.com 21 FPO 126.6126.6 133.3 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: QSG MC990D NVTL P/N: 90025258 NOTES: 1. MAGENTA OUTLINE DOES NOT PRINT. FOR DIE CUT REFERENCE ONLY. 2. MATERIAL: COVERS: 80# COVER MATTE PAGES: 70# TEXT MATTE COLOURS: CMYK Black: Process Rich Black (60/40/40/100) Pantone 376C Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages ECO: 08293 1 1 Getting Started Insert SIM Card and Battery 1 Open the door at the bottom of the device. Insert the SIM card into the SIM slot as shown. Now, insert the battery, lining up the contact points as shown and replace the door back on the device. 2 3 Before connecting MiFi to your computer for the rst time, you must insert the (U)SIM card supplied by your service provider and insert and charge the battery. You must have an account with a service provider. Your service provider may have provided activation instructions in this packaging. Otherwise, contact your service provider for complete instructions. Getting Started Charge the Battery 43 1 Connect the microUSB end of the Wall Charger to the microUSB port of the device. Plug the other end of the Wall Charger into the appropriate electrical outlet. Charge for at least two hours. You are now ready to install MobiLink software and drivers. In order to install MobiLink you must use the USB cable (included). 2 3 FPO FPO FPO FPO FPO IMPORTANT: When installing or replacing a battery, ensure that the MiFi modem is not connected to your computer with the USB cable or a USB power supply. Review the Battery Tips and Safety disposal instructions at the back of this guide. 126.6126.6 133.3 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: QSG MC990D NVTL P/N: 90025258 NOTES: 1. MAGENTA OUTLINE DOES NOT PRINT. FOR DIE CUT REFERENCE ONLY. 2. MATERIAL: COVERS: 80# COVER MATTE PAGES: 70# TEXT MATTE COLOURS: CMYK Black: Process Rich Black (60/40/40/100) Pantone 376C Rev.1 05/14/08 - Lawrence Zalasky…

Text truncated - open the document above for the full version.

quick start g ui de www.novatelwireless.c om PN 90XXXXXX 2352 / 2372 126.6126.6 133.3 Novatel Wir eless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: QSG MiFi2352R/2372R NVTL P/N: 90XXXXX NOTES: 1. MAGENTA OUTLINE DOES NOT PRINT. FOR DIE CUT REFERENCE ONLY. 2. MATERIAL: COVERS: 80# COVER MATTE PAGES: 70# TEXT MATTE COLOURS: CMYK Black: Process Rich Black (60/40/40/100) Pantone 376C Rev.1 07/29/09 - Lawrence Zalasky - INITIAL RELEASE ECO: ©2008. Novatel Wireless, Inc. All rights reserved. MiFi, the MiFi Logo, Novatel Wireless and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc. All other trademarks are the property of their respective owners. 126.6126.6 133.3 MiF i™ 2352/2372 with microSD™ is an in telligent mobile hotspot. Surf the web, download files and music, share photos, manage email and more at speeds of up to 7.2 Mbps download and 5.76 Mbps † upload. This 2-in-1 device with microSD provides fr eedom to do what you want, when you want, how you want. Transfer files bet ween computers on the fly with microSD, share a connection with up to five WiF i enabled devices and access mobile broadband networks HSPA, UMTS, EDGE, and GPRS in Europe, North America, and Asia-Pacific*. With Zer o-CD technology, installation couldn’t be simpler. Review the next three sections and you’ll be well on your way to exper iencing the fr eedom total mobile inter net. † Category 6, 5.76 Mbps firmwar e upgrade available in Q3, 2008 * Subject to oper at or roaming agreements Inside Front Cover NOTE: This is a Quick Start Guide. F or complete details and information regarding the use of your device, accessories, and safet y and regulatory information, please consult the User Guide on the device or visit www.n vtl.com/support. DO NOT INSERT THE DEVICE INTO YOUR COMPUTER UNTIL YOU HAVE REVIEWED THE STEPS OUTLINED IN THIS QUICK START GUIDE. 126.6126.6 133.3 System Requirements Windows® 2000, XP, Vista; Mac® OS X (10.4.7+); Linux® (2.4, 2.6) 100 MB Hard Drive Space 128 MB of RAM *Visit www.nvtl.com/support for configuration details • MiFi 2352/2372 A 2-in-1 Intelligent Mobile Hotspot with removable memory. • USB cable • Rechargeable lithium ion battery • Wall charger with international adapters • Car charger • Carry pouch • LED Power Button . • SIM Card Slot The SIM card is inserted here. • microSD Slot Removable memory storage slot (microSD card not included). • microUSB port The USB cable, Wall Charger, and Car Charger connect here. • Battery and SIM Door The battery and SIM card are stored here. Contents MiFi 2352/2372 NOTE: For more infor mation on the details of your device and accessories, c onsult the User Guide at www.novatelwireless.c om 21 FPO 126.6126.6 133.3 1 1 Getting Started Insert SIM Card and Battery 1 Open the door at the bottom of the device. Insert the SIM card into the SIM slot as shown. Now, insert the batt ery, lining up the contact points as shown and replace the door back on the device. 2 3 insert the (U)SIM card supplied by your service provider and insert and charge the batt ery. You must have an account with a service provider. Your service provider may have provided activation instructions in this packaging. Otherwise, contact your service provider for complete instructions. Getting Started Charge the Battery 43 1 Connect the microUSB end of the Wall Charger to the microUSB port of the device. Plug the other end of the Wall Charger into the appropria te electr ical outlet. Charge for at least two hours. You are now ready to install MobiLink softwar e and driv ers. I n order to install MobiLink you must use the USB cable (included). 2 3 FPO FPO FPO FPO FPO IMPORTANT: When installing or replacing a batt ery, ensure that the MiF i modem is not connected to your computer with the USB cable or a USB power supply. Review the Batt ery Tips and Saf et y disposal instructions at the back of this guide. 126.6126.6 133.3 2 2 56 Installation Installation (Windows) Mac - Internet Connect 1 Driv er_Installer.app. full installation procedure. 2 MobiLink softwar e and driv ers for Windows automatically installs. Launch MobiLink and Connect! 1 2 3 Windows - MobiLink Linux users: Go to www.novatelwireless.c om/support for installation and configuration instructions. Windows® Mac® » Turn on your computer and close all open applications. » Insert the USB cable into the microUSB port on MiF i and the other end into a USB port on your computer . Start the newly installed MobiLink softwar e. Click the Menu Icon and select . Click NewNext. Enter your Username* and Password*, if required, and click Finish. 1 2 3 4 Profile Manager Menu *Available from your service provider 126.6126.6 133.3 78 3 3 REDSIM Error Flashing:SIM card may be missing or inserted incorrectly No Service Solid: GPRS/EDGE/UMTS/HSDPA cellular service is currently not available GREENGPRS Flashing: GPRS service is available Solid: Connected to a network using GPRS VIOLETEDGEFlashing: EDGE service is available Solid:Connected to a network using EDGE BLUEUMTSFlashing:UMTS service is available Solid*:Connected to a network using UMTS YELLOWHSDPASolid*:HSDPA service is available and is being used during the downl oad CYANHSUPASolid*:HSUPA service is available and is being used during the upload * The LED may appear to flash blue and then yellow or cyan as the service transitions between UMTS and HSDPA/HSUPA. Connect USB Cable Wi-Fi The Basics LED States Insert the microUSB end of the USB cable to the microUSB port of MiF i and the other end into a USB port on your computer . The Power LED and 3G status indicator on the device both illuminate. Press the Power LED button and launch MobiLink. 1 2 3 There are two methods to connect MiF i t o your computer : USB Cable or Wi-Fi. Connect MiF i with the the USB Cable Connect MiF i via Wi-Fi Press the Power button on MiF i. The Power LED and the 3G status indicator on the device both illuminate. Press the Power LED button and launc…

Text truncated - open the document above for the full version.

~ NOVATEL WIRELESS. Authority to Act as Agent Date: March 27,2009 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite CliO McLean, VA 22101 To Whom It May Concern: Glen Moore ofNTS Canada is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 ofthe Anti-Drug Abuse Act of 1988,21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial offederal benefits, that includes FCC benefits. Thank you. Agency Agreement Expiration Date: __-"M""arc....,.h......,2-,-,7,....,2",0,-,1",0__ John Spall By: Title: Manager-Antenna and Regulatory Engineering On behalf of: Novatel Wireless Inc. Telephone: 858-812-0697 11/2008 -1

Re: FCC ID: NBZNRM-MIFI2372R Applicant: Novatel Wireless, Inc. Correspondence Reference Number: 86796, 87799 731 Confirmation Number: TC791569 Date of Original Email: 6/23/10, 7/13/10, & 7/14/10 Info from 6/23/10 fyi this application is among several similar identified for review - TCB please facilitate to submit response addressing the following 1) if not aleady clearly shown within internal photos exhibit, please amend to show WWAN and WLAN transmit antennas Please see additional Internal Photographs Provided. 2) Battery Operated Wireless Hubs and Routers Battery operated wireless hubs and routers are typically packaged in a rather small form factor, similar to the size of most cellphones. It is not practical and also difficult, if not impossible, to prevent users from operating these types of devices in portable exposure conditions. Unless a device has specific means or mechanisms to ensure that it cannot be operated in portable exposure conditions, addressing RF exposure compliance with respect to mobile exposure conditions is generally inappropriate. Depending on the design and operating characteristics of an individual device, the use of caution labels on the device also may not always be effective in addressing exposure concerns. When external antenna ports are available or external antennas are specified for these types of small form-factor products, effective means must also be available to ensure external antennas cannot be operated by users in portable exposure conditions to allow such antennas to qualify for applying mobile exposure conditions. If these types of wireless hubs and routers can be operated through direct or short cable connections to a laptop or netbook computer, portable exposure conditions should generally be considered. When SAR evaluation is required to demonstrate compliance, the device should be tested on all sides with a device to phantom separation distance not larger than 5 mm to address RF exposure concerns in various operating conditions and configurations expected by users. Larger test separation distances are generally inappropriate for addressing RF exposure concerns for these types of devices. While acceptable manual instructions are necessary; however, such instructions do not substitute for appropriate testing to demonstrate compliance for consumer wireless devices. RF exposure for simultaneous transmission must be fully addressed for all transmitters in the device in all applicable operating modes. When applicable, the simultaneous transmission test reduction procedures for handsets in KDB 648474 may be applied through prior KDB inquiry and approval. - Note for this device external antenna ports are not available to the end user. From conference call presentations/discussions with the FCC the week of July 12, and further RT’s as given below, SAR was tested per RT’s of 6/23 and 7/14/10. Please see attached SAR report. Info from 7/13/10 The following TC application audit items are separate from the RF exposure item 2) in the 6/23/10 corresp. 86796 / 86797 of the above referenced application. Technical information for the separate RF exposure item remains due within 30 days of the date of its original e-mail; failure to provide the requested information may result in application dismissal pursuant to Section 2.917(c), or the grantee code may be temporarily constricted. due to Applicant Contact name differs from Applicant Contact email address in this filing, this corresp. is sent only to TCB form-731 Contact; TCB please coordinate with applicant for reply 1) user manual exhibit indicates "draft only" - please address 2.1033(c)(3), i.e. please submit actual installation and operatings instructed furnished to users, as available This has been revised. Please see new users manual exhibit provided. 2) user manual includes text: "FCC Equipment Authorization ID: NBZNRM-MiFi 2352 / 2372" as stated in numerous FCC-TCB conferences, although rules do not require FCC ID to be listed in user manuals, when listed by grantee choice then TCB must ensure it is correct the correct FCC ID for this specific filing is "NBZNRM-MIFI2372R", i.e. all capital letters, no spaces, no slash mark [2.926 etc] - please revise user manual exhibit as appropriate TCB also please inform accreditor about internal process improvements implemented to preclude similar review issues in future applications This has been revised. Please see new users manual exhibit provided. 3) we note filing includes exhibit entitled "Deputy Letter" which appears to designate an alternate Form-731 contact; however we did not see that identified person listed in Form- 731 - in future filings please ensure consistency across exhibits and Form-731 as appropriate Per KDB 852134 Authorized Individual Policy for 731 https://fjallfoss.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?id=33316&switch=P another contact for the grantee was authorized for purposes of signing confidentiality letter(s). Additionally, there have been changes made to the Grantee contact as well for the future. 4) for output watts ERP (800) and EIRP (1900), form-731 lines and EMC/radio report show: 824.2-848.8 1.16 GPRS 824.2-848.8 0.84 EDGE 826.4 - 846.6 0.23 WCDMA 1850.2-1909.8 1.64 GPRS 1850.2-1909.8 1.93 EDGE 1852.4-1907.6 0.66 WCDMA we note all except third line are same as listed on grant for similar device NBZNRM- MIFI2352R whereas MPE estimate in NBZNRM-MIFI2352R appears to use correct power data, in NBZNRM-MIFI2372R there appears to be math error at least for 850- band analysis - please revise that and other issues if any This has been revised. Please see MPE exhibit provided. 5) an op. desc. exhibit mentions "Classic" and "Refresh" versions - where relevant for this filing please amend op. desc. to explain differences Please see additional exhibit uploaded in regards to this (operational description). Info from 7/14/10 TCB please forward asap to applicant contact ([email protected]). This amends the preceding corresp. sent 6/2…

Text truncated - open the document above for the full version.

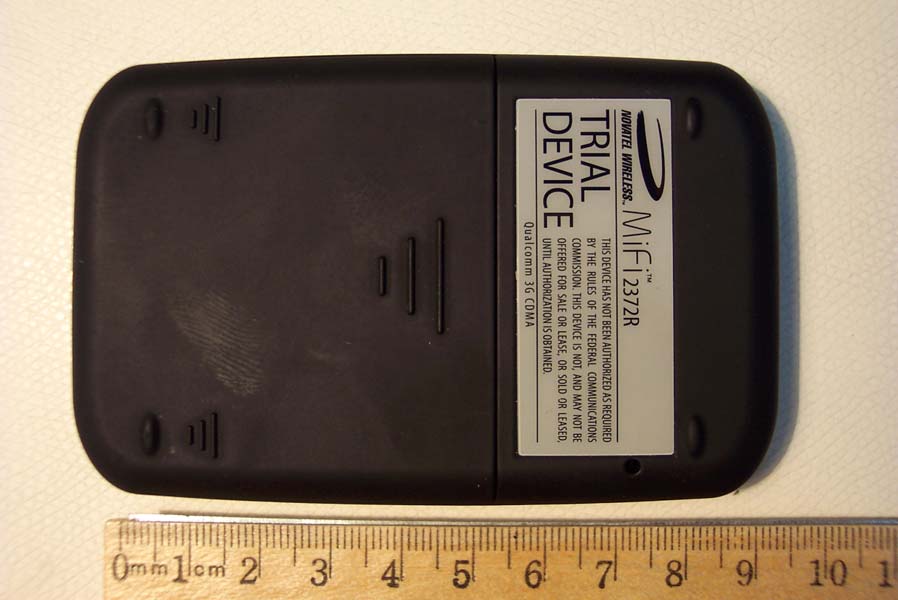

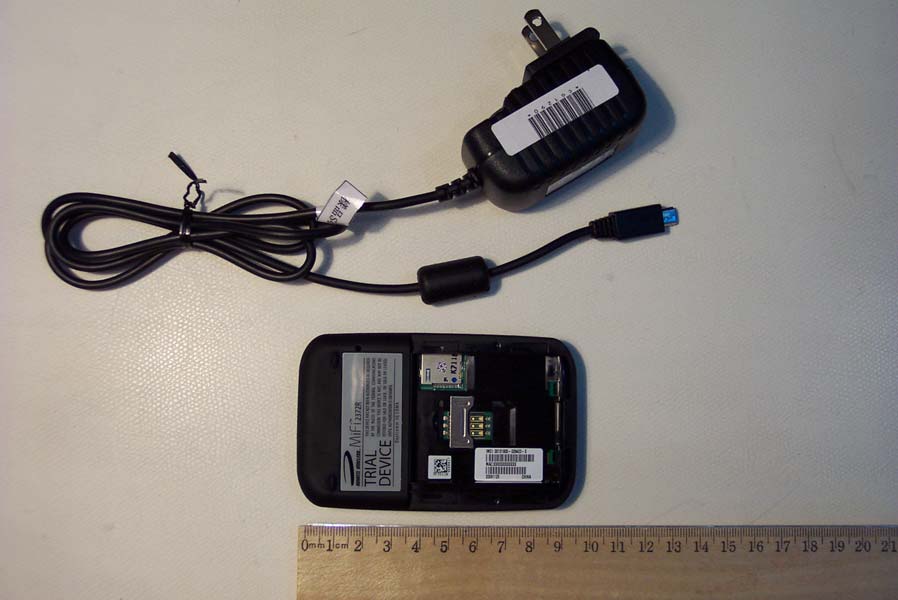

CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 1, 2010 Revision #: 0 External Photographs Front view Rear view CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 1, 2010 Revision #: 0 Rear view with power supply

FCC ID:NBZNRM-MIFI2372R MODEL:NRM-MIFI2372R IC:3229A-MIFI2372R 2372 Q UALCOMM 3 G CDMA GREY -006 47.0 20.5 FCC ID:NBZNRM-MIFI2372R MODEL:NRM-MIFI2372R IC:3229A-MIFI2372R 2372 Q UALCOMM 3 G CDMA WHITE -005 47.0 20.5 Q UALCOMM 3 G CDMA FCC ID:NBZNRM-MIFI2372R MODEL:NRM-MIFI2372R IC:3229A-MIFI2372R 2372 BLACK -001 47.0 20.5 RICH BLACK (60/40/40/100) OPAQUE WHITE PROCESS GREY (0/0/0/40) TITLE: LABEL REGULATORY REFRESH MIFI2372 NVTL NO A-TICK P/N: 25016821 Rev.A 08/05/09 - LZalasky - INITIAL DRAFT ECO: P09250 Novatel Wir eless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 FONTS MYRIAD PRO MYRIAD PRO CONDENSED FILES 25016821 Rev A Master Label Regulatory Refresh MiFi 2372 NVTL NO A-TICK.AI (AI CS3) 25016821 Rev A CS Outline Label Regulatory Refresh MiFi 2372 NVTL NO A-TICK.EPS (EPS) 25016821 Rev A View Only Label Regulatory Refresh MiFi 2372 NVTL A-TICK.PDF (DO NOT PRINT Reference PDF) MAGENTA DOES NOT PRINT BLACK LABEL -001 COLOR: 1C BACKGROUND IS RICH BLACK TEXT IS OPAQUE WHITE WHITE LABEL -005 COLOR: 1C BACKGROUND IS OPAQUE WHITE TEXT IS RICH BLACK GREY LABEL -006 COLOR: 2C BACKGROUND IS GREY TEXT IS RICH BLACK MATERIAL/FINISH: .25mm LABEL MATERIAL NOTES

CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 1, 2010 Revision #: 0 Label Location Label Position

CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 8, 2010 Revision #: 1 Internal Photographs PCB front view PCB Rear view CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 8, 2010 Revision #: 1 Radio part CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 8, 2010 Revision #: 1 Front cover and antennas Back cover

CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 8, 2010 Revision #: 1 Internal Photographs PCB front view PCB Rear view CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 8, 2010 Revision #: 1 Radio part CG-1436-RA-1-1 Novatel Wireless FCC/IC Exhibit Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Date: February 8, 2010 Revision #: 1 Front cover and antennas Back cover

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Novatel Wireless Inc Collocated MPE Report for FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R Project Code CG-1436 (Report CG-1436-RA-3-1) Revision: 1 (This report supersedes CG-1436-RA-1-1) February 8, 2010 Prepared for: Novatel Wireless Inc Author: Deniz Demirci Senior Wireless / EMC Technologist Approved by: Nick Kobrosly Director of Canadian operations CG-1436-RA-3-1 Novatel Wireless MPE Calculation Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 7 February 8, 2010 Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: 0214.22 Electrical 0214.23 Mechanical Accredited by A2LA The American Association for Laboratory Accreditation CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ACCREDITATION DATE:: May 14, 2009 VALID TO: February 28, 2010 Applicant: FCC: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 IC: Novatel Wireless Technologies Ltd 6715 – 8th St N.E. Suite 200 Calgary, Alta. T2E-7H7 Customer Representative: Mr. Jim Turner Regulatory Specialist Ph: (403) 295-4855 Fax: (403) 295-4801 E Mail: [email protected] CG-1436-RA-3-1 Novatel Wireless MPE Calculation Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 7 February 8, 2010 Register of revisions Revision Date Description of Revisions 1 February 8, 2010 Initial release CG-1436-RA-3-1 Novatel Wireless MPE Calculation Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 7 February 8, 2010 1.0 INTRODUCTION 1.1 PURPOSE This Maximum Permissive Exposure report demonstrates compliance with FCC CFR 47 1.1310 and 2.1091 for collocated transmitters used in simultaneous conditions with the Model MiFi2372R mobile Hotspot EUT which is categorized as “mobile”. The mobile classification applies when 20 cm or greater separation distance is maintained between the end user and all transmission antennas. The users documentation available to consumers indicates that the modem must not be used closer than 20 cm to head or body. This product contains an 802.11 b/g transceiver and PCS/Cell transceiver. The 802.11 transceiver may be operated simultaneously with either the Cell or PCS mode of operation 2.0 DESCRIPTION OF COLLOCATED DEVICES 2.1 COLLOCATION CONFIGURATIONS As described above the MiFi2352R is a mobile hotspot product which allows simultaneous operation of the following radio pairs: 1) Cellular / 802.11 b/g 2) PCS / 802.11 b/g All power values used in this MPE report are based on measured values reported in the following test reports: 1) For Cellular / PCS – NTS Report CG-1436-RA-1-2 2) For 802.11 b/g – NTS Report CG-1436-RA-2-1 2.2 ANTENNA SPECIFICATIONS The Model NRM-MIFI 2372R has the following antenna gain specifications: Cell mode: 1.88 dBi PCS mode : 2.60 dBi 802.11 mode: 2.20 dBi CG-1436-RA-3-1 Novatel Wireless MPE Calculation Model NRM-MIFI2372R FCC ID # NBZNRM-MIFI2372R IC ID # 3229A-MIFI2372R ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 5 of 7 February 8, 2010 3.0 RF EXPOSURE LIMITS AND EQUATIONS In compliance with FCC CFR 47 1.1310, the criteria listed in the table below shal…
