NFC-FW2SMK9FSmoke Detector

1 2 FW2-SMK Wireless Smoke & Heat Detector ELECTRONIC ENGINEERING LTD INSTALLATION INSTRUCTIONS P/N INTRODUCTION The FW2-SMK as a part of the FreeWave wireless security system is an advanced, fully supervised SMOKE DETECTOR transmitter.  Photoelectric smoke& heat detector  State-of-the-art wireless security system.  Low current Technology.  Powered by a 3 Volt Lithium battery.  Battery life: at least 3 years.  Frequency Band: 916.5 MHz  Supervision transmission.  Battery condition signal transmission.  Tamper protected  Unique ID number. Compatible FreeWave receivers are designed to "learn" the specific ID of FW2-SMK detectors and respond only to them. Alarm and other data are forwarded to the control panel for specific event indication. A periodic test transmission for supervision purposes takes place automatically once in ~7min. The receiver is informed that the FW2-SMK detector is taking an active part in the wireless security system. 3 4 Smoke - Drift Compensation The detector automatically compensates for long-term environmentally induced changes to maintain a constant smoke sensitivity. When the drift compensation has reached its high or low limit of adjustment, the detector will go into the trouble state. Heat Alarm The heat detector will go into alarm when the heat signal level exceeds the heat alarm threshold (135°F/57°C); and will automatically restore when the heat signal level falls bellow the heat alarm threshold (restore). Tamper The removal of the detector from the mounting plate initiates a "tamper" transmission. The tamper condition is restored after the detector is mounted on the plate. WARNING: This smoke detector is designed for use in a single residential unit only, which means that it should be used inside a single-family home or apartment. Smoke detectors, placed in common areas outside the individual living unit, such as on porches or in hallways, may not provide early warning to residents WARNING: This detector, if used as a stand-alone unit, will not alert people who are hard of hearing. WHERE TO INSTALL SMOKE DETECTORS Smoke detectors should be installed in accordance with the NFPA Standard 74. For complete coverage in residential units, smoke detectors should be installed in all rooms, halls, storage areas, basements and attics in each family living unit. Minimum coverage is one detector on each floor and one in each sleeping area. Here are a few useful tips for you: o Install a smoke detector in the hallway outside every separate bedroom area. Two detectors are required in homes with two bedroom areas. o Install a smoke detector on every floor of multi-floor home or apartment. o Install a minimum of two detectors in any household. o Install a smoke detector inside every bedroom. o Install smoke detectors at both ends of bedroom hallway if the hallway is more than 12m (40ft) long. o Install a smoke detector inside every room where one sleeps with the door partly or completely closed, since smoke could be blocked by the closed door and a hallway alarm may not wake up the sleeper if the door is closed. o Install basement detectors at the bottom of the basement stairwell. o Install second-floor detectors at the top of the first-to-second floor stairwell. o Be sure no door or other obstruction blocks the path of smoke to the detector. o Install additional detectors in your living room, dining room, family room, attic, utility and storage rooms. o Install smoke detectors as close to the center of the ceiling as possible. If this is not practical, put the detector on the ceiling, at least 10 cm (4 inch) away from any wall or corner. o If ceiling mounting is not possible and wall mounting is permitted by your local and state codes, put wall-mounted detectors between 10-15 cm (4 - 6 inches) from the ceiling. o If some of your rooms have sloped, peaked, or gabled ceilings, try to mount detectors 0.9 m (3 feet) measured horizontally from the highest point of the ceiling. 5 6 WHERE TO INSTALL SMOKE DETECTORS IN MOBILE HOMES AND RVs Mobile homes and RVs built after about 1978 were designed and insulated to be energy-efficient. In mobile homes and RVs built after1978, smoke detectors should be installed as described above. Older mobile homes and RVs may have little or no insulation compared to current standards. Outside walls and roofs are often made of non- insulated metal, which can transfer thermal energy flow from outdoors. This makes the air right next to them hotter or colder than the rest of the inside air. These layers of hotter or colder air can keep smoke from reaching a smoke detector. Therefore, install smoke detectors in such units only on inside walls. Place them 10 - 15 cm (4 - 6 inches) from the ceiling. If you are not sure how much insulation is in your mobile home or RV, then install the detector on an inside wall. If the walls or ceiling are unusually hot or cold, then install the detector on an inside wall. Install one detector as close to the sleeping area as possible for minimum security, or install one detector in each room for more security. Before you install any detector, please read the following section on "Where Not to Install Smoke Detectors". WHERE NOT TO INSTALL SMOKE DETECTORS False alarms occur when smoke detectors are installed where they will not work properly. To avoid false alarms, do not install smoke detectors in the following situations:  Combustion particles are by-products of something burning. Do not install smoke detectors in or near areas where combustion particles are present, such as kitchens with few windows or poor ventilation, garages where there may be vehicle exhaust, near furnaces, hot water heaters and space heaters.  Do not install smoke detectors less than 6 m (20 feet) away from places where combustion particles are normally present, like kitchens. If a 20-foot distance is not possible, e.g. in a mobile home, try to install the detector as far away from the combustion particles as possible, preferably on…

Text truncated - open the document above for the full version.

ELECTRONIC ENGINEERING LTD. 12 Kineret St., Airport City, 70100 Israel Tel. +972 3 9726000 Fax. +972 3 9726001 www.thecrowgroup.com February 10, 2014 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a smoke detector, FCC ID:NFC-FW2SMK9F Dear Gentlemen, Please find attached our application for certification of a smoke detector, FCC ID:NFC-FW2SMK9F, model FW2-SMK-9F, prepared in accordance with FCC Rules part 2 and part 15 subpart C section 15.231(a). The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours, Shuki Segal, Vice-President of Operations and Technology

Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 1 of 1 Label The label is affixed on the rear side of the smoke detector as shown below. The label material is PVC with a permanent adhesive. Label location Bracket Label with FCC ID:NFC-FW2SMK9F is located at the rear side panel. The statement according to FCC part 15 §15.19(a)(3) is placed in Installation Instructions, page 4 (Application exhibit User_manual_25157).

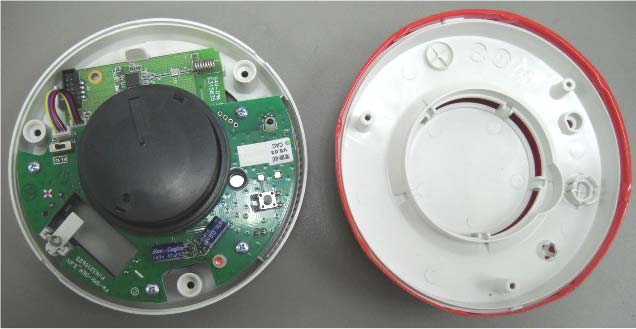

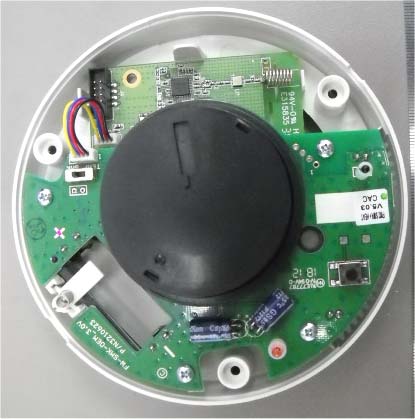

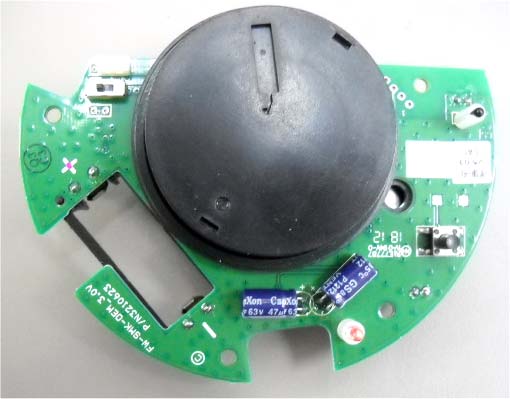

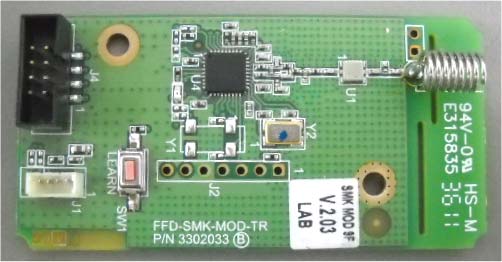

Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 2 of 8 Photograph No.1 “FW2-SMK-9F” smoke detector internal view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 3 of 8 Photograph No.2 “FW2-SMK-9F” smoke detector internal view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 4 of 8 Photograph No.3 “FW2-SMK-9F” smoke detector main PCB front view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 5 of 8 Photograph No.4 “FW2-SMK-9F” smoke detector main PCB second side view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 6 of 8 Photograph No.5 “FW2-SMK-9F” RF module front view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 7 of 8 Photograph No.6 “FW2-SMK-9F” RF module second side view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 8 of 8 Photograph No.7 Antenna close view

Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 1 of 1 Operational description The FW2-SMK-9F as a part of the FreeWave wireless security system is an advanced, fully supervised SMOKE DETECTOR transmitter. Compatible FreeWave receivers are designed to "learn" the specific ID of FW2-SMK-9F detectors and respond only to them. Alarm and other data are forwarded to the control panel for specific event indication. A periodic test transmission for supervision purposes takes place automatically once in ~7 min. The receiver is informed that the FW2-SMK detector is taking an active part in the wireless security system. OPERATION Smoke - Drift Compensation The detector automatically compensates for long-term environmentally induced changes to maintain a constant smoke sensitivity. When the drift compensation has reached its high or low limit of adjustment, the detector will go into the trouble state. Heat Alarm The heat detector will go into alarm when the heat signal level exceeds the heat alarm threshold (135°F/57°C); and will automatically restore when the heat signal level falls below the heat alarm threshold (restore). Tamper The removal of the detector from the mounting plate initiates a "tamper" transmission. The tamper condition is restored after the detector is mounted on the plate. FEATURES  Frequency: 916.5 MHz  Type of modulation: GFSK  Photoelectric smoke& heat detector  State-of-the-art wireless security system.  Low current Technology.  Powered by a 3 Volt Lithium battery.  Battery life: at least 3 years.  Supervision transmission.  Battery condition signal transmission.  Tamper protected  Unique ID number.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 53 Report ID: CRORAD_FCC.25157_rev1.docx Date of Issue:22-Dec-13 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 Part 15 subpart C, section 15.231 (a) and subpart B; RSS-210 issue 8 Annex 1, RSS-Gen issue 3, ICES-003 Issue 5 FOR: Crow Electronic Engineering Ltd. Smoke detector Model:FW2-SMK-9F FCC ID:NFC-FW2SMK9F IC:8164A-FW2SMK9F This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: CRORAD_FCC.25157_rev1.docx Date of Issue: 22-Dec-13 Page 2 of 53 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in the EUT ............................................................................................................................................ 5 6.4 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 issue 8 Annex 1 requirements ...................... 7 7.1 Periodic operation requirements ................................................................................................................................... 7 7.2 Field strength of emissions .......................................................................................................................................... 11 7.3 Occupied bandwidth test ............................................................................................................................................. 31 7.4 Antenna requirements ................................................................................................................................................. 34 8 Unintentional emissions .............................................................................................................................................. 35 8.1 Radiated emission measurements .............................................................................................................................. 35 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 41 10 APPENDIX B Measurement uncertainties ................................................................................................................... 42 11 APPENDIX C Test laboratory description ................................................................................................................... 43 12 APPENDIX D Specification references ....................................................................................................................... 43 13 APPENDIX E Test equipment correction factors ......................................................................................................... 44 14 APPENDIX F Abbreviations and acronyms ................................................................................................................. 53 Report ID: CRORAD_FCC.25157_rev1.docx Date of Issue: 22-Dec-13 Page 3 of 53 1 Applicant information Client name: Crow Electronic Engineering Ltd. Address: 12 Kineret street, P.O.Box 293, Ben Gurion Airport, Airport City, 70100, Israel Telephone: +972 3972 6093 Fax: +972 3972 6001 E-mail: [email protected] Contact name: Mr. Eugene Plotnichenko 2 Equipment under test attributes Product name: Smoke detector Product type: Transceiver Model(s): FW2-SMK-9F Serial number: NA Hardware version: 2 (RF transceiver board), 10 (Smoke detector board) Software release: V2.03 (RF transceiver board), V5.03 (Smoke detector board) Receipt date 13-Nov-13 3 Manufacturer information Manufacturer name: Crow Electronic Engineering Ltd. Address: 12 Kineret street, P.O.Box 293, Ben Gurion Airport, Airport City, 70100, Israel Telephone: +972 3972 6093 Fax: +972 3972 6001 E-Mail: [email protected] Contact name: Mr. Eugene Plotnichenko 4 Test details Project ID: 25157 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 13-Nov-13 Test completed: 17-Dec-13 Test specification(s): FCC 47CFR part 15, subpart C, §15.231(a), subpart B; RSS-21…

Text truncated - open the document above for the full version.

Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 1 of 8 SETUP PHOTOGRAPHS This document contains 7 photographs Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 2 of 8 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 3 of 8 Photograph No.2 Setup for carrier and spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 4 of 8 Photograph No.3 Setup for spurious emission field strength measurements in the anechoic chamber above 1000 MHz Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 5 of 8 Photograph No.4 Setup for spurious emission field strength measurements in the anechoic chamber, EUT close view Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 6 of 8 Photograph No.5 Setup for carrier field strength measurements at the OATS Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 7 of 8 Photograph No.6 Setup for occupied bandwidth measurements Crow Electronic Engineering Ltd. FCC ID:NFC-FW2SMK9F Page 8 of 8 Photograph No.7 Setup for occupied bandwidth measurements
