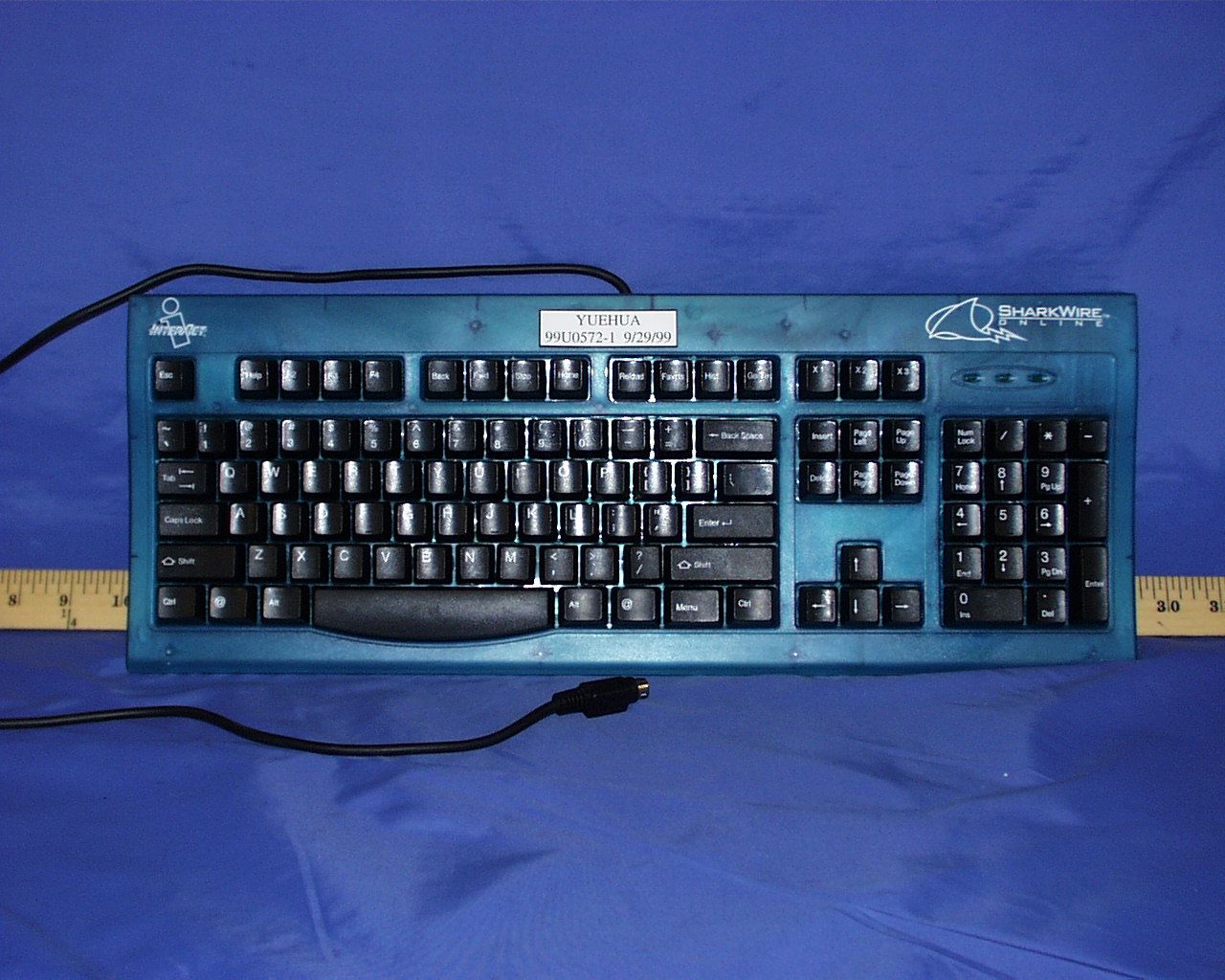

KEYBOARD MODEL: KEY800 KEY800 is standard IBM compatible 104-Key keyboard. It is consists of the following: 1. The function Keys 2. The typewriter key area 3. The cursor and numeric keypad 4. The cursor keypad Technical specifications: Mechanical Spec: 1. Total travel: 3.6 ± 0.4mm 2. Operating force: Standard keys: 60 ± 10CN Space Bar & return Key: 80 ± 15 CN 3. Function: Normally open contact Electrical Specifications: 1. Insulation resistance: 100M ohm at 100V DC 2. Contact bounce: 5ms MAX 3. Operation Voltage: +5vDC ± 10% 4. Compatible with At/PS 2 and Window 98 Life: Lifetime with electrical load: 10 million Environmental: 1. Storage tempreture: -20 o C ~ +70 o C 2. Operating tempreture: -10 o C ~ +60 o C 3. Humidity: 30% ~ 95%

PROPOSED FCC ID LABEL AND LOCATION YUEHUA ELECTRON CO., LTD. OF ZHUHAI This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: NH3KEY800 FCC ID LABEL FCC ID

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR KEYBOARD MODEL: KEY800 FCC ID: NH3KEY800 REPORT NUMBER: 99C0572-1 ISSUE DATE: SEPTEMBER 28, 1999 Prepared for YUEHUA ELECTRON CO., LTD. OF ZHUHAI 30 BLDG., CHUIZHU INDUSTRIAL DISTRICT ZHUHAI, GUANGDONG P. R. CHINA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99C0572-1DATE:SEPTEMBER 28, 1999FCC ID:NH3KEY800 EUT: KEYBOARD COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002B2 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................................................................ 1 2.PRODUCT DESCRIPTION............................................................................................................................. 2 3. TESTED SYSTEM DETAILS ......................................................................................................................... 2 4. TEST FACILITY .............................................................................................................................................. 3 5. ACCREDITATION AND LISTING ............................................................................................................... 3 6. MEASUREMENT INSTRUMENTATION.................................................................................................... 3 7. MEASURING INSTRUMENT CALIBRATION .......................................................................................... 4 8. UNITS OF MEASUREMENT ......................................................................................................................... 4 9. ANTENNAS....................................................................................................................................................... 5 10. CLASSIFICATION OF DIGITAL DEVICE ................................................................................................. 5 11. RADIATED EMISSION LIMITS ................................................................................................................... 5 12. CONDUCTED EMISSION LIMITS............................................................................................................... 6 13. CONDUCTED EMISSION TEST PROCEDURE......................................................................................... 8 14. RADIATED EMISSION TEST PROCEDURE ............................................................................................. 8 15. AMBIENT CONDITIONS ............................................................................................................................... 9 17. EQUIPMENT MODIFICATIONS................................................................................................................ 10 18. EUT SETUP PHOTOS ................................................................................................................................... 11 19.TEST EQUIPMENT LIST ............................................................................................................................. 12 20. TEST RESULT SUMMARY .......................................................................................................................... 13 APPENDICES ........................................................................................................................................................... 15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA .EUT PHOTOGRAPHS REPORT NO:99C0572-1DATE:SEPTEMBER 28, 1999FCC ID:NH3KEY800 EUT: KEYBOARD 1OF19 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002B2 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME: YUEHUA ELECTRON CO., LTD. OF ZHUHAI 30 BLDG., CHUIZHU INDUSTRIAL DISTRICT ZHUHAI, GUANGDONG P. R. CHINA CONTACT PERSON: HANXIONG JIANG / ENG. MANAGER TELEPHONE NO:756-8610-916 MODEL NO/NAME: KEY800 SERIAL NO:N/A DATE TESTED:SEPTEMBER 28, 1999 TYPE OF EQUIPMENT:INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE:(X) 3 METER ( ) 10 METER TECHNICAL LIMIT:CLASS B FCC RULES:PART 15 MEASUREMENT PROCEDUREANSI C63.4:92 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 21 for comments) NO RADIATED EMISSION TEST RESULT-1.66 dB @ 37.4 MHz/VERTICAL CONDUCTED EMISSION TEST RESULT-6.07 dB @ 8.37 MHz/L1 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CERTIFICATION SERVICES REPORT NO:99C0572-1DATE:SEPTEMBER 28, 1999FCC ID:NH3KEY800 EUT: KEYBOARD 2OF19 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002B2 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPEPLASTIC NUMBER OF PCB LAYERS1 NO. OF EXTERNAL I/O CONNECTORS1 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device TypeManufacturerModel NumberSerial No.FCC ID / DoC MONITOR PACKARD BELL 1712SL MEMN520005 51 …
