NHPWLAN1503IEEE802.11a/b/g/n 2.4/5G Dual-band Wireless LAN USB Dongle

2.4GHz/5GHz Dual-Band USB 2.0 Wireless LAN Adapter User’s Guide ii Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. IMPORTANT NOTE: Radiation Exposure Statement: The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The USB dongle transmitter is approved for use in typical laptop computers. To comply with FCC RF exposure requirements, it should not be used in other devices or certain laptop and tablet computer configurations where the USB connectors on the host computer are unable to provide or ensure the necessary operating configurations intended for the device and its users or bystanders to satisfy RF exposure compliance requirements. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. For Taiwan 警語 警語警語 警語： ：： ： 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方 得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫 療用電波輻射性電機設備之干擾。 iii Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2006 Safety of Information Technology Equipment EN 62311: 2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz – 300GHz) EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 489-1 V1.8.1 (2008-04) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V2.1.1 (2009-05) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other …

Text truncated - open the document above for the full version.

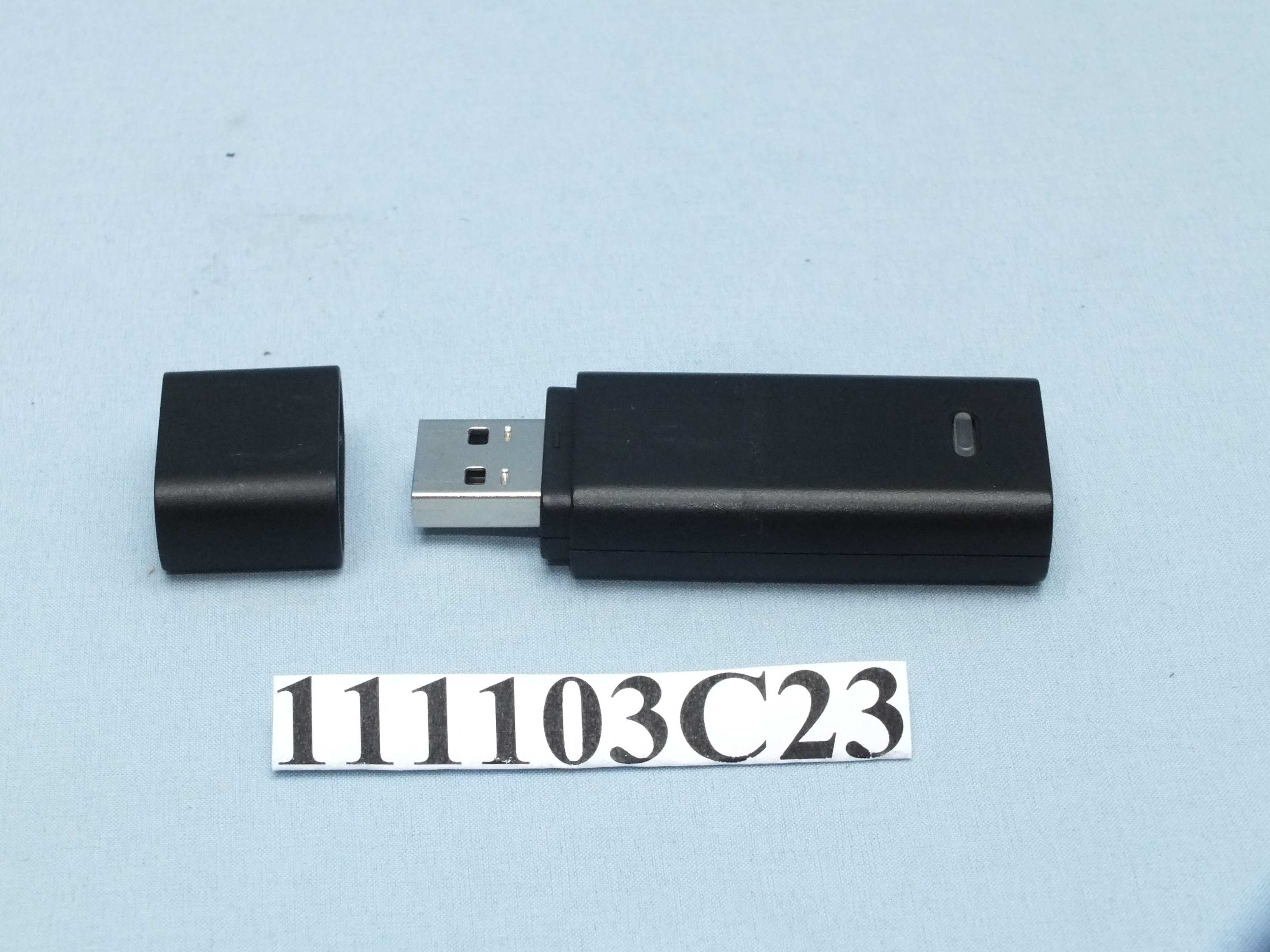

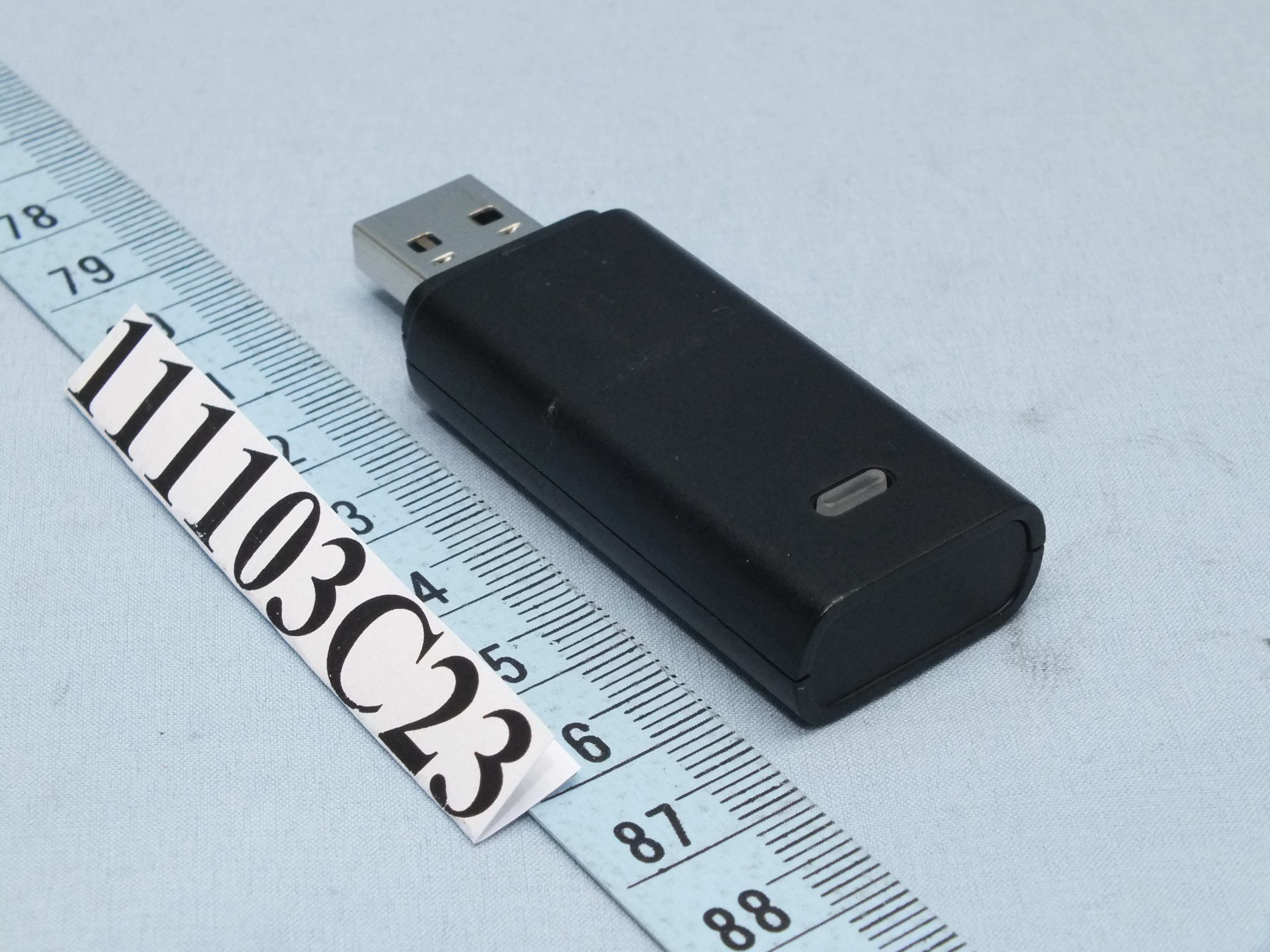

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

39.74 39.74 Made in China FCC ID:NHPWLAN1503 "See Caution in Manual" MACXXXXXXXXXXXX/# Model Name:WLAN-1503

Label Location

Page 3 = Page 4

FCC ID: NHPWLAN1503 Report No.: RF111103C23 Operational Description This device is a IEEE802.11a/b/g/n 2.4/5G Dual-band Wireless LAN USB Dongle , which operates in both of the 5GHz and 2.4GHz bands, the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise ratio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 5Vdc from host equipment. The antenna is a printed antenna with UFL antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC SAR Test Report Report Format Version 4.1.0 Page No. : 1 of 21 Report No. : SA111103C23 Issued Date : Feb. 20, 2012 Revision : R01 FCC SAR Test Report Report No. : SA111103C23 Applicant : CAMEO COMMUNICATIONS, INC. Address : No. 276, Sinhu 1st Rd., Neihu District, Taipei City 114, Taiwan. Product : IEEE802.11a/b/g/n 2.4/5G Dual-band Wireless LAN USB Dongle FCC ID : NHPWLAN1503 Brand : CAMEO, TRENDnet Model No. : WLAN-1503, TEW-664UB Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D02 v02 Date of Testing : Dec. 22, 2011 ~ Feb. 18, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. This test report consists of 21 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Prepared By : Andrea Hsia / Specialist Approved By : Roy Wu / Manager FCC SAR Test Report Report Format Version 4.1.0 Page No. : 2 of 21 Report No. : SA111103C23 Issued Date : Feb. 20, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 12 3.4 SAR Measurement Procedure ................................................................................................................................... 13 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 13 3.4.2 Volume Scan Procedure................................................................................................................................... 13 3.4.3 Power Drift Monitoring ...................................................................................................................................... 13 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 14 3.4.5 SAR Averaged Methods ................................................................................................................................... 14 4. SAR Measurement Evaluation ............................................................................................................................................ 15 4.1 EUT Configuration and Setting ................................................................................................................................... 15 4.2 EUT Testing Position .................................................................................................................................................. 15 4.3 Tissue Verification ...................................................................................................................................................... 15 4.4 System Verification ..................................................................................................................................................... 16 4.5 Conducted Power…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 System Check_B2450_111224 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 716 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2450 MHz; σ = 1.974 mho/m; ε r = 51.092; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 20.356 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.1 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 26.440 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.94 mW/g Maximum value of SAR (measured) = 19.192 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/17 System Check_B2450_120217 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B2450_0217 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 51.315; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 20.282 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.1 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 26.3600 SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.93 mW/g Maximum value of SAR (measured) = 19.130 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/22 System Check_B5200_111222 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_1222 Medium parameters used: f = 5200 MHz; σ = 5.196 mho/m; ε r = 48.174; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.755 mW/g Pin=100mW/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 59.540 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 27.032 W/kg SAR(1 g) = 7.53 mW/g; SAR(10 g) = 2.23 mW/g Maximum value of SAR (measured) = 15.604 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 System Check_B5200_111224 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_1224 Medium parameters used: f = 5200 MHz; σ = 5.228 mho/m; ε r = 49.243; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.852 mW/g Pin=100mW/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 59.540 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 27.198 W/kg SAR(1 g) = 7.57 mW/g; SAR(10 g) = 2.24 mW/g Maximum value of SAR (measured) = 15.700 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/18 System Check_B5200_120218 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1018 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_0218 Medium parameters used: f = 5200 MHz; σ = 5.168 mho/m; ε r = 47.47; ρ = 1000 kg/m 3 Ambient Temperature：21.4 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=100mW, f=5200 MHz/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.872 mW/g Pin=100mW, f=5200 MHz/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 61.096 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 28.3860 SAR(1 g) = 7.99 mW/g; SAR(10 g) = 2.36 mW/g Maximum value of SAR (measured) = 16.538 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/22 System Check_B5800_111222 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: B5G_1222 Medium parameters used: f = 5800 MHz; σ = 6.273 mho/m; ε r = 47.376; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(3.81, 3.81, 3.81); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW:…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 P01 802.11b_Horizontal Up_0.5cm_Ch6 DUT: 111103C23 Communication System: WLAN 2450; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2437 MHz; σ = 1.957 mho/m; ε r = 51.142; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch6/Area Scan (31x41x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.077 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.834 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.157 W/kg SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.100 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 P02 802.11b_Horizontal Down_0.5cm_Ch6 DUT: 111103C23 Communication System: WLAN 2450; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2437 MHz; σ = 1.957 mho/m; ε r = 51.142; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch6/Area Scan (31x41x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.042 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.684 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.054 W/kg SAR(1 g) = 0.030 mW/g; SAR(10 g) = 0.014 mW/g Maximum value of SAR (measured) = 0.043 mW/g Ch6/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.684 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.067 W/kg SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.011 mW/g Maximum value of SAR (measured) = 0.047 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 P03 802.11b_Vertical Front_0.5cm_Ch6 DUT: 111103C23 Communication System: WLAN 2450; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2437 MHz; σ = 1.957 mho/m; ε r = 51.142; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch6/Area Scan (41x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.036 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.571 V/m; Power Drift = -0.125 dB Peak SAR (extrapolated) = 0.057 W/kg SAR(1 g) = 0.023 mW/g; SAR(10 g) = 0.00927 mW/g Maximum value of SAR (measured) = 0.030 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 P04 802.11b_Vertical Back_0.5cm_Ch6 DUT: 111103C23 Communication System: WLAN 2450; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2437 MHz; σ = 1.957 mho/m; ε r = 51.142; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch6/Area Scan (41x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.021 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.991 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.022 W/kg SAR(1 g) = 0.014 mW/g; SAR(10 g) = 0.00957 mW/g Maximum value of SAR (measured) = 0.017 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 P05 802.11b_Tip Mode_0.5cm_Ch6 DUT: 111103C23 Communication System: WLAN 2450; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2437 MHz; σ = 1.957 mho/m; ε r = 51.142; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch6/Area Scan (41x41x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.012 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.667 V/m; Power Drift = -0.078 dB Peak SAR (extrapolated) = 0.020 W/kg SAR(1 g) = 0.00663 mW/g; SAR(10 g) = 0.00242 mW/g Maximum value of SAR (measured) = 0.010 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/24 P06 802.11n_HT20_Horizontal Up_0.5cm_Ch6_Ant 1+2 DUT: 111103C23 Communication System: WLAN 2450; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_1224 Medium parameters used: f = 2437 MHz; σ = 1.957 mho/m; ε r = 51.142; ρ = 1000 kg/m 3 Ambient Temperature：22.ˉ °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electr…

Text truncated - open the document above for the full version.

Report No.: RF111103C23 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF111103C23 MODEL NO.: WLAN-1503 (refer to item 3.1 for more detail) FCC ID: NHPWLAN1503 RECEIVED: Nov. 03, 2011 TESTED: Dec. 07 ~ Dec. 14, 2011 ISSUED: Dec. 20, 2011 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: No. 276, Sinhu 1st Rd., Neihu District, Taipei City 114, Taiwan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 82 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF111103C23 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.............................................................................................. 5 1. CERTIFICATION........................................................................................................... 6 2. SUMMARY OF TEST RESULTS .................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION ........................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 8 3.2 DESCRIPTION OF TEST MODES ............................................................................. 10 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 11 3.2.2 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 3.2.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 16 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND)................................................. 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT..................................... 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 17 4.1.2 TEST INSTRUMENTS................................................................................................ 18 4.1.3 TEST PROCEDURES ................................................................................................ 19 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 19 4.1.5 TEST SETUP.............................................................................................................. 20 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 20 4.1.7 TEST RESULTS ......................................................................................................... 21 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 34 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 34 4.2.2 TEST INSTRUMENTS................................................................................................ 34 4.2.3 TEST PROCEDURES ................................................................................................ 35 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 35 4.2.5 TEST SETUP.............................................................................................................. 36 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 36 4.2.7 TEST RESULTS ......................................................................................................... 37 4.3 6dB BANDWIDTH MEASUREMENT...........…

Text truncated - open the document above for the full version.
