NI3-2511AP2PLUSWireless LAN Access Point

0 SENAO SL-2511AP2 PLUS Wireless LAN Access Point User’s Guide 1 1FEATURES................................................................................................................................. 2 2HARDWARE CONFIGURATION.......................................................................................... 2 2.1HARDWARE CONFIGURATION................................................................................................ 2 2.2HARDWARE INSTALLATION.................................................................................................... 2 3INITIAL SOFTWARE INSTALLATION AND CONFIGURATION.................................. 3 4CONFIGURING THE ACCESS POINT THROUGH WEB BROWSER........................... 5 4.1S YSTEM S ETTING .................................................................................................................. 6 4.1.1System Time.................................................................................................................. 7 4.1.2Administrator Setting................................................................................................... 7 4.1.3Firmware Upgrade....................................................................................................... 8 4.1.4Configuration Tools..................................................................................................... 9 4.1.5Status.......................................................................................................................... 11 4.1.6Reset........................................................................................................................... 12 4.2LAN S ETTING ..................................................................................................................... 13 4.2.1LAN Settings............................................................................................................... 13 4.2.2DHCP Client Lists..................................................................................................... 14 4.2.3DNS Settings.............................................................................................................. 15 4.3F ILTERING S ETTING ............................................................................................................. 15 4.3.1MAC Filtering............................................................................................................ 15 4.3.2IP Filtering................................................................................................................. 16 4.4W IRELESS S ETTING ............................................................................................................. 16 4.4.1General...................................................................................................................... 17 4.4.2Enhanced Features..................................................................................................... 19 4.4.3Associated Clients...................................................................................................... 20 4.5SNMP................................................................................................................................. 20 4.5.1SNMP Community...................................................................................................... 20 4.5.2SNMP Trap................................................................................................................. 21 5CONFIGURING THE ACCESS POINT THROUGH TELNET....................................... 22 5.1ENTER THE TELNET SESSION............................................................................................... 22 5.2COMMAND LINE FOR TELNET DAEMON............................................................................... 24 5.3C ONFIGURING W IRELESS LAN THROUGH T ELNET ............................................................. 32 5.4C ONFIGURING LAN THROUGH T ELNET .............................................................................. 37 5.5C ONFIGURING S YSTEM THROUGH T ELNET .......................................................................... 39 5.6C ONFIGURING F ILTERING THROUGH T ELNET ...................................................................... 43 5.7C ONFIGURING SNMP THROUGH T ELNET ............................................................................ 45 2 5.8UPGRADING FIRMWARE THROUGH TELNET......................................................................... 48 6CHANGE HISTORY............................................................................................................... 51 7STATEMENT........................................................................................................................... 52 1 Features z Fully interoperable with IEEE 802.11b compliant products. z High-Speed data transfer rate up to 11Mbps. z 64-bit and 128-bit WEP Encryption. z MAC Address and TCP/UDP/IP filtering. z Web-Based Network Manager/Telnet for Configuring and Managing Your Access Points. z SNMP MIB I and MIB II supported. z Capable of acting as a DHCP Server. z Remote Management supported. z Firmware Upgrade via WEB/TFTP 2 Hardware Configuration 2.1 Hardware Configuration 1. RJ-45 Ethernet connector Provides 10/100 Mbps connectivity to a wired Ethernet LAN. 2. Reset Button By pressing this button for over 3 seconds, the AP will be reset with factory default configuration. 3. Power Supply connector It is for connecting to the power adapter. 2.2 Hardware Installation 1. Configure your notebook or PC with Wireless LAN card. 2. For Wired LAN, connect your PCs’ Ethernet port to any AP’s LAN port by an Ethernet cable. 3 3. For WLAN, locate the AP to a proper position. 4. Plug the power cord into a power outlet. 3 Initial Software Installation and Configuration 1. Change the TCP/IP setting of your managing computer. Select the TCP/IP line that has been associated to your network card. Click the …

Text truncated - open the document above for the full version.

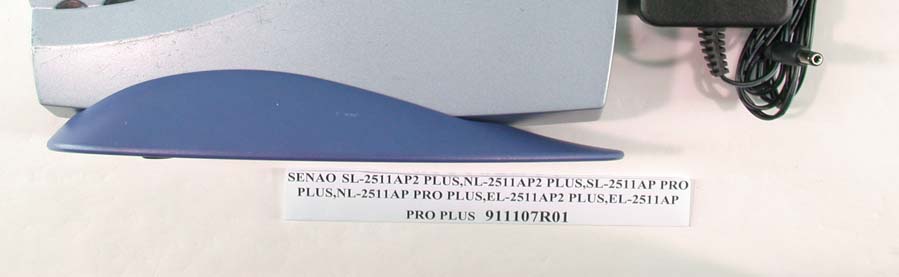

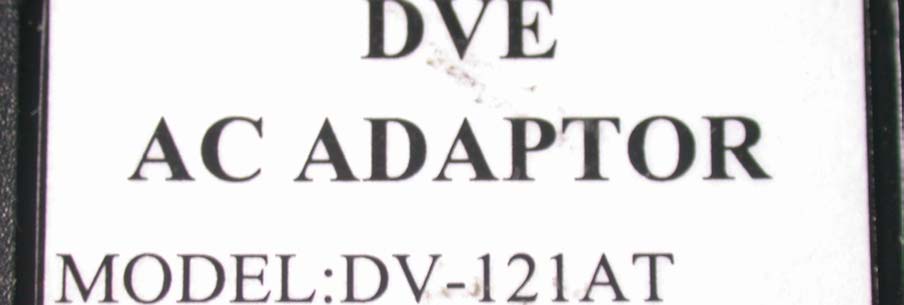

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 10

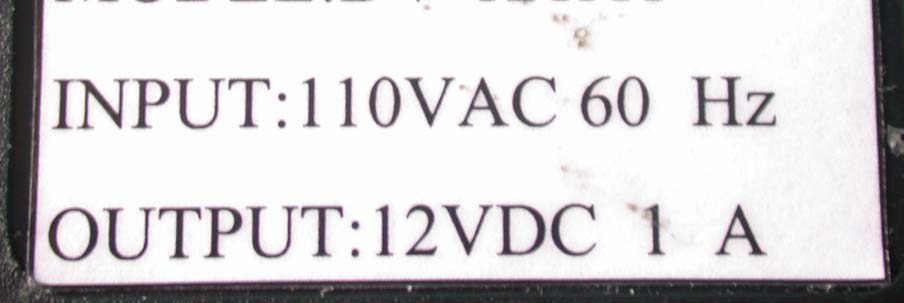

Wireless LAN Access Point This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MADE IN TAIWAN S/N: Wireless Solution Provider 0560 FOR HOME OR OFFICE USE FC Tested To Comply With FCC Standards FCC ID: NI3-2511AP2PLUS Model No.: SL-2511AP2 PLUS DC: 12V/1A AC:120V~240V 40mm 64mm

Page 5 Page 6 Page 7 Page 8 Page 9 Page 11 Page 12 Page 13 Page 14

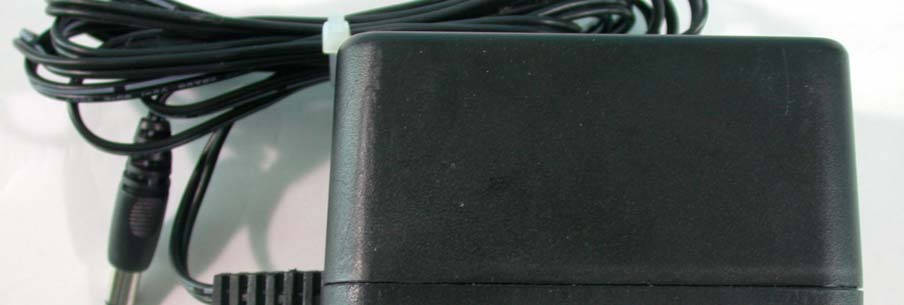

FCC ID: NI3-2511AP2PLUS ADT No.911107R01 Operational Description The transmitter of the EUT is powered by AC adapter and connected with managing computer through RJ45 port. The antenna type is Dipole antenna with MMCX connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: NI3-2511AP2PLUS Report No.: RF911107R011Issued: January 2, 2003 FCC TEST REPORT REPORT NO.: RF911107R01 MODEL NO.: SL-2511AP2 PLUS (for other models please refer to page 6) RECEIVED: Nov. 7, 2002 TESTED: Dec. 16 ~ Dec. 30, 2002 APPLICANT: SENAO International Co., Ltd. ADDRESS: 2F, No. 531 Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-2511AP2PLUS Report No.: RF911107R012Issued: January 2, 2003 Table of Contents 1CERTIFICATION ......................................................................................................4 2SUMMARY OF TEST RESULTS ..............................................................................5 3GENERAL INFORMATION.......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ..........................................7 3.4DESCRIPTION OF SUPPORT UNITS .....................................................................8 4TEST TYPES AND RESULTS ..................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ...........................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................... 9 4.1.2 TEST INSTRUMENTS.............................................................................................. 9 4.1.3 TEST PROCEDURES ............................................................................................ 10 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 10 4.1.5 TEST SETUP ......................................................................................................... 11 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 11 4.1.7 TEST RESULTS ..................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ..............................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 18 4.2.2 TEST INSTRUMENTS............................................................................................ 19 4.2.3 TEST PROCEDURES ............................................................................................ 20 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 20 4.2.5 TEST SETUP ......................................................................................................... 21 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 21 4.2.7 TEST RESULTS ..................................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .....................................................................27 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 27 4.3.2 TEST INSTRUMENTS............................................................................................ 27 4.3.3 TEST PROCEDURE............................................................................................... 28 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 28 4.3.5 TEST SETUP ......................................................................................................... 28 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 28 4.3.7 TEST RESULTS ..................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................33 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 33 4.4.2 INSTRUMENTS...................................................................................................... 33 4.4.3 TEST PROCEDURES ............................................................................................ 34 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 34 4.4.5 TEST SETUP ......................................................................................................... 34 4.4.6 EUT OPERATING CONDITIONS ........................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................36 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. 36 4.5.2 TEST INSTRUMENTS............................................................................................ 36 4.5.3 TEST PROCEDURE............................................................................................... 37 4.5.4 DEVIATION FROM TEST STANDARD .................................................................. 37 FCC ID: NI3-2511AP2PLUS Report No.: RF911107R013Issued: January 2, 2003 4.5.5 TEST SETUP ......................................................................................................... 37 4.5.6 EUT OPERATING COND…

Text truncated - open the document above for the full version.
