NI3-OC32106001Outdoor 802.11 b/g AP/CB

Senao International Co Ltd
Outdoor 802.11 b/g AP/CB - FCC ID NI3-OC32106001 - Senao International Co Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 25, 2006
Application Purpose
Original Equipment
Date of Application
May 25, 2006
Equipment Note
Outdoor 802.11 b/g AP/CB
Frequency Range
2412.00000000 - 2462.00000000
Company
Senao International Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—
β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—
β†—

Internal Photos

β†—

Operational Description

RF Exposure Info

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Outdoor 802.11 b/g AP/CB User’s Manual Version: 1.36 11g Wireless Outdoor Client Bridge/AP Version 1.36 2 Table of Contents 1 INTRODUCTION.....................................................................................................................................5 1.1 FEATURES & BENEFITS......................................................................................................................5 1.2 PACKAGE CONTENTS..........................................................................................................................6 1.3 OUTDOOR UNIT DESCRIPTION...........................................................................................................6 1.4 SYSTEM REQUIREMENTS....................................................................................................................6 1.5 APPLICATIONS....................................................................................................................................7 1.6 NETWORK CONFIGURATION...............................................................................................................7 a) Ad-hoc (peer-to-peer) Mode..............................................................................................................8 b) Infrastructure Mode...........................................................................................................................8 2 UNDERSTANDING THE HARDWARE.............................................................................................10 2.1 HARDWARE INSTALLATION.............................................................................................................10 2.2 IP ADDRESS CONFIGURATION..........................................................................................................10 3 SWITCH BETWEEN BRIDGE AND ACCESS POINT...................................................................12 3.1 BRIDGE TO ACCESS POINT...............................................................................................................12 3.2 ACCESS POINT TO BRIDGE...............................................................................................................12 4 BRIDGE MODE – WEB CONFIGURATION...................................................................................14 4.1 LOGGING IN......................................................................................................................................14 4.2 MANAGEMENT..................................................................................................................................15 4.2.1 OPERATION MODE............................................................................................................................15 4.2.2 STATUS..............................................................................................................................................17 4.2.3 STATISTICS........................................................................................................................................18 4.2.4 LOG...................................................................................................................................................18 4.2.5 UPGRADE FIRMWARE.......................................................................................................................19 4.2.6 SAVE / RELOAD SETTINGS, RESET TO DEFAULT.............................................................................19 4.2.7 PASSWORD........................................................................................................................................20 4.3 TCP/IP SETTINGS.............................................................................................................................21 4.3.1 LAN INTERFACE...............................................................................................................................21 4.4 WIRELESS..........................................................................................................................................22 4.4.1 BASIC SETTINGS (INFRASTRUCTURE, ADHOC)................................................................................22 4.4.2 ADVANCED SETTINGS (INFRASTRUCTURE, ADHOC).......................................................................23 4.4.3 SECURITY..........................................................................................................................................25 4.4.3.1 ENCRYPTION DISABLED..............................................................................................................25 4.4.3.2 WEP 64-BIT / 128-BIT.................................................................................................................25 4.4.3.3 WPA / WPA2 PASSPHRASE........................................................................................................27 4.4.3.4 WPA / WPA2 RADIUS AUTHENTICATION...............................................................................27 4.4.4 SITE SURVEY.....................................................................................................................................28 5 ACCESS POINT MODE – WEB CONFIGURATION.....................................................................29 5.1 LOGGING IN......................................................................................................................................29 5.2 MANAGEMENT..................................................................................................................................31 5.2.1 OPERATION MODE............................................................................................................................31 5.2.2 STATUS..............................................................................................................................................32 5.2.3 STATISTICS................................................................…

Text truncated - open the document above for the full version.

Users Manual

11g Wireless Outdoor Client Bridge/AP Version 1.36 31 o Encryption: The type of security used on this network. It may be disabled, WEP, WPA, etc. o BSSID: The MAC address of the SSID. o Associated Clients: Displays the number of clients currently associated to the Access Point. ß TCP/IP Configuration: o Attain IP Protocol: The IP address setting may be fixed or static. o IP Address: Displays the current IP address of the LAN port. o Subnet Mask: Displays the current subnet mask for the IP address. o Default Gateway: Displays the default gateway for the device. o DHCP: Displays the DHCP setting. o MAC Address: Displays the MAC address of the device. 5.2 Management ß Click on the Management link on the navigation drop-down menu. You will then see five options: operation mode, status, statistics, log, upgrade firmware, save/reload settings, and password. Each option is described below. 5.2.1 Operation Mode ß Click on the Operation Mode link under the Management menu. The Operation Mode allows you to switch from Access Point to Client Bridge mode. 11g Wireless Outdoor Client Bridge/AP Version 1.36 32 ß Select the AP, Bridge or Bridge Router and then click on the Apply Change button. ß Wait for about a minute until you see the Pop-Up message. ß Click on the OK button and then enter the specified IP address into the web-browser. **Switch to other mode, the configuration settings will continue using.** ß Switch to other mode, the setting Refer to Chapter 4 to learn how to configure this device in Bridge/Router mode. 5.2.2 Status ß Click on the Status link under the Management menu. The Status page is the first page that is displayed once you have logged in. This includes details about the system, wireless, and TCP/IP configuration. 11g Wireless Outdoor Client Bridge/AP Version 1.36 33 ß System o Uptime: Duration of time since the device was last reset. o Firmware version: Version of the firmware that is currently loaded on the device. ß Wireless Configuration: o Mode: Wireless configuration mode such as client bridge, AP, or WDS. o Band: Frequency and IEEE 802.11 operation mode (b-only, g-only, or b+g). o SSID: The name used to identify the wireless network. o Channel Number: The channel used to communicate on the wireless network. o Encryption: The type of security used on this network. It may be disabled, WEP, WPA, etc. o BSSID: The MAC address of the SSID. o Associated Clients: Displays the number of clients currently associated to the Access Point. ß TCP/IP Configuration: o Attain IP Protocol: The IP address setting may be fixed or static. o IP Address: Displays the current IP address of the LAN port. o Subnet Mask: Displays the current subnet mask for the IP address. o Default Gateway: Displays the default gateway for the device. o DHCP: Displays the DHCP setting. o MAC Address: Displays the MAC address of the device. 5.2.3 Statistics ß Click on the Statistics link under the Management menu. This page displays the number of sent and received packets on the Ethernet and Wireless interface. 11g Wireless Outdoor Client Bridge/AP Version 1.36 34 ß Since the packet counter is not dynamic, you must click on the Refresh button for the most recent statistics. 5.2.4 Log ß Click on the Log link under the Management menu. The Log page displays a list of events that are triggered on the Ethernet and Wireless interface. This log can be referred when an unknown error occurs on the system or when a report needs to be sent to the technical support department for debugging purposes. ß In order for the log to record all the events, you must first place a check in the Enable Log or Enable Remote Log (Log Server required) check box. ß Select system all or wireless depending on the type of events you want recorded. ß Since the log is not dynamic, you must click on the Refresh button for the most recent events, or click on the Clear button to clear the log. 5.2.5 Upgrade Firmware ß Click on the Upgrade Firmware link under the Management menu. This page is used to upgrade the firmware on the device. Make sure that downloaded the appropriate firmware from your vendor. 11g Wireless Outdoor Client Bridge/AP Version 1.36 35 ß Click on the Browse button and then select the appropriate firmware and then click on the Upload button. Note: The upgrade process may take about 1 minute to complete. Do not power off the device during this process as it may crash the device and make it unusable. The device will restart automatically once the upgrade is complete. 5.2.6 Save / Reload Settings, Reset to Default ß Click on the Save / Reload Setting link under the Management menu. This option is used to save the current settings of the device in a file on your local disk or load settings on to the device from a local disk. This feature is very handy for administrators who have several devices that need to be configured with the same settings. ß This page also allows you to reset the device to its factory default settings. ß Click on the Save button to save the current settings to a file on the local disk. ß Click on the Browse button to select the settings file and then click on the Upload button to load the previously saved settings. ß Click on the Reset button to reset the device to its factory default settings. Click Restart to reboot the device. 11g Wireless Outdoor Client Bridge/AP Version 1.36 36 5.2.7 Password ß Click on the Password link under the Management menu. This option allows you to create a user name and password for the device. By default, this device is configured without a user name and password. For security reasons it is highly recommended that you create a user name and password. ß Enter a user name into the first field. ß Enter a password into the New Password field and then re-type the password into the Confirmed Password field. Then click on the Apply Changes button. ß By clicking on the Reset button, the user name and password fields will become blank indicating that the username and password has been dis…

Text truncated - open the document above for the full version.

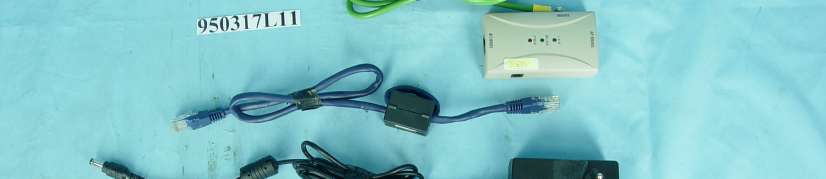

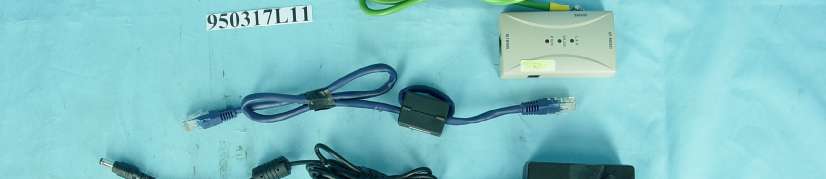

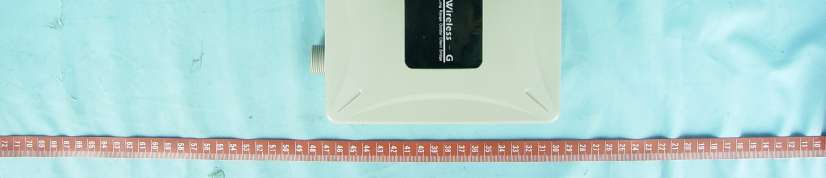

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Model No .: NOC-3220 EXT Page 2 Page 3 Model No .: NOC-3220 Page 4

ID Label/Location Info

FCC ID : NI3-OC32106001 Label Location

Internal Photos

Page 5 Model No .: NOC-3220 EXT Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Model No .: NOC-3220 Page 12 Page 13 Page 14 Page 15 Page 16

Test Report

Report No.: RF950317L111Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950317L11 MODEL NO.: NOC-3220 Refer to page 6 for other models RECEIVED: Apr. 03, 2006 TESTED: Apr. 07 ~ Apr. 11, 2006 ISSUED: Apr. 13, 2006 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No.500, Fusing 3rd Rd., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 84 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950317L112Report Format Version 2.0.4 Table of Contents 1CERTIFICATION........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3GENERAL INFORMATION.........................................................................................6 3.1GENERAL DESCRIPTION OF EUT...........................................................................6 3.2DESCRIPTION OF TEST MODES.............................................................................8 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.........................................................9 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL............................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................12 3.4DESCRIPTION OF SUPPORT UNITS.....................................................................12 4TEST TYPES AND RESULTS..................................................................................13 4.1CONDUCTED EMISSION MEASUREMENT............................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................13 4.1.2TEST INSTRUMENTS..............................................................................................13 4.1.3TEST PROCEDURES..............................................................................................14 4.1.4DEVIATION FROM TEST STANDARD.....................................................................14 4.1.5TEST SETUP...........................................................................................................15 4.1.6EUT OPERATING CONDITIONS.............................................................................15 4.1.7TEST RESULTS.......................................................................................................16 4.2RADIATED EMISSION MEASUREMENT.................................................................28 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................................28 4.2.2TEST INSTRUMENTS..............................................................................................29 4.2.3TEST PROCEDURES..............................................................................................30 4.2.4DEVIATION FROM TEST STANDARD.....................................................................30 4.2.5TEST SETUP...........................................................................................................31 4.2.6EUT OPERATING CONDITIONS.............................................................................31 4.2.7TEST RESULTS.......................................................................................................32 4.36dB BANDWIDTH MEASUREMENT........................................................................48 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................48 4.3.2TEST INSTRUMENTS..............................................................................................48 4.3.3TEST PROCEDURE.................................................................................................49 4.3.4DEVIATION FROM TEST STANDARD.....................................................................49 4.3.5TEST SETUP...........................................................................................................49 4.3.6EUT OPERATING CONDITIONS.............................................................................49 4.3.7TEST RESULTS.......................................................................................................50 4.4MAXIMUM PEAK OUTPUT POWER........................................................................56 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................56 Report No.: RF950317L113Report Format Version 2.0.4 4.4.2TEST INSTRUMENTS..............................................................................................56 4.4.3TEST PROCEDURES..............................................................................................57 4.4.4DEVIATION FROM TEST STANDARD.....................................................................57 4.4.5TEST SETUP...........................................................................................................57 4.4.6EUT OPERATING CONDITIONS.............................................................................57 4.4.7TEST RESULTS.......................................................................................................58 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................59 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................59 4.5.2TEST INSTRUMENTS.........................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: RF950317L1179Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Mode A Report No.: RF950317L1180Report Format Version 2.0.4 Mode B Report No.: RF950317L1181Report Format Version 2.0.4 RADIATED EMISSION TEST Mode A Report No.: RF950317L1182Report Format Version 2.0.4 Mode B

Contact Information

Applicant

Havin Lu(Director)
[email protected]886 3 328 9289Fax: 886 3 328 9666

Technical Contact

Advance Data Technology Corporation (Hwa Ya)Gary Chang
[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang Β· Taoyuan Hsien Β· Taiwan

Non-Technical Contact

Advance Data Technology CorporationEllis Wu
[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz40.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End -users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance
