1 Wireless Outdoor Bridge User Guide Before operating the unit, please read this manual and retain it for future use 2 FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, ETS300/328, ETS 301/489-17 and EN 60950. This meets the essential protection requirements of R&TTE Directive 99/5/EEC on the approximation of the laws of the member states relation to electromagnetic compatibility. 3 Contents Chapter 1 Introduction..................................................................................................4 1.1 Features and Benefits......................................................................................4 1.2 Packing List.....................................................................................................5 Chapter 2 Hardware Installation...................................................................................6 2.1 Panel Layout...................................................................................................6 2.1.1 Panel of DC-Converter..........................................................................6 2.1.2 Side Panel of DC-Converter.................................................................7 2.1.3 Side Panel of Bridge.............................................................................8 2.1.4 Front Panel of DC-Injector...................................................................8 2.1.5 Rear Panel of DC-Injector.....................................................................8 2.2 Procedure of Hardware Installation................................................................9 Chapter 3 Create a Bridge Network Environment.....................................................17 3.1 Bridge Configuration....................................................................................17 3.2 Create a Bridge Network Environment.........................................................17 3.3 Connect Buildings by using Bridges.............................................................21 3.3.1 Point to Point and Multiple Point to Point Configuration...................21 3.3.2 Repeater Configuration.......................................................................23 Chapter 4 General Configuration...............................................................................24 4.1 Log in and Start up........................................................................................24 4.2 Inspect System Information..........................................................................24 4.3 Tool Box.......................................................................................................25 4.4 Primary Setup................................................................................................26 Chapter 5 System Troubleshooting............................................................................31 Appendix A TCP/IP Configuration for Windows 95/98/ME/2000/XP......................33 A.1 Configure Windows 95/98/ME Platforms for working with this device.....33 A.2 Configure Windows 2000/XP Platforms for working with this device.......37 Appendix B Technical Specifications.........................................................................39 4 Chapter 1 Introduction Thank you for choosing the outstanding wireless bridge for wireless point-to-point bridging applications. This wireless bridge offers a low-cost alternative to installing cable or dedicated telephone lines. You can connect two or more buildings quickly and easily with no expensive, time-consuming cable installation and no monthly service fees (unlike leased 56K, ISDN or T1 lines). The wireless bridges establish radio links between two or more networks up to 25 km and transmit data between buildings faster than T1 lines allowing users to gain Internet access, email and network resources located in different buildings easily and efficiently. This wireless bridge radio operates in the 2.4 GHz frequency band and uses advanced Direct Sequence Spread Spectrum technology to provide high-speed and secure connectivity between multiple locations. This wireless bridge uses a browser-base management system. The system settings are on web pages. Before you install and use this product, please read this manual carefully for fully functions of this product. 1.1 Features and Benefits Feature Benefit Point-to-Point, Multipoint-to-multipoint connectivity Lets users transfer information between two buildings or multiple buildings across the area Lightning Protector (Surge Arrester) Include 3 lightning protected factor locate in power amplifier, DC-Converter and DC-Injector and a lightning protector. Watertight and Weatherproof Avoid water invade and weather corrode Excellent range with antenna options Provides wireless link up to 25km(1…

Text truncated - open the document above for the full version.

From: S. S. Liou [[email protected]] Sent: Thursday, January 16, 2003 2:10 AM To: Mike Kuo Subject: Re: SENAO INTERNATIONAL CO., LTD., FCC ID:NI32511BG2PLUS, AN02T2353 Hello Mike, For your questions, Ans. #1: Please refer to attached file "Antenna Specifications.pdf" Ans. #2: When performing pretest of radiation measurement, the EUT was invesgated in two configurations: antenna horizontally and vertically positioned. The configuration with higher emission level will be used for final test. Our engineer took picture of each configuration. In this case the maximum radiated emission position is when the antenna was vertically positioned. The setup photos in test report is misused. Attached please find the file "Radiation Setup.pdf" for correct setup photos. Ans. #3: Please refer to attached file "91r08058-01mpe.pdf" for MPE test report. Ans. #4: Please refer to attached file "Exhibit-E-User_Manual(revised).pdf" for revised user manual. Ans. #5: Please refer to attached file "Retest data.pdf" for test data. Ans. #6: Our customer say the output power indicated in the user manual is an estimated value. When performing measurement, the output power was tuned to the maximum. Should we modify the user manual with the measured level? Ans. #7: This device doesn't require professional installation. Please contact me if there is any problem. Thank you very much! S. S. Liou ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Will Yauo (E-mail)" <[email protected]>; <[email protected]> Cc: "'bestview'" <[email protected]> Sent: Wednesday, December 04, 2002 8:55 AM Subject: FW: SENAO INTERNATIONAL CO., LTD., FCC ID:NI32511BG2PLUS, AN02T2353 > > > -----Original Message----- > From: CERTADM > Sent: Tuesday, December 03, 2002 4:54 PM > To: '[email protected]' > Subject: SENAO INTERNATIONAL CO., LTD., FCC ID:NI32511BG2PLUS, AN02T2353 > > > Notice_content > ------------- > Question #1: Please provide antenna specification. > > Question #2: Please describe how the external antenna was positioned through > out the tests. As indicated from the test setup photos, the antenna was > placed flat on the turn table. Is it the max. radiated emission position ? > The antenna is omni directional antenna shall be placed as vertically during > the tests to simulate the max. field strength. > > Question #3: Please provide MPE to justify RF exposure compliance. > > Question #4: The user manual does not contain RF exposure information and > the information required under 15.21 of FCC rules. Please provide revised > user manual. > > Question #5: Please provide radiated emission data to show when the TX > antenna is positioned vertically and the tx tuned to highest channel and > reported the spurious emission field strength on 2483.5MHz. > > Question #6: The TX output power as indicated in the user manual is 29.5dBm > but the max. measured output is 27.8dBm. Please explain. > > Question #7: Will this device require professional installation ? If yes, > what is the qualification needed to install this device ? > > Best Regards > > Mike Kuo > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

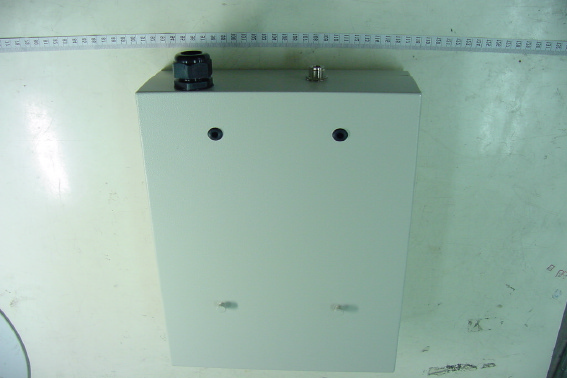

ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of EUT Top View of EUT

This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MADE IN TAIWAN S/N: Label Location 45 mm 116 mm Wireless Outdoor Bridge Wireless Solution Provider 0336 FOR HOME OR OFFICE USE FC Tested To Comply With FCC Standards FCC ID: NI3-2511BG2PLUS Model No.: SL-2511BG2 PLUS DC: 48V/700mA AC: 100V~240V

ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Front View of RF Module Rear View of RF Module ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of RF PCB ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Solder View of RF PCB Front View of Bridge Indicator ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Rear View of Bridge Indicator Internal View of Bridge Indicator

ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Main PCB (Bridge Indicator) Component View of Main PCB (Bridge Indicator) ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Solder View of PCB (Bridge Indicator) Front View of RF Power Amplifier ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Rear View of RF Power Amplifier Component View of Main PCB (RF Power Amplifier) ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB (RF Power Amplifier) Front View of DC Converter ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Rear View of DC Converter Component View of Main PCB (DC Converter) ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB (DC Converter)

T his wireless bridge offers a low-cost alt ernat ive t o inst alling cabl e or dedicat ed telep hone lines. You can connect two or more build in gs quick ly and easily with no exp ensive, time-consumin g cab le installation and no monthly service fees (unlik e leased 56K, I SDN or T1 lines). The wireless brid ges eastablish radio links between two or more networks up to 25 km and transmit data between buildings faster than T1 lines allowin g users to gain Internet access, email and network resources located in different buildings easily and efficiently . This wireless bridge radio op erates in the 2.4GHz frequency band and uses adevanced Direct Sequen ce Sp read Sp ectrum technolo gy to p rovide high-sp eed and secure connect ivit y bet ween mult ip le locat ions. T his wireless bridge uses a browser-base management sy stem. The system settings are no web p ages. Befor e y ou install and use this p roduct, p lease read this manual car efully for fully functions of this p roduct.

Rev. No 1.0 RF Maximum Permissible Exposure Measurement Report of E.U.T. : Wireless Outdoor Bridge FCC ID. : NI3-2511BG2PLUS MODEL : SL-2511BG2 PLUS for APPLICANT : SENAO INTERNATIONAL CO., LTD. ADDRESS : 2F, NO. 531, CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIE, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 Report Number : ET91R-08-058-01 ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : SENAO INTERNATIONAL CO., LTD. 2F, NO. 531, CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R.O.C. Manufacturer : SENAO INTERNATIONAL CO., LTD. 2F, NO. 531, CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Wireless Outdoor Bridge b) Trade Name : SENAO c) Model No. : SL-2511BG2 PLUS d) Power Supply : 48 VDC Regulation Applied : IEEE C95.1-1991, FCC 47 CFR Part 1 and Part 2 I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in IEEE C95.1, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jan. 03, 2003 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Manager EMC Detp. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description.........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility.....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition.........................................................................................................................................2 2.2 Relative Requirement for Compliance...............................................................................................2 3. SYSTEM TEST CONFIGURATION...........................................................................................3 3.1 Justification......................................................................................................................................3 3.2 Devices for Tested System..............................................................................................................3 4 MAXIMUM PERMISSIBLE EXPOSURE MEASUREMENTS......................................................................4 4.1 Applicable Standard........................................................................................................................4 4.2 Measurement Procedure..................................................................................................................4 4.3 Measurement Instrument..................................................................................................................5 4.4 Power Desity Data..........................................................................................................................5 4.5 Measurement Setup Photos............................................................................................................7 ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Page 1 of 9 Pages 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT : Wireless Outdoor Bridge b) Trade Name : SENAO c) Model No. : SL-2511BG2 PLUS d) Power Supply : 48 VDC 1.2 Characteristics of Device This wireless bridge offers a low-cost alternative to installing cable or dedicated telephone lines. You can connect two or more buildings quickly and easily with no expensive, time-consuming cable installation and no monthly service fees (unlike leased 56K, ISDN or T1 lines). The wireless bridges eastablish radio links between two or more networks up to 25 km and transmit data between buildings faster than T1 lines allowing users to gain Internet access, email and network resources located in different buildings easily and efficiently. This wireless bridge radio operates in the 2.4GHz frequency band and uses adevanced Direct Sequence Spread Spectrum technology to provide high-speed and secure connectivity between multiple locations. This wireless bridge uses a browser-base management system. The system settings are no web pages. Before you install and use this product, please read this manual carefully for fully functions of this product. 1.3 Test Methodology The Maximum Permissible Exposure (MPE) was performed according to the procedures illustrated in IEEE C95.1-1991. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to the FCC, and accepted in a letter dated Feb. 10, 2000. ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Page 2 of 9 Pages 2 PROVISIONS APPLICABLE 2.1 Definition MPE in Occupational / Controlled Environments: Persons are exposed as a consequence of their employment provided those persons are f…

Text truncated - open the document above for the full version.

Rev. No 2.1 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Outdoor Bridge FCC ID. : NI3-2511BG2PLUS MODEL : SL-2511BG2 PLUS for APPLICAN T : SEN AO IN TERN ATIO N AL CO ., LTD. ADDRESS : 2F, NO. 531, CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN , R.O .C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIAWN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-08-058-01 ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 TEST REPORT CERTIFICATION Applicant : SENAO INTERNATIONAL CO., LTD. 2F, NO. 531, CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R.O.C. M anufacturer : SENAO INTERNATIONAL CO., LTD. 2F, NO. 531, CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R.O.C. Descrip tion of EUT : a) Ty p e of EUT : Wireless Outdoor Bridge b) Trade Name : SENAO c) M odel No. : SL-2511BG2 PLUS d) Power Sup p ly : 48 VDC Regulation Ap p lied : FCC Rules and Regulations Part 15 Subp art B & C (2001) I HEREBY CERT IFY T HAT : T he dat a shown in t his rep ort were made in accordance wit h t he p rocedures given in ANSI C63.4, and the energy emitted by the device was founded to be within t he limit s ap p licable. I assume full resp onsibilit y for accuracy and comp let eness of t hese dat a. Note: 1. The result of the testing rep ort relate only to the item tested. 2. The testing rep ort shall not be rep roduced exp ect in full, without the written ap p roval of ET C. Issued Date : Sep . 16, 2002 Test Engineer : ( T ien Lu Liau ) Ap p rove & Authorized Signer : Will Yauo, M anager EM C Dep t . II of ELECT RONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 Table of Conte nts Page 1 GENERAL INFORMATION ........................................................................................................ 1 1.1 Product Descrip tion ..................................................................................................................... 1 1.2 Characteristics of Device.............................................................................................................. 1 1.3 Test M ethodology ........................................................................................................................ 1 1.4 Test Facilit y................................................................................................................................. 1 2 PROVIS IONS APPLICABLE.......................................................................................................2 2.1 Definition...................................................................................................................................... 2 2.2 Requirement for Comp liance........................................................................................................ 3 2.3 Restricted Bands of Op eration ..................................................................................................... 6 2.4 Labeling Requirement ................................................................................................................... 6 2.5 User Information .......................................................................................................................... 7 3. S YS TEM TES T C O N FIGURATIO N.......................................................................................... 8 3.1 Justification .................................................................................................................................. 8 3.2 Devices for Tested Sy stem........................................................................................................... 8 4 RADIATED EMIS S ION MEAS UREMENT................................................................................ 9 4.1 Ap p licable Standard ..................................................................................................................... 9 4.2 M easurement Procedure............................................................................................................... 9 4.3 M easuring Instrument ................................................................................................................ 11 4.4 Radiated Emission Data.............................................................................................................. 12 4.4.1 RF Portion............................................................................................................................ 12 4.4.2 Other Emission ..................................................................................................................... 15 4.5 Field Strength Calculation........................................................................................................... 15 4.6 Photos of Radiation M easuring Setup ........................................................................................ 16 5 CONDUCTED EMIS S ION MEAS UREMENT ........................................................................ 17 5.1 Standard Ap p licable ................................................................................................................... 17 5.2 M easurement Procedure............................................................................................................. 17 5.3 Conducted Emission Data .......................................................................................................... 18 5.4 Result Data Calculation .............................................................................................................. 19 5.5 Conducted M easurement Equip ment ......................................................................................... 20 5.6 Photos of Conduction M easuring Setup .................................................................................... 21 6 ANTENNA REQUIREMENT.......................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-08-058-01 FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 Channel 11 Operation Mode : Tx / Rx Fundamental Frequency : 2462 MHz ( Local Frequency : 2088 MHz ) Test Date : Jan. 03, 2002 Temperature : 19 Humidity : 75 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2483.500 49.7 --- 50.2 --- -2.8 47.4 --- 74.0 54.0 -26.6 186 1.0 Note : 1. Item of margin shown in above table refer to average limit. 2. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 3. Remark “---” means that the emissions level is too low to be measured. 4. Item “Margin” referred to Average limit while there is only peak result. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB.

ETC Report No. : ET91R-08-058-01 Sheet 16 of 35 Sheets FCC ID.: NI3-2511BG2PLUS Rev. No 2.1 4.6 Photos of Radiation Measuring Setup
