NI3-2511CFWireless Compact Flash Card

1 SENAO Wireless Compact Flash Card Users Guide Before operating the unit, please read this manual and retain it for future Model no.:SL-2511CF 2 Contents I I n n t t r r o o d d u u c c t t i i o o n n........................................................................................3 Features and Benefits...................................................................3 Wireless Solutions and Application..............................................4 Package Contents.........................................................................4 System Requirements...................................................................4 I I n n s s t t a a l l l l i i n n g g S S e e t t u u p p U U t t i i l l i i t t y y o o f f W W i i r r e e l l e e s s s s L L A A N N C C o o m m p p a a c c t t F F l l a a s s h h C C a a r r d d..........5 W W i i r r e e l l e e s s s s L L A A N N S S e e t t t t i i n n g g..........................................................................9 U U s s i i n n g g t t h h e e W W i i r r e e l l e e s s s s L L A A N N U U t t i i l l i i t t y y.........................................................12 S S p p e e c c i i f f i i c c a a t t i i o o n n......................................................................................17 A A p p p p e e n n d d i i x x A A.......................................................................................19 Network Topology......................................................................19 A A p p p p e e n n d d i i x x B B.......................................................................................22 3 I I n n t t r r o o d d u u c c t t i i o o n n This product is an IEEE 802.11b Wireless Compact Flash Adapter that uses a standard Type I CF adapter interface which integrated with wireless LAN technology. It provides an easy and fast way to access the Internet via wireless network. This Wireless Compact Flash adapter allows the users to install on PDAs (Personal Digital Assistants), Pocket/Handheld PCs and other devices equipped with a Type I CF slot. This Compact Flash Card is 802.11b compliant and the data rate of connection is up to 11Mbps. With an 802.11b Compact Flash Card you can send and receive E-mail, synchronize with your desktop computer, and surf the Internet while on the move. Features and Benefits 11Mbps data transfer rate High-speed data transmission IEEE 802.11b compliant Fully interoperable with IEEE802.11b compliant products Automatic data rate scaling at 11, 5.5, 2 and 1 Mbps Optimized throughput, range and connectivity Wired Equivalent Privacy (WEP) encryption and decryption support Powerful data security at 64 and 128 bits Compact Flash Type-I standard Supports a variety of popular computing devices such as PDA, Pocket PC, Tablet PC, Webpad and Handheld device Supports both Pocket PC and Windows PC operating systems Flexible to work with both your PDA and your notebook PC Wide coverage range up to 300 meters in open space Wireless connectivity for all your computers Advanced Power Management and Suspend on WLAN Very low power consumption delivers extended battery life for client devices Plug and Play Compact Flash Type-I interface Easy installation Significantly improved indoor multipath distortion Higher link quality in indoor environment Seamless roaming Full mobility Direct Sequence Spread Spectrum (DSSS) technology Provides robust, interference-resistant, and secure wireless connection 4 Wireless Solutions and Application Access existed networks for mobile workers Allow doctors, nurses, sales access their database while keeping mobility in the hospitals, retail stores, office campus or other buildings. Difficult-to-wire environment There are many situations where wires cannot or cannot easily be laid. Historic buildings, older buildings, open areas and across busy streets make the installation of LANs either impossible or very expensive. Frequently changed environment Show rooms, meeting rooms, retail stores, and manufacturing sites where the workplace located are frequently rearranged. Wired LAN backup Network managers implement wireless LANs to provide backup for mission-critical applications running on wired networks. Wireless extensions to wired networks Network managers in dynamic environments can minimize the overhead caused by moves, extensions to networks, and other changes with wireless LANs. Temporary workgroup Trade shows, exhibitions, and construction sites that require a temporary network. Retailers, airlines, and shipping companies need additional workstations during peak periods. Small Office/ Home Office (SOHO) Networks SOHO users need a cost-effective, easy and quick installation of a small network. Package Contents ü Compact Flash Card Unit ü Installation CD (Include User’s Manual, Acrobat® Reader and Packet PC Utility Program) ü Quick Installation Guide System Requirements For using this Compact Flash Card, the following requirements are needed: ü A Handheld/Pocket PC running Windows CE 3.0 with an available Compact Flash Type I slot. ü A computer which uses Windows 95/98/ME/2000/XP operating system has an ActiveSync program to connect with the Pocket PC 5 I I n n s s t t a a l l l l i i n n g g S S e e t t u u p p U U t t i i l l i i t t y y o o f f W W i i r r e e l l e e s s s s L L A A N N C C o o m m p p a a c c t t F F l l a a s s h h C C a a r r d d 1. Create a connection between Hand PC and Desktop/Laptop by Microsoft Active Sync. 2. Install the PDA’s driver and utility by executing CFDR.exe as shown in Figure1 and Figure 2. Figure 1 Figure 2 6 3. After the Install Shield Wizard window appears, click Next to continue as shown in Figure3. Figure 3 4. In the Software License Agreement dialog window, click Yes to accept all the terms of the License Agreement as shown in Figure4. Figure 4 7 5. Click Yes to install the driver in the default install directory as shown in Figure 5, then click OK to continue the setup procedu…

Text truncated - open the document above for the full version.

Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910717R01. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

Page 4 Page 5

Page 6 Page 7

Label Location for FCC ID: NI3-2511CF

Label (608x587x16M jpeg)

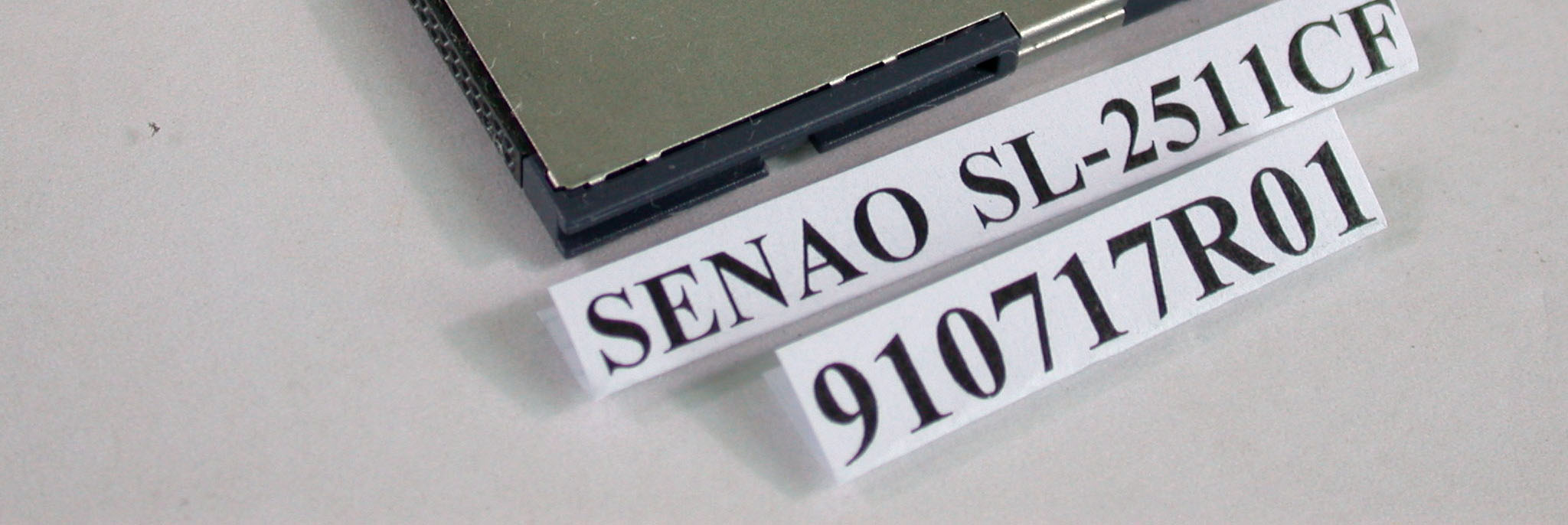

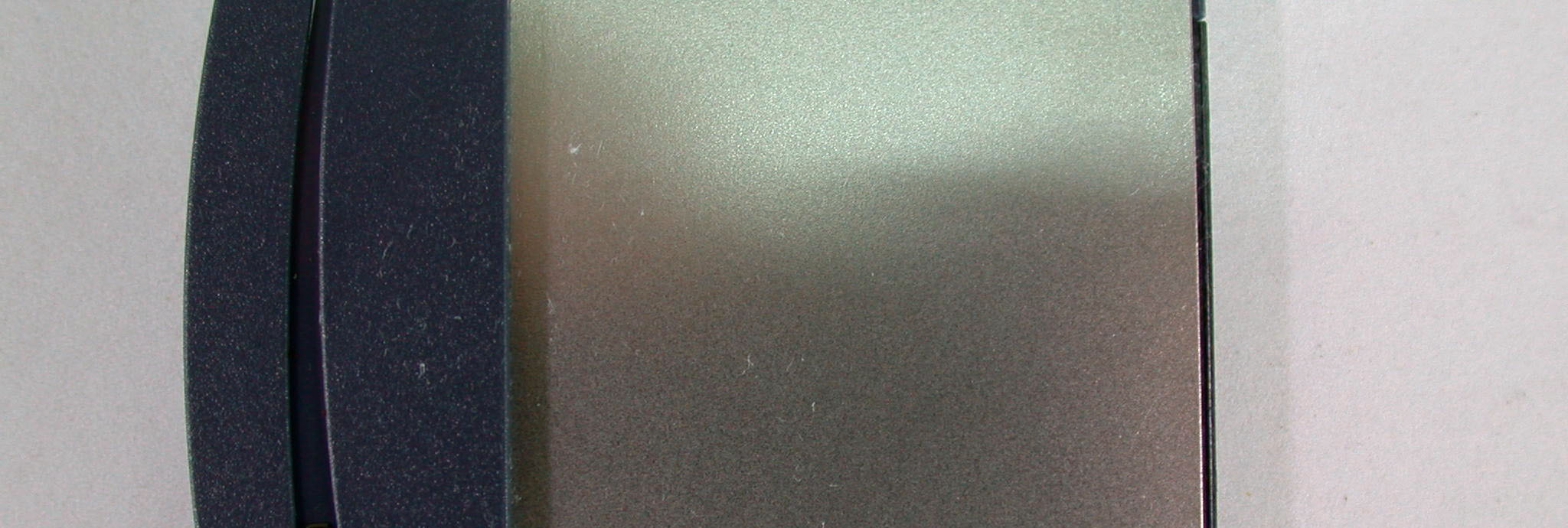

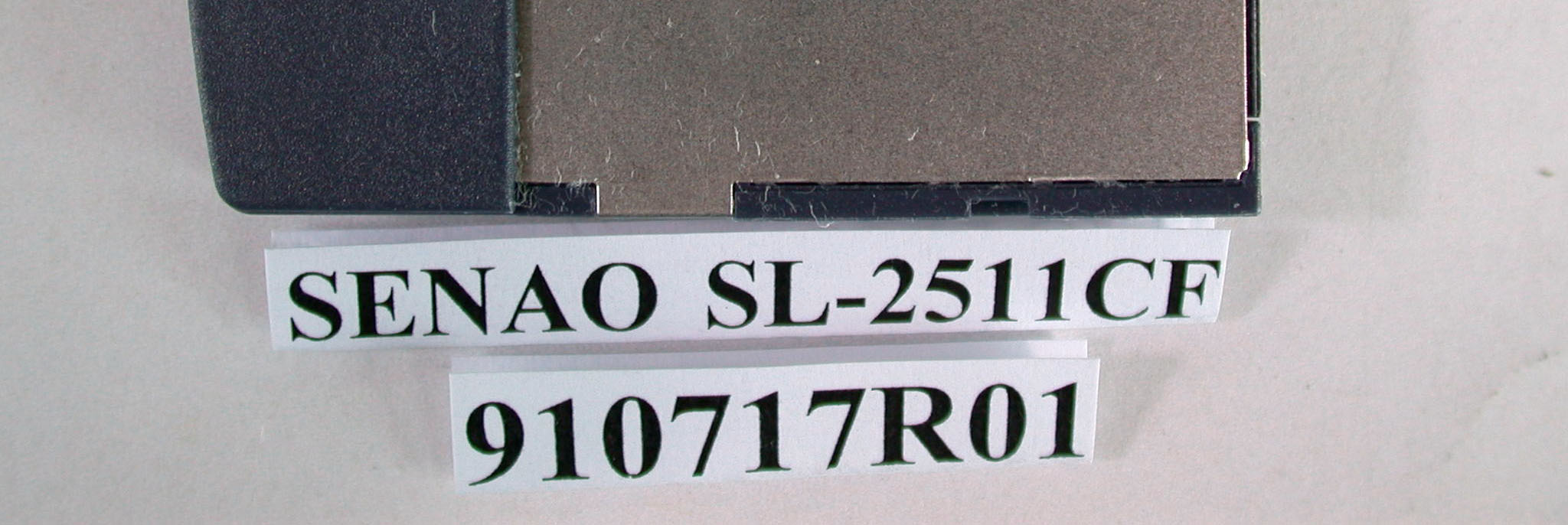

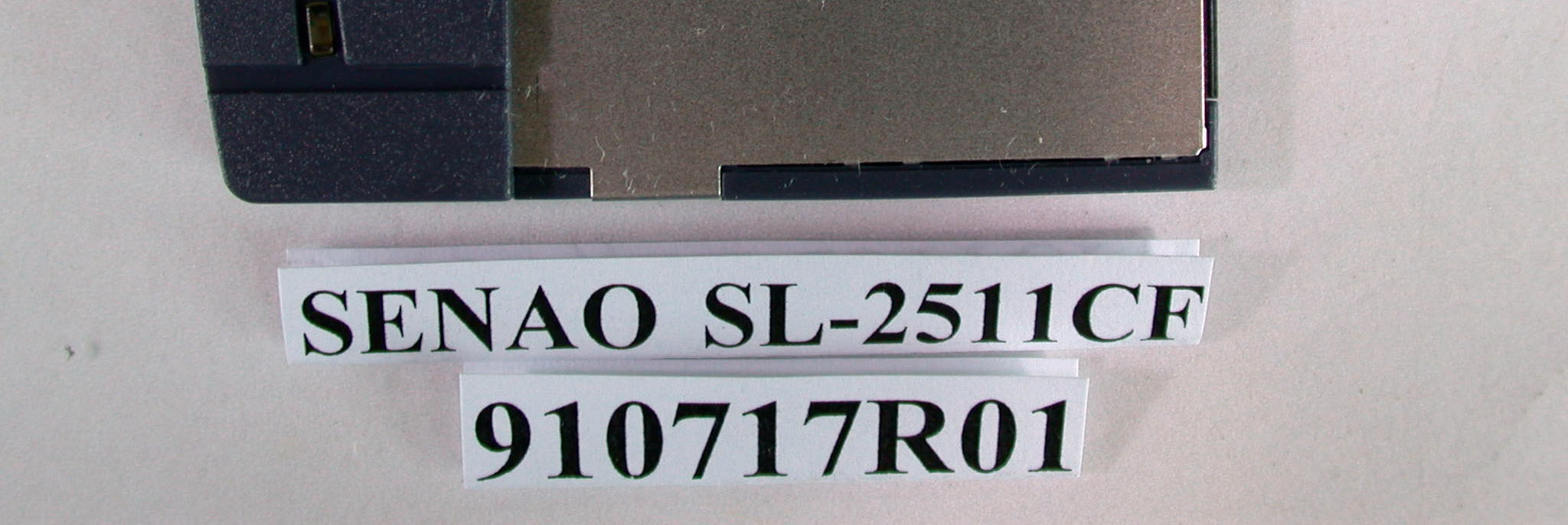

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3

FCC ID: NI3-2511CF ADT No.910717R01 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Ceramic antenna. There is no antenna connector. Under normal use condition, the user has to keep at least 2.5cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

ADT No: 910717R01 1 FCC TEST REPORT REPORT NO.: RF910717R01 MODEL NO.: SL-2511CF, NL-2511CF NL-2511CF1, EL-2511CF WL1100C-CF ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:SENAO INTERNATIONAL CO., LTD. ADDRESS:2F, No. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 ADT No: 910717R01 2 RF Exposure Measurement (Portable Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Classification The antenna of the product, under normal use condition, is at least 2.5cm away from the body of the user. Warning statement for keeping 2.5cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Portable Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) ADT No: 910717R01 3 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. ADT No: 910717R01 4 6. Climate Condition The temperature and related humidity: 22 deg. C and 65 % RH 7. Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi or 1 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241215.421.11 6243717.101.17 11246220.041.26 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 2.5cm separation distance with the antenna.

FCC ID: NI3-2511CF Report No.: RF910717R011Issued: August 1, 2002 FCC TEST REPORT REPORT NO.: RF910717R01 MODEL NO.: SL-2511CF (For other models please refer to page 6) RECEIVED: July 17, 2002 TESTED: June 11 ~ July 30, 2002 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 46 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-2511CF Report No.: RF910717R012Issued: August 1, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 32 4.4.2TEST INSTRUMENTS ................................................................................ 32 4.4.3TEST PROCEDURES................................................................................. 33 4.4.4TEST SETUP .............................................................................................. 33 4.4.5EUT OPERATING CONDITIONS................................................................ 33 FCC ID: NI3-2511CF Report No.: RF910717R013Issued: August 1, 2002 4.4.6TEST RESULTS.......................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 35 4.5.2TEST INSTRUMENTS ................................................................................ 35 4.5.3TEST PROCEDURE ................................................................................... 36 4.5.4TEST SETUP .............................................................................................. 36 4.5.5EUT OPERATING CONDITIONS................................................................ 36 4.5.6TEST RESULTS.......................................................................................... 37 4.6BAND EDGES MEASUREMENT ................................................................ 40 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 40 4.6.2TEST INSTRUMENTS ................................................................................ 40 4.6.3TEST PROCEDURE ................................................................................... 40 4.6.4EUT OPERATING CONDITION .................................................................. 41 4.6.5TEST RESULTS.......................................................................................... 41 4.7ANTENNA REQUIREMENT........................................................................ 43 4.7.1STANDARD APPLICAB…

Text truncated - open the document above for the full version.

FCC ID: NI3-2511CF Report No.: RF910717R0144Issued: August 1, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-2511CF Report No.: RF910717R0145Issued: August 1, 2002 RADIATED EMISSION TEST
