NI3-30V214Atheros11g Card Bus Adapter

1 High-Speed Wireless Cardbus Adapter User’s Manual Version: 1.1 2 Contents CHAPTER 1 INTRODUCTION............................................................................................ 3 1-1 PACKAGE CONTENTS....................................................................................................................... 3 1-2 PC CARD DESCRIPTION................................................................................................................... 3 1-3 SYSTEM REQUIREMENTS................................................................................................................. 4 1-4 FEATURES AND BENEFITS................................................................................................................ 4 1-5 APPLICATIONS................................................................................................................................. 4 1-6 NETWORK CONFIGURATIONS.......................................................................................................... 5 CHAPTER 2 INSTALLING DRIVERS & CLIENT UTILITY.......................................... 8 2-1 INSTALLATION FOR WINDOWS 98SE/ME/2000/XP......................................................................... 8 2- 2 CHECKING AFTER INSTALLATION................................................................................................. 11 2- 3 IEEE 802.11 WLAN NIC CLIENT UTILITY................................................................................. 12 2- 4 UNINSTALLING DRIVER AND UTILITY.......................................................................................... 16 CHAPTER 3 CONNECTING TO A NETWORK.............................................................. 17 3-1 CHECKING AND ADDING CLIENT FOR MICROSOFT NETWORKS..................................................... 17 3-2 CHECKING AND ADDING NETBEUI............................................................................................... 18 3-3 CHECKING AND ADDING TCP/IP................................................................................................... 18 3-4 CHECKING AND ADDING FILE AND PRINTER SHARING FOR MICROSOFT....................................... 19 NETWORKS.......................................................................................................................................... 19 3-5 CHECKING AND ADDING COMPUTER NAME & WORKGROUP NAME............................................. 19 CHAPTER 4 TROUBLESHOOTING................................................................................. 22 APPENDIX A PRODUCT SPECIFICATIONS......................................................................................... 24 APPENDIX B REGULATORY COMPLIANCE INFORMATION............................................................. 26 3 Chapter 1 Introduction The Wireless G Cardbus Adapter operates seamlessly and simultaneouslyin the 2.4GHz frequency spectrum supporting the 802.11b (2.4GHz, 11Mbps) and 802.11g (2.4GHz, 54MHz) wireless standards. It’s the best way to add wireless capability to your existing wired network, or to add bandwidth to your wirless installation. To protect your wireless connectivity, the Wireless G Cardbus Adapter can encrypt all wireless transmissions through 64/128/152-bit WEP data encryption. With the Wireless Cardbus Adapter, you will experience the bes wireless connectivity nowadays. 1-1 Package Contents The PC Card package contains the following items. 1. One PC Card 2. One Quick Installation Guide 3. One Installation CD 1-2 PC Card Description The PC Card is a standard PC Card that fits into any PCMCIA Card Type II slot. The PC Card has a LED as shown in Figure 1-1. Figure 1-1 1. Link LED 802.11 AdHoc mode – Blinking, no matter the wireless is connected or not 4 Infrastructure – Solid GREEN when the wireless is connected Off – No wireless activity 1-3 System Requirements Installation of the PC Card requires: ◆ Laptop PC containing : – 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter) – 32 MB memory or greater – 300 MHz processor or higher ◆ Microsoft Windows 2000/Windows Millennium Edition/Windows 98 Second Edition/Windows XP/Windows NT 4.0 (with Service Pack 6) 1-4 Features and Benefits 2.4GHz IEEE802.11b/g (draft) standard Fully interoperable with IEEE802.11b/g (draft) compliant products. Up to 54Mbps and 108Mbps (turbo mode) high-speed data rates Capable of handling heavy data payloads such as MPEG video streaming. Up to 152-bit WEP Data Encryption with TKIP Powerful data security. IEEE802.11x Client support (Optional) Enhances authentication and security. Dynamic Frequency Selection (DFS) support Provides flexible selection of the best frequency to allow mobility among all existing IEEE802.11a/b/g networks. Transmission Power Control (TPC) support Offers flexibility to adjust RF output power. Multi-country Roaming (802.11d) support Automatically adjusts regulatory domain to operate in different countries. 1-5 Applications The wireless LAN products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of wireless LANs: 1. Difficult-to-wire environments There are many situations where wires can not or not easily be laid. Historic buildings, older buildings, open areas and across busy streets make the installation of LANs either impossible or very expensive. 2. Temporary workgroups Consider situations in parks, athletic arenas, exhibitions, disaster-recovery, temporary office and construction sites where one wants a temporary WLAN established and removed. 5 3. The ability to access real-time informatios Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while dealing with patients, serving customers and processing information. 4. Frequently changed environments Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently rearrange the workplace. 5. Small Offic…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 8, 2004 RE: FCC ID: NI3-30V214_ATCB001037 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that on page 4 of the SAR report you state the max conducted power of the EUT is 22dBm. However, on page 13 of the SAR report you show the conducted power measured during the SAR testing is 21.38dBm. The 22dBm you report on page 4 appears to be copied from that of the maximum reported power of test results B (OFDM) in the EMC report. Please note that test results A of the EMC report shows 21.38dBm. Please also note that in note 4 on page 14 of the SAR report you state that CCK modulation produced the highest conducted power. Please note that this is in error as the EMC report clearly indicates that the highest conducted power was measured during OFDM modulation not CCK modulation. If this is the case, then SAR was not tested at the maximum power level as required (i.e. the configuration in the EMC report stated as test results B -OFDM) but was tested at the lesser power level shown as test results A -CCK. Please retest SAR using the highest conducted power of 22dBm as indicated in the test configuration defined as Test results B (OFDM). Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

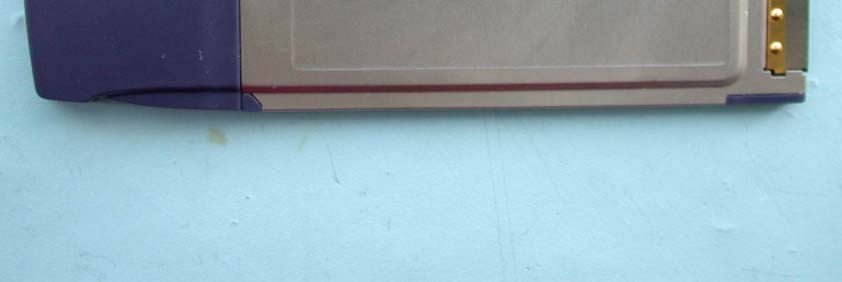

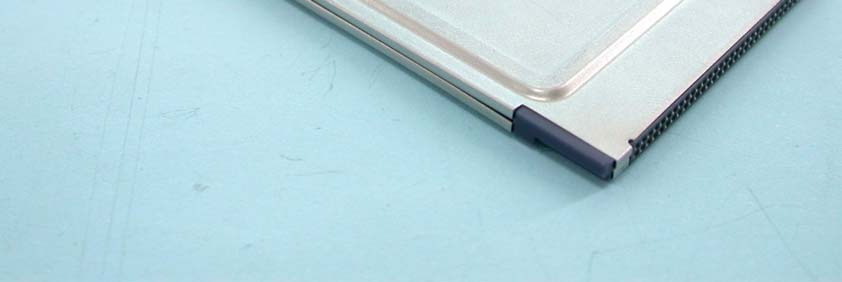

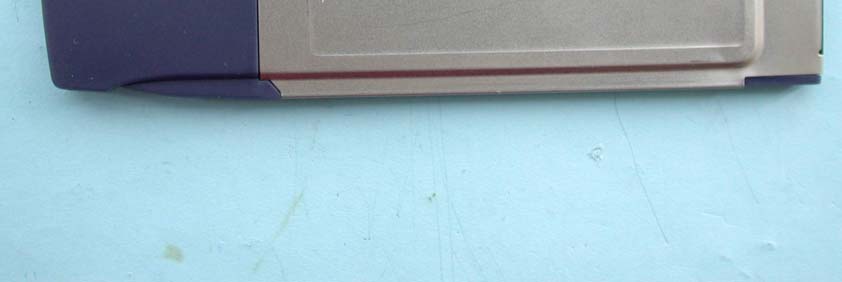

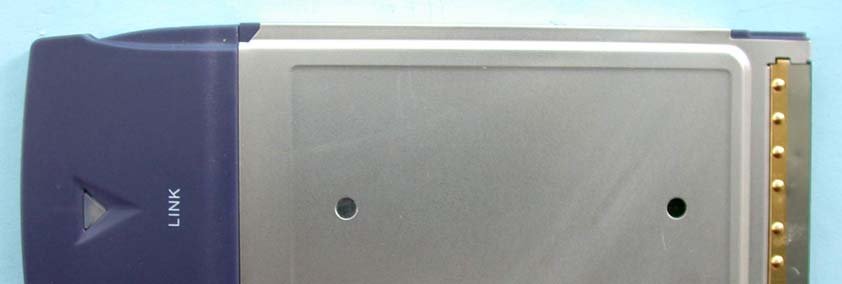

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

Page 3 Page 4 Page 5

FCC ID: NI3-30V214 ADT No.921203R04 Operational Description This device is an Atheros 11g Card Bus Adapter which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna types used in this product is Printed without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: NI3-30V214 Report No.: SA921203R041Issued: December 16, 2003 SAR TEST REPORT REPORT NO.: SA921203R04 MODEL NO.: NL-3054CB Plus Aries2 RECEIVED: Dec. 02, 2003 TESTED: Dec. 11, 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 CHUNG CHENG RD., HSIN- TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 35 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-30V214 Report No.: SA921203R042Issued: December 16, 2003 Table of Contents 1.CERTIFICATION......................................................................................................... 3 2.GENERAL INFORMATION ......................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ........................................................................... 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM................................................... 5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................. 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ................................. 13 4.DESCRIPTION OF SUPPORT UNITS ..................................................................... 15 5.TEST RESULTS ....................................................................................................... 16 5.1 TEST PROCEDURES .............................................................................................. 16 5.2 MEASURED SAR RESULT ...................................................................................... 17 5.3 SAR LIMITS .............................................................................................................. 19 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ..................................................... 23 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ....................................................... 25 6.SYSTEM VALIDATION ............................................................................................. 26 6.1 TEST EQUIPMENT .................................................................................................. 26 6.2 TEST PROCEDURE................................................................................................. 26 6.3 VALIDATION RESULT .............................................................................................. 28 6.4 SYSTEM VALIDATION UNCERTAINTIES................................................................ 29 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ........................................ 30 7.1 PROBE CALIBRATION UNCERTAINTY .................................................................. 30 7.2 ISOTROPY UNCERTAINTY ..................................................................................... 30 7.3 BOUNDARY EFFECT UNCERTAINTY .................................................................... 31 7.4 PROBE LINEARITY UNCERTAINTY........................................................................ 31 7.5 READOUT ELECTRONICS UNCERTAINTY............................................................ 31 7.6 RESPONSE TIME UNCERTAINTY .......................................................................... 32 7.7 INTEGRATION TIME UNCERTAINTY...................................................................... 33 7.8 PROBE POSITIONER MECHANICAL TOLERANCE ............................................... 33 7.9 PROBE POSITIONING............................................................................................. 34 7.10 PHANTOM UNCERTAINTY...................................................................................... 34 7.11 DASY4 UNCERTAINTY BUDGET ............................................................................ 35 8.INFORMATION ON THE TESTING LABORATORIES ............................................. 36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-30V214 Report No.: SA921203R043Issued: December 16, 2003 1. CERTIFICATION PRODUCT : Atheros 11g Card Bus Adapter MODEL NO. : NL-3054CB Plus Aries2 BRAND NAME : SENAO APPLICANT : SENAO INTERNATIONAL CO., LTD. TEST ITEM : Engineering sample STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on December 11, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: NI3-30V214 Report No.: SA921203R044Issued: December 16, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Atheros 11g Card Bus Adapter MODEL NO. NL-3054CB Plus Aries2 POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS/OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps Turbo mode: up to 108Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER 21.38dBm ANTENNA TYPE Printed antenna with 0dBi antenna gain AVERAGE SAR(1g) 1.020W/kg DATA CABLE NA I/O PORTS PCMCI…

Text truncated - open the document above for the full version.

D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

FCC ID: NI3-30V214 Report No.: SA921203R041Issued: January 19, 2003 SAR TEST REPORT REPORT NO.: SA921203R04 MODEL NO.: NL-3054CB Plus Aries2 RECEIVED: Dec. 02, 2003 TESTED: Dec. 11, 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 CHUNG CHENG RD., HSIN- TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 42 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-30V214 Report No.: SA921203R042Issued: January 19, 2003 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................16 5.TEST RESULTS ........................................................................................................17 5.1 TEST PROCEDURES ...............................................................................................17 5.2 MEASURED SAR RESULT .......................................................................................18 5.3 SAR LIMITS...............................................................................................................20 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................27 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................30 6.SYSTEM VALIDATION ..............................................................................................31 6.1 TEST EQUIPMENT ...................................................................................................31 6.2 TEST PROCEDURE .................................................................................................31 6.3 VALIDATION RESULT...............................................................................................34 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................35 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................36 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................36 7.2 ISOTROPY UNCERTAINTY......................................................................................36 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................37 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................37 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................37 7.6 RESPONSE TIME UNCERTAINTY...........................................................................38 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................39 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................39 7.9 PROBE POSITIONING .............................................................................................40 7.10 PHANTOM UNCERTAINTY ......................................................................................40 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................41 8.INFORMATION ON THE TESTING LABORATORIES ..............................................42 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-30V214 Report No.: SA921203R043Issued: January 19, 2003 1. CERTIFICATION PRODUCT : Atheros 11g Card Bus Adapter MODEL NO. : NL-3054CB Plus Aries2 BRAND NAME : SENAO APPLICANT : SENAO INTERNATIONAL CO., LTD. TEST ITEM : Engineering sample STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on December 11, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: NI3-30V214 Report No.: SA921203R044Issued: January 19, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Atheros 11g Card Bus Adapter MODEL NO. NL-3054CB Plus Aries2 POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS/OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps Turbo mode: up to 108Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 21.38dBm MAXIMUN CONDUCTED OUTPUT POWER (FOR OFDM) 22.00dBm ANTENNA TYPE Printed antenna with 0dBi antenna gain AVERAGE …

Text truncated - open the document above for the full version.

Date/Time: 12/11/03 11:23:08 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.b DELL C600 Mode 2 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.984 mho/m, ε r = 51.7695, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 23.5 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.13 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.48 W/kg SAR(1 g) = 0.938 mW/g; SAR(10 g) = 0.381 mW/g Reference Value = 23.5 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.03 mW/g Date/Time: 12/11/03 11:47:00 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.b DELL C600 Mode 2 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.016 mho/m, ε r = 51.7112, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: DAE not calibrated - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 22 V/m Power Drift = -0.04 dB Maximum value of SAR = 1.07 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.5 W/kg SAR(1 g) = 0.931 mW/g; SAR(10 g) = 0.353 mW/g Reference Value = 22 V/m Power Drift = -0.04 dB Maximum value of SAR = 1.05 mW/g Date/Time: 12/11/03 12:07:40 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.b DELL C600 Mode 2 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.046 mho/m, ε r = 51.6535, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 21.9 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.9 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.22 W/kg SAR(1 g) = 0.825 mW/g; SAR(10 g) = 0.334 mW/g Reference Value = 21.9 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.893 mW/g Date/Time: 12/11/03 13:31:04 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.b DELL C600 Mode 3 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.984 mho/m, ε r = 51.7695, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 7mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.87 V/m Power Drift = -0.04 dB Maximum value of SAR = 0.279 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.591 W/kg SAR(1 g) = 0.241 mW/g; SAR(10 g) = 0.121 mW/g Reference Value = 8.87 V/m Power Drift = -0.04 dB Maximum value of SAR = 0.247 mW/g Date/Time: 12/11/03 13:50:42 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.b DELL C600 Mode 3 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.016 mho/m, ε r = 51.7112, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 7mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - M…

Text truncated - open the document above for the full version.

Date/Time: 01/17/04 18:16:52 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.g DELL D400 Mode 12 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: OFDM Medium: MSL2450 (σ = 1.978 mho/m, ε r = 51.2729, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 5mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 6/18/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.55 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.316 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.659 W/kg SAR(1 g) = 0.265 mW/g; SAR(10 g) = 0.125 mW/g Reference Value = 6.55 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.273 mW/g Date/Time: 01/17/04 18:38:48 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.g DELL D400 Mode 12 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: OFDM Medium: MSL2450 (σ = 2.01 mho/m, ε r = 51.1701, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 5mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 6/18/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.58 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.346 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.809 W/kg SAR(1 g) = 0.322 mW/g; SAR(10 g) = 0.15 mW/g Reference Value = 6.58 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.333 mW/g Date/Time: 01/17/04 19:00:14 Test Laboratory: Advance Data Technology NL-3054CB Plus Aries2 11.g DELL D400 Mode 12 DUT: Atheros 11g CardBus Adapter ; Type: NL-3054CB Plus Aries2 ; Test Channel Frequency: 2462 MHz Communication System: 802.11g ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: OFDM Medium: MSL2450 (σ = 2.042 mho/m, ε r = 51.0685, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 5mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 6/18/2…

Text truncated - open the document above for the full version.
