NI3-AT30V216802.11g Mini-PCI Adapter

SENAO High-Speed Wireless Mini PCI Adapter OEM installation Manual Version: 1.0 High-Speed Wireless Mini PCI AdapterVersion 1.0 Page 2 of 21 Table of Contents 1INTRODUCTION..................................................................................................... 3 1.1FEATURES & BENEFITS........................................................................................ 3 1.2PACKAGE CONTENTS............................................................................................ 3 2UNDERSTANDING THE HARDWARE................................................................ 4 2.1HARDWARE CONFIGURATION............................................................................... 4 2.2HARDWARE INSTALLATION................................................................................... 4 3PC CONFIGURATION............................................................................................ 4 3.1TCP/IP CONFIGURATION...................................................................................... 4 3.2WIRELESS LAN CONFIGURATION........................................................................ 6 4WEB CONFIGURATION........................................................................................ 7 4.1LOGGING IN.......................................................................................................... 7 4.2GETTING FAMILIAR WITH THE GUI...................................................................... 7 4.3SYSTEM................................................................................................................ 8 4.3.1Administrator Settings................................................................................. 8 4.3.2Firmware Upgrade...................................................................................... 9 4.3.3Configuration Tools..................................................................................... 9 4.3.4Factory Defaults........................................................................................ 10 4.4LAN................................................................................................................... 11 4.5WIRELESS........................................................................................................... 11 4.5.1General...................................................................................................... 11 4.5.2802.11g...................................................................................................... 12 4.5.2.1Security Setting............................................................................... 14 4.5.2.2Security Server Settings................................................................ 15 4.5.2.3ACL Settings.................................................................................... 16 4.6STAT I S T I C S......................................................................................................... 16 4.6.12.4 GHz Statistics...................................................................................... 17 APPENDIX A – SPECIFICATIONS............................................................................. 18 Appendix B - Regulatory Compliance Information.........................................20 High-Speed Wireless Mini PCI AdapterVersion 1.0 Page 3 of 21 1 Introduction This chapter describes the features & benefits, package contents, applications, and network configuration. 1.1 Features & Benefits 2.4GHz IEEE802.11b/g (draft) standard Fully interoperable with IEEE802.11b/g (draft) compliant products. Up to 54Mbps and 108Mbps (turbo mode) high-speed data rates Capable of handling heavy data payloads such as MPEG video streaming. Up to 152-bit WEP Data Encryption with TKIP Powerful data security. IEEE802.11x Client support (Optional)Enhances authentication and security. Transmission Power Control (TPC) support Offers flexibility to adjust RF output power. 2.4GHz IEEE802.11b/g (draft) standard Fully interoperable with IEEE802.11b/g (draft) compliant products. Up to 54Mbps and 108Mbps (turbo mode) high-speed data rates Capable of handling heavy data payloads such as MPEG video streaming. Up to 152-bit WEP Data Encryption with TKIP Powerful data security. IEEE802.11x Client support (Optional)Enhances authentication and security. Transmission Power Control (TPC) support Offers flexibility to adjust RF output power. 1.2 Package Contents h One Access Point (with Mini PCI Adapter) h One Power Adapter h One CAT 5 UTP Cable h One Fast Start Guide h One CD-ROM with User’s Manual Included High-Speed Wireless Mini PCI AdapterVersion 1.0 Page 4 of 21 2 Understanding the Hardware 2.1 Hardware Configuration h RJ-45 Ethernet Connector – Provides 10/100 Mbps connectivity to a wired Ethernet LAN. h Reset Button – By holding this down for more than five seconds, the AP will reset to its factory default settings. h Power Supply Connector – Connects to the power adapter. 2.2 Hardware Installation A. Configure your notebook or PC with a wireless LAN card. B. For a wired LAN, connect your PC’s Ethernet port to the AP’s LAN port via an Ethernet cable. C. For WLAN, position the Access Point in a proper position. D. Plug in the power cord into the power outlet. 3 PC Configuration 3.1 TCP/IP Configuration Follow the steps below in order to configure the TCP/IP settings of your PC. A. In the Control Panel double click Network Connections, and then double click on the connection of your Network Interface Card (NIC). You will then see the following screen. High-Speed Wireless Mini PCI AdapterVersion 1.0 Page 5 of 21 B. Select Internet Protocol (TCP/IP) and then click on the Properties button. This will allow you to configure the IP address of your PC. You will then see the following screen. High-Speed Wireless Mini PCI AdapterVersion 1.0 Page 6 of 21 C. Select Use the following IP address radio button, and then enter an IP address and subnet mask for your PC. Make sure that the Access Point …

Text truncated - open the document above for the full version.

FCC ID: NI3-AT30V216 Report No.921215R02 Modular Approval Request Letter Advance Data Technology Dec. 26, 2003 Dear Application Examiner, SENAO’s Atheros 11g Mini-PCI Adapter, FCC ID: NI3-AT30V216, would like to have your authorization for Module Approval specific to the mobile device such as Access Point or Router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5212. 3. “The modular transmitter must have its own power supply regulation.” There is a regulator in the DC input port, the part number is AME8805 DEGT. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a Mimi-PCI to PCMCIA adapter card. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: NI3-AT30V216 Report No.921215R02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Ellis Wu / Manager Manager of R&TTE Division Advance Data Technology

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 17, 2003 RE: Senao International Co., Ltd. FCC ID: NI3-AT30V216 I have a few comments on the above referenced Application. 1) The bandedge data for the Turbo mode low side of the fundamental appears to be miscalculated on page 63. Please review. The highest reported average measurements was 98.76 dBuV/m on page 30. It appears the calculation should show 98.76 dBuV/m - 45.59 dB = 53.17 dBuV/m. Note that the high side of the fundamental appears to be properly calculated. Additionally, due to the marginal result, it would be recommended that the delta plot be taken with a smaller span to increase the accuracy and ensure the device passes at the bandedge. A span of approximately 50 MHz would suffice. 2) The users manual mentions installation in a laptop. Note that the modular letter provided only requested devices such as access points and routers. Additionally, the length of coax present during testing and the type of antenna will not install in a laptop in a way to meet the 20 cm portable requirement requested by this application. Therefore, the users manual provided does not appear applicable to this device. Please explain. 3) The maximum output power measured was 20 dBm, while the users manual mentions 21 dBm. Note that the FCC typically expects maximum output power to be configured during test and that the tolerance typically be less than 0.5 dB. Please explain. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

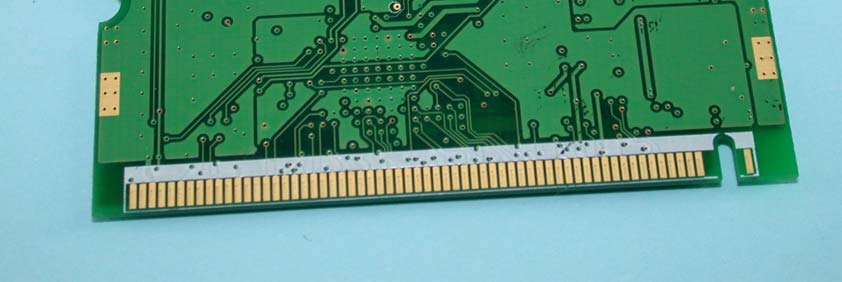

Page 1 CONSTRUCTION PHOTOS OF EUT

Label Location

Page 2 Page 3 Page 4

FCC ID: NI3-AT30V216 Report No.RF921215R02 Operational Description This device is a Atheros 11g Mini-PCI Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique (turbo mode:108Mbps) will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: NI3-AT30V216 Report No: RF921215R02 1 RF EXPOSURE REPORT REPORT NO.: RF921215R03 MODEL NO.: NL-3054MP Plus Aries2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Senao International Co., Ltd. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: NI3-AT30V216 Report No: RF921215R02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NI3-AT30V216 Report No: RF921215R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NI3-AT30V216 Report No: RF921215R02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241252.4810.0171.0 6243757.5440.0181.0 11246254.9540.0171.0 For 802.11g (Normal mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412100.0000.0321.0 6243783.1760.0261.0 11246285.1140.0271.0 For 802.11g (Turbo mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243763.0960.0201.0

FCC ID: NI3-AT30V216 Report No.: RF921215R021Issued: December 25, 2003 FCC TEST REPORT REPORT NO.: RF921215R02 MODEL NO.: NL-3054MP Plus Aries2 RECEIVED: Nov. 12, 2003 TESTED: Nov. 12 ~ Dec. 22, 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-AT30V216 Report No.: RF921215R022Issued: December 25, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................11 4.1.7TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5TEST SETUP .............................................................................................. 21 4.2.6EUT OPERATING CONDITIONS................................................................ 21 4.2.7TEST RESULTS.......................................................................................... 22 4.2.8TEST RESULTS (A) .................................................................................... 24 4.2.9TEST RESULTS (B) .................................................................................... 27 4.36dB BANDWIDTH MEASUREMENT .......................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 31 4.3.2TEST INSTRUMENTS ................................................................................ 31 4.3.3TEST PROCEDURE ................................................................................... 31 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 32 4.3.5TEST SETUP .............................................................................................. 32 4.3.6EUT OPERATING CONDITIONS................................................................ 32 4.3.7TEST RESULTS (A) .................................................................................... 33 FCC ID: NI3-AT30V216 Report No.: RF921215R023Issued: December 25, 2003 4.3.8TEST RESULTS (B) .................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 43 4.4.2TEST INSTRUMENTS ................................................................................ 43 4.4.3TEST PROCEDURES................................................................................. 44 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 44 4.4.5TEST SETUP .............................................................................................. 44 4.4.6EUT OPERATING CONDITIONS................................................................ 44 4.4.7TEST RESULTS (A) .................................................................................... 45 4.4.8TEST RESULTS (b) .................................................................................... 46 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2TEST INSTRUMENTS ................................................................................ 47 4.5.3TEST PROCEDURE ................................................................................... 47 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 48 4.5.5TEST SETUP ...........................................................…

Text truncated - open the document above for the full version.

FCC ID: NI3-AT30V216 Report No.: RF921215R0269Issued: December 25, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-AT30V216 Report No.: RF921215R0270Issued: December 25, 2003 FCC ID: NI3-AT30V216 Report No.: RF921215R0271Issued: December 25, 2003 RADIATED EMISSION TEST FCC ID: NI3-AT30V216 Report No.: RF921215R0272Issued: December 25, 2003
