NI3-AT30V321IEEE802.11g Wireless Access Point

SENAO High-Speed Wireless 11g Access Point User’s Manual Version: 1.0 High-Speed Wireless Access Point Version 1.0 Page 2 of 20 Table of Contents 1 INTRODUCTION ..................................................................................................... 4 1.1 F EATURES & B ENEFITS ........................................................................................ 4 1.2 P ACKAGE C ONTENTS ............................................................................................ 4 2 UNDERSTANDING THE HARDWARE................................................................ 5 2.1 H ARDWARE C ONFIGURATION ............................................................................... 5 2.2 H ARDWARE I NSTALLATION ................................................................................... 5 3 PC CONFIGURATION ............................................................................................ 5 3.1 TCP/IP C ONFIGURATION ...................................................................................... 5 3.2 W IRELESS LAN C ONFIGURATION ........................................................................ 7 4 WEB CONFIGURATION ........................................................................................ 8 4.1 L OGGING I N ......................................................................................................... 8 4.2 G ETTING F AMILIAR WITH THE GUI ...................................................................... 8 4.3 S YSTEM ................................................................................................................ 9 4.3.1 Administrator Settings................................................................................. 9 4.3.2 Firmware Upgrade.................................................................................... 10 4.3.3 Configuration Tools................................................................................... 10 4.3.4 Factory Defaults........................................................................................ 11 4.4 LAN................................................................................................................... 12 4.5 W IRELESS ........................................................................................................... 12 4.5.1 General...................................................................................................... 12 4.5.2 802.11g ...................................................................................................... 13 4.5.2.1 Security Setting ............................................................................... 15 4.5.2.2 Security Server Settings ................................................................ 16 4.5.2.3 ACL Settings ................................................................................... 17 4.6 S TATI ST ICS ......................................................................................................... 17 4.6.1 2.4 GHz Statistics ...................................................................................... 18 APPENDIX A – SPECIFICATIONS............................................................................. 19 High-Speed Wireless Access Point Version 1.0 Page 3 of 20 Revision History Version Date Notes 1.0 September 17, 2003 Initial Version High-Speed Wireless Access Point Version 1.0 Page 4 of 20 1 Introduction This chapter describes the features & benefits, package contents, applications, and network configuration. 1.1 Features & Benefits Features Benefits High Speed Data Rate Up to 108Mbps/ Super G Mode Capable of handling heavy data payloads such as MPEG video streaming. Fully IEEE 802.11g draft standards compliant, and backwards compatible with IEEE802.11b products Interoperable with existing 2.4GHz device and networks Transmission Power Control (TPC) support Offers flexibility to adjust RF output power. Dynamic Frequency Selection (DFS) support Provides flexible selection of the best frequency to allow mobility among all existing IEEE802.11b/g networks. Multi country Roaming (802.11d) Automatically adjusts regulatory domain to operate in different countries. Wi-Fi Protected Access Enhances authentication and security. 64 /128/152-bit WEP data encryption Powerful data security. MAC address filtering Ensures secure network connections Remote Configuration via Web- browser/Telnet Easy to configure or manage the device remotely. Firmware upgrade through Web-browser Easy firmware upgrade reduces operations overhead. 1.2 Package Contents h One Access Point h One Power Adapter h One CAT 5 UTP Cable h One Fast Start Guide h One CD-ROM with User’s Manual Included High-Speed Wireless Access Point Version 1.0 Page 5 of 20 2 Understanding the Hardware 2.1 Hardware Configuration h RJ-45 Ethernet Connector – Provides 10/100 Mbps connectivity to a wired Ethernet LAN. h Reset Button – By holding this down for more than five seconds, the AP will reset to its factory default settings. h Power Supply Connector – Connects to the power adapter. 2.2 Hardware Installation A. Configure your notebook or PC with a wireless LAN card. B. For a wired LAN, connect your PC’s Ethernet port to the AP’s LAN port via an Ethernet cable. C. For WLAN, position the Access Point in a proper position. D. Plug in the power cord into the power outlet. 3 PC Configuration 3.1 TCP/IP Configuration Follow the steps below in order to configure the TCP/IP settings of your PC. A. In the Control Panel double click Network Connections , and then double click on the connection of your Network Interface Card (NIC). You will then see the following screen. High-Speed Wireless Access Point Version 1.0 Page 6 of 20 B. Select Internet Protocol (TCP/IP) and then click on the Properties button. This will allow you to configure the IP address of your PC. You will then see the following screen. High-Speed Wireless Access Point Version 1.0 Page 7 of 20 C. Select Use the f…

Text truncated - open the document above for the full version.

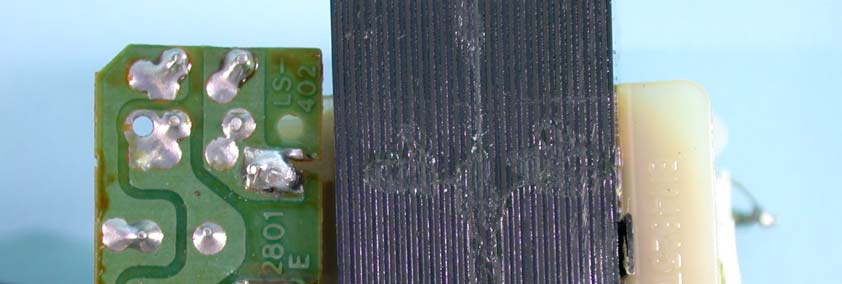

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

IEEE802.11g Wireless Access Point Model No.: SL-3054AP3 Aries2 C 2.7 2 9 . 2 3 m m 79.70 mm MADE IN TAIWAN FOR HOME OR OFFICE USE Tested To Comply With FCC Standards Contain NI3-AT30V321FCC ID: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 1

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

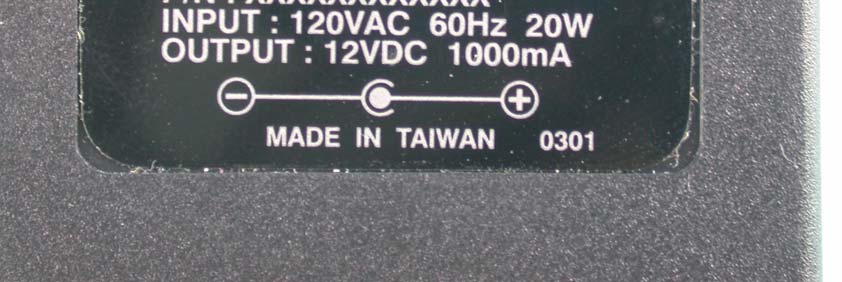

FCC ID: NI3-AT30V321 ADT No.920916R01 Operational Description This device is a IEEE802.11g Wireless Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter and connected with managing computer through RJ45 port. The antenna is Dipole antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. The other instruction, please have a look at the users manual.

FCC ID: NI3-AT30V321 Report No: 920916R01 1 RF EXPOSURE REPORT REPORT NO.: RF920916R01 MODEL NO.: SL-3054AP3 Aries2 OEM MODEL NO.: NL-3054AP3 Aries2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-AT30V321 Report No: 920916R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NI3-AT30V321 Report No: 920916R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NI3-AT30V321 Report No: 920916R01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241253.0880.0171.0 6243779.4330.0251.0 11246252.4810.0171.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.1190.0161.0 6243794.4060.0301.0 11246256.2340.0181.0

FCC ID: NI3-AT30V321 Report No.: RF920916R011Issued: 22 September, 2003 FCC TEST REPORT REPORT NO.: RF920916R01 MODEL NO.: SL-3054AP3 Aries2 BRAND: SENAO OEM MODEL NO.: NL-3054AP3 Aries2 OEM BRAND: EnGenius RECEIVED: 16 September, 2003 TESTED: 03 Sep. 2003 ~ 17 Sep. 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-AT30V321 Report No.: RF920916R012Issued: 22 September, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS ................................................................... 5 3GENERAL INFORMATION............................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .............................................................. 6 3.2DESCRIPTION OF TEST MODES ................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS ....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES ................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP .............................................................................................. 11 4.1.6EUT OPERATING CONDITIONS ................................................................ 11 4.1.7TEST RESULTS .......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES ................................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5TEST SETUP .............................................................................................. 21 4.2.6EUT OPERATING CONDITIONS ................................................................ 21 4.2.7TEST RESULTS .......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT........................................................... 30 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT........................................ 30 4.3.2TEST INSTRUMENTS ................................................................................ 30 4.3.3TEST PROCEDURE ................................................................................... 31 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 31 4.3.5TEST SETUP .............................................................................................. 31 4.3.6EUT OPERATING CONDITIONS ................................................................ 31 4.3.7TEST RESULTS .......................................................................................... 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 40 FCC ID: NI3-AT30V321 Report No.: RF920916R013Issued: 22 September, 2003 4.4.2TEST INSTRUMENTS ................................................................................ 40 4.4.3TEST PROCEDURES ................................................................................. 41 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 41 4.4.5TEST SETUP .............................................................................................. 41 4.4.6EUT OPERATING CONDITIONS ................................................................ 41 4.4.7TEST RESULTS .......................................................................................... 42 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................... 43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 43 4.5.2TEST INSTRUMENTS ................................................................................ 43 4.5.3TEST PROCEDURE ................................................................................... 44 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 44 4.5.5TEST SETUP .............................................................................................. 44 4.5.6EUT OPERATING CONDITIONS ................................................................ 44 4.5.7TEST RESULTS .......................................................................................... 45 4.6BAND EDGES MEASUREMENT ................................................................ 53 4.6.1LIMITS OF BAND EDGES MEASUREMENT.............................................. 53 4.6…

Text truncated - open the document above for the full version.

FCC ID: NI3-AT30V321 Report No.: RF920916R0160Issued: 22 September, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-AT30V321 Report No.: RF920916R0161Issued: 22 September, 2003 RADIATED EMISSION TEST
