NI3-AT30V514802.11g Cardbus Adapter

High-Speed Wireless Cardbus Adapter User’s Manual Version: 1.1 Table of Contents 1 INTRODUCTION.................................................................................................................... 4 1.1 FEATURES & BENEFITS..................................................................................................... 4 1.2 PACKAGE CONTENTS........................................................................................................ 4 1.3 PC CARD DESCRIPTION.................................................................................................... 5 1.4 SYSTEM REQUIREMENTS ..................................................................................................5 1.5 APPLICATIONS.................................................................................................................. 5 1.6 NETWORK CONFIGURATION............................................................................................... 6 2 INSTALL DRIVERS & CLIENT UTILITY ............................................................................... 8 2.1 BEFORE YOU BEGIN ......................................................................................................... 8 2.2 INSTALLING THE PC CARD DRIVERS .................................................................................. 8 3 USING THE CLIENT UTILITY.............................................................................................. 14 3.1 CURRENT STATUS .......................................................................................................... 15 3.1.1 Advanced Status ................................................................................................. 15 3.2 PROFILE MANAGEMENT ..................................................................................................16 3.2.1 Available Networks .............................................................................................. 16 3.2.2 New Profile .......................................................................................................... 17 3.2.2.1 General ....................................................................................................... 18 3.2.2.2 Security ....................................................................................................... 18 3.2.2.2.1 None....................................................................................................... 19 3.2.2.2.2 WPA & 802.1x....................................................................................................... 20 3.2.2.2.2.1 WPA & 802.1x – TLS, TTLS.................................................................................... 20 3.2.2.2.2.2 WPA & 802.1x – PEAP, LEAP................................................................................. 21 3.2.2.2.3 WPA –PSK............................................................................................ 22 3.2.2.2.5 Pre-Shared Key...................................................................................... 27 3.2.2.3 Advanced.................................................................................................... 28 3.2.2.3.1 Access Point .......................................................................................... 28 3.2.2.3.2 Ad Hoc.................................................................................................... 29 3.3 DIAGNOSTICS .................................................................................................................30 3.3.1 Advanced Statistics ............................................................................................. 30 3.3.2 Driver Information ................................................................................................ 31 4. UNINSTALLATION ..............................................................................................................36 APPENDIX A – SPECIFICATIONS .............................................................................................39 APPENDIX B – FCC INTERFERENCE STATEMENT................................................................. 41 Revision History Version Date Notes 1.0 Jun. 16, 2004 Initial Version 1.1 Oct. 2, 2004 Modification 1 Introduction The High-Speed Wireless Cardbus Adapter is the most convenient way to let you put a desktop/notebook computer almost anywhere without the hassle of running network cables. Now you don’t need to suffer from drilling holes and exposed cables. Once you are connected, you can do anything, just like the wired network. The High-Speed Wireless Cardbus Adapter operates seamlessly in 2.4GHz frequency spectrum supporting the 802.11b (11Mbps) and the 802.11g (54Mbps) wireless standards. It’s the best way to add wireless capability to your existing wired network, or add bandwidth to your wireless installation. To protect your wireless connectivity, the High-Speed Wireless Cardbus Adapter can encrypt all wireless transmissions through 64/128/152-bit WEP data encryption. With the High-Speed Wireless Cardbus Adapter, you will experience the best wireless connectivity available. 1.1 Features & Benefits Features Benefits High-speed data rate up to 54 Capable of handling heavy data payloads Mbps such as MPEG video streaming. Up to 152-bit WEP data encryption Powerful data security. and TKIP IEEE 802.1x client support Enhances authentication and security. (optional) Multi-country roaming (802.11d) Automatically adjusts regulatory domain support to operate in different countries. Advanced power management Low power consumption in power saving mode. TPC (Transmission Power Control) TPC offers flexibility to adjust RF output support power. 1.2 Package Contents One PC Card One Installation CD One Quick Installation Guide 1.3 PC Card Descriptions The PC card is a standard PC card that fits into any PCMCIA card Type II slot. The PC card has a LED indicator and an integrated built-in diversity antenna . • Access Point: …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 10, 2004 RE: Senao International Co., Ltd.. FCC ID: NI3-AT30V514 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The POA is not dated. Please revise. 2) The users manual shows this device contains a Turbo mode, however the test report does not show this. If this device does contain a Turbo mode, additional testing will be necessary. Please correct as necessary. 3) The users manual suggests that the lower data rates have a much higher power. Please provide information on which data rates were investigated for power measurements and what was the worse case. 4) The spectrum analyzer specified on page 48 appears out of calibration. 5) The measurement reported on page 20 for Position 5, Middle channel does not match the plot. Please review. 6) Please explain the derivation of the 12.0 Required SAR on page 29. It appears the Dipole Validation was 48.8 mW/g /4 = 12.2. Please review and correct as necessary. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 10, 2004 RE: Senao International Co., Ltd.. FCC ID: NI3-AT30V514 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please carefully review page 15 and 26 of the users manual. These pages show the device is capable of 802.11a TX (5 GHz Wireless Mode and TX power). This application does not include 5 GHz TX information. If this device includes this, additional testing will be necessary to include this. Please correct as necessary. 2) Please carefully review page 26 of the users manual. These pages show the device is capable of Turbo Mode (Super G). This application does not include this. If this device includes this, additional testing will be necessary to include this. Please correct as necessary 3) The measurement reported on page 20 for Position 5, Middle channel does not match the plot (data shows 0.768, plot shows 0.786). Please review. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim The revised POA, manual, sar test report and test report have been revised and uploaded to website. We do not found any mistake regarding the measurement reported on page 20 for Position 5. Would you please double check again? Thanks for your assistance! Best Regards Wendy Liao Page 1 of [email protected], 07:47 PM 11/15/2004 +0800, =?Big5?B?pl6rSDogU29sdmUgdGhlIGNvbW1lbnQ... 11/18/2004Printed for "Timothy R. Johnson" <[email protected]>

Dear Tim The page 20 of the sar test report and manual have been revised. Please check. Thanks for your assistance! Best Regards Wendy Liao

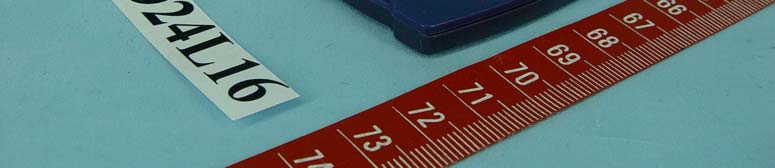

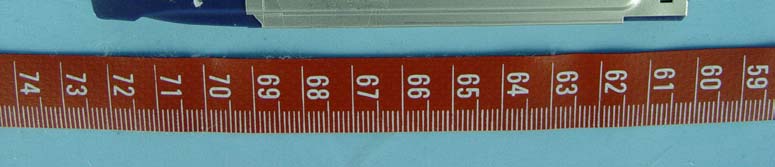

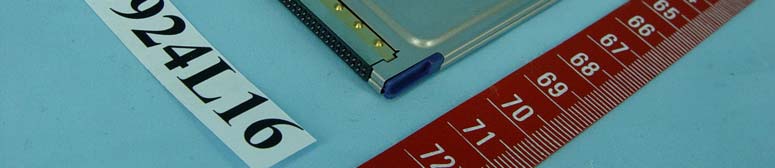

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

MADE IN TAIWAN Wireless Cardbus Adapter 4 0 . m m 64. mm LABEL (WPC-3007)FREQUENCY P/N:671001483820 TELECOM #50 FCC ID: NI3-AT30V514 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. R A

Page 3 Page 4 Page 5

FCC ID: NI3- AT30V514 Report No.: RF930924L16 Operational Description This device is a IEEE802.11g Cardbus Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is Printed antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: NI3-AT30V514 Report No.: SA930924L161Issued: Oct. 19, 2004 SAR TEST REPORT REPORT NO.: SA930924L16 MODEL NO.: WPC-3007 RECEIVED: Aug. 30, 2004 TESTED: Oct. 18, 2004 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 531 CHUNG CHENG RD., HSIN- TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 0528 ILAC MRA FCC ID: NI3-AT30V514 Report No.: SA930924L162Issued: Oct. 19, 2004 Table of Contents 1.CERTIFICATION...........................................................................................................3 2.GENERAL INFORMATION...........................................................................................3 2.1GENERAL DESCRIPTION OF EUT.............................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM....................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS...................................13 4.DESCRIPTION OF SUPPORT UNITS.......................................................................16 5.TEST RESULTS..........................................................................................................17 5.1TEST PROCEDURES................................................................................................17 5.2MEASURED SAR RESULT........................................................................................18 5.3SAR LIMITS.................................................................................................................24 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.......................................................24 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.........................................................26 6.SYSTEM VALIDATION................................................................................................27 6.1TEST EQUIPMENT.....................................................................................................27 6.2TEST PROCEDURE...................................................................................................27 6.3VALIDATION RESULT................................................................................................29 6.4SYSTEM VALIDATION UNCERTAINTIES.................................................................30 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................31 7.1PROBE CALIBRATION UNCERTAINTY....................................................................31 7.2ISOTROPY UNCERTAINTY.......................................................................................31 7.3BOUNDARY EFFECT UNCERTAINTY......................................................................32 7.4PROBE LINEARITY UNCERTAINTY..........................................................................32 7.5READOUT ELECTRONICS UNCERTAINTY.............................................................32 7.6RESPONSE TIME UNCERTAINTY............................................................................33 7.7INTEGRATION TIME UNCERTAINTY........................................................................34 7.8PROBE POSITIONER MECHANICAL TOLERANCE................................................34 7.9PROBE POSITIONING...............................................................................................35 7.10PHANTOM UNCERTAINTY........................................................................................35 7.11DASY4 UNCERTAINTY BUDGET..............................................................................36 8.INFORMATION ON THE TESTING LABORATORIES...............................................37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-AT30V514 Report No.: SA930924L163Issued: Oct. 19, 2004 1. CERTIFICATION PRODUCT : IEEE802.11g Cardbus Adapter MODEL NO. : WPC-3007 BRAND NAME : SENAO OEM BRAND NAME : EnGenius APPLICANT : SENAO INTERNATIONAL CO., LTD. TESTED : Oct. 18, 2004 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Oct. 19, 2004 ( Candice Chen ) TECHNICAL ACCEPTANCE :, DATE:Oct. 19, 2004 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Oct. 19, 2004 ( Cody Chang, Deputy Manager ) FCC ID: NI3-AT30V514 Report No.: SA930924L164Issued: Oct. 19, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT IEEE802.11g Cardbus Adapter MODEL NO. WPC-3007 POWER SUPPLY 3.3 Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF C…

Text truncated - open the document above for the full version.

Date/Time: 10/18/04 15:02:02 Test Laboratory: Advance Data Technology WPC-3007 11b Bottom Dell D600 Mode 5 Ch 11 DUT: Atheros 802.11b/g Card Bus Adapter ; Type: WPC-3007 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 14 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.23, 4.23, 4.23) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22 ; Postprocessing SW: SEMCAD, V1.8 Build 127 High Channel/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.265 mW/g High Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.45 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.433 W/kg SAR(1 g) = 0.246 mW/g; SAR(10 g) = 0.140 mW/g Maximum value of SAR (measured) = 0.266 mW/g Date/Time: 10/18/04 16:13:31 Test Laboratory: Advance Data Technology WPC-3007 11b Tip Dell D600 Mode 6 Ch 1 DUT: Atheros 802.11b/g Card Bus Adapter ; Type: WPC-3007 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.23, 4.23, 4.23) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2004/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Low Channel/Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.162 mW/g Low Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.51 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.246 W/kg SAR(1 g) = 0.153 mW/g; SAR(10 g) = 0.092 mW/g Maximum value of SAR (measured) = 0.165 mW/g Date/Time: 10/18/04 15:57:48 Test Laboratory: Advance Data Technology WPC-3007 11b Tip Dell D600 Mode 6 Ch 6 DUT: Atheros 802.11b/g Card Bus Adapter ; Type: WPC-3007 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.23, 4.23, 4.23) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2004/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Middle Channel/Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.382 mW/g Middle Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.7 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 0.602 W/kg SAR(1 g) = 0.360 mW/g; SAR(10 g) = 0.214 mW/g Maximum value of SAR (measured) = 0.388 mW/g Date/Time: 10/18/04 16:29:33 Test Laboratory: Advance Data Technology WPC-3007 11b Tip Dell D600 Mode 6 Ch 11 DUT: Atheros 802.11b/g Card Bus Adapter ; Type: WPC-3007 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.23, 4.23, 4.23) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2004/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 High Channel/Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.127 mW/g High Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.87 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.189 W/kg SAR(1 g) = 0.115 mW/g; SAR(10 g) = 0.069 mW/g Maximum value of SAR (measured) = 0.125 mW/g Date/Time: 10/18/04 15:20:10 Test Laboratory: Advance Data Technology WPC-3007 11g Bottom Dell D600 Mode 7 Ch 1 DUT: Atheros 802.11b/g Card Bus Adapter ; Type: WPC-3007 ; Test Channel Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 14 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.23, 4.23, 4.23) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 …

Text truncated - open the document above for the full version.

D3: DAE

D4: 2450MHz SYSTEM VALIDATION DIPOLE

FCC ID: NI3-AT30V514 Report No.: RF930924L161Issued: Oct. 09, 2004 FCC TEST REPORT REPORT NO.: RF930924L16 MODEL NO.: WPC-3007 RECEIVED: Aug. 30, 2004 TESTED: Sep. 23 ~ Sep. 27, 2004 PREPARED BY: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-AT30V514 Report No.: RF930924L162Issued: Oct. 09, 2004 Table of Contents 1CERTIFICATION............................................................................................................4 2SUMMARY OF TEST RESULTS...................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3GENERAL INFORMATION............................................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................................6 3.2DESCRIPTION OF TEST MODES................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST..........................................................8 4TEST TYPES AND RESULTS.......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.2TEST INSTRUMENTS...................................................................................................9 4.1.3TEST PROCEDURES.................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.......................................................................10 4.1.5TEST SETUP................................................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................................11 4.1.7TEST RESULTS...........................................................................................................12 4.2RADIATED EMISSION MEASUREMENT...................................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................................18 4.2.2TEST INSTRUMENTS.................................................................................................19 4.2.3TEST PROCEDURES.................................................................................................20 4.2.4DEVIATION FROM TEST STANDARD.......................................................................20 4.2.5TEST SETUP...............................................................................................................21 4.2.6EUT OPERATING CONDITIONS................................................................................21 4.2.7TEST RESULTS...........................................................................................................22 4.2.8TEST RESULTS (A).....................................................................................................23 4.2.9TEST RESULTS (B).....................................................................................................29 4.36dB BANDWIDTH MEASUREMENT...........................................................................35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................................35 4.3.2TEST INSTRUMENTS.................................................................................................35 4.3.3TEST PROCEDURE....................................................................................................36 4.3.4DEVIATION FROM TEST STANDARD.......................................................................36 4.3.5TEST SETUP...............................................................................................................36 FCC ID: NI3-AT30V514 Report No.: RF930924L163Issued: Oct. 09, 2004 4.3.6EUT OPERATING CONDITIONS................................................................................36 4.3.7TEST RESULTS (A).....................................................................................................37 4.3.8TEST RESULTS (B).....................................................................................................41 4.4MAXIMUM PEAK OUTPUT POWER..........................................................................45 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................45 4.4.2TEST INSTRUMENTS.................................................................................................45 4.4.3TEST PROCEDURES.................................................................................................46 4.4.4DEVIATION FROM TEST STANDARD.......................................................................46 4.4.5TEST SETUP...............................................................................................................46 4.4.6EUT OPERATING CONDITIONS......…

Text truncated - open the document above for the full version.

FCC ID: NI3-AT30V514 Report No.: RF930924L1670Issued: Oct. 09, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-AT30V514 Report No.: RF930924L1671Issued: Oct. 09, 2004 RADIATED EMISSION TEST
