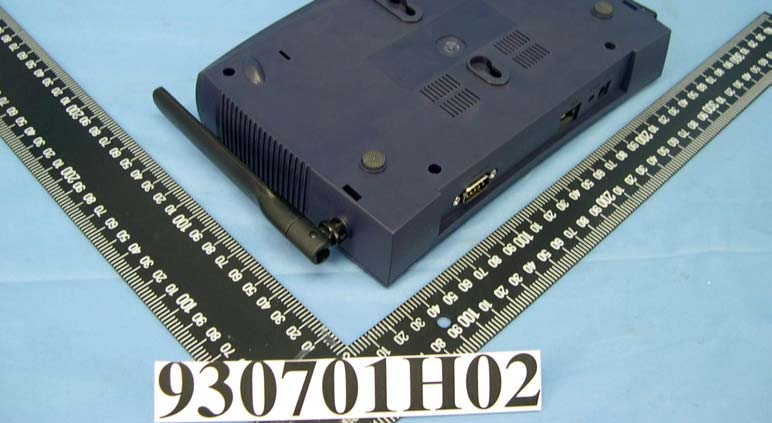

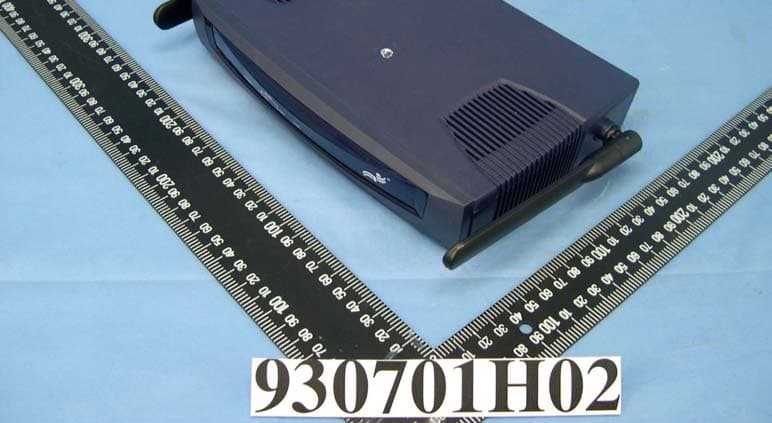

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: NI3-AT53MP52 ADT No.: 930701H021Issued: Sep. 23, 2004 RF EXPOSURE REPORT REPORT NO.: SA930701H02 MODEL NO.: WSR-8001, MP-52, WSR-8002 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:SENAO INTERNATIONAL CO., LTD. ADDRESS:2F, NO. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: NI3-AT53MP52 ADT No.: 930701H022Issued: Sep. 23, 2004 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NI3-AT53MP52 ADT No.: 930701H023Issued: Sep. 23, 2004 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NI3-AT53MP52 ADT No.: 930701H024Issued: Sep. 23, 2004 6 Test Results 6.1 Antenna Gain For 2.4GHz The maximum Gain measured in Fully Anechoic Chamber is 1.27dBi or 1.33968 (numeric). For 5GHz The maximum Gain measured in Fully Anechoic Chamber is 4.5dBi or 2.81838 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241273.790423010.0196665931.0 6243778.162780460.0208319121.0 11246277.268058510.0205934511.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241297.498963770.0259853831.0 62437102.09394840.0272100371.0 112462100.4615790.0267749781.0 Turbo 62437101.39113860.0270227241.0 FCC ID: NI3-AT53MP52 ADT No.: 930701H025Issued: Sep. 23, 2004 For 5GHz Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518047.097732640.0264076121.0 4524047.206304130.0264684881.0 5526052.966344390.0296981321.0 8532053.703179640.0301112741.0 9574545.185594440.025335481.0 13582544.771330420.0251032021.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521047.752927370.0267749781.0 2525045.814188670.0256879311.0 3529066.374307040.0372159521.0 4576045.60369160.0255699061.0 5580046.558609350.0261053261.0

FCC ID: NI3-AT53MP52 Report No.: RF930701H02 1 Issued: Sep. 21, 2004 FCC TEST REPORT REPORT NO.:RF930701H02 MODEL NO.:WSR-8001, MP-52, WSR-8002 RECEIVED:Jul. 01, 2004 TESTED:Sep. 03 to 16, 2004 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 177 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: NI3-AT53MP52 Report No.: RF930701H02 2 Issued: Sep. 21, 2004 Table of Contents 1. CERTIFICATION .................................................................................................................... 6 2. SUMMARY OF TEST RESULTS............................................................................................ 7 3. GENERAL INFORMATION .................................................................................................. 10 3.1 GENERAL DESCRIPTION OF EUT..................................................................................... 10 3.2 DESCRIPTION OF TEST MODES....................................................................................... 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 14 3.4 DESCRIPTION OF SUPPORT UNITS................................................................................. 15 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................................. 16 4. TEST TYPES AND RESULTS (For Part 802.11b)................................................................ 18 4.1 CONDUCTED EMISSION MEASUREMENT....................................................................... 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 18 4.1.2 TEST INSTRUMENTS .........................................................................................................18 4.1.3 TEST PROCEDURES ..........................................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................................ 19 4.1.5 TEST SETUP ....................................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS......................................................................................... 20 4.1.7 TEST RESULTS -With ADAPTER........................................................................................ 21 4.1.8 TEST RESULTS -With POE ................................................................................................. 23 4.2 Radiated Emission Measurement ........................................................................................ 25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 25 4.2.2 TEST INSTRUMENTS .........................................................................................................26 4.2.3 TEST PROCEDURES ..........................................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 27 4.2.5 TEST SETUP ....................................................................................................................... 28 4.2.6 EUT OPERATING CONDITIONS......................................................................................... 28 4.2.7 TEST RESULTS ................................................................................................................... 29 4.2.8 TEST RESULTS - DSSS ......................................................................................................31 4.2.9 TEST RESULTS - OFDM ..................................................................................................... 34 4.3 6dB BANDWIDTH MEASUREMENT ................................................................................... 38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 38 4.3.2 TEST INSTRUMENTS .........................................................................................................38 4.3.3 TEST PROCEDURE ............................................................................................................ 39 4.3.4 DEVIATION FROM TEST STANDARD ................................................................................ 39 4.3.5 TEST SETUP ....................................................................................................................... 39 4.3.6 EUT OPERATING CONDITIONS......................................................................................... 39 4.3.7 TEST RESULTS -DSSS .......................................................................................................40 4.3.8 TEST RESULTS -OFDM ...................................................................................................... 44 4.4 MAXIMUM PEAK OUTPUT POWER ................................................................................... 49 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 49 4.4.2 INSTRUMENTS.................................................................................................................... 49 4.4.3 TEST PRO…

Text truncated - open the document above for the full version.

Report No. 930701H02 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter WHK3.1/18G- 10SS SN4Jun. 8, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930701H02 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. 930701H02 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930701H02 4 Ch1 Report No. 930701H02 5 Ch11 Report No. 930701H02 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930701H02 7 Ch1 Report No. 930701H02 8 Ch11 Report No. 930701H02 9 TEST RESULTS – For 802.11a, Normal mode The spectrum plots are attached on the following 6 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930701H02 10 Ch1 Report No. 930701H02 11 Ch4 Report No. 930701H02 12 Ch5 Report No. 930701H02 13 Ch8 Report No. 930701H02 14 Ch9 Report No. 930701H02 15 Ch13 Report No. 930701H02 16 TEST RESULTS – For 802.11a, Turbo The spectrum plots are attached on the following 5 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930701H02 17 Ch1 Report No. 930701H02 18 Ch2 Report No. 930701H02 19 Ch3 Report No. 930701H02 20 Ch4 Report No. 930701H02 21 Ch5

FCC ID: NI3-AT53MP52 Report No.: RF930701H02173Issued: Sep. 21, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (With Adapter) FCC ID: NI3-AT53MP52 Report No.: RF930701H02174Issued: Sep. 21, 2004 CONDUCTED EMISSION TEST (With POE) FCC ID: NI3-AT53MP52 Report No.: RF930701H02175Issued: Sep. 21, 2004 RADIATED EMISSION TEST (with Adapter) FCC ID: NI3-AT53MP52 Report No.: RF930701H02176Issued: Sep. 21, 2004 RADIATED EMISSION TEST (with POE)
