NI3-AT53V121802.11a/g Dual Band Wireless Access Point

0 802.11a+802.11g Dual Band Wireless Access Point User’s Manual 1 Chapter 1 Introduction 1.1 Feature l Fully interoperable with IEEE 802.11b compliant products. l High-Speed data transfer rate up to 11Mbps. l 64-bit and 128-bit WEP Encryption. l MAC Address filtering. l Web-Based Network Manager/Telnet for Configuring and Managing Your access points. l SNMP MIB I and MIB II supported. l Capable of acting as a DHCP Server. l Remote Management supported. l Firmware Upgrade via WEB/TFTP l IEEE802.1x/RADIUS Client (EAP-MD5/TLS/TTLS) Support 1.2 Package Contents l One CD-ROM with User Guide included l One Power Adapter l One CAT 5 UTP Cable l One Fast Start Guide and One Registration Card Chapter 2 Hardware Configuration 2.1 Hardware Configuration 1. RJ-45 Ethernet connector Provides 10/100 Mbps connectivity to a wired Ethernet LAN. 2. Reset Button By pressing this button for over 3 seconds, the AP will be reset with factory default configuration. 3. Power Supply connector It is for connecting to the power adapter. 2.2 Hardware Installation 1. Configure your notebook or PC with Wireless LAN card. 2. For Wired LAN, connect your PCs’ Ethernet port to any AP’s LAN port by an Ethernet cable. 3. For WLAN, locate the AP to a proper position. 4. Plug the power cord into a power outlet. 2 Chapter 3 Configuring your PC 1. Change the TCP/IP setting of your managing computer. Select the TCP/IP line that has been associated to your network card. Click the Properties button. 2. Make sure the IP address of your computer and the AP are in the same subnet. The default IP address of the access point is 192.168.1.1 and the default subnet mask is 255.255.255.0. 3 3. For WLAN, open the WLAN client utility. Click Configuration tab. Type default SSID (default SSID: wireless) in the Network Name field. Choose “Access Point” for Network Type, then click OK button. Note: the default channel is 6.Configuring the Router through Web Browser Chapter 4 Initial Software Installation and Configuration The access point can be configured through your web browser with the Web-Based Utility. Open your web browser and type the default IP address of the AP in the address field (default IP: 192.168.1.1) and press Enter. Make sure the IP address of AP and your computer are in the same subnet. After the connection is established, you will see the User Login page as shown below. Leave the password field blank when the first time you open the Web-Based utility. You can change the password on the “Administrator settings” page. The system will be time out after idling about 1 minute. You have to login again to re-enter the main setting page. You can change the idle time out period on the “Administrator settings” page. On any page, you can click HELP to obtain more descriptions and explanations. To clear any values you’ve entered on any page, click CANCEL and re-enter information. 4 There are three tabs on the upper right-corner of each page. To go back to the main setting page, press HOME tab. To log out of the web management, press EXIT tab. To complete any change you have made, press RESET tab after clicking APPLY button. 5 Chapter 5 Configuring the Access Point through web browser 5.1.1 Administrator Settings Set a password to restrict management access to the access point. If you want to manage the access point from a remote location (outside of the local network), you must also specify the IP address of the remote PC. Password Settings: To change your password, enter your current password in the “Current Password” box. Enter new password in the “Password” box. Enter it again in the “Re-type password” box to confirm it. Click APPLY to complete your change. The “idle Time Out” is the amount of time of inactivity before the access point will automatically close the Administrator session. Set this to zero to disable it. Remote Management: By default, management access is only available to users on your local network. However, you can also manage the access point from a remote host. Just check the Enable check box and enter the IP address of an administrator to this screen. 6 5.1.2 Firmware Upgrade The firmware information is displayed on this page. You can find firmware version and firmware date here. There are two ways to upgrade the firmware: “Using TFTP” and “Using WEB”. Click “NEXT” button to choose the one you want. l Using TFTP On the managed computer, run the TFTP Server utility. And specify the folder in which the firmware file resides. After running the TFTP server, enter the TFTP server IP and the filename on the following page. Click on APPLY to complete your change. 7 l Using WEB Type the correct firmware file path and file name on the File field. You can click Browse to select the file location. Click on APPLY to complete your change. 5.1.3 Configuration Tools This tool can backup or restore the AP’s configuration. It can also restore the original factory default settings. l Restore Factory default configuration: (1) Chick the “Restore Factory Default Configuration” button and then click NEXT. 8 (2) Click Restore button to force the access point to perform reset and restore the original factory settings. l Backup Setting/Restore Settings: (1) Check the “Backup Settings/Restore Settings” radio button and click NEXT. (2) To save the access point's current configuration to a file named "config.bin" on your PC, click Backup Settings button. (3) To restore configuration, you can use the "Restore Settings" tool to restore the saved configuration of the access point. (4) Enter the path and file name then click Restore Settings button. You can also click Browse to locate and select the previously saved backup file. 9 5.1.4 Status The Status window displays current information and settings for your AP. It has five main parts – LAN, Wireless 11a, Wireless 11g, System Information. 10 For LAN, it displays AP’s IP address, MAC address, and Subnet Mask. It also displays the IP address of the DNS and the number of clients connected by DH…

Text truncated - open the document above for the full version.

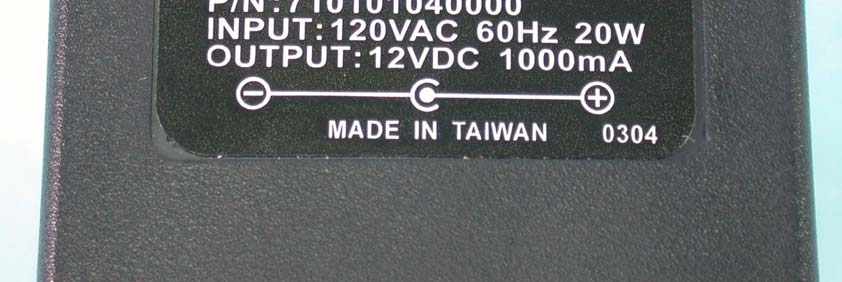

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 14 Page 15 Page 16

LABEL LOCATION FOR FCC ID

SL-5354AP ARIES 40 mm 64 mm FOR HOME OR OFFICE USE Tested To Comply With FCC Standards FCC ID: NI3-AT53V121 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Wireless Solution Provider SL-5354AP ARIE

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: NI3-AT53V121 Report No.920724R01A Technical Description The transmitter of the EUT (802.11a+802.11g Dual Band Wireless Access Point) is powered by power adapter and connected with managing computer through RJ45 port. The antenna is Dipole antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a 802.11a+802.11g Dual Band Wireless Access Point which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: NI3-AT53V121 Report No: 920724R01A 1 RF EXPOSURE REPORT REPORT NO.: RF920724R01A MODEL NO.: SL-5354AP Aries OEM MODEL NO.: NL-5354AP Aries ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 351, CHUNG CHENG RD., HSIEN- TIEN, TAIPEI, TAIWAN, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-AT53V121 Report No: 920724R01A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NI3-AT53V121 Report No: 920724R01A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NI3-AT53V121 Report No: 920724R01A 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 4dBi or 2.51 (numeric) for 2.4GHz and 5dBi or 3.16 (numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241243.850.0221.0 6243741.110.0211.0 11246234.590.0171.0 For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.930.0201.0 6243740.640.0201.0 11246236.980.0181.0 For 802.11a (5GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151806.700.0041.0 4524028.310.0181.0 5526042.170.0271.0 8532049.320.0311.0 9574560.530.0381.0 12580543.750.0281.0 Note: Both of the 2.4GHz and 5GHz bands can transmit simultaneously, the maximum power density value is 0.06 mW/cm 2 , which is less than the 1mW/cm 2 limit.

FCC ID: NI3-AT53V121 Report No.: RF920724R01A1Issued: August 7, 2003 FCC TEST REPORT REPORT NO.: RF920724R01A MODEL NO.: SL-5354AP Aries OEM MODEL NO.: NL-5354AP Aries RECEIVED: July 24, 2003 TESTED: July 18 ~ July 30, 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 351, CHUNG CHENG RD., HSIEN- TIEN, TAIPEI, TAIWAN, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 126 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-AT53V121 Report No.: RF920724R01A2Issued: August 7, 2003 Table of Contents 1.CERTIFICATION .................................................................................................................... 5 2.SUMMARY OF TEST RESULTS............................................................................................ 6 3.GENERAL INFORMATION .................................................................................................... 8 3.1GENERAL DESCRIPTION OF EUT....................................................................................... 8 3.2DESCRIPTION OF TEST MODES......................................................................................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4.TEST TYPES AND RESULTS (FOR PART 802.11b & DRAFT 802.11g) ............................ 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS ................................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT............................................................................ 21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 21 4.2.2TEST INSTRUMENTS ......................................................................................................... 22 4.2.3TEST PROCEDURES .......................................................................................................... 23 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 23 4.2.5TEST SETUP ....................................................................................................................... 24 4.2.6EUT OPERATING CONDITIONS......................................................................................... 24 4.2.7TEST RESULTS ................................................................................................................... 25 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 33 4.3.2TEST INSTRUMENTS ......................................................................................................... 33 4.3.3TEST PROCEDURE ............................................................................................................34 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 34 4.3.5TEST SETUP ....................................................................................................................... 34 4.3.6EUT OPERATING CONDITIONS......................................................................................... 34 4.3.7TEST RESULTS ................................................................................................................... 35 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 43 4.4.2INSTRUMENTS.................................................................................................................... 43 4.4.3TEST PROCEDURES .......................................................................................................... 44 4.4.4DEVIATION FROM TEST STANDARD ................................................................................ 44 4.4.5TEST SETUP ....................................................................................................................... 44 4.4.6EUT OPERATING CONDITIONS......................................................................................... 44 4.4.7TEST RESULTS ................................................................................................................... 45 FCC ID: NI3-AT53V121 Report No.: RF920724R01A3Issued: August 7, 2003 4.5POWER SPECTRAL DENSITY MEASUREMENT......................…

Text truncated - open the document above for the full version.

FCC ID: NI3-AT53V121 Report No.: RF920724R01A81Issued: August 7, 2003 5.3 PEAK TRANSMIT POWER MEASUREMENT 5.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHzThe lesser of 50mW (17dBm) or 4dBm + 10logB 5.25 – 5.35 GHzThe lesser of 250mW (24dBm) or 11dBm + 10logB 5.725 – 5.825 GHzThe lesser of 1W (30dBm) or 17dBm + 10logB Note: Where B is the 26dB emission bandwidth in MHz. 5.3.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: NI3-AT53V121 Report No.: RF920724R01A82Issued: August 7, 2003 5.3.3 TEST PROCEDURE 4. The transmitter output was connected to the spectrum analyzer. 5. Set span to encompass the entire emission bandwidth of the signal. 6. Set RBW to 1MHz, VBW to 300kHz. 7. Using the spectrum analyzer’s channel power measurement function to measure the output power. 5.3.4 DEVIATION FROM TEST STANDARD No deviation 5.3.5 TEST SETUP 5.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: NI3-AT53V121 Report No.: RF920724R01A83Issued: August 7, 2003 5.3.7 TEST RESULTS EUT 802.11a+802.11g Dual Band Wireless Access Point MODEL SL-5354AP Aries ENVIRONMENTAL CONDITIONS 28deg. C, 60%RH, 991 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 151808.2617.0030.86PASS 4524014.5217.0031.34PASS 5526016.2524.0030.62PASS 8532014.9324.0029.42PASS 9574517.8230.0034.31PASS 12580516.4130.0032.71PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: NI3-AT53V121 Report No.: RF920724R01A84Issued: August 7, 2003 CHANNEL 1 FCC ID: NI3-AT53V121 Report No.: RF920724R01A85Issued: August 7, 2003 CHANNEL 4 FCC ID: NI3-AT53V121 Report No.: RF920724R01A86Issued: August 7, 2003 CHANNEL 5 FCC ID: NI3-AT53V121 Report No.: RF920724R01A87Issued: August 7, 2003 CHANNEL 8 FCC ID: NI3-AT53V121 Report No.: RF920724R01A88Issued: August 7, 2003 CHANNEL 9 FCC ID: NI3-AT53V121 Report No.: RF920724R01A89Issued: August 7, 2003 CHANNEL 12 FCC ID: NI3-AT53V121 Report No.: RF920724R01A90Issued: August 7, 2003 CHANNEL 1 FCC ID: NI3-AT53V121 Report No.: RF920724R01A91Issued: August 7, 2003 CHANNEL 4 FCC ID: NI3-AT53V121 Report No.: RF920724R01A92Issued: August 7, 2003 CHANNEL 5 FCC ID: NI3-AT53V121 Report No.: RF920724R01A93Issued: August 7, 2003 CHANNEL 8 FCC ID: NI3-AT53V121 Report No.: RF920724R01A94Issued: August 7, 2003 CHANNEL 9 FCC ID: NI3-AT53V121 Report No.: RF920724R01A95Issued: August 7, 2003 CHANNEL 12 FCC ID: NI3-AT53V121 Report No.: RF920724R01A96Issued: August 7, 2003 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE&SCHWARZ SPECTRUM ANALYZER FSEK30100049July 24, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: NI3-AT53V121 Report No.: RF920724R01A97Issued: August 7, 2003 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=300KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: NI3-AT53V121 Report No.: RF920724R01A98Issued: August 7, 2003 5.4.7 TEST RESULTS EUT 802.11a+802.11g Dual Band Wireless Access Point MODEL SL-5354AP Aries ENVIRONMENTAL CONDITIONS 28deg. C, 60%RH, 991 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 151808.3013PASS 452406.3713PASS 552605.8813PASS 853206.1613PASS 957455.6813PASS 1258056.1113PASS FCC ID: NI3-AT53V121 Report No.: RF920724R01A99Issued: August 7, 2003 CHANNEL 1 FCC ID: NI3-AT53V121 Report No.: RF920724R01A100Issued: August 7, 2003 CHANNEL 4 FCC ID: NI3-AT53V121 Report No.: RF920724R01A101Issued: August 7, 2003 CHANNEL 5 FCC ID: NI3-AT53V121 Report No.: RF920724R01A102Issued: August 7, 2003 CHANNEL 8 FCC ID: NI3-AT53V121 Report No.: RF920724R01A103Issued: August 7, 2003 CHANNEL 9 FCC ID: NI3-AT53V121 Report No.: RF920724R01A104Issued: August 7, 2003 CHANNEL 12

FCC ID: NI3-AT53V121 Report No.: RF920724R01A105Issued: August 7, 2003 5.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 5.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz4dBm 5.25 – 5.35 GHz11dBm 5.725 – 5.825 GHz17dBm 5.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE&SCHWARZ SPECTRUM ANALYZER FSEK30100049July 24, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: NI3-AT53V121 Report No.: RF920724R01A106Issued: August 7, 2003 5.5.3 TEST PROCEDURES 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW=1MHz, VBW=3MHz. The PPSD is the highest level found across the emission in any 1MHz band. 5.5.4 DEVIATION FROM TEST STANDARD No deviation 5.5.5 TEST SETUP 5.5.6 EUT OPERATING CONDITIONS Same as 5.3.6 EUT SPECTRUM ANALYZER FCC ID: NI3-AT53V121 Report No.: RF920724R01A107Issued: August 7, 2003 5.5.7 TEST RESULTS EUT 802.11a+802.11g Dual Band Wireless Access Point MODEL SL-5354AP Aries ENVIRONMENTAL CONDITIONS 28deg. C, 60%RH, 991 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Ansen Lei CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15180-10.054PASS 45240-2.344PASS 55260-1.3411PASS 853200.7011PASS 95745-0.4317PASS 125805-0.5917PASS FCC ID: NI3-AT53V121 Report No.: RF920724R01A108Issued: August 7, 2003 CHANNEL 1 FCC ID: NI3-AT53V121 Report No.: RF920724R01A109Issued: August 7, 2003 CHANNEL 4 FCC ID: NI3-AT53V121 Report No.: RF920724R01A110Issued: August 7, 2003 CHANNEL 5 FCC ID: NI3-AT53V121 Report No.: RF920724R01A111Issued: August 7, 2003 CHANNEL 8 FCC ID: NI3-AT53V121 Report No.: RF920724R01A112Issued: August 7, 2003 CHANNEL 9 FCC ID: NI3-AT53V121 Report No.: RF920724R01A113Issued: August 7, 2003 CHANNEL 12 FCC ID: NI3-AT53V121 Report No.: RF920724R01A114Issued: August 7, 2003 5.6 FREQUENCY STABILITY 5.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 5.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ANRITSU SPECTRUM ANALYZERMS2667CM10281Apr. 10, 2004 WIT STANDARD TEMPERATURE AND HUMIDITY CHAMBER TH-4S-CW901030Jul. 17, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 5.6.3 TEST PROCEDURE 1. The EUT was placed inside the environmental test chamber and powered by nominal DC voltage. 2. Turn the EUT on and couple its output to a spectrum analyzer. 3. Turn the EUT off and set the chamber to the highest temperature specified. 4. Allow sufficient time (approximately 30 min) for the temperature of the chamber to stabilize, turn the EUT on and measure the operating frequency after 2, 5, and 10 minutes. 5. Repeat step 2 and 3 with the temperature chamber set to the lowest temperature. 6. The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply voltage was then adjusted on the EUT from 85% to 115% and the frequency record. FCC ID: NI3-AT53V121 Report No.: RF920724R01A115Issued: August 7, 2003 5.6.4 DEVIATION FROM TEST STANDARD No deviation 5.6.5 TEST SETUP 5.6.6 EUT OPERATING CONDITION Same as Item 4.1.6 Spectrum Analyzer DC Power Supply Temperature FCC ID: NI3-AT53V121 Report No.: RF920724R01A116Issued: August 7, 2003 5.6.7 TEST RESULTS Operating frequency: 5320MHzLimit : ± 0.02% 2 minute5 minute10 minute Temp. (°C) Power supply (VDC) (MHz)(%)(MHz)(%)(MHz)(%) 93.5 5319.9994-0.00001135320.00090.00001695320.00190.0000357 110 5319.9992-0.00001505320.00060.00001135320.00180.0000338 50 126.5 5319.9996-0.00000755320.00070.00001325320.00210.0000395 93.5 5319.9778-0.00041735319.9788-0.00039855319.9796-0.0003835 110 5319.9776-0.00042115319.9786-0.00040235319.9792-0.0003910 40 126.5 5319.9777-0.00041925319.9789-0.00039665319.9794-0.0003872 93.5 5319.9667-0.00062595319.9668-0.00062415319.9668-0.0006241 110 5319.9666-0.00062785319.9667-0.00062595319.9669-0.0006222 30 126.5 5319.9668-0.00062415319.9667-0.00062595319.9669-0.0006222 93.5 5319.9630-0.00069555319.9630-0.00069555319.9627-0.0007011 110 5319.9630-0.00069555319.9631-0.00069365319.9626-0.0007030 20 126.5 5319.9631-0.00069365319.9629-0.00069745319.9628-0.0006992 93.5 5319.9596-0.00075945319.9590-0.00077075319.9592-0.0007669 110 5319.9596-0.00075945319.9592-0.00076695319.9590-0.0007707 10 126.5 5319.9595-0.00076135319.9591-0.00076885319.9593-0.0007650 93.5 5319.9585-0.00078015319.9588-0.00077445319.9588-0.0007744 110 5319.9586-0.00077825319.9588-0.00077445319.9587-0.0007763 0 126.5 5319.9586-0.00077825319.9587-0.00077635319.9589-0.0007726 93.5 5319.9630-0.00069555319.9632-0.00069175319.9637-0.0006823 110 5319.9632-0.00069175319.9634-0.00068805319.9636-0.0006842 -10 126.5 5319.9633-0.00068985319.9634-0.00068805319.9634-0.0006880 93.5 5319.9715-0.00053575319.9717-0.00053205319.9719-0.0005282 110 5319.9716-0.00053385319.9717-0.00053205319.9718-0.0005301 -20 126.5 5319.9716-0.00053385319.9718-0.00053015319.9718-0.0005301 93.5 5319.9772-0.00042865319.9779-0.00041545319.9778-0.0004173 110 5319.9774-0.00042485319.9778-0.00041735319.9779-0.0004154 -30 126.5 5319.9776-0.00042115319.9778-0.00041735319.9779-0.0004154 FCC ID: NI3-AT53V121 Report No.: RF920724R01A117Issued: August 7, 2003 5.7 BAND EDGES MEASUREMENT 5.7.1 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 5.7.2 TEST PROCEDURE The transmitter output was connected to the spectrum…

Text truncated - open the document above for the full version.

FCC ID: NI3-AT53V121 Report No.: RF920724R01A124Issued: August 7, 2003 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-AT53V121 Report No.: RF920724R01A125Issued: August 7, 2003 RADIATED EMISSION TEST
