NI3-AT53V214Atheros 11a/g Card Bus Adapter

1 High-Speed Wireless Cardbus Adapter User’s Manual Contents CHAPTER 1 INTRODUCTION................................................................................................................2 1-1 PACKAGE CONTENTS.......................................................................................................................................3 1-2 PC CARD DESCRIPTION...................................................................................................................................3 1-3 SYSTEM REQUIREMENTS.................................................................................................................................4 Version: 1.1 2 1-4 FEATURES AND BENEFITS...............................................................................................................................4 1-5 APPLICATIONS...................................................................................................................................................4 1-6 NETWORK CONFIGURATIONS.........................................................................................................................5 CHAPTER 2 INSTALLING DRIVERS & CLIENT UTILITY........................................................8 2-1 INSTALLATION FOR WINDOWS 98SE/ME/2000/XP....................................................................................8 2- 2 CHECKING AFTER INSTALLATION...............................................................................................................10 2- 3 IEEE 802.11 WLAN NIC CLIENT UTILITY.............................................................................................11 2- 4 UNINSTALLING DRIVER AND UTILITY........................................................................................................15 CHAPTER 3 CONNECTING TO A NETWORK.............................................................................15 3-1 CHECKING AND ADDING CLIENT FOR MICROSOFT NETWORKS..............................................................16 3-2 CHECKING AND ADDING NETBEUI.............................................................................................................16 3-3 CHECKING AND ADDING TCP/IP.................................................................................................................16 3-4 CHECKING AND ADDING FILE AND PRINTER SHARING FOR MICROSOFT...............................................17 NETWORKS.............................................................................................................................................................17 3-5 CHECKING AND ADDING COMPUTER NAME & WORKGROUP NAME.....................................................18 CHAPTER 4 TROUBLESHOOTING...................................................................................................19 APPENDIX A PRODUCT SPECIFICATIONS...................................................................................................22 APPENDIX B REGULATORY COMPLIANCE INFORMATION.......................................................................24 Chapter 1 Introduction The Dual-Band Wireless A/G Cardbus Adapter operates seamlessly and simultaneouslyin both the 2.4GHz and 5GHz frequency spectrum supporting the 802.11b (2.4GHz, 11Mbps) and the newer, faster 802.11a (5GHz, 54Mbps/108Mbps turbo mode) and 802.11g (2.4GHz, 54MHz) wireless 3 standards. It’s the best way to add wireless capability to your existing wired network, or to add bandwidth to your wirless installation. To protect your wireless connectivity, the Dual-Band Wireless A/G Cardbus Adapter can encrypt all wireless transmissions through 64/128/152-bit WEP data encryption. Dynamic Frequency Selection (DFS) puts your network on the cleanest channel in your location. With the Dual-Band Wireless Cardbus Adapter, you will experience the bes wireless connectivity nowadays. 1-1 Package Contents The PC Card package contains the following items. 1. One PC Card 2. One Quick Installation Guide 3. One Installation CD 1-2 PC Card Description The PC Card is a standard PC Card that fits into any PCMCIA Card Type II slot. The PC Card has a LED as shown in Figure 1-1. Figure 1-1 1. Link LED 802.11 AdHoc mode – Blinking, no matter the wireless is connected or not Infrastructure – Solid GREEN when the wireless is connected Off – No wireless activity 4 1-3 System Requirements Installation of the PC Card requires: Laptop PC containing : – 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter) – 32 MB memory or greater – 300 MHz processor or higher Microsoft Windows 2000/Windows Millennium Edition/Windows 98 Second Edition/Windows XP/Windows NT 4.0 (with Service Pack 6) 1-4 Features and Benefits 2.4GHz IEEE802.11b/g (draft) standard and 5GHz IEEE802.11a standard compliant Fully interoperable with IEEE802.11a/b/g (draft) compliant products. Up to 54Mbps and 108Mbps (turbo mode) high-speed data rates Capable of handling heavy data payloads such as MPEG video streaming. Up to 152-bit WEP Data Encryption with TKIP Powerful data security. IEEE802.11x Client support (Optional) Enhances authentication and security. Transmission Power Control (TPC) support Offers flexibility to adjust RF output power. Multi-country Roaming (802.11d) support Automatically adjusts regulatory domain to operate in different countries. 1-5 Applications The wireless LAN products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of wireless LANs: 1. Difficult-to-wire environments There are many situations where wires can not or not easily be laid. Historic buildings, older buildings, open areas and across busy streets make the installation of LANs either impossible or very expensive. 2. Temporary workgroups Consider situations in parks, athletic arenas, exhibitions, disaster-recovery, temporary office and construction sites where one wants a temporary WLAN established and removed. 3. T…

Text truncated - open the document above for the full version.

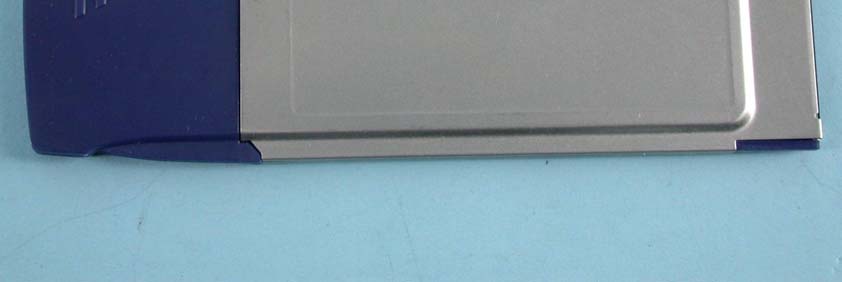

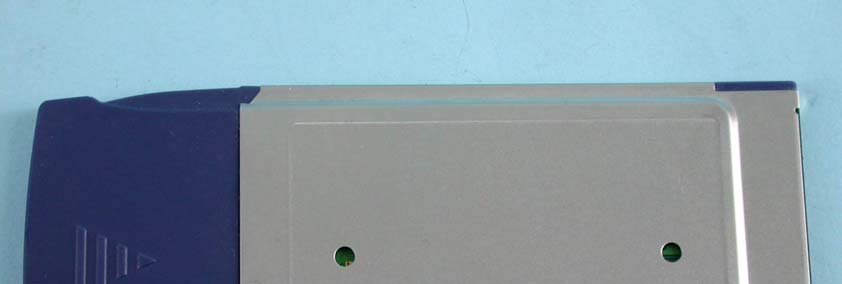

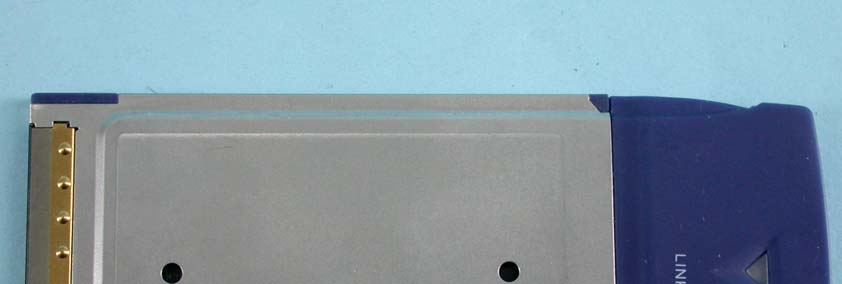

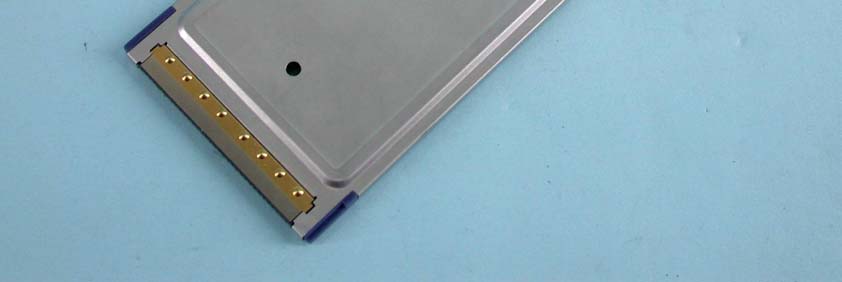

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

Page 3 Page 4

FCC ID: NI3-AT53V214 Report No.921202R07 Technical Description The transmitter of the EUT (Atheros 11a/g Card Bus Adapter) is powered by host equipment via a PCMCIA interface. The antenna type used in this product is printed antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is an Atheros 11a/g Card Bus Adapter, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: NI3-AT53V214 Report No.: SA921203R04A1Issued: February 10, 2004 Reference No.: SA921203R04 SAR TEST REPORT REPORT NO.: SA921203R04A MODEL NO.: NL-5354CB Plus Aries2 RECEIVED: NA TESTED: Dec. 11, 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 CHUNG CHENG RD., HSIN- TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 42 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-AT53V214 Report No.: SA921203R04A2Issued: February 10, 2004 Reference No.: SA921203R04 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................16 5.TEST RESULTS ........................................................................................................17 5.1 TEST PROCEDURES ...............................................................................................17 5.2 MEASURED SAR RESULT .......................................................................................18 5.3 SAR LIMITS...............................................................................................................20 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................27 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................30 6.SYSTEM VALIDATION ..............................................................................................31 6.1 TEST EQUIPMENT ...................................................................................................31 6.2 TEST PROCEDURE .................................................................................................31 6.3 VALIDATION RESULT...............................................................................................34 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................35 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................36 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................36 7.2 ISOTROPY UNCERTAINTY......................................................................................36 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................37 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................37 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................37 7.6 RESPONSE TIME UNCERTAINTY...........................................................................38 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................39 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................39 7.9 PROBE POSITIONING .............................................................................................40 7.10 PHANTOM UNCERTAINTY ......................................................................................40 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................41 8.INFORMATION ON THE TESTING LABORATORIES ..............................................42 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-AT53V214 Report No.: SA921203R04A3Issued: February 10, 2004 Reference No.: SA921203R04 1. CERTIFICATION PRODUCT : Atheros 11a/g Card Bus Adapter MODEL NO. : NL-5354CB Plus Aries2 BRAND NAME : SENAO APPLICANT : SENAO INTERNATIONAL CO., LTD. TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on December 11, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: NI3-AT53V214 Report No.: SA921203R04A4Issued: February 10, 2004 Reference No.: SA921203R04 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Atheros 11a/g Card Bus Adapter MODEL NO. NL-5354CB Plus Aries2 POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS/OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps Turbo mode: up to 108Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 21.38…

Text truncated - open the document above for the full version.

Date/Time: 12/11/03 20:05:38 Test Laboratory: Advance Data Technology NL-5354CB Plus Aries211.b DELL D400 Mode 8 DUT: Atheros 11g CardBus Adapter ; Type: NL-5354CB Plus Aries2 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.046 mho/m, ε r = 51.6535, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2003/6/2 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 20.7 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.925 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.19 W/kg SAR(1 g) = 0.816 mW/g; SAR(10 g) = 0.311 mW/g Reference Value = 20.7 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.915 mW/g Date/Time: 12/11/03 20:18:40 Test Laboratory: Advance Data Technology NL-5354CB Plus Aries2 11.b DELL D400 Mode 9 DUT: Atheros 11g CardBus Adapter ; Type: NL-5354CB Plus Aries2 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.984 mho/m, ε r = 51.7695, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 14mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 3.77 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.0524 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.12 W/kg SAR(1 g) = 0.0539 mW/g; SAR(10 g) = 0.0261 mW/g Reference Value = 3.77 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.0567 mW/g Date/Time: 12/11/03 20:43:40 Test Laboratory: Advance Data Technology NL-5354CB Plus Aries2 11.b DELL D400 Mode 9 DUT: Atheros 11g CardBus Adapter ; Type: NL-5354CB Plus Aries2 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.016 mho/m, ε r = 51.7112, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 14mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 4.66 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.079 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.175 W/kg SAR(1 g) = 0.0741 mW/g; SAR(10 g) = 0.0361 mW/g Reference Value = 4.66 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.0847 mW/g Date/Time: 12/11/03 21:08:40 Test Laboratory: Advance Data Technology NL-5354CB Plus Aries2 11.b DELL D400 Mode 9 DUT: Atheros 11g CardBus Adapter ; Type: NL-5354CB Plus Aries2 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.046 mho/m, ε r = 51.6535, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 14mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 4.52 V/m Power Drift = -0.01 dB Maximum value of SAR = 0.0769 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.175 W/kg SAR(1 g) = 0.0735 mW/g; SAR(10 g) = 0.0359 mW/g Reference Value = 4.52 V/m Power Drift = -0.01 dB Maximum value of SAR = 0.0832 mW/g Date/Time: 01/17/04 15:23:44 Test Laboratory: Advance Data Technology NL-5354CB Plus Aries2 11.g DELL C600 Mode 10 DUT: Atheros 11g CardBus Adapter ; Type: NL-5354CB Plus Aries2 ; Test Channel Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: OFDM Medium: MSL2450 (σ = 1.978 mho/m, ε r = 51.2729, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 6/18/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 6/2/2003 - Phantom: SAM Twin Phantom …

Text truncated - open the document above for the full version.

Date/Time: 12/11/03 08:51:12 Test Laboratory: Advance Data Technology SystemPerformanceCheck-Body 2450-2003-12-11 DUT: Dipole 2450 MHz ; Type: D2450V2 Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450 (σ = 2.032 mho/m, ε r = 51.6862, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10mm(The feetpoint of the dipole to the Phantom) Air temp. : 23.0 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55.8 V/m Power Drift = -0.1 dB Maximum value of SAR = 5.75 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 12.3 W/kg SAR(1 g) = 5.2 mW/g; SAR(10 g) = 2.4 mW/g Reference Value = 55.8 V/m Power Drift = -0.1 dB Maximum value of SAR = 5.6 mW/g Date/Time: 01/17/04 13:31:26 Test Laboratory: Advance Data Technology System Validation Check-MSL2450MHz 2004-01-17 DUT: Dipole 2450 MHz ; Type: D2450V2 Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450 (σ = 2.026 mho/m, ε r = 51.117, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10mm(The feetpoint of the dipole to the Phantom) Air temp. : 22.0 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 6/18/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 59.8 V/m Power Drift = -0.2 dB Maximum value of SAR = 6.57 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 13.2 W/kg SAR(1 g) = 5.83 mW/g; SAR(10 g) = 2.61 mW/g Reference Value = 59.8 V/m Power Drift = -0.2 dB Maximum value of SAR = 6.35 mW/g APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

FCC ID: NI3-AT53V214 Report No.: RF921202R071Issued: January 19, 2004 FCC TEST REPORT REPORT NO.: RF921202R07 MODEL NO.: NL-5354CB Plus Aries2 RECEIVED: October 15, 2003 TESTED: October 28, 2003 ~ January 05, 2004 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 173 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-AT53V214 Report No.: RF921202R072Issued: January 19, 2004 Table of Contents 1.CERTIFICATION ............................................................................................ 5 2.SUMMARY OF TEST RESULTS .................................................................... 6 3.GENERAL INFORMATION............................................................................. 8 3.1GENERAL DESCRIPTION OF EUT............................................................... 8 3.2DESCRIPTION OF TEST MODES................................................................. 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................. 10 3.4DESCRIPTION OF SUPPORT UNITS ......................................................... 11 3.5CONFIGURATION OF SYSTEM UNDER TEST.......................................... 11 4.EST TYPES AND RESULTS (For Part 802.11b & draft 802.11g) ................. 12 4.1CONDUCTED EMISSION MEASUREMENT ............................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................. 12 4.1.2TEST INSTRUMENTS ................................................................................. 12 4.1.3 TEST PROCEDURES ................................................................................. 13 4.1.4 DEVIATION FROM TEST STANDARD........................................................ 13 4.1.5 TEST SETUP .............................................................................................. 14 4.1.6 EUT OPERATING CONDITIONS ................................................................ 14 4.1.7 TEST RESULTS .......................................................................................... 15 4.2 RADIATED EMISSION MEASUREMENT ................................................... 21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 21 4.2.2 TEST INSTRUMENTS ................................................................................ 22 4.2.3 TEST PROCEDURES ................................................................................. 23 4.2.4 DEVIATION FROM TEST STANDARD....................................................... 23 4.2.5 TEST SETUP .............................................................................................. 24 4.2.6 EUT OPERATING CONDITIONS ................................................................ 24 4.2.7 TEST RESULTS .......................................................................................... 25 4.2.8 TEST RESULTS ( A )................................................................................... 27 4.2.9 TEST RESULTS ( B ) .................................................................................. 30 4.2.10 TEST RESULTS ( C ) .................................................................................. 33 4.3 6dB BANDWIDTH MEASUREMENT........................................................... 34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 34 4.3.2 TEST INSTRUMENTS ................................................................................ 34 4.3.3 TEST PROCEDURE ................................................................................... 35 4.3.4 DEVIATION FROM TEST STANDARD....................................................... 35 4.3.5 TEST SETUP .............................................................................................. 35 4.3.6 EUT OPERATING CONDITIONS ................................................................ 35 4.3.7 TEST RESULTS (A) .................................................................................... 36 4.3.8 TEST RESULTS (B) .................................................................................... 40 4.3.9 TEST RESULTS (C) .................................................................................... 44 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 46 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 46 4.4.2 TEST INSTRUMENTS ................................................................................ 46 4.4.3 TEST PROCEDURES ................................................................................. 47 4.4.4 DEVIATION FROM TEST STANDARD....................................................... 47 4.4.5 TEST SETUP .............................................................................................. 47 FCC ID: NI3-AT53V214 Report No.: RF921202R073Issued: January 19, 2004 4.4.6EUT OPERATING CONDITIONS ................................................................. 47 4.4.7TEST RESULTS (A) ..................................................................................... 48 4.4.8TEST RESULTS (B) ..................................................................................... 49 4.4.9TEST RESULTS (C) ..................................................................................... 49 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................... 50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .................... 50 4.5.2TEST INSTRUMENTS ...…

Text truncated - open the document above for the full version.

FCC ID: NI3-AT53V214 Report No.: RF921202R0791Issued: January 19, 2004 EUT Atheros 11a/g Card Bus Adapter MODEL NL-5354CB Plus Aries2 FREQUENCY RANGE 1-25GHz CHANNEL 4 ENVIRONMENTAL CONDITIONS 15deg. C, 65%RH, 991hPa DETECTOR FUNCTION Peak(PK) Average (AV) INPUT POWER (SYSTEM) 120Vac, 60Hz TESTED BY Hardaway Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Ta b l e Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1*5240.00107.53 PK1.79 H28371.0336.50 1*5240.0098.08 AV1.79 H28361.5836.50 210480.0061.11 PK68.30-7.191.00 H23515.7045.41 3#15720.0063.91 PK74.00-10.091.24 H21616.8047.11 3#15720.0049.72 AV54.00-4.281.24 H2162.6147.11 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Ta b l e Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1*5240.00107.38 PK1.42 V21170.8836.50 1*5240.0098.30 AV1.42 V21161.8036.50 210480.0066.72 PK68.30-1.581.44 V26721.3145.41 3#15720.0060.58 PK74.00-13.421.01 V13913.4747.11 3#15720.0047.53 AV54.00-6.471.01 V1390.4247.11 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5 “*” : Fundamental frequency 6. “# “ : The radiated frequency falling in the restricted band. FCC ID: NI3-AT53V214 Report No.: RF921202R0792Issued: January 19, 2004 EUT Atheros 11a/g Card Bus Adapter MODEL NL-5354CB Plus Aries2 FREQUENCY RANGE 1-25GHz CHANNEL 5 ENVIRONMENTAL…

Text truncated - open the document above for the full version.
