NI3-IS20V311-PLUSLong Range Wireless PCMCIA Card

Wireless LAN Card User Guide Before operating the unit, please read this manual and retain it for future The user guide is fit for both Wireless LAN Card and Long Range Wireless LAN Card 2 Contents 1. Introduction 1 1.1 Package Contents 1 1.2 PC Card Description 1 1.3 System Requirements 2 1.4 Features and Benefits 2 1.5 Applications 2 1.6 Network Configurations 3 2. Installing Driver and Utility 7 2.1 Installation for Windows 98/ME/2000/XP 7 2.2 Checking after Installation 14 2.3 Wireless LAN Client Utility 16 2.4 Uninstalling Driver and Utility 29 3. Connecting to a Network 29 3.1 Checking and Adding Client for Microsoft Networks 29 3.2 Checking and Adding NetBEUI 31 3.3 Checking and Adding TCP/IP 32 3.4 Checking and Adding File and Printer Sharing for Microsoft Networks 33 3.5 Checking and Adding Computer Name and Workgroup Name 33 4. Troubleshooting 34 Appendix A Product Specifications 37 Appendix B Regulatory Compliance Information 39 1 Chapter 1 Introduction This chapter describes the package contents, PC Card description, system requirements, features & benefits, applications and network configurations of our wireless LAN products. 1-1 Package Contents The PC Card package contains the following items as shown in Figure 1-1 1. One PC Card 2. One Installation CD 3. One Quick Installation Guide Figure 1-1 1- 2 PC Card Descriptions The PC Card is a standard PC Card that fits into any PCMCIA Card Type II slot. The PC Card has a LED indicator and an integrated built-in diversity antenna as shown in Figure 1-2. Figure 1-2 1. Integrated, with built-in diversity Antenna 2. Link LED ! Peer-to-Peer – Blinking, no matter the wireless is connected or not ! Access Point – Solid GREEN when the wireless is connected ! Off – No wireless activity Wireless LAN PC Card Quick Installation Guide Wi rel ess LAN PC Ca r d I nstal lati on CD IEEE 802.11b 1 2 2 1- 3 System Requirements Installation of the PC Card requires: 1. PC/AT compatible computer with PCMCIA Type II slot. 2. Windows 98//ME/NT 4.0/2000/XP operating system environment. 3. Minimum 1.3M bytes free disk space for installing the PC Card driver and utility program. 1- 4 Features and Benefits 11Mbps data transfer rate High-speed data transmission High transmit output power (Long Range PC Card Only) Long operating range, up to three times range of standard products IEEE 802.11b compliant Fully interoperable with IEEE 802.11b compliant products Automatic data rate scaling at 11, 5.5, 2 and 1 Mbps Optimized throughput, range And connectivity Improved 64/128-bit WEP Engine Significantly improved throughput Wide coverage range up to 600/1200(Long Range PC Card only) meters in open space Wireless connectivity for all your computers Advanced Power Management Extended battery life Plug and Play PC Card interface Easy installation Significantly improved indoor multipath distortion Higher link quality in indoor environment 1- 5 Applications The wireless LAN products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of wireless LANs: 1. Difficult-to-wire environments There are many situations where wires cannot or not easily be laid. Historic buildings, older buildings, open areas and across busy streets make the installation of LANs either impossible or very expensive. 2. Temporary workgroups Consider situations in parks, athletic arenas, exhibitions, disaster-recovery, temporary office and construction sites where one wants a temporary WLAN established and removed. 3 3. The ability to access real-time information Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while dealing with patients, serving customers and processing information. 4. Frequently changed environments Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently rearrange the workplace. 5. Small Office and Home Office (SOHO) networks SOHO users need a cost-effective, easy and quick installation of a small network. 6. Wireless extensions to Ethernet networks Network managers in dynamic environments can minimize the overhead caused by moves, extensions to networks, and other changes with wireless LANs. 7. Wired LAN backup Network managers implement wireless LANs to provide backup for mission-critical applications running on wired networks. 8. Training/Educational Facilities Training sites at corporations and students at universities use wireless connectivity to ease access to information, information exchanges, and learning. 1- 6 Network Configurations To better understand how the wireless LAN products work together to create a wireless network, it might be helpful to depict a few of the possible wireless LAN PC card network configurations. The wireless LAN products can be configured as: 1. Ad-hoc (or peer-to-peer) for departmental or SOHO LANs. 2. Infrastructure for enterprise LANs. 3. IP Sharing for 56K/ISDN TA/Cable/DSL Modem – Connect Internet and your SOHO network. Ad-Hoc (peer-to-peer) Mode This is the simplest network configuration that several computers equipped with the PC Cards that form a wireless network whenever they are within range of one another (Figure 1-3). In ad-hoc mode, each client, is peer-to-peer, would only have access to the resources of the other client and requires no the access point. This is the easiest and least expensive way for the SOHO to set up a wireless network. 4 Figure 1-3 A wireless Ad-hoc network Infrastructure Mode The infrastructure mode requires the use of an access point (AP). In this mode, all wireless communications between two computers have to be via the AP no matter the AP is wired to Ethernet network or stand-alone. If used in stand-alone, the AP can extend the range of independent wireless LANs by acting a repeater, which effectively doubling the distance between wireless stations as shown in Figure 1-4. Figure 1-4 Extended-range independent WLAN using AP as repeater If w…

Text truncated - open the document above for the full version.

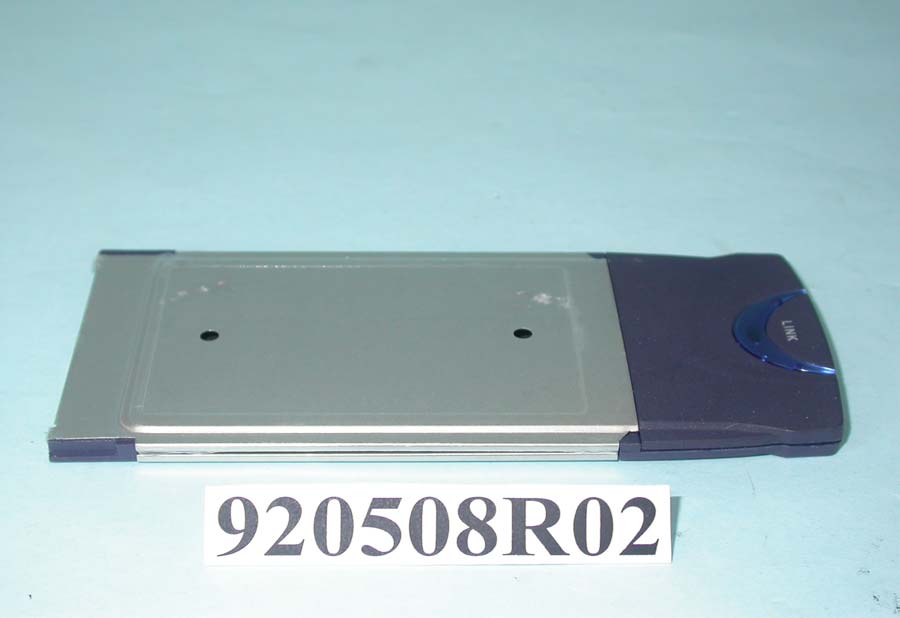

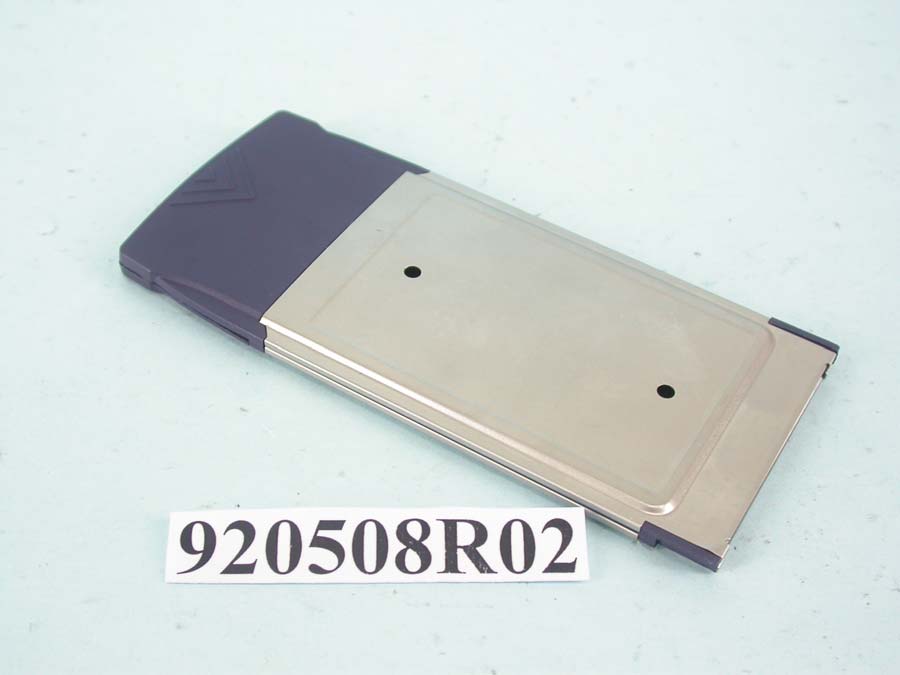

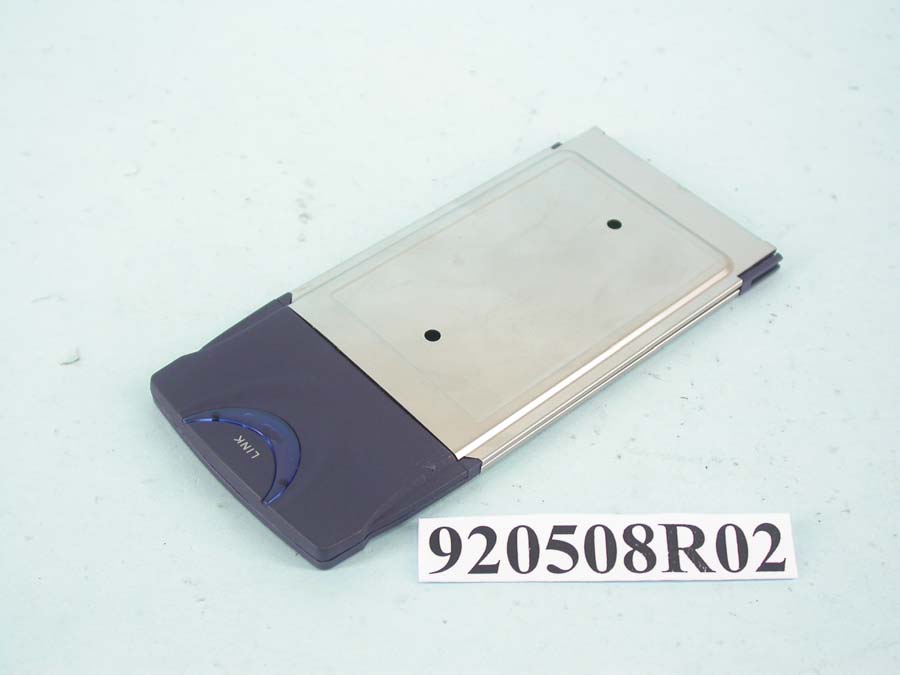

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

LABEL LOCATION FOR FCC ID

Page 3 Page 4 Page 5

FCC ID: NI3-IS20V311-PLUS Report No.920508R02 Operational Description The transmitter of the EUT is powered by host equipment. The antenna used in this product is Printed antenna without connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

Page 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 Page 2 Mode 2 Page 3 Mode 3 Page 4 EUT Photo Page 5 Liquid Level Photo 2450MHz D=152mm Date/Time: 05/25/03 18:47:12 Test Laboratory: Advance Data Technology SL-2511CD2 PLUS MERCURY Mode 1 DUT: Long Range Wireless PCMCIA Card ; Type: SL-2511 CD2 PLUS MERCURY ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.887 mho/m, ε r = 52.27, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; Calibrated: 2003/1/14 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (5x7x1): Measurement grid: dx=20mm, dy=20mm Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0418 W/kg SAR(1 g) = 0.0254 mW/g; SAR(10 g) = 0.0145 mW/g Reference Value = 4.05 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0276 mW/g Date/Time: 05/25/03 18:47:12 Test Laboratory: Advance Data Technology SL-2511CD2 PLUS MERCURY Mode 1 DUT: Long Range Wireless PCMCIA Card ; Type: SL-2511 CD2 PLUS MERCURY ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.91 mho/m, ε r = 52.2, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; Calibrated: 2003/1/14 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (5x6x1): Measurement grid: dx=20mm, dy=20mm Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0539 W/kg SAR(1 g) = 0.0295 mW/g; SAR(10 g) = 0.0159 mW/g Reference Value = 4.23 V/m Power Drift = -0.4 dB Maximum value of SAR = 0.0338 mW/g Date/Time: 05/25/03 18:47:12 Test Laboratory: Advance Data Technology SL-2511CD2 PLUS MERCURY Mode 1 DUT: Long Range Wireless PCMCIA Card ; Type: SL-2511 CD2 PLUS MERCURY ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.95 mho/m, ε r = 52.04, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; Calibrated: 2003/1/14 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (5x7x1): Measurement grid: dx=20mm, dy=20mm Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0504 W/kg SAR(1 g) = 0.0294 mW/g; SAR(10 g) = 0.0155 mW/g Reference Value = 4.19 V/m Power Drift = -0.5 dB Maximum value of SAR = 0.0336 mW/g Date/Time: 05/25/03 21:51:32 Test Laboratory: Advance Data Technology SL-2511CD2 PLUS MERCURY Mode 2 DUT: Long Range Wireless PCMCIA Card ; Type: SL-2511 CD2 PLUS MERCURY ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.887 mho/m, ε r = 52.27, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 15mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; Calibrated: 2003/1/14 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0427 W/kg SAR(1 g) = 0.0128 mW/g; SAR(10 g) = 0.00675 mW/g Reference Value = 2.75 V/m Power Drift = -0.3 dB Maximum value of SAR = 0.0151 mW/g Date/Time: 05/25/03 21:51:32 Test Laboratory: Advance Data Technology SL-2511CD2 PLUS MERCURY Mode 2 DUT: Long Range Wireless PCMCIA Card ; Type: SL-2511 CD2 PLUS MERCURY ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.91 mho/m, ε r = 52.2, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 15mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; Calibrated: 2003/1/14 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHz SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FILED PROBE ET3DV6 SN:1687 June 5, 2002 Isotropy Error (Φ), θ = 0 ̊ ET3DV6 SN:1687 June 5, 2002 Frequency Response of E-Field (TEM – Cell:ifi110, Waveguide R22) Dynamic Range f (SAR brain ) (Waveguide R22) 1.E+7 1.E+6 1.E+5 1.E+4 1.E+3 1.E+2 1.E+1 1.E+0 mW/cm 3 not compensated compensated μ μμ μV 0.0001 0.001 0.01 0.1 1 10 100 ET3DV6 SN:1687September 28, 2002 Conversion Factor Assessment

FCC ID: NI3-IS20V311-PLUS Report No.: SA920508R021Issued: May 28 th 2003 SAR TEST REPORT REPORT NO.: SA920508R02 MODEL NO.: SL-2511CD2 PLUS MERCURY RECEIVED: May 21 2003 TESTED: May 25 2003 APPLICANT: SENAO INTERNATIONAL CO.,LTD ADDRESS: 252,Shang Ying Road,Kuei San Taoyuan Shien 333,Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: NI3-IS20V311-PLUS Report No.: SA920508R022Issued: May 28 th 2003 Table of Contents 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION AND PROBE SCAN 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................ 13 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 14 5.TEST RESULTS ...................................................................................................................... 15 5.1TEST PROCEDURES .............................................................................................................15 5.2MEASURED SAR RESULT ..................................................................................................... 16 5.3SAR LIMITS ............................................................................................................................. 18 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 20 6.SYSTEM VALIDATION ............................................................................................................21 6.1TEST EQUIPMENT ................................................................................................................. 21 6.2TEST PROCEDURE................................................................................................................ 21 6.3VALIDATION RESULT............................................................................................................. 23 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 25 7.1PROBE CALIBRATION UNCERTAINTY ................................................................................. 25 7.2ISOTROPY UNCERTAINTY .................................................................................................... 25 7.3BOUNDARY EFFECT UNCERTAINTY ................................................................................... 26 7.4PROBE LINEARITY UNCERTAINTY ...................................................................................... 26 7.5READOUT ELECTRONICS UNCERTAINTY .......................................................................... 26 7.6RESPONSE TIME UNCERTAINTY ......................................................................................... 27 7.7INTEGRATION TIME UNCERTAINTY .................................................................................... 28 7.8PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 28 7.9PROBE POSITIONING............................................................................................................29 7.10 PHANTOM UNCERTAINTY..................................................................................................... 29 7.11 DASY4 UNCERTAINTY BUDGET........................................................................................... 30 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-IS20V311-PLUS Report No.: SA920508R023Issued: May 28 th 2003 1. CERTIFICATION PRODUCT : Long Range Wireless PCMCIA Card MODEL NO. : SL-2511CD2 PLUS MERCURY BRAND NAME : SENAO APPLICANT : SENAO INTERNATIONAL CO.,LTD STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 25 th May 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: NI3-IS20V311-PLUS Report No.: SA920508R024Issued: May 28 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Long Range Wireless PCMCIA Card MODEL NO. SL-2511CD2 PLUS MERCURY POWER SUPPLY 3.3VDC powered by host equipm…

Text truncated - open the document above for the full version.

FCC ID: NI3-IS20V311-PLUS Report No.: RF920508R02 1 Issued: Jul. 1, 2003 FCC TEST REPORT REPORT NO.: RF920508R02 MODEL NO.: OEM MODEL NO.: SL-2511CD2 PLUS MERCURY (Brand : SENAO) NL-2511CD2 PLUS MERCURY(Brand:EnGenius) RECEIVED: May 8, 2003 TESTED: May 28~ May 29, 2003 APPLICANT: SENAO INTERNATIONAL CO.,LTD. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-IS20V311-PLUS Report No.: RF920508R02 2 Issued: Jul. 1, 2003 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4 TEST TYPES AND RESULTS....................................................................... 9 4.1 CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2 TEST INSTRUMENTS .................................................................................. 9 4.1.3 TEST PROCEDURES................................................................................. 10 4.1.4 DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5 TEST SETUP ...............................................................................................11 4.1.6 EUT OPERATING CONDITIONS.................................................................11 4.1.7 TEST RESULTS.......................................................................................... 12 4.2 RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2 TEST INSTRUMENTS ................................................................................ 19 4.2.3 TEST PROCEDURES................................................................................. 20 4.2.4 DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5 TEST SETUP .............................................................................................. 21 4.2.6 EUT OPERATING CONDITIONS................................................................ 21 4.2.7 TEST RESULTS.......................................................................................... 22 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 26 4.3.2 TEST INSTRUMENTS ................................................................................ 26 4.3.3 TEST PROCEDURE ................................................................................... 27 4.3.4 DEVIATION FROM TEST STANDARD ....................................................... 27 4.3.5 TEST SETUP .............................................................................................. 27 4.3.6 EUT OPERATING CONDITIONS................................................................ 27 4.3.7 TEST RESULTS.......................................................................................... 28 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 32 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 32 4.4.2 TEST INSTRUMENTS ................................................................................ 32 FCC ID: NI3-IS20V311-PLUS Report No.: RF920508R02 3 Issued: Jul. 1, 2003 4.4.3 TEST PROCEDURES................................................................................. 33 4.4.4 TEST SETUP .............................................................................................. 33 4.4.5 EUT OPERATING CONDITIONS................................................................ 33 4.4.6 TEST RESULTS.......................................................................................... 34 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 35 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT................... 35 4.5.2 TEST INSTRUMENTS ................................................................................ 35 4.5.3 TEST PROCEDURE ................................................................................... 36 4.5.4 DEVIATION FROM TEST STANDARD ....................................................... 36 4.5.5 TEST SETUP .............................................................................................. 36 4.5.6 EUT OPERATING CONDITIONS................................................................ 36 4.5.7 TEST RESULTS.......................................................................................... 37 4.6 BAND EDGES MEASUREMENT................................................................ 41 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ............................................. 41 4.6.2 TEST INSTRUMENTS ..............................................…

Text truncated - open the document above for the full version.

FCC ID: NI3-IS20V311-PLUS Report No.: RF920508R02 46 Issued: Jul. 1, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-IS20V311-PLUS Report No.: RF920508R02 47 Issued: Jul. 1, 2003 RADIATED EMISSION TEST
