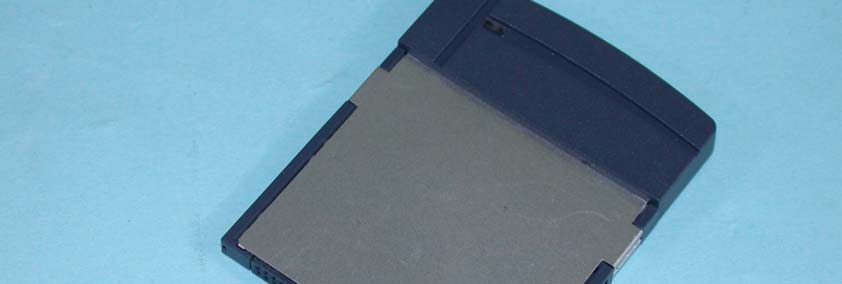

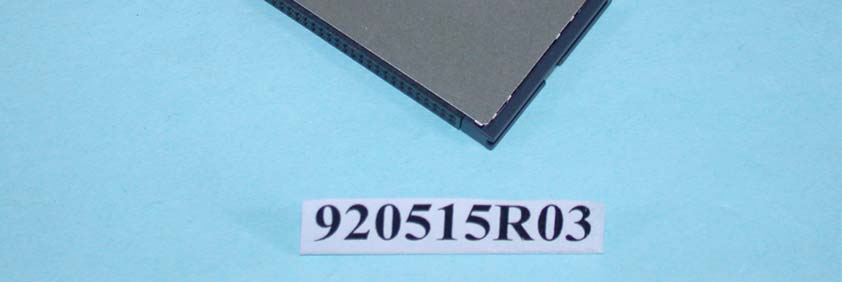

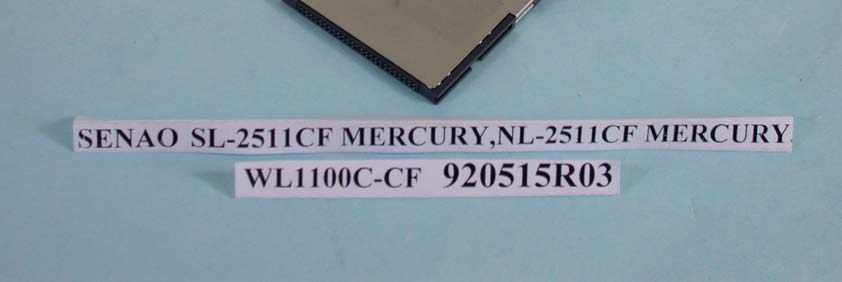

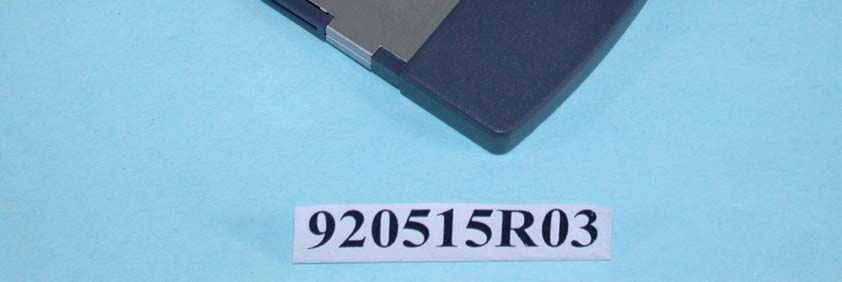

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Label Location

Wireless Compact Flash Card 11Mbps IEEE802.11b compliant DSSS Technology in 2.4 GHz ISM band Comply with FCC Part 15 class B 0560 33 mm 30 mm Wireless Solution Provider FCC ID: NI3-IS20V35 S/N: NL-2511CF MERCURY FOR HOME OR OFFICE USE Tested To Comply With FCC Standards This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID: NI3-IS20V35 Report No.920515R03 Operational Description The transmitter of the EUT is powered by host equipment. The antenna used in this product is Printed antenna without connector. Under normal use condition, the user has to keep at least 2.5 cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

Report No: 920515R03 1 RF EXPOSURE REPORT REPORT NO.: RF920515R03 MODEL NO.: SL-2511CF MERCURY NL-2511CF MERCURY ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Senao International Co., Ltd. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 Report No: 920515R03 2 RF Exposure Measurement (Portable Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: 920515R03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 2.5cm away from the body of the user. Warning statement for keeping 2.5cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Portable Device. Report No: 920515R03 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 0dBi or 1 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 2.5cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.1420.24371.0 6243718.7490.23871.0 11246217.6190.22431.0

FCC ID: NI3-IS20V35 Report No.: RF920515R031Issued: June 27, 2003 FCC TEST REPORT REPORT NO.: RF920515R03 MODEL NO.: SL-2511CF MERCURY (for Brand : SENAO) OEM MODEL NO.: NL-2511CF MERCURY (for Brand : EnGenius) WL1100C-CF (for Brand : AmbiCom) RECEIVED: May 15, 2003 TESTED: May 14 ~ May 29, 2003 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 351, CHUNG CHENG RD., HSIEN-TIEN, TAIPEI, TAIWAN, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-IS20V35 Report No.: RF920515R032Issued: June 27, 2003 Table of Contents 1CERTIFICATION .................................................................................................................... 4 2SUMMARY OF TEST RESULTS ........................................................................................... 5 3GENERAL INFORMATION .................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ...................................................................................... 6 3.2DESCRIPTION OF TEST MODES ........................................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................... 7 3.4DESCRIPTION OF SUPPORT UNITS .................................................................................. 8 4TEST TYPES AND RESULTS................................................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT ........................................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................................... 9 4.1.2TEST INSTRUMENTS ...........................................................................................................9 4.1.3TEST PROCEDURES.......................................................................................................... 10 4.1.4TEST SETUP ....................................................................................................................... 10 4.1.5EUT OPERATING CONDITIONS ........................................................................................ 11 4.1.6TEST RESULTS ................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT............................................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2TEST INSTRUMENTS ......................................................................................................... 19 4.2.3TEST PROCEDURES.......................................................................................................... 20 4.2.4TEST SETUP ....................................................................................................................... 21 4.2.5EUT OPERATING CONDITIONS ........................................................................................ 21 4.2.6TEST RESULTS ................................................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 27 4.3.2TEST INSTRUMENTS ......................................................................................................... 27 4.3.3TEST PROCEDURE ............................................................................................................28 4.3.4TEST SETUP ....................................................................................................................... 28 4.3.5EUT OPERATING CONDITIONS ........................................................................................ 28 4.3.6TEST RESULTS ................................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER................................................................................... 34 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 34 4.4.2TEST INSTRUMENTS ......................................................................................................... 34 4.4.3TEST PROCEDURES.......................................................................................................... 35 4.4.4DEVIATION FROM TEST STANDARD................................................................................ 35 4.4.5TEST SETUP ....................................................................................................................... 35 4.4.6EUT OPERATING CONDITIONS ........................................................................................ 35 FCC ID: NI3-IS20V35 Report No.: RF920515R033Issued: June 27, 2003 4.4.7TEST RESULTS ................................................................................................................... 36 4.5POWER SPECTRAL DENSITY MEASUREMENT.............................................................. 37 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ........................................... 37 4.5.2TEST INSTRUMENTS ......................................................................................................... 3…

Text truncated - open the document above for the full version.

FCC ID: NI3-IS20V35 Report No.: RF920515R0347Issued: June 27, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-IS20V35 Report No.: RF920515R0348Issued: June 27, 2003 RADIATED EMISSION TEST
