NI3-MP86005001IEEE 802.11a/b/g Wireless Mini-PCI Adapter

* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. ** All specifications are subject to change without notice. 12/9/2005 EMP-8602 (FCC)PLUS 2.4 / 5.0 GHz 802.11a/b/g 54 Mbps NMP-8602 is a mini-PCI type III B High-Power card supporting dual-band (2.4GHz & 5GHz) radio operation. It provides high-speed wireless connection with data rate up to 54Mbps. The shirking dimension and light weight can easily integrate into a wide range of AP/Bridge device. The 802.11g standard is backwards compatible with 802.11b products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. Features Benefits High Speed Data Rate up to 54Mbps Capable of handling heavy data payloads such as MPEG video streaming High Output Power up to 26 dBm More high power can advance the distance. Advanced Power Management Low power consumption in power saving mode. Support eXtended Range technology eXtended Range technology give Wi-Fi products twice the range of existing designs * Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. ** All specifications are subject to change without notice. 12/9/2005 Technical Specifications Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps Standards / Compliance WECA (Wi-Fi & Wi-Fi5 compliance), IEEE802.11, IEEE802.11a, IEEE802.11g, IEEE802.11b Regulation Certifications FCC Part 15 Operating Voltage 3.3V+0.15V Current consumption Tx Current 1A Rx Current Card on Current 400mA Sleep Current 100mA RF Information Frequency Band 802.11a: 5.15~5.35GHz, 5.47~5.725GHz, 5.725~5.850GHz 802.11b/g: U.S., Europe and Japan product covering 2.4 to 2.4835 GHz, programmable for different country regulations Modulation Technology 802.11a/g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSSS (DBPSK, DQPSK, CCK) Operating Channels 802.11b/g 11 for North America, 14 for Japan, 13 for Europe, 2 for Spain, 4 for France 802.11a US/Canada:13 non-overlapping channel (5.15~5.35GHz, 5.725~5.850GHz) Europe:19 non-overlapping channel (5.15~5.35GHz, 5.47~5.825GHz) Japan:4 non-overlapping channel (5.15~5.25GHz) China:5 non-overlapping channel (5.725~5.85GHz) Receive Sensitivity (Typical) 802.11a: -90dBm @ 6Mbps, -72dBm @ 54Mbps 802.11g: -91 dBm @ 6Mbps, -74 dBm @ 54Mbp 802.11b: -95 dBm @ 1Mbps -90 dBm @ 11Mbps Available transmit power (Typical) NMP-8602 (ETSI) z 5.15~5.35 & 5.47~5.6 GHz 20 dBm @6Mbps 15 dBm @54Mbps z 5.62~5.725 GHz 19 dBm @6Mbps 14 dBm @54Mbps z 5.725~5.85 GHz 18 dBm @6Mbps 13 dBm @54Mbps z 2.412~2.472 GHz (IEEE802.11g) 20 dBm @6~54Mbps z 2.412~2.472 GHz (IEEE802.11b) 20 dBm @1~11Mbps EMP-8602 (FCC)PLUS z 5.15~5.25 GHz 17dBm z 5.26~5.35 GHz 17dBm z 5.725~5.825GHz 23dBm z 2.412~2.462 GHz (IEEE802.11g) Up to 26 dBm z 2.412~2.462 GHz (IEEE802.11b) Up to 25 dBm Antenna Two antenna connectors (U.FL) Form Factor Mini-PCI type III B Dimensions (LxWxH) 59.60mm X 44.45mm Weight 15g (0.53 oz) Environmental Temperature Range Operating: -0°C to 70°C Storage: -20°Cto 80°C Humidity (non-condensing) 5% ~ 95% typical Related Product(s) NMP-560 (802.11a) NMP-360 (802.11b/g) NMP-352 (802.11b/g) NL-2511MP+ (802.11b) Summary 1. Product Highlight AR5006X Solution Highlights ƒ Highly integrated single chip CMOS solution with multi-protocol MAC/baseband processor and 2.4/5 GHz radio ƒ Uses digital CMOS technology exclusively, minimizing power consumption and cost while maximizing reliability ƒ Support for IEEE 802.11a, 802.11b, 802.11g ƒ 802.11e standard compatible bursting ƒ Wi-Fi Multimedia Quality of Service support (QoS) ƒ Hardware encryption for the Wi-Fi Protected Access (WPA, WPA2) and IEEE 802.11i security specifications, provides Advanced Encryption ƒ Standard (AES), Temporal Key Integrity Protocol (TKIP) and Wired Equivalent Privacy (WEP) without performance degradation ƒ Extended tuning range (2.400-2.4835 & 5.150-5.350 ,5725-5850 GHz ) for worldwide use Dynamic Frequency Selection/Transmit Power Control (DFS/TPC) for international operation ƒ Support for draft IEEE 802.11e, h, i and j standards ƒ Atheros XR™ eXtended Range technology to give Wi-Fi products twice the range of existing designs Power-saving design improvements reduce system power consumption by 98% AR5413 Single-Chip CMOS MAC/Baseband/Radio ƒ Support for IEEE 802.11a, 802.11b, 802.11g ƒ Operates from 2.400-2.4835 & 5.150-5.350 ,5.725-5.850 GHz ƒ Advanced wideband receiver with best path sequencer for better range and multipath resistance than conventional equalizer-based designs ƒ Integrated low-noise amplifier (LNA) External PA and/or LNA can be used for special applications ƒ Eliminates all IF filters and most RF filters; no external voltage-controlled oscillators (VCOs) or surface acoustic wave (SAW) filters needed ƒ Enhanced transmit and receive chains ƒ Atheros XR eXtended Range technology to give Wi-Fi products twice the range of existing designs ƒ No external FLASH or RAM memory needed ƒ PCI 2.3 and PC Card 7.1 host interfaces with DMA support ƒ Integrated analog-to-digital and digital-to-analog converters ƒ High speed UART with DMA supports data rates up to 1 Mbps ƒ Serial EEPROM, LEDs, GPIOs peripheral interfaces ƒ Low power operational and sleep modes 2. Product ID & Cosmetic mini-PCI type III B form factor (Dimension: 59.60mm X 44.45mm) 3. Product Performance High-power performance 4. Accessories or Sub-system No accessories or sub-system needed. 5. Operation Environment z Operation temperature: 0°C~ +50°C z Storage temperature: -40°C~ +70°C z Humidity: 5% ~ 95% typical 6. …

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: Re : RE: Re : RE: Senao International Co., Ltd., FCC ID: NI3-MP86005001, Assessment NO.: AN06T5533/AN06T5534, Notice#1 3/17/2006 -----Original Message----- From: amanda.wu [mailto:[email protected]]On Behalf Of application Sent: Friday, March 17, 2006 3:43 AM To: Helen Zhao Subject: Re : RE: Re : RE: Senao International Co., Ltd., FCC ID: NI3-MP86005001, Assessment NO.: AN06T5533/AN06T5534, Notice#1 Dear Helen: Please see my reply as below. Thank you. Best Regards Amanda -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Wednesday, February 22, 2006 5:58 PM Subject: Senao International Co., Ltd., FCC ID: NI3-MP86005001, Assessment NO.: AN06T5533, Notice#1 Question #1: Please explain what is the brown pad shown on the last page of external photos, is it a shielding? Why not shown on internal photos exhibit? Ans: No, it's not shielding, just for EMI solution. Please see the revised external photos and internal photos. Question #2: Block diagram indicates the chipset can be AR5413 or AR5414, but the schematic diagram shows AR5413 only. Please revise the documents to make it consistent. Please also explain which chipset was mounted on the device that has been tested. Ans: The chipset can only be AR5413 , Block diagram and operational description haved been modified as attached. Question #3: User manual shows how to change power level, frequency. Please explain how you prevent the final product to be tuned exceeding the authorised power level and frequency band. Ans: The customer had removed the power setting in p7~p9. The client said that prevent the final product to be tuned exceeding the authorised power level and frequency band by firmware . Question #4: Though the user manual indicates "The available channels supported by the wireless products in various countries are different by firmware". But it looks weak, as the manual did mentioned Extended tuning range 2.300-2.500 & 4.900-5.850 GHz. Please note some frequency bands may need additional certification. Please indicate clearly which frequency bands will be supported by the devices sold in US. Ans: Please see the revised user manual. Question #5: The user manual indicates the device supports "Super AG mode includes dynamic 108 Mbps capability", but the test report does not show that super A mode and super G mode have ever been evaluated. Please explain. Ans: Please see the revised user manual. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 3/17/2006

Modular Approval Request Letter December 20, 2005 Compliance Certification Services 561F Monterey Rd., Morgan Hill, CA 95037, USA To Whom It May Concern: Please be advised thatIEEE 802.11a/b/g Wireless Mini-PCI Adapter, with the FCC ID: NI3-MP86005001 ʳʳʳ would be certified as the Modular Approval with the Mobile device classification. User shall be informed that keeping at least 20cm safe separation away the device. We also assure the device complies with the requirements listed in the Public Notice DA-00-1407, details are listed as follows: 1. The modular transmitter must have its own RF shielding: The radio portion of this module has been shielded. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation / data inputs: The EUT has buffered data inputs, it is integrated in chip AR5413 3. The modular transmitter must have its own power supply regulation: The part number of this regulator is AME8815AEGT330 4. The modular transmitter must comply with the antenna requirements of the Section 15.203 and 15.204(c): The EUT meets the FCC antenna requirements. The spurious emission unique antenna connector and photo of antennas are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration: The EUT was tested in a stand-alone configuration via a Compact Flash interface to test kit. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this test kit. 6. The modular transmitter must be labeled with its own FCC ID number and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product.

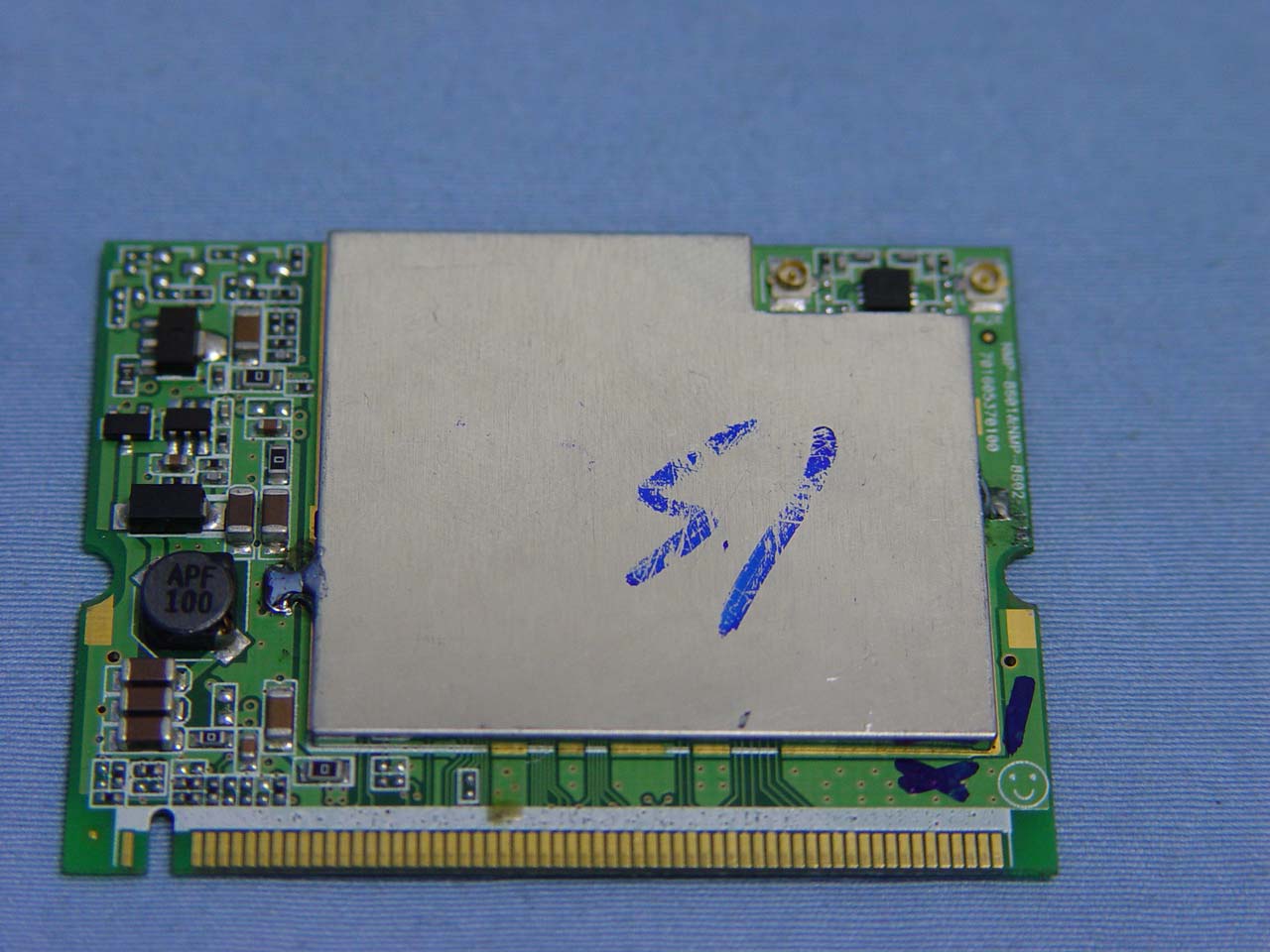

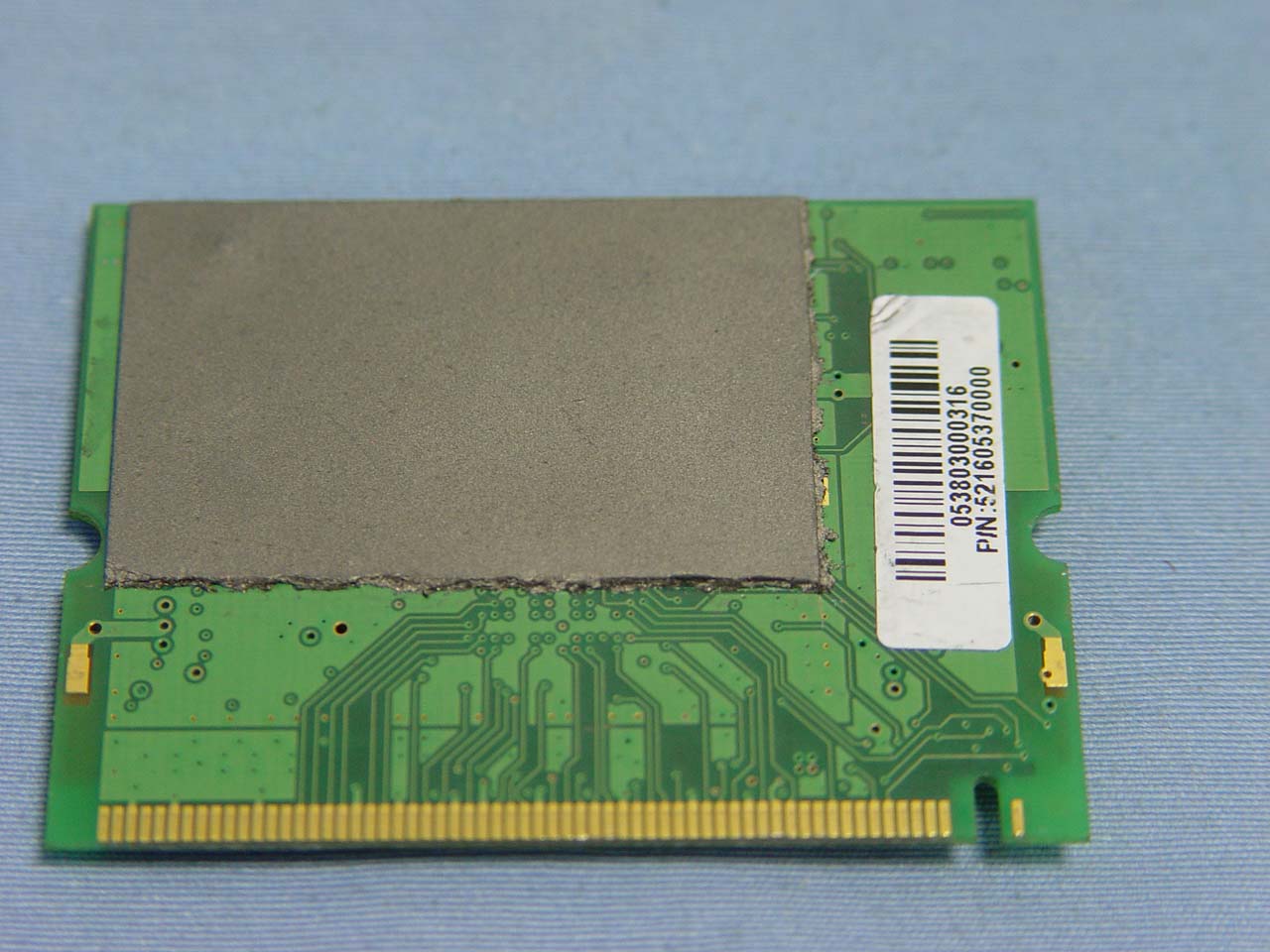

Compliance Certification Services Inc. Report No: 51017002 Date of Issue: March 10, 2006 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 51017002 Date of Issue: March 10, 2006 Page 2 Rev. 00

5.96 cm 4.445 cm IC : 3616A-MP860601 Model name:NMP-8602(FCC)PLUS P/N:6710A0343010 LABEL FREQUENCY 59.6x44.45mm EMP-8602 (FCC) PLUS LFP

Contains RF module FCC ID: NI3- MP86005001

Compliance Certification Services Inc. Report No: 51017002 Date of Issue: March 10, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 51017002 Date of Issue: March 10, 2006 Page 4 Rev.00

Model.TWX-241XRSXX AntennaSpecifications 1-1 Description MechanicalProperties1)Connector 2)AntennaCover AntennaBase 3)RotatingTest 4)AdhesiveStrength ElectricalProperties ReverseSMAPlug Polyurethane Polycarbonate 1.2Kgcm,After2000 cycleswiththerateof 30cycles/minute(max.). Itshallbepossibleto remainit'sposition. 5.0kgf(at30minutes) 2.4~5.XGHz 50ohmnominal 2.0 2.4GHz2dBi 5.0GHz1.5dBi Vertical 1W 1/4Dipole 1)FrequencyRange 2)Impedance 3)V.S.W.R. 4)Gain 5)Polarization 6)AdmittedPower 7)ElectricalWavelength 1)Theantennaisaswiveland1/4dualbandantenna. It'susefulfortheISMBandof2.4~2.5GHz &5.15~5.85GHz. TestReport 3-1 ElectricalTest Returnloss V.S.W.R. Model.TWX-241XRSXX TestReport 3-2 PatternTest E-PlaneFieldPatterns H-PlaneFieldPatterns Frequency:2.45GHz Frequency:2.45GHz Model.TWX-241XRSXX TestReport 3-3 PatternTest E-PlaneFieldPatterns H-PlaneFieldPatterns Model.TWX-241XRSXX Frequency:5.25GHz Frequency:5.25GHz TestReport 3-4 PatternTest E-PlaneFieldPatterns H-PlaneFieldPatterns Model.TWX-241XRSXX Frequency:5.75GHz Frequency:5.75GHz

Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of Issue: March 10, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 77 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IEEE 802.11a/b/g Wireless Mini-PCI Adapter Model: NMP-8602(FCC)PLUS, EMP-8602(FCC)PLUS Trade Name: SENAO Issued to SENAO INTERNATIONAL CO., LTD. No.500, Fusing 3 RD., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of Issue: March 10, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES 9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................19 7.3 AVERAGE POWER............................................................................................................................26 7.4 BAND EDGES MEASUREMENT ................................................................................................33 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................42 7.6 SPURIOUS EMISSIONS ................................................................................................................49 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................68 APPENDIX 1 RADIO FREQUENCY EXPOSURE ..............................................................................71 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP ..............................................................................75 Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of Issue: March 10, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SENAO INTERNATIONAL CO., LTD. No.500, Fusing 3 RD., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. Equipment Under Test: IEEE 802.11a/b/g Wireless Mini-PCI Adapter Trade Name: SENAO Model: NMP-8602(FCC)PLUS, EMP-8602(FCC)PLUS Date of Test: November 21, 2005 ~ January 22, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of I…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of Issue: March 10, 2006 Page 75 Rev. 00 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photos Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of Issue: March 10, 2006 Page 76 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No: 51017002-RP1 FCC ID: NI3-MP86005001 Date of Issue: March 10, 2006 Page 77 Rev. 00 Powerline Conducted Emissions Setup Photos
