NOA-3570 Outdoor Access Point User’s Guide Version 3.50 12/2005 Certifications 1 Select the certification you wish to view from this page. Interference Statements and Warnings FCC Statement This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations. FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio/television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Notice 1 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antennas or antenna connector cable. Only use the included antennas or antenna connector cable. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NOA-3570 User’s Guide 6Safety Warnings Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information. • Use ONLY the dedicated power supply for your device. Connect the power cord or power adaptor to the right supply voltage (110V AC in North America or 230V AC in Europe). • Do NOT use the device if the power supply is damaged as it might cause electrocution. • If the power supply is damaged, remove it from the power outlet. • Do NOT attempt to repair the power supply. Contact your local vendor to order a new power supply. • Place cables carefully so that no one will step on them or stumble over them. Do NOT allow anything to rest on the power cord and do NOT locate the product where anyone can walk on the power cord. • Do NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning. • Do NOT expose your device to corrosive liquids. • Do NOT store things on the device. • Connect ONLY suitable accessories to the device. Table of Contents Copyright .................................................................................................................. 3 Interference Statements and Warnings.................................................................. 4 Safety Warnings ....................................................................................................... 6 Customer Support.................................................................................................... 8 Table of Contents ................................................................................................... 11 List of Figures ........................................................................................................ 19 List of Tables .......................................................................................................... 23 Preface .................................................................................................................... 27 Chapter 1 Getting to Know Your NOA-3570 .......................................................................... 29 1.1 Introducing the NOA-3570 .................................................................................29 1.2 NOA-3570 Features ...........................................................................................29 1.3 Applications for the NOA-3570 ...........................................................................33 1.3.1 Access Point .............................................................................................33 1.3.2 AP + Bridge ..............................................................................................34 1.3.3 Bridge / Repeater ......................................................................................35 Chapter 2 Introducing the Web Configurator........................................................................ 37 2.1 Web Configurator Overview ...............................................................................37 2.2 Accessing the NOA-3570 Web Configurator ......................................................37 2.3 Resetting the NOA-3570 ....................................................................................38 2.4 Navigating the NOA-3570 Web…

Text truncated - open the document above for the full version.

NOA-3570 User’s Guide Chapter 12 Introducing the SMT131 CHAPTER12 Introducing the SMT This chapter describes how to access the SMT and provides an overview of its menus. 12.1 Introduction to the SMT The NOA-3570’s SMT (System Management Terminal) is a menu-driven interface that you can access from a terminal emulator through the console port or over a telnet connection. This chapter shows you how to access the SMT (System Management Terminal) menus, how to navigate the SMT and how to configure SMT menus. 12.2 Accessing the SMT via the Console Port Make sure you have the physical connection properly set up as described in the Quick Start Guide. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • VT100 terminal emulation. • 9600 Baud. • No parity, 8 data bits, 1 stop bit, flow control set to none. 12.2.1 Initial Screen When you turn on your NOA-3570, it performs several internal tests. After the tests, the NOA-3570 asks you to press [ENTER] to continue, as shown next. NOA-3570 User’s Guide 132Chapter 12 Introducing the SMT Figure 67 Initial Screen 12.2.2 Entering the Password The login screen appears after you press [ENTER], prompting you to enter the password, as shown below. For your first login, enter the default password “1234”. As you type the password, the screen displays an “X” for each character you type. Please note that if there is no activity for longer than five minutes after you log in, your NOA- 3570 will automatically log you out and display a blank screen. If you see a blank screen, press [ENTER] to bring up the login screen again. Figure 68 Password Screen Bootbase Version: V1.03 | 08/30/2004 16:28:56 RAM:Size = 64 Mbytes FLASH: Intel 128M ZyNOS Version: V3.50(HV.0)b4 | 01/21/2005 14:25:43 Press any key to enter debug mode within 3 seconds. .......................................................... .. (Compressed) Version: NOA-3570, start: 5012c030 Length: 46312C, Checksum: 4F98 Compressed Length: 161B28, Checksum: ED83 Copyright (c) 1994 - 2005 ZyXEL Communications Corp. initialize ch =0, ethernet address: 00:A0:C5:62:B0:DB initialize ch =1, ethernet address: 00:A0:C5:62:B0:DB initialize ch =2, ethernet address: 00:A0:C5:62:B0:DC initialize ch =3, ethernet address: 00:A0:C5:62:B0:DB initialize ch =4, ethernet address: 00:A0:C5:62:B0:DB initialize ch =5, ethernet address: 00:A0:C5:62:B0:DB initialize ch =6, ethernet address: 00:A0:C5:62:B0:DB initialize ch =7, ethernet address: 00:A0:C5:62:B0:DB initialize ch =8, ethernet address: 00:A0:C5:62:B0:DC initialize ch =9, ethernet address: 00:A0:C5:62:B0:DC initialize ch =10, ethernet address: 00:A0:C5:62:B0:DC initialize ch =11, ethernet address: 00:A0:C5:62:B0:DC initialize ch =12, ethernet address: 00:A0:C5:62:B0:DC Press ENTER to continue... Enter Password : XXXX NOA-3570 User’s Guide Chapter 12 Introducing the SMT133 12.3 Accessing the SMT via Telnet The following procedure details how to telnet into your NOA-3570. 1In Windows, click Start (usually in the bottom left corner), Run and then type “telnet 192.168.1.2” (the default IP address) and click OK. 2For your first login, enter the default password “1234”. As you type the password, the screen displays an asterisk “*” for each character you type. Figure 69 Login Screen 3After entering the password you will see the main menu. Please note that if there is no activity for longer than five minutes (default timeout period) after you log in, your NOA-3570 will automatically log you out. You will then have to telnet into the NOA-3570 again. You can use the web configurator or the CI commands to change the inactivity time out period. 12.4 Navigating the SMT Interface The SMT (System Management Terminal) is the interface that you use to configure your NOA-3570. Several operations that you should be familiar with before you attempt to modify the configuration are listed in the table below. Password : xxxx Table 43 Main Menu Commands NOA-3570 OPERATIONKEYSTROKEDESCRIPTION Move down to another menu [ENTER]To move forward to a submenu, type in the number of the desired submenu and press [ENTER]. Move up to a previous menu [ESC]Press [ESC] to move back to the previous menu. Move to a “hidden” menu Press [SPACE BAR] to change No to Yes then press [ENTER]. Fields beginning with “Edit” lead to hidden menus and have a default setting of No. Press [SPACE BAR] once to change No to Yes, then press [ENTER] to go to the “hidden” menu. Move the cursor[ENTER] or [UP]/ [DOWN] arrow keys. Within a menu, press [ENTER] to move to the next field. You can also use the [UP]/[DOWN] arrow keys to move to the previous and the next field, respectively. When you are at the top of a menu, press the [UP] arrow key to move to the bottom of a menu. Entering informationType in or press [SPACE BAR], then press [ENTER]. You need to fill in two types of fields. The first requires you to type in the appropriate information. The second allows you to cycle through the available choices by pressing [SPACE BAR]. NOA-3570 User’s Guide 134Chapter 12 Introducing the SMT After you enter the password, the SMT displays the main menu, as shown next. Figure 70 SMT Main Menu 12.4.1 System Management Terminal Interface Summary Required fields<?> or ChangeMeAll fields with the symbol <?> must be filled in order to be able to save the new configuration. All fields with ChangeMe must not be left blank in order to be able to save the new configuration. N/A fields<N/A>Some of the fields in the SMT will show a <N/A>. This symbol refers to an option that is Not Applicable. Save your configuration [ENTER]Save your configuration by pressing [ENTER] at the message “Press ENTER to confirm or ESC to cancel”. Saving the data on the screen will take you, in most cases to the previous menu. Make sure you save your settings in each screen that you configure. Exit the SMTType 99, then press [ENTER]. Type 99 at the main menu prompt and press [ENTER] to exit the…

Text truncated - open the document above for the full version.

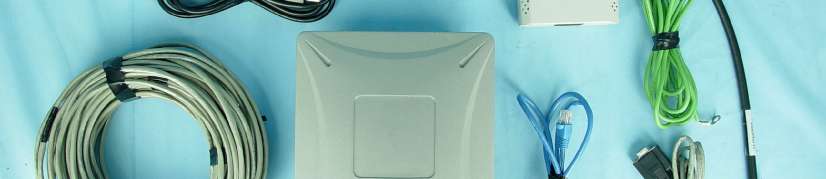

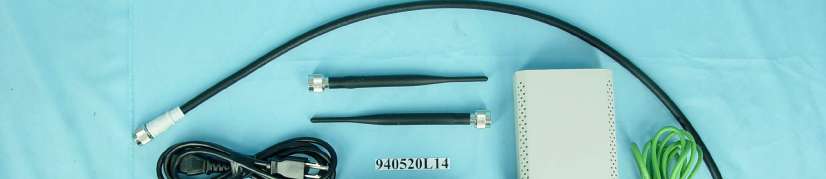

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

SENAO NOA-3570 Label Location

xxxxxx FCC ID : NI3-OA35705001 S/N: Model Name : NOA-3570 SENAO

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: NI3-OA35705001 Report No.: RF940520L14 Operational Description This device is a Outdoor Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by POE. The antenna is Dipole antenna with N-Type antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: NI3-OA35705001 Report No: SA940520L14 1 RF EXPOSURE REPORT REPORT NO.: SA940520L14 MODEL NO.: NOA-3570 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No. 500, Fusing 3 Rd., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NI3-OA35705001 Report No: SA940520L14 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NI3-OA35705001 Report No: SA940520L14 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NI3-OA35705001 Report No: SA940520L14 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162 (numeric). 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412127.6440.0801.0 62437159.5880.1001.0 112462113.5010.0711.0 For 802.11g OFDM Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412127.0570.0801.0 62437159.9560.1011.0 112462102.0940.0641.0

FCC ID: NI3-OA35705001 Report No.: RF940520L141Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940520L14 MODEL NO.: NOA-3570 RECEIVED: May 20, 2005 TESTED: Nov. 16 ~ 25, 2005 ISSUED: Dec. 05, 2005 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No. 500, Fusing 3 Rd., Hwa-Ya Technical Park, Kuei- Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NI3-OA35705001 Report No.: RF940520L142Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION...........................................................................................................4 2.SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3.GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................9 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4. TEST TYPES AND RESULTS ....................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT .............................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................12 4.1.2 TEST INSTRUMENTS................................................................................................12 4.1.3 TEST PROCEDURES ................................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................13 4.1.5 TEST SETUP..............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ...............................................................................14 4.1.7 TEST RESULTS .........................................................................................................15 4.2 RADIATED EMISSION MEASUREMENT ..................................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................21 4.2.2 TEST INSTRUMENTS................................................................................................22 4.2.3 TEST PROCEDURES ................................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................24 4.2.5 TEST SETUP..............................................................................................................24 4.2.6 EUT OPERATING CONDITIONS ...............................................................................24 4.2.7 TEST RESULTS .........................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT..........................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................32 4.3.2 TEST INSTRUMENTS................................................................................................32 4.3.3 TEST PROCEDURE...................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................33 4.3.5 TEST SETUP..............................................................................................................33 4.3.6 EUT OPERATING CONDITIONS ...............................................................................33 4.3.7 TEST RESULTS .........................................................................................................34 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................40 4.4.2 INSTRUMENTS..........................................................................................................40 4.4.3 TEST PROCEDURES ................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................41 4.4.5 TEST SETUP..............................................................................................................41 4.4.6 EUT OPERATING CONDITIONS ...............................................................................41 FCC ID: NI3-OA35705001 Report No.: RF940520L143Report Format Version 2.0.4 4.4.7 TEST RESULTS ..................................................................…

Text truncated - open the document above for the full version.

FCC ID: NI3-OA35705001 Report No.: RF940520L1461Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-OA35705001 Report No.: RF940520L1462Report Format Version 2.0.4 RADIATED EMISSION TEST
