NI3-RL30V114Wireless 11g Cardbus Adapter

11g Wireless Cardbus Adapter User’s Manual Version: 1.0 11g Wireless Cardbus Adapter Version: 1.0 Page 2 of 35 Table of Contents 1 INTRODUCTION ....................................................................................................................4 1.1 F EATURES & BENEFITS..................................................................................................... 4 1.2 P ACKAGE CONTENTS........................................................................................................ 4 1.3 C ARDBUS DESCRIPTION.................................................................................................... 4 1.4 S YSTEM REQUIREMENTS.................................................................................................. 5 1.5 A PPLICATIONS.................................................................................................................. 5 1.6 N ETWORK CONFIGURATION............................................................................................... 6 2 INSTALL DRIVERS & CLIENT UTILITY ............................................................................... 8 2.1 B EFORE YOU BEGIN......................................................................................................... 8 2.2 I NSTALLING THE DRIVERS.................................................................................................. 8 2.3 V ERIFY THE INSTALLATION.............................................................................................. 12 3 USING THE CLIENT UTILITY.............................................................................................. 13 3.1 PROFILE ...................................................................................................................... 13 3.1.1 Infrastructure Configuration ................................................................................. 14 3.1.2 Ad-hoc Configuration........................................................................................... 15 3.1.3 Authentication and Security................................................................................. 16 3.1.3.1 Authentication & Encryption Disabled......................................................... 16 3.1.3.2 WEP Encryption.......................................................................................... 17 3.1.3.3 WPA Authentication with TKIP / AES encryption ....................................... 18 3.1.3.4 802.1x Settings ........................................................................................... 19 3.1.3.4.1 PEAP........................................................................................................ 19 3.1.3.4.2 TLS / Smartcard ....................................................................................... 21 3.1.3.4.3 TTLS......................................................................................................... 23 3.1.3.4.4 LEAP ........................................................................................................ 25 3.1.3.4.5 MD5 – Challenge ..................................................................................... 26 3.2 LINK STATUS .............................................................................................................. 27 3.3 SITE SURVEY.............................................................................................................. 28 3.4 STATISTICS.................................................................................................................29 3.5 ADVANCE ....................................................................................................................30 3.6 ABOUT ......................................................................................................................... 31 4 UNINSTALL THE DRIVERS & CLIENT UTILITY ................................................................ 32 APPENDIX A – SPECIFICATIONS .............................................................................................. 33 APPENDIX B – FCC INTERFERENCE STATEMENT ................................................................. 35 11g Wireless Cardbus Adapter Version: 1.0 Page 3 of 35 Revision History Version Date Notes 1.0 June 14, 2004 Initial Version 11g Wireless Cardbus Adapter Version: 1.0 Page 4 of 35 1 Introduction This chapter describes the features & benefits, package contents, Cardbus description, system requirements, applications, and network configuration. 1.1 Features & Benefits Features Benefits High-speed data rate up to 54 Mbps Capable of handling heavy data payloads such as MPEG video streaming. Up to 64/128-bit WEP Data Encryption, WPA, AES and TKIP Powerful data security. IEEE 802.1x client support Enhances authentication and security. Multi-country roaming (802.11d) support Automatically adjusts regulatory domain to operate in different countries. Advanced power management Low power consumption in power saving mode. 1.2 Package Contents h One 11g Wireless Cardbus h One Installation CD h One Quick Installation Guide 1.3 Cardbus Description The Cardbus is a standard PC card that fits into any PCMCIA card Type II slot. The Cardbus has a LED indicator and an integrated built-in diversity antenna Built-in diversity antenna LED: • Peer-to-Peer: Blinking whether the wireless is connected or not. • Access Point: Sold green when wireless is connected. • OFF: No wireless activity. 11g Wireless Cardbus Adapter Version: 1.0 Page 5 of 35 1.4 System Requirements The following are the minimum system requirements in order to use the Cardbus. • PC/AT compatible computer with a PCMCIA Type II slot. • Windows 98SE/ME/ /2000/XP operating system. • 5 MB of free disk space for installing the PC Card driver and utility program. 1.5 Applications The wireless LAN products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility o…

Text truncated - open the document above for the full version.

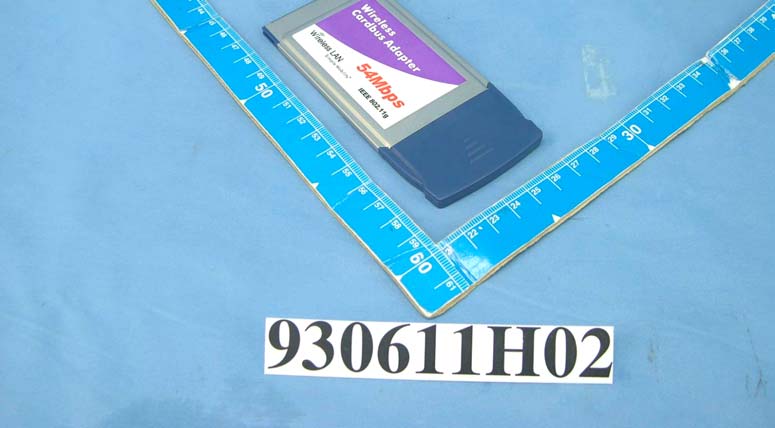

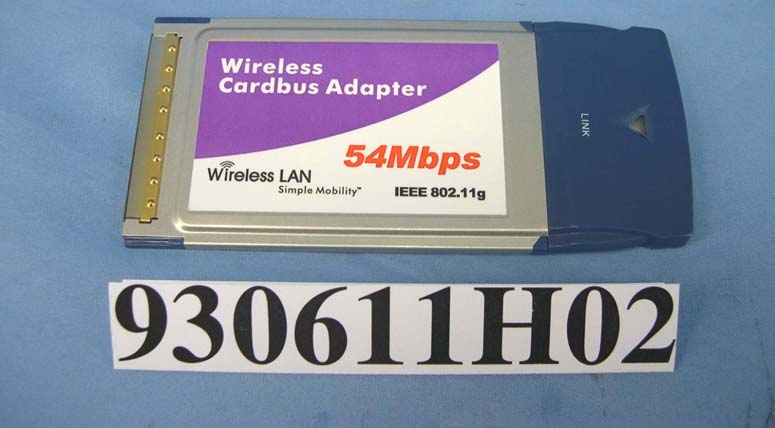

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

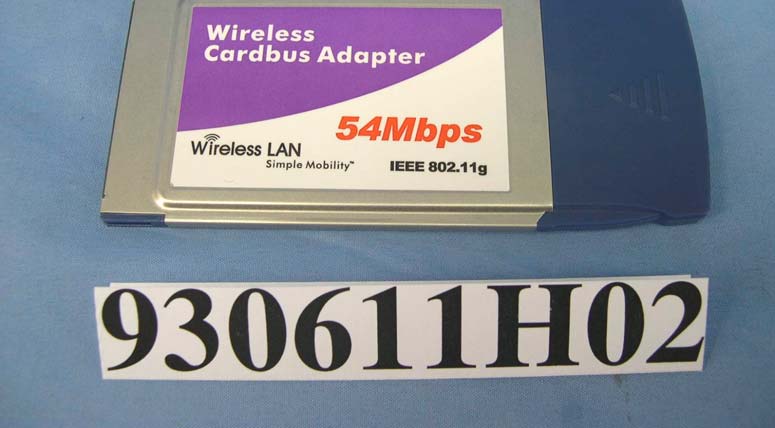

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Label (631x604x16M jpeg)

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: NI3-RL30V114 Report No. 930611H02 Operational Description This device is a Wireless 11g Cardbus Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless 11g Cardbus Adapter) is powered from host equipment. The antenna used in this product is printed antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: NI3-RL30V114 Report No.: SA930611H021Issued: July 16, 2004 SAR TEST REPORT REPORT NO.: SA930611H02 MODEL NO.: WPC-3006 RECEIVED: June 11, 2004 TESTED: July 12, 2004 ~ July 14, 2004 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 531 CHUNG CHENG RD., HSIN- TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-RL30V114 Report No.: SA930611H022Issued: July 16, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................15 5.TEST RESULTS ........................................................................................................16 5.1 TEST PROCEDURES ...............................................................................................16 5.2 MEASURED SAR RESULT .......................................................................................17 5.3 SAR LIMITS...............................................................................................................19 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................23 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................26 6.SYSTEM VALIDATION ..............................................................................................27 6.1 TEST EQUIPMENT ...................................................................................................27 6.2 TEST PROCEDURE .................................................................................................27 6.3 VALIDATION RESULT...............................................................................................29 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................30 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................31 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................31 7.2 ISOTROPY UNCERTAINTY......................................................................................31 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................32 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................32 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................32 7.6 RESPONSE TIME UNCERTAINTY...........................................................................33 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................34 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................34 7.9 PROBE POSITIONING .............................................................................................35 7.10 PHANTOM UNCERTAINTY ......................................................................................35 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................36 8.INFORMATION ON THE TESTING LABORATORIES ..............................................37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-RL30V114 Report No.: SA930611H023Issued: July 16, 2004 1. CERTIFICATION PRODUCT : Wireless 11g Cardbus Adapter MODEL NO. : WPC-3006 BRAND NAME : SENAO APPLICANT : SENAO INTERNATIONAL CO., LTD. TESTED : July 12, 2004 ~ July 14, 2004 TEST ITEM : MASS-PRODUCTION STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:July 16, 2004 APPROVED BY: Stacy Hsueh , DATE:July 16, 2004 Cody Chang / Supervisor FCC ID: NI3-RL30V114 Report No.: SA930611H024Issued: July 16, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless 11g Cardbus Adapter MODEL NO. WPC-3006 POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS/OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 20.60dBm MAXIMUN CONDUCTED OUTPUT POWER (FOR OFDM) 22.30dBm ANTENNA TYPE Printed antenna with -2dBi gain AVERAGE SAR(1g) (FOR CCK) 1.310W/kg AVERAGE SAR(1g) (FOR OFDM) 1.22…

Text truncated - open the document above for the full version.

Date/Time: 07/12/04 12:14:26 Test Laboratory: Advance Data Technology WPC-3006 Dell C600 11b Mode 1 Ch 1 DUT: Wireless 11g Cardbus Adapter ; Type: WPC-3006 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9415mho/m, ε r = 50.6817, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Low Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.4 V/m Power Drift = -0.09 dB Maximum value of SAR = 1.16 mW/g Low Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.08 W/kg SAR(1 g) = 0.992 mW/g; SAR(10 g) = 0.475 mW/g Reference Value = 13.4 V/m Power Drift = -0.09 dB Maximum value of SAR = 1.07 mW/g Date/Time: 07/12/04 11:51:28 Test Laboratory: Advance Data Technology WPC-3006 Dell C600 11b Mode 1 Ch 6 DUT: Wireless 11g Cardbus Adapter ; Type: WPC-3006 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9746 mho/m, ε r = 50.6538, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Middle Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 15.2 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.44 mW/g Middle Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.72 W/kg SAR(1 g) = 1.24 mW/g; SAR(10 g) = 0.6 mW/g Reference Value = 15.2 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.35 mW/g Date/Time: 07/12/04 12:37:10 Test Laboratory: Advance Data Technology WPC-3006 Dell C600 11b Mode 1 Ch 11 DUT: Wireless 11g Cardbus Adapter ; Type: WPC-3006 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.0009 mho/m, ε r = 50.6257, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 High Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.4 V/m Power Drift = 0.03 dB Maximum value of SAR = 1.12 mW/g High Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.21 W/kg SAR(1 g) = 0.994 mW/g; SAR(10 g) = 0.482 mW/g Reference Value = 13.4 V/m Power Drift = 0.03 dB Maximum value of SAR = 1.08 mW/g Date/Time: 07/13/04 09:57:32 Test Laboratory: Advance Data Technology WPC-3006 Dell C600 11b Mode 2 Ch 1 DUT: Wireless 11g Cardbus Adapter ; Type: WPC-3006 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9717 mho/m, ε r = 50.7249, ρ = 1000 kg/m 3 ) ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Low Channel/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12.8 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.421 mW/g Low Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.841 W/kg SAR(1 g) = 0.406 mW/g; SAR(10 g) = 0.214 mW/g Reference Value = 12.8 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.425 mW/g Date/Time: 07/13/04 10:16:20 Test Laboratory: Advance Data Technology WPC-3006 Dell C600 11b Mode 2 Ch 6 DUT: Wireless 11g Cardbus Adapter ; Type: WPC-3006 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.0037 mho/m, ε r = 50.6717, ρ = 1000 kg/m 3 ) ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Middle Channel/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Val…

Text truncated - open the document above for the full version.

Date/Time: 07/12/04 09:29:12 Test Laboratory: Advance Data Technology System Validation Check-MSL 2450MHz DUT: Dipole 2450 MHz ; Type: D2450V2 ; Test Channel Frequency: 2450 MHz Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450 (σ = 1.9883 mho/m, ε r = 50.6456, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm (The feetpoint of the dipole to the Phantom) Air temp. : 22 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 92.5 V/m Power Drift = -0.1 dB Maximum value of SAR = 15.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 31.2 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.21 mW/g Reference Value = 92.5 V/m Power Drift = -0.1 dB Maximum value of SAR = 15.3 mW/g Date/Time: 07/13/04 09:23:18 Test Laboratory: Advance Data Technology System Validation Check-MSL 2450MHz DUT: Dipole 2450 MHz ; Type: D2450V2 ; Test Channel Frequency: 2450 MHz Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450 (σ = 2.0179 mho/m, ε r = 50.6497, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm (The feetpoint of the dipole to the Phantom) Air temp. : 22 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 91.5 V/m Power Drift = -0.05 dB Maximum value of SAR = 15.3 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 31 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.22 mW/g Reference Value = 91.5 V/m Power Drift = -0.05 dB Maximum value of SAR = 15.3 mW/g APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

Report No. 930611H02 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930611H02 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930611H02 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930611H02 4 Ch1 Report No. 930611H02 5 Ch11 Report No. 930611H02 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930611H02 7 Ch1 Report No. 930611H02 8 Ch11

FCC ID: NI3-RL30V114 Report No.: RF930611H021 Issued: Jul. 08, 2004 FCC TEST REPORT REPORT NO.:RF930611H02 MODEL NO.:WPC-3006 RECEIVED:Jun. 11, 2004 TESTED:Jun. 28 to 29, 2004 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 3F-2,NO.30,TAI YUEN STREET, CHUBEI, HSIN CHU COUNTY, TAIWAN, R. O. C. 302 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: NI3-RL30V114 Report No.: RF930611H022 Issued: Jul. 08, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST SETUP ...............................................................................................11 4.1.4EUT OPERATING CONDITIONS................................................................ 12 4.1.5TEST RESULTS.......................................................................................... 13 4.2Radiated Emission Measurement ............................................................... 15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 15 4.2.2TEST INSTRUMENTS ................................................................................ 16 4.2.3TEST PROCEDURES................................................................................. 17 4.2.4TEST SETUP .............................................................................................. 18 4.2.5EUT OPERATING CONDITIONS................................................................ 18 4.2.6TEST RESULTS.......................................................................................... 19 4.2.7TEST RESULTS – DSSS ............................................................................ 20 4.2.8TEST RESULTS - OFDM ............................................................................ 23 4.36dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS-DSSS............................................................................... 28 4.3.7TEST RESULTS-OFDM .............................................................................. 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2TEST INSTRUMENTS ................................................................................ 36 FCC ID: NI3-RL30V114 Report No.: RF930611H023 Issued: Jul. 08, 2004 4.4.3TEST PROCEDURES................................................................................. 37 4.4.4TEST SETUP .............................................................................................. 37 4.4.5EUT OPERATING CONDITIONS................................................................ 37 4.4.6TEST RESULTS- DSSS.............................................................................. 38 4.4.7TEST RESULTS- OFDM ............................................................................. 39 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 40 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2TEST INSTRUMENTS ................................................................................ 40 4.5.3TEST PROCEDURE ................................................................................... 41 4.5.4TEST SETUP .............................................................................................. 41 4.5.5EUT OPERATING CONDITIONS................................................................ 41 4.5.6TEST RESULTS-DSSS............................................................................... 42 4.5.7TEST RESULTS-OFDM .............................................................................. 46 4.6BAND EDGES MEASUREMENT ................................................................ 50 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 50 4.6.2TEST INSTRUMENTS ...................................................…

Text truncated - open the document above for the full version.

FCC ID: NI3-RL30V114 Report No.: RF930611H0258 Issued: Jul. 08, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-RL30V114 Report No.: RF930611H0259 Issued: Jul. 08, 2004 RADIATED EMISSION TEST
