SAFETY INFORMATION FOR SL-2000 Your device contains a low power transmitter. When device is transmitted it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 30%. CAUTION: To maintain compliance with the FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use only the supplied antenna. Unauthorized antenna, modification, or attchments could damage the transmitter and may violate FCC regulations.

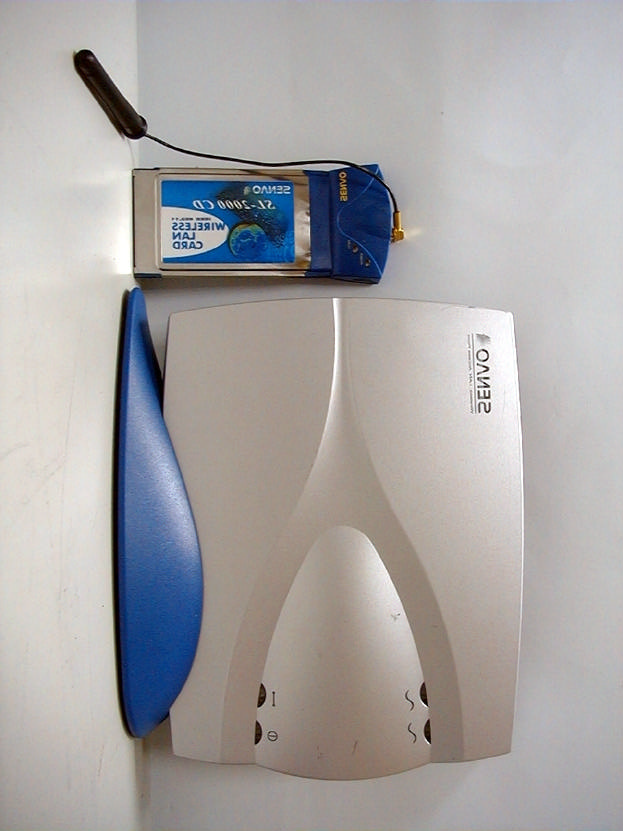

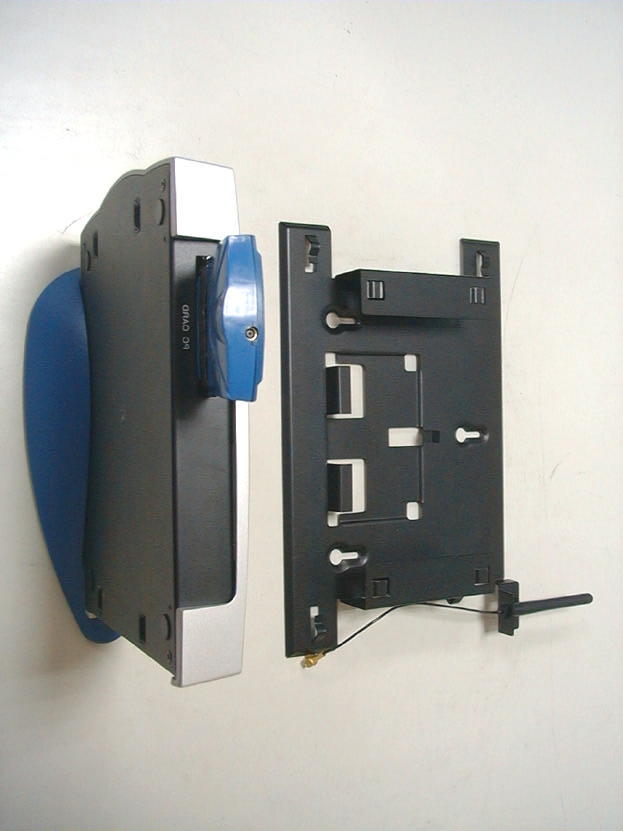

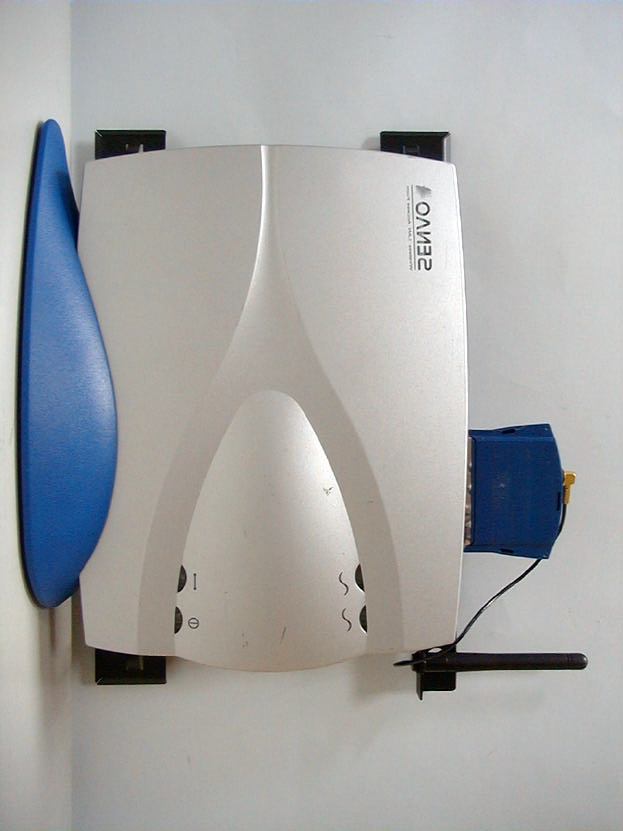

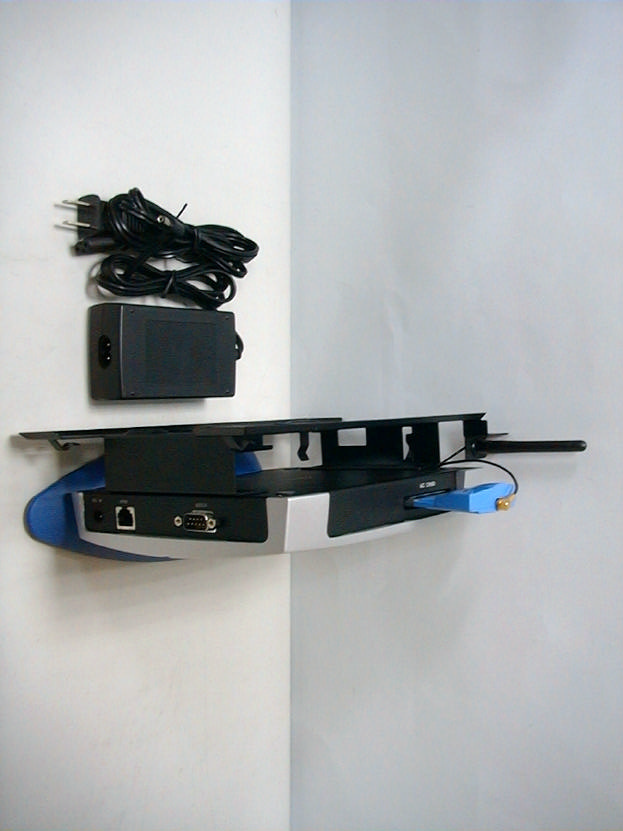

EXHIBIT F-1 Photographs of EUT (External)

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation *Privacy of communication may not be ensured when using this phone Model No.:SL-2000 FCC ID:NI3-SL-2000 LABEL Size: 60 x 40 mm LABEL Position:

Test Repot ---------------------------------------------------------------------------------- 1/105 Report No.: S3915912 Test date: 12/11/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of WIRELESS LAN Applicant: SENAO International Co., Ltd. Model No.:SL-2000 EUT:Wireless LAN FCC ID:NI3-SL-2000 Report No.:S3915912 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Test Repot ---------------------------------------------------------------------------------- 3/105 Report No.: S3915912 Test date: 12/11/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents I. GENERAL ............................................................................................................................. 5 1.1 Introduction ........................................................................................................................ 5 1.2 Description of EUT ............................................................................................................ 5 1.3 Description of Support Equipment ...................................................................................... 5 1.4 Configuration of System Under Test .................................................................................... 6 1.5 Verify the Frequency and Channel ...................................................................................... 7 1.5.1 Verify the Frequency Pairs ............................................................................................... 7 1.6 Test Procedure ................................................................................................................... 8 1.7 Location of the Test Site ..................................................................................................... 8 1.8 General Test Condition ....................................................................................................... 8 II. Section 15.207: Power line conducted emissions for AC powered units ............................ 9 2.1 Test Condition & Setup ..................................................................................................... 9 2.2 List of Test Instruments ...................................................................................................... 9 2.3 Test Configuration ............................................................................................................ 10 2.4 Test Result of Conducted Emissions .................................................................................. 12 2.4.1 Base Station Transmit Only ............................................................................................ 12 III. Section 15.247(a)(2): Bandwidth for direct sequence system ............................................ 24 3.1 Test Condition & Setup .................................................................................................... 24 3.2 Test Instruments Configuration .......................................................................................... 24 3.3 List of Test Instruments ..................................................................................................... 24 3.4 Test Result of Bandwidth .................................................................................................. 25 IV. Section 15.247(a) (2) : Power Output .................................................................................. 29 4.1 Test Condition & Setup .................................................................................................... 29 4.2 List of Test Instruments ..................................................................................................... 30 4.3 Test Result of Fundamental Emission ................................................................................. 31 Test Repot ---------------------------------------------------------------------------------- 4/105 Report No.: S3915912 Test date: 12/11/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 V. Section 15.247(c) (2) : Spurious Emissions (Radiated) .................................................... 32 5.1 Test Condition & Setup .................................................................................................. 32 5.2 List of Test Instruments ................................................................................................... 33 5.2.1 Duty Cycle Factor Measurement ................................................................................. 33 5.3 Test Instruments Configuration ........................................................................................ 35 5.4 Test Result of Second Harmonic ..................................................................................... 37 5.5 Test Result of Spurious Radiated Emissions ..................................................................... 38 5.5.1 Base and Handset Station Transmit Only ...................................................................... 38 VI. Section 15.247(d) : Power Spectral Density ..................................................................... 74 6.1 Test Condition & Setup .................................................................................................. 74 6.2 Test Instruments Configuration ........................................................................................ 75 6.3 List of Test Instruments.................................................................................................... 75 6.4 Required of Carrier Frequency ....................................................................................... 76 6.5 Test Result of Power Spectral Density ............................................................................ 79 VII. Section 15.247(e): Processing Gain ...........................…

Text truncated - open the document above for the full version.

Antenna Conducted Output Power Measurement Access Point Test result: Channel No.Output power: dBm Ch 110.1 Ch 610.4 Ch 119.6 Notebook PC Test result: Channel No.Output power: dBm Ch 111.5 Ch 69.7 Ch 1110.2 List of Test Instruments Instrument NameModel No.BrandSerial No.Last timeNext time Power SensorE4413AHPUS3718186709/11/0009/11/01 Power Meter4418BHPGB3929124009/11/0009/11/01 Antenna Conducted Power Spectral Density Measurement Test result: Channel No.Power Spectral Density dBuVLimit: dBm CH0161.50-8 CH0658.71-8 CH1159.36-8 List of Test Instruments Instrument NameModel No.BrandSerial No.Last timeNext time EMI Receiver8546AH P3520A0024210/18/0010/18/01 RF FilterSection85460AH P3448A0021710/18/0010/18/01 Horn Antenna3115EMCO9704 – 517808/15/0008/15/01 CH01 CH06 CH11

Section 15.247(e): Processing Gain Test Method The test method attach in the docket 97-114 appendix C Jamming Test setup that we found there were couple disadvantage as list in the follow: (1) It can not simulate the real world condition (2) Most of the hand held device (include notebook computer ) there is no ground connection to the earth, especially the RF front end ground. (3) The Coaxial and internal RF module will leak the signal that even you connect very high value attenuator .(shielding effective is low in the 2.4 GHz) (4) There was very high uncertainty of measurement result and it is depended how you connect EUT, testing facility, wire and cable for BER measurement, power supply... all of this can affect the testing result. (5) Move out the antenna is inconvenient for the testing and need more sample. Base on the above reason we modify the original jamming test setup figure 1,and use two fully anechoic chambers to isolate test EUT and reference EUT. Test procedure is simulated normal jamming setup, the block diagram as below. Test Instruments Configuration EUT (Reference) HP 436A Power Meter (PM2) Stiltter & HP E4418B Combiner power meter 24 dB (PM1) Attenuator Stiltter & Stiltter & Combiner Combiner 12 dB Attenuator HP 8648D Signal Generator EUT Test Configuration of processing gain List of Test Instruments Instrument NameModel NoBrandSerial No.Last timeNext time Signal Generator8648DHP3613A0011705/19/0005/19/01 Power MeterE4418BHPGB3929124009/11/0009/11/01 Power Meter436AHP1930A0558009/11/200009/11/2001 Combiner15542 ZAPD-4Mini CircuitsN/AN/AN/A Attenuator (6dB to 18 GHz) MCL BW-S6W2 Mini Circuits Bit Error Rate (BER) (1) Test Background and procedure According to FCC regulation, a direct sequence spread spectrum system must have processing gain , P G of the least 10 dB. Compliance to this requirement can be shown by demonstrating a relative bit-error-ratio (BER) performance improvement (and corresponding signal to noise ratio per symbol improvement of at least 10dB )between the case where spread spectrum processes (coding, modulation) are engaged relative to the processes being bypassed. In some practical system, the spread spectrum processing cannot simply bypassed. In accordance with the new NPRM 99-231, if the vendor has a system with less than 10 chips per symbol, the CW jamming results must be supported by a theoretical explanation of the system processing gain. (2) Theoretical calculations The processing gain is related to the jamming margin as follows: system output p L S J N S +       +       =G Where REFERENCE BER is the reference bit error ratio with its corresponding, theoretical output signal to noise ratio per symbol,() outputN S ,() S J is the jamming margin (jamming signal power relative to desired signal power),and system L are the system implementation losses. The maximum allowed total system implementation loss is 2 dB. The HFA3861A direct sequence spread spectrum baseband processor uses CCK modulation, which is a form of M-ray Orthogonal Keying. The BER performance curve is given by: The probability of error for generalized M-ary Orthogonal signaling using coherent demodulation is given by: dz Z E zQP N S M b ce       −                         +−−=−= ∫ ∞ − − 2 exp212 2 1 11P 2 1 2 1 0 01 η π This integral cannot be solved in closed form, and numerical integration must be used. This is done in a MATHCAD environment and is displayed in graphical format The reference PER is specified as 8% . When operating DOPSK at 2Mbps, the corresponding Es/No (signal to noise ratio per symbol) is 13.3 dB. The Es/No required to achieve the desired BER with maximum system implementation losses is 15.3dB. The minimum processing gain is again, 10dB, therefore: dB S J dBdBL S J N E system output o s p 100.24.16G≥       ++=+       +         = dB S J dBG p 104.18≥       += The minimum jammer to signal ratio is as follow: dB4.8 S J −≥       =13.3dB =15.3dB Test Procedure The test block diagram be shown figure (). (1) Install DOS Test toll into two notebook computers (E.U.T. and Reference) (2) Set the Reference notebook computer as DBPSK and the E.U.T. notebook computer as DBPSK. And both is link. (3) The signal generator RF output is disabled. (4) Generated the Log File in the Reference notebook computer and send the test file. And measure the power at the power meter port using the power meter (PM1). This is the relative signal power, S (5) Ensure that CW Jammer generator RF out put is disabled and measure the power at the power meter port using the power meter (PM2). This is the relative signal power, J. (6) Set CW Jammer generator RF output frequency equal to the carrier frequency and enable generator output Set reference CW Jammer power level at power meter port 8.4 dB below r S (minimum J/S, or 10 dB processing gain reference level).Note the power level setting on the generator, this is the reference CW Jammer power setting, r J(PM2). (7) Disable CW Jammer generator, re-establish link. PER test should be operating essentially error-free. (8) Enable CW Jammer at the reference power level and verify that the PER test indicates a PER of less than 8%. (9) Alternatively, adjust the CW Jammer level to that which causes 8% PER and verify that the S/J is less than 8.4dB. (10) Repeat step 8 for uniform steps in frequency increments of 50kHz across the receiver passband with the CW Jammer. In this case the receiver passband is 5.0MHz. The number of points where the PER fail to achieve 8% (is higher than 8%) is determined and if this is above 20% of the total, the test is failed otherwise it is passed. The margin by which the radio passes the test (for information purposes) can be determined from the average of the remaining points’ PERs scaled on the PER curve above. 7.5 Test Result of Processing Gain Table 1 Processing Gain [Channel 6, DQPSK, 2.43205GHz to 2.43405GHz] Jammer Frequency (MHz) Signal Level S (dBm)…
