NI3-SL-2011CD-ANTWireless LAN Card

SL-2011CD-GP SL-2011CD-FP SL-2011CD-DP Before operating the unit, please read this manual thoroughly, and retain it for future reference. Antenna User Guide 1 Installing the Antenna 1. Introduction The Senao access point is designed to perform in a variety of environments. Implementing the antenna system can greatly improve coverage and performance. A good communication can only be achieved with the right antenna. The antenna kits comprise numerous components, including the antenna, connectors, mounting hardware, antenna cabling, and in certain product boxes. 2. Type of Antennas The Senao access point may be bundled with several different styles of antennas for use in the 2.4GHz range. Each type of antenna will offer different coverage capabilities. As the gain of an antenna increases, there is some tradeoff to its coverage area. Usually high gain antennas offer longer coverage distances, but only in a certain direction. The radiation patterns below show the coverage areas of the styles of omni-directional and uni-directional antennas. Omni-Directional Antennas An omni-directional antenna is designed to provide a 360-degree radiation pattern. This type of antenna is used when coverage in all directions from the antenna is required. Figure 1-1: Omni-Directional Antenna (top-view) Directional Flat Panel Antennas 2 Directional antennas have many different styles and shapes. By redirecting this energy, it has the effect of providing more energy in one direction, and less energy in all other directions. As the gain of a directional antenna increases, the angle of radiation usually decreases, providing a greater coverage distance, but with a reduced coverage angle. Figure 1-2: Directional Flat Panel Antenna (side view) 3. Antenna placement The advices below are basic concepts to install an antenna. „ The distance between the antenna and transceiver should be kept to a minimum to reduce signal loss. „ To operate at optimum efficiency, antenna cable should be kept as short as possible. 3 4-1. Hardware Description The 3dBi omni-di rectional antenna is a broadband antenna for the 2.4GHz frequency band featuring an omni-directional pattern with a normal gain of 3dBi. Before you start installing the antenna, verify the following items in the antenna kits or in the product package. Elements list (Figure 1-3) Element Description Quantity Item Omni-directional Antenna 1 A Ferrules 1 B Nut 2 C Screw (Long) 3 D Screw (medium) 2 E Screw (short) 1 F Lock-washers 5 G Bracket 1 H Cable 1 I Jack 1 J 4. Installing the 3dBi omni-di rectional antenna Figure 1-3 Elements list 4-2. Mounting the Omni-directional Antenna You can mount the 3dBi antenna to a ceiling for indoor use. This antenna uses vertical polarization that is the most common type of polarization for omni-directional antennas. Mounting to a ceiling In most cases, these installations require a large coverage area. Experience has shown that an omni-directional antenna mounting at about 6 to 8 meter (20 to 26 feet) will typically provide the best overall coverage. Of course this also depends upon the height of the ceiling, material on the ceiling and ability to locate the antenna at this height. The antenna should be placed in the center of the desired coverage area. An open area will provide the best performance. To mount the antenna to a ceiling proceed following steps 1. Position the ferrule (item B in Figure 2-11) to the front of the bracket (item H). 2. Place antenna mounting screws (item F) through the screw hole on the bracket. 3. Use the lock – washers (item G) and nuts (item C) to secure the bracket to the ferrule (item B). Use a wrench to tighten the nuts and ensure the ferrule will be fixed 6 to the front of the bracket. 4. Feed the omni-directional antenna (item A) through the hole of the ferrule (item B) 5. Push the antenna through the ferrule (item B) to the end. Place screw (item E) to tighten the antenna. Note The hole of the antenna should be above the ferrule.(See figure 1-4) 6. Attach the cable (item I) and Jack (item J) to the connector on top of the antenna. 7. Place 3 screws (item D) through the holes to fix the antenna on the ceiling. 8. Attach the other end of the cable (item I) to the access point or the PC card of the access point. Step3Step2Step1 Step4Step5Step6 5 Step 7 Step 8 7 The hole of the antenna should be above the ferrul e Figure 1-4 8 5. Installing the 7dBi Flat panel directional antenna 5-1. Hardware Description The 7dBi flat panel antenna is a broadband antenna for the 2.4GHz frequency band featuring a directional pattern with a normal gain of 7dBi. Before you start installing the antenna, verify the foll owing items in the antenna kits or in the product package. Elements list (Figure 1-5) Element Description Quantity Item Flat Panel Antenna 1 A Panel for Antenna 1 B Panel for Wall 1 C Strut 1 D Nut 2 E Screw 2 F Gummed tape 2 G Cable 1 H Figure 1-5 5-2. Mounting the Flat panel directional Antenna You can mount the 7dBi MHz antenna to a wall. Our package has a 180 stand and you can adjust the best angle you want. This antenna uses vertical polarization that is the most common type of polarization for directional antennas. 9 Assembly the stand To assembly the stand proceed following steps 1. Put the strut (item D) through the hole of the panel for antenna (item B) and panel for wall (item C). 2. Place 2 screws (item F) through these two holes. 3. Use two nuts (item E) to secure the panel for antenna (item B) and panel for wall (item C). Complete set picture is in step 3 Step 1 Step 2 Step 3 Mounting to a wall To mount the antenna to a wall proceed following steps 1. Stick or screw the stand on the wall. 2. Glue the one-gummed tape in the panel for antenna (item B) and stick the flat panel antenna (item A) together. Make sure that the connector of the flat panel antenna points to the ground. 3. Attach the cable (item H) to the connector on the button of the antenna. 4. Attach the other end of the cable (item H) to a…

Text truncated - open the document above for the full version.

R:\Customer document\\SL-2011CD-GP\ FCC-Letter-NEW (1650x2336x256 jpeg)

To: "Timothy R. Johnson" <[email protected]> Subject: Re: Review of Senao International Co., Ltd. Application Content-type: text/plain; charset=big5 Content-Disposition: inline X-MIME-Autoconverted: from 8bit to quoted-printable by mx5.dc2.adelphia.net id fAS9hU702122 Dear Tim, For (1), Since originally this project is for class II permissive change, so the statement is still there. Anna will submit revised test report to yo ur w eb site. For (2), there are a short coaxial cable between the EUT and the antenna, on the EUT end, MCX connector is used, and on the antenna end, reversed SMA connector is used. For (3), Anna will submit you the revised one. For (4), again, I need yo ur help o n the co nte nt o f the "s hee t" yo u me ntioned. What document I should send to you ? Please kindly comment. Tha nk yo u. Regards, Alan To: [email protected] Subject: Re: Review of Senao International Co., Ltd. Application NI3-SL-2011CD-ANT X-Attachments: D:\ATCB Local Download\NI3-SL-2011CD-ANT\grant_112901.pdf; Alan, Attached is the grant for this project. 1) I just noticed that the frequency range (page 11) and the FCC ID on page 14 in the users manual for this product are not correct. Please provide a corrected copy. I am sorry we didn't catch this the first time. 2) You stated that the reverse SMA connectors are used on some of the antenna's. Please detail if these are reverse sex or reverse threaded SMA connectors. 3) The information regarding the compliance sheet was sent in an earlier email for FCC ID: NI3-SL-2011CDPLUS. Thanks, Tim To: "Timothy R. Johnson" <[email protected]> Subject: Re: Review of Senao International Co., Ltd. Application NI3-SL -2011CD-ANT Dear Timoth, Sorry for my late reply. It is always very busy on the end of the year. 1) I believe my colleague has re-submmited the manual to your web site. Please check. 2) The SMA is reverse sex. 3) We are waiting for the comment of my customer. Thank you. Regards, Alan

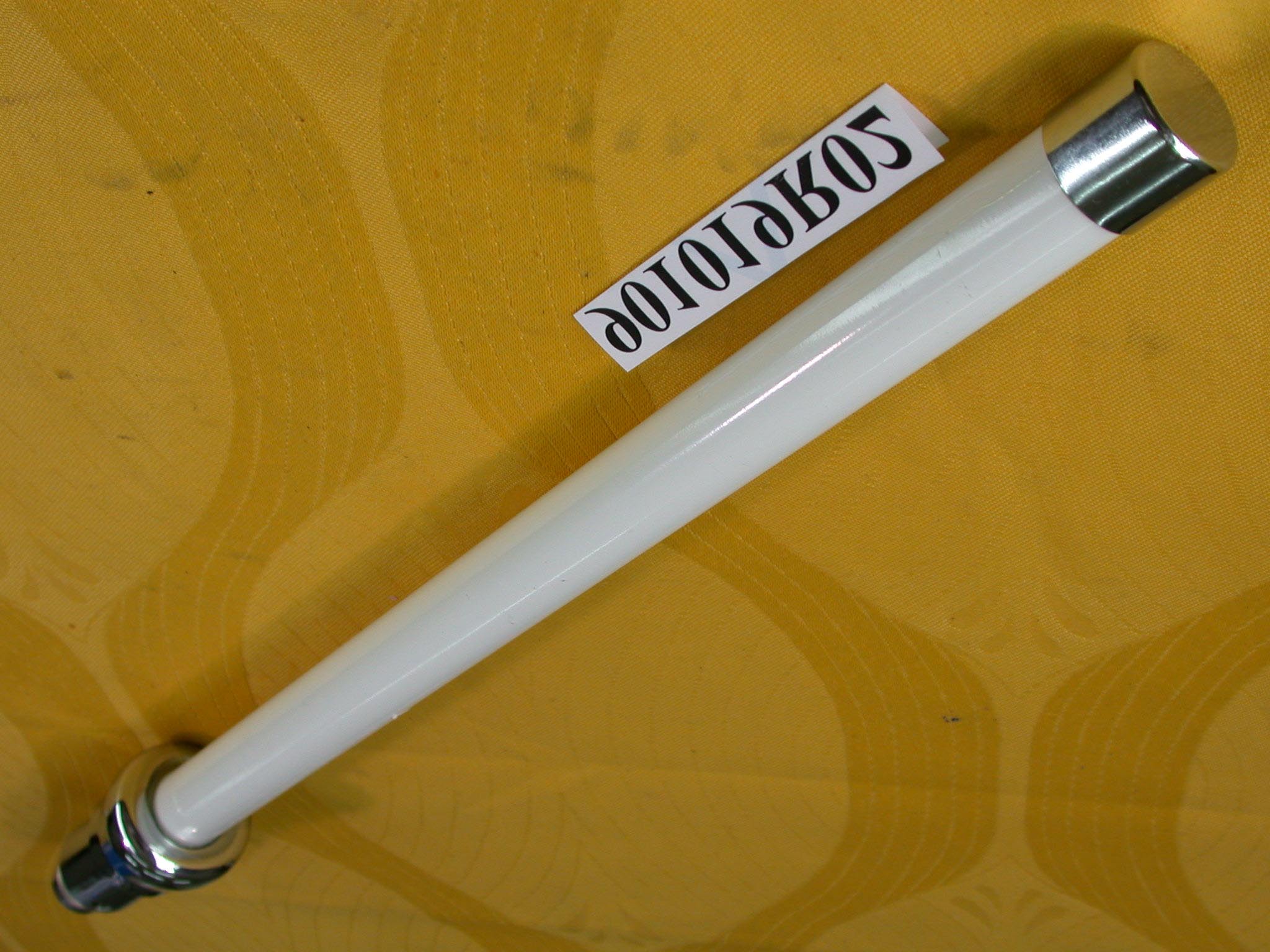

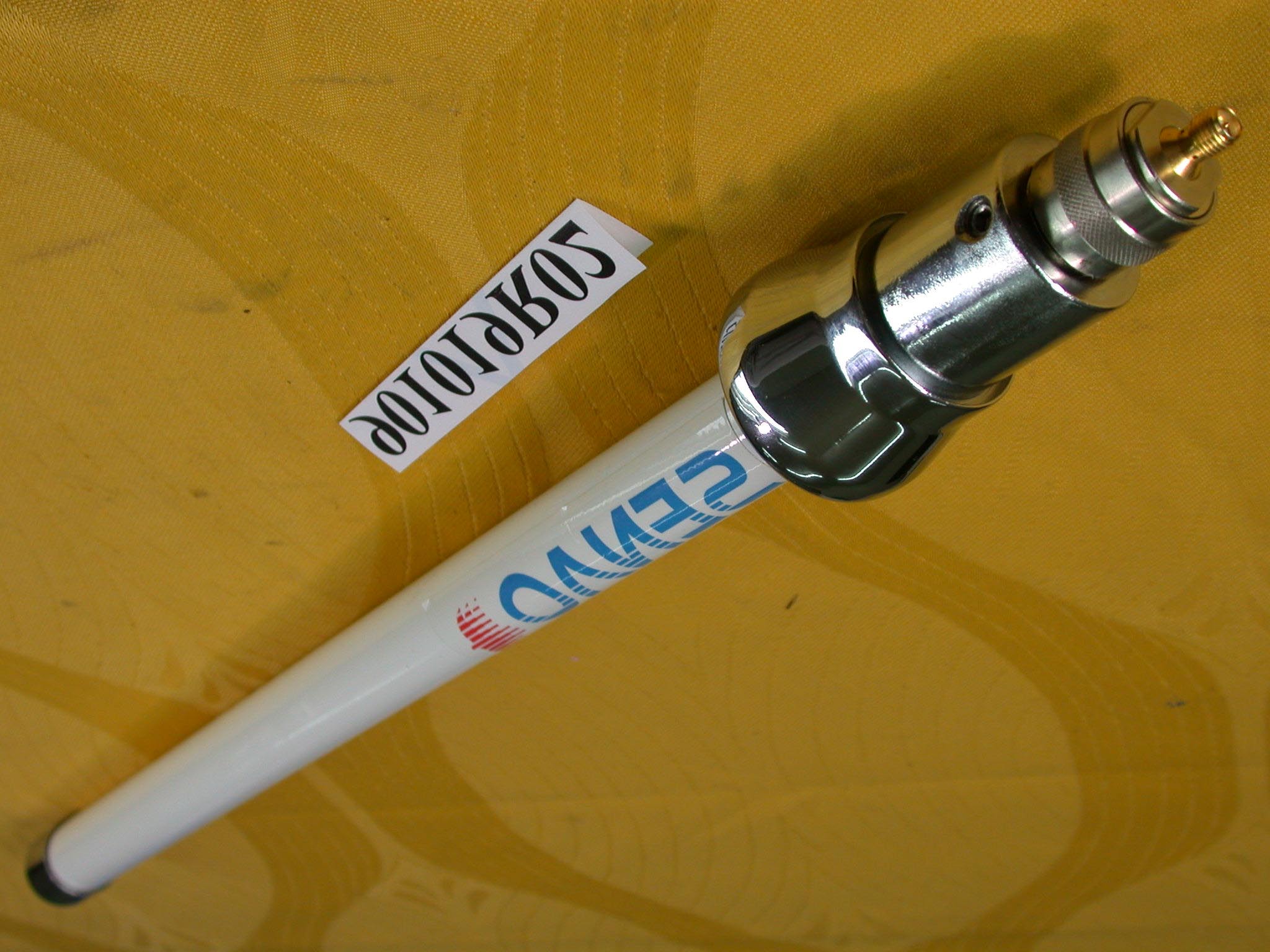

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4 Page 5

Page 6 Page 7

FCC ID: NI3-SL-2011CD-ANT ADT No.901019R02 Operational Description The transmitter of the EUT (Wireless LAN Card) is powered by notebook and plugged in PCMCIA Slot. This EUT are equipped with antenna type of GP antenna, Patch antenna and Dipole antenna, and the antenna connector is MCX. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: NI3-SL-2011CD-ANT ADT No.: 901019R02 FCC TEST REPORT REPORT NO.: RF901019R02 MODEL NO.: SL-2011CD-GP, SL-2011CD-FP, SL-2011CD-DP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-SL-2011CD-ANT ADT No.: 901019R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: NI3-SL-2011CD-ANT ADT No.: 901019R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: NI3-SL-2011CD-ANT ADT No.: 901019R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 7dBi or 5.01 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241215.562.49 6243714.552.41 11246213.772.34 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 1 Issued: November 13, 2001 FCC TEST REPORT REPORT NO.: RF901019R02 MODEL NO.: SL-2011CD-GP, SL-2011CD-FP, SL-2011CD-DP RECEIVED: October 19, 2001 TESTED: Oct. 25~ Oct. 31, 2001 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 2 Issued: November 13, 2001 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS ................................................................... 5 3GENERAL INFORMATION............................................................................ 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES ................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS ....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 9 4.1.2TEST INSTRUMENTS................................................................................... 9 4.1.3TEST PROCEDURES ................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS ................................................................ 11 4.1.6TEST RESULTS (A) .................................................................................... 12 4.1.7TEST RESULTS (B) .................................................................................... 18 4.1.8TEST RESULTS (C) .................................................................................... 24 4.2RADIATED EMISSION MEASUREMENT ................................................... 30 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................. 30 4.2.2TEST INSTRUMENTS................................................................................. 31 4.2.3TEST PROCEDURES ................................................................................. 32 4.2.4TEST SETUP .............................................................................................. 33 4.2.5EUT OPERATING CONDITIONS ................................................................ 33 4.2.6TEST RESULTS (A) .................................................................................... 34 4.2.7TEST RESULTS (B) .................................................................................... 38 4.2.8TEST RESULTS (C) .................................................................................... 42 4.36DB BANDWIDTH MEASUREMENT .......................................................... 46 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 46 4.3.2TEST INSTRUMENTS................................................................................. 46 4.3.3TEST PROCEDURE.................................................................................... 47 4.3.4TEST SETUP .............................................................................................. 47 4.3.5EUT OPERATING CONDITIONS ................................................................ 47 4.3.6TEST RESULTS .......................................................................................... 48 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 52 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 52 FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 3 Issued: November 13, 2001 4.4.2TEST INSTRUMENTS................................................................................. 52 4.4.3TEST PROCEDURES ................................................................................. 53 4.4.4TEST SETUP .............................................................................................. 53 4.4.5EUT OPERATING CONDITIONS ................................................................ 53 4.4.6TEST RESULTS .......................................................................................... 54 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................... 55 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 55 4.5.2TEST INSTRUMENTS................................................................................. 55 4.5.3TEST PROCEDURE.................................................................................... 56 4.5.4TEST SETUP .............................................................................................. 56 4.5.5EUT OPERATING CONDITIONS ................................................................ 56 4.5.6TEST RESULTS .......................................................................................... 57 4.6BAND EDGES MEASUREMENT ................................................................ 61 4.6.1LIMITS OF BAND EDGES MEASUREMENT .............................................. 61 4.6.2TEST INSTRUMENTS.........................................…

Text truncated - open the document above for the full version.

FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 66 Issued: November 13, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (A) FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 67 Issued: November 13, 2001 CONDUCTED EMISSION TEST (B) FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 68 Issued: November 13, 2001 CONDUCTED EMISSION TEST (C) FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 69 Issued: November 13, 2001 RADIATED EMISSION TEST (A) FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 70 Issued: November 13, 2001 RADIATED EMISSION TEST (B) FCC ID: NI3-SL-2011CD-ANT Report No.: RF901019R02 71 Issued: November 13, 2001 RADIATED EMISSION TEST (C)
