NI3-SL-2011CDPLUSWireless LAN PC Card

Use r G u i d e Before operating the unit, please read this manual thoroughly, and retain it for future referenc e. Wreless LAN Ca rd PLUS Contents 1. Introduction 1 1.1 Package Contents 1 1.2 PC Card Description 1 1.3 System Requirements 2 1.4 Features and Benefits 2 1.5 Applications 2 1.6 Network Configurations 3 2. Installing Driver and Utility 7 2.1 Installation for Windows 95/98/ME/2000 7 2.2 Checking after Installation 9 2.3 Wireless LAN Client Utility 11 2.4 Uninstalling Driver and Utility 16 3. Connecting to a Network 17 3.1 Checking and Adding Client for Microsoft Networks 17 3.2 Checking and Adding NetBEUI 18 3.3 Checking and Adding TCP/IP 19 3.4 Checking and Adding File and Printer Sharing for Microsoft Networks 20 3.5 Checking and Adding Computer Name and Workgroup Name 20 4. Troubleshooting 21 Appendix A Specifications 24 Appendix B Regulatory Compliance Information 26 Appendix C Limited Warranty 28 Chapter 1 Introduction This chapter describes the package contents, PC Card description, system requirements, features & benefits, applications and network configurations of SL-2011 PLUS wireless LAN products. 1-1 Package Contents The PC Card package contains the following items as shown in Figure 1-1 1. One PC Card 2. One Installation CD 3. One Quick Installation Guide Figure 1-1 1- 2 PC Card Descriptions The PC Card is a standard PC Card that fits into any PCMCIA Card Type II slot. The PC Card has a LED indicator and a integrated built-in diversity antenna as shown in Figure 1-2. Figure 1-2 1. Integrated, with built-in diversity Antenna 2. Link LED ! 802.11 AdHoc mode – Blinking, no matter if the wireless LAN is connected or not ! AdHoc mode – Solid GREEN, no matter the wireless is connected or not ! Infrastructure – Solid GREEN when the wireless is connected ! Off – No wireless activity 1 Wireless LAN PC Card Quick I nstallation Guide 1 2 I nstallation CD IEEE 802.11b 1- 3 System Requirements Installation of the PC Card requires: 1. PC/AT compatible computer with PCMCIA Type II slot. 2. Windows 95/98/ME/2000 or Windows NT4.0 operating system environment. 3. Minimum 1.3M bytes free disk space for installing the PC Card driver and utility program. 1- 4 Features and Benefits 11Mbps data rate High-speed data transmission IEEE802.11b compliant Fully interoperable with IEEE802.11b compliant products Automatic data rate scaling at 11, 5.5, 2 and 1 Mbps Optimized throughput, range and connectivity 64/128-bit WEP data encryption/ decryption Powerful data security Wide coverage range up to 400 meters in open space Wireless connectivity for all your computers Advanced Power Management Extended battery life Plug and Play PC Card interface Easy installation 1- 5 Applications The SL-2011 PLUS LAN products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of wireless LANs: 1. Difficult-to-wire environments There are many situations where wires can not or can not easily be laid. Historic buildings, older buildings, open areas and across busy streets make the installation of LANs either impossible or very expensive. 2. Temporary workgroups Consider situations in parks, athletic arenas, exhibitions, disaster-recovery, temporary office and construction sites where one wants a temporary WLAN established and removed. 3. The ability to access real-time information 2 Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while dealing with patients, serving customers and processing information. 4. Frequently changed environments Show rooms, meeting rooms, retail stores, and manufacturing sites where the workplace is frequently rearranged. 5. Small Office and Home Office (SOHO) networks SOHO users need a cost-effective, easy and quick installation of a small network. 6. Wireless extensions to Ethernet networks Network managers in dynamic environments can minimize the overhead caused by moves, extensions to networks, and other changes with wireless LANs. 7. Wired LAN backup Network managers implement wireless LANs to provide backup for mission-critical applications running on wired networks. 8. Training/Educational Facilities Training sites at corporations and students at universities use wireless connectivity to ease access to information, information exchanges, and learning. 1- 6 Network Configurations To better understand how the SL-2011 PLUS wireless LAN products work together to create a wireless network, it might be helpful to depict a few of the possible SL-2011 PLUS network configurations. The SL-2011 PLUS wireless LAN products can be configured as: 1. Ad-hoc (or peer-to-peer) for departmental or SOHO LANs. 2. Infrastructure for enterprise LANs. 3. IP Sharing for 56K/ISDN TA/Cable/DSL Modem – Connect Internet and your SOHO network. Ad-hoc (peer-to-peer) Mode This is the simplest network configuration that several computers equipped with the PC cards that form a wireless network whenever they are within range of one another (Figure 1-3). In ad-hoc mode, each client, is peer-to-peer, would only have access to the resources of the other client and requires no the access point. This is the easiest and least expensive way for the SOHO to set up a wireless network. 3 Figure 1-3 A wireless Ad-hoc network Infrastructure Mode The infrastructure mode requires the use of an access point (AP). In this mode, all wireless communications between two computers have to be via the AP no matter the AP is wired to Ethernet network or stand-alone. If used in stand-alone, the AP can extend the range of independent wireless LANs by acting a repeater, which effectively doubling the distance between wireless stations as shown in Figure 1-4. Figure 1-4 Extended-range independent WLAN using AP as repeater 4 W/ EL-2011CD W/ EL-2011CD W/ EL-2011CD W/ EL-2011CD L Peer to Peer W/ EL-2011CD EL-2011AP W/ EL-2011CD W/ EL-2011CD L L Infrastructure If wired to an Ethernet network as shown in…

Text truncated - open the document above for the full version.

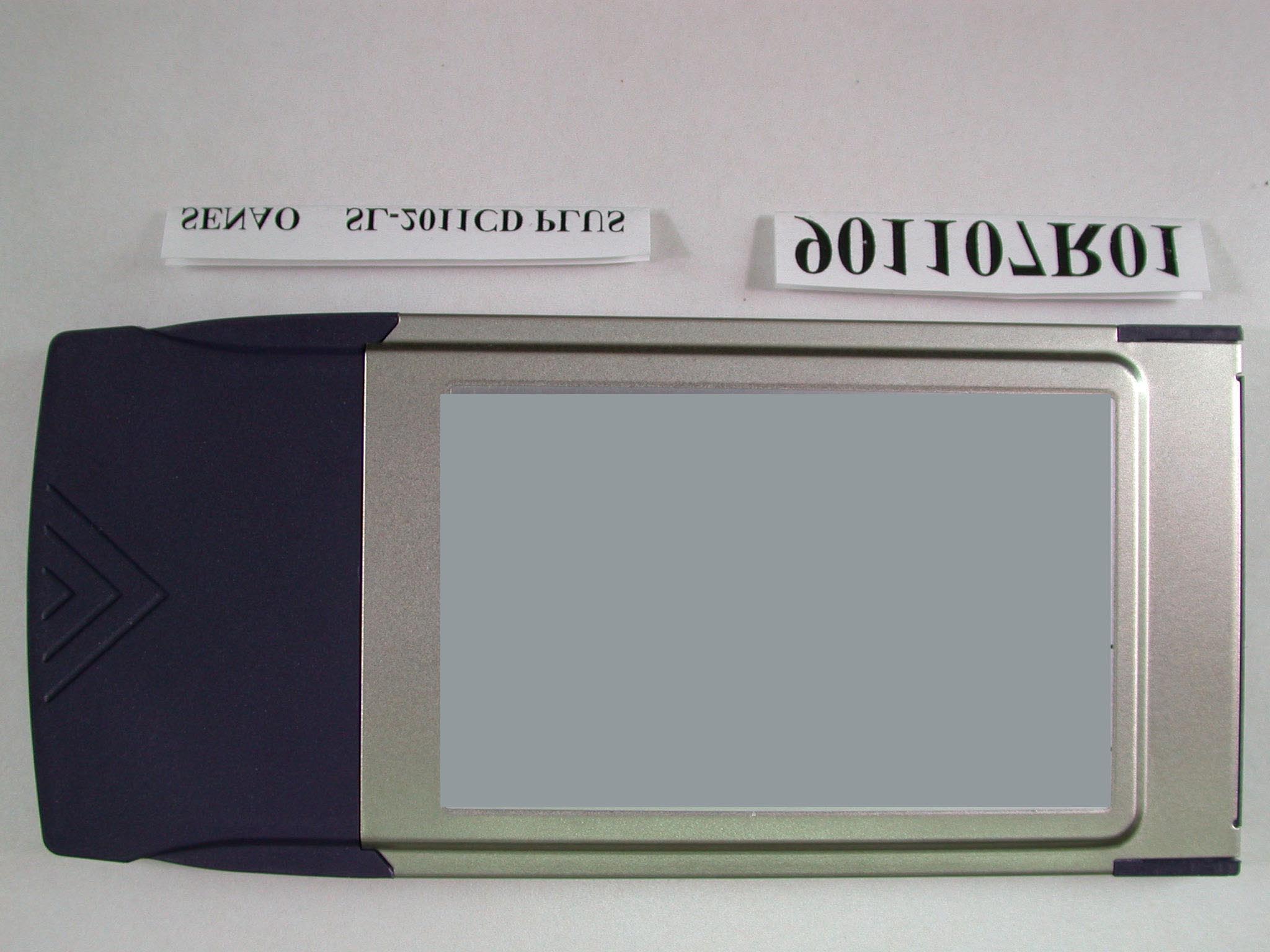

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4

FCC ID: NI3-SL-2011CDPLUS ADT No.901107R01 Operational Description The transmitter of the EUT (Wireless LAN PC Card) is powered by notebook and plugged in PCMCIA Slot. This EUT is equipped with antenna type of Patch antenna. And there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: NI3-SL-2011CDPLUS ADT No.: 901107R01A FCC TEST REPORT REPORT NO.: RF901107R01A MODEL NO.: SL-2011CD PLUS EL-2011CD PLUS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-SL-2011CDPLUS ADT No.: 901107R01A RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: NI3-SL-2011CDPLUS ADT No.: 901107R01A LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: NI3-SL-2011CDPLUS ADT No.: 901107R01A 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -1dBi or 0.79 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241299.312.50 6243787.502.35 11246273.282.15 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: NI3-SL-2011CDPLUS Report No.: RF901107R01A 1 Issued: December 19, 2001 FCC TEST REPORT REPORT NO.: RF901107R01A MODEL NO.: SL-2011CD PLUS (for SENAO) OEM MODEL NO.: EL-2011CD PLUS (for EnGenius) RECEIVED: October 30, 2001 TESTED: November 1~ November 14, 2001 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, No.531, Chung Cheng Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NI3-SL-2011CDPLUS Report No.: RF901107R01A 2 Issued: December 19, 2001 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS ................................................................... 5 3GENERAL INFORMATION............................................................................ 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES ................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS ....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 9 4.1.2TEST INSTRUMENTS................................................................................... 9 4.1.3TEST PROCEDURES ................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS ................................................................ 11 4.1.6TEST RESULTS .......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................. 18 4.2.2TEST INSTRUMENTS................................................................................. 19 4.2.3TEST PROCEDURES ................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS ................................................................ 21 4.2.6TEST RESULTS .......................................................................................... 22 4.36DB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 26 4.3.2TEST INSTRUMENTS................................................................................. 26 4.3.3TEST PROCEDURE.................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS ................................................................ 27 4.3.6TEST RESULTS .......................................................................................... 28 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 32 4.4.2TEST INSTRUMENTS................................................................................. 32 4.4.3TEST PROCEDURES ................................................................................. 33 4.4.4TEST SETUP .............................................................................................. 33 4.4.5EUT OPERATING CONDITIONS ................................................................ 33 FCC ID: NI3-SL-2011CDPLUS Report No.: RF901107R01A 3 Issued: December 19, 2001 4.4.6TEST RESULTS .......................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................... 35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 35 4.5.2TEST INSTRUMENTS................................................................................. 35 4.5.3TEST PROCEDURE.................................................................................... 36 4.5.4TEST SETUP .............................................................................................. 36 4.5.5EUT OPERATING CONDITIONS ................................................................ 36 4.5.6TEST RESULTS .......................................................................................... 37 4.6BAND EDGES MEASUREMENT ................................................................ 41 4.6.1LIMITS OF BAND EDGES MEASUREMENT .............................................. 41 4.6.2TEST INSTRUMENTS................................................................................. 41 4.6.3TEST PROCEDURE.................................................................................... 41 4.6.4EUT OPERATING CONDITION .................................................................. 42 4.6.5TEST RESULTS .......................................................................................... 42 4.7ANTENNA REQUIREMENT .........…

Text truncated - open the document above for the full version.

FCC ID: NI3-SL-2011CDPLUS Report No.: RF901107R01 46 Issued: November 21, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NI3-SL-2011CDPLUS Report No.: RF901107R01 47 Issued: November 21, 2001 RADIATED EMISSION TEST
