NI3-SP922Digital 4-line Cordless Phone System

User Manual WIRELESS SOLUTIONS PROVIDER SP-922 4-line Wireless Phone System EnGenius Customer Service United States: 1-888-735-7888 Canada: 1-888-397-2788 2 Table of Contents Safety Instructions...............................................................4 General Safety Instructions...........................................4 Product Safety Instructions............................................5 Battery Safety Instructions.............................................6 Regulatory Information.......................................................8 Congratulations.................................................................10 Equipment Checklist........................................................11 Handset Illustration..........................................................12 Handset Features.............................................................13 Basic Handset Features..............................................13 Additional Handset Features......................................15 Base Illustration................................................................19 Base Features...................................................................20 Basic Base Station Features......................................20 Additional Base Station Features..............................21 Administrator Features................................................22 Charger Illustration...........................................................23 Charger Features.............................................................24 Getting Started..................................................................25 Base Station Installation..............................................25 Handset and Charger Installation..............................26 Basic Operations..............................................................28 Making a Telephone Call............................................28 Making an Intercom Call.............................................28 Making a Broadcast.....................................................29 Redial.............................................................................30 Receiving a Telephone Call........................................30 Receiving an Intercom Call.........................................31 Ending a Call.................................................................31 Adjusting Receiver (Earpiece) Voice Volume..........31 Placing a Call On Hold................................................32 Mute................................................................................32 Do Not Disturb (Silent Ring).......................................32 Key Guard.....................................................................33 3 Battery Recharge and Replacement.........................33 Advanced Operations......................................................34 Handset Registration...................................................34 Advanced Registration:...............................................35 Handset Group Subscription......................................36 Call Transfer..................................................................37 3-Way Conferencing....................................................38 Call Forwarding.............................................................38 Auto-Attendant (AA).....................................................39 Call Waiting...................................................................41 AA Configuration by Administrator............................42 Change System Settings by Administrator...............44 Phonebook Operations................................................44 Menu Operations..........................................................47 Text Messaging............................................................50 Line Selection...............................................................51 Technical Specifications..................................................53 4 Safety Instructions Caution: Your wireless telephone gives you freedom and flexibility to stay in touch while you move around. However, the safe and responsible use of the phone depends entirely on you. When using your phone equipment, safety instructions should be followed to avoid the risks of fire, electric shock, injury to person, and damage to property. General Safety Instructions 1. When using your wireless phone, ensure your safety and the safety of others: a. Always watch where you are walking and standing. b. Don’t let a phone call distract you from working safely. 2. In an emergency: a. If an emergency occurs, dial the emergency phone number. Remember: if you are in an area where your phone does not have a clear signal from the base, it is highly probable that the call may not go through. Locate the nearest landline telephone or other communications device to call for help. b. Emergency calls may not automatically provide emergency personnel with your name, phone number or location. Tell the operator i) Your name and phone number ii) The nature of the emergency iii) Whether police, fire, or medical assistance is needed iv) The exact location of the emergency, including address, cross streets, mileposts or landmarks. 3. Notice to Hearing Aid Users: This phone system is compatible with inductively coupled hearing aids. 4. Notice to Cardiac Pacemaker Users: Preliminary studies done by the US FDA and others have shown that, although interference to the implanted cardiac pacemaker may occur when operating very closely, wireless telephones “do not seem to pose a significant problem for pacemaker wearers.” However, until more is known, FDA suggests that people with pacemakers may want to take precautions when using or carrying a wireless telephone to ensure that there is ample 5 distance between the telephone and the pacemaker. Do not carry the handset in a breast pocket. If you have any reason to suspect that interference is taking place, turn off your handset immediately…

Text truncated - open the document above for the full version.

-----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, May 10, 2005 1:40 AM To: steve.cheng; [email protected] Cc: [email protected] Subject: 回信: TCB Review Comments for (Senao Digital Phone System, NI3-SP922,940314L15) Dear Steve Please see our reply as below: -EMC- Question #1: P54 of users manual, missing telephone privacy statement. 15.214 Cordless Telephone (c) The label required under subpart A of this part shall also contain the following statement: “Privacy of communications may not be ensured when using this phone.” Answer: The original label has been shown the statement so we do not modify the label. Question #2: Per 15.214 (3), a statement of the means and procedures used to achieve the required protection as stated in 15.214 has not yet been provided. Please provide. Answer: We provide the declaration letter to ftp server. -SAR- Question #1: P 4, 5, 7 used wrong conversion factor (4.62 instead of 6.02), Please re-evaluate the data. Answer: The appendix A of the sar test report revised. Question #2: Is duty cycle 1:1 reasonable? Answer: The EUT has been program to output 100% during the SAR test. Question #3: RFX statement does not agree with test condition. Please revise. Answer: We provide the correct manual to ftp server. Please check. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 B Page 4 Page 5 Page 6

FCC ID Label Location (FCC ID: NI3-SP922)

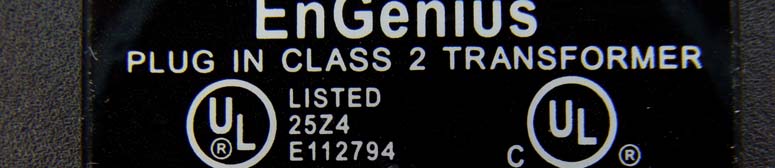

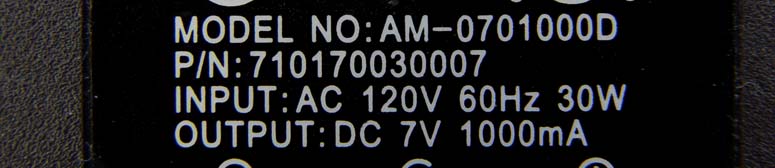

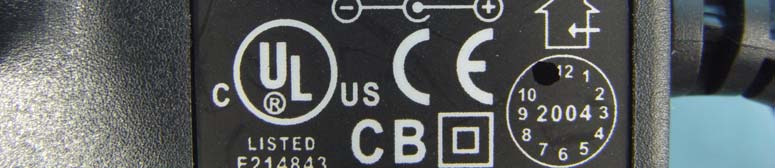

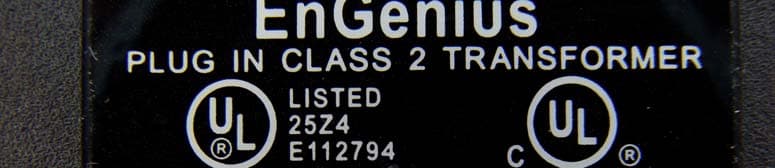

671000613570 MODEL LABEL (SP-922) SIZE:53.5X35.3mm HAC MADE IN TAIWAN REN:0.3B USOC RJ11 / CA11A FCC ID: NI3-SP922 Complies with Part 68, FCC Rules IC:3616A-SP922 WIRELESS SOLUTION PROVIDER DuraFon 4X Power source: DC 7V 1A (Use only Adaptor P/N: )710170030007 FCC Reg.No.:

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20

FCC ID: NI3-SP922 Report No.: RF940314L15 Operational Description The EUT is a Digital 4-line cordless phone system. The EUT use time division duplex(TDD), frequency hopping spread spectrum with differentially encoded MSK modulation scheme in the 900MHz ISM band. The EUT was operating at 902~928MHz. The EUT is power by linear adapter. The device is equipped with reverse thread proprietary connectors and, therefore, complies with Section 15.203 of the FCC rules. When the Voice generated into the device, the voice was transferred to digital data by PCM Codec which used Mu-law, 8Kbps G.729A speech coding, and used DSP , AD/DA converter, which use differentially encoded MSK modulation, to generate IF signal, then up-converted the signal to RF.

D - 1 APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D - 2 D2: DOSIMETRIC E-FIELD PROBE SN: 1753

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE

D - 18 D - 19 D - 20 D - 21 D - 22 D - 23 D - 24 D - 25

D4: 900MHz SYSTEM VALIDATION DIPOLE

D4: DAE SN: 510

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 Left Head Cheek Position The Bottom of the EUT to the flat phantom distance 0 mm A - 2 EUT Photo A - 3 Liquid Level Photo MSL 900MHz D=150mm A-1 Date/Time: 04/15/05 10:20:17 Test Laboratory: Advance Data Technology SP-922 Mode 1 BodyWorn Bottom 0mm DUT: Mobile Phone ; Type: SP-922 ; Test Frequency: 902.45 MHz Communication System: FHSS ; Frequency: 902.45 MHz ; Duty Cycle: 1:1 ; Modulation type: GFSK Medium: MSL900 Medium parameters used (interpolated): f = 902.45 MHz; σ = 1.01 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(6.02, 6.02, 6.02) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 Low Channel /Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.045 mW/g Low Channel /Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.12 V/m Peak SAR (extrapolated) = 0.053 W/kg SAR(1 g) = 0.042 mW/g; SAR(10 g) = 0.032 mW/g Maximum value of SAR (measured) = 0.043 mW/g A-2 Date/Time: 04/15/05 10:45:23 Test Laboratory: Advance Data Technology SP-922 Mode 1 BodyWorn Bottom 0mm DUT: Mobile Phone ; Type: SP-922 ; Test Frequency: 915.09 MHz Communication System: FHSS ; Frequency: 915.09 MHz ; Duty Cycle: 1:1 ; Modulation type: GFSK Medium: MSL900 Medium parameters used (interpolated): f = 915.09 MHz; σ = 1.04 mho/m; ε r = 54; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(6.02, 6.02, 6.02) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 Middle Channel /Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.048 mW/g Middle Channel /Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.38 V/m Peak SAR (extrapolated) = 0.056 W/kg SAR(1 g) = 0.046 mW/g; SAR(10 g) = 0.034 mW/g Maximum value of SAR (measured) = 0.047 mW/g A-3 A-4 Date/Time: 04/15/05 11:04:54 Test Laboratory: Advance Data Technology SP-922 Mode 1 BodyWorn Bottom 0mm DUT: Mobile Phone ; Type: SP-922 ; Test Frequency: 927.55 MHz Communication System: FHSS ; Frequency: 927.55 MHz ; Duty Cycle: 1:1 ; Modulation type: GFSK Medium: MSL900 Medium parameters used (interpolated): f = 927.55 MHz; σ = 1.04 mho/m; ε r = 54; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(6.02, 6.02 , 6.02) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 High Channel /Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.017 mW/g High Channel /Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.2 V/m Peak SAR (extrapolated) = 0.021 W/kg SAR(1 g) = 0.016 mW/g; SAR(10 g) = 0.013 mW/g Maximum value of SAR (measured) = 0.016 mW/g A-5 Date/Time: 04/15/05 09:47:40 Test Laboratory: Advance Data Technology System Validation Check-MSL 900MHz DUT: Dipole 900 MHz ; Type: D900V2 ; Serial: 156 ; Test Frequency: 900 MHz Communication System: CW ; Frequency: 900 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL900;Medium parameters used: f = 900 MHz; σ = 1.01 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 15 mm (The feetpoint of the dipole to the Phantom)Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(6.02, 6.02, 6.02) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2004/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.79 mW/g d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.7 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 3.91 W/kg SAR(1 g) = 2.8 mW/g; SAR(10 g) = 1.79 mW/g Maximum value of SAR (measured) = 2.93 mW/g

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: NI3-SP922 Report No.: SA940314L151Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA940314L15 MODEL NO.: SP-922 RECEIVED: Mar. 15, 2005 TESTED: Apr. 15, 2005 ISSUED: Apr. 21, 2005 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No.500, Fusing 3rd Rd., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 33 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-SP922 Report No.: SA940314L152Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST POSITION AND CONFIGURATIONS ..............................12 3.1 TOUCH/CHEEK TEST POSITION ............................................................................13 3.2 TILT TEST POSITION ...............................................................................................14 3.3 BODY-WORN CONFIGURATION .............................................................................14 4.DESCRIPTION OF SUPPORT UNITS ......................................................................15 5. TEST RESULTS ........................................................................................................15 5.1 TEST PROCEDURES ...............................................................................................15 5.2 MEASURED SAR RESULT .......................................................................................16 5.3 SAR LIMITS...............................................................................................................17 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................17 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................19 6.SYSTEM VALIDATION ..............................................................................................20 6.1 TEST EQUIPMENT ...................................................................................................20 6.2 TEST PROCEDURE .................................................................................................20 6.3 VALIDATION RESULT...............................................................................................22 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................23 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................24 7.1 PROBE CALIBRATION UNCERTAINTY ..................................................................24 7.2 ISOTROPY UNCERTAINTY .....................................................................................24 7.3 BOUNDARY EFFECT UNCERTAINTY.....................................................................25 7.4 PROBE LINEARITY UNCERTAINTY........................................................................25 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................26 7.6 RESPONSE TIME UNCERTAINTY ..........................................................................26 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................27 7.8 PROBE POSITIONER MECHANICAL TOLERANCE ...............................................27 7.9 PROBE POSITIONING .............................................................................................28 7.10 PHANTOM UNCERTAINTY ......................................................................................28 7.11 DASY4 UNCERTAINTY BUDGET ............................................................................29 8.INFORMATION ON THE TESTING LABORATORIES ..............................................30 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-SP922 Report No.: SA940314L153Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : Digital 4-line cordless phone system MODEL NO. : SP-922 BRAND NAME : EnGenius APPLICANT : SENAO INTERNATIONAL CO., LTD. TEST DATE: Apr. 15, 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 21, 2005 ( Candice Chen ) TECHNICAL ACCEPTANCE:, DATE:Apr. 21, 2005 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Apr. 21, 2005 (Cody Chang / Deputy Manager ) FCC ID: NI3-SP922 Report No.: SA940314L154Report Format V…

Text truncated - open the document above for the full version.

APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 Body Worn Bottom Position The bottom of the EUT to the flat phantom distance 15 mm Mode 2 Body Worn Front Position The front of the EUT to the flat phantom distance 15 mm Mode 3 Left Head Cheek Position Mode 4 Left Head Tilt Position Mode 5 Right Head Cheek Position Mode 6 Right Head Tilt Position EUT Photo Liquid Level Photo HSL1900MHz D=155mm HSL1900MHz D=155mm Date/Time: 07/20/04 17:19:00 Test Laboratory: Advance Data Technology SN-1302 BodyWorn Bottom 15mm Mode 1 Ch 2 DUT: Industrial cordless phone system ~ DuraFon 1X ; Type: SN-1302 ; Test Channel Frequency: 902.5 MHz Communication System: E-GSM 900 ; Frequency: 902.5 MHz ; Duty Cycle: 1:1 Medium: MSL900 (σ = 1.0104 mho/m, ε r = 54.2235, ρ = 1000 kg/m 3 ) ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: CCK Separation Distance : 15 mm ( The bottom side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(6.2, 6.2, 6.2) ; Calibrated: 2003/8/29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2003/8/15 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47 ; Postprocessing SW: SEMCAD, V1.6 Build 115 Low Channel/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.65 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0693 mW/g Low Channel/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.081 W/kg SAR(1 g) = 0.0649 mW/g; SAR(10 g) = 0.0478 mW/g Reference Value = 6.65 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0684 mW/g Date/Time: 07/20/04 17:40:24 Test Laboratory: Advance Data Technology SN-1302 BodyWorn Bottom 15mm Mode 1 Ch 64 DUT: Industrial cordless phone system ~ DuraFon 1X ; Type: SN-1302 ; Test Channel Frequency: 915.1 MHz Communication System: E-GSM 900 ; Frequency: 915.1 MHz ; Duty Cycle: 1:1 Medium: MSL900 (σ = 1.0232 mho/m, ε r = 54.1388, ρ = 1000 kg/m 3 ) ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: CCK Separation Distance : 15 mm ( The bottom side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(6.2, 6.2, 6.2) ; Calibrated: 2003/8/29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2003/8/15 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47 ; Postprocessing SW: SEMCAD, V1.6 Build 115 Middle Channel/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.28 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0417 mW/g Middle Channel/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0499 W/kg SAR(1 g) = 0.0393 mW/g; SAR(10 g) = 0.0287 mW/g Reference Value = 5.28 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0413 mW/g Date/Time: 07/20/04 18:09:20 Test Laboratory: Advance Data Technology SN-1302 BodyWorn Bottom 15mm Mode 1 Ch126 DUT: Industrial cordless phone system ~ DuraFon 1X ; Type: SN-1302 ; Test Channel Frequency: 927.6 MHz Communication System: E-GSM 900 ; Frequency: 927.6 MHz ; Duty Cycle: 1:1 Medium: MSL900 (σ = 1.0365 mho/m, ε r = 54.0069, ρ = 1000 kg/m 3 ) ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: CCK Separation Distance : 15 mm ( The bottom side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(6.2, 6.2, 6.2) ; Calibrated: 2003/8/29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2003/8/15 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47 ; Postprocessing SW: SEMCAD, V1.6 Build 115 High Channel/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 3.54 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.0219 mW/g High Channel/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0284 W/kg SAR(1 g) = 0.021 mW/g; SAR(10 g) = 0.0153 mW/g Reference Value = 3.54 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.0223 mW/g Date/Time: 07/20/04 18:49:56 Test Laboratory: Advance Data Technology SN-1302 BodyWorn Front 15mm Mode 2 Ch 2 DUT: Industrial cordless phone system ~ DuraFon 1X ; Type: SN-1302 ; Test Channel Frequency: 902.5 MHz Communication System: E-GSM 900 ; Frequency: 902.5 MHz ; Duty Cycle: 1:1 Medium: MSL900 (σ = 1.0104 mho/m, ε r = 54.2235, ρ = 1000 kg/m 3 ) ; Liquid Level : 155mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: CCK Separation Distance : 15 mm ( The bottom side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.0 degrees ; Liquid Temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(6.2, 6.2, 6.2) ; Calibrated: 2003/8/29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2003/8/15 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47 ; Postprocessing SW: SEMCAD, V1.6 Build 115 Low Channel/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 4.63 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.19 mW/g Low Channel/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.229 W/kg SAR(1 g) = 0.182 mW/g; SAR(10 g) = 0.131 mW/g Reference Value = 4.63 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.194 mW/g Date/Time: 07/20/04 19:15:58 Test Laboratory: Advance Data Technology SN-1302 BodyWorn Front 15mm Mode 2 Ch 64 DUT: Industr…

Text truncated - open the document above for the full version.

APPENDIX B : ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: NI3-SP922 Report No.: SA930817L09A1Report Format Version 2.0.1 Reference No.: 940427L06 SAR TEST REPORT REPORT NO.: SA930817L09A MODEL NO.: SP-922 RECEIVED: NA TESTED: Jul. 20, 2004 ISSUED: Apr. 28, 2005 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: 2F, NO. 531 CHUNG CHENG RD., HSIN-TIEN, TAIPEI, TAIWAN, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 32 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-SP922 Report No.: SA930817L09A2Report Format Version 2.0.1 Reference No.: 940427L06 Table of Contents 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................................ 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................ 12 3.1TOUCH/CHEEK TEST POSITION .......................................................................................... 13 3.2TILT TEST POSITION ............................................................................................................. 14 3.3BODY-WORN CONFIGURATION ........................................................................................... 14 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 15 5.TEST RESULTS ...................................................................................................................... 15 5.1TEST PROCEDURES .............................................................................................................15 5.2MEASURED SAR RESULT ..................................................................................................... 16 5.3SAR LIMITS ............................................................................................................................. 19 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 19 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 21 6.SYSTEM VALIDATION ............................................................................................................22 6.1TEST EQUIPMENT ......................................................................................…

Text truncated - open the document above for the full version.
