NI3-UB36005001IEEE 802.11b/g Wireless USB 2.0 Adapter

IEEE 802.11b/g Wireless USB 2.0 Adapter User’s Manual Version: 1.0 IEEE 802.11b/g Wireless USB 2.0 Adapter Version 1.2 2 Table of Contents 1 INTRODUCTION ................................................................................................................4 1.1 F EATURES & B ENEFITS .................................................................................................4 1.2 P ACKAGE CONTENTS....................................................................................................5 1.3 USB A DAPTER D ESCRIPTION .........................................................................................5 1.4 S YSTEM REQUIREMENTS...............................................................................................5 1.5 A PPLICATIONS..............................................................................................................7 1.6 N ETWORK CONFIGURATION...........................................................................................8 2 INSTALL DRIVERS & CLIENT UTILITY ........................................................................... 10 2.1 B EFORE YOU BEGIN.................................................................................................... 10 2.2 I NSTALLING THE D RIVERS ............................................................................................ 10 3 USING THE CLIENT UTILITY .......................................................................................... 16 3.1 C URRENT S TATUS ...................................................................................................... 16 3.2 P ROFILE MANAGEMENT............................................................................................... 17 3.2.1 Scan for available networks .................................................................................. 18 3.2.2 Create a New Profile ............................................................................................ 19 3.2.3 Security ................................................................................................................ 20 3.2.3.1 Security Disabled ......................................................................................... 20 3.2.3.2 WPA – TLS, TTLS........................................................................................ 20 3.2.3.3 WPA – PEAP (EAP-GTC) ............................................................................ 22 3.2.3.4 WPA – PEAP (EAP-MSCHAP-V2) ............................................................... 24 3.2.3.5 WPA – LEAP ............................................................................................... 26 3.2.3.6 WPA – Passphrase ...................................................................................... 28 3.2.3.7 802.1x – TLS, TTLS ..................................................................................... 29 3.2.3.8 802.1x – PEAP (EAP-GTC) .......................................................................... 31 3.2.3.9 802.1x – PEAP (EAP-MSCHAP-V2) ............................................................. 33 3.2.3.10 802.1x – LEAP ............................................................................................. 35 3.2.3.11 Pre-Shared Key (Static WEP)....................................................................... 37 3.2.4 Advanced Settings ............................................................................................... 38 3.2.4.1 Infrastructure Settings .................................................................................. 38 3.2.4.2 Ad Hoc Settings ........................................................................................... 39 3.3 D IAGNOSTICS............................................................................................................. 40 3.4 E NABLE / D ISABLE R ADIO ............................................................................................ 42 3.5 D ISABLE TRAY ICON.................................................................................................... 44 3.6 D ISPLAY S ETTINGS ..................................................................................................... 44 4 UNINSTALL THE DRIVERS & CLIENT UTILITY .............................................................. 46 APPENDIX A – SPECIFICATIONS............................................................................................ 48 APPENDIX B – FCC INTERFERENCE STATEMENT ............................................................... 49 IEEE 802.11b/g Wireless USB 2.0 Adapter Version 1.2 3 Revision History Version Date Notes 1.0 June 9, 2005 Initial Version 1.1 Oct. 12, 2005 Utility Upgrading 1.2 Oct. 14, 2005 Spec Updating IEEE 802.11b/g Wireless USB 2.0 Adapter Version 1.2 4 1 Introduction This is a wireless USB 2.0 adapter that supports the IEEE 802.11b/g (2.4GHz) radio operation. It provides a high-speed wireless connection with data rate up to 108Mbps. To protect your wireless connectivity, the high-speed wireless USB adapter can encrypt all wireless transmissions through 64/128/152-bit WEP data encryption and also supports WPA. Dynamic Frequency Selection (DFS) puts your network on the cleanest channel in your location. With the high-speed wireless USB adapter, you will experience the best wireless connectivity available. This chapter describes the features & benefits, package contents, applications, and network configuration. 1.1 Features & Benefits Features Benefits High Speed Data Rate up to 108Mbps in Super G mode Capable of handling heavy data payloads such as MPEG video streaming. High Output Power up to 22 dBm Excellent output power spreads the operation distance Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) and Wired Equivalent Private (WEP) Powerful data security. IEEE802.1x Client Support Enhances authentication and security. Support for 802.11e standard Wireless Multimedia Enhancements Quality of Service s…

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: Re : FW: Senao International Co., Ltd., FCC ID: NI3-UB36005001, Assessment NO.: AN05T5241, Notice#1 10/25/2005 From: amanda.wu [mailto:[email protected]]On Behalf Of application Sent: Monday, October 24, 2005 3:13 AM To: Helen Zhao Subject: Re : FW: Senao International Co., Ltd., FCC ID: NI3-UB36005001, Assessment NO.: AN05T5241, Notice#1 Dear Helen: Please see our reply as below. Thank you!! Best Regards Amanda -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Friday, October 21, 2005 4:17 PM To: Helen Zhao Subject: Senao International Co., Ltd., FCC ID: NI3-UB36005001, Assessment NO.: AN05T5241, Notice#1 Question #1: The device comes with three dipole type antennas: 5dBi, 2dBi and 0.97dBi. The test report indicates radiated spurious emission and bandedge test was tested with 2dBi instead of 5dBi, the highest gain. Please explain. Ans: It's typo and report has been revised. (This device has applied FCC and CE at the same time. For CE portion, only 2dBi was applied. During radiation test, 5dBi antenna was tested firstly and then 2dBi antenna.) We attach the revised setup photos here too Question #2: The user manual indicates this device support multiple-domain. Is it controlled by software? Is the control accessible to end users? Please explain how the applicant will prevent the end users in US from using unauthorized frequency bands. Ans: It would be disable by firmware before placing on USA market. Question #3: This is a mobile device, please add the following RF exposure statement into the user manual: "The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons". Ans: The userman had been revised that added RF exposure statment into it, please see the attchment. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

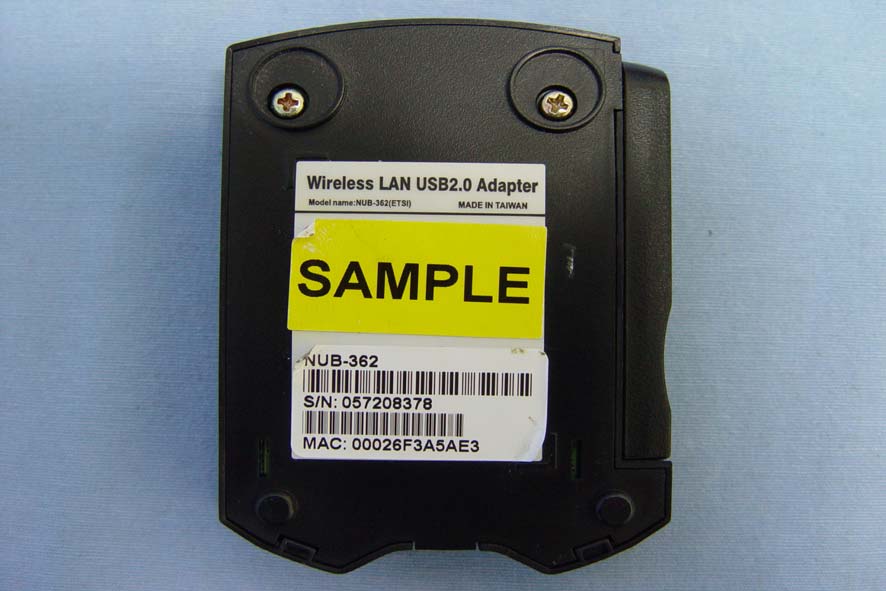

Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 1 Total Page: 7 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT For FCC Model: NUB-362EXT, EUB-362EXT Antenna: 2.0 dBi Antenna: 5.0 dBi Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 3 Rev.00 Model: NUB-362, EUB-362

29.5x39.5(mm) R0.5 Wireless LAN USB2.0 Adapter MADE IN TAIWAN FCC ID:NI3-UB36005001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model name:NUB-362(EXT)

Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Model: NUB-362EXT, EUB-362EXT Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 6 Rev.00 Model: NUB-362, EUB-362 Compliance Certification Services Inc. Report No: 50830003 Date of Issue: October 7, 2005 Page 7 Rev.00

50729002-2472 Dipole Antenna _2.4GHz Peak Gain W/ Cable loss (dBi) Max Gain(dBi) Antenna Type Frequency(M Hz) / Max Polarization H E 24120.97-0.97 24420.13-2.48 Dipole antenna 2472-1.27-3.72 50729002-2472 CCS WUGU Antenna Pattern Job No.:50729002-2472 Date:2005/8/10 Time:֑Ղ 10:15 Temp.(к)/Hum.(%):25к/80% Tested by: Center freq.(MHz): 2472 Polarization : H Plane Max gain(dBi):- 1.27 Min gain(dBi):- 8.32 Avg gain(dBi):-4.33 50729002-2472 CCS WUGU Antenna Pattern Job No.:50729002-2472-E Date:2005/8/10 Time:֑Ղ 11:11 Temp.(к)/Hum.(%):25к/80% Tested by: Center freq.(MHz): 2472 Polarization : E Plane Max gain(dBi):- 3.72 Min gain(dBi):- 31.92 Avg gain(dBi):-8.04 50729002-2472 CCS WUGU Antenna Pattern Job No.:50729002-2442 Date:2005/8/10 Time:֑Ղ 10:12 Temp.(к)/Hum.(%):25к/80% Tested by: Center freq.(MHz): 2442 Polarization : H Plane Max gain(dBi):0.13 Min gain(dBi):-7.84 Avg gain(dBi):-3.34 50729002-2472 CCS WUGU Antenna Pattern Job No.:50729002-2442-E Date:2005/8/10 Time:֑Ղ 11:09 Temp.(к)/Hum.(%):25к/80% Tested by: Center freq.(MHz): 2442 Polarization : E Plane Max gain(dBi):- 2.48 Min gain(dBi):- 27.98 Avg gain(dBi):-6.99 50729002-2472 CCS WUGU Antenna Pattern Job No.:50729002-2412 Date:2005/8/10 Time:֑Ղ 10:10 Temp.(к)/Hum.(%):25к/80% Tested by: Center freq.(MHz): 2412 Polarization : H Plane Max gain(dBi):0.97 Min gain(dBi):- 7.99 Avg gain(dBi):-2.77 50729002-2472 CCS WUGU Antenna Pattern Job No.:50729002-2412-E Date:2005/8/10 Time:֑Ղ 11:06 Temp.(к)/Hum.(%):25к/80% Tested by: Center freq.(MHz): 2412 Polarization : E Plane Max gain(dBi):- 0.97 Min gain(dBi):- 28.61 Avg gain(dBi):-5.75

APPROVAL SHEET CUSTOMER MODEL NO.: JOYMAX MODEL NO.: IWX-241XSAXX-101 DESCRIPTION: 2.4GHz Swivel Antenna REV.: 00 DATE.: 2005/07/07 Joymax ApprovalCustomer Approval Tel:+886-3-4335698 Fax:+886-3-4335798 . 4335799 E-Mail:[email protected] No.5, Dong Yuan Rd.2, Jhongli Industrial Park, Jhongli City, Tao Yuan, Taiwan, R.O.C. Http://www.joymax.com.tw 5 CUSTOMER : Item Page 1. Drawing 2. Test report Electrical test 3. Connector SMA Plug 4 PE .Packing Index. 1-1 2-1 3-1 2005/07/0700 ContentDateRev. Modification History: Mechanical Properties Operating Temp Weight Whip Connector 2065 11 g (est ) PU/PC Brass Frequency Range Impedance Polarization Radiation V.S.W.R. Electrical Properties Gain 2.4/2.4835 GHz 2.0 2dBi Omni Vertical 50 Model. IWX-241XSAXX-101 Test Report Electrical Test Return loss V.S.W.R. 2-1 3-1 Connector SMA Plug 1) Impedance 2) Frequency Range 3) V.S.W.R. 4) Working Voltage 5) Dielectric Withstanding 6)Voltage Insulation Resistance 7) Contact Resistance 8) Insertion Loss(2.4GHz) Electrical Properties 1) Recommended coupling nut torque 2) Coupling nut retention force 3) Contact captivation axial Mechanical Properties 4.0 in.lbs.8.8 in.lbs. 50 lbs. 5 lbs. Environmental Ratings 1) Operating Temperature 2) Thermal Shock 3) Corrosion 4) Shock 5) Vibration 6) Moisture Resistance 65165 MIL-STD-202, Method 107, Condition B MIL-STD-202, Method 101, Condition B MIL-STD-202, Method 213, Condition I MIL-STD-202, Method 204, Condition D MIL-STD-202, Method 106 Material Specifications 1) Body 2) Contact 3) Insulator The connector is a SMA plug join on the antenna. 50 ohm 0~10 GHz 1.5 (Max.) 250 Vrms 670 Vrms 2000Megohm Center contact: 3.0 Milliohm (Max.) Outer contact: 2.0 Milliohm (Max.) 0.3 dB Brass Per JIS H3250 C3604 BD, Black chrome Plated Beryllium Copper Per QQ-C-530, Gold Plated Per MIL-G-45204 PTFE Fluorocarbon Per ASTM D 1710

Compliance Certification Services Inc. Report No.: 50830003-RP1 FCC ID: NI3-UB36005001 Date of Issue: October 7, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 68 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IEEE 802.11b/g Wireless USB 2.0 Adapter Model: NUB-362EXT, EUB-362EXT, NUB-362, EUB-362 Trade Name: SENAO Issued to SENAO INTERNATIONAL CO., LTD., NO.16, GONGBA RD., LINKOU TOWNSHIP, TAIPEI, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50830003-RP1 FCC ID: NI3-UB36005001 Date of Issue: October 7, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................9 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................22 7.4 BAND EDGES MEASUREMENT ................................................................................................27 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................40 7.6 RADIO FREQUENCY EXPOSURE........................................................................................................45 7.7 SPURIOUS EMISSIONS ................................................................................................................47 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................63 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................66 Compliance Certification Services Inc. Report No.: 50830003-RP1 FCC ID: NI3-UB36005001 Date of Issue: October 7, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product IEEE 802.11b/g Wireless USB 2.0 Adapter Trade Name SENAO Model Number NUB-362EXT, EUB-362EXT, NUB-362, EUB-362 Model Discrepancy All the above models are identical except that they come with four different models with two different external appearances for sale. External appearance 1: For NUB-362EXT, EUB-362EXT (with Dipole antenna 2.0 or 5.0 dBi) External appearance 2: For NUB-362, EUB-362 (with Dipole antenna 0.97 dBi) For further details, please refer to the EUT photos. Power Supply Powered from host device Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b Base mode: 21.12 dBm IEEE 802.11g Base mode: 18.84 dBm IEEE 802.11g Turbo mode: 22.67 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b Base mode: 11, 5.5, 2, 1 Mbps IEEE 802.11g Base mode: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps IEEE 802.11g Turbo mode: 108, 54, 48, 36, 24, 18, 12 Mbps Number of Channels 11 Channels Antenna Specification Antenna Type / Gain…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50830003-RP1 FCC ID: NI3-UB36005001 Date of Issue: October 7, 2005 Page 66 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 50830003-RP1 FCC ID: NI3-UB36005001 Date of Issue: October 7, 2005 Page 67 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 50830003-RP1 FCC ID: NI3-UB36005001 Date of Issue: October 7, 2005 Page 68 Rev. 00 Powerline Conducted Emissions Setup Photos
