NI3-UB83005001Wireless 802.11a/b/g USB Dongle

IEEE 802.11a/b/g Dual Band Wireless USB 2.0 Adapter User’s Manual Version: 2.0 IEEE 802.11a/b/g Wireless USB 2.0 AdapterVersion 2.0 2 Table of Contents 1INTRODUCTION.........................................................................................................................3 1.1FEATURES & BENEFITS...........................................................................................................3 1.2PACKAGE CONTENTS..............................................................................................................4 1.3USB ADAPTER DESCRIPTION..................................................................................................4 1.4SYSTEM REQUIREMENTS.........................................................................................................5 1.5APPLICATIONS........................................................................................................................6 1.6NETWORK CONFIGURATION....................................................................................................7 a)Ad-hoc (peer-to-peer) Mode.............................................................................................................7 b)Infrastructure Mode.........................................................................................................................7 2INSTALL DRIVERS & CLIENT UTILITY.................................................................................9 2.1BEFORE YOU BEGIN................................................................................................................9 2.2INSTALLING THE DRIVERS.......................................................................................................9 3UNDERSTANDING CLIENT UTILITY....................................................................................14 3.1CURRENT NETWORK INFORMATION.......................................................................................14 4STATION MODE CONFIGURATION......................................................................................16 4.1CURRENT NETWORK INFORMATION.......................................................................................16 4.2GENERAL CONNECTION SETTING...........................................................................................17 4.3WEP ENCRYPTION...............................................................................................................19 4.4WPA/WPA2 AUTHENTICATION WITH TKIP/AES ENCRYPTION.............................................21 4.5WPA-PSK AUTHENTICATION...............................................................................................24 4.6PROFILES..............................................................................................................................25 4.7ADVANCED SETTINGS...........................................................................................................26 5UNINSTALL THE DRIVERS & CLIENT UTILITY................................................................28 APPENDIX A – SPECIFICATIONS....................................................................................................30 APPENDIX B – FCC INTERFERENCE STATEMENT....................................................................32 IEEE 802.11a/b/g Wireless USB 2.0 AdapterVersion 2.0 3 1 Introduction This is a USB 2.0 pen-size wireless adapter supporting dual-band 802.11a/b/g (2.4GHz & 5GHz) radio operation. It provides high-speed wireless connection with data rate up to 54Mbps. It is based on the 802.11g standard backwards compatible with 802.11b products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by gradually replacing the 802.11b devices with 802.11g devices. For a more secure application, it supports 802.1x, WPA and WPA2. This chapter describes the features & benefits, package contents, applications, and network configuration. 1.1 Features & Benefits FeaturesBenefits WEP64/128/256, WPA(HW TKIP support) and AES128-CCMP High level security IEEE802.1x Client SupportEnhances authentication and security Advanced Power ManagementLow power consumption in power saving mode. USB 2.0USB 2.0 interface and compatible with USB 1.1 High Speed Data Rate Up to 54MbpsCapable of handling heavy data payloads such as MPEG video streaming IEEE 802.11a/b/g Wireless USB 2.0 AdapterVersion 2.0 4 1.2 Package Contents Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped in its original package. Ü One Wireless LAN USB Adapter Ü One CD-ROM with User’s Manual Included 1.3 USB Adapter Description The USB adapter is a standard USB adapter that fits into any USB interface. The USB adapter has a LED indicator and a built-in antenna for wireless connectivity. USB Connector LED Indicator: Ad-hoc Mode: Solid Green, whether the wireless is connected or not. Infrastructure Mode: Solid green while connected, and blinking during activity. IEEE 802.11a/b/g Wireless USB 2.0 AdapterVersion 2.0 5 1.4 System Requirements The following are the minimum system requirements in order to use the USB adapter. Ü PC/AT compatible computer with a USB interface. Ü Windows 98SE/ME/2000/XP operating system. (Windows 98SE/ME don’t support USB 2.0, the performance could be influenced) Ü 20 MB of free disk space for installing the USB adapter driver and utility program. IEEE 802.11a/b/g Wireless USB 2.0 AdapterVersion 2.0 6 1.5 Applications The wireless LAN products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of wireless LANs: a) Diffi…

Text truncated - open the document above for the full version.

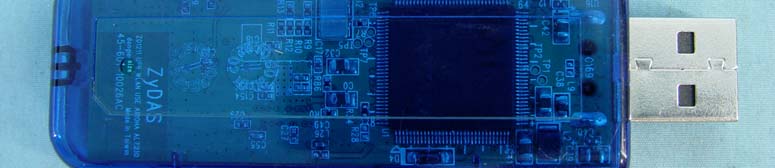

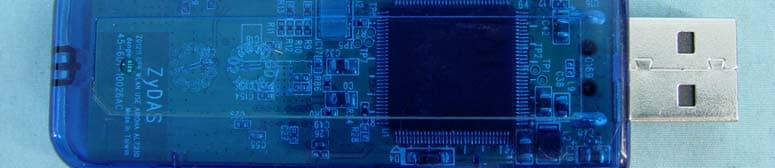

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID : NI3-UB83005001 Label Location

NUB-8301 LABEL FREQUENCY 54.5x10.5mm (NUB-8301) LFP P/N:6710A0013000 Wireless LAN USB Dongle MADE IN TAIWAN FCC ID:NI3-UB83005001 FC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model name:NUB-8301

Page 2 Page 3

FCC ID: NI3-UB83005001 Report No.: RF940617L13 Operational Description The transmitter of the EUT (Wireless 802.11a/g/b USB Dongle) is powered by host equipment. The antenna type used in this product is Printed antenna without antenna connector. This device is a Wireless 802.11a/g/b USB Dongle, which operates in both of the 5GHz and 2.4GHz bands and can not transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION NB：Compaq EVO N800C The bottom of the EUT to the flat phantom distance 5 mm A - 2 NB：Dell C600 The right of the EUT to the flat phantom distance 6 mm A - 3 EUT Photo Reference Point A - 4 Liquid Level Photo MSL 2450MHz D=151mm MSL 5000MHz D=150mm A - 5 Date/Time: 2005/7/5 12:00:16 Test Laboratory: Advance Data Technology NUB-8301 Horizontal 11b N800C Mode 1 DUT: Wireless 802.11a/b/g USB Dongle ; Type: NUB-8301 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.15 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.2 V/m Peak SAR (extrapolated) = 2.26 W/kg SAR(1 g) = 0.984 mW/g; SAR(10 g) = 0.503 mW/g Maximum value of SAR (measured) = 1.10 mW/g A - 6 Date/Time: 2005/7/5 12:26:25 Test Laboratory: Advance Data Technology NUB-8301 Horizontal 11b N800C Mode 1 DUT: Wireless 802.11a/b/g USB Dongle ; Type: NUB-8301 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 52; ρ = 1000 kg/m 3 ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Mid Channel 6/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.06 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.2 V/m Peak SAR (extrapolated) = 2.32 W/kg SAR(1 g) = 0.996 mW/g; SAR(10 g) = 0.505 mW/g Maximum value of SAR (measured) = 1.11 mW/g A - 7 A - 8 Date/Time: 2005/7/5 12:42:40 Test Laboratory: Advance Data Technology NUB-8301 Horizontal 11b N800C Mode 1 DUT: Wireless 802.11a/b/g USB Dongle ; Type: NUB-8301 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.01 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 11/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.784 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.2 V/m Peak SAR (extrapolated) = 1.76 W/kg SAR(1 g) = 0.739 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.824 mW/g A - 9 Date/Time: 2005/7/5 13:13:44 Test Laboratory: Advance Data Technology NUB-8301 Horizontal 11g N800C Mode 2 DUT: Wireless 802.11a/b/g USB Dongle ; Type: NUB-8301 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.640 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.01 V/m Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.502 mW/g; SAR(10 g) = 0.257 mW/g Maximum value of SAR (measured) = 0.559 mW/g A - 10 Date/Time: 2005/7/5 13:36:52 Test Laboratory: Advance Data Technology NUB-8301 Horizontal 11g N800C Mode 2 DUT: Wireless 802.11a/b/g USB Dongle ; Type: NUB-8301 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 52; ρ = 1000 kg/m 3 ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal A…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: NI3-UB83005001 Report No.: SA940617L131Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA940617L13 MODEL NO.: NUB-8301 RECEIVED: Jun. 15, 2005 TESTED: Jul. 05 ~ Jul. 06, 2005 ISSUED: Jul. 11, 2005 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No. 500, Fusing 3 rd Rd., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 43 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NI3-UB83005001 Report No.: SA940617L132Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1GENERAL DESCRIPTION OF EUT...................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................6 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ..........................................6 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .......10 3.DESCRIPTION OF SUPPORT UNITS ......................................................................13 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................14 4.1.DESCRIPTION OF ANTENNA LOCATION......................................................14 4.2.DESCRIPTION OF ASSESSMENT POSITION ...............................................15 4.3.DESCRIPTION OF TEST MODE .....................................................................16 4.4.SUMMARY OF TEST RESULT ........................................................................16 5.TEST RESULTS ........................................................................................................17 5.1TEST PROCEDURES ......................................................................................17 5.2MEASURED SAR RESULTS ...........................................................................19 5.3SAR LIMITS .....................................................................................................23 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .............................................24 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...............................................28 6.SYSTEM VALIDATION ..............................................................................................29 6.1TEST EQUIPMENT ..........................................................................................29 6.2TEST PROCEDURE ........................................................................................30 6.3VALIDATION RESULTS ...................................................................................32 6.4SYSTEM VALIDATION UNCERTAINTIES (For 2.4GHz) .................................33 6.5SYSTEM VALIDATION UNCERTAINTIES (For 5.0GHz) .................................34 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................35 7.1PROBE CALIBRATION UNCERTAINTY ..........................................................35 7.2ISOTROPY UNCERTAINTY.............................................................................36 7.3BOUNDARY EFFECT UNCERTAINTY ............................................................36 7.4PROBE LINEARITY UNCERTAINTY ...............................................................37 7.5READOUT ELECTRONICS UNCERTAINTY ...................................................37 7.6RESPONSE TIME UNCERTAINTY..................................................................37 7.7INTEGRATION TIME UNCERTAINTY .............................................................38 7.8PROBE POSITIONER MECHANICAL TOLERANCE ......................................39 7.9PROBE POSITIONING ....................................................................................39 7.10PHANTOM UNCERTAINTY .............................................................................40 7.11DASY4 UNCERTAINTY BUDGET (For 2.4GHz)..............................................41 7.12DASY4 UNCERTAINTY BUDGET (For 5.0 ~ 6.0GHz) ....................................42 8.INFORMATION ON THE TESTING LABORATORIES ..............................................43 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: NI3-UB83005001 Report No.: SA940617L133Report Format Version 2.0.2 1. CERTIFICATION PRODUCT : Wireless 802.11a/g/b USB Dongle MODEL NO. : NUB-8301 BRAND NAME: SENAO OEM BRAND NAME: EnGenius APPLICANT: SENAO INTERNATIONAL CO., LTD. TESTED : Jul. 05 ~ Jul. 06, 2005 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Jul. 11, 2005 ( Andrea Hsia ) TECHNICAL ACCEPTANCE:, DATE:Jul. 11, 2005 Responsible for RF ( Stanely Hsu ) APPROVED BY :, DATE:Jul. 11, 2005 ( Cody Chang, Deputy Manager ) FCC ID: NI3-UB83005001 Report …

Text truncated - open the document above for the full version.

FCC ID: NI3-UB83005001 Report No.: RF940617L131Report Format Version 2.0.2 FCC TEST REPORT (15.247) REPORT NO.: RF940617L13 MODEL NO.: NUB-8301 RECEIVED: Jun. 15, 2005 TESTED: Jun. 15 ~ Jun. 27, 2005 ISSUED: Jun. 29, 2005 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No. 500, Fusing 3 rd Rd., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 96 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NI3-UB83005001 Report No.: RF940617L132Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ......................................................................................................5 2.SUMMARY OF TEST RESULTS ..............................................................................6 2.1 MEASUREMENT UNCERTAINTY ...........................................................................6 3.GENERAL INFORMATION.......................................................................................7 3.1GENERAL DESCRIPTION OF EUT.........................................................................7 3.2DESCRIPTION OF TEST MODES...........................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ........................ 10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................12 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................12 4.TEST TYPES AND RESULTS (802.11b & g 2412~2462MHz BAND)....................12 4.1CONDUCTED EMISSION MEASUREMENT .........................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 13 4.1.2 TEST INSTRUMENTS............................................................................................ 13 4.1.3 TEST PROCEDURES ............................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 14 4.1.5 TEST SETUP.......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 15 4.1.7 TEST RESULTS ..................................................................................................... 16 4.2RADIATED EMISSION MEASUREMENT ..............................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 22 4.2.2 TEST INSTRUMENTS............................................................................................ 23 4.2.3 TEST PROCEDURES ............................................................................................ 24 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 24 4.2.5 TEST SETUP ......................................................................................................... 25 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 25 4.2.7 TEST RESULTS ..................................................................................................... 26 4.36dB BANDWIDTH MEASUREMENT .....................................................................33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 33 4.3.2 TEST INSTRUMENTS............................................................................................ 33 4.3.3 TEST PROCEDURE............................................................................................... 34 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 34 4.3.5 TEST SETUP ......................................................................................................... 34 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 34 4.3.7 TEST RESULTS ..................................................................................................... 35 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................41 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 41 4.4.2 INSTRUMENTS...................................................................................................... 41 4.4.1 TEST PROCEDURES ............................................................................................ 42 4.4.2 DEVIATION FROM TEST STANDARD .................................................................. 42 4.4.3 TEST SETUP ......................................................................................................... 42 4.4.4 EUT OPERATING CONDITIONS ........................................................................... 42 4.4.3 TEST RESULTS ..................................................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................44 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. 44 4.5.2 TEST INSTRUMENTS......................…

Text truncated - open the document above for the full version.

FCC ID: NI3-UB83005001 Report No.: RF940617L131Report Format Version 2.0.2 FCC TEST REPORT (15.407) REPORT NO.: RF940617L13 MODEL NO.: NUB-8301 RECEIVED: Jun. 15, 2005 TESTED: Jun. 15 ~ Jun. 27, 2005 ISSUED: Jun. 29, 2005 APPLICANT: SENAO INTERNATIONAL CO., LTD. ADDRESS: No. 500, Fusing 3 rd Rd., Hwa-Ya Technical Park, Kuei-Shan Hsiang, Taoyuan County 333, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 55 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NI3-UB83005001 Report No.: RF940617L132Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ......................................................................................................4 2.SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY ...........................................................................5 3.GENERAL INFORMATION.......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .......................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 11 3.4DESCRIPTION OF SUPPORT UNITS ................................................................... 11 4.TEST TYPES AND RESULTS (5150 ~ 5350MHz BAND)......................................12 4.1CONDUCTED EMISSION MEASUREMENT .........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 12 4.1.2 TEST INSTRUMENTS............................................................................................ 12 4.1.3 TEST PROCEDURES ............................................................................................ 13 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 13 4.1.5 TEST SETUP ......................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 14 4.1.7 TEST RESULTS ..................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ..............................................................17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 17 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .......... 18 4.2.3 TEST INSTRUMENTS............................................................................................ 19 4.2.4 TEST PROCEDURES ............................................................................................ 20 4.2.5 DEVIATION FROM TEST STANDARD .................................................................. 20 4.2.6 TEST SETUP ......................................................................................................... …

Text truncated - open the document above for the full version.
