Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 June 23, 2000 QTK2000-F024 Confirmation Number: EA98013 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Certification of Class B Computing Device Peripheral FCC ID: NJB00820123 / Premier Digital Still Camera, Model DC-820 Gentlemen: Enclosed, please find Pretec Corporation’s application for equipment authorization dated June 23, 2000. The subject device is in compliance with Part 15, Subpart B of the FCC Rules. The subject device is a Digital Still Camera with RS-232 Serial, USB and Baseband NTSC Video Output interface jacks, compact flash card slot and DC input jack. This device is provided with: (1) Color LCD with 1024x768 and 640x480 image resolutions; (2) 4 MB compact flash memory; (3) various internal clock frequencies including 48 MHz for ASIC; (4) detachable baseband video cable, USB and RS-232 serial interface cables with bonded ferrite core; and (4) switching power supply by DVE type DSA-151F-07A provided with DC cable with two ferrite cores or optional AC Adapter by Potrans type UWP00511070 provided with DC cable with one ferrite core. This EUT was system tested with both USB and Serial configurations and both power supplies in accordance with ANSI C63.4-1992 to show compliance with CISPR Pub 22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Manager Safety & Compliance Consulting

Internal Photos

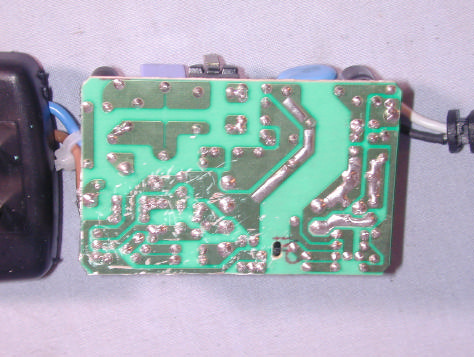

QuieTek Corporation Page: 15 of 20 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (27) EUT Photo (ITE power supply) UWP00511070 (28) EUT Photo QuieTek Corporation Page: 16 of 20 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (29) EUT Photo (30) EUT Photo QuieTek Corporation Page: 17 of 20 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (31) EUT Photo QuieTek Corporation Page: 18 of 20 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (32) EUT Photo (Switching power supply) DSA-151F-07A (33) EUT Photo QuieTek Corporation Page: 19 of 20 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (34) EUT Photo (35) EUT Photo QuieTek Corporation Page: 20 of 20 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (36) EUT Photo

Test Report

QuieTek Corporation Page: 1 of 15 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : Premier Camera Taiwan, Ltd. Equipment Type : DIGITAL CAMERA Model : DC-820 FCC ID : NJB00820123 Report No. : 005H041FI QuieTek Corporation Page: 2 of 15 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : Premier Camera Taiwan, Ltd. Address : 7F, NO. 123, SEC. 1, NEI-HU ROAD, NEI-HU, TAIPEI, TAIWAN, R.O.C. Equipment Type : DIGITAL CAMERA Model : DC-820 FCC ID : NJB00820123 Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : 120VAC/60Hz Classification : Class B Test Result : Complied Test Date : May 29, 2000 Report No. : 005H041FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Shelly Fan Test Engineer: Jimmy Huang Approved: Kevin Wang QuieTek Corporation Page: 3 of 15 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.............................................................................................................4 1.1 EUT Description................................................................................................................................4 1.2 Tested System Details.........................................................................................................................5 1.3 EUT Configuration.............................................................................................................................7 1.4 EUT Exercise Software.......................................................................................................................8 1.5 Test performed...................................................................................................................................8 1.6 Test Facility......................................................................................................................................9 2. CONDUCTED EMISSION..............................................................................................................10 2.1 Test Equipment List..........................................................................................................................10 2.2 Test Setup.......................................................................................................................................10 2.3 Limits............................................................................................................................................10 2.4 Test Procedure.................................................................................................................................11 2.5 Test Results.....................................................................................................................................11 3. RADIATED EMISSION..................................................................................................................12 3.1 Test Equipment................................................................................................................................12 3.2 Test Setup.......................................................................................................................................12 3.3 Limits............................................................................................................................................13 3.4 Test Procedure.................................................................................................................................13 3.5 Test Results.....................................................................................................................................13 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING...................................................14 5. ATTACHMENT.............................................................................................................................15 Attachment 1: Summary of Test Results Attachment 2: EUT Test Photographs Attachment 3: EUT Detailed Photographs QuieTek Corporation Page: 4 of 15 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : Premier Camera Taiwan, Ltd. Address : 7F, NO. 123, SEC. 1, NEI-HU ROAD, NEI-HU, TAIPEI, TAIWAN, R.O.C. Equipment Type : DIGITAL CAMERA Model : DC-820 FCC ID : NJB00820123 Operation Voltage : 120VAC/60Hz RS232 Cable : Non-Shielded, 1.8m, a ferrite core bonded USB Cable : Non-Shielded, 1.8m, two ferrite cores bonded Video Cable : Non-Shielded, 1.8m, a ferrite core bonded ITE power supply : POTRANS, UWP00511070 Cable out: Non-Shielded, 1.8m, two ferrite cores bonded Switching power supply : DVE, DSA-151F-07A Cable out: Non-Shielded, 1.8m, a ferrite core bonded Remark: 1.The EUT is a DIGITAL CAMERA with USB port and RS232 port. 2. QuieTek had verified both the construction and function in typical operation, then shown in this test report. QuieTek Corporation Page: 5 of 15 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: 1.2.1 DIGITA…

Text truncated - open the document above for the full version.

Test Setup Photos

QuieTek Corporation Page: 1 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) QuieTek Corporation Page: 3 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 3) Back View of Conducted Test (Mode 3) QuieTek Corporation Page: 4 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 4) Back View of Conducted Test (Mode 4) QuieTek Corporation Page: 5 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) QuieTek Corporation Page: 6 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2) QuieTek Corporation Page: 7 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 3) Back View of Radiated Test (Mode 3) QuieTek Corporation Page: 8 of 8 FCC Report No.: 005H041FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 4) Back View of Radiated Test (Mode 4)
