NJB99620122USB Digital Still Camera

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 December 7, 1999 QTK99-F037 Confirmation Number: EA96187 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Certification of Class B Computing Device Peripheral FCC ID: NJB99620122 / Digital Still Camera, Model DC-620 Gentlemen: Enclosed, please find Pretec Corporation’s application for equipment authorization dated December 7, 1999. The subject device is in compliance with Part 15, Subpart B of the FCC Rules. The subject device is a Digital Still Camera with RS-232 Serial, USB and Baseband NTSC Video Output interface jacks, compact flash card slot and DC input jack. This device is provided with: (1) Color LCD with 640x480 image resolution; (2) 2 MB compact flash memory; (3) various internal clock frequencies; (4) detachable baseband video cable, USB and RS-232 serial interface cables with bonded ferrite core; and (5) AC Adaptor by Potrans type WN10A-060 or by Kentex type MB15-060, both provided with DC cable with bonded ferrite core. This EUT was multimedia system tested in both USB and Serial configurations connected to host MAC and PC computer and with both AC Adaptors in accordance with ANSI C63.4-1992 to show compliance with CISPR Pub 22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Manager Safety & Compliance Consulting

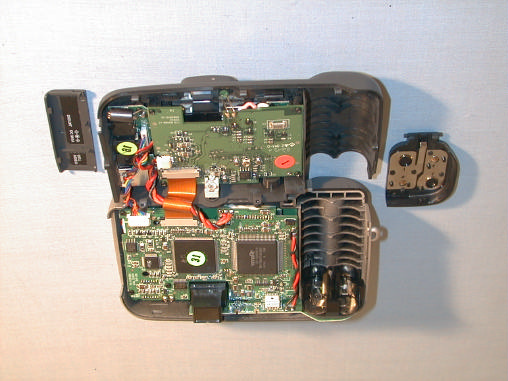

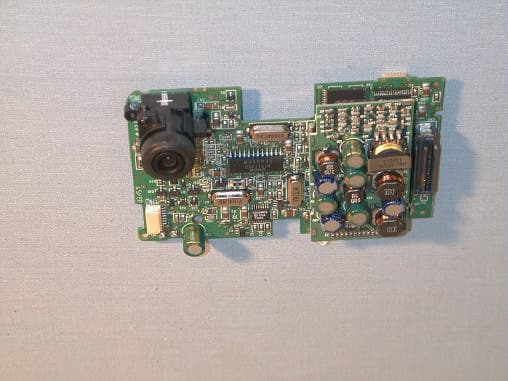

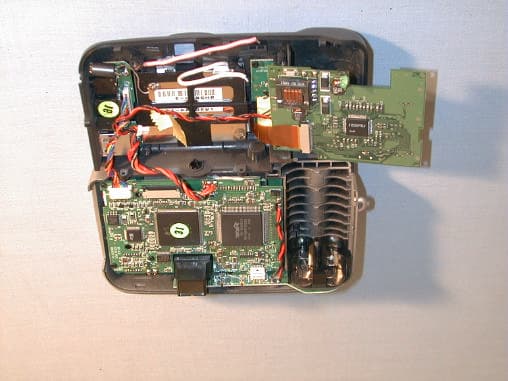

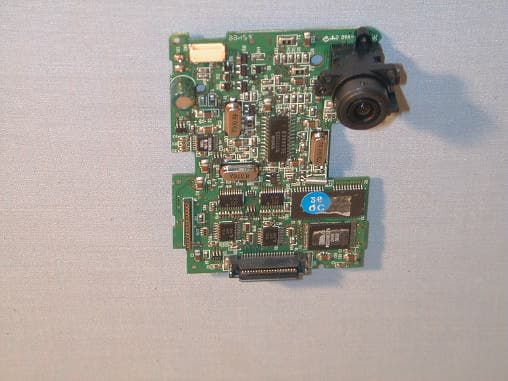

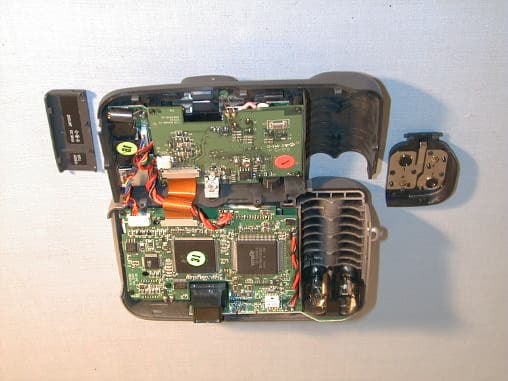

QuieTek Corporation Page: 1 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detail Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo (6) EUT Photo QuieTek Corporation Page: 4 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo (8) EUT Photo QuieTek Corporation Page: 5 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (9) EUT Photo (10) EUT Photo QuieTek Corporation Page: 6 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (11) EUT Photo (12) EUT Photo QuieTek Corporation Page: 7 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (13) EUT Photo (14) EUT Photo QuieTek Corporation Page: 8 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (15) EUT Photo (16) EUT Photo QuieTek Corporation Page: 9 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (17) EUT Photo (18) EUT Photo QuieTek Corporation Page: 10 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (19) EUT Photo (20) EUT Photo QuieTek Corporation Page: 11 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (21) EUT Photo (22) EUT Photo QuieTek Corporation Page: 12 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (23) EUT Photo (24) EUT Photo QuieTek Corporation Page: 13 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (25) EUT Photo (26) EUT Photo QuieTek Corporation Page: 14 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (27) EUT Photo (28) EUT Photo QuieTek Corporation Page: 15 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (29) EUT Photo (30) EUT Photo QuieTek Corporation Page: 16 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (31) EUT Photo (32) EUT Photo QuieTek Corporation Page: 17 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (33) EUT Photo (34) EUT Photo QuieTek Corporation Page: 18 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (35) EUT Photo (36) EUT Photo QuieTek Corporation Page: 19 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (37) EUT Photo (38) EUT Photo QuieTek Corporation Page: 20 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (39) EUT Photo (40) EUT Photo QuieTek Corporation Page: 21 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (41) EUT Photo (42) EUT Photo QuieTek Corporation Page: 22 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (43) EUT Photo (44) EUT Photo QuieTek Corporation Page: 23 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (45) EUT Photo (46) EUT Photo QuieTek Corporation Page: 24 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (47) EUT Photo (48) EUT Photo QuieTek Corporation Page: 25 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (49) EUT Photo (50) EUT Photo QuieTek Corporation Page: 26 of 26 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (51) EUT Photo

QuieTek Corporation Page: 1 of 17 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : PRETEC CORPORATION Equipment Type : DIGITAL CAMERA Model : DC-620 FCC ID : NJB99620122 Report No. : 99BH008FI QuieTek Corporation Page: 2 of 17 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : PRETEC CORPORATION Address : 6F. No. 10, Li-Shin Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Equipment Type : DIGITAL CAMERA Model : DC-620 FCC ID. : NJB99620122 Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : 120Vac/60Hz Classification : Class B Test Result : Complied Test Date : November 15, 1999 Report No. : 99BH008FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Erin Lan Test Engineer: Jimmy Huang Approved: Gene Chang QuieTek Corporation Page: 3f 99BH008FI (NIST) -0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS riptionPage 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................9 1.4 EUT Exercise Software.......................................................................................................................................9 1.5 Test performed..................................................................................................................................................10 1.6 Test Facility......................................................................................................................................................11 2. CONDUCTED EMISSION.............................................................................................................................12 2.1 Test Equipment List...........................................................................................................................................12 2.2 Test Setup.........................................................................................................................................................12 2.3 Limits...............................................................................................................................................................12 2.4 Test Procedure...................................................................................................................................................13 2.5 Test Results.......................................................................................................................................................13 3. RADIATED EMISSION.................................................................................................................................14 3.1 Test Equipment.................................................................................................................................................14 3.2 Test Setup.........................................................................................................................................................14 3.3 Limits...............................................................................................................................................................15 3.4 Test Procedure...................................................................................................................................................15 3.5 Test Results.......................................................................................................................................................15 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................16 5. ATTACHMENT..............................................................................................................................................17 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 17 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : PRETEC CORPORATION Address : 6F. No. 10, Li-Shin Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Equipment Type : DIGITAL CAMERA Model : DC-620 FCC ID : NJB99620122 Operation Voltage : 120Vac/60Hz Maximum Resolution : 350 thousand dpi Data Cable (RS 232) : Shielded, 1.8m, a ferrite core bonded Data Cable (USB) : Shielded, 1.8m, a ferrite core bonded Data Cable (Video) : Shielded, 1.8m, a ferrite core bonded Power Adapter : (1) POTRANS, WN10A-060, Shielded, 1.8m (2) KENTEX, MB15-060, Cable In: Shielded, 1.8m Cable Out: Shielded, 1.8m Remark : 1.The EUT is a DIGITAL CAMERA with two kinds of power adapter. 2.Both power adapter and different type connector were test in different mode. 3. QuieTek had verified both construction and function in typical ope…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) QuieTek Corporation Page: 3 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 3) Back View of Conducted Test (Mode 3) QuieTek Corporation Page: 4 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 4) Back View of Conducted Test (Mode 4) QuieTek Corporation Page: 5 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) QuieTek Corporation Page: 6 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2) QuieTek Corporation Page: 7 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 3) Back View of Radiated Test (Mode 3) QuieTek Corporation Page: 8 of 8 FCC Report No.: 99BH008FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 4) Back View of Radiated Test (Mode 4)
