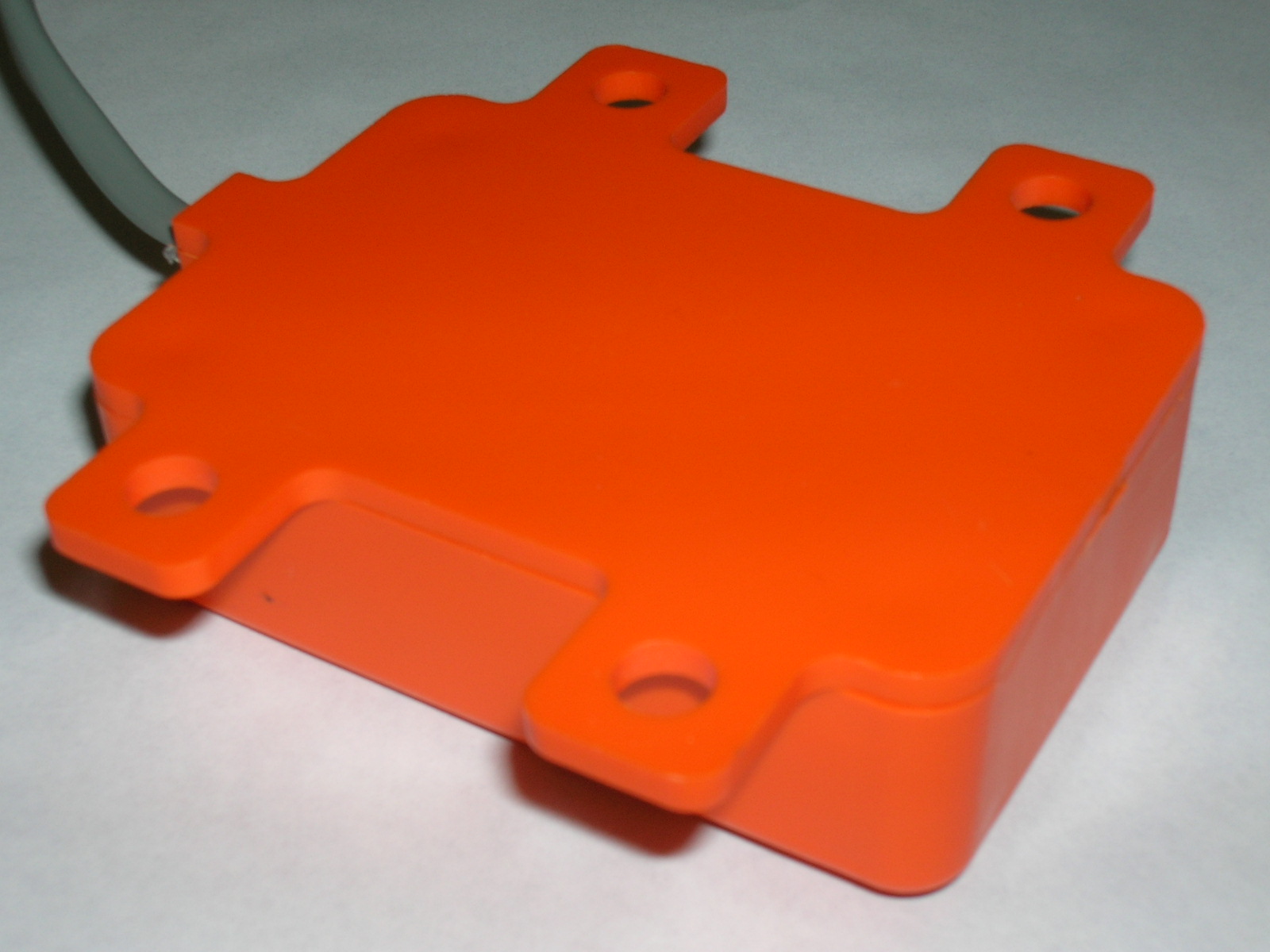

NKBTXDP-01Race Car Transmitter

Installation Instructions – Hard Wired Transmitter 1. Strip the leads back to expose the copper wire. Be careful not to damage the wire when stripping. 2. Attach one lead to +12 volts and the other lead to the body frame of the vehicle that the ground (negative) terminal of the battery is connected to. It does not matter whether the red or black lead is connected to +12 volts and ground as long as one is at +12 volts and the other is grounded. Current drawn by the transmitter is low. However the transmitter should be connected in such that the transmitter is disengaged when the vehicle is not running. **Do not exceed +14 volts or the transmitter may be damaged. 3. When power is delivered to the transmitter both the red and green LED lights will turn on momentarily. The red LED will shut off and the green LED light will flash approximately once a second to indicate that the transmitter is operational. If only the red LED light is on, it indicates voltage is too low for normal operation. Do not allow the voltage to go below +9 volts. Description Specification Voltage +14 > Voltage > +9V Current < 30 milliamps Transmitter Mounting • Label side of the transmitter faces down toward the track. Note: There are other systems that use a different orientation such as the one on the right. Be careful about mixing the orientations. • No metal or carbon fiber between transmitter and track. The transmitter must have a clear shot to the ground. Note: Signals can go through plastic so it is possible to use a piece of plastic as a mounting plate. It is possible to recess the transmitter, however keep in mind that recessing the transmitter can create problems such as shown below. 1) The label side should face down toward the track. 2) No metal should be between the label and the track. This is a poor orientation and will result in inconsistent performance. Poor location: Narrow window for detection. The signal can’t be seen well. Good location: No metal to block the signal. The detection window is very wide. FCC Notice FEDERAL COMMUNICATIONS COMMISSION RADIO AND TELEVISION INTERFERENCE STATEMENT Changes or modifications not expressly approved by Westhold Corporation could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. FCC ID: NKBTXDP-01

Race Management System Instruction Manual Westhold Corporation General Warranty Modules and other equipment ("Goods") purchased from Westhold Corporation are warranted against defects in materials and workmanship under normal use for a period of three years from the date of purchase. In the event of product failure due to defects in materials or workmanship, the customer may return the defective product to Westhold Corporation for repair or replacement. The customer is responsible for all shipping charges associated with shipping the Goods back to Westhold Corporation. Westhold Corporation pays shipping charges associated with the return of Goods back to the customer. As Westhold Corporation will not be responsible for damages incurred during any incoming shipment, it is recommended that the customer insure their shipment through their carrier. Westhold Corporation shall, at its sole option, repair or replace the Goods. Repair or replacement of Goods is Westhold Corporation's sole obligation and the customer's exclusive remedy for all claims of defects. If that remedy is adjudicated insufficient, Westhold Corporation shall refund the customer's paid price for the Goods and have no other liability to the customer. Westhold Corporation's software, if included with Goods, is sold as is, and this warranty is inapplicable to such software. This warranty does not cover and Westhold Corporation will not be liable for, any damage or failure caused by misuse, abuse, acts of God, accidents, electrical irregularity, or other causes beyond Westhold Corporation's control, or claim by other than the original purchaser. This warranty is void if Westhold Corporation, in its sole discretion, determines that there has been any: 1. Tampering, signs of tampering, alteration, modification, or other indications or abuse. 2. Application of power outside of the voltage level and polarity specified in the data sheet or user's manual. 3. Repair or attempt to repair by anyone other than a Westhold Corporation authorized technician. This is our entire warranty and is given in lieu of all other possible warranties, either express or implied, including warranties of merchantability and of fitness for a particular purpose. By accepting delivery of the Goods, Purchaser/User waives all other possible warranties, except those specifically given. IN NO EVENT SHALL WESTHOLD CORPORATION BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES ARISING OUT OF OR RELATING IN ANY WAY TO ANY DEFECT IN OR FAILURE OF OR INABILITY TO USE THE GOODS, INCLUDING BUT NOT LIMITED TO, CLAIMS BASED UPON LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS, REVENUE OR SAVINGS, LOST GOODWILL, ENVIRONMENTAL DAMAGE, INCREASED EXPENSES OF OPERATION, COST OF REPLACEMENT GOODS, OR CLAIMS OF THE CUSTOMER OR CUSTOMER'S CUSTOMERS, WHETHER OR NOT BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY) OR OTHERWISE. WESTHOLD CORPORATION’s MAXIMUM LIABILITY UNDER THIS WARRANTY SHALL NOT EXCEED THE PAID PRICE FOR THE GOODS UPON WHICH SUCH LIABILITY IS BASED AND ALL SUCH LIABILITY SHALL TERMINATE NO LATER THAN ONE YEAR FROM THE DATE OF DELIVERY OF THE GOODS. Note: Westhold Corporation’s Goods are sold for resale or for commercial purposes, and are thus not covered under the Magnuson-Moss Warranty Act. 1. Introduction The Westhold RMS-3 is a sophisticated multi-component system used for the timing, scoring and management of motor sports racing events. The RMS-3 consists of electronic hardware and PC based MS-Windows® software. A basic hardware setup includes a computer, Interface Data Unit (IDU), Decoder, Loop Antenna, and transmitters. See fig. 1.1 3 (fig 1.1 - Basic RMS Configuration) RS-232 Decoder Loop Antenna (e.g. Located at Start/Finish) Coax IDU RaceBus Link Outside of scoring buildin g - Track-side Inside scoring building Balun Computer Each transmitter transmits a unique identification number. When a transmitter crosses a Loop Antenna, a Decoder reads this number and determines the crossing time of the transmitter. The Decoder sends this information to the IDU via the digital RaceBus network link. The IDU compiles all of the information and sends it to the computer over a serial link for final analysis and storage. Data can then be sent from the computer to other devices such as scoreboards, driver results printers, hand-held controllers and third party devices. The Interface Data Unit (IDU) acts as the central data management junction between the computer, Decoder, and additional devices. It coordinates both incoming and outgoing signals to and from the computer, synchronizing data for the entire system. The IDU intelligently organizes and filters data for the PC. This frees the PC from handling all the overhead of managing the RaceBus network and allows the overall system to maintain reliable real-time operation. Only a single IDU is needed per system. Each IDU can handle dozens of Decoders. The Decoder is a receiver system that processes the raw signals picked up by the Loop Antenna. Its job is to convert the raw signals into digital information that can then be transmitted via the RaceBus to the IDU. Multiple Decoders may be attached to the RaceBus to cover multiple timing points for information such as split times (see fig. 1.2) or pit row activity. Decoders may also be attached to each other in a daisy-chained configuration to cover wide tracks. See fig 1.3. Each Decoder stores what are known as hit records. Hit records describe the crossing of transmitters over the Loop Antennas. Each record consists of a transmitter identification number, the crossing time as well as a few other pieces of information such as transmitter battery status. The Decoder is capable of storing 65,000 hit records and capable of determining a crossing time with spatial accuracy typically between 2-3 inches. Under normal operation, the PC would upload this data and process it as the transmitters cross the Loo…

Text truncated - open the document above for the full version.

Westhold Corporation 8430 Via Sonoma, Suite# 49 • La Jolla, CA 92037• (858) 458-1005 • Fax (858) 458-1045 July 30, 2006 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko USA Inc, 802 N Kealy, Lewisville, TX 75057 to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Cananda Inc, still resides with Westhold Corporation, 8430 Via Sonoma, #49, La Jolla, California 92037, USA. Dated this 30 Day of July 20 06 Agency agreement expiration date: July 30, 2007 By: Julian Lin Signature Printed Title: President On behalf of : Westhold Corporation Telephone: 858-458-1005

Westhold Corporation 8430 Via Sonoma, Suite# 49 • La Jolla, CA 92037• (858) 458-1005 • Fax (858) 458-1045 DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: NKBTXDP-01 Product Name: RMS TX-DP Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (1) Schematic diagrams contained in electronic file (2) Parts list contained in electronic file (3) Block diagram contained in electronic file (4) Operational Description contained in electronic file These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 30 Day of July 20 06 By: Julian Lin Signature Printed Title: President On behalf of : Westhold Corporation Telephone: 858-458-1005

LABEL FORMAT FCC ID: NKBTXDP-01 This device complies with Part 15 of the FCC Rules Ser No. xxxxxxxx Westhold Corporatiom (www.westhold.com) 1.90” 1.65” NOTE: Remaining compliance statement to be included in manual LABEL LOCATION Label in center of label area. This is a depressed area specifically for a label on the outside of the unit.

Master: NemkoPT15209 Date: June 3, 1999 Nemko Test Report: 2006 060511 FCC Applicant: Westhold Corporation 8430 Via Sonoma #49 La Jolla, California 92037 Equipment Under Test: 2165 10.77MHz Race Car Transmitter (E.U.T.) FCC ID: NKBTXDP-01 In Accordance With: FCC Part 15, Subpart C, Paragraph 15.209 General Limits For Low Power Transmitters Tested By: Nemko U.S.A.. 11696 Sorrento Valley Road, Suite F San Diego, CA 92121 Authorized By: Michael T. Krumweide, EMC Supervisor Date: 10 July, 2006 Total Number of Pages: 14 Nemko U.S.A. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 26-511-WES ANNEX A EQUIPMENT: 2165 10.77MHz Race Car Transmitter FCC ID: NKBTXDP-01 Page 2 of 14 Table Of Contents 1. SUMMARY OF TEST RESULTS ...................................................................................................................3 1.1. SUMMARY OF TEST DATA............................................................................................................................4 2. GENERAL EQUIPMENT SPECIFICATION ...............................................................................................5 2.1. THEORY OF OPERATION................................................................................................................................6 2.2. SYSTEM DIAGRAM........................................................................................................................................6 3. RADIATED EMISSIONS TEST RESULTS ..................................................................................................7 3.1. TEST DATA - RADIATED EMISSIONS.............................................................................................................8 3.2. 20DB BANDWIDTH PLOTS............................................................................................................................9 4. PHOTOGRAPHS ............................................................................................................................................10 4.1. RADIATED PHOTOGRAPH ABOVE 30MHZ..................................................................................................10 4.2. RADIATED PHOTOGRAPH BELOW 30MHZ..................................................................................................11 4.3. EUT GENERAL PHOTOGRAPHS...................................................................................................................12 5. TEST EQUIPMENT LIST .............................................................................................................................13 6. ANNEX A TEST DIAGRAMS.......................................................................................................................13 6.1. CONDUCTED EMISSIONS.............................................................................................................................13 6.2. RADIATED PRESCAN...................................................................................................................................13 6.3. TEST SITE FOR RADIATED EMISSIONS........................................................................................................14 Nemko U.S.A. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 26-511-WES ANNEX A EQUIPMENT: 2165 10.77MHz Race Car Transmitter FCC ID: NKBTXDP-01 Page 3 of 14 1. Summary Of Test Results Manufacturer: Westhold Corporation Model No.: 2165 10.77MHz Race Car Transmitter Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made on an open area test site. New Submission Production Unit Class II Permissive Change Pre-Production Unit Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 2001116-0 TESTED BY: Ferdinand S. Custodio DATE: June 30, 2006 Nemko U.S.A. Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko U.S.A. Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko U.S.A. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 26-511-WES ANNEX A EQUIPMENT: 2165 10.77MHz Race Car Transmitter FCC ID: NKBTXDP-01 Page 4 of 14 1.1. Summary Of Test Data NAME OF TEST PARA. NO. RESULT Powerline Conducted Emissions 15.207 N/A Radiated Emissions 15.209 Complies Footnotes For N/A’s: The device is battery powered. Nemko U.S.A. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 26-511-WES ANNEX A EQUIPMENT: 2165 10.77MHz Race Car Transmitter FCC ID: NKBTXDP-01 Page 5 of 14 2. General Equipment Specification Frequency Range: 10.770 MHz Operating Frequency(ies) of Sample: 10.770 MHz Integral Antenna Yes No Nemko U.S.A. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 26-511-WES ANNEX A EQUIPMENT: 2165 10.77MHz Race Car Transmitter FCC ID: NKBTXDP-01 Page 6 of 14 2.1. Theory of Operation Please refer to separate confidential exhibit. 2.2. System Diagram Please refer to separate confidential exhibit. Nemko U.S.A. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 26-511-WES ANNEX A EQUIPMENT: 2165 10.77MHz Race Car Transmitter FCC ID: NKBTXDP-01 Page 7 of 14 3. Radiated Emissions Test Results NAME OF TEST: Radiated Emissions PARA. NO.: 15.209 TESTED BY: Ferdinand S. Custodio DATE: June 30, 2006 Minimum Standard: The field strength of emissions…

Text truncated - open the document above for the full version.
