NKO-SIGPROPaging Data Receiver

Version 1.8.0.4July, 1999General Information 1 - 1 FCC ID: NKO-SIGPRO General Information Product Warranty Information Advanced Signal products are warranted to be free from defects in material and workmanship for a period of ONE (1) YEAR from the date of shipment. Parts will be replaced free of charge for the full warranty period. The labor to repair products, or replace defective parts, will be covered on a return-to-factory basis only for the full warranty period. For warranty service or repair, products must be returned to Advanced Signal, paid by customer. Modifications made to products not manufactured by Advanced Signal are warranted to be free from defects in material and workmanship for a period of NINETY (90) DAYS from the date of shipment. Limitation on Damages THE ABOVE WARRANTIES ARE PURCHASER’S EXCLUSIVE WARRANTIES AND NO OTHER WARRANTY, EXPRESS OR IMPLIED, SHALL APPLY. ADVANCED SIGNAL SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ADVANCED SIGNAL’S LIABILITY TO PURCHASER FOR ANY CAUSE WHATSOEVER SHALL BE LIMITED TO THE PURCHASE PRICE PAID TO ADVANCED SIGNAL FOR THE PRODUCTS THAT ARE THE SUBJECT OF PURCHASER’S CLAIM. IN NO EVENT WILL ADVANCED SIGNAL BE LIABLE FOR ANY DAMAGES RESULTING FROM LOSS OF DATA OR USE, LOST PROFITS OR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. THESE LIMITATIONS AND DISCLAIMERS ARE NOT MADE BY ADVANCED SIGNAL WHERE PROHIBITED BY LAW. Other Disclaimers Non-Advanced Signal manufactured products and batteries are excluded from this warranty. Non-Advanced Signal manufactured products are subject to the warranty provided by their manufacturers. Advanced Signal reserves the right to use reconditioned or refurbished parts. These reconditioned or refurbished parts are warranted as new. Computer Software Copyrights Advanced Signal warrants that its software and firmware designed by Advanced Signal will execute its programming instructions when properly installed. Advanced Signal does not warrant that the operation of the instrument, or software, or firmware will be uninterrupted or error free. Advanced Signal products may include copyrighted Advanced Signal computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Advanced Signal certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Advanced Signal computer programs contained in the Advanced Signal products may not be copied or reproduced in any manner without the express written permission of Advanced Signal. Furthermore, the purchase of Advanced Signal products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent application of Advanced Signal, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Service Warranty Information Return Of Equipment If a product malfunctions or fails in normal use within the Warranty period: (a) the purchaser shall promptly notify Advanced Signal of the problem and the serial number of the defective product. Advanced Signal shall, at its option, either resolve the problem over the telephone or issue a Return Authorization Number to the purchaser. The purchaser shall, at its cost, ship the product to Advanced Signal at the time the Return Authorization Number is issued; (b) the return authorization number must be shown on the label attached to each product returned. A description of the fault must accompany each product returned. The returned product must be properly packed, and the insurance and shipping charges prepaid; Version 1.8.0.4July, 1999General Information 1 - 2 (c) Advanced Signal shall either repair or replace the returned product. The replacement product may be new or refurbished; where refurbished, it shall be equivalent to new in operation. When a returned product is replaced by Advanced Signal, the returned product shall become the property of Advanced Signal; (d) Advanced Signal shall, at its cost, ship the repaired product or replacement to the purchaser. If the purchaser has requested Express Shipping, the purchaser shall pay the cost of the shipping; and (e) Products which are repaired or replaced by Advanced Signal shall be free of defects in material and workmanship that would prevent compliance in all material respects with the corresponding documentation for the remainder of the original Warranty or 90 days from the date of repair or replacement, whichever is longer; all other terms of this Warranty apply to such repairs or replacements. Caution Improper use of your SIGNALpro may violate the provisions of the Electronic Communications Privacy Act of 1986 through intentional unauthorized use of protected radio communications. Every effort is made to limit the sale of SIGNALpro to genuine radio paging operators and law enforcement agencies. Advanced Signal unequivocally assumes no responsibility for any laws that may be broken, intentionally or otherwise, through the direct or indirect use of this, or any associated product. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Changes or modifications to this equipment not expressly approved by Advanced Signal are prohibited and may result in loss of the use of the device. Technical Specifications System Requirements: A paging channel receiver and a Windows 3.1X or WIN95 personal computer are required for operation. Power: Universal AC: 90 - 132VAC, 175 - 264 VAC, 47-63Hz automatic switching Internal DC Battery Front Panel DC Input Paging Formats: FLEX 1600 to 6400 bps, 2 and 4 level ReFLEX25/50 InFLEXion POCSAG 512/1200/2400 GSC Guard tones 75/331/750/1500 baud Analog Input: 1 input per DSP Input ±7.00 V Peak (AC +…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: NKO-SIGPRO Block Diagram of EUT POWER SUPPLY MODULE BACKPLAIN DC/DC CONVERTER OSCILLATOR/ GPS 5MHZ, !0MHz. HOST/CPU 16.667MHz,4.8 MHz.,96kHz., 24kHz. DSP 40 MHz, 48kHz. RECEIVER 21.4MHz. 1st IF,455kHz. 2nd IF

FCC ID: NKO-SIGPRO

FCC ID: NKO-SIGPRO

Page 1 of 1 Federal Communications Commission RE: FCC ID NKO-SIGPRO, Confirmation #EA95356 ATTENTION: Bette Taube Dear Bette, Per your conversation with Joan Strzelecki last Friday, I am writing to notify you of a typographical error on the 731 form. On item number 12, the first frequency range is incorrect. Instead of reading 151 to 152 MHz, it should read 151 to 159 MHz. We are sorry for this error and if you have any questions regarding this submittal, please do not hesitate to call us at (815) 293-0772. Sincerely, Joseph Strzelecki, NCE Authorized Agent for Current works E-Mail: [email protected] Page 1 of 1 March 25, 1999 Federal Communications Commission ATTENTION: Bette Taube Our client has a unique baby monitor that we are going to submit to your office for certification. INSERT Description We are going to fully test both units. If we provide data for both units in the submittal, can we submit both units with one FCC ID Number? The devices will always be sold as a pair. Thank you in advance for your help. Please contact me via phone or e-mail. Sincerely, Joseph Strzelecki, NCE Authorized Agent for Current works E-Mail: [email protected] Phone 815-293-0772 Fax 815-293-0820 Page 1 of 1 March 25, 1999 Federal Communications Commission APPLICANT: SAFETY 1 st REFERENCE FCC ID: MNJ49233R 731 Confirmation Number: EA92532 Correspondance ID: 5428 ATTENTION: Linda Elliott The Identification label sent through the Electronic filing was in error. The correct FCC ID is MNJ49233R I apologize for the error. A new FCC label has been uploaded to the FCC as an attachment to the submittal. Please do not hesitate to call or fax me if there are any further questions with the submittal. Sincerely, Joseph Strzelecki, NCE Authorized Agent for Current works E-Mail: [email protected] Page 1 of 1 July 23, 1998 Federal Communications Commission REFERENCE FCC ID: E2XSWL-1000N APPLICANT: SAMSUNG ELECTROMECHANICS CO. LTD 731 Confirmation Number: EA89708 ATTENTION: Richard Fabina As of July 16, 1998, Samsung’s submittal has been listed as “Awaiting Reply for Technical Information.” As Samsung authorized agent, we were wondering what the information is that your are looking for? If you can contact us, we may be able to provide you with the answers that you need. Please do not hesitate to call or fax me if there are any further questions with the submittal. Sincerely, Joseph Strzelecki, NCE Authorized Agent for Samsung Electromechanics E-Mail: [email protected] Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Phone (815) 293-0772 Fax (815) 293-0820
EMC TESTING AND ENGINEERING SERVICES
REFERENCE FCC ID: M5L367RCS APPLICANT: SIGMA SPORT USA 731 Confirmation Number: EA89861 The following is a revision to Section 2.0 of the Submittal FCC ID M5L367RCS 2.0 Product Labeling The label is vinyl with permanent pressure-sensitive adhesive. The compliance statement is listed in the user’s manual. The background is black with white letters. The location is on the rear of the EUT as shown in Figure 2.1. The label will be 0.78 x 0.125 inches. Figure 2.1 FCC ID Label Rear of EUT Actual Size of EUT FCC ID: M5L367RCS

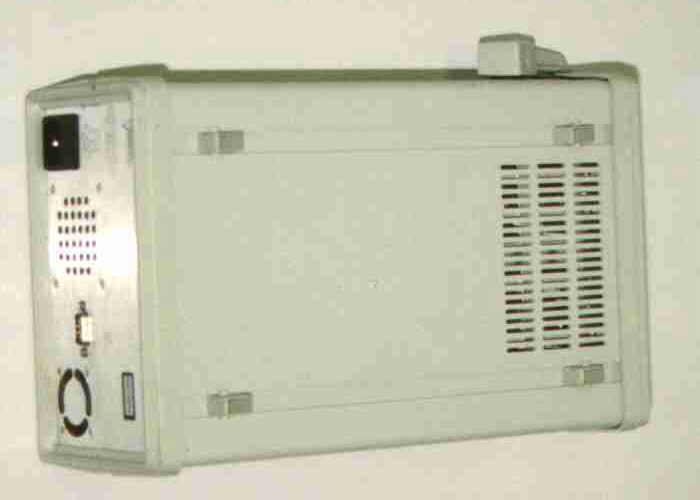

FCC ID: NKO-SIGPRO Page 1 of 1 External Photos of EUT

Page 1 of 1 FCC ID: NKO-SIGPRO FCC ID Label FCC ID : NKO-SIGPRO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesirable operation. LABEL Material – Black silkscreen on brushed aluminum rear panel. 1.5 inches wide by 0.5 inches high. Label dimensions: 0.5 inches high x 1.5 wide Rear Panel FCC Label AC Input

FCC ID: NKO-SIGPRO Page 1 of 6 Internal Photos of EUT DC - DC Converter Board (Component Side) DC - DC Converter Board (Foil Side) FCC ID: NKO-SIGPRO Page 2 of 6 Host CPU Board (Component Side) Host CPU Board (Foil Side) FCC ID: NKO-SIGPRO Page 3 of 6 150 MHz Receiver Board (Component Side) 150 MHz Receiver Board (Foil Side) 900 MHz Receiver Board (Component Side) FCC ID: NKO-SIGPRO Page 4 of 6 900 MHz Receiver Board (Foil Side) DSP Board (Foil Side) FCC ID: NKO-SIGPRO Page 5 of 6 DSP Board (Component Side) DSP Board Assembled FCC ID: NKO-SIGPRO Page 6 of 6 450 MHz Receiver Bd Component side 450 MHz Receiver Bd Foil side

FCC ID: NKO-SIGPRO Page 1 of 5 Internal Photos of EUT GPS-OSC Board (Component Side) GPS-OSC Board (Foil Side) FCC ID: NKO-SIGPRO Page 2 of 5 GPS-OSC Daughter Board (Side 1) GPS-OSC Daughter Board (Side 2) FCC ID: NKO-SIGPRO Page 3 of 5 GPS-OSC Board Assembled Power supply Module (Foil Side) FCC ID: NKO-SIGPRO Page 4 of 5 Backplane Board (Connector Side) Backplane Board (Foil Side) Power Supply Module Installed in Housing FCC ID: NKO-SIGPRO Page 5 of 5 Front Panel Open Top Cover Open

Page 1 of 1 FCC ID: NKO-SIGPRO Product Description The SIGNALpro is a data analysis tool used to decode paging data for system diagnostics and performance evaluation. The product may be operated as a stand alone unit to gather and store data or in conjunction with a PC to provide real time on- screen presentation of paging data. Reception of paging data can be accomplished using a built-in receiver or by connection to an external receiver such as a communications or service monitor. Data is then decoded on the DSP card and passed to the HOST card for transmission to the PC. Sales are limited to professional users consisting of paging service providers, law enforcement, and paging equipment manufacturers. The SIGNALpro hardware consists of five circuit boards, backplane board, power supply, and aluminum enclosure or case. The circuit board and power supply functions are as follows: Power Supply - Power-One MAP55-1024 AC to 24 VDC power supply. Backplane - Provides interconnection between all circuit modules. DC/DC Converter Board - Provides +12, -12, an +5VDC power sources for all circuit modules. Accepts input from the power supply module or front panel DC Input . Oscillator/GPS Board - Provides an ovenized 10MHz. reference oscillator signal and houses the GPS receiver module. Clock signals of 5 and 10 MHz. are distributed from this board to the HOST/CPU, DSP, and Receiver boards. HOST/CPU Board - Provides communications between the SIGNALpro and PC, data storage for the DSP and Receiver modules. 16.667 MHz. Clock for the 68302 processor. Confined to the HOST card. 4XOUT - 96kHz. Signal used on the HOST and distributed to the DSP card as BUS4X. 4_8 MHz. - 4.8 MHz. signal used on the HOST and distributed to the DSP card as BUS4_8. 4XDIV - 24kHz. Signal confined to the HOST. DSP Card - Performs decoding of paging data by detecting paging format and rate and applying an appropriate decoding algorithm. 40 MHz. Clock for the TMS320C26 DSP. Confined to the DSP card. 48kHz. Signal confined to DSP card. Receiver – 21.4 MHz. 1 st IF. 455kHz. 2 nd IF. Low side Injection 1 st L.O. for all frequencies in the 450 and 900 MHz. Range. High side injection for VHF range. 20.945 MHz. 2 nd L.O.

Data analysis tool Radiometrics Midwest Corporation Test Document RP-4050 Issue Date: August 28, 1999 This report concerns: Original grant Equipment type: Paging test system (Communications Receiver) Transition Rules per 15.37 are not requested. Tests Performed ForTest Facility Advanced Signal 301 Oak St. Quincy, IL 62301 Phone (217) 224-2387 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Phone: (815) 293-0772 FAX: (815) 293-0820 [email protected] Test Report Written ByTest Report Approved By Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE MEASUREMENT/TECHNICAL REPORT Advanced Signal Model Signal Pro FCC ID: NKO-SIGPRO APPLICATION FOR CERTIFICATION RF Emission Measurements Performed For Determination of Compliance with the US Code of Federal Regulations Title 47, Chapter I, FCC Part 15 As Required for Certification for Unintentional Radiators Tests Performed ForFCC IDRadiometrics Test DocumentPage Advanced Signal NKO-SIGPRORP-40502 of 13 Table of Contents 1.0 General Information ........................................................................................................... 3 1.1 Product Description ........................................................................................................3 1.2 Related Submittals .........................................................................................................3 1.3 Tested System Details.................................................................................................... 3 1.4 Test Methodology ...........................................................................................................3 1.5 Test Facility .................................................................................................................... 4 1.6 Test Equipment ..............................................................................................................4 2.0 System Test Configuration ................................................................................................ 4 2.1 Test System and Justification......................................................................................... 4 2.2 Operating Conditions of EUT.......................................................................................... 4 2.2.1 Test Frequencies...................................................................................................... 5 2.3 Special Accessories ....................................................................................................... 5 2.4 Equipment Modifications ................................................................................................ 5 Figure 2.1 Configuration of Tested System .......................................................................... 6 3.0 Radiated Emissions Data .................................................................................................. 7 3.1 Radiated Emissions Data (Low Frequency Setting) ....................................................... 7 3.2 Radiated Emissions Data (Middle Frequency Setting) ................................................... 9 3.3 Radiated Emissions Data (High Frequency Setting)..................................................... 10 3.4 Radiated Emissions Summary ..................................................................................... 12 3.5 Field Strength Calculation ............................................................................................ 12 4.0 Conducted Emission Data ............................................................................................... 13 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. Tests Performed ForFCC IDRadiometrics Test DocumentPage Advanced Signal NKO-SIGPRORP-40503 of 13 1.0 General Information 1.1 Product Description The Model Signal Pro (referred to as the EUT in this report) is a Data analysis tool that is used to decode paging data for system diagnotsics and performance evaluation. The product may be operated as a stand-alone unit to gather and store data or in conjunction with a PC to provide real time on-screen presentation of paging data. The EUT is manufactured by Advanced Signal Corporation. 1.2 Related Submittals Advanced Signal is not submitting any other submittals related to the EUT. 1.3 Tested System Details The FCC ID's for all equipment, plus descriptions of all cables used in the tested system which have grants, are: Model Number Serial NumberFCC ID Manufacturer & Description Cable Descriptions M/N: Signal Pro (EUT) S/N: A98130553 NKO-SIGPROAdvanced Signal Data analysis tool Power (2m, US) 2 Coaxial Cbls (1m, SH) Serial cables (1m, SH) Parallel cable (1m, SH) M/N: P5/90 S/N: F825K4QUIN51DParagon Development Desktop Computer Power (1.8m, US) M/N: FKB4700 S/N: J8633249 C9SKB4700-2Paragon Development Key Board Integral Coiled (2 m) M/N: NX-1001 S/N: 510010542390 B6DZ150LStar Printer Power (1.8m, US) Parallel cable w/ Metal Shell (1.8m, SH) M/N: CJ4685 S/N: 00500993V A3L9QNCJ468Samsung VGA Monitor Video (1.8m, SH) Power (2.2m, US) Note: SH = Shielded; US = Unshielded; m = Cable Length in Meters, 1.4 Test Methodology The test procedures used are in accordance with the ANSI document C63.4-1992, (July 17, 1992) "Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The specific procedures are described herein. Radiated testing was performed at an antenna to EUT distance of 3 meters. The antenna was raised and lowered from 1 to 4 meters. Tests Performed ForFCC IDRadiometrics Test DocumentPage Advanced Signal NKO-SIGPRORP-40504 of 13 1.5 Test Facility The open area test site used to collect the radiated data is located on 8625 Helmar Road in Newark, Illinois. The open field test site has a metal ground screen. Details of the site chara…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: NKO-SIGPRO Test setup Photographs Page 2 of 2
