NKTPF322Bluetooth Keyfinder

Manual Product Name: Bluetooth Key Finder Model Number: BeSafe PRODUCT OVERVIEW 1.1. Critical Success Factor (Descending Order): 1) Material Cost 2) Performance and Feature: i) Bluetooth 4.0 ii) App on iOS and Android Devices 3) Schedule: i) End of Sept 2012 4) Outlook i) Thickness less than 4mm 1.2. Product Brief - Operated by CR2032 battery for at least two years (General usage) - Using the Bluetooth 4.0 (Low Energy) having: ¾ Distance Detection ¾ Warming with Buzzer and LED indicator - Non-Replaceable Built-in Battery - Card form factor with Thickness less than 4mm (85 x 50 x 4 mm) 1.3. Feature - Built-in Buzzer - Built-in LED „ Red Color Only - App “Notification” feature on the iOS and Android - Distance Detection with Bluetooth 4.0 Connection: „ Warming Distance can be configurable on the App, and will cooperated between device and App as ‹ 5m (Close Range), ‹ 10m (Mid Range), ‹ 20m (Far Range), ‹ 30m (Lost Range) „ Warming Action (Buzzer) can be configurable on the App, and operated on both App and Device as ‹ No Alarm ‹ Short Alarm ‹ Long Alarm ‹ Alter Alarm „ Warming Action (LED) can be configurable on the App, and operated on the Device as ‹ No indicator ‹ Single LED Indicator ‹ Flashing LED indicator ‹ Fast Flashing LED indicator - Low Battery Indicator: „ Long Alarm with Fast Flashing LED indicator 2. MECHANICAL SPECIFICATION 2.1. Dimension: 85mm x 50mm x 4mm (L x D x H) or even Smaller and Thinner 2.2. Weight: around 3-5g 2.3. 2-Key Control i. Multi-Function (Tact Switch at Side) ii. Paging (Tact Switch at Side) 3. ELECTRICAL SPECIFICATION 3.1. Bluetooth Requirement - Bluetooth Chipset: TI CC2541F128 - Distance: at least 40m ¾ 4 facing directions ‹ Front (Steady Positions) ‹ Slides (Steady Positions) ‹ Back (Steady Positions) ¾ Phone in pocket (Steady Positions) ¾ Between Human Body (Steady Positions) ¾ Pass Criteria: Connection NO dropped - Protocol and Feature: ¾ “Find Me” for Distance detection ¾ Data Channel 3.2. Power Requirement: - At Least 2 year battery Life on “Find Me” (Distance detection) - CR2032 (Non-rechargeable type) 3.3. LED + Sound Effect Indicator - Only one Red LED - Only one Buzzer Event LED Effect Sound Effect / VP Remark Below indicators for Distance & Low Battery: TBC TBC TBC TBC TBC TBC TBC TBC 3.4. Adaptor Requirement: - CR2032 Button Cell Battery 3.5. Compatibility (Bluetooth 4.0 or below music device) - Mobile „ iOS: iPhone 4s, New iPad „ Android OS: Motorola Razr 3.6. Operation Mode and Sequence: - TBC 4. DESIGN ID: See Below Rendering (Reference Only, ID will be updated) Color Specification: Refer to CMF Material and Finishing: Refer the CMF Illustration of button / connector (back diagram) label 5. RELIABILITY General Operating Temperature: 0 - 45 ºC General storage temperature: -20 - 65 ºC Heat Storage test: 98.5 hours with Temp Cycling General Humidity test: 90% (Operating @ 45 ºC) Vibration test: 0.75 mm, 13Hz to 25Hz, 3 axis, 30 mins Drop test (in pack outer carton): 1 corner, 3 edges, 6 faces Drop test (out of pack drop test): 3 faces when opened, two faces when close at 1m height Product Life: 36 Months (3 years) 6. How to connect 1. Pull out the Battery Plastic Tag from the unit 2. Press any button on the unit, and it sounds “Beep” 3. Download the App from App Store and Launch the App in your iDevice 4. Pull down the Home page on the App for search the “new” device 5. Just follow the Steps as shown a. Press the any button to control the music Play/Pause b. Holding the button to adjust Volume How to connect Pull Down the screen from the App for searching Select the “BeSafe” from the List Select the “Connect” button Select the “Assign” button FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Select the “Assign” button Select the “Next” to complete the setting up

IUI Design Limited PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 05.06.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Wen Position General Manager Company Name Most Technology Service Co., Ltd. Address No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax 86-755-86170306/86-755-86170310 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Bluetooth Key Finder Model Name BeSafe Brand Name iUi Yours sincerely, Signatory Name Winny Mak Position Exective Assistant to CEO Company Name IUI Design Limited Address 4/F, Hong Kong Trade Centre, No.161-167 Des Voeux Road, Central Hongkong Tel / Fax +85224227106 /+85224805476 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

IUI Design Limited Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: IUI Design Limited FCC ID: NKTPF322 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Winny Mak Position Exective Assistant to CEO Company Name IUI Design Limited Address 4/F, Hong Kong Trade Centre, No.161-167 Des Voeux Road, Central Hongkong Tel / Fax +85224227106 /+85224805476 E-Mail [email protected]

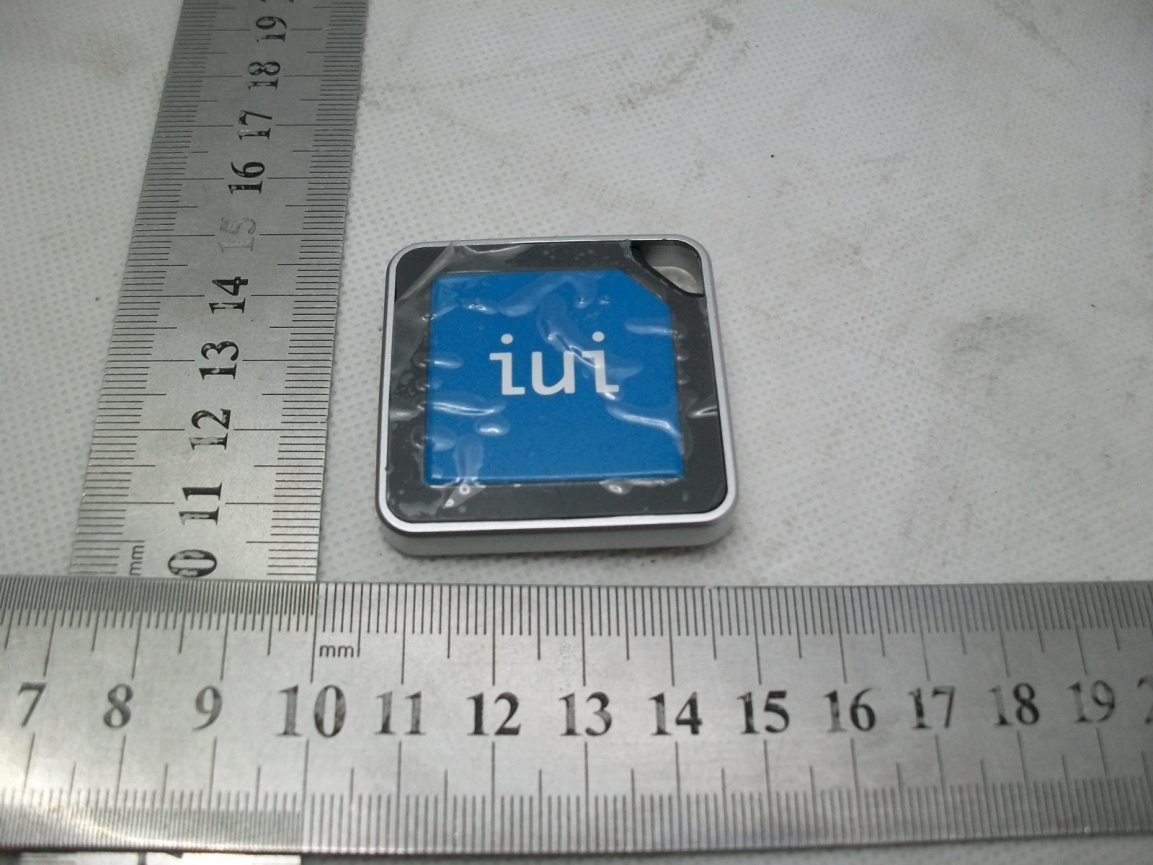

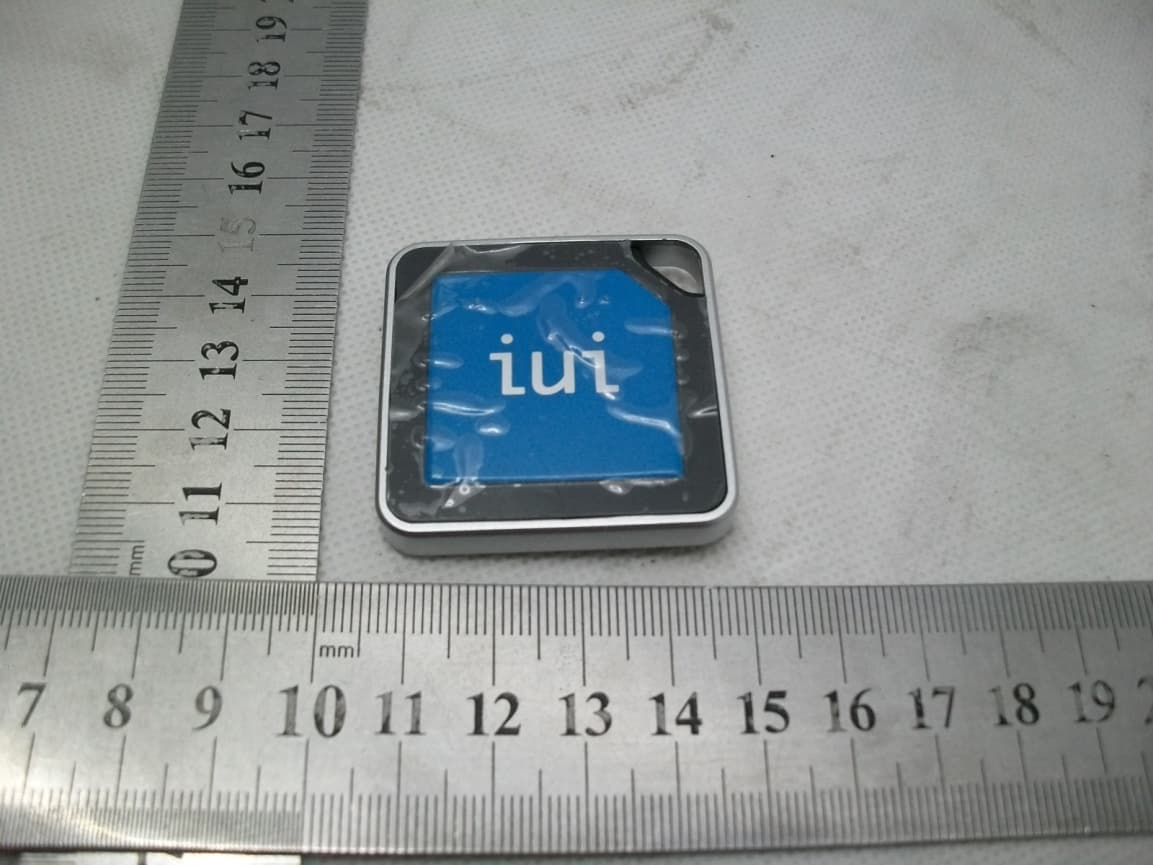

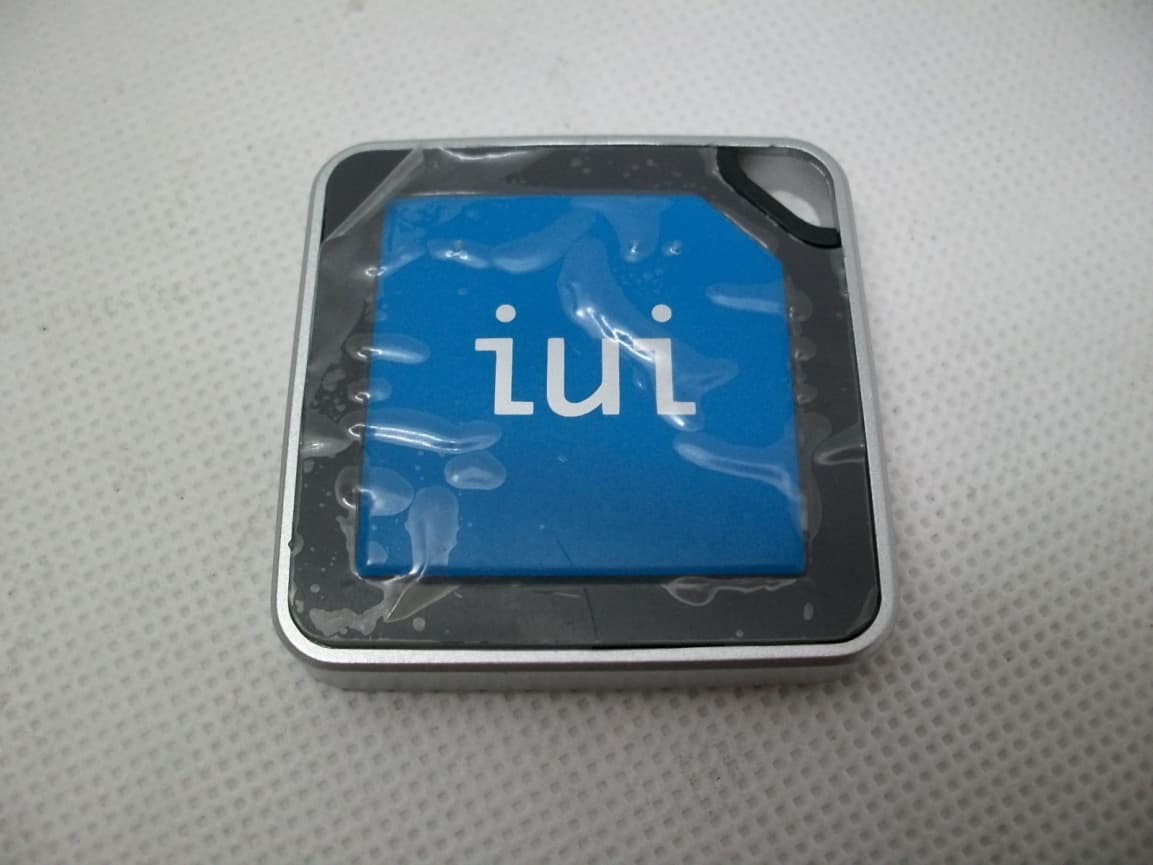

FCC ID: NKTPF322 Model No.: BeSafe FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: NKTPF322 Model No.: BeSafe LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: NKTPF322 Model No.: BeSafe TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: NKTPF322 Model No.: BeSafe PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE

Bluetooth Key Finder NKTPF322 BeSafe PANTONE 433C Black SCALE 1:1 PF322 SK_Rating Label 2013_06_03

FCC ID: NKTPF322 Model No.: BeSafe INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 FCC ID: NKTPF322 Model No.: BeSafe INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: IUI Design Limited Address: 4/F, Hong Kong Trade Centre, 161-167 Des Voeux Road, Central Hongkong Product Name: Bluetooth Key Finder Model Name: BeSafe Brand Name: iUi FCC ID: NKTPF322 Report No.: MTE/CLY/T13040493 Date of Issue: May 08, 2013 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: NKTPF322 Report No.: MTE/CLY/T13040493 Page 2 of 33 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.......................................................................................... 4 2. GENERAL INFORMATION....................................................................................................... 5 2.1 Product Information ................................................................................................................ 5 2.2 Objective ................................................................................................................................ 6 2.3 Test Standards and Results .................................................................................................... 6 2.4 Environmental Conditions....................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ......................................................................................... 6 3. TEST FACILITY........................................................................................................................ 7 3.1TEST FACILITY....................................................................................................................... 7 3.2 Test Conditions ....................................................................................................................... 7 3.3 Channel List ........................................................................................................................... 8 3.4 Description of Test Modes ...................................................................................................... 8 3.5 Table of Parameters of Text Software Setting......................................................................... 9 3.6 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................. 10 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................11 4.1 SUPPORT EQUIPMENT .......................................................................................................11 4.2 TEST EQUIPMENT LIST...................................................................................................... 12 5. 47 CFR Part 15C 15.249 Requirements................................................................................. 13 5.1 Spurious Emission Test ........................................................................................................ 13 5.1.1 Requirement...................................................................................................................... 13 5.1.2 Test Description ................................................................................................................. 14 5.1.3 Test Description ................................................................................................................. 15 5.1.5 Test Result .....................................................................................................................16 5.2 Band Edge............................................................................................................................ 22 5.2.1 Requirement...................................................................................................................... 22 5.2.2 Test Description ................................................................................................................. 22 5.2.3Test Result.......................................................................................................................... 22 5.3 LINE CONDUCTED EMISSION TEST................................................................................. 22 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST........................................................... 27 5.3.2. BLOCK DIAGRAM OF TEST SETUP............................................................................... 27 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................... 28 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .................................... 28 5.3.5. Test result ......................................................................................................................... 28 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .............................................. 28 5.4 20 Db Bandwidth .................................................................................................................. 29 5.4.1 Definition ........................................................................................................................... 29 FCC ID: NKTPF322 Report No.: MTE/CLY/T13040493 Page 3 of 33 5.4.2 Block Diagram Of Test Setup ............................................................................................ 29 5.4.3 Test Result........................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID:NKTPF322 Model No.: BeSafe RE TEST SETUP FCC ID:NKTPF322 Model No.: BeSafe SPURIOUS EMISSION TEST SETUP
