NNHETAGS8Vicinity RFID Reader

e * Tag ® ET8-FF-II-H-C-oovv Installation Instructions 20301 Nordhoff Street • Chatsworth, CA 91311 phone 818-882-0020 • fax 818-882-7052 TOLL-FREE (800) 891-0020 Web site: www.securakey.com 3322058 6435 1.20” 4.14” 2.60” 1.80” 2.75” #OVER0LATE 3.14” 4.50” Wire ColorET8-FF-II-H-C-oovv GREENWiegand Data 0 WHITEWiegand Data 1 VIOLETN/A GRAYN/A ORANGEGreen LED BROWNRed LED YELLOWBuzzer BLUEHold Line RED5-14VDC + BLACKDC Ground POWER REQUIREMENTS 5-14 VDC; Idle: 30 mA, When reading card: 65mA INPUTS & OUTPUTS Wiegand Output Sink Current 100mA Wiegand Output Source Current 5mA LED Bi-color (Red or Green) Buzzer Ground to Activate Hold Ground to Activate Cable Distance 500 ft. Cable Type 6-8 Conductor, 18-22 AWG ENVIRONMENT Ambient Temperature -40° to +70°C (-40° to +158°F) Humidity 0 to 90% (non-condensing) COMMUNICATIONS Wiegand Industry Standard Protocol “Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment”. SPECIFICATIONS: Installation Steps for Decorator Reader 1. This reader is designed for installation using a standard, single-gang electrical box or trim ring. 2. Splice reader wires to cable that has been home run to the access control panel (see wiring color chart) and trim unused wire ends. (Violet, gray, yellow and blue wires are often not used.) Push splices into the box. 3. Attach the reader to the box mounting tabs with the 6-32 screws provided. 4. Install the cover plate with the screws that are provided in the package. RoHS 3059349 FCC Warning: This device complies with Part 15 of the Class B FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. And (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cover plate Mounting Surface ¿ Use 6-32 supplied screws ¿ ¿ Standard Electrical Box INSTALLATION DIAGRAM )63003-AABFAg ET8-FF-I I -H-C-oovv ET8-FF-II-H-C-oovv FCC ID: NNHETAGS8 IC ID: 5718A-ETAGS8 ASSY#: 201XXXX LOT#: XXXXXX SER#: XXXXXXX

RFID & Access Control for Today’s World 20301 Nordhoff Street, Chatsworth, CA 91311-6112 Phone: 818-882-0020 Fax: 818-882-7052 E-mail: [email protected] Website: www.securakey.com Letter of Authorization July 19, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: Certification of Application FCC ID: NNHETAGS8 IC ID: 5718ETAGS8 JMR Compliance Engineering is authorized to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined at 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Secura Key, division of Soundcraft Inc. By _______________________________________ Frank Tajbakhsh Senior Electronic Design Engineer Date __July 19, 2006_____________ RFID & Access Control for Today’s World

20301 Nordhoff Street, Chatsworth, CA 91311-6112 Phone: 818-882-0020 Fax: 818-882-7052 E-mail: [email protected] Website: www.securakey.com August 17, 2006 AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 RE: CONFIDENTIALITY REQUEST FOR Etag-8 and FCC ID: NNHETAGS8 product family To whom it may concern, This letter serves as an official request for confidentiality under FCC Rule Section 0.457 and 0.459. We have requested that the following documents: • Schematics • Block Diagrams • Parts List required to be submitted with this application be withheld from public review. Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Frank Tajbakhsh Senior Electronic Design Engineer RFID & Access Control for Today’s World

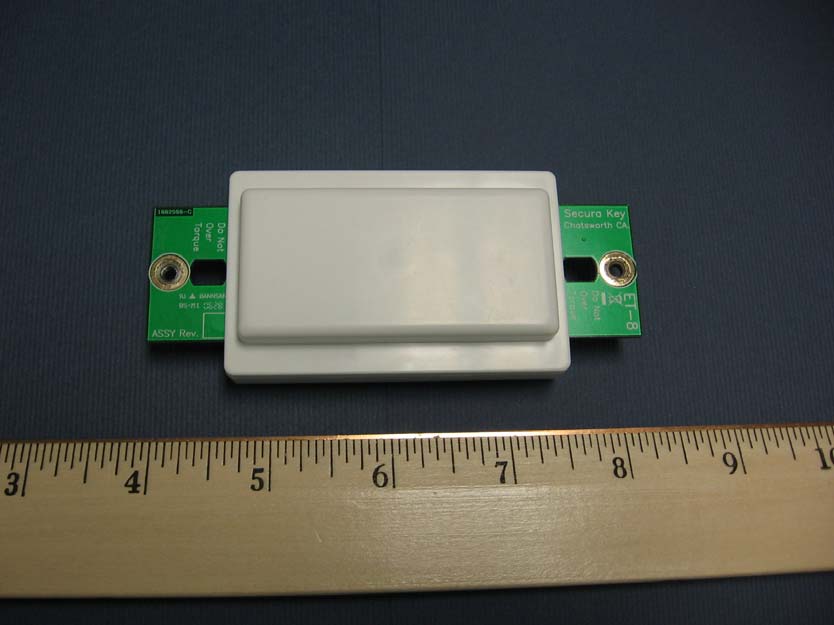

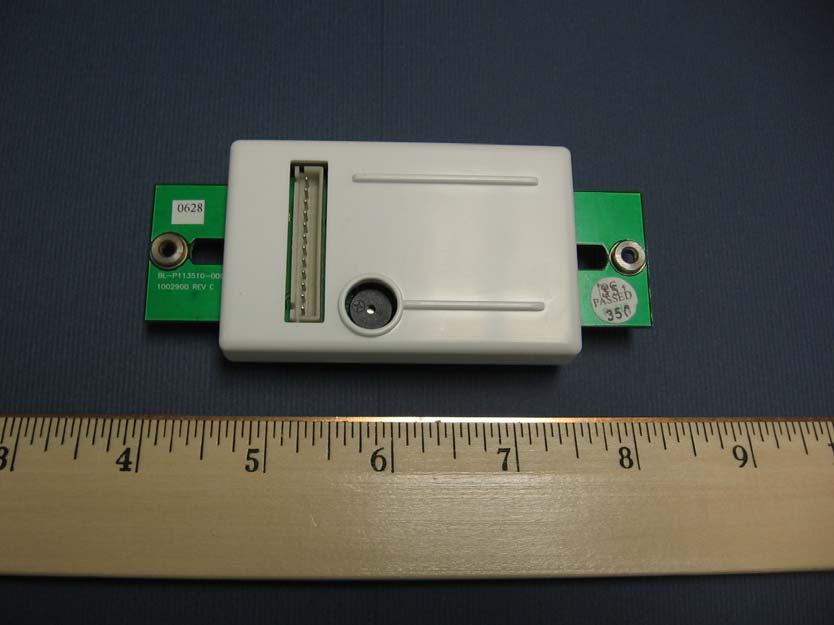

External Pictures EUT: e*Tag Quasar. MODEL : ET8-SAD Top side EUT: e*Tag Quasar. MODEL : ET8-SAD EUT: e*Tag Quasar. MODEL : ET8-SAD Cable

ET8-FF-II-H-C-oovv FCC ID: NNHETAGS8 IC ID: 5718A-ETAGS8 ASSY#: 201XXXX LOT#: XXXXXX SER#: XXXXXXX 6435-etag8 decorator instructions.indd 58/17/2006 4:51:03 PM FCC Label Location FCC Label Location

EUT: e*Tag Quasar. MODEL : ET8-SAD RFID Reader Board ET8-SAD (PCB Component side) EUT: e*Tag Quasar. MODEL : ET8-SAD

Description of e*TAG-Quasar Reader System & its Components System Overview The eTag-Quasar system is comprised of tags and reader assembly. The reader can be host driven such as PC, or some other kind of intelligent device (for example a tag printer or controller) through RS-485 and can operate in self run mode connected to data collection device such as access control controller. RF functionality operates per ISO/IEC 15693 protocols. During a transaction, the tag (transponder) is permanently powered by the signal sent by the reader. This signal also provides the clock frequency to the transponder. It is amplitude modulated to transmit requests from the reader to the transponder. In order to transmit responses to the reader, the transponder (tag) derives the operating energy and the clock from the reader’s power signal to generate the sub-carrier frequencies. ISO 15693 parameters are configurable for: 1) modulation depth (10% or 100%), 2) data coding (1/4 or 1/256), 3) sub-carrier load modulation (ASK or FSK) and 4) anti-collision rate (FAST or Slow). This reader is set for worst-case FCC conditions (100% FSK, ¼ and Fast anti-collision). Read distance is influenced by the coupling factor between the reader’s antenna (size and efficiency) and tag antenna size, and thus by the distance between them. The emissions from transponders (tags) was not measurable and well below the regulated limit. The passive tag is not required to be FCC certified. ET8-Wix (e*TAG-Quasar --- i = interface ,RS485, TTL, Wiegand; x = housing style) A typical reader consists of electronic board, antenna, and wiring harness as shown in Figure 1. Electronics board includes microprocessor (digital), RF ASIC (analog), 13.56 MHz crystal, buzzer, LED, RS-485 or TTL communication interface, Wiegand signal interface and antenna connection. The reader is powered with 5V DC. Maximum current during tag read is 180mA and gives 3-4” read distance. The data is transmitted through the RS-485 or TTL or Wiegand interface connected to its host or controller. It sends energy and commands to, and receives signals from the transponder through the antenna. Block Diagram of Reader’s Electronics Transponder (Tag) A transponder (tag inlay) comprises a flexible foil antenna, a resonance capacitor and an integrated circuit. The tag inlay can be packaged in different formats such as pressure sensitive labels and plastic cards. The transponder’s IC is powered by the electromagnetic field generated by the reader’s antenna; this is generally described as a passive transponder. Figure 3: Block Diagram of the Badge The IC is flip chip mounted onto the antenna. The electrical parameters of the components: the antenna (including its inductance) and the resonance capacitor; and the layout of the antenna loops all have an effect on the transponder’s performance. The L r/Cr resonance circuit is trimmed to the required target frequency to achieve optimal performance. The tag uses one or two sub-carrier AM modulation frequencies for sending its data to the Reader (up-link). The data are encoded in Manchester code by alternating between both sub-carrier frequencies, such generating an ASK or FSK modulation scheme. The emissions from Transponders (tags) was not measurable and well below the regulated limit. The passive tag is not required to be FCC certified.

Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key 023 NVLAP LAB CODE: 200413-0 July 27, 2006 Test Record Product Verification According to FCC Part 15 Subparts C Sections 15.207, 15.209, 15.225 and RSS-210, RSS-GEN for SecuraKey, Division of Soundcraft, Inc. MODEL: ET8-FF-II-H-C-OOVV This report contains confidential information. The owner of this report may make duplicates of it, provided all pages are copied. Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key Page 2 of 47 TABLE OF CONTENTS Revision history 3 Introduction – Test Plan 3 1.0 Certification of Test Record 4 2.0 General Information 5 2.1 Client Information 5 2.2 Administrative Data 5 3.0 Description of Equipment Under Test (EUT) 6 3.1 Brief Description of the EUT 6 3.2 Test Run 6 3.3 Block-Diagram of the Test Setup 7 3.4 Support Equipment 7 3.5 Cabling Configuration 7 3.6 Photographs of the EUT 8 3.7 EUT Modifications 12 3.8 Photographs of EUT Modifications 12 4.0 Test equipment used 13 5.0 Radiated and Conducted Emissions 14 5.1 Test Specifications 14 5.1.1 Test requirements 14 5.2 Radiated Emission test 14 5.2.1 Procedure of Radiated Emission Test 14 5.3 Conducted Emissions Test 15 5.3.1 Procedures of conducted Emissions Test 15 5.4 Test results 17 5.4.1 Radiated Emissions Test Results 17 5.4.2 Conducted Emissions Test Results 20 6.0 Field Strength of Fundamental and Emissions within permitted band 23 6.1. Field Strength of Fundamental 24 6.2. In band Emissions 26 7.0 Spurious Radiated Emissions below 30 MHz. 36 8.0 Occupied channel bandwidth 39 9.0 Restricted Bands 40 10.0 Frequency Tolerance 41 10.1 Temperature variations 41 10.2 Power variations 41 11.0 Photographs of Test Set-Up 42 Appendix A ET8-Family and Part Numbering System 47 Appendix B Certificate of Accreditations 48 Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key Page 3 of 47 Revision History Revision Date Description of Changes Author 0.1 July 27,2006 Initial document S.Sohn Introduction – Test Plan This report describes the results of all measurements made on Vicinity RFID Reader which falls under the class of intentional radiator, Low Power Unlicensed Transmitter, by the FCC Part 15 Subpart C Rules and Regulations. This EUT is designated: e*Tag Quasar Reader Model : ET8-FF-II-H-C-OOVV The EUT was tested in full compliance with the FCC Regulations using the methods of FCC Part 15 Subpart C “Intentional Radiators”; ANSI C63.4: 2003 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. The results of the testing indicate that the ET8-FF-II-H-C-OOVV met the FCC Part 15 Subpart C Low Power Unlicensed Transmitter limits and RSS-210 (Issue 6) requirements. Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key Page 4 of 47 1.0 CERTIFICATION OF TEST DATA Verification statement. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the test sample (EUT), and characteristics and measurements obtained as of the dates and the times of the test under the conditions specified and to the methods of FCC Part 15, Subpart C “Intentional Radiators” and Part 2 “Frequency Allocations and radio Treaty Matters; General Rules and regulations” and RSS-210 (Issue 6) The test results provided with this report, indicate that the equipment tested: e*Tag Quasar Reader. MODEL: ET8-FF-II-H-C-OOVV is compliant with the following Rules and Regulations A. 47 CFR, Subpart 15.225(a)(b)(c) Field Strength of Emissions within band B. 47 CFR, Subpart 15.225(d) Field Strength of Emissions outside the band C. 47CFR, Subpart 15.225(e) Frequency tolerance of the carrier D. 47 CFR, Subpart 15.207 Line Conducted Emissions E. 47 CFR, Subpart 15.203 Antenna Requirements Tests performed by: Report prepared by: _____________________ _____________________ Sandra Sohn Sandra Sohn EMC Test Engineer EMC Test Engineer Report Approved By: Mike Chechelnik Director of EMC Lab JMR Compliance Engineering, 20400 Plummer Street, Chatsworth CA 91311. E-mail:[email protected] Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key Page 5 of 47 2.0 GENERAL INFORMATION 2.1 Client Information Company Name: Secura Key, division of Soundcraft ,Inc. Contact: Randy Watkins Company Address: 20301 Nordhoff Street Chatsworth, CA 91311 Phone: 818-882-0020 2.2 Administrative Data Device tested: e*Tag Quasar, Vicinity RFID Reader Model: ET8-FF-II-H-C-OOVV Equipment category: Intentional Radiators, Low Power Unlicensed Transmitter Accessories: N/A Purpose of test: Compliance to FCC Rules and Regulations, Part 15, Subpart C Date of test: 07/18/06 – 07/25/06 Place of the test: JMR Electronics, Inc. Compliance Engineering Laboratory 20400 Plummer Street Chatsworth, CA 91311 Phone: (818) 993-4801 Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key Page 6 of 47 3.0 Description of Equipment Under Test (EUT) 3.1 Brief Description of the EUT The ET8-FF-II-H-C-OOVV is Vicinity RFID reader/writer which is used for a wide variety of Automatic Identification and Data Collection applications. Compliant with ISO 15693 standards. Operating Frequencies : 13.56 MHz Number of Channel: 1 Type of Modulation: PPM Modulation depth: 100% Antenna: Two turn 50 Ohm integral antenna made of printed circuit board traces ( part of the device’s PCB). 3.2 Test Run The EUT exercise program was designed to generated its frequency continuously for the duration of the testing. The above mentioned set-up allowed the article to perform sufficiently for the test purposes and required time. Report No:101117-02 rev.01 FCC ID: NNHETAGS8 IC ID: 5718-ETAGS8 Client: Secura Key Page 7 of 47 3.3 Block Diagram of the Test Setup +9VDC AC 120V e*Tag Quasar Reader (model:ET8-SAD) Card/Tag AC Adaptor (model: 2897) 3.4 Support Equipment List: Equipment AC Adaptor, Secura Key Model No. 2897 3.5 Cabling Configurat…

Text truncated - open the document above for the full version.

Photographs of Test Set-Up Radiated Emission Test (Front View) Conducted Emission Test (Front View) Conducted Emission Test (Rear View) EUT: e*Tag Quasar. MODEL : ET8-SAD Tests per 15.225 (a)(b)(c)(d) EUT: e*Tag Quasar. MODEL : ET8-SAD Frequency Tolerance Temperature Test , Voltage variation Test Tests per 15.225 (e)
