NP44048351UHF Wireless Radio Modem

INTEGRA-TR™ WIRELESS MODEM FOR LICENSED SPECTRUM USER MANUAL PN 001-4008-100 REV 5 NOVEMBER 2012 REVISION HISTORY Rev 0 June 2011 Initial Release. Rev 1 August 2011 Changed Dual Band references to Dual IF, sections 1.6 and 1.8. Deleted Synthesizer reference, section 4.3.1.3. Rev 2 January 2012 Added VHF Dual Band specifications and part numbers, splinter channel frequencies and FCC/IC indicators. Rev 3 April 2012 Corrected part numbers in section 1.6. Rev 4 September 2012 Updated VHF model numbers, FCC and IC Emission Designators. Rev 5 November 2012 Added the 12.5/6.25 kHz bandwidths for the UHF Integra. Rev 6 February 2013 Corrected errors in Table 4 regarding the 2424048351 and 2424048551 Models. Change the UHF RF Exposure Compliance Requirements table Important Notices Because of the nature of wireless communication, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors), or be totally lost. Significant delays or losses of data are rare when wireless devices such as the Integra-TR are used in a normal manner with a well-constructed network. Integra-TR should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. CalAmp accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using Integra-TR, or for the failure of Integra-TR to transmit or receive such data. This document provides the information required for the operation and preventive maintenance of the Integra-TR integrated wireless modem. This manual is intended for system designers, installers and maintenance technicians. The Field Programming Software for the Integra is the professional service installer interface. The Field Programming Software should never be made available to unqualified personnel. Copyright Notice © 2011 CalAmp Corp. All rights reserved. Products offered may contain software proprietary to CalAmp. The offer of supply of these products and services does not include or infer any transfer of ownership. No part of the documentation or information supplied may be divulged to any third party without the express written consent of CalAmp. CalAmp reserves the right to update its products, software, or documentation without obligation to notify any individual or entity. Product updates may result in differences between the information provided in this manual and the product shipped. RF Exposure Compliance Requirements The Integra-TR radio is intended for use in the Industrial Monitoring and Control and SCADA markets. The Integra-TR unit must be professionally installed and must ensure a minimum separation distance listed in the table below between the radiating structure and any person. An antenna mounted on a pole or tower is the typical installation and in rare instances, a 1/2-wave whip antenna is used. Antenna Gain Min Safety Distance (cm @max power) 5 dBi 10 dBi 15 dBi VHF 79.3 cm 141.0 cm 250.8 cm UHF 74.8 cm 133 cm 236.4 cm 900 MHz 45.0 cm 80.1 cm 142.5 cm It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. Integra-TR uses a low power radio frequency transmitter. The concentrated energy from an antenna may pose a health hazard. People should not be in front of the antenna when the transmitter is operating. The installer of this equipment must ensure the antenna is located or pointed such that it does not emit an RF field in excess of Health Canada limits for the general population. Recommended safety guidelines for the human exposure to radio frequency electromagnetic energy are contained in the Canadian Safety Code 6 (available from Health Canada) and the Federal Communications Commission (FCC) Bulletin 65. Any changes or modifications not expressly approved by the party responsible for compliance (in the country where used) could void the user's authority to operate the equipment. Table of Contents 1 PRODUCT OVERVIEW ........................................................................................................................................................... 6 1.1 General Description ..................................................................................................................................................... 6 1.2 Operational Characteristics ......................................................................................................................................... 6 1.3 Physical Description ..................................................................................................................................................... 7 1.4 Front Panel ................................................................................................................................................................... 7 1.4.1 Antenna Connector .............................................................................................................................................. 7 1.4.2 LED Indicators ...................................................................................................................................................... 7 1.4.3 COM Port ............................................................................................................................................................. 8 1.4.4 Setup Port ............................................................................................................................................................ 9 1.5 Rear Panel .................................................................................................................................................................... 9 1.5.1 Heat Sink ..........................................................................................................…

Text truncated - open the document above for the full version.

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S M A R T L I N K 2 9 9 J o h n s o n A v e n u e , S t e 1 1 0 , W a s e c a , M N 5 6 0 9 3 | t 5 0 7 . 8 3 3 . 8 8 1 9 f 5 0 7 . 8 3 3 . 6 7 4 8 | w w w . c a l a m p . c o m Request for Confidentiality Date: March 18, 2013 Subject: Confidentiality Request for: FCC ID: NP44048351 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ CalAmp has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Director of Engineering Russell Cook (Signature/Title 3 ) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

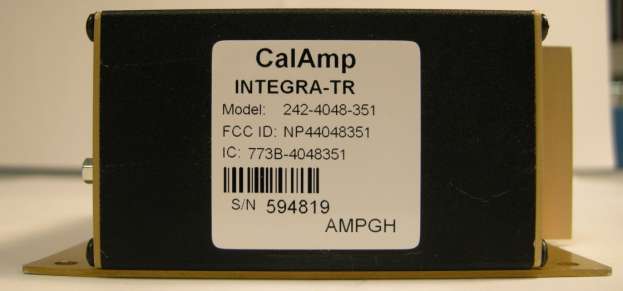

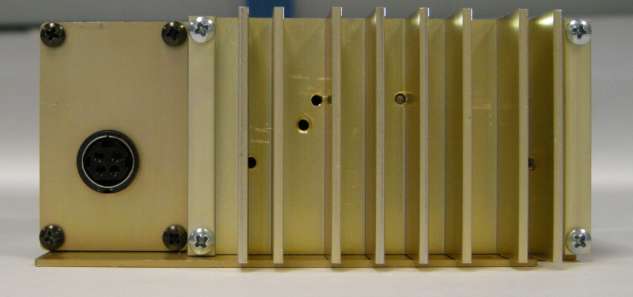

Product Label Location

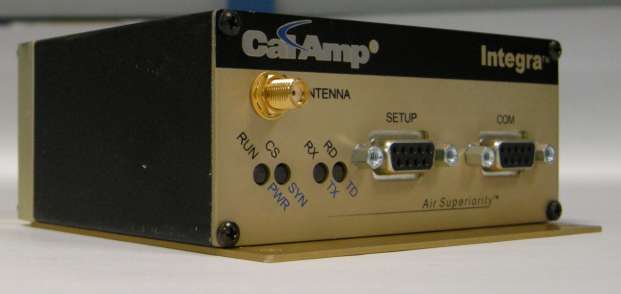

Front Panel Connections Modem to RF Board Connection Top Side Modem and RF Board Bottom Side Modem and RF Board Top Side RF Board no shields Bottom Side RF Board no shields

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S M A R T L I N K 2 9 9 J o h n s o n A v e n u e , S t e 1 1 0 , W a s e c a , M N 5 6 0 9 3 | t 5 0 7 . 8 3 3 . 8 8 1 9 f 5 0 7 . 8 3 3 . 6 7 4 8 | w w w . c a l a m p . c o m RF Exposure Compliance Requirements Integra Telemetry Radio Modem Description of Compliance: The Integra-TR radio is intended for use in the Industrial Monitoring and Control and SCADA markets and will be mounted with a fixed RTU (Remote Terminal Unit). FCC CFR 47 Part 2.1091 requires a minimum separation of 20 cm to be classified as a mobile. The IntegraTR will be professionally installed in such a way that a minimum separation distance as listed in the table below will be maintained between the radiating structure and any person to be classified as a mobile. A typical installation would be with the antenna mounted on a tower. The nominal factory set power is 5.00 Watts (37.00 dBm), but the MPE is calculated for maximum allowed to be within the production specification of 6.00 Watts (37.78 dBm). Note: It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. Antenna Gain vs. Recommended Safety Distance Antenna Gain 5 dBi 10 dBi 15 dBi Min Safety Distance (max power) 74.8cm 133 cm 236.4 cm The calculation for the more stringent specification, a General Population/Uncontrolled Mobile device according to Section 2.1091(b) and Section 1.1310 Note 2 is shown below: Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (mins) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f (MHz)/1500 (MHz) 30 1500-100000 --- --- 1.0 30 Environmental Specification: f(MHz)/(150 W/m 2 ) 406.1 MHz/(150 MHz W/m 2 ) = 2.71 W/m 2 (worst case) S = (PG)/(4R 2 ) (OET Bulletin 65) Where: S = Power Density (mW/cm 2 ) P = Power input to the antenna (mW) G = Power Gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (cm) A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S M A R T L I N K 2 9 9 J o h n s o n A v e n u e , S t e 1 1 0 , W a s e c a , M N 5 6 0 9 3 | t 5 0 7 . 8 3 3 . 8 8 1 9 f 5 0 7 . 8 3 3 . 6 7 4 8 | w w w . c a l a m p . c o m Distance Calculation for 5dBi antenna: R = ((PG)/(4S)) Antenna Gain: 5.0 dBi 10 (5 dBi/10) = 3.16 Power input to the Antenna: 37.78 dBm = 10 (37dBm/10) = 6000 mW R = ((6000mW*3.16)/(4*0.27 mW/cm 2 )) = 74.8 cm (Minimum Distance) Distance Calculation for 10dBi antenna: R = ((PG)/(4S)) Antenna Gain: 10.0 dBi 10 (10 dBi/10) = 10 Power input to the Antenna: 37.78 dBm = 10 (37dBm/10) = 6000 mW R = ((6000mW*10)/(4*0.27 mW/cm 2 )) = 133.0 cm (Minimum Distance) Distance Calculation for 15dBi antenna: R = ((PG)/(4S)) Antenna Gain: 15.0 dBi 10 (15dBi/10) = 31.6 Power input to the Antenna: 37.78 dBm = 10 (37dBm/10) = 6000 mW R = ((6000mW*31.6)/(4*0.27 mW/cm 2 )) = 236.4 cm (Minimum Distance)

Page 1 of 74 CalAmp Wireless Networks Corp. 299 Johnson Avenue, Suite 110 Waseca, MN 56093-0833 USA Phone: 507-833-8819 Fax: 507-833-6748 FCC Part 90 Certification Application FCC Form 731 For The IntegraTR UHF RADIO MODEM FCC ID: NP44048351 Page 2 of 74 Table of Contents 71.1 Transmitter Rated Power Output ................................................................................................. 3 1.2 Transmitter Spurious and Harmonic Outputs ................................................................................ 4 1.3 Transient Frequency Behaviour ..................................................................................................... 8 1.4 Frequency Stability with Variation in Supply Voltage ................................................................ 22 1.5 Frequency Stability with Variation in Ambient Temperature ..................................................... 23 1.6 Transmitter Occupied Bandwidth Necessary Bandwidth ............................................................ 25 1.7 Transmitter Occupied Bandwidth Mask D - 8K80F1D ............................................................... 29 1.8 Transmitter Occupied Bandwidth Mask E - 3K30F1D ............................................................... 44 1.9 Transmitter Occupied Bandwidth Mask E - 3K40F1D ............................................................... 59 Page 3 of 74 71.1 Transmitter Rated Power Output RULE PART NUMBER: 2.1046 (a) (c) TEST RESULTS: See results below TEST CONDITIONS: Standard Test Conditions TEST EQUIPMENT: 50-Ohm Attenuator, Aeroflex/Weinschel 56-6-34 (6 dB / 250W) Bird Elec. Corp. 50-A-FFN-20 (20 db / 50 Watt) Power Supply, HP 6653A Digital Multimeter, Instek GDM-8245 Power Meter, Model HP 437B TEST SET-UP: TEST RESULTS: Frequency ( MHz ) DC Voltage at Final ( Vdc ) DC Current into Final ( Adc ) DC Power into Final ( W ) RF Power Output ( W ) 423.0 13.3 1.280 17.024 5.05 TEST UNIT ATTENUATORS POWER METER POWER SUPPLY DIGITAL MULTIMETER Page 4 of 74 1.2 Transmitter Spurious and Harmonic Outputs RULE PART NUMBER: 2.1051, 90.210 (d) and 90.210 (e) MINIMUM STANDARDS: (d) Emission Mask D—12.5 kHz channel bandwidth equipment. For transmitters designed to operate with a 12.5 kHz channel bandwidth, any emission must be attenuated below the power (P) of the highest emission contained within the authorized bandwidth as follows: (1) On any frequency from the center of the authorized bandwidth f 0 to 5.625 kHz removed from f 0 : Zero dB. (2) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (f d in kHz) of more than 5.625 kHz but no more than 12.5 kHz: At least 7.27(f d −2.88 kHz) dB. (3) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (f d in kHz) of more than 12.5 kHz: At least 50 + 10 log (P) dB or 70 dB, whichever is the lesser attenuation. Attenuation = 0 dB at Fo to 5.625 kHz Attenuation = 20 dB at 5.625 kHz and 70 dB at 12.5 kHz Attenuation = 57dB (50 dB for 1.0W) at >12.5 kHz (e) Emission Mask E—6.25 kHz or less channel bandwidth equipment. For transmitters designed to operate with a 6.25 kHz or less bandwidth, any emission must be attenuated below the power (P) of the highest emission contained within the authorized bandwidth as follows: (1) On any frequency from the center of the authorized bandwidth f 0 to 3.0 kHz removed from f 0 : Zero dB. (2) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (f d in kHz) of more than 3.0 kHz but no more than 4.6 kHz: At least 30 + 16.67(f d −3 kHz) or 55 + 10 log (P) or 65 dB, whichever is the lesser attenuation. (3) On any frequency removed from the center of the authorized bandwidth by more than 4.6 kHz: At least 55 + 10 log (P) or 65 dB, whichever is the lesser attenuation. Attenuation = 0 dB at Fo to 3.0 kHz Attenuation = 30 dB at 3.0 kHz and 57 dB at 4.6 kHz Attenuation = 62 dB (55 dB @ 1 Watt) at > 4.6 kHz Page 5 of 74 TEST RESULTS: Meets minimum standards (see data on following pages) TEST CONDITIONS: Standard Test Conditions, 25 C RF Voltage measured at antenna terminals TEST PROCEDURE: TIA/EIA – 603-C TEST EQUIPMENT: 50-Ohm Attenuator, Aeroflex/Weinschel 56-6-34 (6 dB / 250W) Power Supply, HP 6653A Spectrum Analyzer, HP-8563E Reference Generator, Agilent E8257D High Pass Filter, Mini Circuits VHF-740, Fc = 740 MHz TEST SET-UP: MEASUREMENT PROCEDURE: 1. The transmitter carrier output frequencies are 406.200, 423.000 and 439.900. The reference oscillator frequency is 14.40 MHz. The DC voltage to the power amplifier is 13.3 Volts for 5 watts. 2. The carrier reference was established on the spectrum analyzer with the filter by- pass in place. Then the spectrum was scanned from DC to 2 Fc. Finally, the high pass filter was inserted to null the carrier fundamental and extend the range of the spectrum analyzer for harmonic measurements above 2 Fc. 3. At each spurious frequency, generation substitution was used to establish the true spurious level. 4. The spectrum was scanned to the 10 th harmonic of the highest internally generated frequency. Filter By-Pass TEST UNIT ATTENUATORS HIGH PASS FILTER POWER SUPPLY SPECTRUM ANALYZER REFERENCE GENERATOR POWER METER Page 6 of 74 Tuned Frequency 406.200 MHz Tuned Frequency 406.200 MHz Power (Watts) 5.00 Watts Power (Watts) 1.00 Watt Power (dBm) +37 dBm Power (dBm) +30 dBm Spec Limit -62 dBc Spec Limit -55 dBc Worse Case -82 dBc Worse Case -80 dBc Spurious Relation to the Carrier Relative to the Carrier Spurious Relation to the Carrier Relative to the Carrier Frequency (MHz) Frequency (MHz) 812.400 2Fo -82.00 812.400 2Fo -80.00 1218.600 3Fo -107.00 1218.600 3Fo -112.00 1624.800 4Fo -112.00 1624.800 4Fo -106.00 2031.000 5Fo -110.00 2031.000 5Fo -113.00 2437.200 6Fo -117.00 2437.200 6Fo -111.00 2843.400 7Fo -117.00 2843.400 7Fo -109.00 3249.600 8Fo -118.00 3249.600 8Fo -111.00 3655.800 9Fo -115.00 3655.800 9Fo -108.00 4062.000 10Fo -113…

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 TEST RESULT SUMMARY FCC Part 2, Section 2.1053 FCC Part 90, Section 90.210 (d)(3), (e)(3) MANUFACTURER CalAmp WNG NAME OF EQUIPMENT INTEGRA-TR, UHF 406.1-440 MHZ, 6.25/12.5K DUAL BAND IF UHF Radio Modem MODEL NUMBERS 2424048351 SERIAL NUMBER(S) TESTED 594819 MANUFACTURER'S ADDRESS 299 Johnson Avenue Suite 110 Waseca MN 56093 TEST REPORT NUMBER NC1212123.4 TEST DATES 11-12 December 2012 According to testing performed at TÜV SÜD America Inc, the above-mentioned unit is in compliance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Parts 2 and 90. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the spurious radiated emissions (case radiation) requirements of FCC Parts 2 and 90. Date: 25 March 2013 Location: Taylors Falls MN Greg S Jakubowski Joel T Schneider USA Senior EMC Technician Senior EMC Engineer Not Transferable

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 T E S T R E P O R T Test Report No. NC1212123.4 Date of issue: 25 March 2013 Manufacturer CalAmp WNG Address 299 Johnson Avenue – Suite 110 Waseca MN 56093 Name of Equipment INTEGRA-TR, UHF 406.1-440 MHZ, 6.25/12.5K DUAL BAND IF Model No(s) Tested 2424048351 Serial No(s) Tested 594819 Test Result  Compliant Non-compliant TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report NC1212123.41 of 19 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 19 21 March 2013 Initial Release Test Report NC1212123.42 of 19 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 D I R E C T O R Y Documentation Page Revision record 2 Directory 3 Emissions test regulations 4 Environmental conditions in the lab 4 Power supply utilized 4 Test equipment traceability 4 Measurement uncertainty 4 Test methodology 4 Test Data and Results Radiated emissions – Transmitter – spurious case radiation 5 - 7 Test setup drawings and photos 8 - 10 Test operation mode, configuration 11 Deviations – General Remarks – Summary - Signatures 12 Appendix A Constructional data form & Block diagram 13 - 19 Sign Explanations:  - not applicable  - applicable Test Report NC1212123.43 of 19 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 EMC TEST REGULATIONS: The tests were performed according to the following regulations: FCC Part 2, Section 2.1053 FCC Part 90, Section 90.210 (e)(3), (d)(3) ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 14°C Relative Humidity : 22% Atmospheric pressure : 98 kPa POWER SUPPLY UTILIZED Power supply system : 13.3 VDC TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. MEASUREMENT UNCERTAINTY The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. The test system has a measurement uncertainty of ±1.8 dB. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. The test system has a measurement uncertainty of ±4.8 dB. All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. TEST METHODOLOGY Radiated emissions are measured in the frequency range of 30 to 1000 MHz using a spectrum analyzer and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with a 120 kHz / 6 dB bandwidth and quasi-peak detection and measurements above 1000 MHz are made with a 1 MHz RBW/VBW / 6 dB bandwidth and peak detection, 1 MHz RBW / 10 Hz VBW for average detection. Table top equipment is placed on a non-conductive support 80 cm above the ground plane. Interface cables that are closer than 40 centimeters to the ground plane are bundled in the center in a serpentine fashion so they are at least 40 centimeters from the ground plane. Cables to simulators/testers (if used in this test) are routed through the center of the table and to a screen room located outside the test area. The antenna is positioned 3, 10 or 30 meters horizontally from the EUT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 meters, measurement scans are made with both horizontal and vertical antenna polarizations and the EUT is rotated 360 degrees. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB / decade (inverse linear-distance for field strength measurements). The field strength levels were measured per ANSI C63.4. Per TIA/EIA 603-C substitution measurements are performed by replacing the DUT with a substitution antenna. The center of the substitution antenna is approximately at the same location as the center of the DUT. The substitution antenna is fed with a signal generator connected to the antenna by means of a nonradiating cable. With the antennas polarity matching that of the spurious signal and with the signal generator tuned to the spurious frequency, the test antenna’s height is adjusted to obtain a maximum reading at the spectrum analyzer. The signal generator output level is adjusted until the previously recorded maximum reading for this set of conditions is obtained. The power in dBm is calculated by reducing the readings obtained in the previous steps by the power loss in the cable between the generator and the antenna, and further correcting for the gain of the substitution antenna by the following formula: e.i.r.p. (dBm) = Pg (dBm) – cable loss (dB) + antenna gain (dBi) where: E.i.r.p. is the substitution antenna’s equivalent power…

Text truncated - open the document above for the full version.
