VIPER SC™ VIPER SC+™ IP ROUTER FOR LICENSED SPECTRUM User Manual PN 001-5008-000 Rev 11 Revised August 2011 REVISION HISTORY REV DATE DESCRIPTION REV 0 Jan 2008 Initial Release as 001-5008-000. REV 1 May 2008 Update Dual Port Viper SC information. REV 2 Sept 2008 Added information about SNMP. Updated Firmware Upgrade instructions. REV 3 Dec 2008 Added information about TCP Client Server Mode. Added information about Saving/Restoring User Configuration files. REV 4 Apr 2009 Added information about V1.5 Viper SC code release. Added information about TCP Proxy Feature. Added note to RF Acknowledgment section. Corrected Viper SC Power Cable Part in Accessory Table. Added specifications and part number for 900 MHz Viper SC. Updated RF Exposure Compliance requirements. Added Choosing an IP Addressing Scheme REV 5 Jul 2009 Added information about V1.6 Viper SC code release. Added information about Listen Before Transmit Disable feature. Added section about RF MAC override feature. Added section about the Periodic Reset feature. Added screen shot and information for the “Add Static Entry” function REV 6 Sept 2009 Added Listen Before Transmit Disable Feature. (Previously Read: Added Listen Before Talk Disable Feature). REV 7 Nov 2009 Updated user manual for product name change from ViPR to Viper SC REV 8 Jun 2010 Added UL information. Added information and specifications for Viper SC-200. Added information about V1.7 Viper SC firmware Release. Corrected radio firmware upgrade command line instructions errors in Section 13.3 that were introduced in revision 7 of the user manual. Added section about VPN. Added section about Radius. Updated SNMP section. Updated screen captures and descriptions REV 9 Sept 2010 Rebranded for Viper SC, Updates to Security – VPN Section 4.5.3. REV 10 Aug 2011 Added VHF ETSI Viper Part Numbers and ETSI Base Station part numbers (Section 1.5). Added sensitivity numbers for VHF ETSI Viper (Appendix A). Added additional regulatory certifications for VHF ETSI Viper (Appendix B). Updated VHF ETSI frequencies from 136-174 to 142-174MHz. Added frequency ranges for ETSI and AS/NZ compliant models in section 1.2. Rearranged model number layout in Appendix A. Added standards information to Appendix B. Updated RF Exposure Compliance Recommendations. Updated Unit Identification and Status mode selection, section 4.1.1. Updated Diagnostics Info – SNR from RF-MAC, section 4.1.2. Channel Table/Current Settings mode selection changed, section 4.3.3. Multicast section updated, section 4.4.3. IP Optimization updates, section 4.4.4. VPN Configuration updates, section 4.5.3. Remote Statistics added, section 4.6.3. SINAD Meter added to RF Tests, section 4.7.5. Wing Commander pages added, section 4.7.6. REV 11 Aug 2011 Updated EU and EFTA Member States’ Acceptable Frequency Table in Appendix B. REV 12a July 2013 Add ViperSC+ Model Numbers Important Notice Because of the nature of wireless communication, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors), or be totally lost. Significant delays or losses of data are rare when wireless devices such as the Viper SC are used in a normal manner with a well-constructed network. Viper SC should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. CalAmp accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using Viper SC, or for the failure of Viper SC to transmit or receive such data. Copyright Notice © 2010 CalAmp. All rights reserved. Products offered may contain software proprietary to CalAmp. The offer of supply of these products and services does not include or infer any transfer of ownership. No part of the documentation or information supplied may be divulged to any third party without the express written consent of CalAmp. CalAmp reserves the right to update its products, software, or documentation without obligation to notify any individual or entity. Product updates may result in differences between the information provided in this manual and the product shipped. RF Exposure Compliance Requirements The Viper SC radio is intended for use in the Industrial Monitoring and Control and SCADA markets. The Viper SC unit must be professionally installed and must ensure a minimum separation distance listed in the table below between the radiating structure and any person. An antenna mounted on a pole or tower is the typical installation and in rare instances, a 1/2-wave whip antenna is used. Antenna Gain Min Safety Distance (cm @max power) 5 dBi 10 dBi 15 dBi VHF 123cm 219cm 389cm UHF 122cm 217cm 386cm 900 MHz (Model # 1405098304) 66 cm 116 cm 207 cm 900 MHz (Model # 1405098504) 64 cm 113 cm 202 cm It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. The installer of this equipment must ensure the antenna is located or pointed such that it does not emit an RF field in excess of Health Canada limits for the general population. Viper SC uses a low power radio frequency transmitter. The concentrated energy from an antenna may pose a health hazard. People should not be in front of the antenna when the transmitter is operating. Recommended safety guidelines for the human exposure to radio frequency electromagnetic energy are contained in the Canadian Safety Code 6 (available from Health Canada), the Federal Communications Commission (FCC) Bulletin 65 and the Council of the European Union’s Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz) (1999/519/EC). Class A Digital Device Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15…

Text truncated - open the document above for the full version.

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S M A R T L I N K 2 9 9 J o h n s o n A v e n u e , S t e 1 1 0 , W a s e c a , M N 5 6 0 9 3 | t 5 0 7 . 8 3 3 . 8 8 1 9 f 5 0 7 . 8 3 3 . 6 7 4 8 | w w w . c a l a m p . c o m Request for Confidentiality Date: July 22, 2013 Subject: Confidentiality Request for: FCC ID: NP45028504 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ CalAmp has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Director of Engineering Russell Cook (Signature/Title 3 ) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

ATTESTATION Unity Extended Frequency Range – Contiguous Frequency Listing Device is for use in Part 80 and Part 90. Federal end users are intended to comply to the rules per Part 2.103 (a). The frequency band is: 215.0000-240.0000 MHz Part 2.106 has been used to construct the following table of frequency range capability intended for end users. CalAmp Corporation acknowledges that operation on unauthorized frequencies is a violation of FCC rules. CalAmp Corporation acknowledges the inclusion of Grant note code “EF”. Frequency Range (MHz) Usage Power Level 215.0000-216.0000 Federal 1 to 12 Watts 216.0000-220.0000 Federal 1 to 12 Watts 216.0000-220.0000 Part 80 1 to 12 Watts 216.0000-220.0000 Part 90.259 1 to 2 Watts 220.0000-222.0000 Part 90.210(f) 1 to 12 Watts 218.0000-219.0000 Part 95 Subpart F 1 to 12 Watts 222.0000-240.0000 Federal 1 to 12 Watts

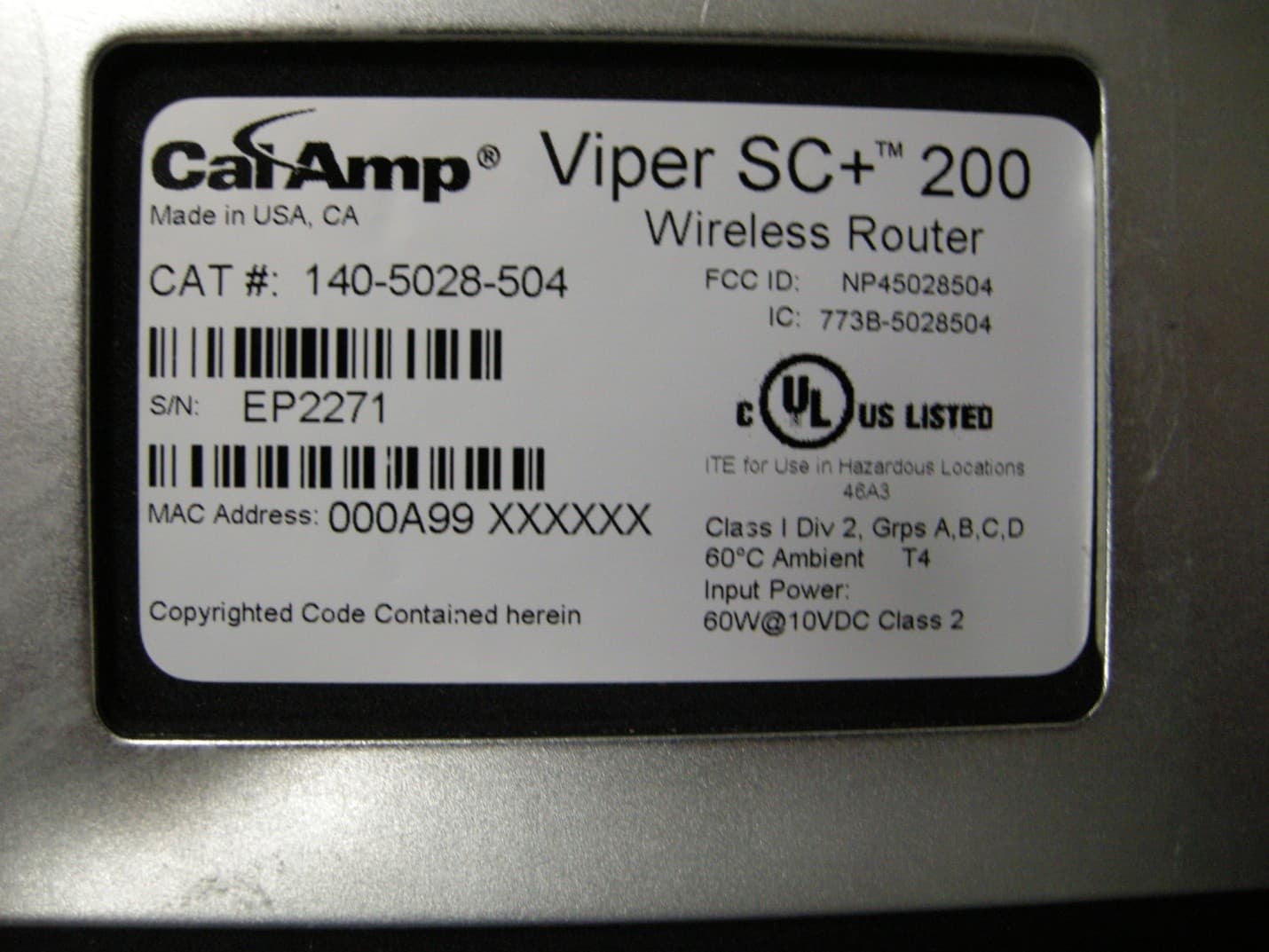

Product Label Location

Modem and RF Open and Connection Top Side Modem and RF Board Bottom Side Modem and RF Board RF Board Metal Plate Removed Top Side RF Board no shields Bottom Side RF Board no shields

Viper Tune Up Procedure The radio will be connected to an automatic testing station where a software program will tune all the radio parameters. The following instructions summarize the procedure for tuning the output power. The tuning program will key up the radio at four points across the band and sets the power to 12W. Power control is achieved by controlling the voltage on the first stage of the transmitter, which controls the RF drive to the following stages. The power output is programmable by using a digital to analog converter (DAC) on the RF board. This DAC is controlled by the on-board microprocessor. Once the DAC value is determined for these four frequencies the processor interpolates the DAC value for frequencies in between the calibrated frequencies. This ensures equal power output across the entire RF band. The tuning program then will tune the radio at four points across the band at 1W by following the same procedure. The processor interpolates the DAC value for power values between the calibrated powers. Note: Deviation is a preprogrammed set value for all radios.

RF Exposure Compliance Requirements ViperSC+ Analog Telemetry Radio Modem FCC Rule: 1.1307, 1.1310, 2.1091 (b) (d), 2.1093 Description of Compliance: The ViperSC+ will be professionally installed in the SCADA (Supervisory Control And Data Acquisition) market and will be mounted with a fixed RTU (Remote Terminal Unit). A minimum separation distance listed in the table below must be maintained between the radiating structure and any person to classify as a mobile under FCC MPE regulations. Antenna Gain vs. Recommended Safety Distance Antenna Gain 5 dBi 10 dBi 15 dBi Min Safety Distance (max power) 122.8cm 218.5 cm 388.4 cm Note: It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. The calculation for the more stringent specification, a General Population/Uncontrolled Mobile device according to section 2.1091(b) and section 1.1310 Note 2 is shown below: Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (mins) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f (MHz)/1500 (MHz) 30 1500-100000 --- --- 1.0 30 Environmental Specification: 0.2 mW/cm 2 S = (PG)/(4R 2 ) (OET Bulletin 65) Where: S = Power Density (mW/cm 2 ) P = Power input to the antenna (mW) G = Power Gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (cm) Distance Calculation for 5dBi antenna: R = ((PG)/(4S)) Antenna Gain: 5.0 dBi 10 (5 dBi/10) = 3.16 Power input to the Antenna: 40.8dBm = 10 (40.0dBm/10) = 12000 mW R = ((12000mW*3.16)/(4*0.2 mW/cm 2 )) = 122.8 cm (Minimum Distance) Distance Calculation for 10dBi antenna: R = ((PG)/(4S)) Antenna Gain: 10.0 dBi 10 (10 dBi/10) = 10 Power input to the Antenna: 40.8dBm = 10 (40.0dBm/10) = 12000 mW R = ((12000mW*10)/(4*0.2 mW/cm 2 )) = 218.5 cm (Minimum Distance) Distance Calculation for 15dBi antenna: R = ((PG)/(4S)) Antenna Gain: 15.0 dBi 10 (15dBi/10) = 31.6 Power input to the Antenna: 40.8dBm = 10 (40.0dBm/10) = 12000 mW R = ((12000mW*31.6)/(4*0.2 mW/cm 2 )) = 388.4cm (Minimum Distance)

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 T E S T R E P O R T Test Report No. NC1305993.1 Rev B Date of issue: 19 August 2013 Manufacturer CalAmp WNG Address 299 Johnson Avenue – Suite 110 Waseca MN 56093 Name of Equipment VIPER SC+ 200 VHF Radio Modem Model No(s) Tested 1405028504 Serial No(s) Tested EP2271 Test Result  Compliant Non-compliant TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report NC1305993.1 Rev BPage 1 of 27 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 D I R E C T O R Y Documentation Page Test Regulations 3 Environmental conditions, Power supply, Test equipment traceability 4 Test Data and Results Radiated emissions – Transmitter – spurious case radiation 5 - 14 Test setup drawings and photos 15 - 17 Deviations – General Remarks – Summary - Signatures 18 Appendix A Constructional data form & Block diagram 19 - 25 Appendix B Measurement Protocol 26 - 27 Sign Explanations:  - not applicable  - applicable Test Report NC1305993.1 Rev BPage 2 of 27 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 27 17 July 2013 Initial Release A 27 01 August 2013 Added Mask b, c and f references. B 27 19 August 2013 Added Part 95 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are accurate. The reader is cautioned that there is some measurement variability due to the tolerances of the test equipment that can contribute to a nominal product measurement uncertainty. Furthermore, component differences and manufacturing process variability of production units similar to that tested may result in additional product uncertainty. If necessary, refer to the test lab for the actual measurement uncertainty for specific tests. ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 22°C Relative Humidity : 67% Atmospheric pressure : 99 kPa POWER SUPPLY UTILIZED Power supply system : 20 VDC TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. Test Report NC1305993.1 Rev BPage 3 of 27 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: FCC Part 2, Section 2.1053 FCC Part 90, Section 90.210 (b)(3), (c)(3), (d)(3), (e)(3), (f)(3) FCC Part 80, Section 80.211 (f) FCC Part 95 Subpart F Section 95.853, 95.857 Test Report NC1305993.1 Rev BPage 4 of 27 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 Radiated emission limits - Transmitter, FCC Part 90, FCC Part 90, Section 90.210 (b)(3), (c)(3), (d)(3), (e)(3), (f)(3) – FCC Part 80 Section 80.211 (f), FCC Part 95 Subpart F Section 95.853/95.857 Test summary The requirements are:  - MET  - NOT MET Test location  - Oakwood Lab (Open Area Test Site) Test Distance  - 3 meters  - 10 meters Test equipment used: TÜV ID Model Number Manufacturer Description Serial Number Cal Due WRLE03958 SL18B4020 Phase One Microwave Preamplifier 1 – 18 GHz 0002 Code B 02- Jan-14 OWLE02074 3115 Electro-Mechanics (EMCO) Ridge Guide Antenna 2504 07-Mar-14 NBLE03196 8566B Hewlett-Packard Spectrum Analyzer 2240A01856 13-Jan-14 NBLE03195 85662A Hewlett-Packard Analyzer Display 2648A13518 13-Jan-14 WRLE03333 SME03 Rohde & Schwarz Signal Generator 100003 29-Oct-13 OWLE02075 3115 Electro-Mechanics (EMCO) Ridge Guide Antenna 9001-3275 14-Feb-14 NBLE03196 8566B Hewlett-Packard Spectrum Analyzer 2240A01856 13-Jan-14 NBLE03195 85662A Hewlett-Packard Analyzer Display 2648A13518 13-Jan-14 WRLE02681 85650A Hewlett-Packard Quasi-Peak Adapter 2430A00562 29-Jun-13 OWLE03202 EM-6917B Electro-Metrics Biconicalog Periodic 101 02-Jul-13 OWLE02671 8447D Hewlett-Packard Preamplifier 2648A04942 Code B 07- Feb-14 WRLE03236 UHAP-10dB Schwarzbeck Dipole Antenna 300-1000 164 Code Y WRLE03333 SME03 Rohde & Schwarz Signal Generator 100003 29-Oct-13 Cal Code B = Calibration verification performed internally. Cal Code Y = Calibration not required when used with other calibrated equipment. Test Limit 90.210 (b)(3), (c)(3) / -13 dBm eirp 90.210 (f)(3) / -25 dBm eirp Test Data See following pages Test Report NC1305993.1 Rev BPage 5 of 27 RADIATED EMISSIONS Test Report #: NC1305993 Run 1 Test Area: OW EUT Model #: 1405028504 Date: 6/17/2013 EUT Serial #: EP2271 EUT Power: 20.0 Vdc Temperature: 22.0 C Test Method: FCC Air Pressure: 99.0 kPa Customer: CalAmp WNG Rel. Humidity: 67.0 % EUT Description: Viper SC+ 200 VHF 215-240MHz Radio Modem Notes: DUT antenna port terminated into a 50 ohm load Data File Name: 5993.dat Page: 1 of 4 Tested by: Greg Jakubowski Printed Signature Reviewed by: Joel T Schneider Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 -25 dBm eirp DELTA2 Begin spurious emissions scan 1 - 2.3 GHz f0 = 216.05 MHz, 12 W 1.1 GHz 62.0 Pk 3.27 / 25.5 / 50.52 / 0.0 40.25 V / 1.00 / 0 -29.95 n/a 1.147 GHz 61.6 Pk 3.35 / 25.69 / 50.43 / 0.0 40.21 V / 1.00 / 0 -29.99 n/a 1.15 GHz 65.35 Pk 3.36 / 25.7 / 50…

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 051006 TEST RESULT SUMMARY FCC Part 2, Section 2.1053 FCC Part 90, Section 90.210 (b)(3), (c)(3), (d)(3), (e)(3), (f)(3) FCC Part 80, Section 80.211 (f) FCC Part 95 Subpart F Section 95.853, 95.857 MANUFACTURER CalAmp WNG NAME OF EQUIPMENT VIPER SC+ 200 VHF Radio Modem MODEL NUMBERS 1405028504 SERIAL NUMBER(S) TESTED EP2271 MANUFACTURER'S ADDRESS 299 Johnson Avenue Suite 110 Waseca MN 56093 TEST REPORT NUMBER NC1305993.1 Rev B TEST DATES 17 June 2013 According to testing performed at TÜV SÜD America Inc, the above-mentioned unit is in compliance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Parts 2, 80, 90 and 95. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the spurious radiated emissions (case radiation) requirements of FCC Parts 2, 80, 90 & 95. Date: 19 August 2013 Location: Taylors Falls MN Greg S Jakubowski Joel T Schneider USA Senior EMC Technician Senior EMC Engineer Not Transferable

CalAmp Wireless Networks Corp. 299 Johnson Avenue, Suite 110 Waseca, MN 56093-0833 USA Phone: 507-833-8819 Fax: 507-833-6748 FCC Part 90 Certification Application FCC Form 731 For The VIPER SC+ 200 VHF RADIO MODEM FCC ID: NP45028504 Table of Contents 1.0 Transmitter Rated Power Output ................................................................................................. 3 2.0 Transmitter Spurious and Harmonic Outputs .............................................................................. 4 3.0 Frequency Stability with Variation in Supply Voltage ................................................................ 8 4.0 Frequency Stability with Variation in Ambient Temperature ..................................................... 9 5.0 Transmitter Occupied Bandwidth Necessary Bandwidth .......................................................... 12 6.0 Part 80.211(f) - 6 kHz ABW ..................................................................................................... 15 7.0 Mask E Part 90.259(a) 6 kHz ABW ......................................................................................... 22 8.0 Part 80.211(f) – 11.25 kHz ABW ............................................................................................. 29 9.0 Mask D Part 90.259(a) 11.25 kHz ABW .................................................................................. 38 10.0 Part 80.211(f) - 20 kHz ABW ................................................................................................... 47 11.0 Mask C Part 90.259(a) 20 kHz ABW ....................................................................................... 56 12.0 Part 80.211(f) - 40 kHz ABW ................................................................................................... 65 13.0 Mask C – Part 90.259(a) 40 kHz ABW ..................................................................................... 74 14.0 Part 80.211(f) - 80 kHz ABW ................................................................................................... 83 15.0 Mask C – Part 90.259(a) – 80 kHz ABW .................................................................................. 92 16.0 Mask F Part 90.210(f) - 220-222 MHz – 6.25k ...................................................................... 101 17.0 Mask F Part 90.210(f) - 220-222 MHz – 12.5k ...................................................................... 108 18.0 Mask F Part 90.210(f) - 220-222 MHz – 25k ......................................................................... 117 19.0 Mask F Part 90.210(f) - 220-222 MHz – 50k ......................................................................... 126 20.0 Mask F Part 90.210(f) - 220-222 MHz – 100k ....................................................................... 135 21.0 Part 95 - 218-219 MHz ............................................................................................................ 144 22.0 Calibration Information ........................................................................................................... 146 1.0 Transmitter Rated Power Output RULE PART NUMBER: FCC: 2.1046 (a) (c), 80.215, 90.729, 90.259(a), 95.855 Note: Data taken at 12 watts is to be applied to Part 80.215 (216-220) Data taken at 12 watts is to be applied Part 90.729 (220-222 MHz) only. Data taken at 2 watts is to be applied to Part 90.259(a) (217-220 MHz). TEST RESULTS: See results below TEST CONDITIONS: Standard Test Conditions TEST EQUIPMENT: 50-Ohm Atten, Bird Electronics Model 50-A-MFN-20 (20dB, 50W) 50-Ohm Atten, Bird Electronics Model 10-A-MFN-10 (10dB, 10W) Power Supply, Hewlett Packard Model 6653A Digital Multimeter, HP 3478A Power Meter, Model HP437B TEST SET-UP: TEST RESULTS: Frequency ( MHz ) DC Voltage at Final ( Vdc ) DC Current into Final ( Adc ) DC Power into Final ( W ) RF Power Output ( W ) 219.050 11.8 2.26 26.67 12.0 219.050 8.50 1.01 8.585 2.0 219.050 8.20 0.73 5.986 1.0 TEST UNIT ATTENUATORS POWER METER POWER SUPPLY DIGITAL MULTIMETER 2.0 Transmitter Spurious and Harmonic Outputs RULE PART NUMBER: FCC: 2.1051, 90.210 (b,3),(c,3)(d,3)(e,3)(f,3) 80.211 (f); Note: Data taken at 12 watts is to be applied to Part 80.215 (216-220) Data taken at 12 watts is to be applied Part 90.729 (220-222 MHz) only. Data taken at 2 watts is to be applied to Part 90.259(a) (217-220 MHz). MINIMUM STANDARDS: The most restrictive specification is: For 12 Watts: 55+10Log 10 (12 Watts) = -65.8 dBc or -65dBc, whichever is the lesser attenuation. For 2 Watts: 55+10Log 10 (2 Watts) = -58 dBc or -65dBc, whichever is the lesser attenuation. For 1 Watt: 55+10Log 10 (1 Watt) = -55 dBc or –65 dBc, whichever is the lesser attenuation. TEST RESULTS: Meets minimum standards ( see data on following pages ) TEST CONDITIONS: Standard Test Conditions, 25 C RF Voltage measured at antenna terminals TEST PROCEDURE: TIA/EIA – 603-C, 2.2.13 TEST EQUIPMENT: 50-Ohm Atten, Bird Electronics Model 50-A-FFN-20 (20dB, 50W) 50-Ohm Atten, Bird Electronics Model 10-A-MFN-10 (10dB, 10W) Power Supply, Hewlett Packard Model 6653A Spectrum Analyzer, HP 8563E Power Meter, Model HP437B Reference Generator, Agilent E8257D High Pass Filter, Mini Circuits BHP-300 TEST SET-UP: Filter By-Pass TEST UNIT ATTENUATORS HIGH PASS FILTER POWER SUPPLY SPECTRUM ANALYZER REFERENCE GENERATOR POWER METER MEASUREMENT PROCEDURE: 1. The transmitter carrier output frequency is 216.050, 219.050 and 221.950 MHz. The reference oscillator frequency is 23.040 MHz. The power amplifier has voltage levels at 11.9 Volts, 8.4 Volts and 8.1 Volts for 12 watts, 2 watts, and 1 watt, respectively. 2. The carrier reference was established on the spectrum analyzer with the filter by- pass in place. Then the spectrum was scanned from DC to 2 Fc. Finally, the high pass filter was inserted to null the carrier fundamental and extend the range of the spectrum analyzer for harmonic measurements above 2 Fc. 3. At each spurious frequency, generation substitution was used to es…
